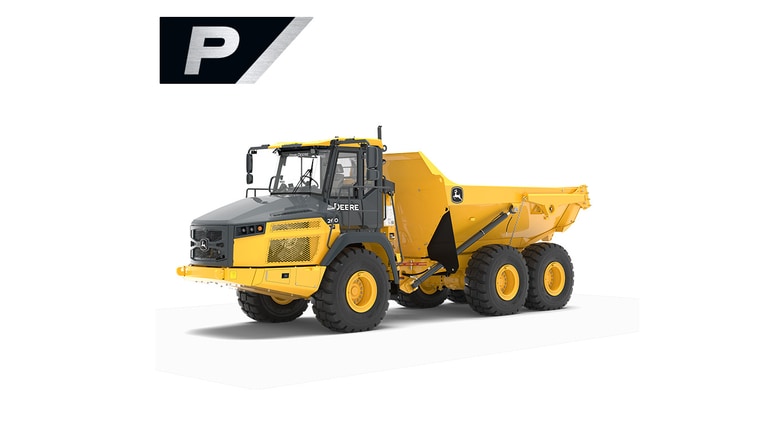

260 P-TierArticulated Dump Truck
- Net Power: 239 kW (321 hp) at 1,900 rpm
- Rated Payload: 24 192 kg (53,334 lb.)
- Heaped Capacity: 15.0 m3 (19.6 cu. yd.)
Features
Expand All
Collapse All
310E dumping the bin in a dirt pile.
Deere-design cab
JDLink™
No more in-field weight calibrations
Articulated dump truck (ADT) with green LED illuminated, meaning the ADT is under the set load
Operator settings in the monitor
460 P-Tier with AVS camera on mirror bow
Rear Camera on an ADT
Advanced Vision System cab view 460 P-Tier
Updated Position Rear Lights
Previous E-II and P-Tier model rear LED lights
New P-Tier updated rear LED lights
AVS monitor with updated rear lights
Auto dump and hill hold
310E dumping the bin in a dirt pile.
Overview
John Deere articulated dump trucks (ADT) now include auto dump and hill hold that eliminate repetitive cycling motions. Automatic dump control allows for the operator to press a button and the machine will automatically dump the bin and controls the other functions necessary.
Benefits
- At the push of a lever, auto dump shifts the transmission to neutral, sets the service brakes, increases engine speed, and initiates body raise.
A quieter, pressurized cab with standard adaptive suspension system
Deere-design cab
Overview
Sealed, pressurized cab helps minimize fatigue. The Deere-designed cab is pressurized to keep things quiet, helping operators stay comfortable and alert, all shift long.
Standard adaptive suspension system adjusts to the jobsite, stabilizing the ride and the cab, for operator comfort no matter the machine cycle, empty or loaded.
Benefits
- 69-dB ultra-quiet Deere-designed cab
- Larger entryway allows roomier entrance and exit
- Fully adjustable air-ride seat makes smooth sailing out of any terrain
- Sealed and pressurized to keep out dust and noise
Additional Details
Streamlined mirror-bow design
- Mirror-bow design increases visibility, reduces vibration, and enables walkthrough access to the engine compartment. Lights on the mirrors help bring onboard weighing into clear focus.
Reverse camera
- Standard reverse camera with choice of display gives the operator visibility to obstacles in the direct path of the machine while backing up.
Auto-horn alerts
- When activated, standard auto horn will automatically sound when the articulated dump truck
(ADT) is started, moves forward or in reverse, or changes direction, to help comply with Mine Safety and Health Administration (MSHA) regulations.
Lighting the way
- Front and rear work lights and optional high-mounted LED lights help illuminate the site. Stairway lights are push-button operated from inside the cab to light machine exits and also from ground level when going to work in dark environments. Stairs are evenly spaced, for more surefooted passage.
In the know and on the go with onboard diagnostics
JDLink™
Overview
This suite of construction technology delivers Productivity Solutions to help you get more done, more efficiently. The in-base, five-year JDLink telematics subscription provides machine location, utilization data, and alerts to help you maximize productivity and efficiency. Other productivity solutions include grade-management options for multiple machine forms and payload weighing for wheel loaders and articulated dump trucks.
Benefits
- To maximize uptime and lower costs, JDLink telematics also enables John Deere Connected Support.™
- John Deere’s centralized Machine Health Monitoring Center analyzes data from thousands of connected machines, identifies trends, and develops recommended actions, called Expert Alerts, to help prevent downtime.
- Dealers use Expert Alerts to proactively address conditions that may otherwise likely lead to downtime.
- Your dealer can also monitor machine health and leverage remote diagnostics and programming capability to further diagnose problems and even update machine software without a time-consuming trip to the jobsite.
Additional Details
No more in-field weight calibrations
- Optional onboard weighing system arrives factory calibrated. Payload weight is displayed on the monitor during loading, with real-time load and tonnage data transmitted via JDLink™, access to accurate payload values removes the guesswork from daily production levels, increasing uptime and efficiency
Smart Features to boost productivity and uptime
Articulated dump truck (ADT) with green LED illuminated, meaning the ADT is under the set load
Overview
Smart features such as on-the-fly auto-differential lock, tire-pressure monitoring, and onboard payload weighing all boost productivity and uptime, while helping to keep operating costs down.
Benefits
- Optional onboard weighing system arrives factory calibrated. Payload weight is displayed on the monitor during loading, with real-time load and tonnage data transmitted via JDLink™, access to accurate payload values removes the guesswork from daily production levels, increasing uptime and efficiency.
- Optional integrated tire-pressure/temperature-monitoring system helps boost tire life, productivity, and fuel efficiency. If pressure drops by 10 percent, a passive alarm appears on the monitor. Further decreases or overheating trigger an audible warning, and an email alert is sent via JDLink.
Standard Onboard Features to Help Ease Operation
Operator settings in the monitor
Overview
There are multiple owner and operator settings for features available in the monitor. Intuitive to use and easy to adjust, these features eliminate some of the operator inputs, allowing them to focus more on moving material efficiently. The best part is that all of these features are standard on John Deere articulated dump trucks (ADT).
Benefits
- Rollover protection - Alerts the operator to a potential unsafe dump angle and stops the dump cycle. Set at 15 percent from the factory this setting can also be user defined by accessing the owner setting in the monitor.
- Downhill dump protection - Automatically calculates the truck position to make sure the dump body doesn’t travel over-center when dumping downhill.
- Auto dump brake - With auto dump brake enabled and driveline assist active, the service brakes will latch when unloading the machine.
- Hill hold - When stopping on an uphill slope, the truck will automatically keep the service brakes applied while the operator moves their foot from the brake pedal to the throttle to keep the truck from rolling backward.
- Frame protection - If a dump is stopped before material is shed out of the bin, the truck will cushion the bin travel back to cradle to prevent a full bin from aggressively seating onto the frame.
- Shuttle shifting - The transmission may be shifted direction without the truck coming to a stop improving cycle times and eliminating operator abuse
- Descent control - When activated by the operator, this setting will help automatically control the truck speed when driving down a descent through automatic use of the transmission retarder. Check decal on window for speed and gear limitations.
- Dump body limits - The maximum dump height can be restricted from full dump when working around low overhead obstacles.
- Transmission warm-up - At truck start up, the transmission will automatically begin a warm-up cycle. This improves not only ride and shift quality but also increases daily productivity by getting the transmission up to operating temperature quickly.
- Speed limits – Max speed limit can be set in the monitor to match jobsite conditions or site requirements, reducing complexity for the operator.
Improve Operator Awareness with Advanced Vision System
460 P-Tier with AVS camera on mirror bow
Overview
For improved operator experience and situational awareness, John Deere Articulated Dump Trucks come with varying levels of vision systems and object detection to increase visibility and situational awareness from the operator’s seat.
Rear Camera
The rear-view camera is mounted at the rear of the truck and displayed through the 8-in. center mounted dedicated machine display. Rear view cameras improve operator awareness behind the machine and are mandatory for some customers. The rear-view camera is available as a factory option or can be added later as a field kit.
Rear Camera on an ADT
Advanced Vision System
The Advanced Vision System adds additional cameras to enhance operator situational awareness. The additional cameras provide a larger field of view for jobsite surroundings and different viewing options to. Advanced Vision offers customers customized approach for each jobsite. Updated articulation sensors provide dynamic panning capabilities. This allows the cameras to automatically pan when in reverse to maximize visibility on the jobsite.
Advanced Vision System cab view 460 P-Tier
AVS Components:
- Right & Left Mirror Bow Camera
- Front Grille Camera
- Rear Camera
- Rear/Front Display
- Left & Right Display
- Includes Powered Mirrors
Updated rear lighting
Updated Position Rear Lights
Previous E-II and P-Tier model rear LED lights
New P-Tier updated rear LED lights
AVS monitor with updated rear lights
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 260 P-Tier Articulated Dump Truck |
TELEMATICS
| Telematics Available | Yes |
|---|
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 6090 | |||
| Displacement, ltr (Inches³) | 9 (549) | |||
| Rated Speed, rpm | 1900 | |||
| Engine Output - Net, kW (hp) | 239 (321) | |||
| Transmission Type | Countershaft | |||
| Final Drive | Planetary | |||
| Steering Type | Articulated | |||
| Secondary Steering Type | Ground Driven Pump | |||
| Differential Lock | F: 100 / R: 100 | |||
| Tire size - Standard | 23.5 R25 | |||
| Front Suspension - Type | A-Frame | |||
| Front Suspension | Nitrogen/Oil-Filled Struts - Auto Levelling | |||
| Rear Suspension - Type | Pivoting Walking Beam | |||
| Rear Suspension | Rubber Suspension Blocks | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Disc | |||
| Retarder - Type | Transmission |
DIMENSIONS
| Length - Overall, mm (ft/in) | 9740 (31 ft 11 in) | |||
|---|---|---|---|---|
| Height - Max, mm (ft/in) | 3660 (12 ft ) | |||
| Width over Tires, mm (ft/in) | 2850 (9 ft 4 in) | |||
| Hoist - Type | Twin, 1-Stage | |||
| Power Down | Yes | |||
| Approach Angle, Degrees | 24 | |||
| Articulation Angle, ± Degrees | 45 | |||
| Turning Radius - Outside, mm (ft/in) | 8020 (26 ft 4 in) | |||
| Turning Radius - Inside, mm (ft/in) | 4270 (14 ft ) | |||
| Turns lock to lock | 4.2 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 496 (131) | |||
|---|---|---|---|---|
| Struck Capacity, m³ (yd³) | 11.7 (15.3) | |||
| Heaped Capacity, m³ (yd³) | 15 (19.6) |
PERFORMANCE
| Gears - Forward / Reverse | 8F - 4R |
|---|
WEIGHTS
| Net Weight, kg (lbs) | 22494 (49591) | |||
|---|---|---|---|---|
| Payload, kg (lbs) | 24192 (53334) | |||
| Gross Weight, kg (lbs) | 46686 (102925) |
