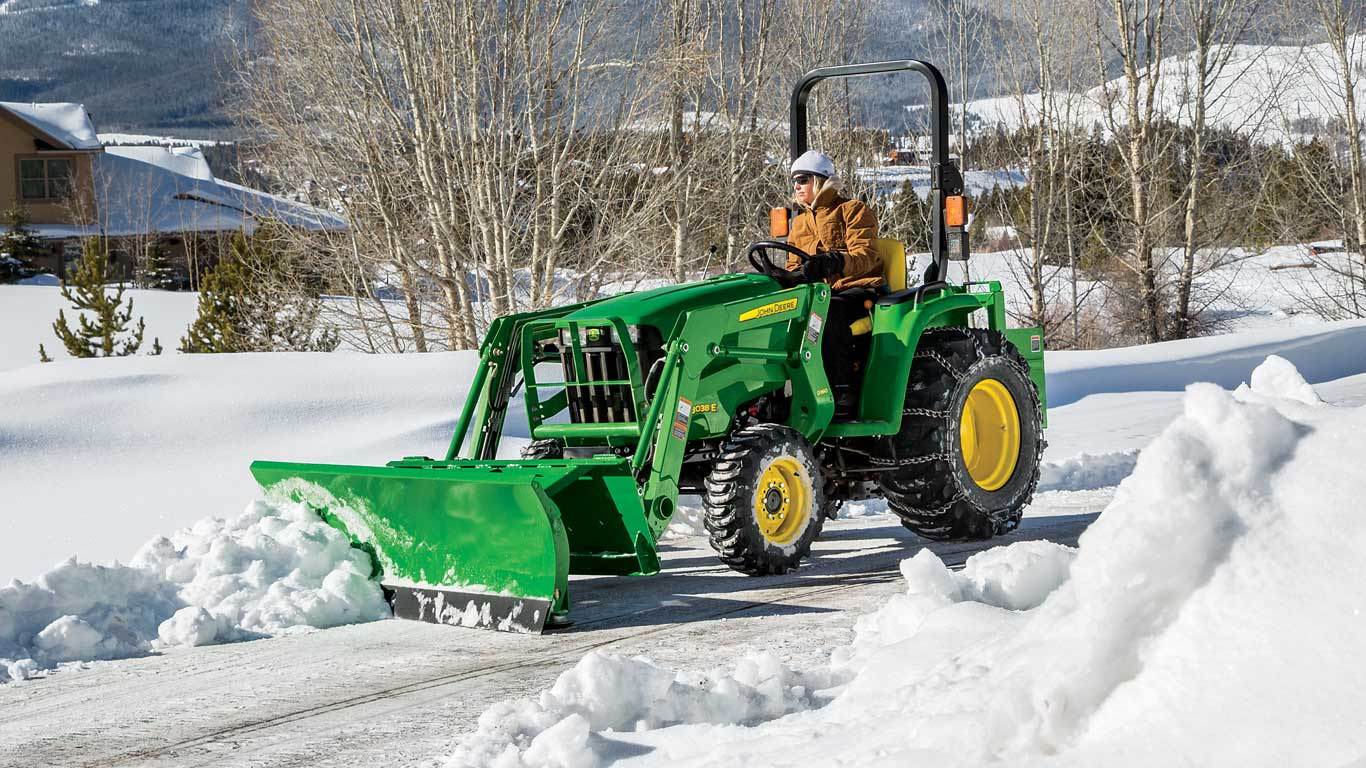

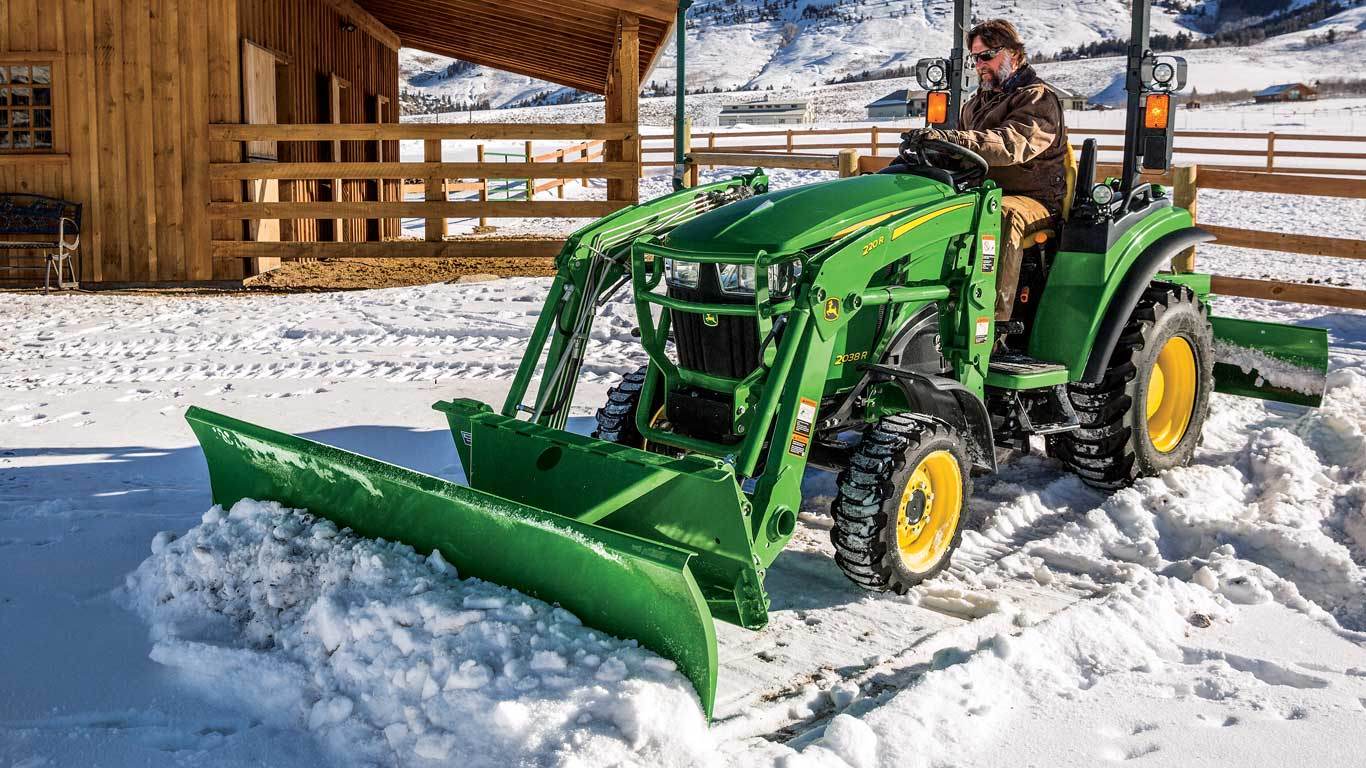

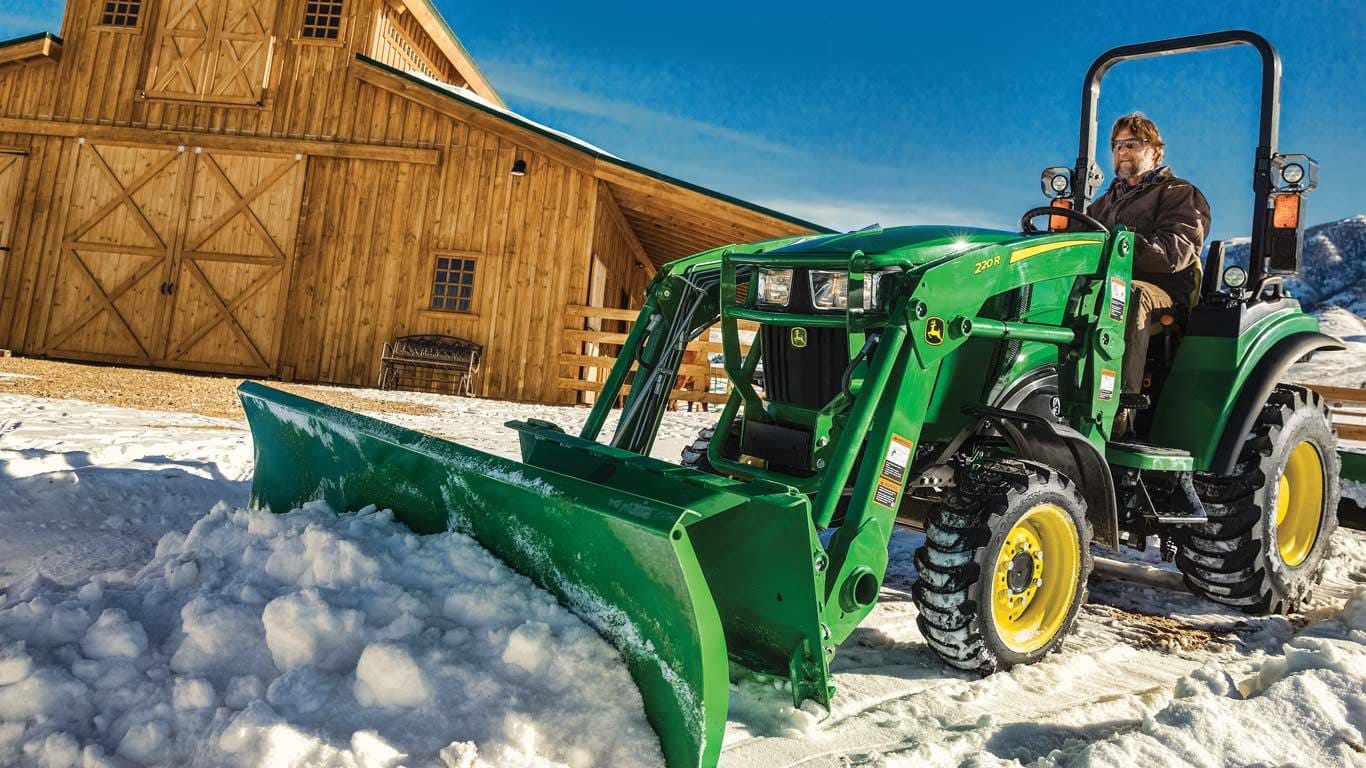

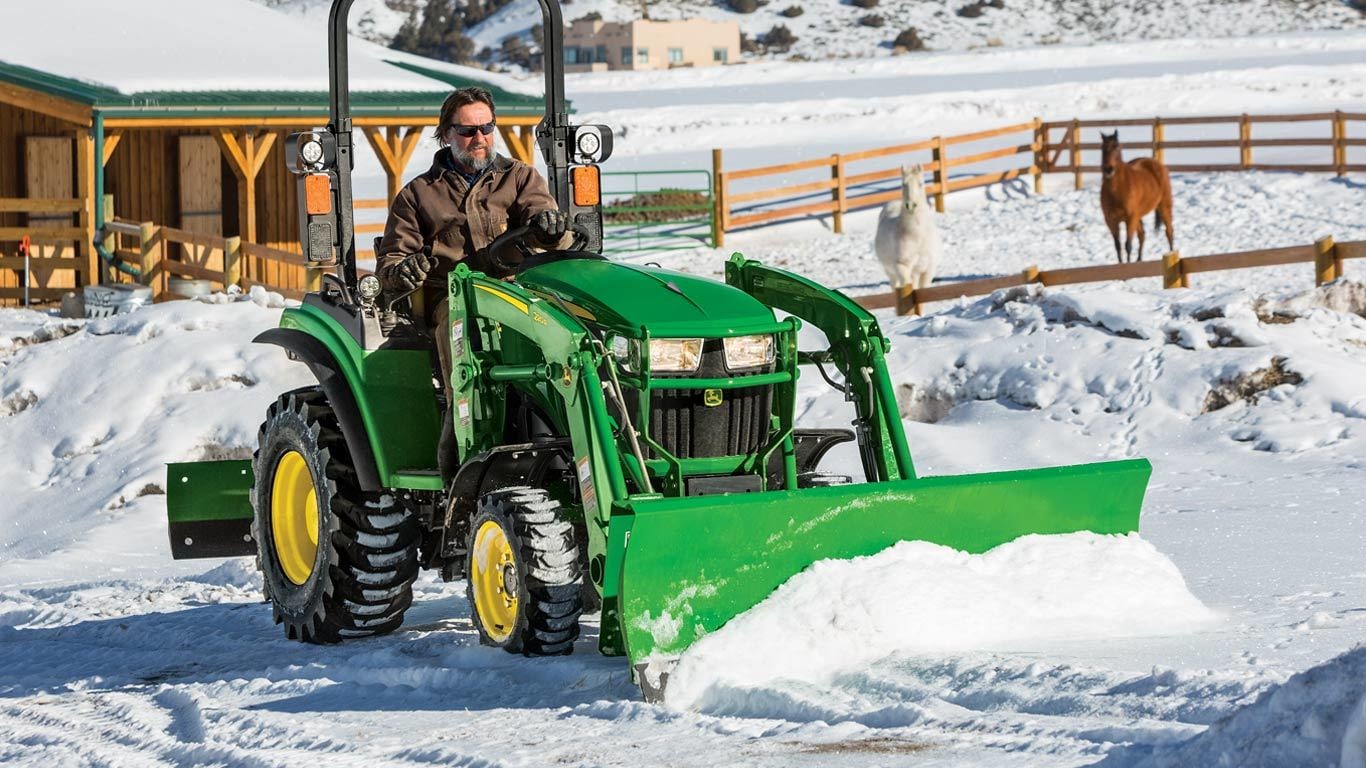

AF11D SeriesFront Blades
- Reversible cutting edges
- Heavy-duty frame
- Quick and easy attachment
Features
Expand All
Collapse All
AF11 and AF12 Series cutting edge
AF11 and AF12 Series Front Blades are built strong
AF11 Series and AF12 Series Front Blades angle adjustment
AF11E and AF12E connecting points
AF11 and AF12 Series frame

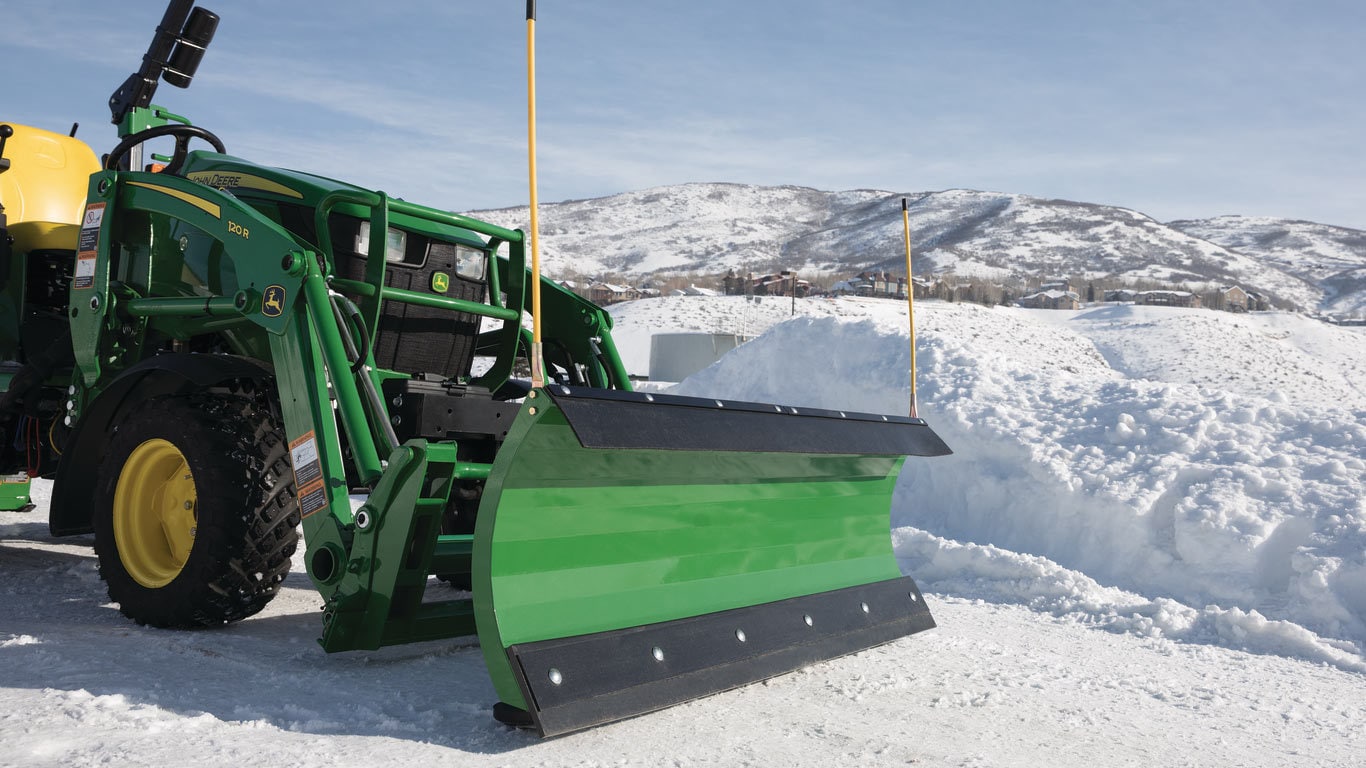

Twice the durability and work life with reversible cutting edges
AF11 and AF12 Series cutting edge
The heat-treated steel cutting edge on the Frontier AF11 and AF12 Series Front Blades are reversible for twice the durability and work life.
Frame is heavy-duty for long, dependable implement life
AF11 and AF12 Series Front Blades are built strong
The loader-mounted front blade is made of heavy-duty steel to resist bending and provide longer wear capability on the Frontier™ AF11 and AF12 Series Front Blades.
Hydraulic angle adjustment for hard-to-reach places
AF11 Series and AF12 Series Front Blades angle adjustment
The hydraulically controlled angle can be adjusted 30 degrees to each side to overcome the toughest spots. This feature saves time and creates professional-grade results. A loader third-function hydraulic line is required.
NOTE: AF11E models have an optional hydraulic angle adjustment available.
Quick-Tatch™ system for quick and easy attachment
AF11E and AF12E connecting points
AF11 and AF12 Series frame
Attaching the Frontier AF11 and AF12 Series Front Blades to a John Deere loader is easy with the Quik-Tatch feature. Just line up the loader's connecting points to the attachment frame; then, lock the frame in place.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere AF11D Series Front Blades |
Dimensions
| Width | 213.4 cm 84 in. |
|||
|---|---|---|---|---|
| Height | 58.4 cm 23 in. |
|||
| Depth | 121.9 cm 48 in. |
|||
| Cutting width | 213.4 cm 84 in. |
Attachment carrier
| Current series style | 600, 700 |
|---|
Weight
| Operational | 331.1 kg 730 lb |
|||
|---|---|---|---|---|
| Shipping | 353.8 kg 780 lb |
Moldboard
| Thickness | 10 gauge 3.4 mm 0.13 in. |
|||
|---|---|---|---|---|
| Height | 80.8 cm 31.8 in. |
Angle/pivot
| Standard adjustment | Hydraulic | |||
|---|---|---|---|---|
| Degrees (each side) | 30 |
Hydraulic cylinders
| Type | Two double-acting |
|---|
Skid shoes
| Standard | Yes |
|---|
Set-up time
| Labor hours | 0.5 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
-
AF10F Front Blade -
AF11D Series Front Blades -
AF11E Series Front Blades -
AF11G Series Front Blades -
AF12D Series Front Blades -
AF12G Series Front Blades -

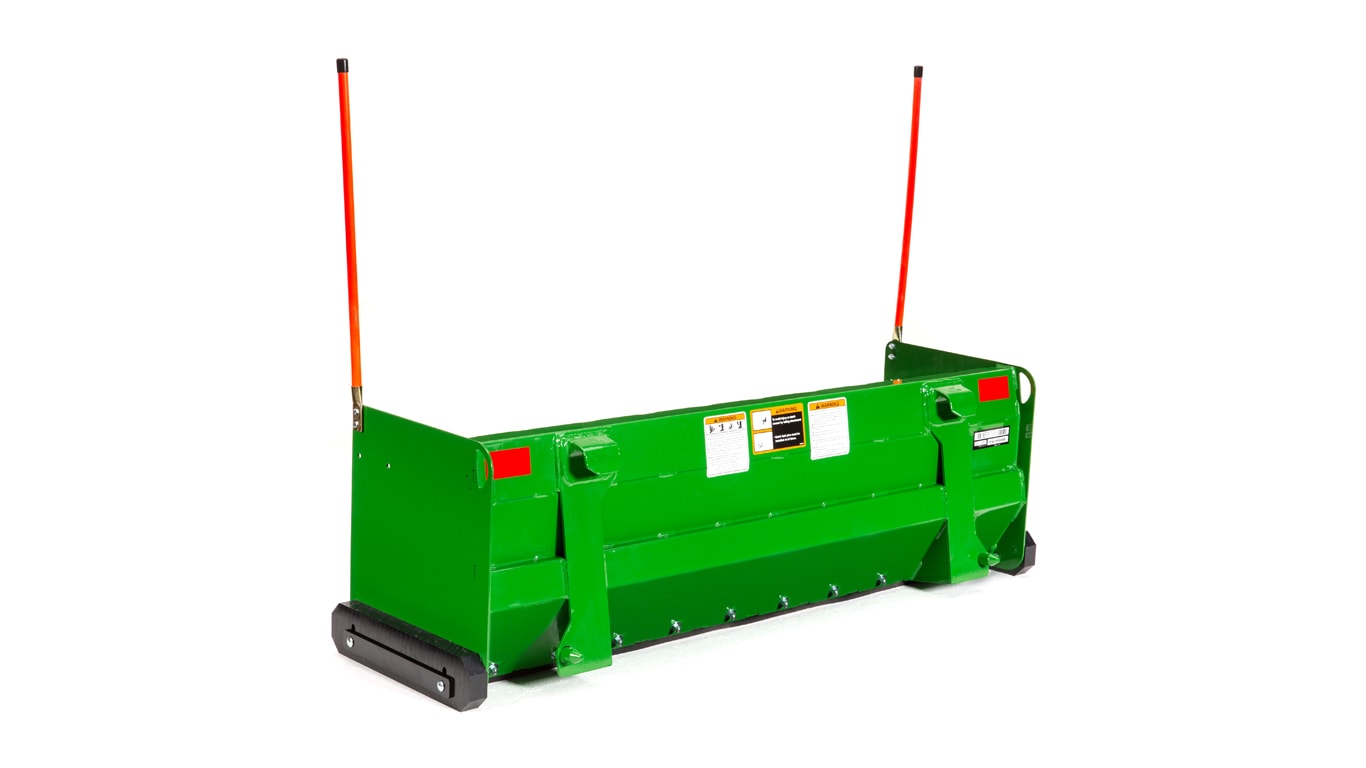

AS10F Series Snow Pushes -
AS10H Series Snow Pushes -
AS11E Series Snow Pushes -

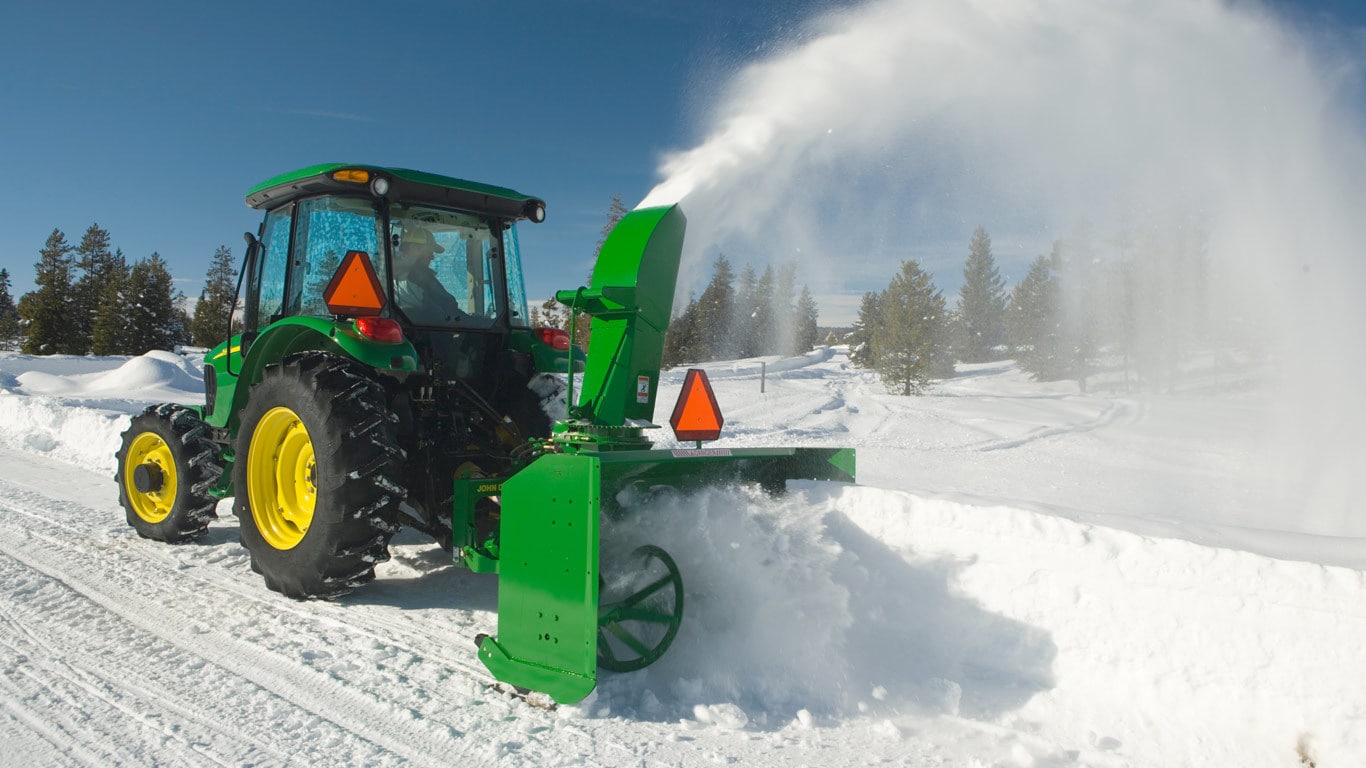

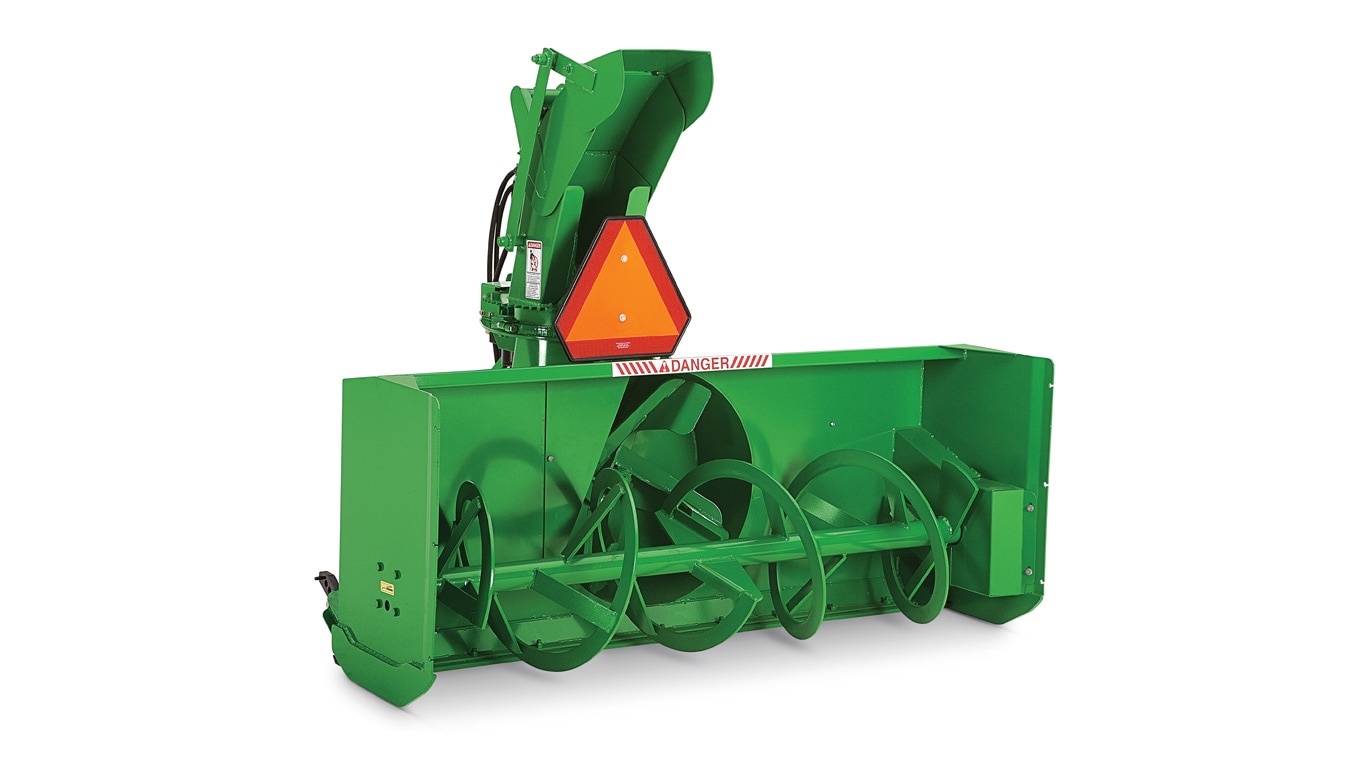

SB11 Series Snowblowers -
SB11P Series Pull Type Snowblowers -
SB12 Series Snowblowers -
SB13 Series Snowblowers -
SB21 Series Snowblowers -

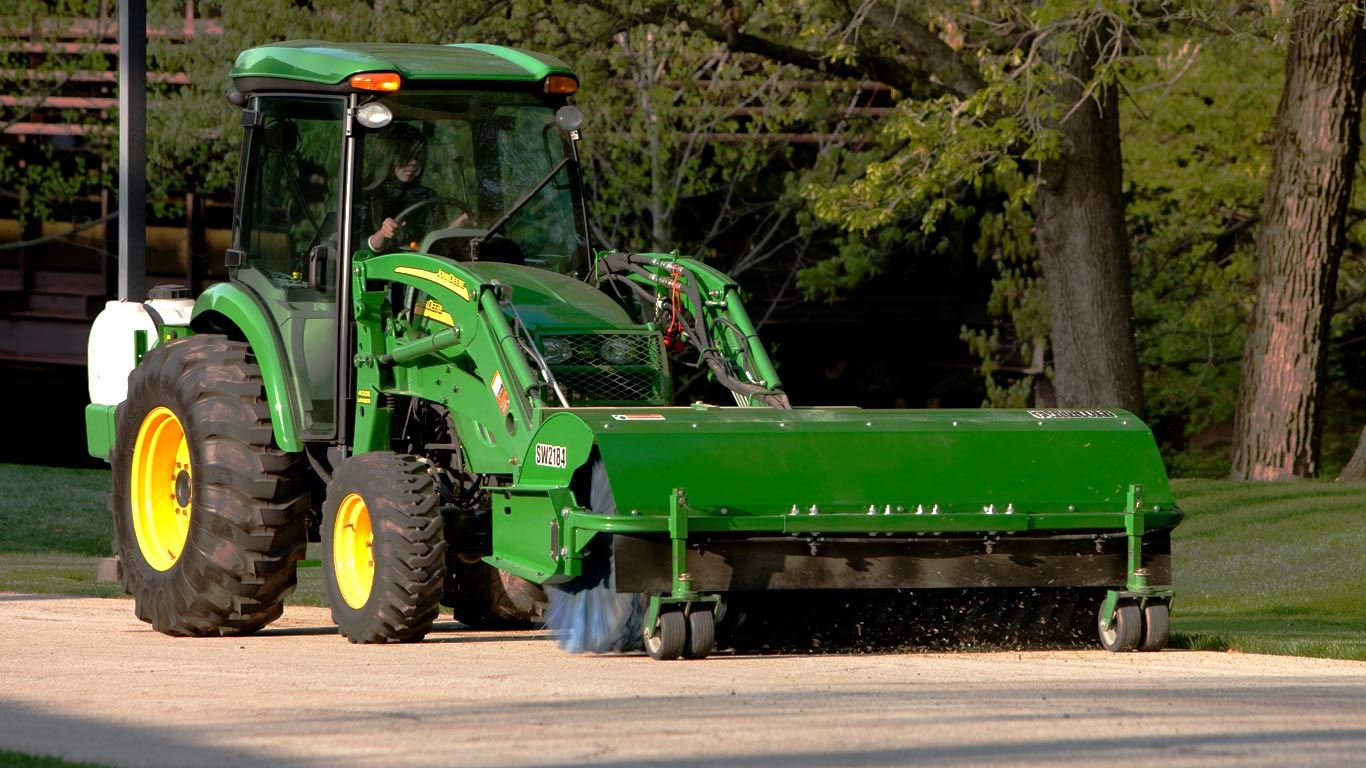

SW21 Series Rotary Brooms
