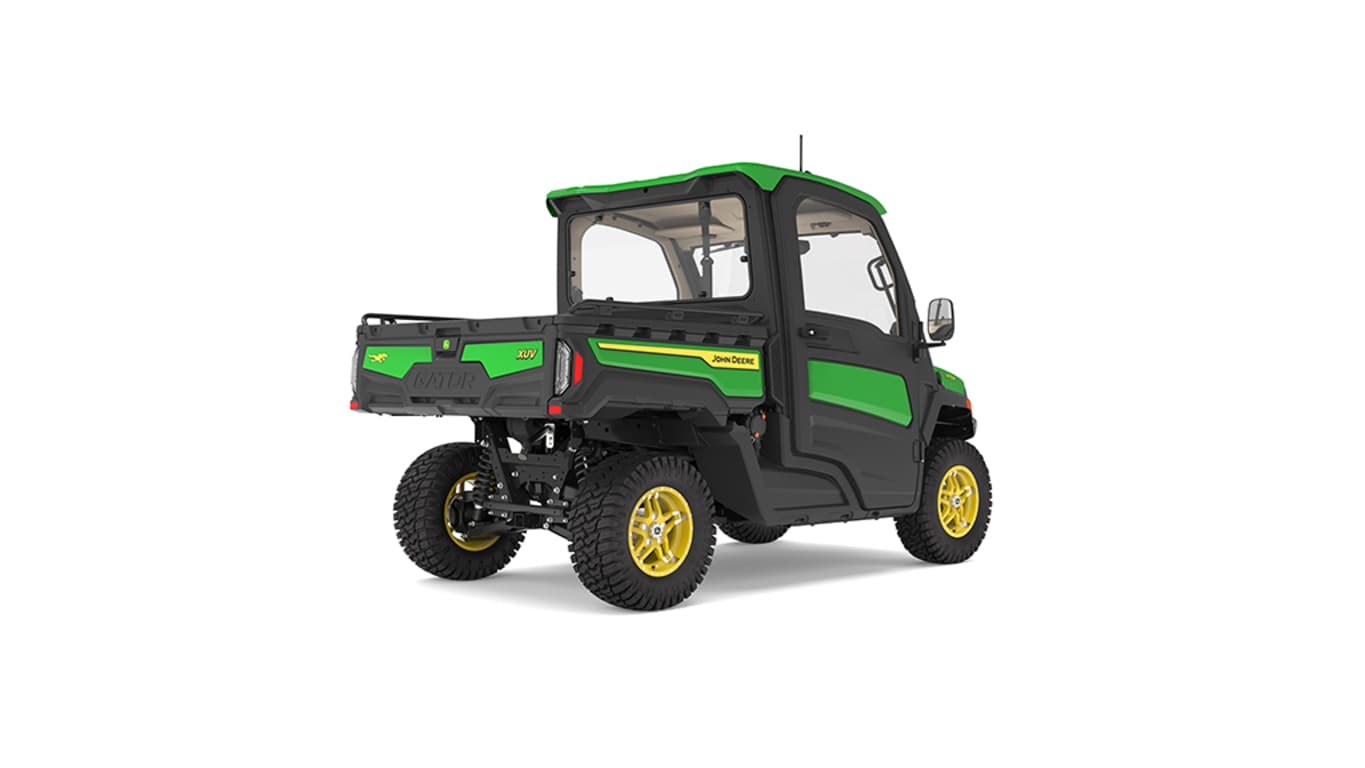

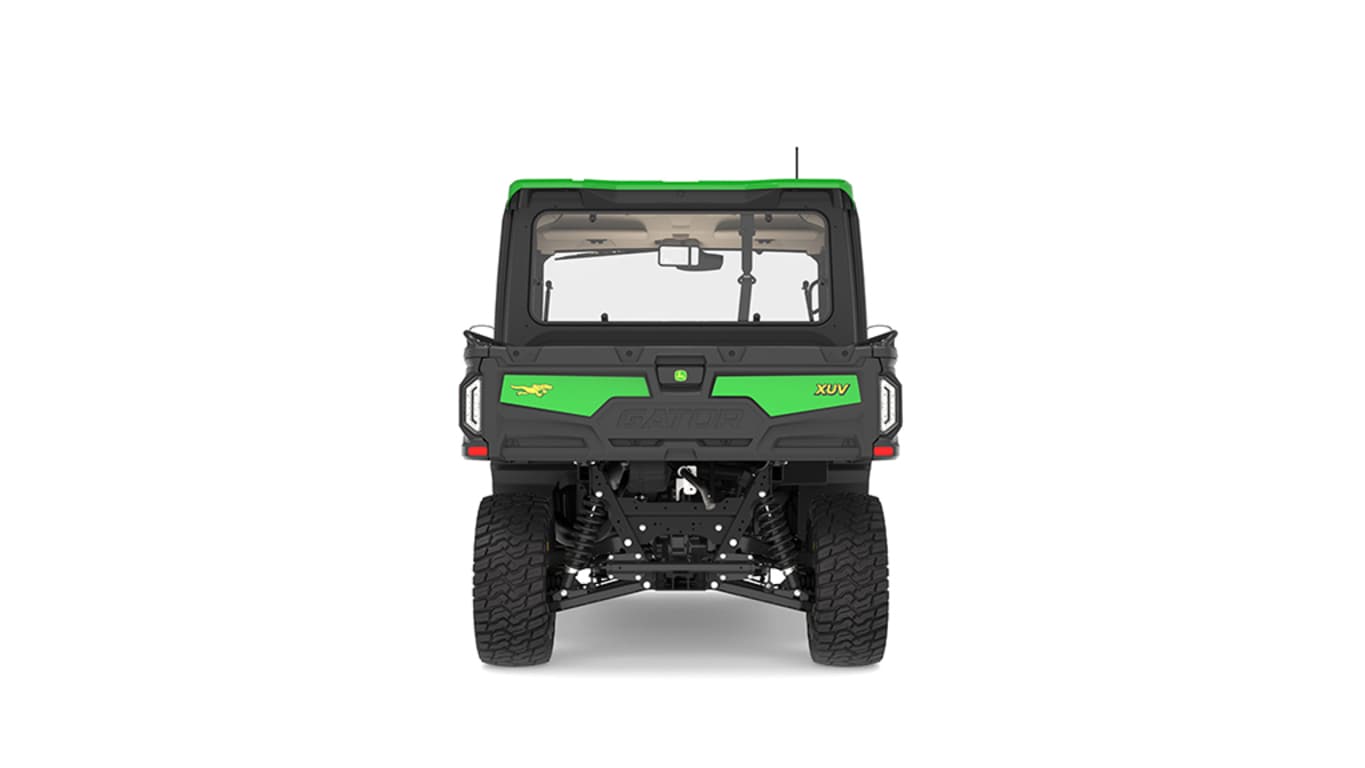

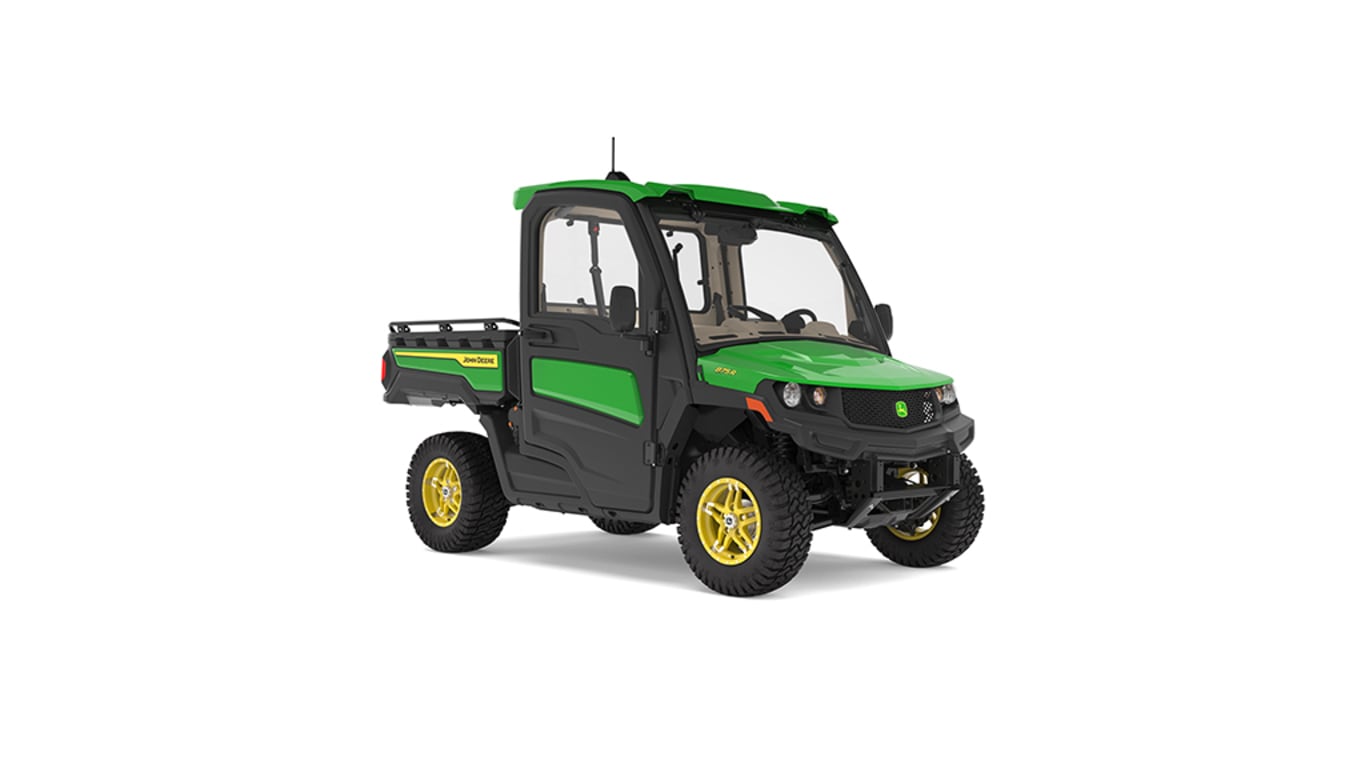

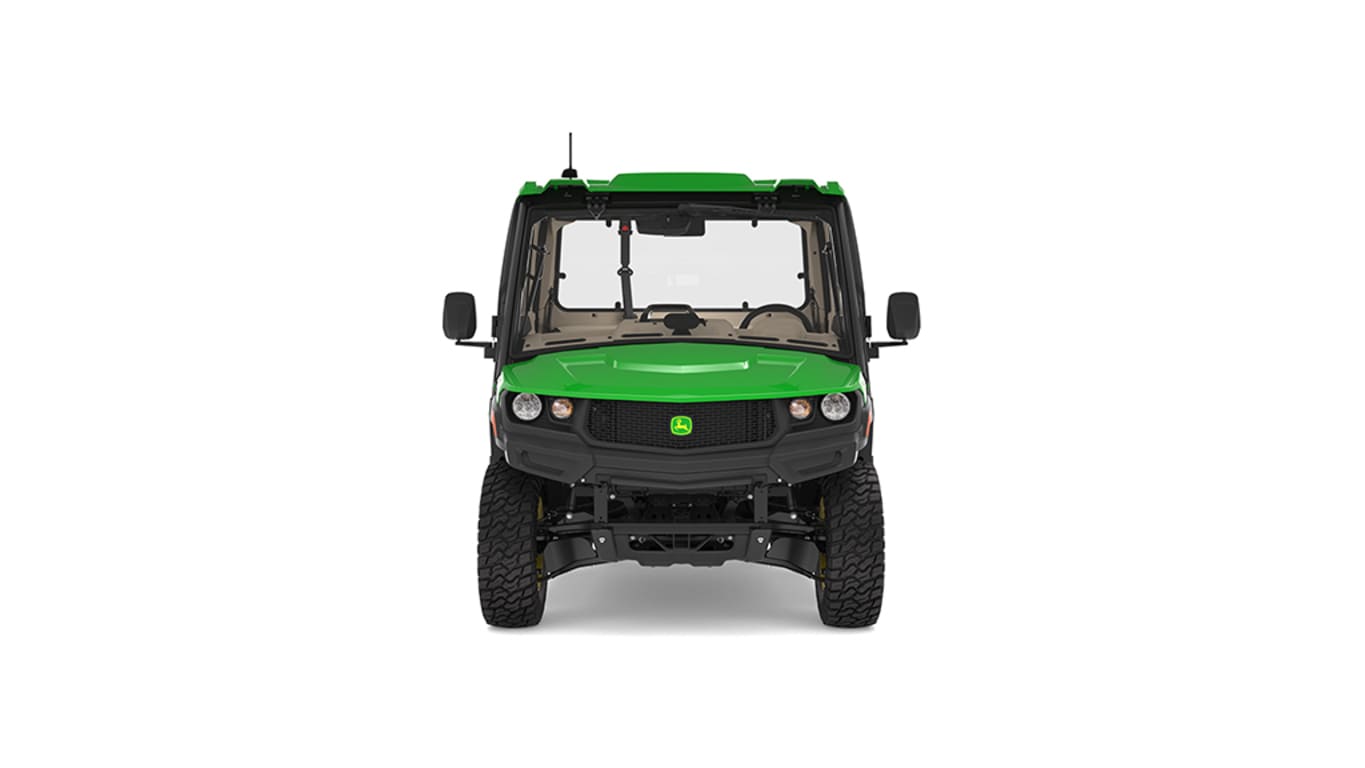

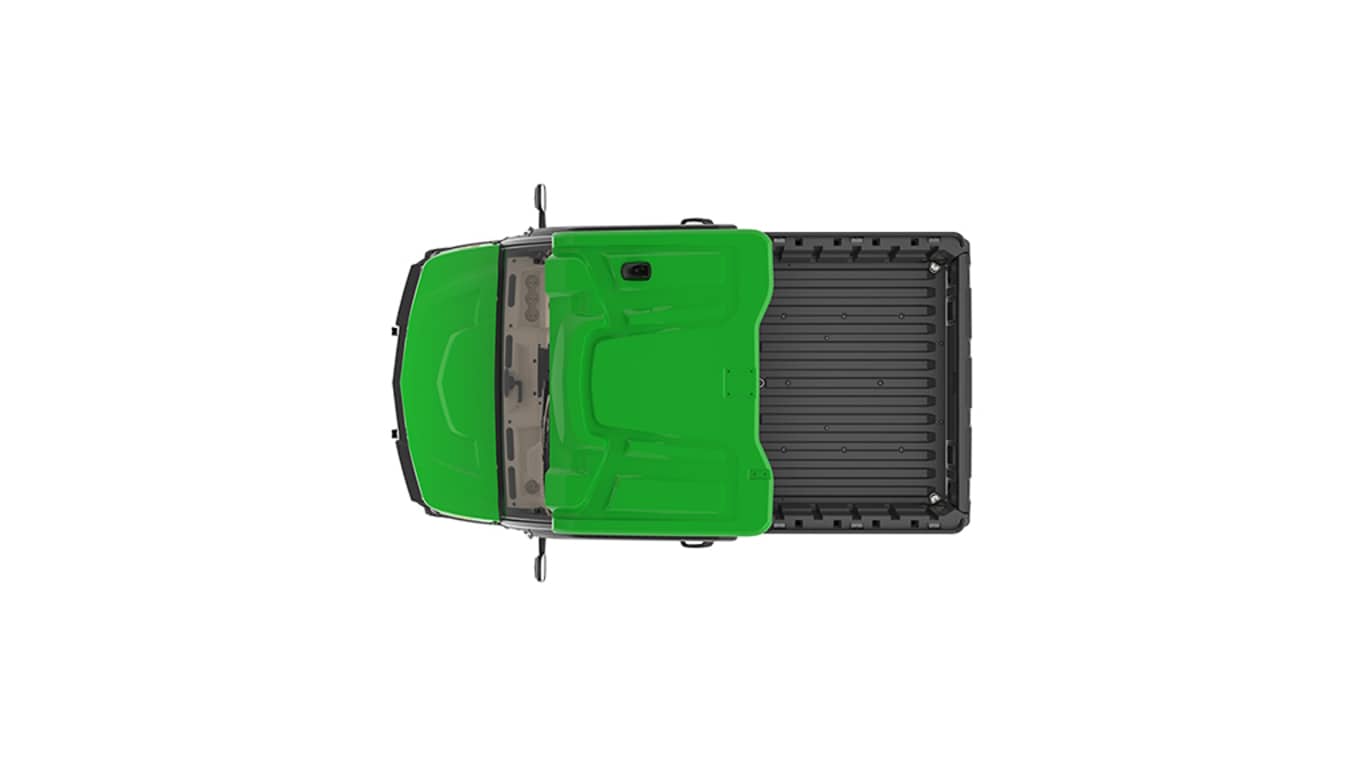

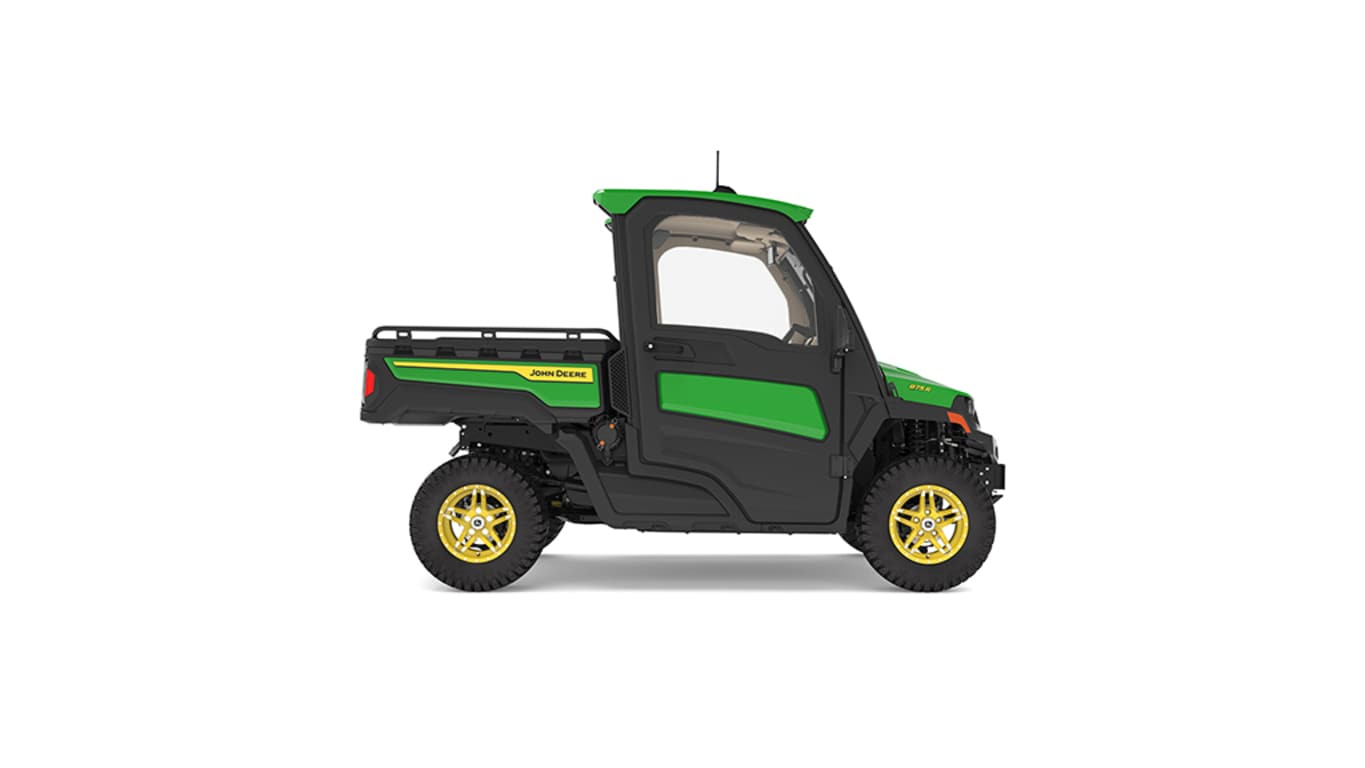

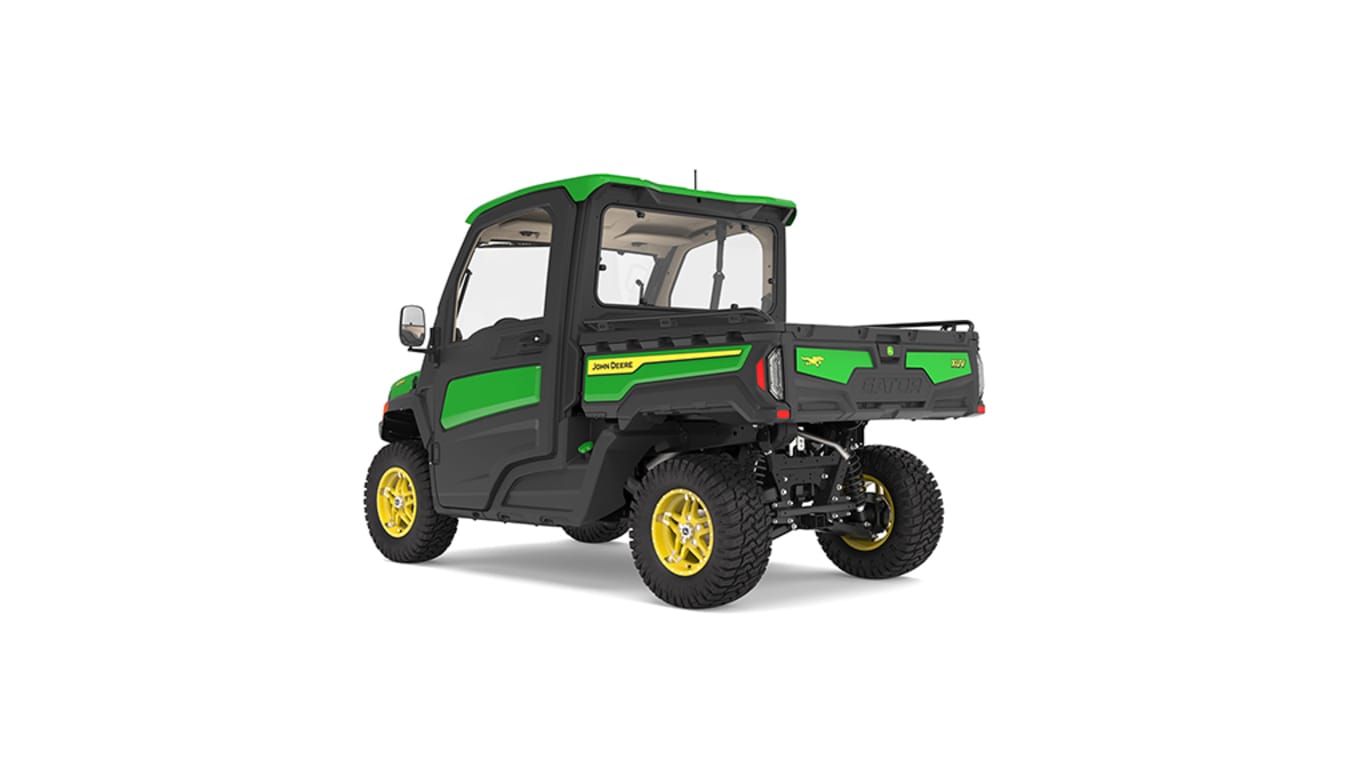

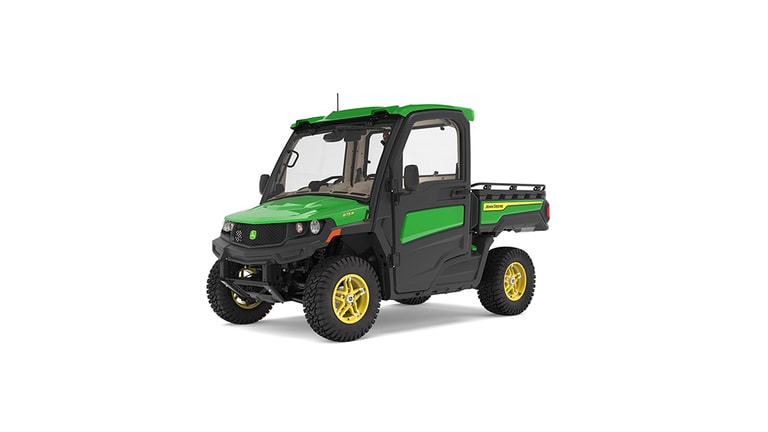

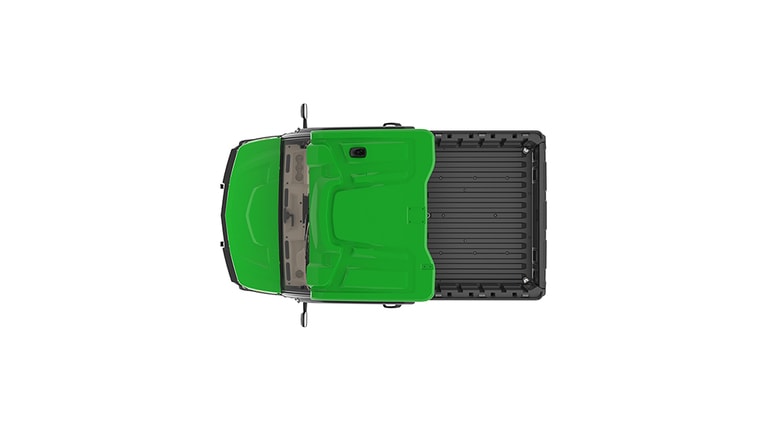

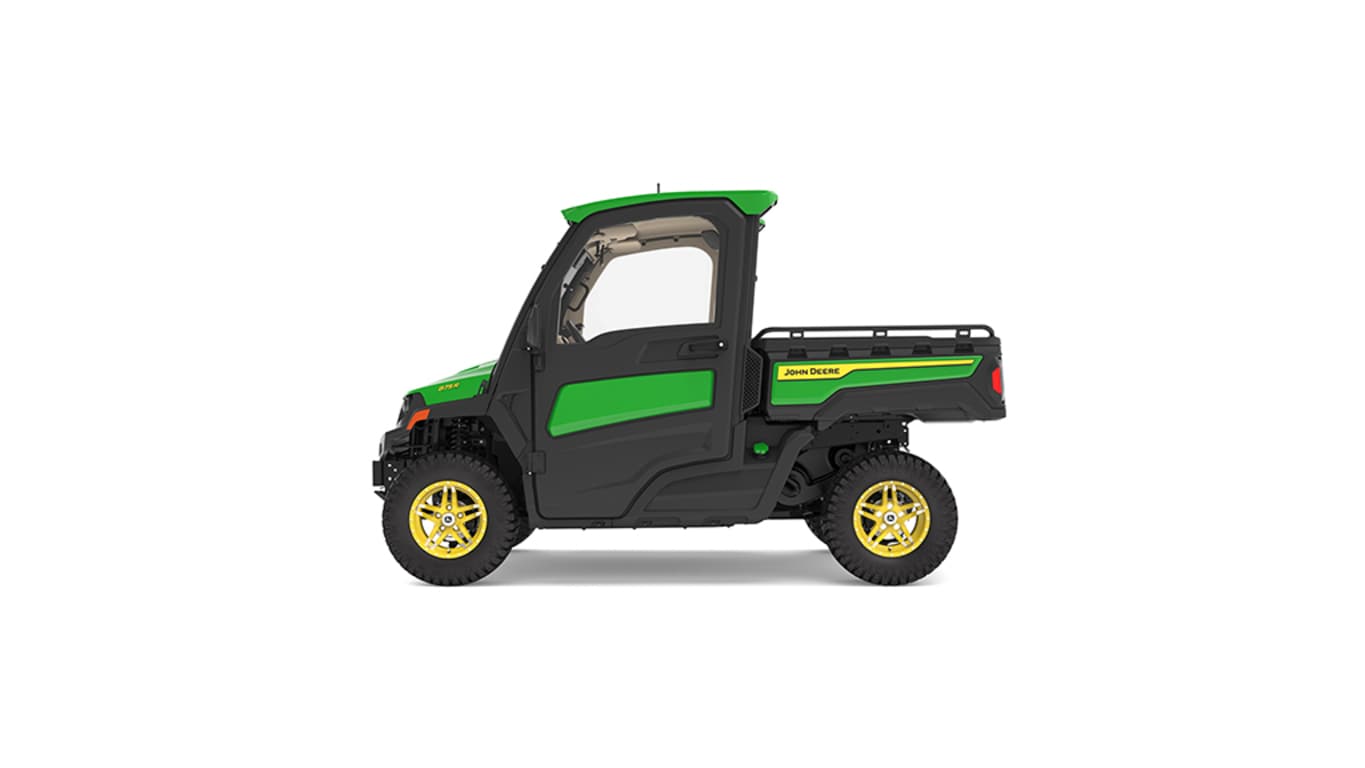

XUV 875R Premium Cab DieselCrossover Utility Vehicle
- Premium HVAC cab with easy-to-clean vinyl seats
- Powerful diesel engine with up to 1814 (4,000-lb) towing capacity
- Cargo box power lift
- Standard radio
Specs & Compare | ||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John Deere XUV 875R Premium Cab Diesel Crossover Utility Vehicle |
Engine power | 17.0 kW 22.8 hp |
|||
---|---|---|---|---|
Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
|||
Cargo box volume | 524 L 18.5 cu ft |
|||
Cargo box capacity (weight) | 454 kg 1000 lb |
|||
Towing capacity | Up to 1814 kg 4000 lb |
|||
Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel | |||
Final drive | Park, high, low, neutral, reverse transaxle | |||
Four wheel drive | Dash switch actuated four-wheel drive system | |||
Fuel capacity | 42.4 L 11.2 U.S. gal. |
Type | 4-cycle diesel | |||
---|---|---|---|---|
Displacement | 854 cc | |||
Power | 17.0 kW 22.8 hp |
|||
Cooling system | Liquid |
Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
---|---|---|---|---|
Final drive | Park, high, low, neutral, reverse transaxle | |||
Four wheel drive | Dash switch actuated four-wheel drive system | |||
Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock | |||
Descent control | Yes |
Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
---|---|---|---|---|
Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Type | Front/rear hydraulic disc with twin piston front calipers | |||
---|---|---|---|---|
Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels |
|||
---|---|---|---|---|
Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on alloy wheels |
Wheelbase | 2211 mm 87 in. |
|||
---|---|---|---|---|
Weight | With fuel and fluids: 1096 kg 2417 lb |
|||
Length | 3250 mm 128 in. |
|||
Width | Mirrors folded: 1790 mm 70.5 in. |
|||
Height | With antenna: 2135 mm 84.1 in. |
|||
Tread centers | Front: 1376 mm 54.2 in. Rear: 1300 mm 51.2 in. |
|||
Ground clearance | Unloaded: 305 mm 12 in. |
|||
Fuel capacity | 42.4 L 11.2 U.S. gal. |
|||
Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
|||
Cargo box volume | 524 L 18.5 cu ft |
|||
Cargo box capacity (weight) | 454 kg 1000 lb |
|||
Payload capacity | 446 kg 983 lb |
|||
Towing capacity | Up to 1814 kg 4000 lb |
|||
Hitch | Standard receiver: 5.1 cm 2 in. |
Color | Green and yellow, TrueTimber® KANATI® camo, olive and black | |||
---|---|---|---|---|
Power steering | Yes | |||
Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V Cargo box power port: 12 V |
|||
Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) | |||
Storage | Total: 66.8 L 17.6 gal. Six cup holders: 4.6 L 1.2 gal. Center tray: 1.2 L 0.3 gal. Two dash bins: 3.3 L 0.9 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. |
|||
Seating | Two-tone vinyl 40/60 split three-passenger bench |
Country of Manufacture | U.S. | |||
---|---|---|---|---|
Date collected | 11-Jun-24 |
*Manufacturer's suggested price in CAD. MSRP may be different in California. Shown with optional equipment not included in the price. Attachments and implements sold separately. Taxes, destination charge, freight, setup, and delivery not included. Equipment, models, features, options, attachments and prices may vary by dealer. John Deere reserves the right to change specifications, model features, design, and price of the products described here without notice. Before operating or riding, always refer to the safety and operating information on the vehicle, and in the Operator's Manual. Actual vehicle top speed may vary based on belt wear, tire selection, vehicle weight, fuel condition, terrain and other environmental factors. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer's website for additional information.
Images of equipment models may be digitally generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect all features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
