the new X9

X Series Combines


Up to 7,200 bushels per hour2 in high-yielding corn

When you need maximum productivity for maximum profitability, you need an X9 Combine. These rugged combines deliver an average of 45% more harvesting capacity across all crop types, with no sacrifice in grain quality – all while using 20% less fuel1. The X9 1100 can harvest up to 30 acres an hour in wheat: in high-yielding corn it delivers up to 7,200 bushels (253,721 liters) per hour2, which means you can fill up to 7 semi-trailers per hour.3

    • 4.6 bu/s (162.1 liters/s) peak unload rate
    • 420-bushel (14,800-liter)
power folding grain tank
    • PowerTech™ 13.6L engine
    • 630 max engine horsepower
    View X9 1000
    • 5.3 bu/s (186.7 liters/s) peak unload rate
    • 460-bushel (16,210-liter) power folding grain tank
    • PowerTech™ 13.6L engine
    • 690 max engine horsepower
    View X9 1100

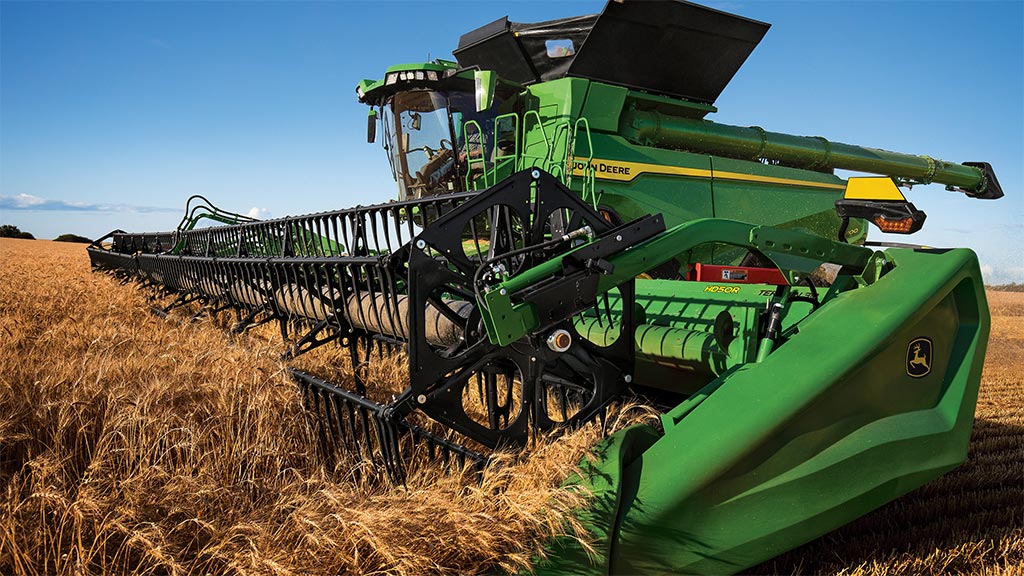

Photo of an X9 Combine harvesting wheat with a draper head. Graphics simulate front cameras scanning the crops, which comes with Predictive Ground Speed Automation

Predictive Ground Speed Automation

The optional Ultimate Technology Package includes Predictive Ground Speed Automation. Using two forward, cab-mounted stereo cameras, the X9 constantly measures crop height and volume – while pre-harvest satellite field images generate a predictive field map. The combine takes this data and automatically adjusts ground speed BEFORE entering changing crop areas. Feel confident to maintain peak feed rates all day long, even in inconsistent crop conditions. That helps you increase combine capacity while minimizing grain loss.

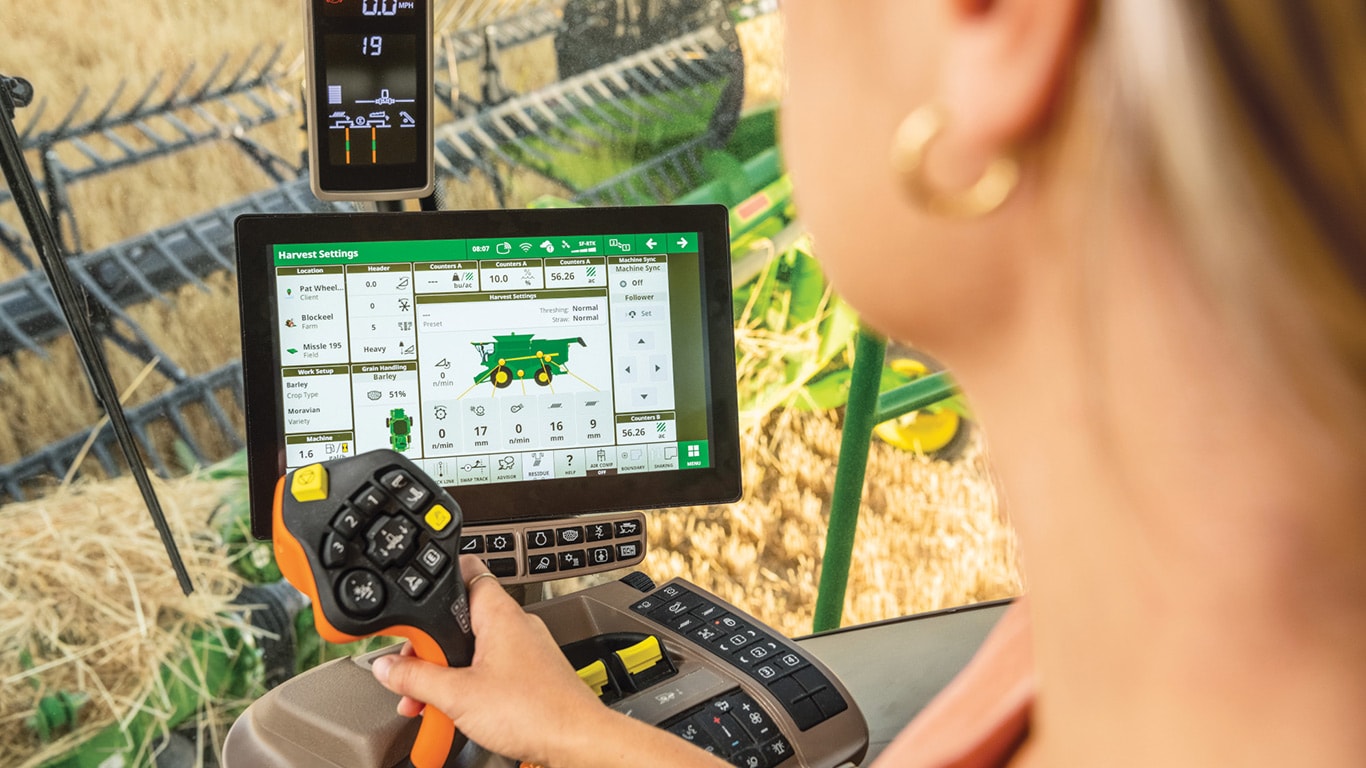

Close-up photo of a G5Plus CommandCenter™ Display showing the Harvest Settings Automation run page

Harvest Settings Automation

Harvest Settings Automation – included in the Premium and Ultimate Technology Packages – makes it easier than ever to set the specific outcomes you expect. Using your G5Plus Display, simply set acceptable limits for grain loss, foreign material, and broken grain. Once set, the combine automatically adjusts itself to deliver the performance you want. No more manually adjusting rotor speed, fan speed, and concave, chaffer, and sieve clearances. The combine does it for you according to outcomes you’ve already prescribed. That gets you into crops faster and reduces the things you have to constantly monitor.


Photo of the Dual Separator that comes on a John Deere X9 Combine. Shown on a white background

Dual separator

Two 24-inch (60.96 centimeters) rotors with an increased threshing area of 45% and separating area of 80%4 for better threshing and separating in high-volume crops.

Photo of the Cleaning Shoe that comes on a John Deere X9 Combine. Shown on a white background

Cleaning shoe

New shoe offers 36%1 more cleaning area to effectively put clean grain in the tank in the toughest harvesting conditions.

Photo showing the bigger threshing area of the X9 Combine. Shown on a white background

Bigger on the inside

Even with 45% more threshing area4, and 80% more separating area4, the outside dimensions are about the same as the S7 900, for tight turns and narrow transport.


Photo of an uninstalled John Deere 13.6-liter engine that's in John Deere X9 Combines

A more efficient engine

A new John Deere 13.6-liter engine delivers up to a 45% increase in harvesting capacity, while only needing 11% more horsepower than an S7 9001.

Photo/illustration showing the ProDrive™ XL Transmission

Seamless speed control

30%1 more torque to handle larger loads with a smooth power increase with the new ProDrive™ XL transmission.

Photo/illustration showing the belt-drive system that's in the John Deere X9 Combine

Belt-drive system

Our simplified belt-drive system uses larger pulleys and longer belts to improve the handoff of power and belt wear-life1.

Photo/illustration showing internal systems that helps the John Deere X9 Combine use 20% less fuel

20% less fuel1

It's not just the engine that delivers lower fuel costs, it's every aspect of the design. The belts, transmission, residue system, rotors, and lower RPM all play a role in saving you money on fuel.

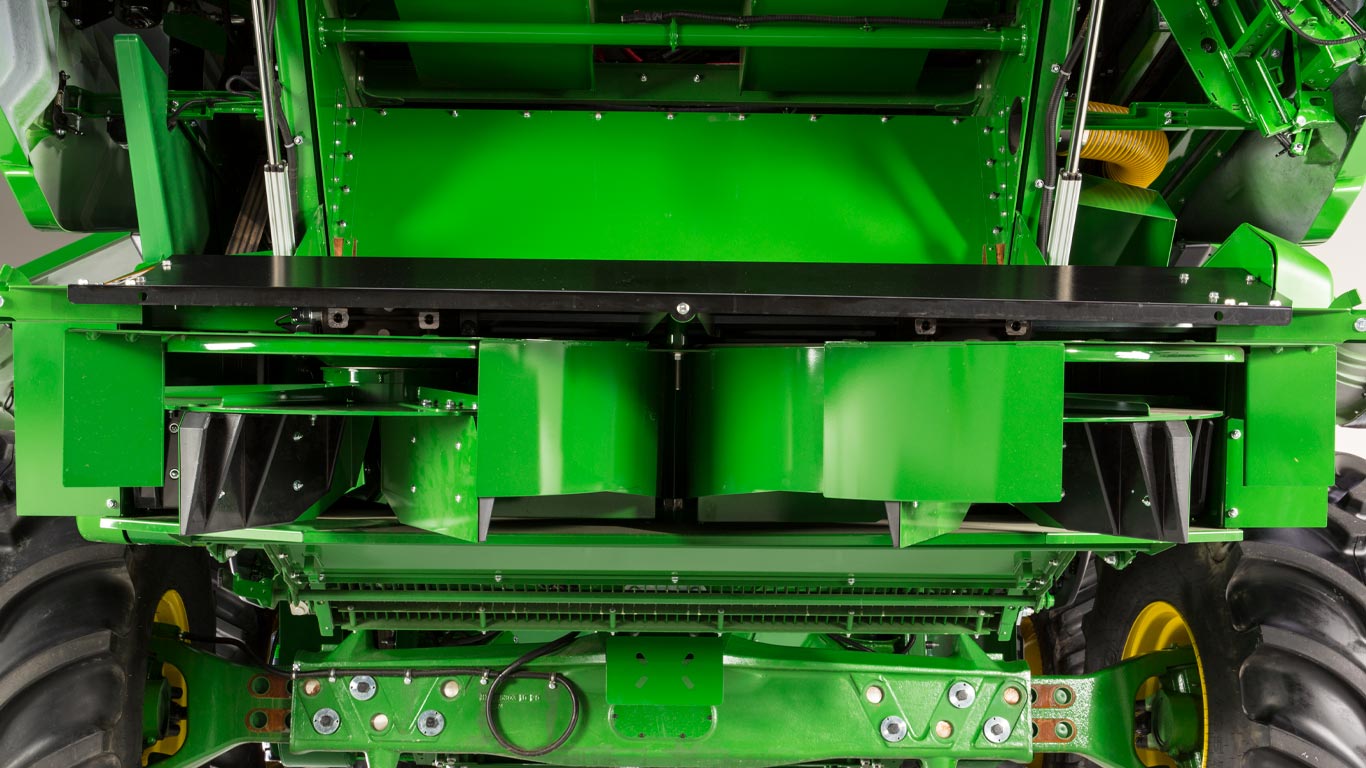

Photo of the improved residue management system found on John Deere X9 Combines

Improved residue management

New system spreads up to 50-feet (15.24 meters) wide; the double-decker design provides better air flow for even distribution with less power consumption1.

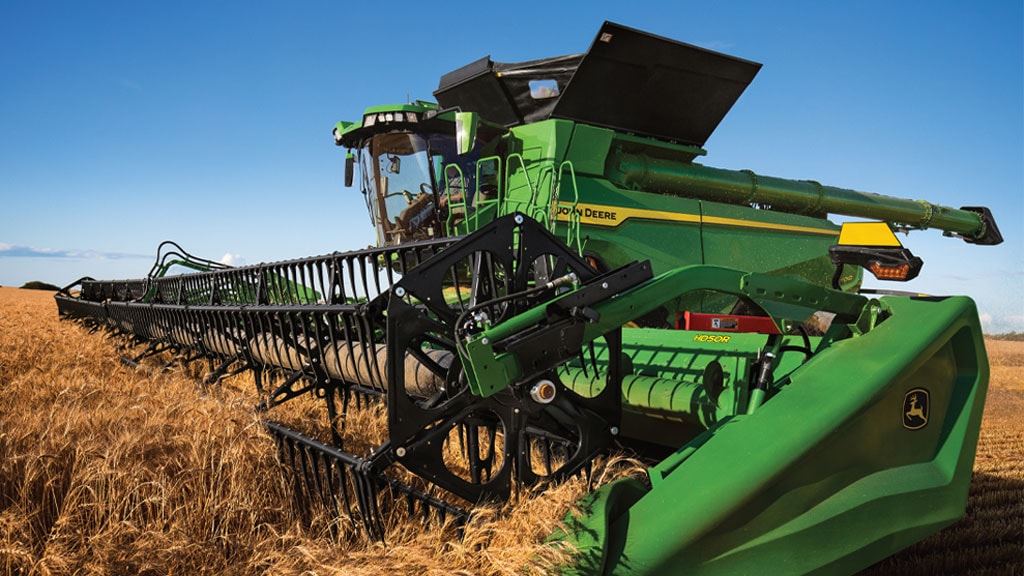

Photo of a John Deere X9 Combine harvesting wheat with a draper head

Calculate Potential Savings

See what you can save each harvest season with the Harvesting Performance Calculator. Enter your operation's inputs and operating variables to calculate the estimated savings by switching to John Deere harvesting equipment.

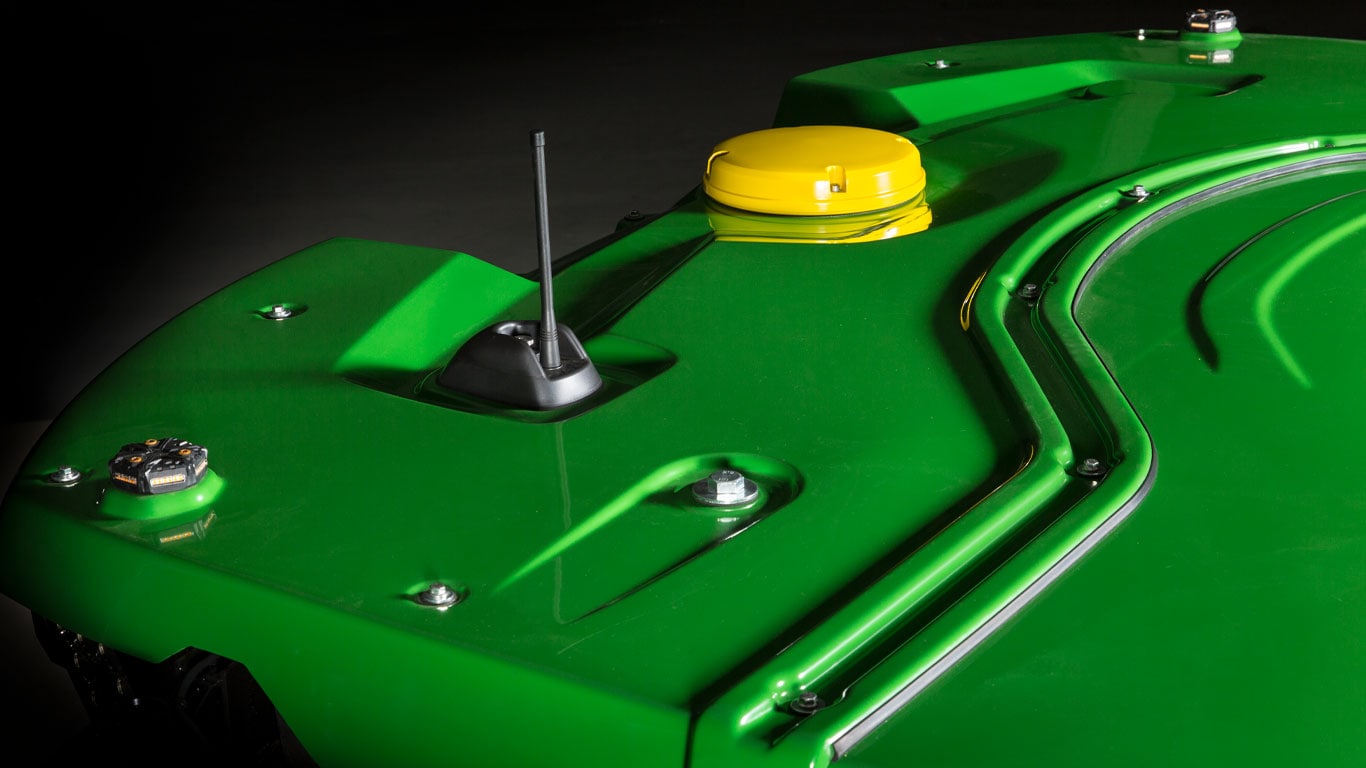

Photo of the integrated StarFire™ Receiver mounted on the cab of a John Deere X9 Combine

Integrated intelligence

From the Integrated StarFire™ Receiver to JDLink™ Connectivity, the X9 Combine comes ready to make your harvest easier.

Photo of a John Deere X9 Combine with the Rice Package header

Get More in Rice

Gain resistance to the abrasiveness of rice, along with up to 65%5 more capacity while using 20% less fuel6 with the tough, wear-resistant X9 Rice combine package.

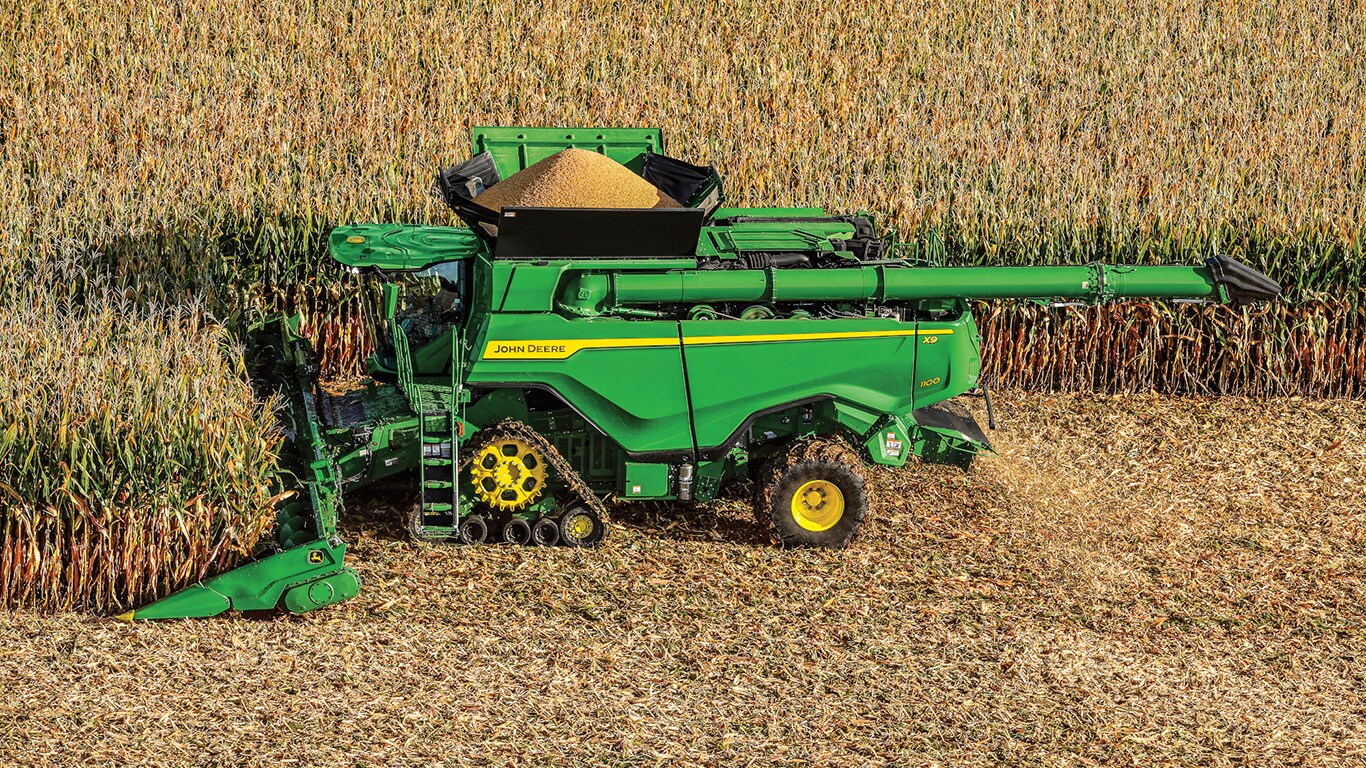

Photo of a John Deere X9 Combine with front tracks, harvesting corn with a corn head

Choose from wheels or tracks

Tracks deliver improved floatation and allow for transport speeds up to 25 miles per hour (40.23 kilometers per hour).

Close-up photo showing the easy-change concaves found on the John Deere X9 Combines

Easy-change concaves

Lighter concaves make switching crops even easier.

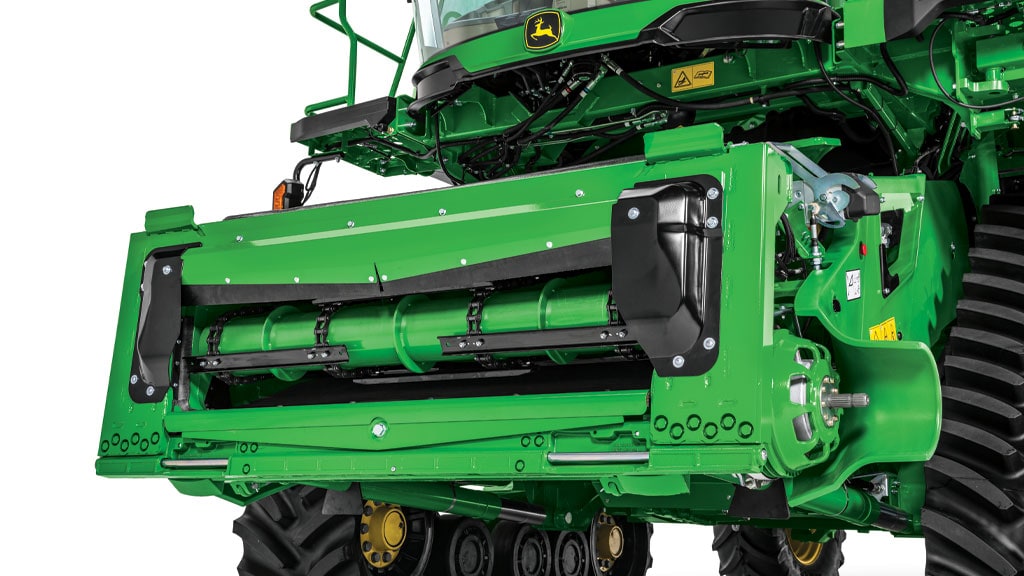

Photo/illustration of the modulated feederhouse found on the John Deere X9 Combines

Reduced plugging

The modulated feederhouse reverse allows the feederhouse to reverse under full engine RPM to reduce the chance of plugging in heavy crop.

In-cab photo of a G5Plus CommandCenter™ Display

In-cab control

With the G5Plus CommandCenterTM Display, you get in-cab control of the power folding unloading auger and adjustable spout for easier unloading and residue adjustments.

Headers and Platforms

X9 Combines are engineered to create a perfect balance between front-end equipment and machine power, so together they deliver stable, consistent performance with every pass, even in tough conditions.

Photo of the John Deere PowerTechTM 13.6-liter engine found in the John Deere X9 Combine

More power, without more fuel use

X9 Combines have a new John Deere PowerTech™ 13.6-liter engine, which delivers a 14% increase in power and an 11% increase in torque over the 13.5-liter engine. A high-pressure common rail system more efficiently injects fuel into the engine for additional fuel savings.

Maintenance & Reliability

Our combines are supported by one of the most responsive dealer networks in the business.

Photo of a John Deere technician in a dealer support center

John Deere Connected Support™

Keep running. That's job one of John Deere Connected Support. You can reduce downtime with connected tools that remotely monitor and proactively service your combine.

The words "John Deere Protect" against a simulated stainless steel background

John Deere Protect Plans

Annual Expert Inspections and regular scheduled maintenance, coupled with PowerGard™ extended warranty will help ensure "like new" performance and uptime of your combine and reduce unexpected expenses for up to 36 months.

Photo of a John Deere technician performing an inspection on a John Deere Combine


Keep your combine in tip-top condition with comprehensive inspections. Our highly trained technicians will replace worn parts and tune up other key areas.

You Also May Be Interested In

Flexible Financing

Count on John Deere for loans and leasing.

Demo an X9 Combine

Sign up to demo the combine.

Right Part Right Price

Choose from Genuine John Deere, John Deere Reman or A&I Products.

1Internal comparison between X9 1100 and S790 Combines, based on field conditions, per-unit harvested. Pre-production model shown.

2Based on internal testing, performance claims based on field and crop conditions at the time of testing; individual results may vary.

3Semi-trailer trucks with 993-bushel capacity. Specifications and design subject to change.

4 Internal comparison between X9 1100 and S790 Combines, based on field conditions, per unit harvested.

5Internal comparison between X9 1000 and S790 Combines

6Internal comparison between X9 1000 and X790; results vary depending on field conditions.
