Mower Conditioners

Front and Rear Mower-conditioners photo of equipment in field

Turn 10-hour days into 460-acre days.

Front and Rear Mower-Conditioners.

.

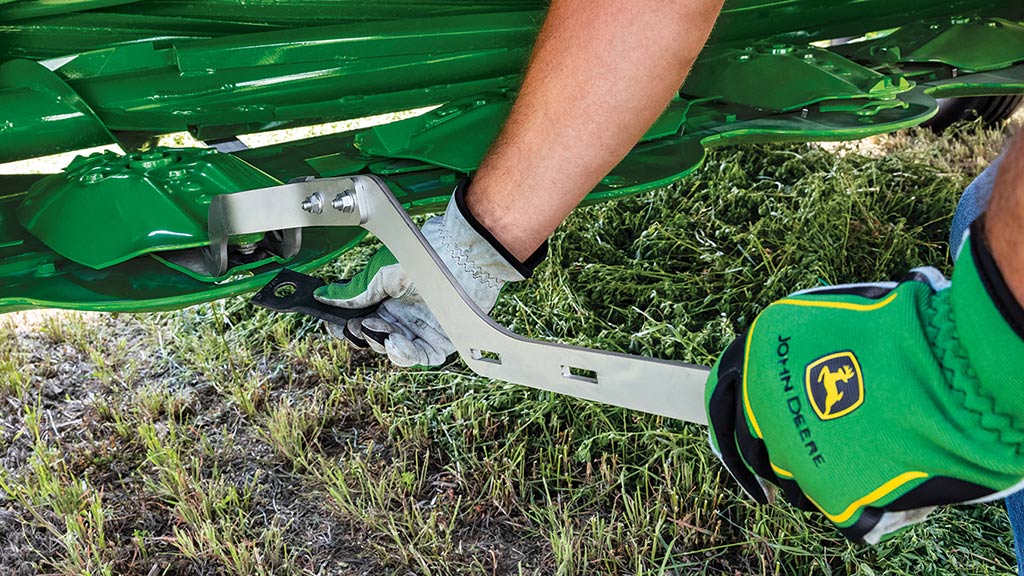

John Deere Mower Conditioners are built with extra durable parts to withstand the tough conditions of every day use. And with innovations like our cutterbar's patented shear hub, you can be sure that should you hit an obstruction, getting your machine up and running will be fast and painless.

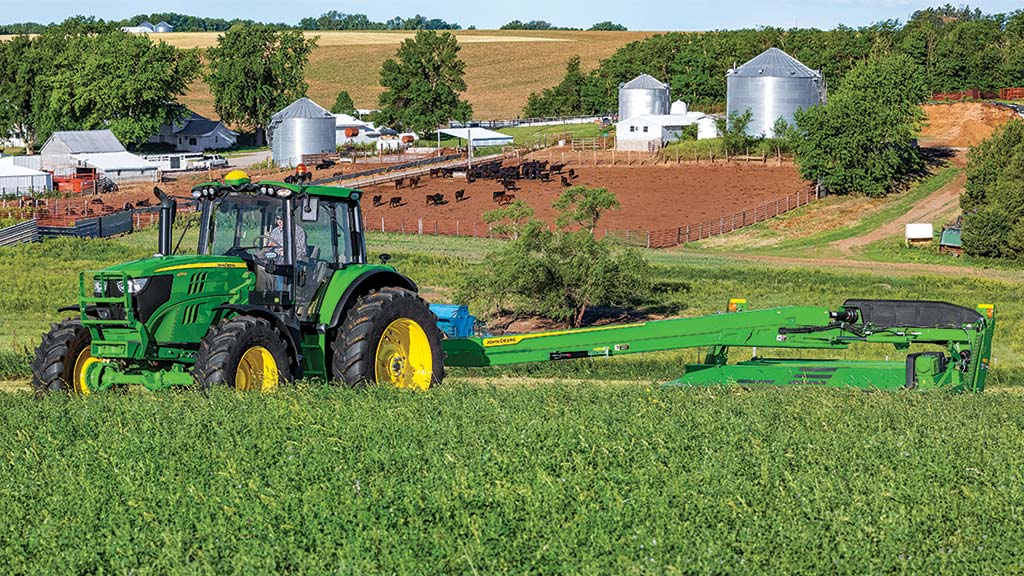

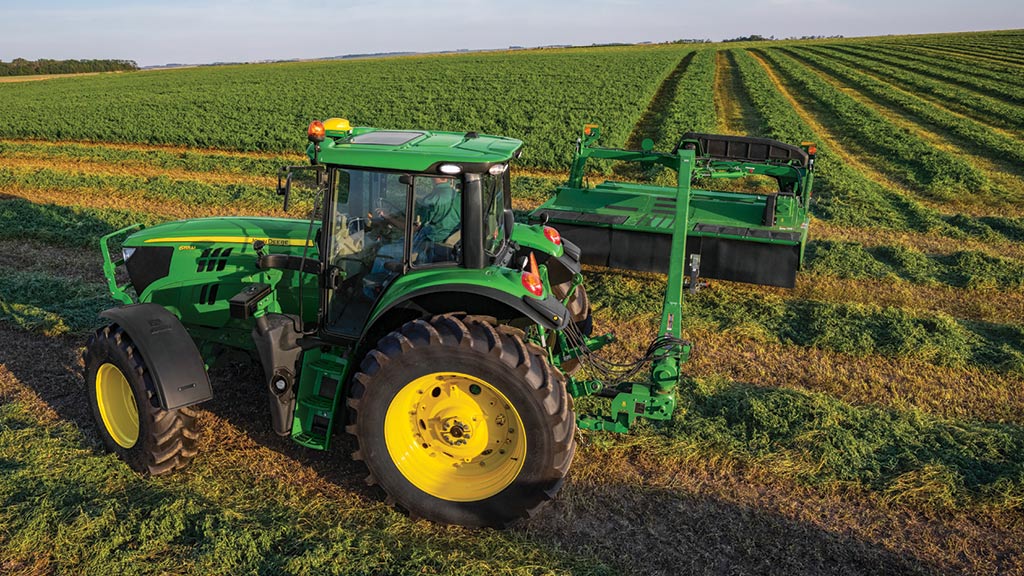

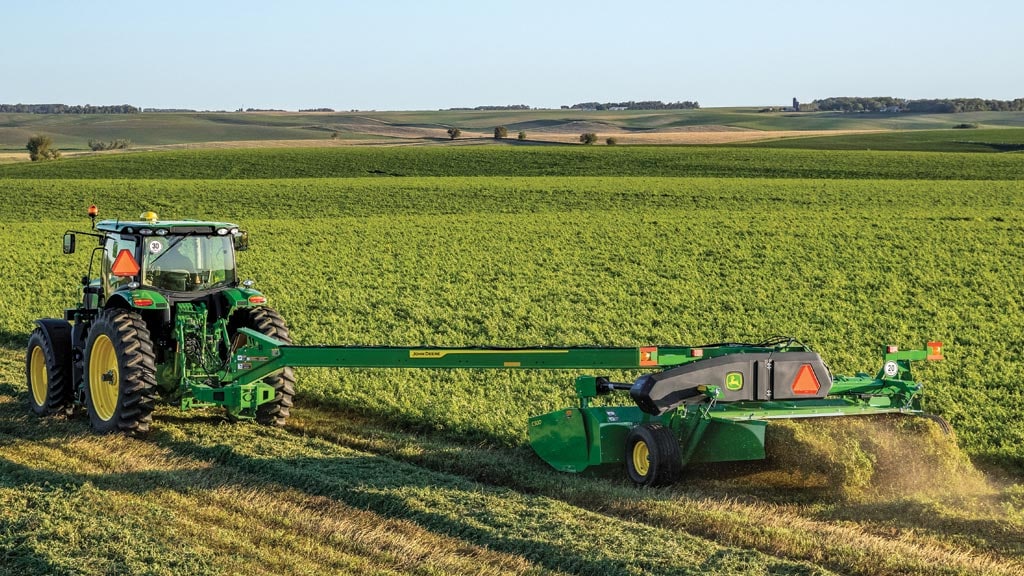

Pull-Type Mower Conditioners

ModelPTO Speed540-rpm PTO, 1 3/8" shaft1,000-rpm PTO, 1 3/8" shaftNumber of DiscsCutting WidthCutting Height

540 rpm only

55 to 75 hp (41 to 56 kW)

N/A

5

8 ft. 2in. (2.5m)

1.1 to 3.8 in. (28 to 98 mm) without extensions; 2.8 to 6.6 in. (71-167mm) with extensions

540 or 1,000rpm

65 to 81hp (48 to 60 kW)

65 to 150 hp (48 to 112 kW)

6

9 ft. 9in. (3.0m)

1.1 to 3.8 in. (28 to 98 mm) without extensions; 2.8 to 6.6 in. (71-167mm) with extensions

1,000 rpm only

N/A

90 to 150hp (68 to 112 kW)

7

11 ft. 6in. (3.5 m)

1.1 to 3.72 in. (28 to 94 mm) without extensions, 2.52 to 6.45in. (64-168mm) with extensions

540 rpm/1,000 rpm

70 to 81 hp (52 to 60 kW)

70 to 150 hp (52 to 112 kW)

6

9 ft. 9 in. (3.0 m)

0.8 to 3.7 in. (20 to 95 mm) without extensions; 2.4 to 6.5 in (60 to 165 mm) with extensions

1,000 rpm only

N/A

90 to 150 hp (68 to 112 kW)

7

11 ft. 6 in. (3.5 m)

0.8 to 3.7 in. (20 to 95 mm) without extensions; 2.4 to 6.5 in. (60 to 165 mm) with extensions

1,000 rpm only

N/A

100 to 150 hp (75 to 112 kW)

8

13 ft. (4.0 m)

0.63 to 6.7 in. (16 to 170 mm)

1,000 rpm only

N/A

100 to 150 hp (75 to 112 kW)

9

14 ft. 6 in. (4.5 m)

0.63 to 6.7 in. (16 to 170 mm)

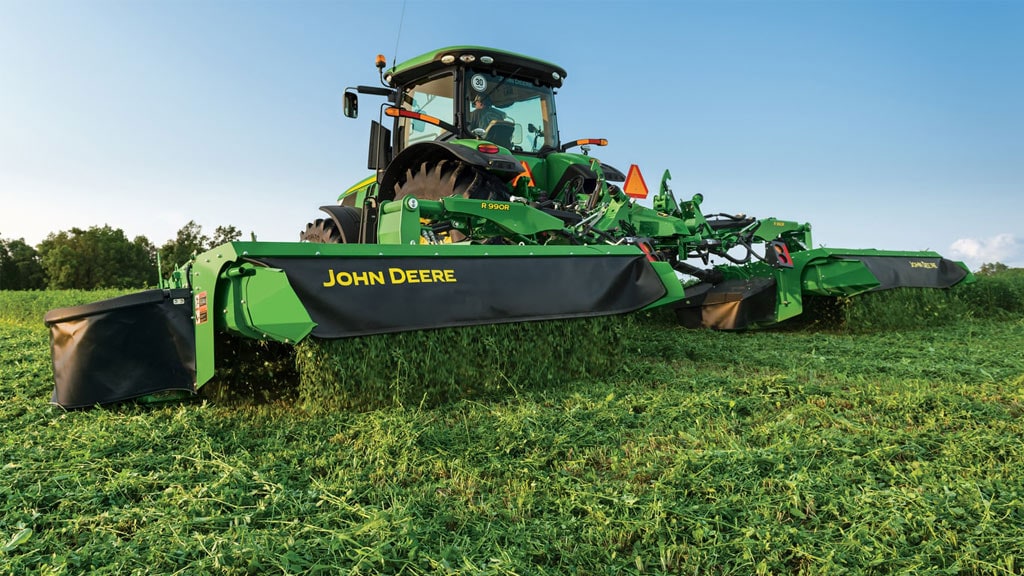

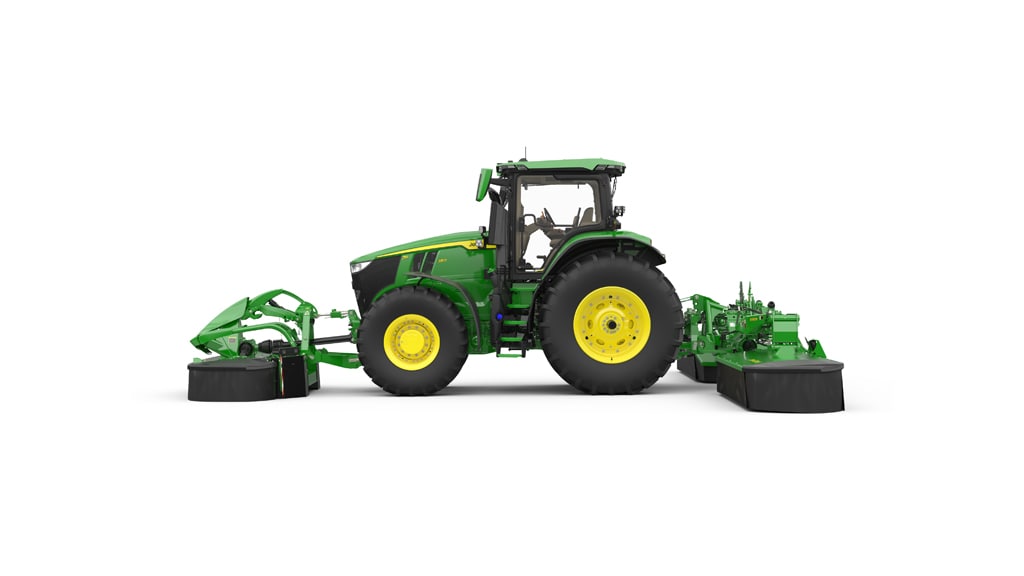

Front and Rear Mount Mowers

Get a cutting width of more than 32 feet in one pass, plus a narrow transport width of about 10 feet. Pair it with a 7R or 8R Series Tractor with a front hitch and PTO and AutoTrac for unmatched productivity. From the F310R, to the R990R, there are two front mount and three rear mount options to choose from.

ModelsRecommended PTO PowerNumber of Cutterbar DiscsCutting WidthTransport WidthNumber of Impeller Conditioner Tines

100 hp (75 kW)

7

10.2 ft (3.1 m)

9.8 ft (3 m)

80

120 hp (91 kW)

8

11.5 ft (3.5 m)

11.4 ft (3.5 m)

104

210 hp (155 kW)

2x7

27.2-28.5 ft (8.3-8.7 m)

9.8 ft (3 m)

2x80

230 hp (170 kW)

2x8

29.9-31.2 ft (9.1-9.5 m)

9.8 ft (3 m)

2x104

250 hp (185 kW)

2x8

31.2-32.5 ft (9.5-9.9 m)

11.4 ft (3.5 m)

2x104

102 hp (75 kW)

8

10.1 ft (3.1 m)

10.1 ft (3.1 m)

54

190 hp (147 kW) with 131

2x8

28.6 ft (8.7 m) with 131

10.1 ft (3.1 m)

2x54

Speed Up Your Dry Down

See how the V10 conditioning rolls and the new wide swath kit can give you faster dry down in the field.
