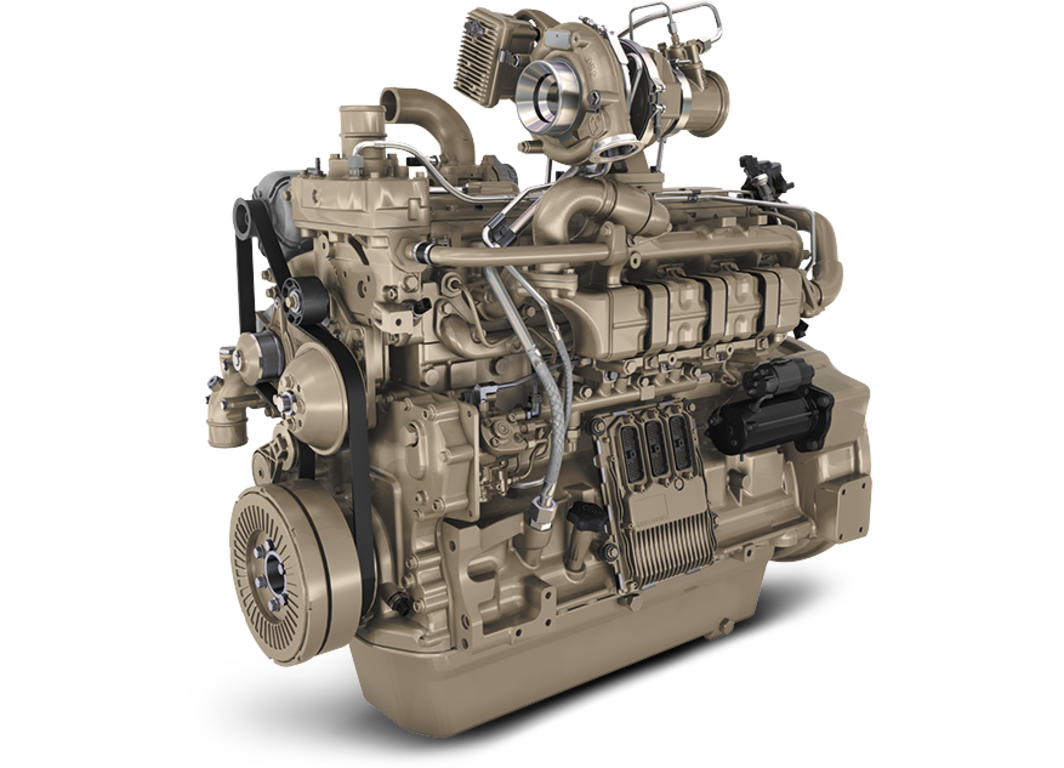

6068HFC94 | Industrial Diesel Engine

Features

Expand All Collapse All

Engine performance

Multiple rated speeds to further reduce noise and improve fuel economy
Higher level of peak torque
Optional power bulge

Cooled exhaust gas recirculation (EGR)

EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.

Variable geometry turbocharger

Varies exhaust pressure based on load and speed to ensure proper EGR flow. The combination of the cooled EGR and VGT provide low-speed torque, quicker transient response, higher-peak torque, and world-class fuel economy.

High-pressure common-rail (HPCR) and engine control unit (ECU)

The HPCR fuel system provides variable common-rail pressure and higher injection pressures up to 1,975 bar (29,000 psi).One ECU controls the exhaust filter, as well as fuel system and provides precise control for the start, duration, and end of injection.

4-valve cylinder head

The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a cross-flow design.

Air-to-air aftercooled

This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

Exhaust filters

These engines utilize a catalyzed exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a continuous cleaning process called passive regeneration.
Passive regeneration occurs during normal operating conditions when heat from the exhaust stream and catalysts within the exhaust filter trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to low temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.

Compact size

Lower installed cost
Mounting points are the same as previous engine models

Additional features

JDLink™ lets you monitor, protect, and maintain your equipment 24/7
Premium software option integrates with equipment or vehicles to reduce engineering and installation costs
500-hour oil change
Optional factory installed variable-speed fan drive improves fuel economy and reduces noise levels
R.H. and L.H. engine-mounted final fuel filters
Low-pressure fuel system with electrical transfer pump and "auto-prime" feature

Show More Show Less

Specifications

John Deere

6068HFC94

6.8L Industrial Diesel Engine

CARB

EPA Tier 4

EU Stage III B

Model

6068HFC94

Number of cylinders

Displacement-- L (cu in)

6.8 (415)

Bore and Stroke-- mm (in)

106 x 127 (4.17 x 5.00)

Compression Ratio

17.2 : 1

Engine Type

In-line, 4-cycle

Aspiration

Turbocharged and air-to-air aftercooled

Length - mm (in)

1161 (45.7)

Width-- mm (in)

716 (28.2)

Height-- mm (in)

1147 (45.2)

Weight, dry - kg (lb)

767 (1691)

Size 5 - Diameter - mm (in)

320.5 (12.6)

Size 5 - Length - mm (in)

891.9 (35.1)

Size 5 - Weight - kg (lb)

Intermittent - Rated power/Rated speed

168-187 kW (225-250 hp) @2000-2400 rpm

Intermittent - Peak power

183-190 kW (245-255 hp) @1800-2200 rpm

Intermittent - Power bulge

2-10 % @1800-2200 rpm

Intermittent - Peak torque

1020-1025 N·m (752-756 ft-lb) @1600 rpm

Intermittent - Torque rise

28-37%

Heavy Duty - Rated power/Rated speed

149-168 kW (200-225 hp) @2000-2400 rpm

Heavy Duty - Peak power

164-168 kW (220-225 hp) @1800-2400 rpm

Heavy Duty - Power bulge

0-10 % @1800 rpm

Heavy Duty - Peak torque

902-963 N·m (665-710 ft-lb) @1600 rpm

Heavy Duty - Torque rise

35%

Continuous - Rated power/Rated speed

138-149 kW (185-200 hp) @2000-2400 rpm

Continuous - Peak power

149-152 kW (200-204 hp) @1800-2400 rpm

Continuous - Power bulge

0-10 % @1800 rpm

Continuous - Peak torque

800-890 N·m (590-656 ft-lb) @1600 rpm

Continuous - Torque rise

35%
