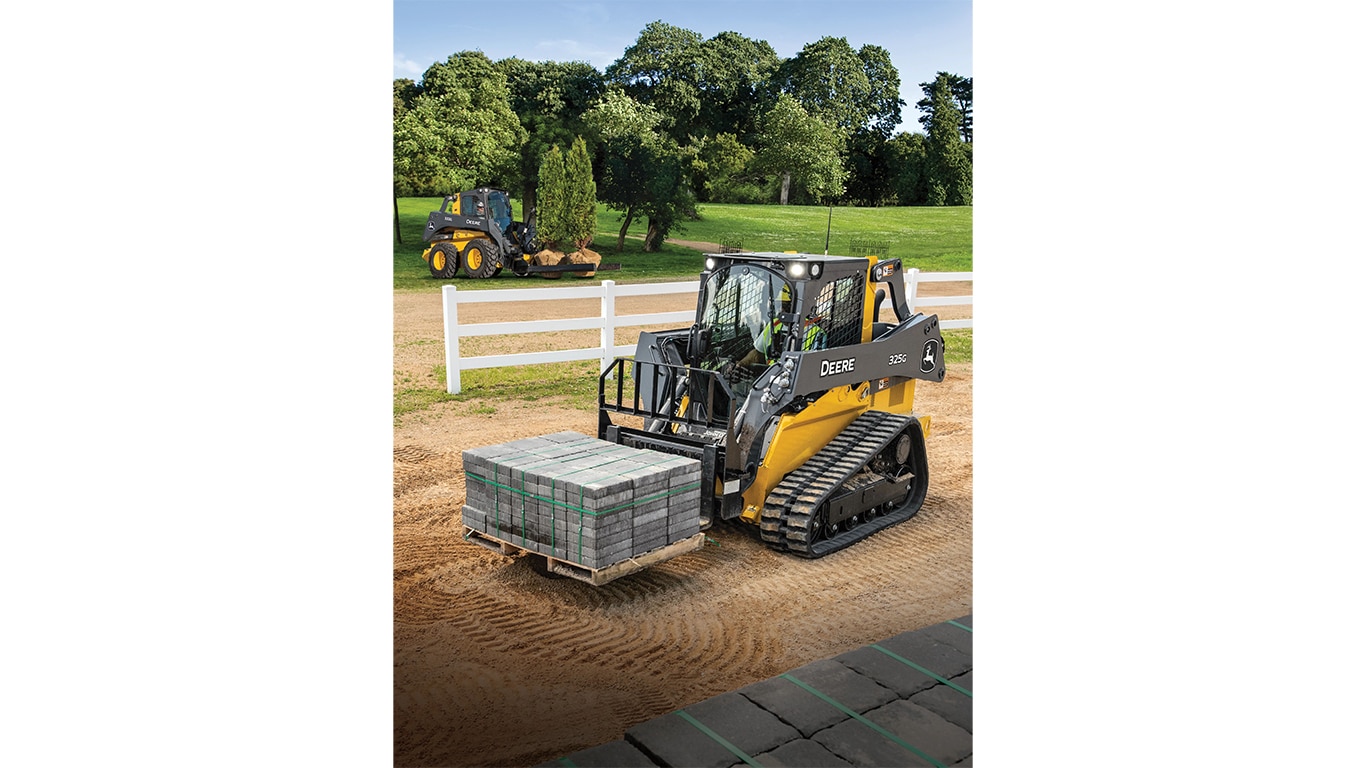

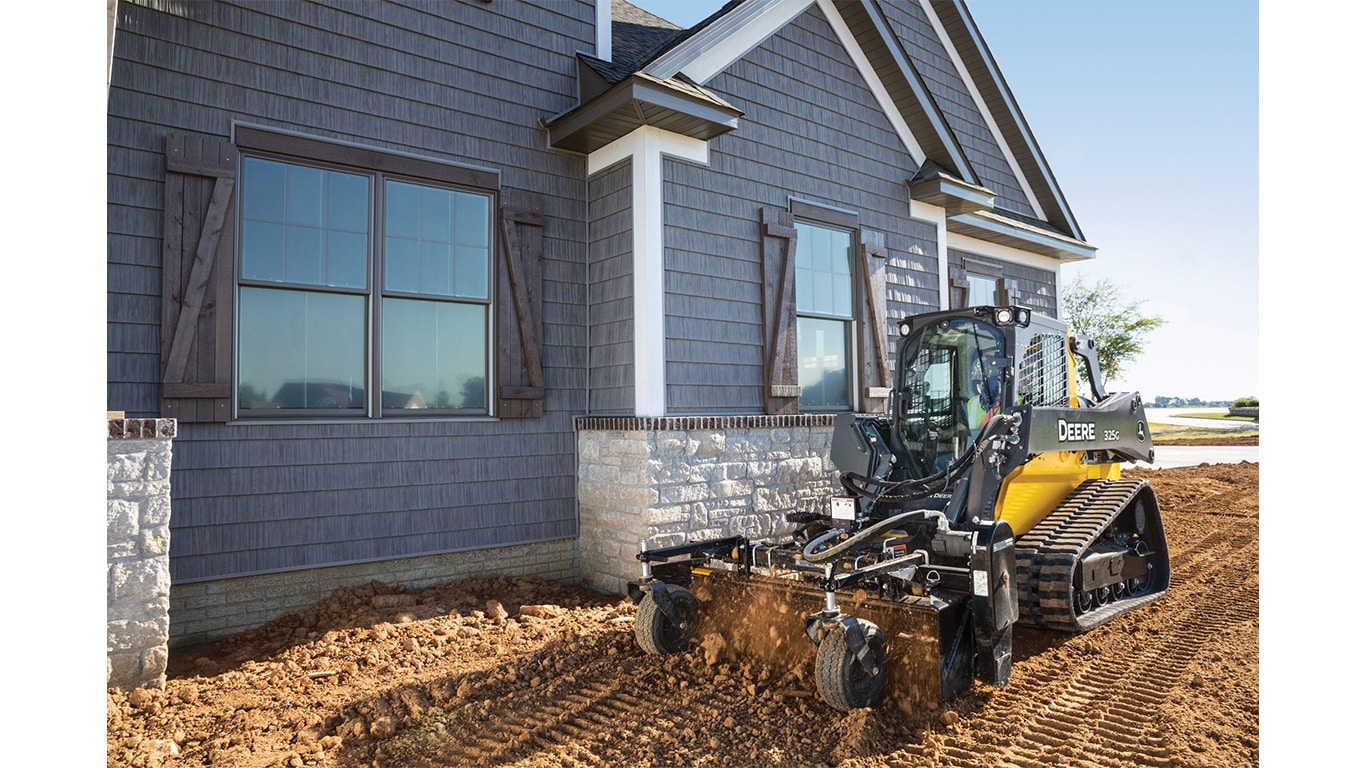

With the universal Quik-Tatch,™ you can go from compact loader bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, hydraulic hammers, roller levels, trenchers, or power rakes, to list just a few.
|Specs & Compare|
|Select up to 4 models to compare specifications||

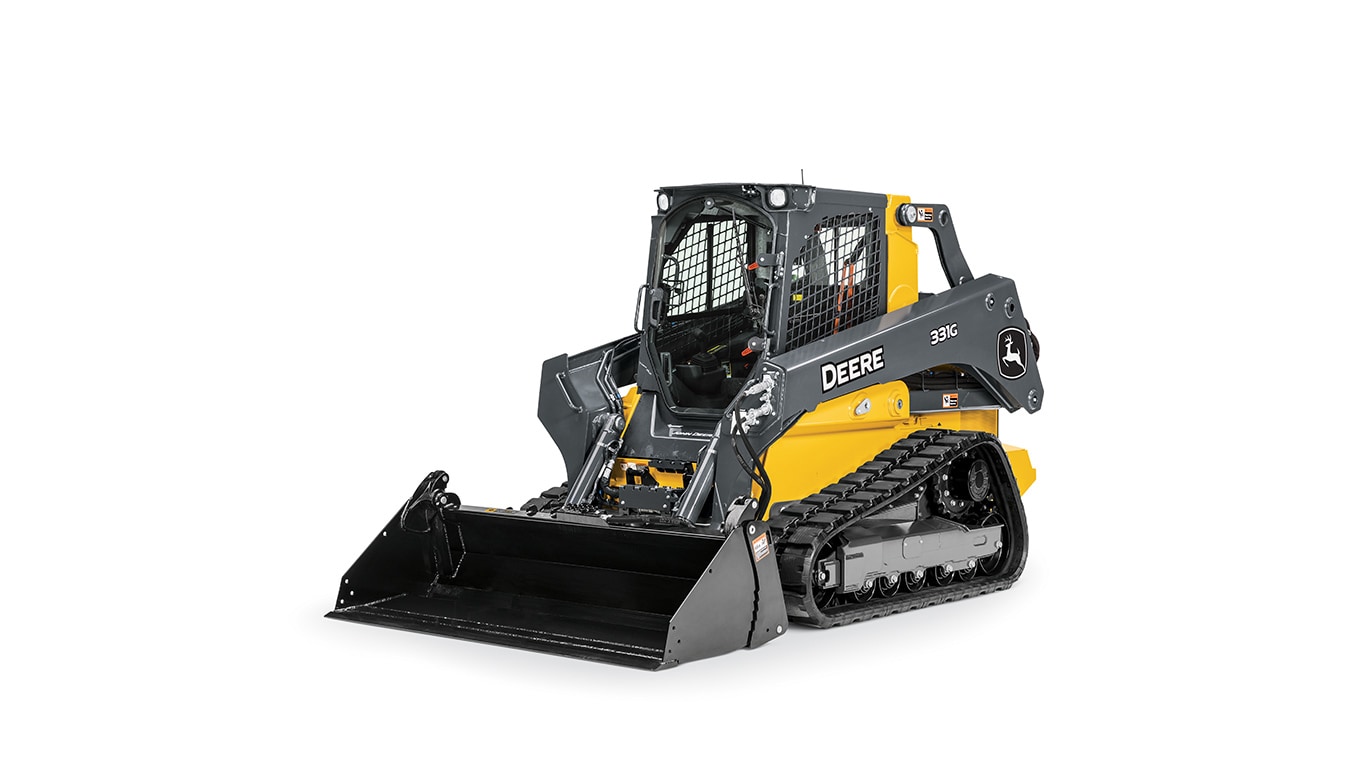

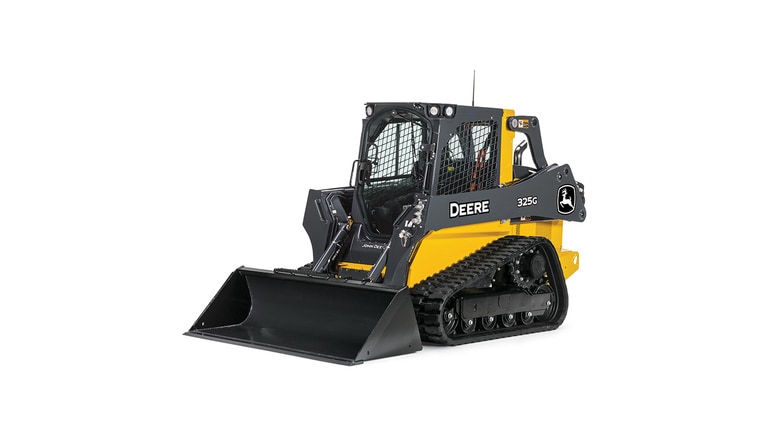

Compact Track Loader
|Emission Rating||Tier 4|
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Speed, rpm||2500|
|Engine Output - Net, kW (hp)||52.5 (70)|
|Engine Output - Gross, kW (hp)||54.8 (74)|
|Torque, Nm (lbf / ft)||280 (207)|
|Track Shoe Width, mm (inches)||320 (12.6)|
|Length - No Bucket, mm (inches)||2850 (112.3)|
|Length - Foundry Bucket, mm (inches)||3460 (136.3)|
|Width - No Bucket, mm (inches)||1820 (71.5)|
|Height - Top Of Cab, mm (inches)||2060 (81.1)|
|Ground Clearance, mm (inches)||240 (9.3)|
|Rear Departure Angle, Degrees||30.5|
|Height to Hinge Pin, mm (inches)||3200 (126.1)|
|Dump Angle, Degrees||41|
|Dump Height - Maximum Foundry, mm (inches)||2590 (102.1)|
|Rollback - Ground Level, Degrees||34|
|Fuel Tank, ltr (gallons (US))||79 (21)|
|Rated Operating Capacity - Foundry, kg (lbs)||1176 (2590)|
|Tipping Load - Foundry, kg (lbs)||3360 (7400)|
|Ground Bearing Pressure - Foundry, kPa (PSI)||39.3 (5.7)|
|Speed - Maximum, kph (mph)||9.3 (5.8)|
|Speed - Maximum Option, kph (mph)||13.2 (8.2)|
|Breakout - Lift Foundry, kN (lbf)||23.3 (5250)|
|Breakout - Bucket Foundry, kN (lbf)||38.9 (8750)|
|Hydraulic Power, kW (hp)||27.477 (36.8)|
|Hydraulic Power - Option, kW (hp)||39.645 (53.1)|
|Pump Flow, lt/min (gallons (US) / min)||70.01 (19)|
|Pump Flow - Option, lt/min (gallons (US) / min)||101 (27)|
|System Pressure, bar (PSI)||237.87 (3450)|
|Operating Weight - Foundry, kg (lbs)||4313 (9500)|
