P-tier compact wheel loaders continue to feature industry exclusive Articulation Plus™ that adds rear wheel steering to increase full turn tipping load and improve maneuverability
With over 100 attachments offered in the John Deere attachment portfolio you can make the most out of your compact wheel loader by equipping it with many popular attachments.
The operator focused designs found within John Deere Compact Wheel loaders ensure operators are comfortable and productive all day.
Compact Wheel Loaders come with features that result in higher productivity in applications like V-pattern truck loading, bale handling, and landscaping
Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours
Compact Wheel Loaders are built with operator visibility in mind. From the tapered boom to the rear sloping hood and everything in between, operators will have great visibility from the cab to all sides of the machine.
|Specs & Compare|
|Select up to 4 models to compare specifications||

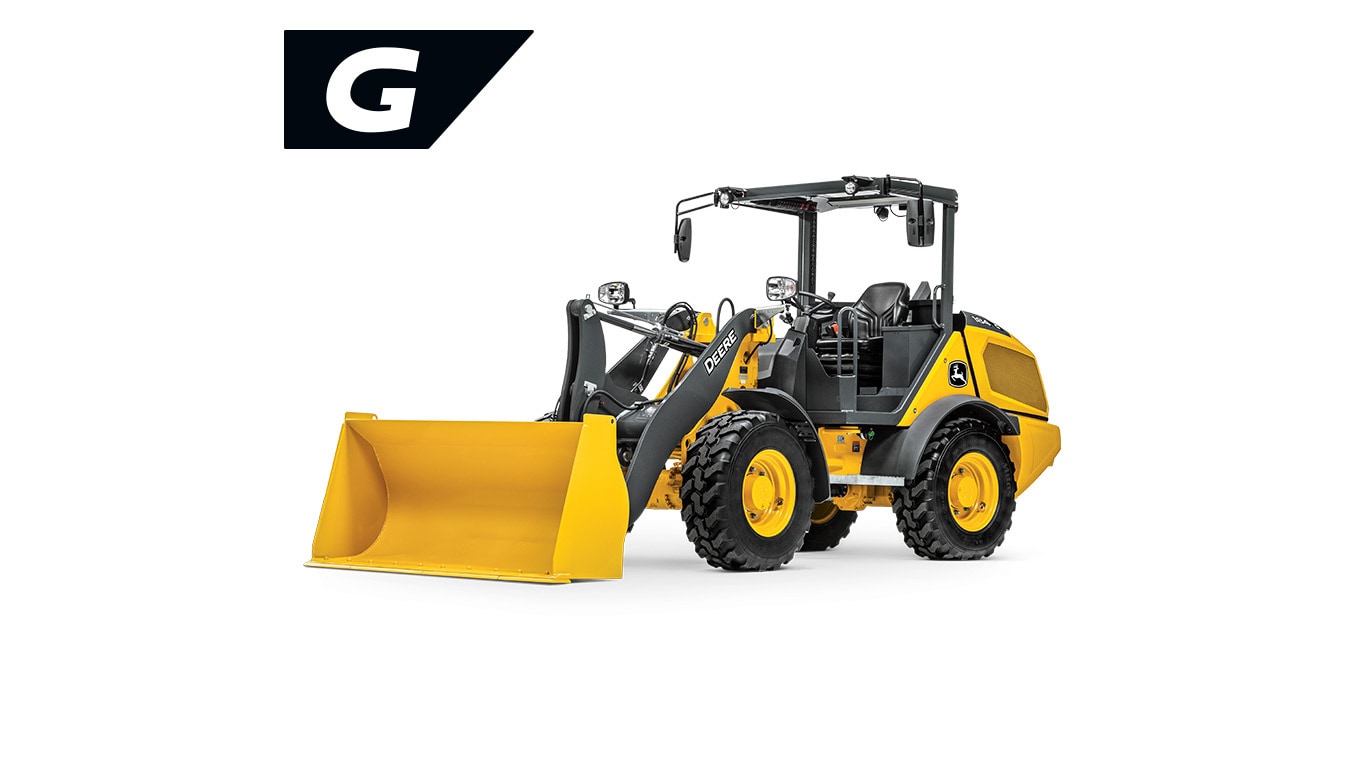

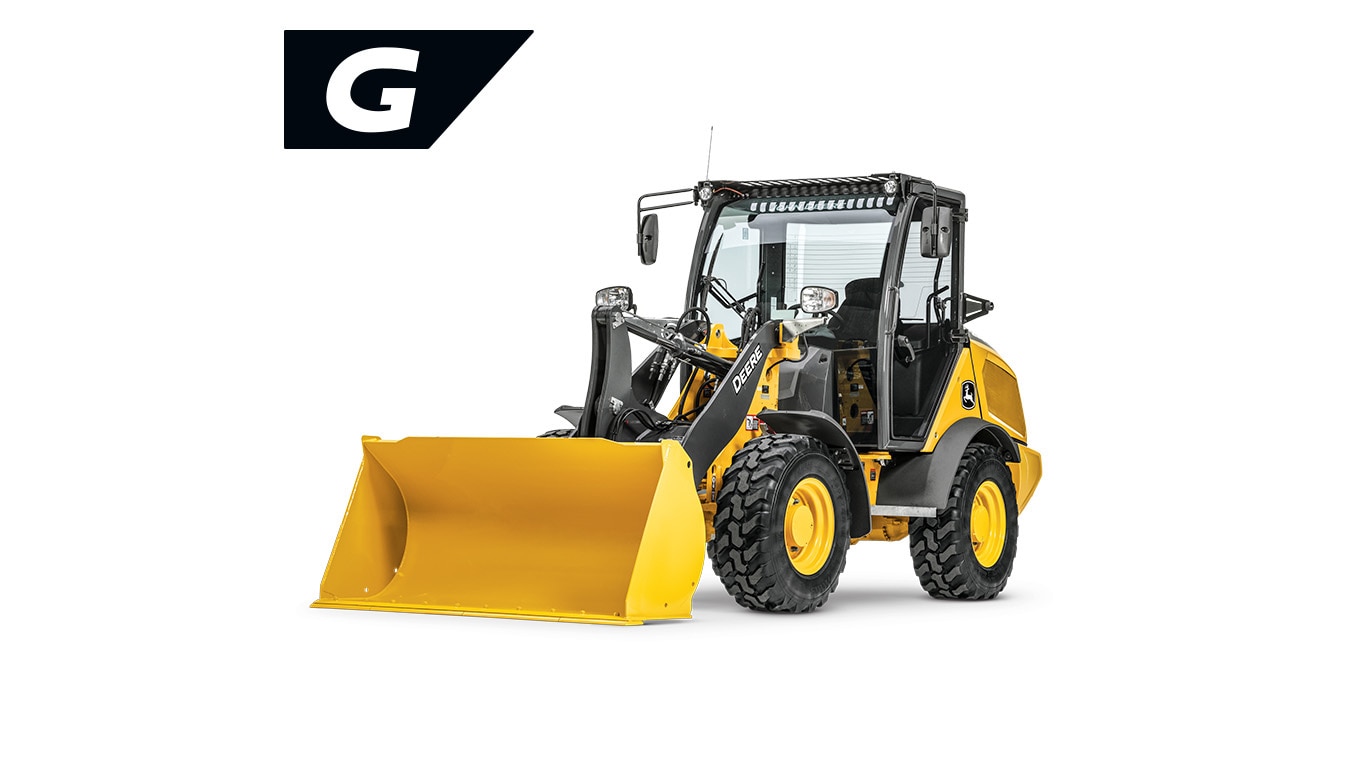

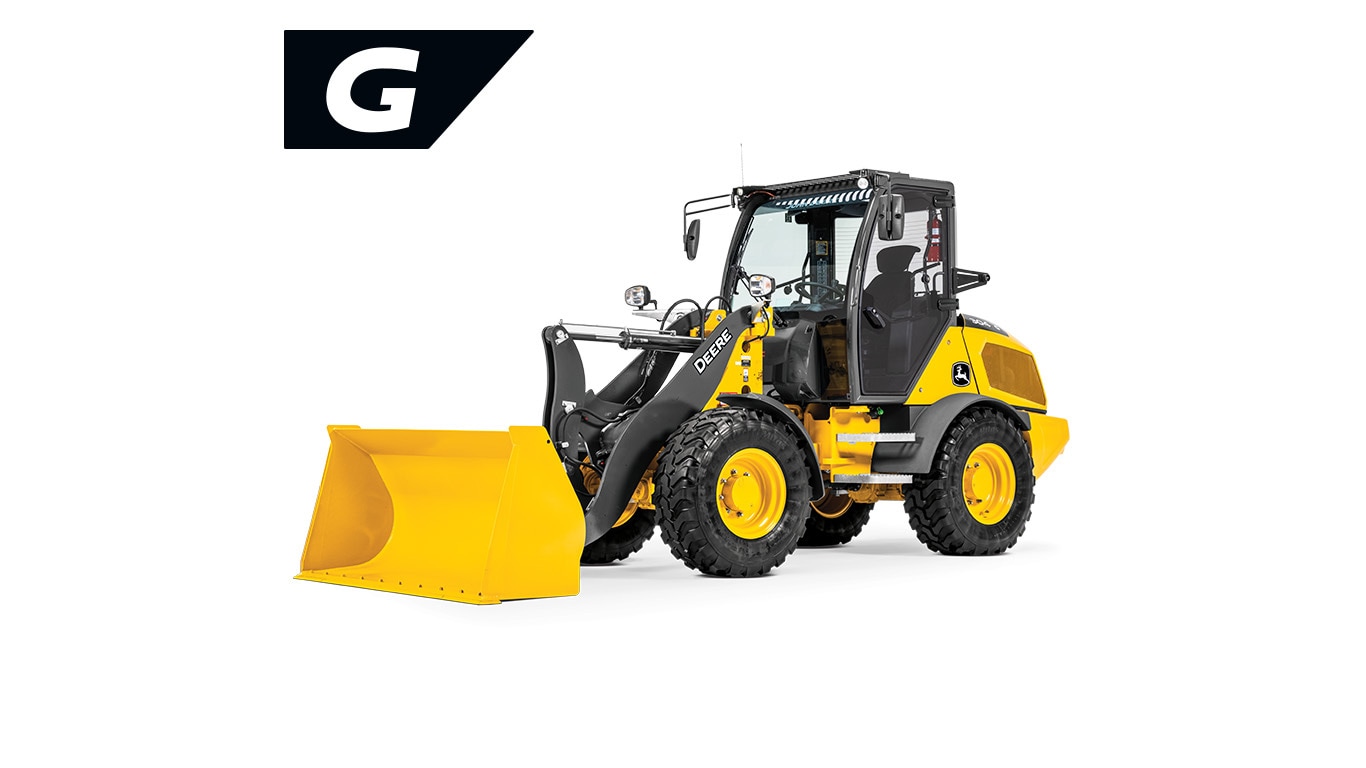

Compact Wheel Loader
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Speed, rpm||2400|
|Engine Output - Net, kW (hp)||52 (71)|
|Torque, Nm (lbf / ft)||280 (206)|
|Front Differential Type||Locking|
|Rear Differential Type||Open|
|Tire size - Standard||405 / 70 R20|
|Service Brake - Type||Wet Disc & Drum|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Disc|
|Height - Over Cab, mm (ft/in)||2780 (9 ft 1 in)|
|Wheelbase, mm (ft/in)||2300 (7 ft 7 in)|
|Ground clearance, mm (inches)||295 (12)|
|Width Over tires - Std, mm (ft/in)||2090 (6 ft 10 in)|
|Height - Pivot Pin, mm (ft/in)||3350 (11 ft )|
|Reach - At 2130mm 45° Dump, mm (ft/in)||1660 (5 ft 5 in)|
|Fuel Tank, ltr (gallons (US))||90 (23.8)|
|Hydraulic Tank, ltr (gallons (US))||66 (17.4)|
|Heaped Capacity, m³ (yd³)||1.1 (1.4)|
|Breakout - Bucket, kgf (lbf)||5650 (12456)|
|Ride Control System||Yes|
|Pump Flow - 1, lt/min (gallons (US) / min)||93 (25)|
|System Pressure, bar (PSI)||189.6 (2750)|
|Operating Weight, kg (lbs)||6400 (14110)|
Every John Deere machine comes with a level of comfort through our full machine standard warranty. It promises we’ll fix any defects in materials or workmanship on our compact equipment for two years after delivery or 2,000 hours.*
