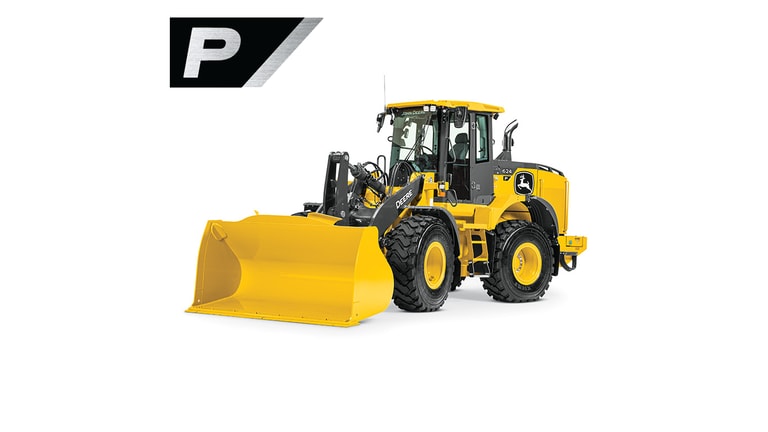

624 P-TierMid-Size Wheel Loader
- Net Power: 143 kW (192 hp) at 1,600 rpm
- Operating Weight: 15 747–15 790 kg (34,715–34,810 lb.)
- Bucket Capacity: 1.9–4.0 m3 (2.5–5.25 cu. yd.)
Features
Expand All
Collapse All
624 P-Tier wheel loader
John Deere’s Ready to Run brings solutions for some of the biggest challenges customers face today.
This customer is checking their machine healtht through the in-cab display
Easily view the auto daily fluid checks on the display
Remotely start the machine through John Deere Operations Center mobile app
In-cab G5 display showing the projected path lines as the machine is in reverse.
Option code 6525 is required for SmartDetect.
John Deere Operations Center mobile showing SmartDetect Digital reporting capabilities.
Loader weighing material in the bucket
View of improved hydraulic routing at the loader articulation joint
Fuel refill is at ground level with a strong steal protection from harsh environments.
Loader with high-lift plus linkage
Enhanced performance bucket
Elevate expectations with the enhanced utility class loaders
Designed to make jobsites more productive, the updated, highly productive and durable P-Tier Wheel Loaders are embedded with the latest technology and machine features to increase confidence, ease of operation, and provide the edge needed to boost margins.
With the new generation of features and updates for the 524 P-Tier, 544 P-Tier and 624 P-Tier, John Deere has further enhanced customer confidence to do more with available labor, help operators navigate through hazards with obstacle intelligence technology and maximize uptime.
624 P-Tier wheel loader
- Easily operate in tough conditions with new beacons and an overall machine appearance update
- Increase operator confidence with an integrated suite of smart systems that simplify maintenance and aid in getting machines Ready to Run.
- Put your mind at ease with SmartDetect™ (available first time as a factory option)
- With these technologies, it’s easy to enroll in SmartDetect ™ Digital
- Operate in the toughest conditions with the next evolution of QuadCool™ cooling system with the best-in-class debris management Enhanced accessibility to the cooling system and serviceability from the ground level
- Move approximately 5 percent more material with John Deere high strength steel buckets
- Easy to navigate and less distracting display with the 203.2-mm (8-in.) Primary Display complete with touchscreen functionality
- Overall better cost of ownership with the 4.5L John Deere Power Systems engine on the 524 P-Tier and 544 P-Tier
- Operate with ease using the customizable joystick
Fleet Management – Ready to Run
Fleet Management - Ready to Run introduces features to manage and monitor the health and availability of a vehicle by increasing productivity, quicker job completion, reducing vehicle wear and reduction in unplanned downtime.
Customers and fleet managers are always looking for ways to minimize the costs of their operations to improve margins and have confidence in machine availability for productive days. The most significant and often unexpected costs come in the form of unplanned downtime and part/labor cost. Ready to Run offers features and capabilities that will help to eliminate time when the machine is not at work.
John Deere’s Ready to Run brings solutions for some of the biggest challenges customers face today.
First, is the inclusion of the all-new auto daily fluid level checks, fluid gain/loss sensing and auto machine warm-up. The machine will perform daily fluid level checks automatically, adding ease to the owner by ensuring checks are done reliably, every time the vehicle is started.
This customer is checking their machine healtht through the in-cab display
In addition, the machine will perform an auto warm-up to ensure the critical vehicle systems are cycled through and warmed prior to an operator putting a vehicle to work. Coupled with these features, the machine will detect if a sudden loss or gain is experienced in one of the fluid systems and alert the operator and fleet manager to prevent catastrophic downtime.
For the first time ever, the fleet manager or other customer staff can verify the health of their equipment, start, and warmup all the systems of their fleet remotely, saving time and optimizing operation. Through John Deere Operations Center, customers can designate employees in their hierarchy to manage the health of their fleet and remotely start vehicles to ensure the vehicles are warmed and ready to run for the day.
Easily view the auto daily fluid checks on the display
Remotely start the machine through John Deere Operations Center mobile app
*Ready to Run off-board solution will be available as a software update at a later date. Future communication will be ongoing.
SmartDetect™ – Extra Eyes to Watch Over Your Job Site
In-cab G5 display showing the projected path lines as the machine is in reverse.
Building on the advanced object detection technology offerings, SmartDetect is available on John Deere Utility and Production Class Loaders, as a field kit or factory install. This technology provides visual and audible alerts to the operator, to increase situational awareness of people or objects around the machine. There is also a distinct audible alarm to alert the bystander.
- Builds upon our operator centered Advanced Vision System by incorporating smart obstacle intelligence on the job site
- Featured on the in-cab display are projected path lines when in reverse; the in-cab display will also show the operator potential hazards in close proximity
- Alerts operator and bystander through distinct audible alarms
- Operator Alerts:
- Alerts operator of all objects behind the loader
- Provides unique audible and visual alerts when a bystander is detected
- Alerts triggered on speed-based zones
- Bystander Alerts:
- Provides a unique external alarm to warn bystanders when they are detected in close proximity
- Operator Alerts:
Option code 6525 is required for SmartDetect. The rear counterweight and wide hitch with pin is required for SmartDetect. Option Code: 6525. See image below.
Option code 6525 is required for SmartDetect.
SmartDetect Digital
Customers can view footage of near miss events captured through SmartDetect by subscribing to SmartDetect Digital, available in John Deere Operations Center web and mobile.
The digital footage captured consists of:
- Push notification alerts for near miss events (Received within ~30 minutes)
- Event based near miss report and corresponding video
- Weekly report of technology usage and event summary
- Event heat map summary for jobsite operation optimization and trend analysis
John Deere Operations Center mobile showing SmartDetect Digital reporting capabilities.
Confidently hit loading targets with SmartWeigh™, John Deere’s unique payload weighing system
Loader weighing material in the bucket
Overview
SmartWeigh™ is a John Deere designed and supported payload weighing solution that delivers accurate measurements, dynamic weighing capabilities, and is easy to calibrate. For those not sold on whether or not a payload weighing solutions is a fit for your application, John Deere offers a low cost 250-hour trial period that provides you full SmartWeigh™ capabilities to help enable you to make the decision.
Benefits
- Leading Accuracy: SmartWeigh™ provides operators with increased accuracy (+/- 1.5 percent) because of John Deere’s expertise knowledge of our loader’s kinematic properties and exact dimensions and specifications. This ensures near exact target weights are hit and efficiently loaded into feed mixers, trucks, hoppers, or processing plants. This also helps prevent the loader from having to go back to the pile to get more material or to dump excess material.
- Seamless Calibration: Unlike other payload weighing systems, SmartWeigh™ does not need to be calibrated with a known weight and is designed to be easy to complete without the help of a dealer. By going through an easy-to-follow calibration process in the machine monitor, the system will be ready to accurately weigh material.
- Dynamic Weighing: There’s no need to constantly lower and reraise the boom of the loader to determine the weight after tipping off material. Bucket capture height can be set anywhere from 15-90 percent of boom height and can be captured at any boom speed. The SmartWeigh™ system can automatically determine the new weight after tip offs, reducing the time it takes to load the exact amount of material.
- John Deere Designed and Supported: SmartWeigh™ is a John Deere designed and supported solution meaning if issues arise, the only call you need to make is to your John Deere dealer.
- JDLink™ Integrated: Integration of payload weighing data into JDLink™ means that you can access the data from nearly anywhere, not just within the cab of the machine.
- Factory and Field Kit Options: A range of options are available to equip John Deere utility loaders with SmartWeigh™ including fully integrating from the factory or adding through field kits. The 250-hour trial period enables you to utilize SmartWeigh™ for 250 machine hours and decide if you would like to easily add on the feature for the life of the machine after the trial period expires.
*SmartWeigh is not legal for trade.
Service improvements and capabilities to keep the loader working all day
View of improved hydraulic routing at the loader articulation joint
Overview
With improvements to the electrical and hydraulic routing and features like ground level servicing and the next Evolution of Quad-Cool, customers get an upgraded serviceability experience while building upon known features that they’ve come to expect from John Deere Wheel Loaders
Benefits
- Wire harness routing has been enhanced and additional retention points have been added to reduce rubbing
- Elimination of at least 40 hydraulic leak points over previous series machine in addition to four less crossings on a two-hydraulic function loader.
- The pump manifold has been removed from the articulation area to simplify the entire system for ease of service.
- Controllers and fuse panels are all protected from the environment while also being more serviceable from inside the cab of the machine.
- Ground-level daily service checks and fuel refill are conveniently grouped at ground level on the left side of the machine for easy access
Fuel refill is at ground level with a strong steal protection from harsh environments.
Auto Level enables near complete parallelism and buckets and optimized Z-Bar linkage allow you to move more material and reach higher
Loader with high-lift plus linkage
Enhanced performance bucket
Overview
New P and X-Tier utility loaders will now be equipped with Auto Level that enables near perfect parallelism throughout the boom raise and lower cycle. In addition, enhanced performance buckets and Z-Bar linkage on P-Tier and X-Tier utility loaders are designed to enable loaders to be configured in a manner that allows them to be as productive as possible.
Benefits
- Auto Level can be enabled through the primary machine monitor and allows operators to set their desired attachment angle and keep that angle within +/- 2 degrees throughout the entire boom raise and lower cycle. This minimizes load rollback when using forks or buckets to improve load leveling
- Auto Level currently not available on machines configured with Tool Carrier linkage
- 8 degrees of parallelism is achieved when Auto Level is disabled
- High-Lift linkage adds an additional 304.8 mm (12 in.) of hinge pin height over standard linkage
- Cross tube and boom geometry design offers improved visibility to front attachments when operating and changing out between attachments during the day
- Bucket material retention has been improved by providing a 15 degree increase in bucket rollback to reduce material spillage Curved side cutters and integrated spill guards improve bucket fill rates
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 624 P-Tier Mid-Size Wheel Loader |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PVS 6068 | |||
| Displacement, ltr (Inches³) | 6.8 (414) | |||
| Rated Speed, rpm | 1600 | |||
| Engine Output - Net, kW (hp) | 143 (192) | |||
| Torque, Nm (lbf / ft) | 923 (681) | |||
| Transmission Type | Powershift | |||
| Front Differential Type | Locking | |||
| Rear Differential Type | Open | |||
| Tire size - Standard | 20.5 R25 | |||
| Service Brake - Type | Wet Disc | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Wet Multi Disc |
DIMENSIONS
| Wheelbase, mm (ft/in) | 3090 (10 ft 1 in) | |||
|---|---|---|---|---|
| Height - Over Cab, mm (ft/in) | 3400 (11 ft 2 in) | |||
| Ground clearance, mm (inches) | 384 (15.1) | |||
| Width Over tires - Std, mm (ft/in) | 2657 (8 ft 9 in) | |||
| Height - Pivot Pin, mm (ft/in) | 3960 (13 ft ) | |||
| Reach - At 2130mm 45° Dump, mm (ft/in) | 1590 (5 ft 2 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 299 (79) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 102.8 (27.2) | |||
| Heaped Capacity, m³ (yd³) | 2.7 (3.5) | |||
| Ride Control System | Optional | |||
| Pump Type | Variable Displacement Axiel Piston Pump | |||
| Pump Flow - 1, lt/min (gallons (US) / min) | 261 (69) | |||
| System Pressure, bar (psi) | 248.21 (3675) |
WEIGHTS
| Operating Weight, kg (lbs) | 15747 (34715) |
|---|
-
