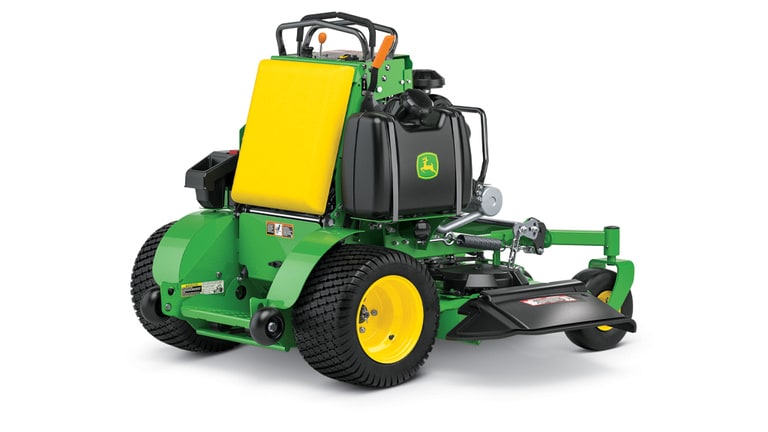

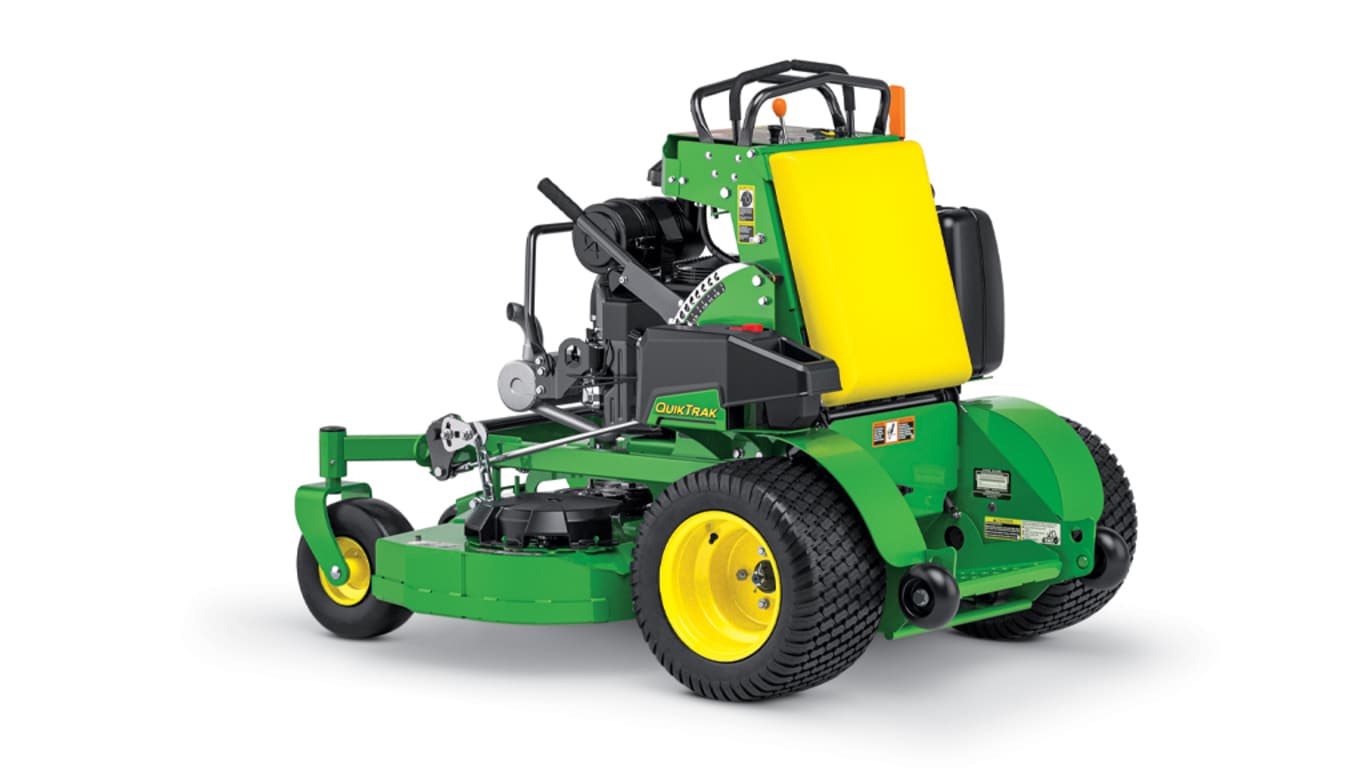

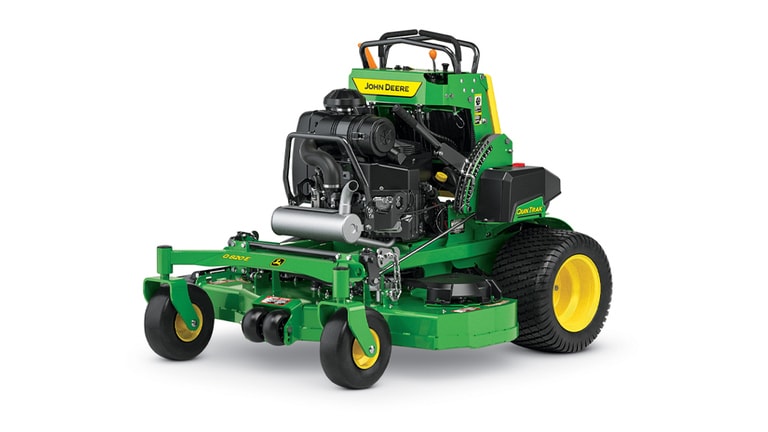

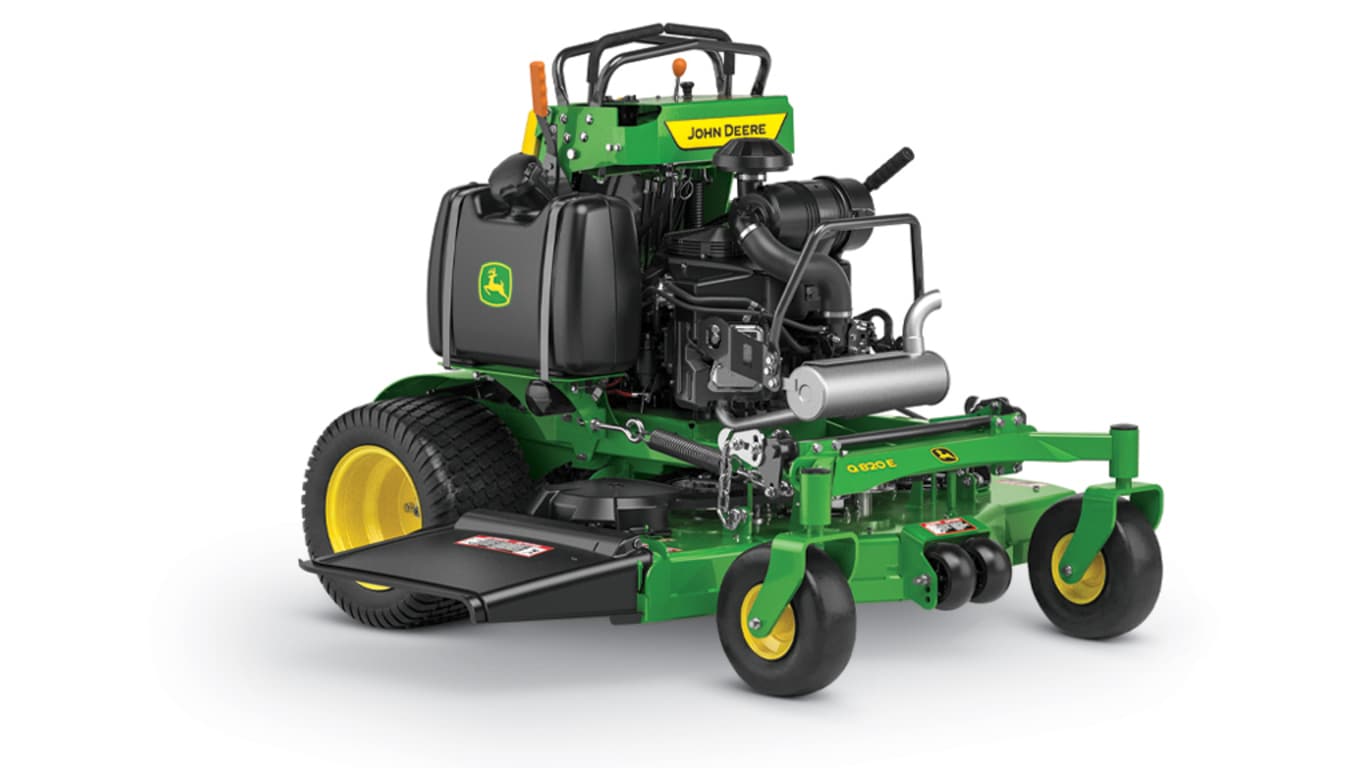

Q820EQuikTrak™ Stand-On Mower
- 23.5-hp (17.5-kW)
- 48" deck, 7-gauge fabricated deck
- Mow up to 13 km/h
- Warranty: 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation
Features
Expand All
Collapse All
Engine (Q810E engine shown)
Heavy-duty air cleaner (Q810E shown)
Engine oil-fill/check tube, drain hose, oil filter, and cleanout port
Fuel tank
Fuel cap, gauge, and shutoff valve
Replaceable fuel filter
36-in. (91-cm) fabricated mower deck
Mower-deck reinforcement
Flexible mower-discharge deflector
Caster wheels
Mower lift lever
Cutting-height adjustment
Mower deck spindle cover
Optional mulching attachment and blades (similar design shown)
QuikTrak™ Mower (Q810E shown)
Operator platform and leaning pad
Storage pocket
Operator controls
QuikTrak™ Mower (Q810E shown)
Control console (Q810E shown)
Park brake lever
Mower deck lift handle and height-of-cut adjustment
Q800 QuikTrak Mowers
Q810E QuikTrak™ Mower
Open engine compartment
Heavy-duty air cleaner
Engine oil-fill/check tube, drain hose, oil filter, and cleanout port
Leaning pad raised for service access
Periodic service chart
Mower deck spindle cover
Mower deck drive with spindle covers removed
Hydrostatic transmission control linkage
Convenient access panel
Hydrostatic pump maintenance access
Battery box
QR (quick response) code label on rear of mower
Front tie-down
Rear-tie down
Overhead view of Q810E showing compact design
Q810E showing compact design
Inset caster wheels (Q810E shown)
Q810E QuikTrak™ Mower frame
Hydrostatic pumps
Transmission oil filter
Transmission fluid oil reservoir
Operator Controls
Mower discharge deflector
Curb wheels
Rear strobe light
Front strobe light
Commercial-quality engine is reliable and provides excellent performance and life
Engine (Q810E engine shown)
Heavy-duty air cleaner (Q810E shown)
Commercial-quality V-twin air-cooled engines power the QuikTrak™ Mowers:
- FX600V 19 hp (14.2 kW) gross at 3600 rpm (Q810E)
- FX730V 23.5 hp (17.5 kW) gross at 3600 rpm (Q820E)
Both engines feature:
- Overhead valve design
- More horsepower and torque per cubic inch of displacement
- Better fuel efficiency
- Full-pressure lubrication with full-flow filter
- Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
- Filtered oil reduces risk of contamination for increased engine life
- V-twin design
- Fast starts
- Smooth operation
- Vertical shaft for efficient transfer of power to the transmission and mower
- Standard canister-type, dry replaceable, heavy-duty air cleaner
- Q820E has dual-element air cleaner with safety element
- Fuel pump for consistent and reliable fuel supply to the carburetor
- Air-cooled engine design for minimum maintenance and maximum reliability
- Standard cleanout ports for easy access to remove debris collecting in cooling fins
- Aluminum cylinder block
- Effectively dissipates heat
- Lightweight and strong construction
- Extends engine life due to elimination of debilitating engine temperatures
Engine oil-fill/check tube, drain hose, oil filter, and cleanout port
The engine is equipped with a replaceable oil filter for longer engine life.
Engine oil fill/check tube, oil filter, and oil drain hose are located close together for easy and convenient service.
Large fuel tank saves refueling time and increases productivity
Fuel tank
Fuel cap, gauge, and shutoff valve
Quality fuel-system components enhance performance and convenience:
- Large, 5.6-U.S. gal. (21.2-L) capacity
- Wide fuel tank filler opening
- Conveniently located
- Makes adding fuel easy and helps eliminate spillage
- Wide fuel tank filler opening
- Sealed and tethered fuel cap
- Reduced fuel vapor loss
- Less chance of losing fuel cap
A fuel gauge is conveniently located to keep the operator informed about the amount of fuel remaining in the tank.
A fuel shut-off valve is provided. It should be turned off whenever the QuikTrak Mower is not in use.
Replaceable fuel filter
A high-quality, replaceable fuel filter is provided to help maintain reliable engine operation.
Fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
36-in. (91-cm) fabricated mower deck
Mower-deck reinforcement
A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers a higher quality of cut in more diverse conditions to enhance mowing performance.
Key features of the fabricated mower deck include:
- 36-in. (91-cm) cutting width on Q810E model and 48-in. (122-cm) cutting width on Q820E model
- Manufactured from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
- A compact footprint delivers greater maneuverability when working in tight quarters.
- A deep-deck design delivers excellent airflow, so material is processed quickly and efficiently.
- A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.
Flexible mower-discharge deflector
Caster wheels
The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.
Caster wheels with flat-free tires contribute to a smooth, even cutting job:
- Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
- Caster wheels are recessed to reduce the vehicle footprint and turning radius.
- With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability, and reducing damage.
Mower lift lever
The QuikTrak is equipped with a floating mower deck that offers several advantages:
The lift lever allows the operator to raise the mower to the fully-raised position from the operator's station.
Convenient when transporting from one mowing area to another and when loading/unloading.
Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly.
- Lift-assist springs reduce the effort required to raise the mower deck.
Cutting-height adjustment
Mower deck spindle cover
Mower cutting height can be set from 1.5-in. (3.8-cm) to 5-in. (12.7-cm) in 0.25-in. (0.64-cm) increments:
- Pull the lift lever back to the full-raised position.
- Remove the tethered pin and place it at the desired cutting height.
- Lower the lift lever; the lift lever and mower will stop at the desired cutting height.
Mower deck spindle covers allow for cleaning while installed and can be removed without tools for maintenance. A single belt drive has low repair costs and accessible for cleaning.
Optional mulching attachment
Optional mulching attachment and blades (similar design shown)
Optional mulching attachment and special mulching blades are available:
-
This is a high-performance mulching attachment that includes formed steel baffles to control the material for superior performance.
-
The special mulching blades can also be used for side discharging, though overall cutting performance may be slightly less than with the standard blades.
Large operator platform and quality leaning pad enhance operator comfort
QuikTrak™ Mower (Q810E shown)
Operator platform and leaning pad
The large operator platform is cushioned to absorb shock to give the operator a smooth and comfortable ride.
A high-quality leaning pad is provided for operator comfort and to insulate the operator from heat given off by the machine.
Storage pocket
Operator controls
A storage pocket on the battery box provides a convenient place for the operator to store a cell phone, gloves, etc.
Control levers are covered with cushioning material for operator comfort. Two stationary reference bars are provided for operator comfort and convenience:
- Front reference bar is included to control speed and reduce fatigue from control lever operation.
- Rear reference bar is included to make reverse operation easy while maintaining operator confidence.
Controls are easy to locate and use for operator comfort and productivity
QuikTrak™ Mower (Q810E shown)
Control console (Q810E shown)
Controls are color coded and logically placed to make them easy for the operator to find and use:
- Ground speed and direction are easily controlled by moving the two hand-lever hydrostatic drive controls forward or reverse.
- Speeds are infinitely variable up to 8-mph (12.9-km/h) forward and 3.5-mph (5.6-km/h) reverse.
- A positive neutral-lock holds the control levers in neutral when the park brake is engaged.
- Two stationary reference bars are provided for operator convenience and security.
- Front reference bar is included to control speed and reduce fatigue from control lever operation.
- Rear reference bar is included to make reverse operation easy while maintaining operator confidence.
- Control levers return to neutral automatically for safety and convenience.
- Separate choke is easy to locate and use.
- Less adjustment is needed with the separate choke.
Park brake lever
A tire brake is provided to give stability for parking the vehicle on hillsides and for transport; it should be engaged whenever the machine is not being used:
- Brake must be engaged to start the machine, for added safety.
- The tire brake bars are easily adjusted, if necessary, to maintain effective operation.
Mower deck height-of-cut adjustment
Mower deck lift handle and height-of-cut adjustment
An easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:
- Pull the lift lever back to the fully raised position.
- Remove the tethered pin and place it at the desired cutting height.
- Lower the lift lever; the lift lever and mower will stop at the desired cutting height.
NOTE: Additional information on mower cutting height adjustment can be found in the mower deck section.
Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
Q800 QuikTrak Mowers
Hassle-free three-year warranties
The E and M Series QuikTrak mowers have a 1200-hour or 36-month, whichever comes first, bumper-to-bumper warranty. The R Series mowers have a 1500-hour or 36-month, whichever comes first, warranty. All QuikTrak Mowers also have an unlimited hour 24-month warranty. The warranty is hassle free, with John Deere covering the complete machine.
The QuikTrak warranties are also aligned with John Deere’s commercial walk-behind and Z900 ZTrak Mowers so you can roll your entire fleet on one contract, with one warranty duration, and one payment schedule.
Maintenance is simple and easy to reduce time and cost
Q810E QuikTrak™ Mower
Open engine compartment
All service components are easy to access:
- Servicing is simplified because of the open engine compartment.
- All service and maintenance points are within easy reach.
Heavy-duty air cleaner
Engine oil-fill/check tube, drain hose, oil filter, and cleanout port
Heavy-duty air cleaner is easy to reach and easy to service:
Standard canister-type, dry replaceable, heavy-duty air cleaner.
Q820E has dual-element air cleaner with safety element.
- Elements are easy to access and easy to change.
Engine oil service points are grouped together in easy-to-reach locations:
Reduces the time required to check and/or change the oil and filter.
Oil drain hose makes draining oil easy and clean.
Clean out ports provide assist to clean engine fins for optimum cooling.
Leaning pad raised for service access
Periodic service chart
Simply raising the leaning pad exposes the hydrostatic oil reservoir, control linkage, and other service areas.
A periodic service chart is provided for convenience in keeping up on required service.
Mower deck spindle cover
Mower deck drive with spindle covers removed
Mower deck spindle covers allow for cleaning while installed and can be removed without tools for maintenance. A single belt drive has low repair costs and accessible for cleaning.
Remove service access shields on the mower deck, battery box, etc. to service the machine:
- Panels are easy to remove and install.
Hydrostatic transmission control linkage
Threaded ball and socket rod ends are used throughout the QuikTrak Mowers:
- Provide precise control over a long period of time.
- Easily replaced when necessary.
Convenient access panel
Hydrostatic pump maintenance access
Remove service access cover to check and service the hydrostatic pumps and motors. Transmission bypass valves enable moving the vehicle without the engine running.
Battery box
A secure battery box protects the battery and provides access to the terminals.
Quick response (QR) codes link to owner information web pages
QR (quick response) code label on rear of mower
To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on the rear of the mower, left of the foot platform. The owner information web pages that include links to:
- Safety and how-to videos Operator’s manuals
- Parts catalogs
- Maintenance reminder sheets Attachments
- Warranty statements
Tie-down points
Front tie-down
Rear-tie down
Four tie-down locations, two at the front and two at the rear, are provided for safely towing or anchoring the vehicle.
Compact design for easy hauling and excellent maneuverability
Overhead view of Q810E showing compact design
Q810E showing compact design
From the operator's platform to the mower deck, John Deere QuikTrak™ Mowers have a compact and functional design:
- The compact design allows the QuikTrak to operate in tighter areas that a larger machine cannot. Often, this means the area can be mowed with a QuikTrak so it is not necessary to switch to a walk-behind mower, reducing the time on site.
- With the compact design of QuikTrak Mowers, less space is required on a truck or trailer - which can mean there is room for an extra mower, resulting in less time on property, saving time and money.
Whether mowing hills or on level terrain, trimming or mowing straight-away, the operator of a John Deere QuikTrak can affect the performance of the machine with their body:
- The compact design of the QuikTrak allows the operator to use their body to help control the machine.
- The innovative QuikTrak design puts the operator in line with the rear axle to keep traction when mowing across slopes, providing greater control.
- Faster ground speeds get work done quicker.
- Better traction on slopes gives more control and increased productivity.
- Superior stability gives more control and confidence when operating.
- Better visibility allows for quick operator reaction times to changing terrain and obstructions.
- Standing area is designed for improved range of motion to allow the operator more room to move and avoid obstacles.
- Minimal operator station obstruction allows safe and fast exits for clearing mower-path obstacles.
- Operator area is designed for more comfort and less fatigue.
Inset caster wheels (Q810E shown)
John Deere QuikTrak Mowers are designed, tested, and manufactured to provide the best commercial mowing machines available:
The shape of the front edge of the mower deck allows caster wheels to be set back further, closer to the blades, for more effective ground following capability.
Compact design takes less space for mowing tighter areas and may allow room for an extra machine when hauling to the worksite.
Frame is compact and durable for productivity and long life
Q810E QuikTrak™ Mower frame
QuikTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:
- More-rounded corners contribute to a clean, attractive appearance.
- Greater strength results from eliminating sharp angles where peak loads can cause failure.
- Large 11x4-5 flat-free front caster wheels and large 18x8.5-10 (Q810E) or 18x10.5-10 (Q820E) 4-ply rear drive wheels provide a smoother ride.
- Better slope performance
- More operator comfort over uneven ground
- Better traction
Hydrostatic drive system is reliable and easy to use
Hydrostatic pumps
E Series QuikTrak Mowers use a heavy-duty hydrostatic pump and wheel-motor drive system that gives reliable and consistent performance and long life:
- Heavy-duty components stand up to the rigors of commercial use.
- Individual pump and wheel motor design allows placement of these heavy components low in the vehicle for a low center of gravity and excellent hillside stability.
Two Hydro-Gear™, 0.61-cu in. (10-cc) axial piston, variable-displacement pumps provide hydraulic power to the wheel motors:
- Pumps are linked to the hand-control levers to allow the operator to make speed and direction changes.
- Rugged construction is ideal for high-performance commercial use.
- Piston design gives efficient and consistent performance.
- A replaceable hydraulic filter helps ensure long life of the pumps and wheel motors.
Two individual, 12-cu in. (196.6-cc), piston wheel motors power the QuikTrak drive wheels. Their heavy-duty construction and super-efficient axial-piston design provides superior performance and seamless power to the wheels:
- Integrated high-pressure shaft seal gives greater reliability.
- Large bearings are designed with the capacity to carry heavier loads and give long life.
Transmission oil filter
Transmission fluid oil reservoir
A spin-on-type replaceable hydraulic oil filter is conveniently located:
- Extends life of transmission components by keeping oil clean
- Easy to reach for easy and fast service
A hydraulic fluid oil reservoir is located behind the leaning pad:
- Located in a cleaner environment
- Easy to access for inspection and service
- Sight glass built into the tank reduces risk of contamination when checking fluid level
Transmission bypass valves are provided on each hydrostatic pump to permit moving the QuikTrak without the engine running.
Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company.
Safety features are built-in to protect the operator and bystanders
Operator Controls
Mower discharge deflector
Curb wheels
Key safety features of QuikTrak™ Mowers include:
- Start circuit requirements
- Park brake engaged
- Power take-off (PTO) disengaged
- Control levers in neutral
- Ignition key used to start the engine
- A high-quality, polyethylene, mower-discharge deflector
- Deflects if it strikes a solid obstruction, causing less damage
- Returns to its original shape and function
- Operator station designed to allow fast exit
- Two large curb wheels
- Easy to remove and replace shields
- Stationary handles on either side of the traction controls for operator security
- Control levers return to neutral when released
Mower deck safety certification
QuikTrak mower decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2017 safety certification specifications for commercial turf care equipment.
Optional LED strobe light attachment
Rear strobe light
Front strobe light
The optional LED strobe light attachment increases visibility of the QuikTrak mowers to motorists. The kit includes two lights providing visibility in all directions.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere Q820E QuikTrak™ Stand-On Mower |
Key Specs
| Engine Manufacturer/model | FX730V | |||
|---|---|---|---|---|
| Engine power | Gross at 3,600 rpm: 23.5 hp 17.5 kW |
|||
| Fuel tank capacity | 5.6 U.S. gal. 21.2 L |
|||
| Mower deck size | 48-in. (122-cm) fabricated | |||
| Blade tip speed | Approximately 18,000 fpm 5486 m/min |
|||
| Transmission | Separate hydraulic pumps and motors | |||
| Speed range | 0-8 mph 0-12.9 km/h |
|||
| Drive wheels | 18x10.5-10 pneumatic | |||
| Caster wheels | 11x4-5 | |||
| Warranty | 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation. |
Engine
| Manufacturer/Model | FX730V | |||
|---|---|---|---|---|
| Power | Gross at 3,600 rpm: 23.5 hp 17.5 kW |
|||
| Displacement | 44.3 cu in. 726 cc |
|||
| Injection | ||||
| Cylinders | Two, V-twin | |||
| Crankcase capacity | With filter, 2.2 qt 2.1 L |
|||
| Oil filter | Full flow, replaceable | |||
| Lubrication | Full pressure | |||
| Cooling | Forced air, with integrated clean out ports | |||
| Air cleaner | Heavy-duty canister type with safety element |
Fuel system
| Fuel type | Gasoline | |||
|---|---|---|---|---|
| Fuel consumption | ||||
| Fuel tank capacity | 5.6 U.S. gal. 21.2 L |
|||
| Fuel tank switch/shut-off valve | Yes |
Electrical system
| Charge system | At 3,600 rpm 20A | |||
|---|---|---|---|---|
| Battery voltage | 12 V | |||
| Cold cranking amp | 300 CCA | |||
| Hour meter | Digital | |||
| Operator presence starting system | Yes |
Drivetrain
| Transmission | Separate hydraulic pumps and motors | |||
|---|---|---|---|---|
| Hydraulic pumps | 0.61 cu in. 10 cc |
|||
| Wheel motors | 12 cu in. 196 cc |
|||
| Travel speed | Speed range 0-8 mph 0-12.9 km/h Forward Infinite, 0-8 mph Infinite, 0-12.9 km/h Reverse Infinite, 0-3.5 mph Infinite, 0-5.6 km/h |
|||
| Speed and direction control | Twin hand-controlled levers | |||
| Hydraulic capacity | With filter, dry, 5 qt 4.7 L |
|||
| Hydraulic oil cooler | Radiator core | |||
| Filter | Spin-on replaceable |
Buyer's note
| Warranty | 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation. |
|---|
Tires
| Drive wheels | 18x10.5-10 pneumatic | |||
|---|---|---|---|---|
| Rear tires | ||||
| Load rating | 4 PR |
Brakes
| Dynamic braking | Dual hand-controlled levers | |||
|---|---|---|---|---|
| Park brake | Tire engagement | |||
| Park brake actuation | Hand lever |
PTO
| Type | Electro-magnetic with brake, 125 lb-ft 169 Nm |
|||
|---|---|---|---|---|
| Drive | V-belt |
Mower decks
| Size | 48-in. (122-cm) fabricated | |||
|---|---|---|---|---|
| Deck construction | Fabricated steel, floating mount system | |||
| Deck thickness | 7 gauge 0.180 in. 4.6 mm |
|||
| Discharge | Side | |||
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1.5-5 in. 3.8-12.7 cm |
|||
| Cutting width | 48-in. (122-cm) fabricated |
Blades
| Length | ||||
|---|---|---|---|---|
| Thickness | 0.25 in. 0.64 cm |
|||
| Blade tip speed | Approximately 18,000 fpm 5486 m/min |
|||
| Number | Three |
Wheels
| Caster wheel type | Flat free | |||
|---|---|---|---|---|
| Caster wheels | 11x4-5 | |||
| Front anti-scalp rollers | Double-captured center | |||
| Rear anti-scalp rollers |
Dimensions
| Length | 59.75 in. 151.8 cm |
|||
|---|---|---|---|---|
| Width | With chute down, 62 in. 157 cm |
|||
| Height | 46 in. 117 cm |
|||
| Weight | 800 lb 363 kg |
Operation
| Rollover protective structure (ROPS) | ||||
|---|---|---|---|---|
| Slope operating limit |
Additional information
| Date collected | 28-Aug-2023 |
|---|
Shop and Buy
Maintenance and Support
You May Also Be Interested In
** Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURN AND UTILITY EQUIPMENT at John Deere.com
