17.5-hp (13.0-kW) engine
Engine oil filter and fuel filter
A 17.5-hp (13.0-kW), single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging:
No-tools oil drain valve
The no-tools oil drain valve is easy to access when changing engine oil.
Convenient fuel filler opening
Solid one-piece frame
Solid one-piece frame
The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:
Front axle and wheel spindle
The front axle is constructed of solid cast iron that will not bend:
Front bumper
Front bumper
The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.
Rear CargO Mount points
Front CargO Mount points at the top of the dashboard
Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount points
The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
S140 Tractor with front blade, weights, and tire chains
S160 Tractor with snow blower, weather enclosure, weights, and tire chains
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
Two-pedal speed/direction controls
Forward speed control pedal in use
A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
Hydrostatic transmission
Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
Comfortable operator station, right side
Comfortable operator station, left side
The operator station is designed for operator comfort and easy operation:
Steering wheel and dash
Wide footrest with debris channels
Controls are easy to see and use:
Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:
Comfortable seat
Easily adjusted seat and beverage holder
The operator seat has an 11-in. (28-cm) back height. It can be easily adjusted forward or rearward while the operator is in the seat, with seat travel of 5.5 in. (14 cm) and 10 different positions.
A beverage holder is located on the right-side fender for operator convenience.
Seat springs give a smoother ride
Seat tilted forward
Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
Storage compartment and beverage holder
A storage compartment and beverage holder on the right-side fender are conveniently located and easy to use.
NOTE: A storage compartment cover is standard on S120, S130, S160, S170, and S180 Tractors and optional on the S100, S110, and S140.

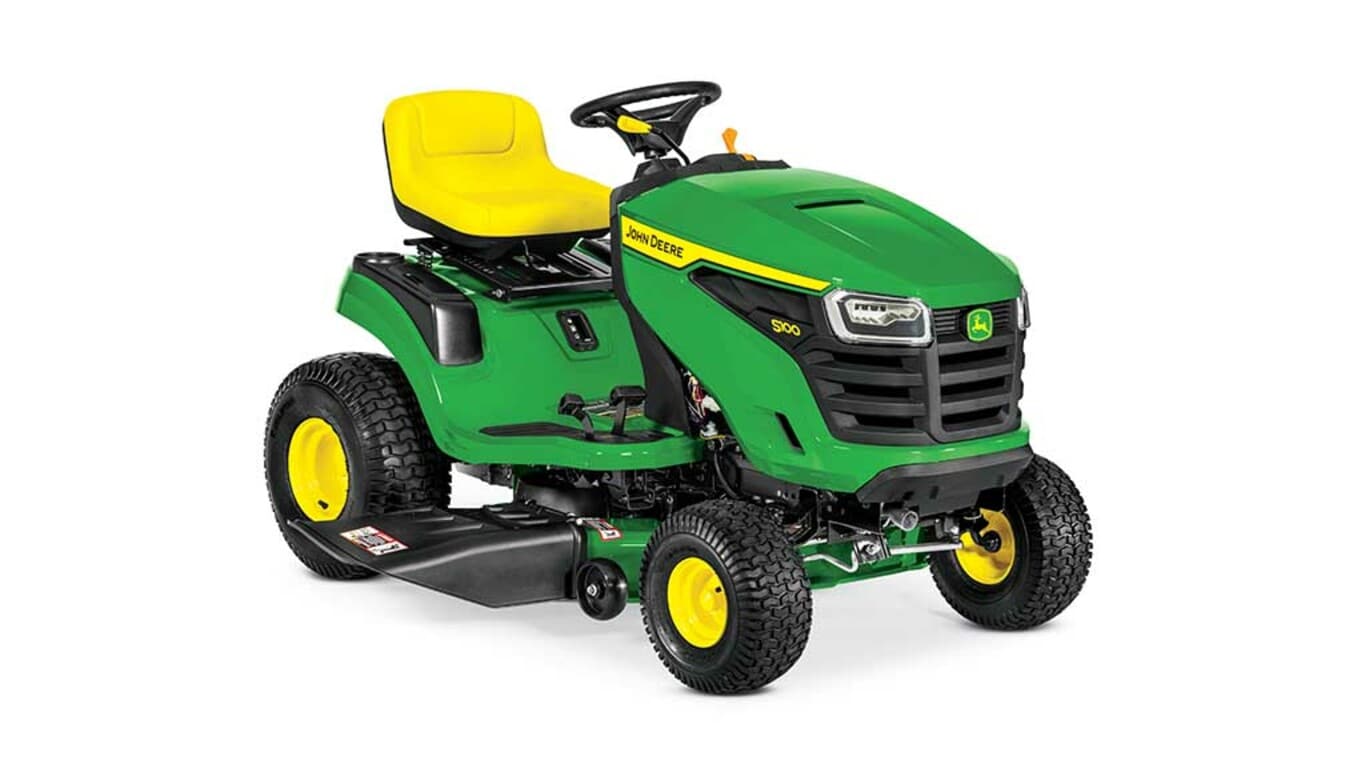

S100 Tractor
Steering wheel and controls on S100
The contoured dash has clean, attractive styling:
Two-pedal speed/direction controls
Side-by-side foot pedals
Side-by-side foot pedals control the speed and direction of travel:
Mower deck height adjustment lever
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
Brake/parking brake pedal
Parking brake lever
The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.
PTO engagement lever
The mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.
RIO switch
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
Fuel tank gauge
Convenient fuel- filler opening
The fuel tank gauge shows how much fuel is in the tank and can be seen without leaving the operator's seat:
One-piece hood is easy to open
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
Easy-to-service engine fuel and oil filters
Easy access to fuel-fill opening
The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
The seat tilts up and out of the way to make adding fuel easy.
Example product identification number (PIN) label with QR code
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located near the fuel fill. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN, which enables warranty registration without the need to manually enter the vehicle’s PIN.
One-piece hood with quality headlights
MowerPlus home screen
MowerPlus maintenance screen
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.
MowerPlus connectors (sold separately)
MowerPlus Hour Meter Connector
MowerPlus Deluxe Smart Connector, with a phone
Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10510 MowerPlus Hour Meter Connector is for use with:
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
BUC10537 MowerPlus Smart Connector is for use with:
All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android™ operating systems.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
42-in. (107-cm) Edge cutting system
The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:
The 42-in. (107-cm) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy:
StarLock blade design
The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.
6.5-bu (229-L) hopper and chute on an S100
A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.
The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere S100 Lawn Tractor |
| Engine power | 17.5 hp 13 kW |
|||
|---|---|---|---|---|
| Oil change | No-tools oil drain with replaceable filter | |||
| Engine manufacturer/model | 31R977 (M31) | |||
| Transaxle type | TLT200 hydrostatic, two-wheel drive | |||
| Transaxle control | Side-by-side pedals | |||
| Rear tires | 20x8-8 | |||
| Lift system type | Spring-assisted hand-grip lever | |||
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 17.5 hp 13 kW |
|||
|---|---|---|---|---|
| Displacement | 30.5 cu in. 500 cc |
|||
| Manufacturer/model | 31R977 (M31) | |||
| Type | Overhead valve, full-pressure lube, oil filter | |||
| Cylinders | One | |||
| Governor | Mechanical | |||
| Choke/speed control | Single lever with spring-return on choke | |||
| Cooling method | Air | |||
| Air cleaner | Cartridge | |||
| Oil change | No-tools oil drain with replaceable filter |
| Type | Gasoline | |||
|---|---|---|---|---|
| Fuel delivery | Pulse pump and carburetor | |||
| Fuel gauge | Mechanical, viewable from seat | |||
| Fuel tank location | Rear | |||
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
|||
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Battery | 12 V 300 CCA |
|||
|---|---|---|---|---|
| Charging system | Regulated, 8 amp | |||
| Engine starter | Bendix type | |||
| Hour meter | Yes | |||
| Headlights | Two standard, incandescent | |||
| Taillights or reflector | No | |||
| Backup lights | No | |||
| Rear work lights | No | |||
| 12-V outlet | No |
| Type | Hydrostatic, 2-wheel drive | |||
|---|---|---|---|---|
| Control | Side-by-side pedals | |||
| Cruise control | No | |||
| Oil cooler | Fins and fan on transaxle | |||
| Oil filter | Yes, not serviceable | |||
| Differential lock | No | |||
| Forward speed | 0-5.5 mph 0-8.9 km/h |
|||
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
|||
| Brakes | Internal wet disk |
| Frame | Full-length welded steel | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Weight bracket | Optional rear | |||
| Receiver hitch | No | |||
| Front axle | Cast-iron front axle, powdered-metal front wheel bushings | |||
| Spindle bushings | No | |||
| Front tires | 15x6-6 | |||
| Rear tires | 20x8-8 | |||
| Hood material | Molded-in color material reduces sound, will not rust or dent | |||
| Fender deck material | Stamped steel | |||
| Floor mats | Yes, with debris removing channels | |||
| Storage | Storage tray with optional cover | |||
| Service interval decal | Yes | |||
| Fender handles/grips | No | |||
| Cup holder | Yes | |||
| Equipment mounting | CargO Mount™ system | |||
| Maximum towing capacity | 500 lb 227 kg |
| Type | Sector and pinion with single drag link and tie rod | |||
|---|---|---|---|---|
| Four-wheel steer | Not available on this model | |||
| Steering wheel | Standard, diameter - 12 in. 30.5 cm |
|||
| Tilt steering wheel | No | |||
| Turning radius | 18 in. 45.7 cm |
|||
| Uncut circle radius | 25 in. 63.5 cm |
| Type | One piece | |||
|---|---|---|---|---|
| Seat back height | 11 in. 28 cm |
|||
| Armrests | No | |||
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
|||
| Seat suspension | Tilt, two coil springs |
| Type | Spring-assisted hand-grip lever | |||
|---|---|---|---|---|
| Hydraulic outlets | No | |||
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | No |
| Type | Side discharge | |||
|---|---|---|---|---|
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| Construction | Stamped steel deck shell | |||
| Mower deck material | Steel, 13 gauge 0.090 in. 2.3 mm |
|||
| Mower wash port | Yes | |||
| Mower drive system | Manual power take-off (PTO) | |||
| Mower wheels | Two | |||
| Mower wheel adjustment | One bolt | |||
| Mower level adjustment | Easy-level deck |
| Type | Slide under tractor | |||
|---|---|---|---|---|
| Front draft arms | One spring clip | |||
| Rear draft arms | Two spring clips | |||
| Mower wheels rotate | No | |||
| Drive system | Single belt |
| Meets ANSI standard | Yes | |||
|---|---|---|---|---|
| Meets OPEI standard | Yes | |||
| Backup protection | Reverse Implement Option (RIO) | |||
| Safety video | Yes |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame |
|||
|---|---|---|---|---|
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mowers | ||||
|---|---|---|---|---|
| Rear bagger | 2-bag, 6.5 bu 229 L |
|||
| Powered material collection | ||||
| Mulching system | Mulch cover or high-performance plug | |||
| Front thatcher | ||||
| Front blade | 46 in. 116.8 cm |
|||
| Mid-mount blade | ||||
| Snow blower | Two-stage, 44 in. 111.8 cm |
|||
| Rotary broom | ||||
| Rotary tiller | ||||
| Sleeve hitch | ||||
| 3-point hitch | ||||
| Rear power take-off (PTO) | ||||
| Plow, moldboard | ||||
| Box scraper | ||||
| Cultivator | ||||
| Rear blade | ||||
| Disk harrow | ||||
| Landscape rake | ||||
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
|||
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
|||
| Front bumper | Styled front bumper | |||
| Brush guard | ||||
| Weather protection | Weather enclosure | |||
| Sun canopy | Sun canopy | |||
| Rear receiver hitch | ||||
| Bucket holder | Yes, single bucket | |||
| Grass striping | Lawn striping kit | |||
| Tractor shovel | ||||
| Front loader | ||||
| Other equipment | ||||
| Tow-behind tools | 16 |
| Height | 40 in. 1016 mm |
|||
|---|---|---|---|---|
| Overall length | 69.7 in. 1770 mm |
|||
| Wheelbase | 48.9 in. 1242 mm |
|||
| Width with mower | 55.2 in. 1402 mm |
|||
| Width with mower (deflector raised for storage) | 46.5 in. 1181 mm |
|||
| Width without mower | 39.2 in. 996 mm |
|||
| Weight | Mower, no fuel, 414 lb 188 kg |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Dec-21 |
7P Poly Utility Cart
Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
7P Poly Utility Cart
7P Utility Cart wheel
Wheels are mounted on a solid, one-piece axle for durability.
Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.
The pneumatic tires offer the following:
Sloped tailgate for easy emptying
A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
Spring-pin tractor hitch
A large-diameter hitch pin provides plenty of strength:
Tilt latch
An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Please contact a local John Deere dealer for availability and pricing information.
7P Poly Utility Cart
Order number: LP21935
Oilite is a trademark of Beemer Precision, Incorporated.
8Y Convertible Poly Utility Cart, push mode
8Y Convertible Poly Utility Cart, tow-behind mode
The 8-cu-ft (0.23-m3) capacity 8Y Convertible Poly Utility Cart can be used to haul a variety of materials including lawn debris, sand, dirt, mulch, and plants. The unique convertible hitch allows changing the cart from tow-behind mode to push mode without tools.
Key features include:
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes. Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Please contact a local John Deere dealer for availability and pricing information.
8Y Convertible Poly Utility Cart
Order number: LP22755
Oilite is a trademark of Beemer Precision, Incorporated.
10P Poly Utility Cart
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.
Utility carts can be used to haul a variety of materials:
The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:
A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
10P Poly Utility Cart
Order number: LPPCT10JD
Oilite is a trademark of Beemer Precision, Incorporated.
10PX Poly Utility Cart
10PX Poly Utility Cart full-dump lever
The 10PX tow-behind cart is great for hauling lawn debris, sand, dirt, mulch, and plants:
Cart in partial-dump position
Cart in full-dump position
Hand lever releases 180-degree dump angle for complete emptying
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
10PX Poly Utility Cart
Order number: LP72978
Oilite is a trademark of Beemer Precision, Incorporated.
13 Steel Utility Cart
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials, including firewood, lawn debris, dirt, sand, mulch, garden tools, plants, and bushes.
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
Welded box
Welded box construction provides maximum reliability:
Wheels are mounted on a solid, one-piece axle for durability.
Iron/Oilite® wheel bearings with grease fittings provide lubrication for long life.
Pneumatic tires offer:
Turf-tread tires are used on the 13 Utility Cart.
Deluxe tailgate
Deluxe tailgate is hinged for easy emptying and can also be quickly removed without the use of tools.
Spring-pin tractor hitch
Tilt-dump latch
A large-diameter hitch pin provides plenty of strength:
The easy-to-use latch allows tilting the bed for easier unloading:
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | ||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | ||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180 |
X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | |||||
| G110 | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X |
Please contact a local John Deere dealer for availability and pricing information.
13 Utility Cart
Order number: LPHDC13JD
Oilite is a trademark of Beemer Precision, Incorporated.
16YS Swivel Cart
The 17-cu-ft (0.48-m³) capacity 16YS Swivel Cart is unique in the lineup of John Deere carts in that it can be swiveled 120 degrees to either side for easier unloading. The operator can simply pull up next to where they want to dump the material and swivel the cart, eliminating the need to back up the cart.
Key features include:
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes. Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Please contact a local John Deere dealer for availability and pricing information.
16YS Swivel Cart
Order number: LP68186
Oilite is a trademark of Beemer Precision Incorporated.
17P Utility Cart
Every owner of a John Deere riding lawn and garden product is a potential user of a high-quality, affordable utility cart.
Utility carts can be used to haul a variety of materials:
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
Key features of the 17P Utility Cart:
A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Please contact a local John Deere dealer for availability and pricing information.
17P Utility Cart
Order number: LPPCT17JD
Oilite is a trademark of Beemer Precision Incorporated.
6.5-bu (229-L) hopper and chute on an S100 (front view)
6.5-bu (229-L) hopper and chute on an S100 (rear view)
The bagger kit can be set up without tools in minutes, provides efficient bagging performance, and has easy-to-empty bags. This is also commonly known as a material collection system (MCS).
Bagging
Emptying
The 6.5-bu (229-L) hopper and chute are for use with:
46-in. (117-cm) Front Blade
The front blade is excellent for pushing light snow or other loose material.
The blade is constructed for good performance and long life:
For operator convenience, the blade comes with standard equipment for controlling it from the tractor’s seat:
Full working range
The 46-in. (117-cm) blade can be operated up to 6.5 in. (16.5 cm) above ground level.
Floating action is designed into the lift linkage, so the blade is free to follow the contour of the ground.
The lift-linkage design makes raising the blade easy.
Left-hand blade control
For operator convenience, the blade comes with angling and lift components as standard equipment so it can be controlled from the tractor seat. The blade can be angled left, right, or used in the straight-ahead position.
Specifications
| Overall width | 46 in. (117 cm) |
| Overall height | 14 in. (36 cm) |
| Clearing width | 46 in. (117 cm) |
| Angling positions | Three |
| Lift height | 6.5 in. (17 cm) |
| Net weight | 73 lb (33.1 kg) |
The 46-in. (117-cm) Front Blade is compatible with:
| Description | Order code/attachment number | Model year 2015 and prior tractors | Model year 2016 and newer tractors |
| 46-in. (117-cm) Front Blade | BG20020 | X | --- |
| 46-in. (117-cm) Front Blade | BG20943 | X | X |
BG20943 Front Blade has updated mounting frames that accommodate the dual drag link system used on model year 2016 and newer tractors.
Requirements and/or recommendations:
Typical home maintenance kit
Home maintenance kits are a handy and convenient way for dealers to supply a customer with the maintenance-interval parts as specified in their operator's manual.
The LG266 home maintenance kit includes the following:
Quantity |
Description |
1 |
Engine oil filter |
2 |
Engine oil quart |
1 |
Fuel filter |
1 |
Air filter cartridge |
1 |
Spark plug |
Battery charger
This fully automatic 1.5-amp battery charger and maintainer safely charges lawn and garden, RV, deep-cycle, and most batteries that require long storage periods. It is particularly useful during winter months when the vehicle is not being used regularly, to ensure the battery stays charged:
Includes a choice of battery connection methods:
Bucket holder (single)
Transporting mulch, plants, or debris is easier with the CargO Mount™ single bucket holder. Just slip the holder bracket into the tractor's rear CargO Mounts. For use with any standard 5-gal. (19-L) or 6-gal. (23-L) bucket, the bucket holder is designed to carry up to 70 lb (32 kg) of material.
Please contact your local John Deere dealer for availability and pricing information.
Bucket holder (single)
Order number: LPJD100
8-oz (237-mL) Fuel-Protect gasoline stabilizer
John Deere Fuel-Protect gasoline stabilizer is a unique formula developed to ensure optimum performance and protection year-round:
Always use fuel stabilizer in gasoline.
Fuel sitting in gas tanks or gas containers for more than 30 days begins to degrade. Also, blended fuels and water in gasoline can form acids that corrode fuel-system components. Protect the investment - use John Deere fuel stabilizer with corrosion preventers and prevent hard starting, surging, lack of power, poor idle, flooding, and will not run or stay running conditions caused by poor-quality fuel. Ask a local John Deere dealer or visit John Deere Parts.
Helpful tips:
Please refer to the operator’s manual for additional recommendations and warranty information.
Fuel related issues are not considered a warrantable condition as there is no defect in the materials or workmanship of the machine.
For more information on fuel, visit John Deere Groundscare.
Storage compartment shown with cover
The storage compartment cover is standard equipment on some tractor models. For those tractors not already equipped, the cover is available to keep the storage compartment and contents clean and dry.
StarLock blade
42-in. (107-cm) Starlock blade mounting
42-in. (107-cm) Starlock blade mounting
42-in. (107-cm) Mower Deck
A complete mower deck can be ordered for replacement, if required.
Incomplete decks are also available through the John Deere Parts system. These decks include the shell, discharge chute, and decals.
This 42-in. (107-cm) Mower Deck comes with two medium-lift blades for normal cutting and bagging conditions.
NOTE: When replacing a model year 2015 or older mower deck, also order GY22387 power take-off (PTO) cable.
Front blowout baffle
The front blowout baffle kit is for the 42-in. (107-cm) Convertible Mower and the 42-in. (107-cm) Edge™ Xtra Mower. It will reduce the amount of blowout when bagging leaves or other dry material.
Striping kit brush - top view
Striping kit brush - side view
Customers, please contact your local John Deere dealer for availability and pricing information.
42X - 42-in. (107-cm) tractor grass groomer
Order number: LP1001
Mower deck leveling gauge
Leveling gauge allows quick and accurate mower deck leveling and cutting height adjustment.
Can be used for:
42-in. (107-cm) mulching attachment (shown on X300 Series mower deck)
The mulching attachment for the 42-in. (107-cm) Mower Deck provides excellent performance. This is a high-performance mulching attachment that includes a mulch plug and special mulching blades.
Features:
NOTE: Blades in BM21816 mulching attachment will not fit L100, L108, L110, L111, L118, 102, 115, 125, and 135 Tractor mower spindles, so should be discarded; standard mower blades may be used for mulching.
42-in. (107-cm) mulch cover
The mulch cover is available as an option.
Front bumper components
Front bumper mounted on tractor
The front bumper is an optional attachment for lawn tractors.
Protective cover (medium deluxe)
Features include:
Cover provides heavy-duty protection for 100 Series, LT, LX, and 200 Series Tractors.
Customers, please contact your local John Deere dealer for availability and pricing information.
Protective cover (medium deluxe)
Order number: LP93617
Protective cover (standard)
Features include:
Cover provides all-season protection for 100 Series, 200 Series, and Select Series™ X300 Series Tractors.
Customers, please contact your local John Deere dealer for availability and pricing information.
Protective cover (standard)
Order number: LP93917
Seat cover, deluxe small
Deluxe thick-cushioned seat cover provides superior protection, all-day riding comfort, and lots of storage:
Contact your local John Deere dealer for availability and pricing information.
Seat cover, deluxe small
Order number: LP40090
Seat cover, medium size shown
Seat cover protects new seats and renews old seats:
Contact your local John Deere dealer for availability and pricing information.
Seat cover, small
Order number: LP22704
AUC17789 spark arrester shown
NOTE: Spark arrester design and appearance vary depending on the muffler outlet. Photo is representative of some spark arrester designs.
A spark arrester is a device for preventing the escape of sparks. In some locations, the law requires that purchasers of certain products be given written notice that it is illegal to use such machines on forest-covered, brush-covered, or grass-covered land (except on watered lawns) without a spark arrester.
This kit complies with laws in the state of California, requiring its use under certain conditions. For further information on this law, consult No. 442.5 of the California Public Resources Code.
15-gal. (57-L) Mounted Sprayer for 100 and 200 Series
The 15-gal. (57-L) tractor-mounted sprayer is compatible with the 100 and 200 Series Tractors. Convenient mounting, easy maneuverability, and overall versatility make this a perfect choice for a John Deere lawn tractor. It provides an excellent way to apply spray material, including liquid fertilizer, weed killer, tree spray, and de-icer. It comes complete with a 32-in. (81-cm) boom that sprays a 60-in. (152-cm) spray swath. It is also equipped with a 19-ft (5.8-m) hose and a spray wand for spot spraying lawns, shrubs, etc. The fully adjustable brass spray wand tip achieves streams up to 30 ft (9.1 m). It has a custom mounting bracket that utilizes the existing frame holes for no-tools mounting after initial assembly. A recirculation kit is included.
Features include:
Please contact a local John Deere dealer for availability and pricing information.
15-gal. (57-L) Mounted Sprayer for 100 and 200 Series Tractors
Order number: LP53283
SHURflo is a trademark of SHURflo, LLC.
Viton is a trademark DuPont Performance Elastomers.
15-gal. (57-L) Tow-Behind Sprayer
Sprayer comes complete with a boom that sprays 60 in. (152.4 cm) wide. It also has a 12-ft (3.7-m) hose with an adjustable handgun for spot spraying lawns, shrubs, etc.
Features include:
NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).
This sprayer is especially suited for maintaining residential and small commercial properties:
Advantages of using liquid fertilizer over dry fertilizer:
NOTE: Use these sprayers with liquid-base lawn care chemicals only. They are not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.
Customers, please contact your local John Deere dealer for availability and pricing information.
15-gal. (57-L) Tow-Behind Sprayer
Order number: LP19478
25-gal. (95-L) Tow-Behind Sprayer
Sprayer comes with a wider boom that sprays a 90 in. (228.6 cm) width. A 15-ft (4.6-m) hose and handgun are provided.
Features include:
NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system).
This sprayer is especially suited for maintaining residential and small commercial properties.
Advantages of using liquid fertilizer over dry fertilizer:
NOTE: Use this sprayer with liquid-based lawn care chemicals only. It is not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.
Customers, please contact your local John Deere dealer for availability and pricing information.
25-gal. (95-L) Tow-Behind Sprayer
Order number: LP19479
SHURflo is a trademark of SHURflo, LLC.
125-lb (57-kg) Pull-Type Spin Spreader
John Deere spin spreaders have features and a choice of sizes to satisfy many operators. They are a popular attachment for both homeowner and commercial operators who use them for even distribution of a variety of materials:
All spreaders have rust-resistant stainless-steel or polyethylene hoppers as well as many stainless-steel components to ensure lasting appearance and long, trouble-free operation.
Features include:
Accu-way is a trademark of Spyker Spreaders, Inc.
Hopper screen and throat opening
Hopper screens keep out debris and serve as chunk graters.
A stainless-steel hopper bottom plate/throat opening resists rust and corrosion, which extends the life of the spreader.
Spinner
Spinners are made of high-impact plastic that will not crack or break.
Dial-A-Matic rate control
The Dial-A-Matic rate control lets the operator fine-tune the rate application:
| 125-lb (57-kg) Pull-Type Spreader | 175-lb (79-kg) Pull-Type Spreader | |
| Recommended market | Homeowner | Homeowner |
| Type | Tow-behind | Tow-behind |
| Bundle number | LP25353 | |
| Box capacity | 125 lb (57 kg), 2.5 cu ft (0.07 m3) | 175 lb (79 kg), 3.5 cu ft (0.1 m3) |
| Hopper size, in. (cm) | 14.5x25.25x19.75 (36.8x64.1x50.2) | 18.5x27.5x21.5 (47x69.9x54.6) |
| No-rust versatility | ||
| Hopper | Polyethylene | Polyethylene |
| Hopper screen | Aluminum | Aluminum |
| Hopper bottom plate | Stainless steel | Stainless steel |
| Throat opening, in. (cm) | 0.81x2.75 (2.1x7) | 0.81x2.75 (2.1x7) |
| Connecting hardware | Stainless steel | Stainless steel |
| Accurate application | ||
| Rate control | 80-setting Dial-A-Matic knob | 80-setting Dial-A-Matic knob |
| Rate gate | No-stick nylon | No-stick nylon |
| Rate gate linkage | Stainless steel | Stainless steel |
| Even dispersal | ||
| Spinner, in. (cm) | 12 (366) | 12 (366) |
| Spread pattern, ft (m) | 10 to 12 (3.1 to 3.7) wide | 10 to 12 (3.1 to 3.7) wide |
| Spread pattern equalizer | Accu-way™ | Accu-way |
| Spinner shaft | Zinc-plated steel | Zinc-plated steel |
| Rotary agitator | Stainless steel | Stainless steel |
| Miscellaneous | ||
| Frame | Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm) 1.13-in. (2.86-cm) tubular steel | Powder-coated gloss enamel, 16 ga, 0.6 in. (1.5 mm), 1.25-in. (3.2-cm) tubular steel |
| Frame width, in. (cm) | 18 (45.7) | 18 (45.7) |
| Drive gears | Heavy-duty die-cast metal | Heavy-duty die-cast metal |
| Axle | 0.63-in. (15.9-cm) solid steel, zinc plated | 0.63-in. (15.9-cm) solid steel, zinc plated |
| Wheels/tires | 13-in. x 5-in. (33-cm x 13-cm) pneumatic | 13-in. x 5-in. (33-cm x 13-cm) pneumatic |
| Recommended travel speed | 3.5 mph (5.6 km/h) | 3.5 mph (5.6 km/h) |
| Warranty | One-year limited | One-year limited |
| Net weight, lb (kg) | 29 (13.2) | 34 (15.4) |
Accu-way is a trademark of Spyker Spreaders, Inc.
Please contact your local John Deere dealer for availability and pricing information.
125-lb Pull-Type Spin Spreader
Order number: LP25353
40-in. (102-cm) Tow-Behind Aerator Spreader
The 40-in. (102-cm) Aerator Spreader can do two jobs at once. It perforates the soil while the calibrated drop-spreader follows with seed, lime, or fertilizer. It can also be used to just aerate the lawn:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Width | 40 in. (101.6 cm) |
| Aerator depth | Up to 2 in. (5.1 cm), two positions |
| Spreader capacity | 100 lb (45 kg) |
| Tines | |
| Number of tips | 132 |
| Diameter | 8 in. (20.3 cm) |
| Material | Steel |
| Lift adjuster | Manual |
| Wheels | 4.10/3.5-4, pneumatic |
| Drive | Direct |
| Weight-tray capacity | 100 lb (45 kg) |
Requirements and/or recommendations: tow-behind equipment
Customers, please contact your local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Aerator Spreader
Order number: LPAS40JD
130-lb (59-kg) Pull-Type Spin Spreader
Broadcasts fertilizer, weed control, grass seed or ice melter products while towing behind a riding lawn tractor. 130-lb (59-kg) polyethylene hopper resists rust and is easier to clean. Spread pattern will go up to 12 ft (31 cm) depending on speed and material. New direct rod control with easy to reach handle opens and closes the material gate. Heat treated steel gears with plastic enclosure are protected from corrosive material. Large knobby tread tires roll easily over turf.
Two-year warranty.
Please contact your local John Deere dealer for availability and pricing information.
130-lb Pull-Type Spin Spreader
Order number: LP39087
Broadcast Spreader
This 175-lb (79-kg) pull-type broadcast spreader is designed for homeowner use:
Please contact your local John Deere dealer for availability and pricing information.
175-lb (79-kg) Broadcast Spreader
Order number: LPBS36JD
Sun canopy
The sun canopy provides protection from the sun's rays and gives the operator some cooling shade during the hot summer days.
Quick sun protection:
Ordering information
Please contact your local John Deere dealer for availability and pricing information.
Sun canopy
Order number: LP68122
40 in. (102-cm) Tow-Behind Thatcherator
The 40-in. (102-cm) Thatcherator can be used as a dethatcher or an aerator. It can also be used to prepare an area for seed:
An 8-in. (20-cm) extension is available to provide widths of 48 in. (122 cm) and 56 in. (142 cm). Add an extension to one end of the thatcherator to make it 48-in. (122-cm) wide and an extension to both ends for a 56-in. (142-cm) width.
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Width | 40 in. (101.6 cm) |
| Tines | |
| Number | 20, spring-loaded tips |
| Diameter | 0.19 in. (0.5 cm) |
| Material | Steel |
| Weight tray capacity | 100 lb (45 kg) |
| Lift adjuster | Three positions |
| Wheel | |
| Size | 8 in. (20.3 cm) |
| Tread | Rib |
| Material | Steel |
| Optional extension | 8 in. (20.3 cm) |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Thatcherator
Order number: LPTA40JD
TerraGrip traction belt
Protect your driving surface. TerraGrip traction belts offer enhanced traction on snow, mud, dirt, wet asphalt, and wet concrete surfaces. They do not scratch or chip concrete, asphalt, or aggregate drives or walkways. The proven reliability of the traditional steel chain attachment system is used and combined with the performance and durability of reinforced rubber slats. The rubber slats wrap around the tire so only rubber touches the driving surface. The result is aggressive traction without the risk of surface damage, that can happen with traditional chains.
Additional information for 4-wheel steer tractor models:
Tire chain with optional wheel weights on X728 Tractor
Chains are recommended for extra traction when using equipment such as a snow blower or front blade.
One pair of chains is included in each bundle.
TY15959 tire chains - 20x8-8
NOTE: For LA105, LA115, LA125, D100, D105, D110, D120, D125, E100, E110, E120, S100, S110, S120, and S140 Tractors.
TY16200 tire chains - 20x10-8 (for some models), 20x10-10
NOTE: For LA135 SE, LA145, LA155, S240, X300/less deck, X300/38X, X300/42M, X300/42X, X300/48X, X300R, X304, and X324 Tractors.
NOTE: The rim diameter is larger for four-wheel steer tires, but does not affect chain requirements.
TY25229 tire chains - 20x10-8 (for some models), 22x9.5-12
NOTE: For LA165, LA175, D130, D140, D150, D155, D160, D170, E130, E140, E150, E160, E170, E180, S130, S160, S170, S180, and S220 Tractors.
TY24327 tire chains - 22x11-10
NOTE: For X320, X340, and X360 Tractors.
TY15956 tire chains - 23x10.5-12
NOTE: For 190C Tractor.
TY26227 tire chains - 23x9.5-12, 24x9.5-12
NOTE: For X534 Tractor.
TY24328 tire chains - 24x12-12
NOTE: For X500, X520, X530, X540, and X590 Tractors. Also use with 26x10.5-12 tires on model year 2016 and newer (serial number 040,000-) X734 and X754.
TY25326 tire chains - 26x10.5-12
NOTE: For model year 2015 and older (serial number -040,000). For X724, X734, X744, and X754 Tractors. Fits turf, bar, and heavy-duty all-purpose (HDAP) tire treads.
TY15958 tire chains - 26x12-12
NOTE: For X700, X710, X720, X730, X728, X738, X729, X739, X740, X750, X748, X758, and X749 Tractors. Will fit turf, bar, and HDAP tire treads. X729, X739, and X749 require BM22725 wheel spacer kit to provide clearance when installing tire chains.
42-in. (107-cm) Lawn Sweeper
The 42-in. (107-cm) Lawn Sweeper offers great performance and hauls an incredible 17 bu (599 L) of material. Its design gives superior brush-to-ground contact to prevent skipping and provide maximum performance for a clean path the first time through.
Features include:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Brush height | Sweeping conditions |
| Ground level to 1 in. (25 mm) above | Smooth surfaces - driveways, parking lots, and sidewalks |
| 1 in. (25 mm) to 2 in. (50 mm) | Mowed lawns under normal conditions, or light leaves |
| 2 in. (50 mm) to 3 in. (75 mm) | High grass, heavy leaves, or heavy grass clippings |
Customers, please contact your local John Deere dealer for availability and pricing information.
42-in. (107-cm) Tow-Behind Lawn Sweeper
Order number: LPSTS42JD
44-in. (112-cm) Lawn Sweeper
The 44-in. (112-cm) Lawn Sweeper offers great performance and hauls an incredible 17 bu (599 L) of material. Its design gives superior brush-to-ground contact to prevent skipping and provide maximum performance for a clean path the first time through.
Features include:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Brush height | Sweeping conditions |
| Ground level to 1 in. (25 mm) above | Smooth surfaces - driveways, parking lots, and sidewalks |
| 1 in. (25 mm) to 2 in. (50 mm) | Mowed lawns under normal conditions, or light leaves |
| 2 in. (50 mm) to 3 in. (75 mm) | High grass, heavy leaves, or heavy grass clippings |
Please contact your local John Deere dealer for availability and pricing information.
44-in. (112-cm) Tow-Behind Lawn Sweeper
Order number: LP49038
Dethatcher kit for sweeper
This John Deere dethatcher kit has two rows of individually flexing tines that gently but effectively remove grass clippings, leaves, and other lawn debris from your lawn. The kit easily attaches to the front of John Deere's 42-in. (107-cm) Lawn Sweeper (LPSTS42JD) to add thatch pickup to the sweeper's cleaning abilities. The dethatcher does not need to be removed to resume regular sweeping use.
Customers, please contact your local John Deere dealer for availability and pricing information.
Dethatcher kit for sweeper
Order number: LP42108
Multi Tool
The Multi Tool includes one platform and two separate attachments, saving space and money.
John Deere has combined the best lawn tools into one package.
Two-year warranty.
Please contact your local John Deere dealer for availability and pricing information.
Multi Tool
Order number: LP39089
36-in. (91-cm) Tow-Behind Lawn Roller
The Lawn Roller packs down sod, seed, and mole ridges. Its tough polyethylene drum does not dent or rust. The drum's rounded ends do not gouge the lawn or make ruts:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Width | 36 in. (91 cm) |
| Roller | |
| Size | 36 in. x 18 in. (91 cm x 46 cm) |
| Capacity | 42 U.S. gal. (159 L) |
| Weight (filled) | 390 lb (177 kg) |
| Drum/end-cap material | High-density polyethylene (HDPE) |
| Bearings | Nylatron |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
36-in. (91-cm) Tow-Behind Lawn Roller
Order number: LPPRT36JD
Nylatron is a trademark of Mitsubishi Chemical Advanced Materials Inc.
40-in. (102-cm) Tow-Behind Plug Aerator
The 40-in. (102-cm) Plug Aerator removes plugs of soil up to 3-in. (7.6-cm) deep to allow penetration of air, water, and nutrients. It also helps relieve soil compaction:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Width | 40 in. (101.6 cm) |
| Aerator depth | Up to 3 in. (7.6 cm) |
| Tines | |
| Number of tips | 28 |
| Spacing | 6 in. (15.2 cm) apart |
| Material | Carbonized, 16-gauge, 0.6-in. (1.5-mm) steel |
| Lift adjuster | Manual, three position |
| Wheels | 4.10/3.5-4, pneumatic |
| Weight-tray capacity | 175 lb (79.4 kg) |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Plug Aerator
Order number: LPPA40JD
40-in. (102-cm) Tow-Behind Spiker Aerator
The 40-in. (102-cm) Spiker Aerator penetrates soil, allowing air, water, and nutrients to enter the lawn. It also relieves soil compaction:
John Deere tow-behind lawn care tools are compatible with all John Deere lawn and garden tractors, as well as competitive tractors.
This implement features legendary John Deere performance and quality.
Specifications
| Width | 40 in. (101.6 cm) |
| Aerator depth | Up to 2 in. (5.1 cm) |
| Tines | |
| Number of tips | 132 |
| Diameter | 10 in. (25.4 cm) |
| Spacing | 3.5 in. (8.9 cm) apart |
| Material | Steel |
| Lift adjuster | Manual |
| Wheels | 4.10/3.5-4, pneumatic |
| Weight tray capacity | 100 lb (45 kg) |
Requirements and/or recommendations:
Contact a local John Deere dealer for availability and pricing information.
40-in. (102-cm) Tow-Behind Spiker Aerator
Order number: LPSAT40JD
Weather enclosure shown on S180 Tractor
The roomy steel-frame cab shields you against snow, rain, sun, and wind to make snow removal a more pleasant experience.
This weather enclosure is compatible with model year 2011 and newer 100 Series and 200 Series Tractors:
Access slot for control arm (zipper closed)
Access slot for control arm (zipper open)
Key features include:
Contact your local John Deere dealer for availability and pricing information.
Weather enclosure
Order number: LP74604
34-lb (15.4-kg) front wheel weight
A durable cast-iron weight can be mounted to each front wheel.
These weights are recommended for use when operating on slopes, especially when the tractor is equipped with a rear grass bagger or other rear-mounted equipment.
Each weight requires BM17978 mounting hardware.
42-lb (19-kg) Quik-Tatch weight
42-lb (19-kg) weights and optional mounting bracket
The 42-lb (19-kg) Quik-Tatch can be used to counterbalance a heavy front or rear attachment and/or provide greater stability, especially when operating on hills.
This weight is constructed of cast iron and weighs approximately 42 lb (19 kg).
Some vehicles have built-in front and/or rear weight brackets to hang the weights on; others require a weight bracket that must be ordered separately.
X400/X500 Heavy-Duty Garden Tractors and X700 Series Tractors require the following parts when weights are installed on the front of the tractor:
Rear weight bracket shown with two 42-lb (19.1-kg) weights
Rear weight bracket
The rear suitcase weight provides extra ballast that is needed to reduce wheel slippage and increase snow-removal capability.
Rear weight bracket (BG20022 shown)
Rear weight bracket shown with two 42-lb (19.1-kg) weights
The rear weight bracket provides a tractor-mounted bracket for hanging two weights:
30-lb (13.6-kg) front wheel-weight shown
Hardware is required for installing each front-wheel weight.
Requirements:
NOTE: Front-wheel weights are not available for special edition tractors because the styled front-wheel design does not have appropriate holes for mounting the wheel weights and no adapter is available.
*Prices are suggested retail prices only and are subject to change without notice at any time. Dealer may sell for less. Taxes, setup, delivery, freight and preparation charges not included. Attachments and implements sold separately. The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower will be less. Prices in Canadian dollars. Product features subject to change. Please contact your local John Deere dealer for more detailed information.
**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.ca/TUWarranty for details.
