22-hp (16.4-kW) engine
A 22-hp (16.4-kW) V-twin engine has plenty of power and torque to handle tough mowing, mulching, and bagging:
Convenient fuel filler opening
John Deere Easy Change 30-second oil change system
The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.
The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.
The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:
Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.
Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.
Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.
Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.
LED headlights
S120 Lawn Tractor
The 100 Series Lawn Tractors are equipped with LED headlights that:
S120 hood
The hood used on 100 Series Lawn Tractors is made using the mold-in color process. The hood reduces sound, will not rust or dent, and provides resistance to UV light. Side openings let in plenty of cooling air while keeping the sound level low.
Solid one-piece frame
Solid one-piece frame
The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:
Front axle and wheel spindle
The front axle is constructed of solid cast iron that will not bend:

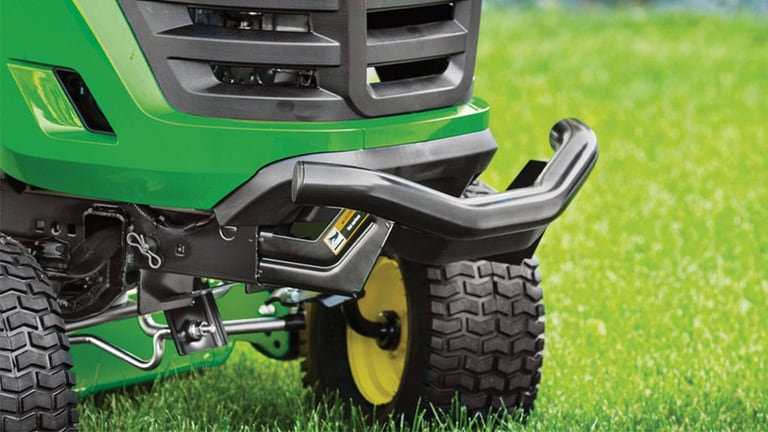

Front bumper
Front bumper
The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.
Rear CargO Mount points
Front CargO Mount points at the top of the dashboard (shown on S110)
Rear bagger is mounted with CargO Mount points
Snow blower controls are mounted with CargO Mount points
The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
S140 Tractor with front blade, weather enclosure, weights, and tire chains
S140 Tractor with snow blower, weights, and tire chains
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
Two-pedal speed/direction controls
Forward speed control pedal in use
A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
Hydrostatic transmission (TLT200 shown)
Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

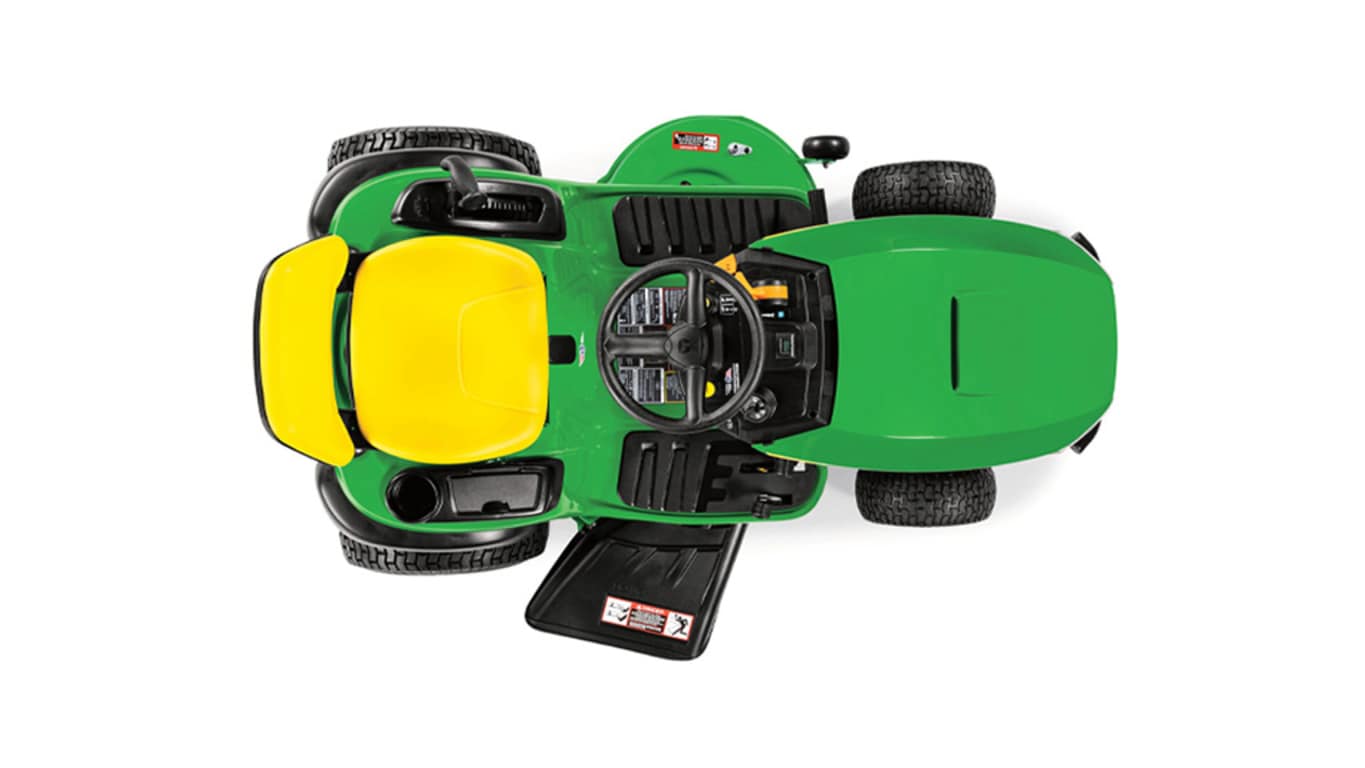

Comfortable operator station (S120 shown)
Comfortable operator station (S170 shown)
The operator station is designed for operator comfort and easy operation:
Steering wheel and dash (S130 shown)
Wide footrest with debris channels
Controls are easy to see and use:
Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:
Comfortable, open-back seat
Easy-to-adjust seat
Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:
Seat raised for fuel-fill access showing seat springs
Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
Covered storage compartment and beverage holder
A beverage holder and covered storag compartment, located on the right fender, are conveniently located and easy to use.
Handgrip and reflector on fender flare
On the S130, S160, S170, and S180 models, fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.
Steering wheel and controls on S130
The contoured dash has clean, attractive styling:
Easy-read fuel gauge
Convenient fuel filler opening
The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:
Side-by-side pedals
Forward speed control pedal in use
Side-by-side foot pedals control the speed and direction of travel:
Cruise control lever
Cruise control is available on the S120, S130, S160, S170, and the S180:
Mower deck height adjustment lever
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
Brake/parking brake pedal
Parking brake lever
The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.
Electric PTO engagement switch
The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.
RIO switch
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
Example quick-response (QR) code label
QR code label shown on S240
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.
Upper portion of owner support web page
Lower portion of owner support web page
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
One-piece hood is easy to open (shown on S110 model)
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
John Deere Easy Change™ 30-second oil change system
Seat tilted up for easy access to fuel-fill opening
The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.
The seat tilts up and out of the way to make adding fuel easy.
X350 Tractor
Z370R Electric ZTrak™ Mower
Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).
Use Equipment Mobile to find the right parts
It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.
Maintenance plan screen
Maintenance parts and notes screen
Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.
A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.
Smart Connector
BUC10537 smart connector, wiring harness, and twist ties
A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:
Optional BUC11960 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.
Optional BUC10537 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.
The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.
On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.
A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
S100 with 42-in. (107-cm) Edge cutting system
The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:
The 42-in. (107-cm) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy:
StarLock blade design
The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.
6.5-bu (229-L) hopper and chute on an S100
A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.
The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere S130 Lawn Tractor |
| Engine power | 22 hp 16.4 kW |
|||
|---|---|---|---|---|
| Oil change | John Deere Easy Change™ 30-second oil change system | |||
| Engine manufacturer/model | 44N677 (M44) | |||
| Transaxle type | TLT200 hydrostatic, two-wheel drive | |||
| Transaxle control | Side-by-side pedals | |||
| Rear tires | 20x10-8 | |||
| Lift system type | Spring-assisted hand-grip lever | |||
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 22 hp 16.4 kW |
|||
|---|---|---|---|---|
| Displacement | 44.2 cu in. 724 cc |
|||
| Manufacturer/model | 44N677 (M44) | |||
| Type | Overhead valve, full-pressure lube, oil filter | |||
| Cylinders | V-twin | |||
| Governor | Mechanical | |||
| Choke/speed control | Single lever with spring-return on choke | |||
| Cooling method | Air | |||
| Air cleaner | Cartridge | |||
| Oil change | John Deere Easy Change 30-second oil change system |
| Type | Gasoline | |||
|---|---|---|---|---|
| Fuel delivery | Pulse pump and carburetor | |||
| Fuel gauge | Easy-read on dash | |||
| Fuel tank location | Rear | |||
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
|||
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Battery | 12 V 300 CCA |
|||
|---|---|---|---|---|
| Charging system | Regulated, 8 amp | |||
| Engine starter | Bendix type | |||
| Hour meter | Yes | |||
| Headlights | Two standard, incandescent | |||
| Taillights or reflector | No | |||
| Backup lights | No | |||
| Rear work lights | No | |||
| 12-V outlet | No |
| Type | Hydrostatic, 2-wheel drive | |||
|---|---|---|---|---|
| Control | Side-by-side pedals | |||
| Cruise control | Standard | |||
| Oil cooler | Fins and fan on transaxle | |||
| Oil filter | Yes, not serviceable | |||
| Differential lock | No | |||
| Forward speed | 0-5.5 mph 0-8.9 km/h |
|||
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
|||
| Brakes | Internal wet disk |
| Frame | Full-length welded steel | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Weight bracket | Optional rear | |||
| Receiver hitch | No | |||
| Front axle | Cast-iron front axle, powdered-metal front wheel bushings | |||
| Spindle bushings | No | |||
| Front tires | 15x6-6 | |||
| Rear tires | 20x10-8 | |||
| Hood material | Molded-in color material reduces sound, will not rust or dent | |||
| Fender deck material | Stamped steel | |||
| Floor mats | Yes, with debris removing channels | |||
| Storage | Storage tray with cover | |||
| Service interval decal | Yes | |||
| Fender handles/grips | No | |||
| Cup holder | Yes | |||
| Equipment mounting | CargO Mount™ system | |||
| Maximum towing capacity | 500 lb 227 kg |
| Type | Sector and pinion with single drag link and tie rod | |||
|---|---|---|---|---|
| Four-wheel steer | Not available on this model | |||
| Steering wheel | Standard, diameter - 12 in. 30.5 cm |
|||
| Tilt steering wheel | No | |||
| Turning radius | 18 in. 45.7 cm |
|||
| Uncut circle radius | 25 in. 63.5 cm |
| Type | Two piece with open-back | |||
|---|---|---|---|---|
| Seat back height | 15 in. 38 cm |
|||
| Armrests | No | |||
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
|||
| Seat suspension | Tilt, two coil springs |
| Type | Spring-assisted hand-grip lever | |||
|---|---|---|---|---|
| Hydraulic outlets | No | |||
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | No |
| Type | Side discharge | |||
|---|---|---|---|---|
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| Construction | Stamped steel deck shell | |||
| Mower deck material | Steel, 13 gauge 0.090 in. 2.3 mm |
|||
| Mower wash port | Yes | |||
| Mower drive system | Electric power take-off (PTO) clutch | |||
| Mower wheels | Two | |||
| Mower wheel adjustment | One bolt | |||
| Mower level adjustment | Easy-level deck |
| Type | Slide under tractor | |||
|---|---|---|---|---|
| Front draft arms | One spring clip | |||
| Rear draft arms | Two spring clips | |||
| Mower wheels rotate | No | |||
| Drive system | Single belt |
| Meets ANSI standard | Yes | |||
|---|---|---|---|---|
| Meets OPEI standard | Yes | |||
| Backup protection | Reverse Implement Option (RIO) | |||
| Safety video | Yes |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame John Deere Easy Change 30-second oil change system |
|||
|---|---|---|---|---|
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mowers | ||||
|---|---|---|---|---|
| Rear bagger | 2-bag, 6.5 bu 229 L |
|||
| Powered material collection | ||||
| Mulching system | Mulch cover or high-performance plug | |||
| Front thatcher | ||||
| Front blade | 46 in. 116.8 cm |
|||
| Mid-mount blade | ||||
| Snow blower | Two-stage, 44 in. 111.8 cm |
|||
| Rotary broom | ||||
| Rotary tiller | ||||
| Sleeve hitch | ||||
| 3-point hitch | ||||
| Rear power take-off (PTO) | ||||
| Plow, moldboard | ||||
| Box scraper | ||||
| Cultivator | ||||
| Rear blade | ||||
| Disk harrow | ||||
| Landscape rake | ||||
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
|||
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
|||
| Front bumper | Included | |||
| Brush guard | ||||
| Weather protection | Weather enclosure | |||
| Sun canopy | Sun canopy | |||
| Rear receiver hitch | ||||
| Bucket holder | Yes, single bucket | |||
| Grass striping | Lawn striping kit | |||
| Tractor shovel | ||||
| Front loader | ||||
| Other equipment | ||||
| Tow-behind tools | 16 |
| Height | 45 in. 1143 mm |
|||
|---|---|---|---|---|
| Overall length | 74.2 in. 1885 mm |
|||
| Wheelbase | 48.9 in. 1242 mm |
|||
| Width with mower | 55.2 in. 1402 mm |
|||
| Width with mower (deflector raised for storage) | 46.5 in. 1181 mm |
|||
| Width without mower | 40 in. 1015 mm |
|||
| Weight | Mower, no fuel, 462 lb 210 kg |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Dec-21 |
Prices are suggested retail prices only and are subject to change without notice at any time. Dealer may sell for less. Taxes, setup, delivery, freight and preparation charges not included. Attachments and implements sold separately. The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower will be less. Prices in Canadian dollars. Product features subject to change. Please contact your local John Deere dealer for more detailed information.
*The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s web site for additional information.
Images of equipment models may be digitally or AI generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect the actual product, features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
