Lawn Tractor | S180 | 24 HP

Engine is powerful and smooth-running V-twin design

24-hp (17.9-kW) ELS engine

A 24-hp (17.9-kW) V-twin extended-life series (ELS) engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:

Includes ELS engine features for enhanced performance and longer life
V-twin cylinder design for greater torque, lower vibration, and improved sound quality
Electronic ignition for fast starts
Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
Cast-iron cylinder liners for longer engine life
Overhead valves for excellent power and fuel economy
Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
- More effective when operating the tractor on an incline

Fuel tank

Fuel filler opening

The capacity is 2.4 U.S. gal. (9.1 L).
The fuel filler opening is conveniently located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap is more convenient.
- The sealed fuel cap helps keep vapors inside the tank.

John Deere Easy Change™ 30-second oil change system

John Deere Easy Change 30-second oil change system

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

A synthetic filter material is used for more predictable filtering and longer life.
Filtering capacity is greater than with a standard oil filter.
- More filter surface area
- More oil flow capacity
The system has 40 percent more oil volume.
The oil and engine run cooler.
The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.
The risk of spilling during oil service is greatly reduced.
Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.
This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

Full-featured engine is more reliable and lasts longer

24-hp (17.9-kW) engine

This full-featured engine is engineered to deliver world-class endurance and power. A step above the competition, it is designed to be more dependable and longer lasting, saving time and money over the long run.

Built to exceed demanding needs by incorporating premium features and innovative designs:

Overhead valve (OHV) design for cooler operation and longer valve life
Contains an advanced debris management system that directs cooling air through the rotating screen to the air cleaner compartment, where large debris is pre-filtered through ejector slots
- Keeps unfiltered air out of the engine through a large, dual-sealed, premium oval-shaped cartridge-style filter
- Ensures maximum protection for extended engine life with the premium air cleaner, a pleated paper filter with a foam precleaner
- Captures fine particles for maximum protection and extended maintenance
Provides maximum protection with full-pressure lubrication system
- Pumps oil by a mechanical gerotor-style pump to all critical engine components
A premium bearing package for improved durability; includes a super-finished crank pin bearing with a 50 percent smoother surface to increase load capacity by 35 percent
- Uses a premium DU Teflon®-coated bearing
- Helps resist wear and increases durability through self-lubricating bronze bearing
Wear-resistant, chrome-plated valve stems for long-life valves
- 44 percent smoother for longer life
Cast-iron cylinder liners for longer life
Dependable float-feed type carburetor with integral fuel pump
High-capacity fuel filter for dependable operation
John Deere Easy Change™ 30-second oil change system makes changing the engine oil easy, quick, and clean
Maintenance-free electronic ignition for quick, dependable starts
Platinum spark plugs for extended life

Teflon is a trademark of The Chemours Company FC, LLC.

Frame made of full-length welded steel for reliability

Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
One-piece, steel fender deck is bolted to the frame.

Cast-iron front axle will not bend

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

Front bumper protects the tractor

Front bumper

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

Additional front-end protection
Attractive, bold style

CargO Mount™ system makes installation of rear bagger and other attachments easy

Rear CargO Mount points

Front CargO Mount points at the top of the dashboard

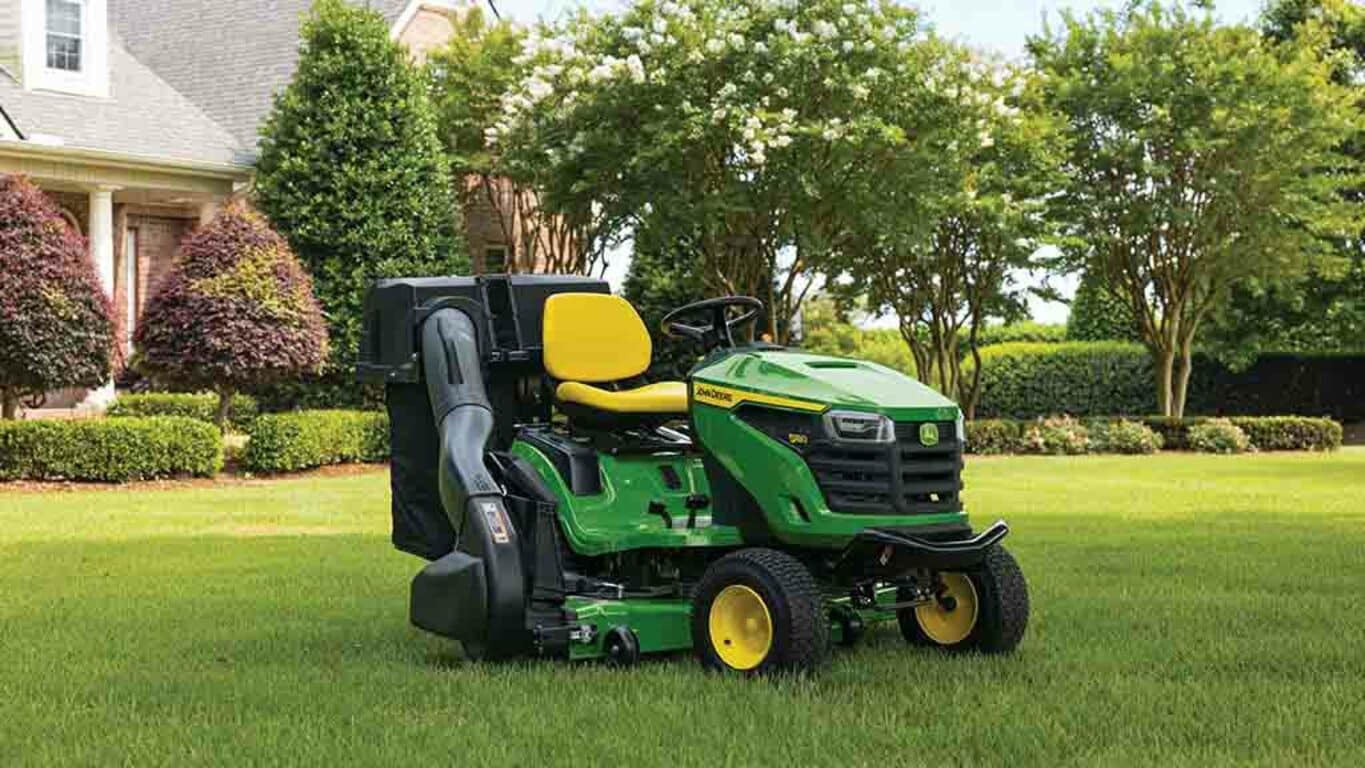

Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Snow removal is a strength of lawn tractors

S140 Tractor with front blade, weights, and tire chains

S160 Tractor with snow blower, weather enclosure, weights, and tire chains

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

44-in. (112-cm) Snow Blower
46-in. (117-cm) Front Blade
Tire chains or TerraGrip traction belts
Weather enclosure
Weights

Hydrostatic transmission gives an infinite choice of ground speeds

Two-pedal speed/direction controls

Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

Automotive-type accelerator controls ensure easy operation.
Operator can change direction without lifting foot off the platform.
Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
Tuff Torq K46 - S170 and S180

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

Operator station designed for comfortable operation

Operator station is designed for comfort (S160 shown)

Comfortable operator station, left side (S170 shown)

The operator station is designed for operator comfort and easy operation:

Controls are positioned where they are easy to reach and use to control the tractor.
The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
The seat is positioned to provide the most comfortable operator position.

Steering wheel and dash

Wide footrest with debris channels

Controls are easy to see and use:

A deluxe, 14-in. (35.6-cm) steering wheel provides greater operator comfort and control.
Ignition switch is on the dash for starting ease.

Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:

The wide footrest makes it easy to step over the mower deck while entering or exiting the seat.
Debris removing channels help keep the footrest area clean and dry.

Comfortable lumbar seat

Lumbar seat adjustment knob

Easy-to-adjust seat

Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:

Especially helpful when operating the tractor for extended periods of time
Easily adjusted forward or rearward while in the seat
Seat travel of 5.5 in. (14 cm) and 10 different positions to adjust for operator height

Seat springs give a smoother ride

Seat tilted forward

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Beverage holder

Storage compartment with cover

A beverage holder and storage compartment, located on the right fender, are conveniently located and easy to use.

Handgrip and reflector on fender flare

Fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.

Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use

S130 Tractor

Steering wheel and controls on S130

Instruments and controls

The contoured dash has clean, attractive styling:

Controls are color-coded and labeled for easy identification.
Controls are logically placed and easy to reach.
The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
Functional design of the controls provides good appearance and a comfortable feel.

Easy-read fuel gauge shows fuel level on the dashboard

Easy-read fuel gauge

Convenient fuel filler opening

The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:

Easy to check fuel level
Convenient location
Visible in cloudy or dusk conditions (is not backlit)
Does not slosh from bumps
The MowerPlus™ smartphone app can read and remember the fuel level (optional MowerPlus deluxe smart connector required)
The hour meter is also visible on the fuel gauge display

Side-by-side transmission control pedals

Two-pedal speed/direction controls

Side-by-side foot pedals

Side-by-side foot pedals control the speed and direction of travel:

Automotive-type accelerator controls ensure easy operation.
Operator can change direction without lifting foot off the platform.
Large pedal surface gives superior operator comfort.

Cruise control (S120, S130, S160, S170, and S180)

Cruise control lever

Cruise control is available on the S120, S130, S160, S170, and the S180:

To engage, lift the cruise lever and hold until the foot is removed from the forward pedal.
The cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Mower deck height adjustment lever

A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:

Increments of 1/4 in. (0.64 cm) allow fine-tuning the cut height.
Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).
The lift handle is shaped for easy use and is out of the way of entering or exiting operators.

Parking brake control

Brake/parking brake pedal

Parking brake lever

The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.

Electric power take-off (PTO) clutch is easy and convenient

Electric PTO engagement switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Reverse implement option (RIO)

RIO switch

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

Carefully check the area around the machine.
Disengage the mower before backing up.

NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

Stop forward travel.
Look behind the machine to be sure there are no bystanders.
Push and hold in the RIO switch while depressing the reverse pedal slightly.

NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.

Release the RIO switch and reposition the machine as the machine begins to move rearward.
Resume forward travel. The mower or other attachment should continue operating.
Repeat procedure to position the machine again.

Serviceability is convenient with easy-open hood

One-piece hood is easy to open (shown on S110 model)

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

Important service points are located within easy reach.
A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.

John Deere Easy Change™ 30-second oil change system

Seat tilted up for easy access to fuel-fill opening

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.

The seat tilts up and out of the way to make adding fuel easy.

Quick response (QR) codes link to owner information web pages

Example product identification number (PIN) label with QR code

John Deere riding lawn mowers are supported by owner information web pages that include links to:

Safety and how-to videos
Operator’s manuals
Parts catalog
Maintenance reminder sheets
Attachments
Warranty registration

To speed access to owner information web pages, a QR code is printed onto a PIN label located near the fuel fill. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN, which enables warranty registration without the need to manually enter the vehicle’s PIN.

Hood will not rust or dent and includes quality headlights

One-piece hood with quality headlights

Molded-in color material reduces sound and will not rust or dent.
Same quality hood material as on larger John Deere tractors provides good resilience and UV resistance for an extended time.
Openings on the side let in plenty of cooling air while keeping the sound level low.
Two headlights provide good lighting for nighttime operation.

Help maintain your mower and lawn with the MowerPlus™ app and connector

MowerPlus home screen

MowerPlus maintenance screen

Overview

Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.

Benefits

Engine hours, fuel level, and battery health (as compatible)
Mowing history with time, distance, area, and speed
Current day and five-day weather forecast based on location
Walk-through setup guides
Expert mowing tips
Useful attachments for future purchase
Periodic maintenance reminders
Safety instructions

To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.

Additional details

MowerPlus connectors (sold separately)

MowerPlus Deluxe Smart Connector, with a phone

MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.

BUC10929 MowerPlus Deluxe Smart Connector is for use with:

All S120, S130, S160, S170, and S180 Tractors
Model year 2021 and newer S240 Tractors (serial number 880,001-)
Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)

BUC10537 MowerPlus Smart Connector is for use with:

Model year 2016 and newer Select Series X300 and X500 Tractors

MowerPlus connectors transmit the fuel level and engine hour information to the app, making it easy to keep track of fuel level and maintenance intervals.

MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.

Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.

The Edge™ cutting system gives superior performance

54-in. (137-cm) Edge cutting system

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:

The deep-deck design lifts grass for a clean, even cut.
The smooth underside has no nooks and crannies, preventing grass buildup and evenly dispersing grass clippings.
The rolled outer edge of the deck provides extra strength and protection.
Dual-stage E-coat and powder paint coatings provide extra protection from rust.
Flexible discharge chute minimizes property and mower deck damage.

The 54-in. (137-cm) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:

The 11-gauge, 0.12-in. (3-mm) steel deck will provide years of dependable mowing.
Included blades work well for side-discharge or bagging.
The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.
Five mower deck wheels are standard equipment for a smooth mowing job in rolling terrain.
A mulching attachment is available and comes with blades that enhance mulching performance.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

A hose connector included with mower deck.

Optional Power Flow™ bagger

6.5-bu (229-L) hopper, chute, and Power Flow blower on an S180

A 6.5-bu (229-L) Power Flow bagger is sold separately. The bagger kit provides efficient bagging performance and has easy-to-empty bags.

Two-year or 120-hour bumper-to-bumper warranty is included

An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

The warranty is hassle free, with John Deere handling the service and paperwork.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Engine power	24 hp 17.9 kW
Oil change	John Deere Easy Change™ 30-second oil change system
Engine manufacturer/model	44U877 (M44)
Transaxle type	K46 heavy-duty hydrostatic, two-wheel drive
Transaxle control	Side-by-side pedals
Rear tires	22x9.5-12
Lift system type	Spring-assisted hand-grip lever
Cutting width	Edge™ mower deck, 54 in. 137 cm
U.S. warranty	2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Power	24 hp 17.9 kW
Displacement	44.2 cu in. 724 cc
Manufacturer/model	44U877 (M44)
Type	Overhead valve, full-pressure lube, oil filter
Cylinders	V-twin - extended life series (ELS)
Governor	Mechanical
Choke/speed control	Single lever with spring-return on choke
Cooling method	Air
Air cleaner	Cartridge with prefilter
Oil change	John Deere Easy Change 30-second oil change system

Type	Gasoline
Fuel delivery	Pulse pump and carburetor
Fuel gauge	Easy-read on dash
Fuel tank location	Rear
Fuel fill opening	Center, 1.75 in. 4.45 cm
Fuel tank capacity	2.4 U.S. gal. 9.1 L

Battery	12 V 300 CCA
Charging system	Regulated, 14 amp
Engine starter	Bendix type
Hour meter	Yes
Headlights	Two standard, incandescent
Taillights or reflector	Reflectors
Backup lights	No
Rear work lights	No
12-V outlet	No

Type	Hydrostatic, 2-wheel drive
Control	Side-by-side pedals
Cruise control	Standard
Oil cooler	Fins and fan on transaxle
Oil filter	Yes, not serviceable
Differential lock	No
Forward speed	0-5.5 mph 0-8.9 km/h
Reverse speed	0-3.2 mph 0-5.2 km/h
Brakes	Internal wet disk

Type	Sector and pinion with single drag link and tie rod
Four-wheel steer	Not available on this model
Steering wheel	Deluxe, diameter - 14 in. 35.6 cm
Tilt steering wheel	No
Turning radius	18 in. 45.7 cm
Uncut circle radius	18 in. 45.7 cm

Type	One piece with lumbar adjustment
Seat back height	15 in. 38 cm
Armrests	No
Fore-aft adjustment	While seated, 5.5 in. 14 cm
Seat suspension	Tilt, two coil springs

Type	Slide under tractor
Front draft arms	One spring clip
Rear draft arms	Two spring clips
Mower wheels rotate	No
Drive system	Single belt

Meets ANSI standard	Yes
Meets OPEI standard	Yes
Backup protection	Reverse Implement Option (RIO)
Safety video	Yes

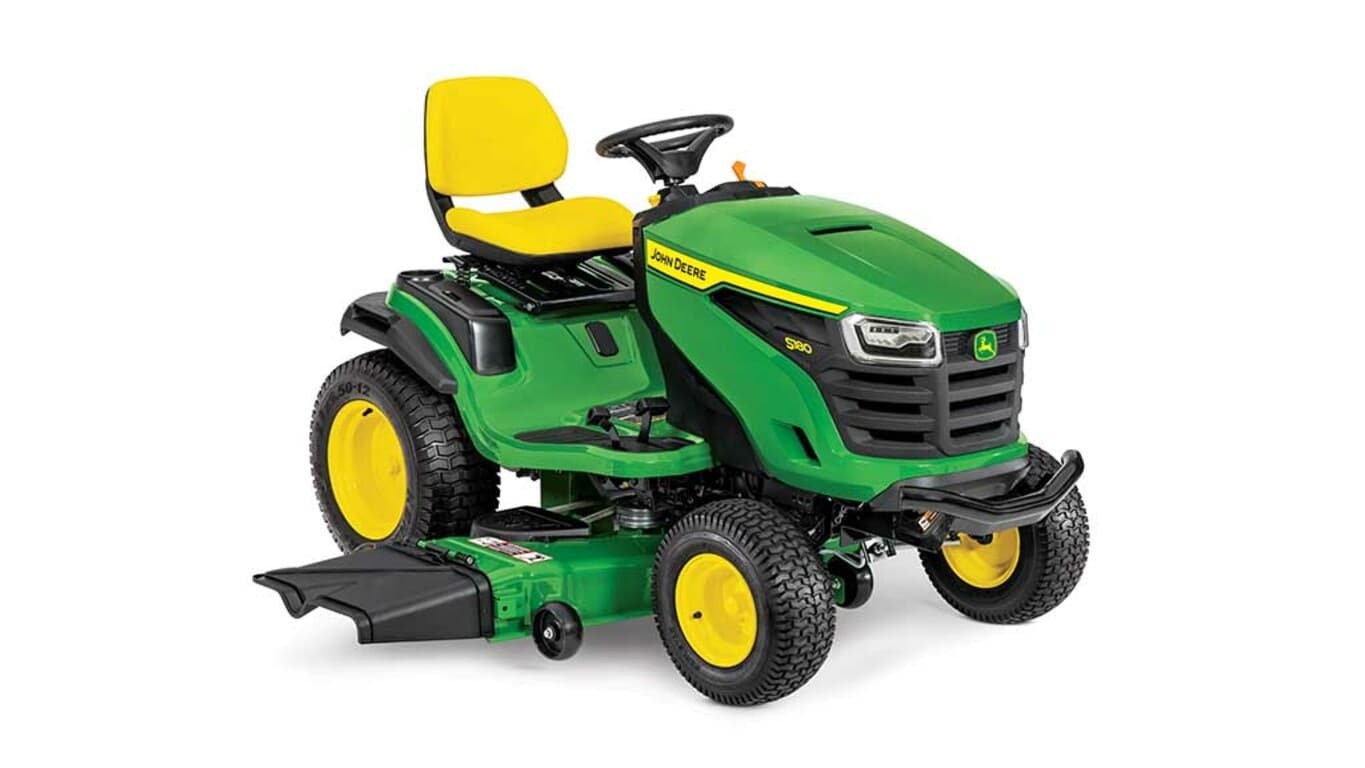

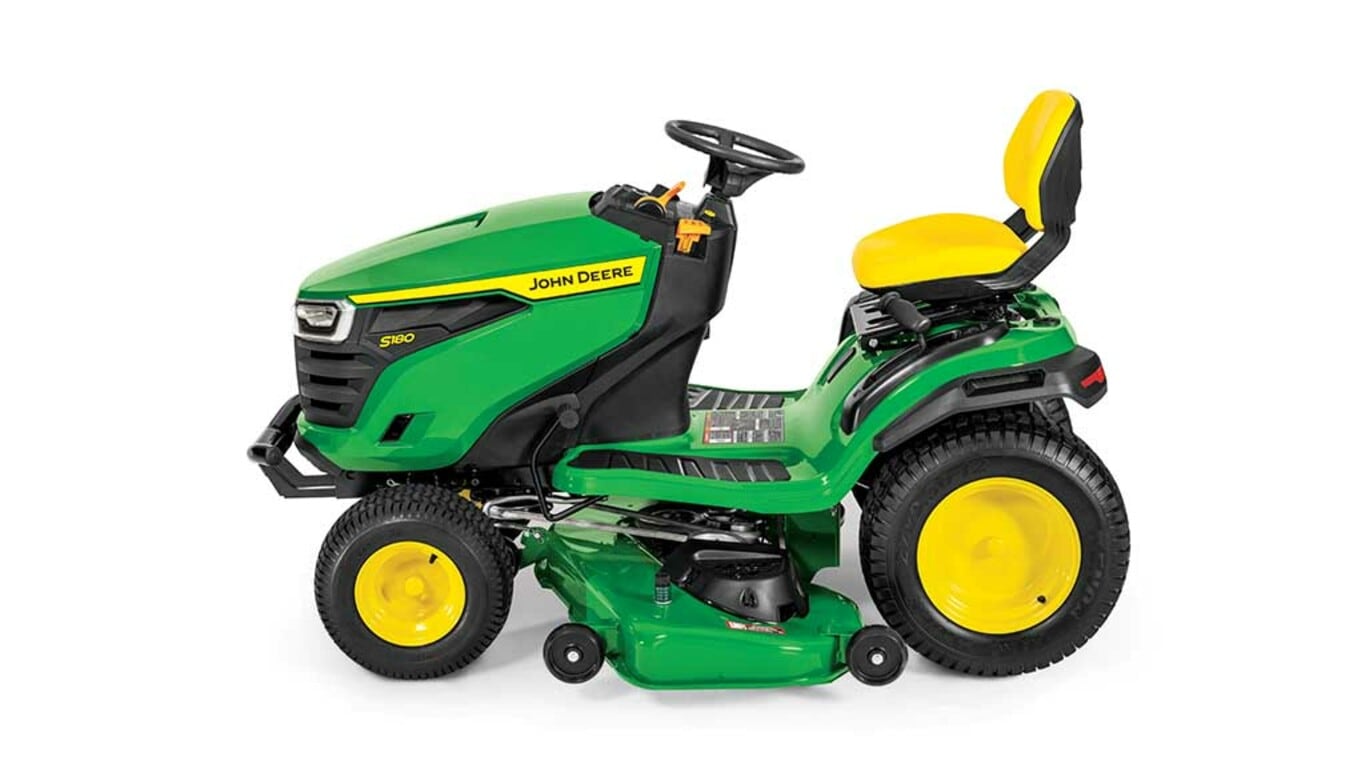

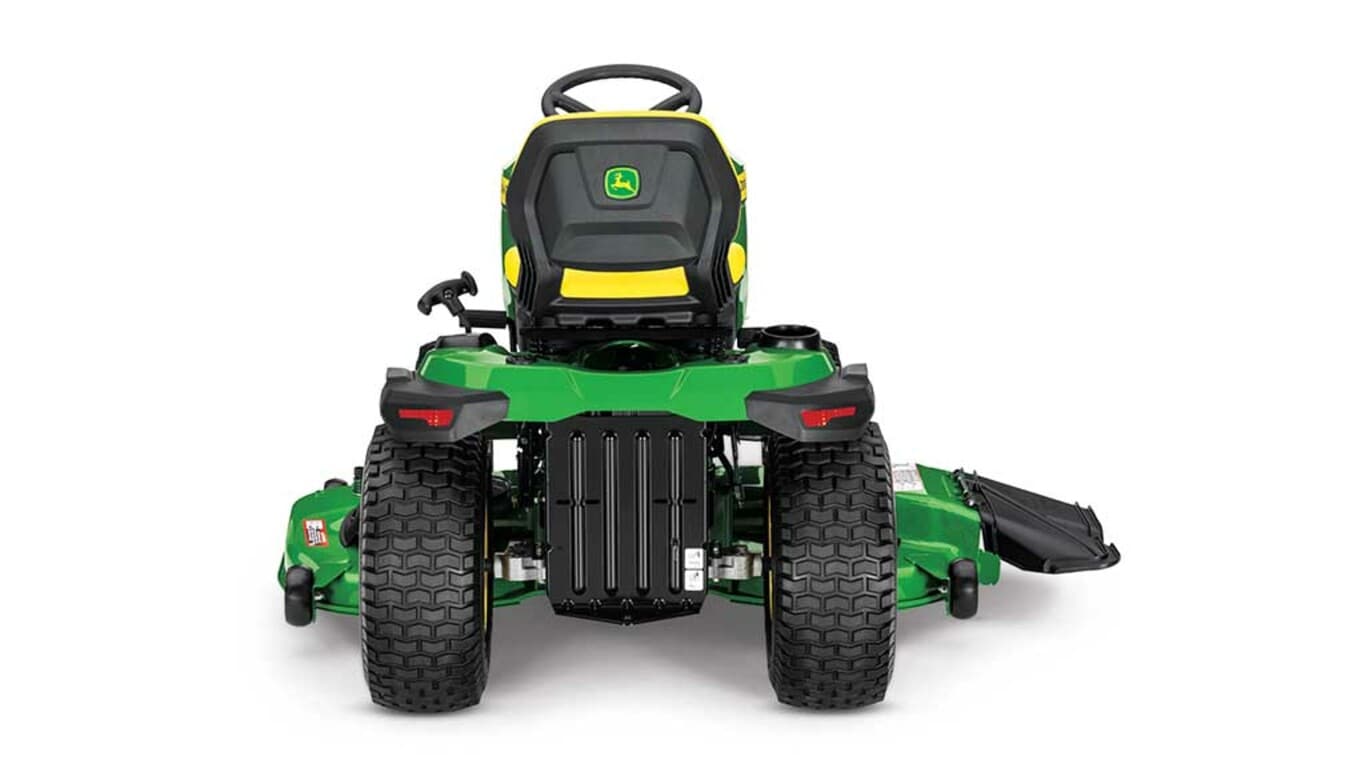

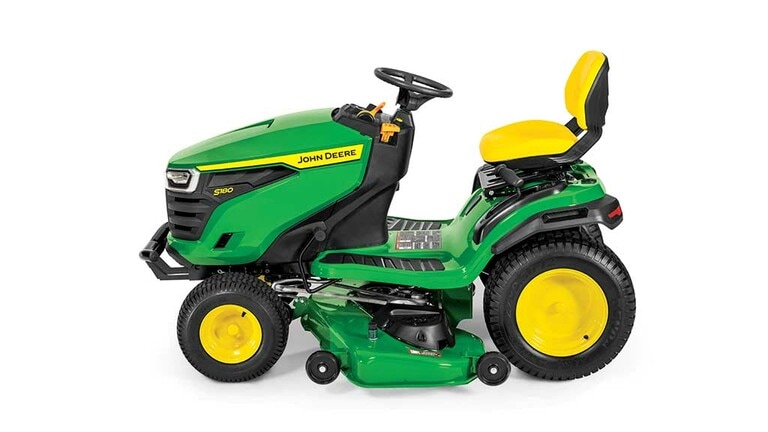

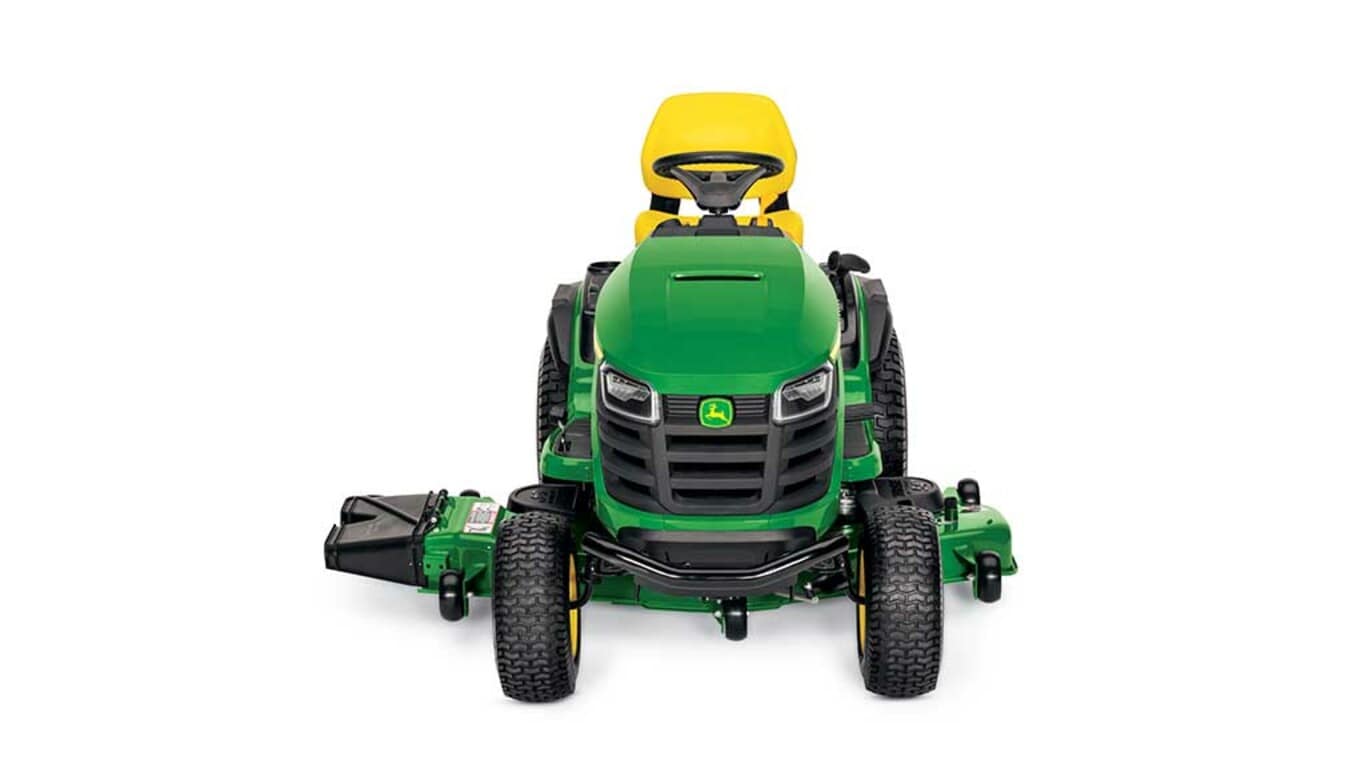

S180Lawn Tractor

SHARE

Features

Fuel tank

Cast-iron front axle will not bend

Front bumper protects the tractor

CargO Mount™ system makes installation of rear bagger and other attachments easy

Instruments and controls

Easy-read fuel gauge shows fuel level on the dashboard

Side-by-side transmission control pedals

Cruise control (S120, S130, S160, S170, and S180)

Mower deck height adjustment

Parking brake control

Electric power take-off (PTO) clutch is easy and convenient

Reverse implement option (RIO)

Using RIO

Quick response (QR) codes link to owner information web pages

Hood will not rust or dent and includes quality headlights

Overview

Benefits

Additional details

Mower wash port

Optional Power Flow™ bagger

Specs & Compare

Add Model

Key Specs

Engine

Fuel system

Electrical system

Transaxle

Chassis

Steering

Seat

Lift system

Mower deck

Mower attachability

Safety

Buyer's notes

Optional equipment

Dimensions

Additional information

Offers and Discounts

Offers and Discounts

9 Months No Payments/No Interest (NP/NI) followed by 17.9% APR/ACR†

15% Off Attachments†

15% OFF† Select Mower Attachments

Owner Resources

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
