STS20Hagie™ Self-Propelled Sprayer
- 2,000-US gallon (7,571 L) tank
- Up to 132-foot (40.23 m) boom
- 400 hp, 9.0 L engine
- 56.3 km/h transport speed
Features
Expand All
Collapse All
Screen captures from Hagie™ display for switching to rear boom
G5Plus displaying the rear boom offset as applied map

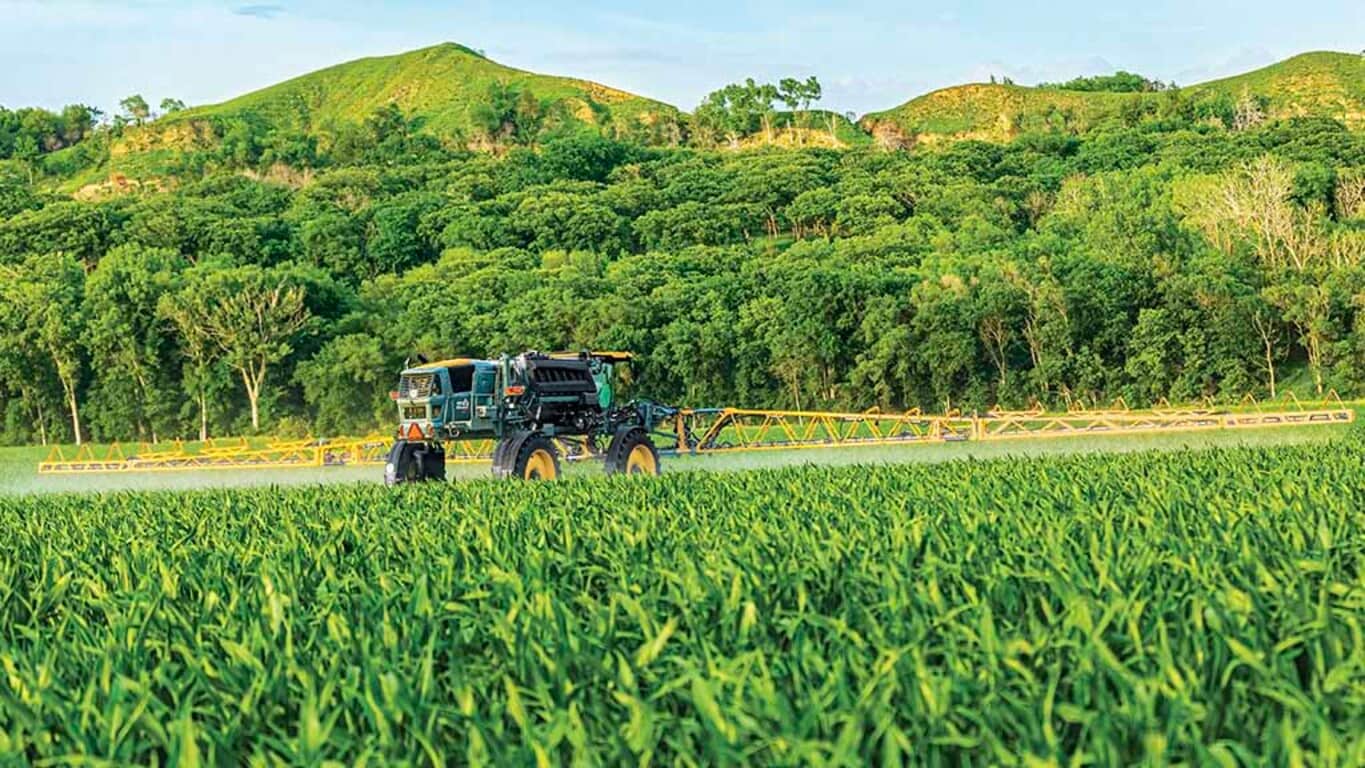

Hagie™ STS Sprayer in corn
PowrSpray solution keypad
Front Fill PowrSpray
Hybrid sprayer boom
StarFire 7500 receiver
Cab with Ultimate Comfort and Convenience package
Vision leather seat
Heating, ventilation, and massage controls for Vision seat
Electric position controls for Vision seat
ActiveSeat II
ActiveSeat II
Digital touchscreen radio
CommandARM™ console and controls with display
Refrigerator
Footrest
Direct injection two tank option shown
Single pump direct injection option shown
In Cab Rear Boom Activation and Multi-Rank
Screen captures from Hagie™ display for switching to rear boom
Overview
Late season applications utilizing the rear boom over tall crop just got easier and more precise. With up-to-date software, leaving the cab to switch the center section off and divert to the rear boom can now be done from the driver’s seat. Also included is Multi-Rank, the offset of the rear boom is now compensated for.
Benefits
- No longer need to manually switch the three harnesses or for a complete system shutdown.
- Less exposer to chemicals.
- Compensation of the distance between the front boom and the rear boom.
- Entering and exiting the rows will be applied evenly.
- Available on model year 2025 Hagie STS machines.
- For model year 2022 – 2024 Hagie STS machines, required hardware and software components will be needed. Kits are not available at this time.
Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.
Additional Details
G5Plus displaying the rear boom offset as applied map
Enter the field any day with high clearance, all-wheel steer (AWS) and balanced machine weight
Hagie™ STS Sprayer in corn
No matter the field or crop conditions, it is important to be able to feed and protect your crops throughout the entire growing season. The all-season capability and performance of the STS Sprayers enable you to enter the field any day.
- Gliding over crop with 1.88 m (74 in.) of underframe clearance combined with a narrow in-row crop package and smooth transition shields minimizes impact and crop disturbance.
- Standard AWS ensures the rear tires follow the front tires, leaving only two tracks while turning.
- Not only does the STS excel in late-season, tall-crop applications, but its balanced weight distribution with the tank full, empty, or anywhere in between and optional floatation tires enable it to perform in challenging field conditions all year long.
Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.
Precise on-target rate with the PowrSpray™ solution control system
PowrSpray solution keypad
Covering acres is important and doing so with accuracy and precision is essential. The PowrSpray solution control system found on the Hagie™ STS Sprayers makes sure every acre is covered precisely. The predictive pump control ensures target rates are accomplished faster, even in challenging dynamic conditions. Add the optional dedicated pull-on pump for fast and accurate solution tank loading and/or ExactApply™ for nozzle-by-nozzle control.
- Predictive pump control anticipates changes in flow to maintain target rate
- Electronic solution tank level indication
- Fast and accurate loading with the optional dedicated pull-on pump
- Optional eductor
- Optional ExactApply nozzle control
The solution keypad found on the cab entry ladder provides control of critical solution functions from the ground, eliminating the need to climb back into the cab during tending.
Front Fill PowrSpray Solution Keypad
For operators that prefer the front fill location, there is an option to relocate the PowrSpray solution control system keypad to the front fill location for ease of utilizing the features offered on the keypad. When the front fill option is installed, it will be the only operational keypad on the machine.
Front Fill PowrSpray
Dealer Use Only:
Code |
Description |
8925 |
Fill Control Keypad Relocation – Front Only one keypad location can be used at a time. The unused keypad will be unplugged and not operational. V437024 |
Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.
Cover more acres with the Hagie™ hybrid front boom
Hybrid sprayer boom
Cover acres with confidence and control. The Hagie hybrid front boom lineup offers a lightweight yet durable design by combining both steel and aluminum. Strong steel composes the interior sections of these booms, providing strength and flexibility where you need it. The outer sections are made of aluminum, reducing overall weight and improving control. Special consideration for hose and plumbing routing improves operator visibility and overall boom cleanliness. Spray tips and nozzle bodies are protected from impact as they are positioned within the booms structure.
- Improved visibility and lighter overall weight than all-aluminum booms on previous-generation models
- Available in a range of widths and nozzle spacings
- Large range of application heights from 58.4 to 279.4 cm (23 to 110 in.)
- Three-direction, spring-applied outer breakaway
- Hydraulic main boom breakaway
- 18-m (60-ft) outer wing folded width on 27-, 30-, and 36-m (90-, 100-, and 120-ft) booms
- 21-m (70-ft) outer wing folded with on 40-m (132-ft)
- Locking connection between the inner and outer sections of the boom ensures rigidity
Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.
Boom Update
In model year 2023 the hydraulic cylinders have been updated along with surrounding structure to improve the folding and unfolding of the booms. Structural improvements have also been made to improve durability. The improved performance is especially beneficial when a drop system is installed.
Increased performance with StarFire™ 7500 Receiver
StarFire 7500 receiver
When it comes to large agricultural, small agriculture and turf customers, the StarFire 7500 receiver is precise – allowing for repeatable placement of machines, fertilizer, seed, and herbicides.
- 100 percent increase in satellite constellations used by the receiver*
- 17 percent greater accuracy*
- Long-term repeatability (where applicable) vs. 9 months*
- 73 percent reduction in pull-in time*
- Universal offering that’s compatible with older and competitive equipment
- Interchangeable: tillage, planting, spraying, and harvesting
*All comparisons made to the StarFire 6000 with SF3
A new level of luxury with the Ultimate Comfort and Convenience package
Cab with Ultimate Comfort and Convenience package
The Ultimate Comfort and Convenience package offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.
- Increased comfort from leather seat with massage, heating and cooling, electronic controls and better swivel
- Easily make adjustments on the go
- Improved visibility on the left and right with better sight lines to the crop
Vision leather seat
Heating, ventilation, and massage controls for Vision seat
Electric position controls for Vision seat
Vision leather seat
- Improved swivel seat – 16 degrees to the left and 16 degrees to the right
- Heated and ventilated cooling
- Massaging functions to reduce fatigue during long days in the field
- Electronic controls that make it easier to adjust the seat to the preferred location
- Pneumatic lumbar
- Cushion length adjust
ActiveSeat II
ActiveSeat II
ActiveSeat II
When spraying and transport conditions are not ideal, it is important that comfort is not sacrificed. With the Hagie’s Ultimate cab package, a seat suspension package is offered to improve spraying comfort even further. This seat provides the highest level of comfort during bumpy conditions and ensures operators will finish their long harvest days without aches and pains.
Redesigned using an electric motor for quicker response and a simplified design, the ActiveSeat II seat suspension option significantly reduces vertical motion of the operator up to 90 percent compared to the machine, ensuring a smoother ride than any seat suspension options offered by Hagie in the past.
Digital touchscreen radio
Apple CarPlay® radio
The 16.5-cm (6.5-in.) state-of-the-art digital touchscreen radio works with Apple CarPlay and provides a multitude of entertainment options. CarPlay is a smarter, safer way to use an iPhone® mobile device when driving.
- Connect phone via Bluetooth® wireless or USB to play music
- Check the weather
- Navigation
- Phone calls
- Voice control
Door cinch with remote door opening
- Door cinch reduces the force needed to close the door
- Electric motor makes it easier to open and close the door without slamming
- Remote door opening and door lock-unlock fob
- Minimize residue exposure from outside surfaces by using the door fob to remotely open the door
CommandARM™ console and controls with display
G5 Plus CommandCenter™ Display
- The G5 Plus Displays gives operators a faster experience. Being able to see more on screen, especially in low light conditions. Short learning curve due to the same interface from the Gen 4 Displays. G5 will unlock additional value being built to support future automation and autonomy apps.
- The G5 Plus Displays gives users better visibility and more room for information. Screen resolution is full HD (1080P) with digital video capabilities and 35% more usable area.
CommandARM™ console and controls with display
Refrigerator
Refrigerator
Refrigerator
- Keep beverages and other items cool
Plenty of storage
- Three cup holders
- Easily accessible storage compartments located to the right and behind the seat
Footrest
Bluetooth is a trademark of Bluetooth SIG, Inc. Apply CarPlay and iPhone are trademarks of Apple Inc.
Expand carrying capacity with a direct injection system
Direct injection two tank option shown
As solution tank mixes become more complex, operators need a better way to manage the products they are mixing in helping to reduce the risk of chemical residue. The integrated direct-injection system provides an additional carrying capacity for raw chemicals and allows injection of single or dual products directly into the boom depending on installed configuration.
- Available on Hagie STS12 and STS16 sprayers.
- Optional one or two 55 gallon chemical tanks.
- STS12 is only available with one pump.
- STS16 is available with either one or two pumps.
- Not available on Hagie STS20 sprayers.
Direct injection helps provide quicker changeovers and faster cleanouts while also helping to minimize the risk of using multiple chemicals. This is accomplished by allowing operators the ability to isolate higher-residual-risk chemicals in the injection system while mixing lower-risk chemicals in the solution tank.
Single pump direct injection option shown
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere STS20 Hagie™ Self-Propelled Sprayer |
Key Specs
| Rated engine power | ||||
|---|---|---|---|---|
| Maximum engine power | ||||
| Solution system - Capacity | 7570 L 2000 gal. |
|||
| Rinse tank capacity | 757 L 200 gal. |
|||
| Boom length options/Material | Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m 60/90, 60/100, 60/120, or 70/132 ft |
|||
| Spray speed range | 0.8 to 40 km/h 0.5 to 25 mph |
|||
| Transport speed, maximum | 56 km/h 35 mph |
|||
| Suspension | Independent air-ride | |||
| Crop clearance with standard tires | 188 cm 74 in. |
|||
| Total weight (empty solution tank) | 12,429 kg 33,300 lb |
Engine
| Make | ||||
|---|---|---|---|---|
| Rated engine power | 298 kW 400 hp |
|||
| Maximum engine power | ||||
| Power bulge | ||||
| Emissions | Final Tier 4 (FT4) | |||
| Number of cylinders | Six | |||
| Displacement | 9 L 548 cu in. |
|||
| Transmission | ||||
| Alternator | 300 amp | |||
| Fuel tank capacity | 492 L 130 gal. |
|||
| Diesel exhaust fluid (DEF) tank capacity | 29 L 7.7 gal. |
|||
| AutoTrac speed, maximum |
Solution system
| Capacity | 7570 L 2000 gal. |
|||
|---|---|---|---|---|
| Tank material | Stainless steel | |||
| Rinse tank capacity | 757 L 200 gal. |
|||
| Solution pump flow | ||||
| Quick fill size | 7.6 cm 3 in. |
|||
| Rate control make | ||||
| Automatic section control | Optional | |||
| Display | ||||
| Solution system control | PowrSpray™ system | |||
| Fill location | Standard: Side Optional: Front |
|||
| Fill pump flow | ||||
| Chemical injection method | Optional: Raven Sidekick | |||
| Chemical eductor | Optional | |||
| Chemical eductor capacity (size) | 19 L 5 gal. |
|||
| Flow meter size | 5.8 cm 2 in. |
|||
| Suction strainer | ||||
| Pressure strainer | 50 mesh | |||
| Boom strainer | Standard 80 mesh |
Boom
| Boom length options | Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m 60/90, 60/100, 60/120, or 70/132 ft |
|||
|---|---|---|---|---|
| Automatic boom height | NORAC® UC7™ with Active Wing Roll (AWR) | |||
| Plumbing material | Stainless steel | |||
| Boom Material | ||||
| Ground height adjustment | 58 to 272 cm 23 to 107 in. | |||
| Breakaway width | For 27-m (90-ft) booms: 1.5 m 5 ft For 18/30 or 18/36 (60/100 or 60/120 ft): 3 m 10 ft For 40-m (132-ft) booms: 3.3 m 11 ft |
|||
| Boom sections | On 27-m (90-ft) boom: 7 sections On 30-, 36-, and 40-m (100-, 120-, and 132-ft) booms: 9 sections |
|||
| Nozzle spacings |
Drivetrain
| Type | CommandDrive™ | |||
|---|---|---|---|---|
| Drive | Full-time four-wheel drive (4WD) | |||
| Shifting | Infinitely variable - Operator programmable | |||
| Hydraulic reservoir capacity | 113.5 L 30 gal. |
|||
| Spray speed range | 0.8 to 40 km/h 0.5 to 25 mph |
|||
| Transport speed, maximum | 56 km/h 35 mph |
Chassis
| Type | ||||
|---|---|---|---|---|
| Dry compatible | No | |||
| Suspension | Independent air-ride | |||
| Crop clearance with standard tires | 188 cm 74 in. |
|||
| Front tires | VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50 | |||
| Rear tires | VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50 | |||
| Flotation tires | VF480/80R50, VF 620/70R46, IF710/65R46 | |||
| Hydraulic tread adjust | Not available | |||
| Wheel tread spacing | 305 cm 120 in. |
|||
| Wheel base | 457 cm 180 in. |
|||
| Turning radius | With all-wheel steer (AWS) on: 5.8 m 18.9 ft With AWS off (center of outside tire): 8.9 m 29.2 ft |
|||
| Parking brake | Integrated in final drives | |||
| Primary brakes | Drive system dynamic braking | |||
| Ladder raise/lower | Hydraulic | |||
| Total weight with 80-ft boom | ||||
| Total weight with 90-ft boom | 14,968.5 kg 33,000 lb |
|||
| Total weight with 100-ft boom | 14,923 kg 32,900 lb |
|||
| Total weight with 120-ft boom | ||||
| Total weight with carbon fiber boom (empty solution tank) | ||||
| Total weight (empty solution tank) |
Options
| Pressure washer | ||||
|---|---|---|---|---|
| Air compressor | Onboard air | |||
| Foam marker capacity | ||||
| Remote service tools |
Additional information
| Date collected | 1 March 2021 |
|---|
