In 1837, field preparation would forever change, thanks to our founder’s self-scouring plow. Today, we continue to innovate and lead in those same fields, with the industry’s most complete tillage line. It is our birthright. But more importantly, it is our passion. And we vow to bring you the best tools to prepare your fields with. Because a successful growing season for you means the world to us.

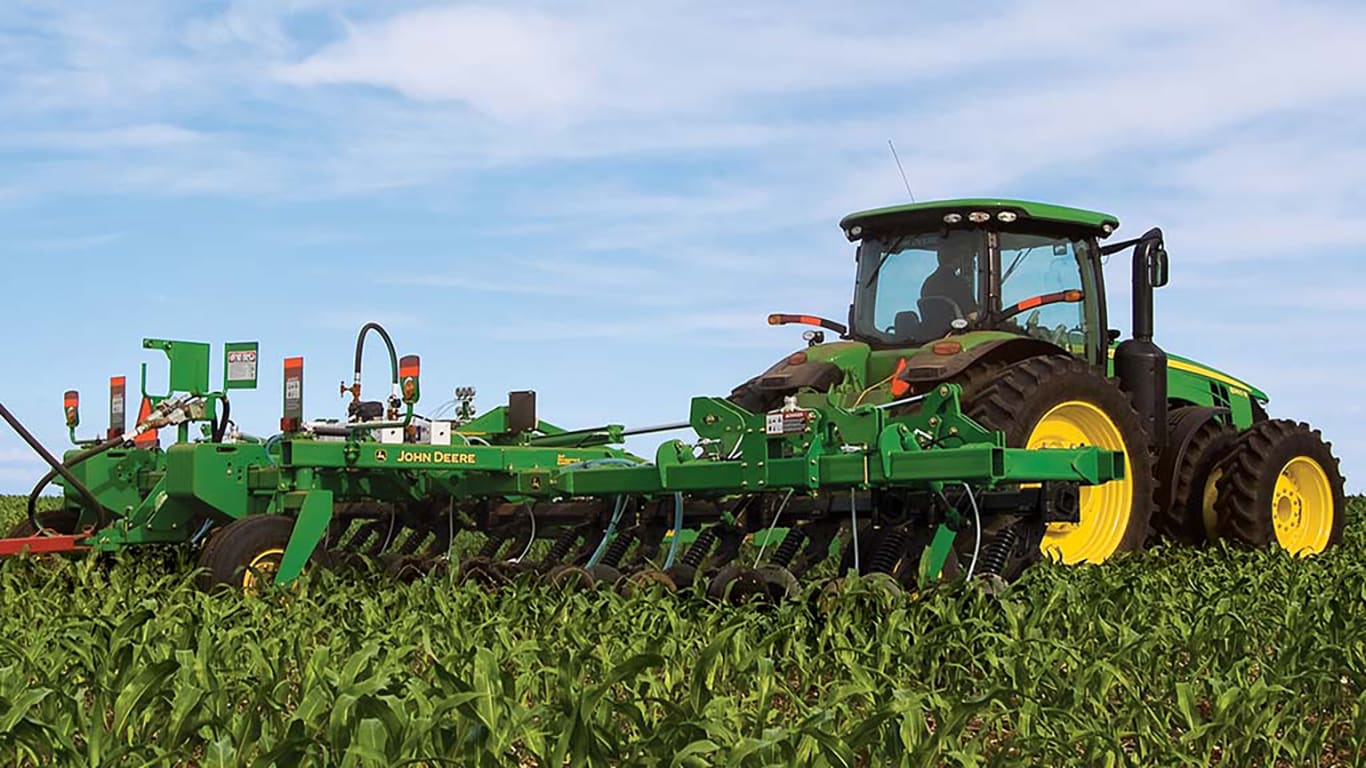

John Deere offers the precision and repeatability necessary for successful strip-tillage through our products and technology. The ST Series offers strip-till bars with configurations and options to fit your soil type, nutrient plan, application preference and more. Technology like AutoPath™ allows you to plant into the strips you tilled in fall.

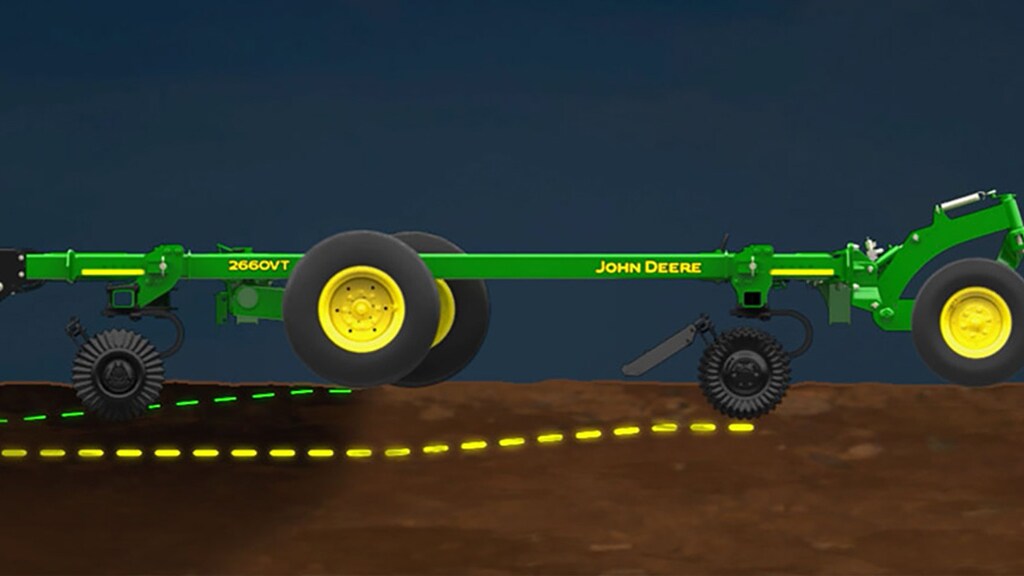

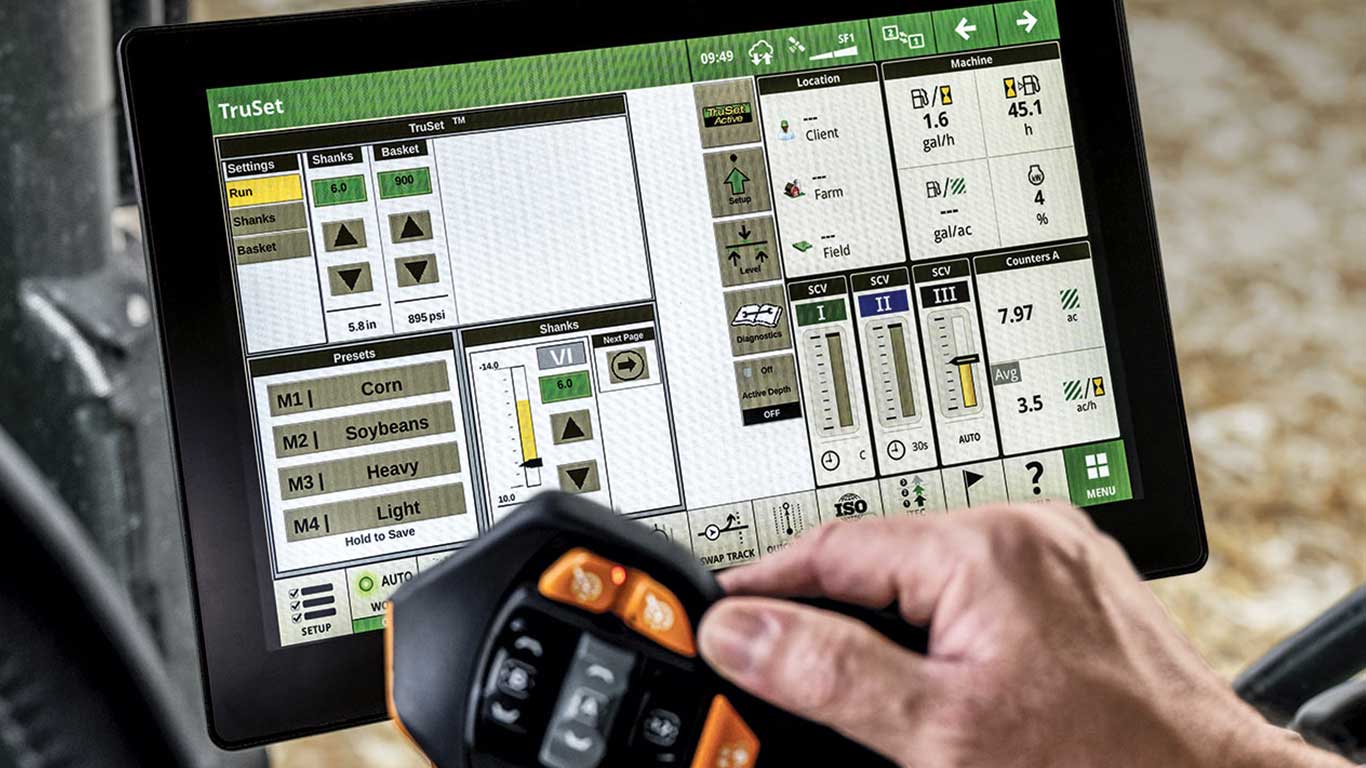

Improve depth accuracy with John Deere’s industry exclusive TruSet Active. With no need for operator input, TruSet Active adjusts for varying field conditions like residue build up on tires or tire sink in soft soils. This makes the machine smarter, allowing it to adjust itself, paving the way for adoption of future technologies that improve precision and save labor.
Model | Configurations | Spacing Options | Working Speed | Working Depth | Fertilizer Capacity |
---|---|---|---|---|---|
Integral, Drawn |
Integral: |
Integral: |
Integral: |
Integral: |
|
Integral, Drawn |
Integral: |
Integral: |
Integral: |
Integral: |
|
Drawn |
20 in. (50.8 cm) or 22 in. (55.9 cm) |
Coulters 9.7 to 16 km/h |
Shanks up to 11" (27.9 cm) |
10 tons |
Models | Working Depth | Working Speed | Required HP (PTO)/FT | Spacing Option | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 5 in (127 mm) |
10 to 16 km/h |
8-12 (19.6-29.4 kw/m) |
6 in (152 mm) split-the-middle / 9 in (229 mm) / S-tine 4.5 in (114 mm) |
light/medium |
TruSet/Single-point |
|
up to 5 in (127 mm) |
10 to 16 km/h |
8-12 (19.6-29.4 kw/m) |
6 in (152 mm) split-the-middle / 9 in (229 mm) / S-tine 4.5 in (114 mm) |
light/medium |
TruSet/Single-point |
|
up to 6 in (152 mm) |
10 to 16 km/h |
10-14 (24.5-34.2 kw/m) |
9 in (229 mm) split-the-middle |
N/A |
TruSet/Single-point |
From planning to harvest, you can count on John Deere tillage tools to build the foundation that next year's yields will stand upon.
Models | Working Depth | Working Speed | Required HP (Engine)/FT | Weight /blade | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
3.5 in (88.9 mm) |
13 - 16 km/h |
10-14/ft. (24.5 - 34.25 kw/m) |
Estimated Avg 260 lbs (118 kg) |
light/medium/heavy |
TruSet/Single Point |
|
up to 3 in (76 mm) |
11.4-16 km/h |
8.5 to 11 (20.8-26.95 kw/m) |
197 lbs to 227 lbs (89.4-103 kg) |
light/medium/heavy |
TruSet/Single point |
|
2-6 inches (51-152 mm) |
16-22.5 km/h |
11-15/ft. (26.9-36.7 kw/m) |
210 - 380 lbs (95.25-172.4 kg)* |
light/medium/heavy |
Easy to set shims |
|
up to 5 in (127 mm) |
8-11.3 km/h |
7 to 11 (17.15-26.95 kw/m) |
179 lbs to 209 lbs (81.2-94.8 kg) |
light/medium |
TruSet/Single-point |
|
up to 6 in (152 mm) |
8-11.3 km/h |
7 to 11 (17.15-26.95 kw/m) |
201 lbs to 243 lbs (91.2-110.2 kg) |
light/medium/heavy |
TruSet/Single-point |
|
up to 8 in (203 mm) |
8-11.3 km/h |
9 to 12 (22.05-29.4 kw/m) |
280 lbs to 286 lbs (127-129.7 kg) |
medium/heavy |
TruSet/Single-point |
Models | Working Depth | Working Speed | Required HP (PTO)/FT | Residue Management | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 16 in (406 mm) |
8-9.7 km/h |
35 to 55 (26.1-41 kW)/ standard |
fracture/size/ mix/bury |
Heavy |
Single-point |
|
up to 16 in (406 mm) |
8 km/h |
335 to 620 * (250-462.5 kW) |
fracture/size/ mix/bury |
Heavy |
TruSet/Single-point |
|
up to 16 in (406 mm) |
8 km/h |
30 to 40 / standard (22.3-29.8 kW) |
fracture |
Light/medium/heavy |
3pt hitch |
* dependent on mainframe size, # of shanks, see dealer for details
Models | Working Depth | Working Speed | Required HP (PTO) | Residue Management | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 12 in (306 mm) |
8-11.3 km/h |
6 to 14 HP/FT (4.5-10.4 kW) |
fracture/mix |
medium/heavy |
3pt hitch |
|
up to 12 in (306 mm) |
8-11.3 km/h |
7 to 14 HP/FT (4.5-10.4 kW) |
fracture/mix |
medium/heavy |
TruSet/Single-point |
Models | Working Depth | Working Speed | Required HP (PTO) | # of bottoms | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 14 in (356 mm) |
8 km/h |
23 to 35 (16.4-26.1 kW)PTO HP/bottom |
5, 6, or 7 |
medium/heavy |
gauge wheels |
Models | Working Depth | Working Speed | Required HP (PTO) | Residue Management | Residue Conditions | Depth Control |
---|---|---|---|---|---|---|
up to 12 in (306 mm) |
8-11.3 km/h |
12 to 20 (9-15 kW)/ standard |
fracture/size/bury |
medium/heavy |
Single-point |
Models | Engine Horsepower | Harrow Sections | Tine Size | Tine Spacing | Working Width |
---|---|---|---|---|---|
HH50 |
285 - 325
|
5 |
5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm) |
5 bar: 18-in. (46 cm) centers |
50 ft. (15 m) |
HH70 |
5 bar: 200 - 300 |
7 |
5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm) |
5 bar: 18-in. (46 cm) centers |
70 ft. (21 m) |
HH82 |
5 bar: 300 - 350 |
9 |
5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm) |
5 bar: 18-in. (46 cm) centers |
82 ft. (25 m) |

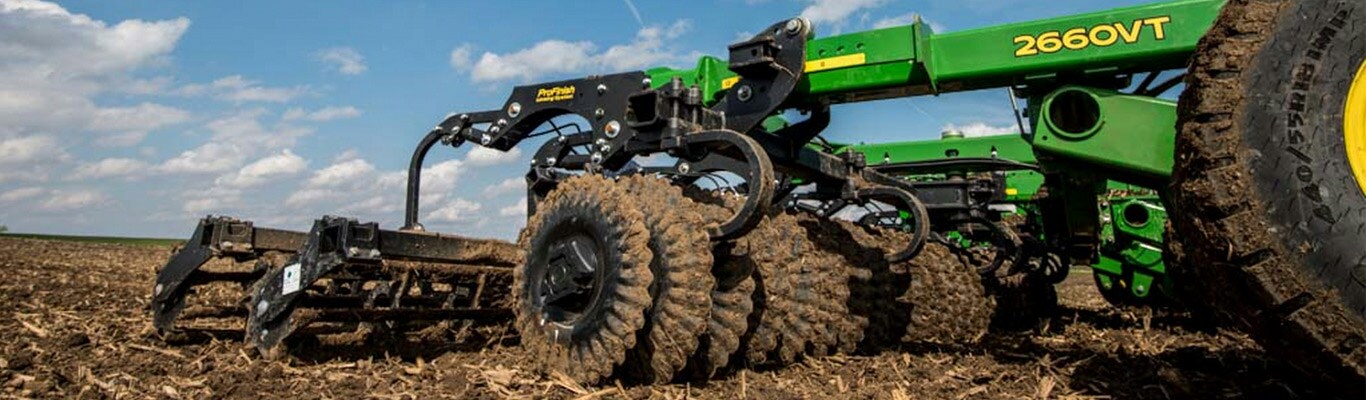

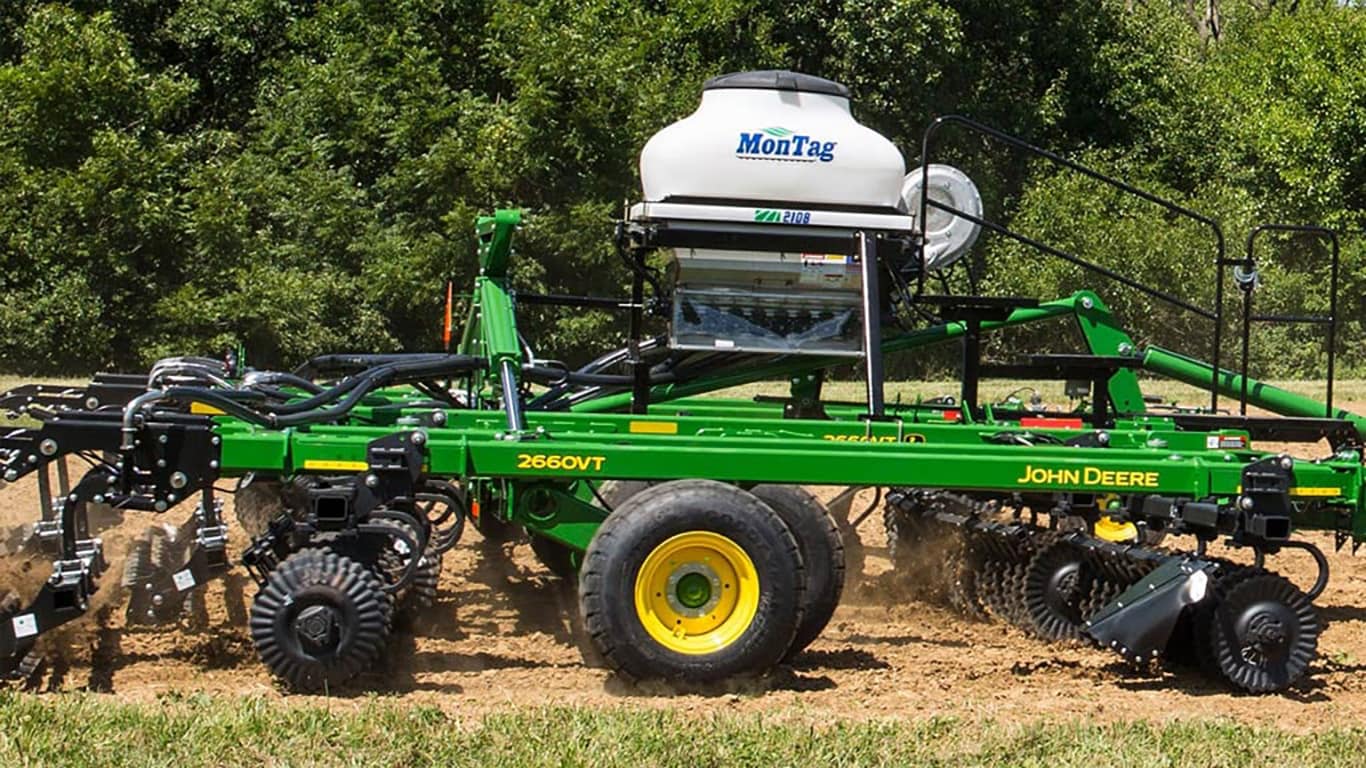

Now your 2660VT can broadcast dry material without pulling additional tanks or carts. Introducing the new cover crop seeder for the 2660VT from MonTag Mfg. The metering system fits conveniently onto the frame of the 30-foot 3-inch 2660VT without sacrificing any transport dimensions. Using MonTag’s metering system and controlled with only one additional SCV, tank sizes of 30 or 50 cubic feet give you the ability to apply up to 500 lb (227 kg) per acre of dry material.
The broadest portfolio in our history.
Customize your new John Deere Tillage equipment for your unique needs with options, attachments, and accessories.
Data matters, now more than ever. That’s why we built Operations Center – the industry’s leading cloud-based farm management system. Securely collect, organize, and analyze your ag data… and view or share it with trusted advisors anytime, anyplace. When improving yields and profits matter, only Operations Center brings your connected machines together so you can Gain Ground every season, every field, every pass.
