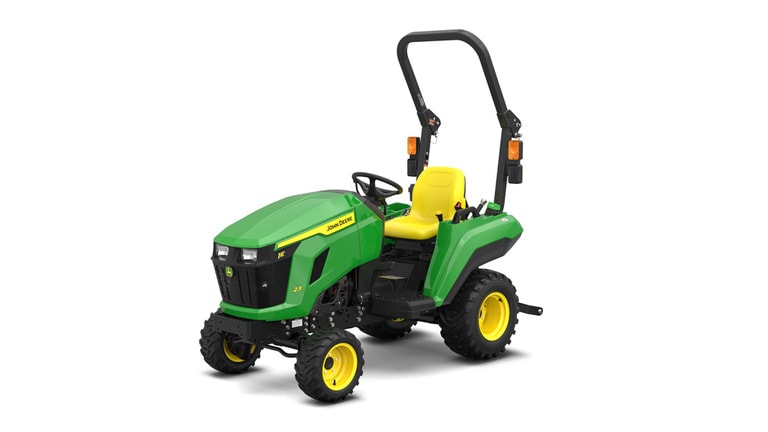

1E 23Sub-Compact Tractor
- One-piece hood design for easier maintenance
- Hydro transmission with TwinTouch™ pedals for ease of use
- AutoConnect™ mid-mower deck can be installed or removed quickly without leaving the seat
Meet the redesigned 1 Series Sub-Compact Utility Tractors—built for the jobs that come with owning and enjoying your property. From digging and mowing to snow removal, the 1 Series is designed to switch tasks fast, keeping you comfortable and in control.
Features
Expand AllCollapse All
Drive-over deck makes connection simple

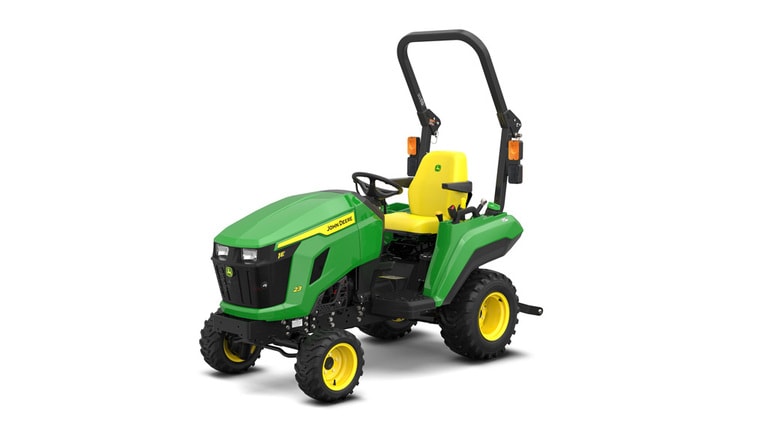

1E 23 Open Station ROPS
1E 23 Open Station Operator Station
Twin Touch™ foot controls
Equipment Mobile Resources
Wireless Trouble Code Access
Live equipment dashboard in Equipment Mobile
Step 1
Step 2
Step 3
Quick and Easy Implement Connectivity
Drive-over deck makes connection simple
1 Series Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.
- AutoConnect™ Deck System: Connect a mid-mount mower deck to the tractor without leaving the seat except to lock the gauge wheels.
- Load-N-Go attachment: Easily move your 54D or 60D AutoConnect™ Deck with your John Deere Loader after it has been disconnected from the tractor with the Load-N-Go ramps.
- Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
- Quik-Tatch™ front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
- iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
- Position control hitch on 1M 25 and 1R 25: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
- Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.
1 Series Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.
Open Station with Foldable Roll Over Protection System (ROPS)
1E 23 Open Station ROPS
1E 23 Open Station Operator Station

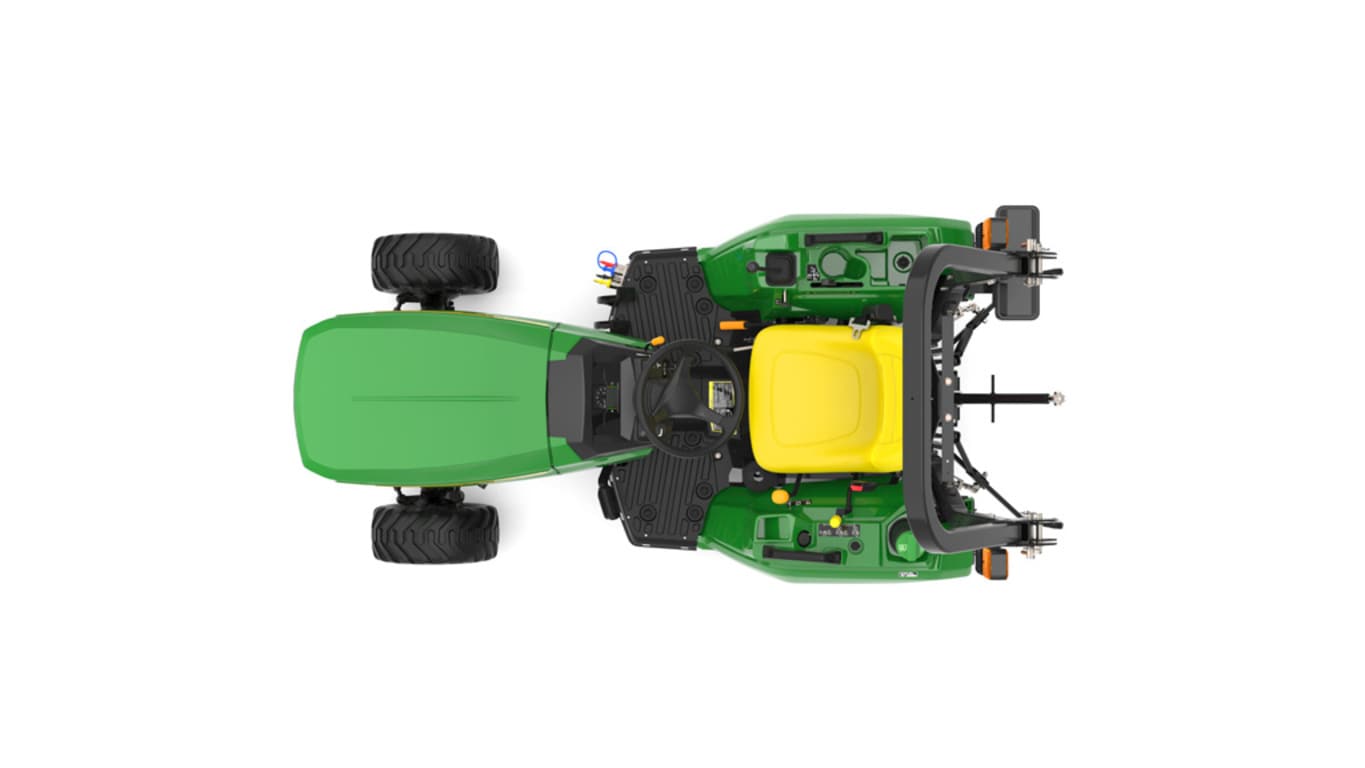

The operator's station has been designed for greater operator comfort and visibility.
- Sloping hood design provides improved visibility
- Plenty of room for comfortable operation
- Retractable seat belt
- Large, easy-to-read automotive-style instrument panel
- Step-through operator station makes getting on and off the tractor easy
- Fender-mounted handrails, large and easy to grab, assist the operator when getting on and off the tractor
- Controls are on the fenders for operator convenience
- Operator controls are color-coded for easier identification
- Front horizontal exhaust for increased operator visibility
Twin Touch™ Foot Controls
Twin Touch™ foot controls
Twin Touch™ foot controls allow you to select both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.
- Infinite ground speeds, even at full throttle, to match the job
- No clutching for fast direction changes
- Provides high torque for start up
- Reduces power train shock loads
- Large foot pedals were designed for your comfort and allow for convenient operation of the tractor
Know more about your tractor with Equipment Mobile and a John Deere Smart Connector
Equipment Mobile Resources
Overview
Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.
To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.
You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.
Any size and type of operation will appreciate the features in Equipment Mobile. View help documentation to learn more about the application.
A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How to Create A John Deere Account | John Deere (youtube.com)
Benefits
Equipment Mobile:
- Quickly scan the PIN to access maintenance, parts, and manual information
- Conveniently access and share Diagnostic Trouble Codes for troubleshooting
- Receive maintenance reminders and parts recommendations to minimize downtime
- Access equipment that is already loaded into your Operations Center account by logging into Equipment Mobile with your John Deere account login
- Create daily checklists to increase efficiency
Additional details
Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.
Users can still benefit from Equipment Mobile if they do not have a Smart Connector.
Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.
Equipment Mobile app |
Additional Equipment Mobile app features with Smart Connector |
|
|
Wireless Trouble Code Access
Live equipment dashboard in Equipment Mobile
To pair the John Deere Smart Connector with a phone and tractor, you must first be in range with the tractor equipped with the John Deere Smart Connector. Once the Smart Connector is plugged in and the tractor is keyed on, the Smart Connector will be available to pair within Equipment Mobile. The flow of pairing a Smart Connector in Equipment Mobile is shown below.
Step 1
Step 2
Step 3
Apple and App Store are trademarks of Apple Inc. Google Play, and YouTube are trademarks of Google LLC. Bluetooth is a trademark of Bluetooth SIG, Inc.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 1E 23 Sub-Compact Tractor |
Key Specs
| Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | Hydrostatic transmission: 12.1 kW 16.2 hp |
|||
| Steering hydraulics | 13.2 L/min 3.5 gpm |
|||
| Implement hydraulics | 13.2 L/min 3.5 gpm |
|||
| Hitch type | Limited Category 1 | |||
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
|||
| Standard transmission; forward/reverse | Hydro Transmission (HST) | |||
| Cruise control | ||||
| Approximate shipping weight (open-station; cab) | ||||
| Approximate shipping weight | OS 656 kg 1446 lb |
|||
| Wheelbase | 1450 mm 57.1 in. |
|||
| Approximate weight |
Engine
| Family | ||||
|---|---|---|---|---|
| Manufacturer | Yanmar® | |||
| Engine model | 3TNM74F-NCJT | |||
| Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
|||
| Power take-off (PTO) power | 12.1 kW 16.2 hp |
|||
| Rated engine speed | 3200 rpm | |||
| Type | Diesel | |||
| Injection pump type | Indirect injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | Three cylinders: 0.993 L 60.6 cu in. |
|||
| Number of cylinders | 3 | |||
| Cylinder liners | ||||
| Bore and stroke | 74 x 77 mm 2.91 x 3.03 in. |
|||
| Compression ratio | ||||
| Lubrication | ||||
| Cooling system | Water pump | |||
| Air cleaner | Dual element with mechanical restriction indicator | |||
| Engine torque at rated speed | ||||
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
Electrical
| Battery size | 500 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 40 amp | |||
| Starter size |
Fuel system
| Type | ||||
|---|---|---|---|---|
| Fuel consumption |
Transmission
| Standard transmission; forward/reverse | Hydrostatic - two range | |||
|---|---|---|---|---|
| Optional transmission; forward/reverse | ||||
| Left-hand reverser | ||||
| Transmission gear ranges | ||||
| Final drive | ||||
| Brakes | Wet disc (left-hand pedal) | |||
| Steering | Power Steering | |||
| Clutch, wet/dry | ||||
| Clutch disk diameter wet clutch | ||||
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
|||
| Creeper | ||||
| Cruise control | No | |||
| Differential lock | ||||
| Drawbar maximum vertical load |
Hydraulics
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
|||
| Pump type | ||||
| Maximum operating pressure | ||||
| Draft control sensing | Select control | |||
| Remote control valves available | Three |
3-point hitch
| Type | Limited Category 1 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
Power take-off (PTO)
| Standard | Rear: 540 rpm Mid: 2100 rpm |
|||
|---|---|---|---|---|
| Optional | ||||
| Control | Independent | |||
| Clutch | Wet disk | |||
| Brake (for mid and rear PTO) | Wet disk | |||
| Engagement method |
Fluid capacities
| Crankcase with filter | ||||
|---|---|---|---|---|
| Transmission and hydraulic system |
Final drive
| Type | ||||
|---|---|---|---|---|
| Differential lock |
Operator station
| Rollover protective structure | Type Foldable Yes |
|||
|---|---|---|---|---|
| Platform - flat/straddle | ||||
| Gear shift location - console/floor |
Cab
| HVAC | ||||
|---|---|---|---|---|
| Compliance | ||||
| Visibility | ||||
| Air conditioning, temperature differential | ||||
| Doors | ||||
| Noise rating | ||||
| Seat equipment |
Dimensions
| Height | ||||
|---|---|---|---|---|
| Width | ||||
| Altura do volante | ||||
| Wheelbase | 1450 mm 57.1 in. |
|||
| Front axle clearance | 195 mm 7.7 in. |
|||
| Turning radius with brakes | 2.51 m 8.2 ft |
|||
| Turning radius without brakes | 2.32 m 7.61 ft |
|||
| Limited slip differential | ||||
| Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
Tires
| Front | R3 Turf: 18x8.50-10 R4: 18x8.5-10 |
|||
|---|---|---|---|---|
| Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
|||
| Front tread range | 915 mm 36 in. |
|||
| Rear tread spacing | 896 mm 35 in. |
Miscellaneous
| Toolbox | No | |||
|---|---|---|---|---|
| Tilt steering wheel | No | |||
| 12-V Outlet | No | |||
| USB Port | No |
