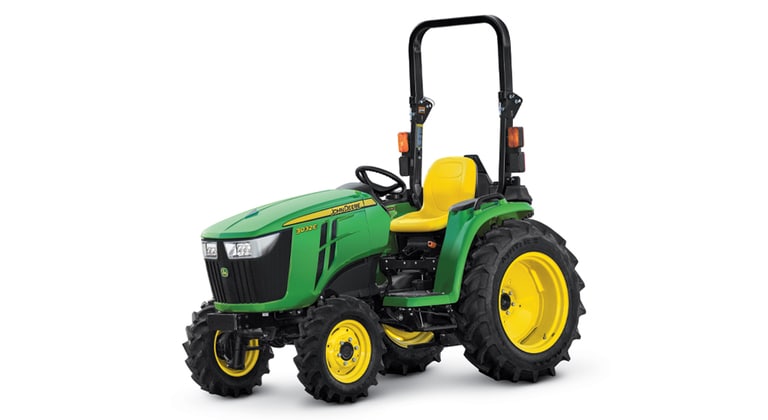

Compact Tractor | 3032E

Powerful, diesel engine delivers plenty of power under heavy loads

3E Tractor engine

3025E

The 1.642-L (100.2 cu in.) displacement, liquid-cooled 3TNV88F-EPJT1 Yanmar® diesel engine provides 18. kW (24.4 hp) to the 3025E.

Model	Number of cylinders	Engine displacement	Rated rpm	Gross engine hp*	Gross engine ps*	PTO hp
3025E	3	1.642 L (100.2 cu in.)	2400	18.2 kW (24.4 hp)	24.7	13 kW (17.4 hp)

*Engine kW (hp), gross SAE J1995: 18.2 (24.4) at 2400 rpm, PS
Displacement, L (cu in.): 1.642 (100.2)

3032E

The 1.642-L (100.2 cu in.) displacement, liquid-cooled 3TNV88C-NJT Yanmar diesel engine provides 22.9 kW (30.7 hp) to the 3032E.

Model	Number of cylinders	Engine displacement	Rated rpm	Gross engine hp*	Gross engine ps*	PTO hp
3032E	3	1.642 L (100.2 cu in.)	2500	22.9 kW (30.7 hp)	31.2	18.6 kW (25 hp)

*Engine kW (hp), gross SAE J1995: 22.9 (30.7) at 2500 rpm, PS
Displacement, L (cu in): 1.642 (100.2)

3038E

The 1.568-L (95.68 cu in.) displacement, turbocharged, liquid-cooled 3TNV86T-NJT Yanmar diesel engine provides 27.4 kW (36.7 hp) to the 3038E.

Model	Number of cylinders	Engine displacement	Rated rpm	Gross engine hp*	Gross engine ps*	PTO hp
3038E	3	1.568 L (95.68 cu in.)	2500	27.4 kW (36.7 hp)	37.2	22.4 kW (30 hp)

*Engine kW (hp), gross SAE J1995: 27.4 (36.7) at 2500 rpm, PS
Displacement, L (cu in.): 1.568 (95.68)

The engine uses the latest technologies to optimize fuel economy, improve control and accuracy, and reduce environmental impact. The common rail system (CRS) optimizes fuel economy and reduces operating costs comparted to engines not using CRS technology. High-pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and a lower cost of operation.

The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.

The engine comes with an after-treatment system. The system operates automatically. The exhaust filter consists of a diesel particulate filter (DPF) which captures particulate matter (PM) contained in the exhaust gas. Using a natural cleaning process, most of the PM trapped in the exhaust filter is eliminated by the heat of the exhaust stream generated by normal use. In situations of low temperature, engine speed, or load factor, an active cleaning cycle is initiated. In this cleaning cycle, the exhaust gas temperature is raised by injecting additional fuel during the exhaust stroke of normal vehicle operation to the diesel oxidation catalyst (DOC).

After many hours of use, the exhaust filter may require an ash removal service.

DPF cleaning

Depending on the load that the tractor is under, as well as ambient temperature, humidity, and engine speed, the DPF may build up with particulate matter, thus requiring cleaning. Filter cleaning is determined by one of three factors:

A prescribed time-based estimation of needed filter cleaning
DOC/DPF pressure sensors
A particulate matter buildup estimation based on load conditions

Once one of the three conditions has been met, filter cleaning will occur.

There are three different types of filter cleaning processes:

Passive filter cleaning
Active filter cleaning
Parked filter cleaning

Passive filter cleaning

Passive filter cleaning occurs naturally when the engine is generating enough heat to oxidize particulate matter. This automatic process occurs continuously during normal operating conditions. No tractor icons or symbols appear on the display during passive filter cleaning.

NOTE: Passive filter cleaning requires no operator involvement, and there is no interruption to tractor operation.

Active filter cleaning

If conditions (temperature, load, or speed) for passive filter cleaning cannot be achieved, then PM is removed using active filter cleaner.

To achieve the required conditions, exhaust temperature management (ETM) manages the initiation and duration of active filter cleaning. ETM can adjust numerous engine parameters and/or inject a small quantity of fuel into the exhaust stream for a short duration. The fuel turns to vapor and chemically reacts with the catalysts in the DOC to create heat to oxidize the PM.

It is important to note that at no time is the fuel in the DOC/DPF ignited, and there is no flame within the DOC/DPF.

Like passive filter cleaning, active filter cleaning requires no operator involvement, and there is no interruption to tractor operation.

Parked filter cleaning

In some instances where passive and active filter cleaning have not fully cleaned the PM from the system, a parked filter cleaning may need to take place. In general, the only time a parked filter cleaning will need to occur is when automatic filter cleaning has been disabled for an extended period of time and multiple warnings to engage filter cleaning were ignored or if the tractor has been used during light load conditions. Additionally, when the automatic filter cleaning process has been deliberately interrupted multiple times, or if active filter cleaning has failed numerous times due to a failed component, a parked filter cleaning may be requested. In these rare instances the operator will have to park the tractor and start the filter cleaning process.

The parked filter cleaning process needs to be activated based on usage and operation of the tractor. The process will take approximately 30 minutes. See the operator's manual for more details.

This system constantly monitors the soot level of the tractor; making sure the tractor is always in peak performance condition. This ensures high performance at all times.

NOTE: Number of hours since last regeneration and soot level percentage are viewable on LCD display.

Key features of the engine are:

Economical cast-in-block cylinder design for good cooling and long life
Direct fuel injection
- Improves starting
- Injects fuel directly on top of pistons for more efficient combustion
- Develops more horsepower per liter (gallon) of fuel than indirect injection engines
Aluminum alloy pistons are lightweight to reduce connecting rod bearing loads and provide good heat transfer characteristics
- Design permits tighter tolerances and neutralizes expansion of the piston, which reduces blow-by and noise from piston slap
- Top rings are higher on the piston and a thinner head gasket is used to greatly reduce the volume of unburned waste gases and increase combustion efficiency
Timing gears and injector drive gears have a helical profile to reduce engine noise
Auto-bleed fuel system
- There is no need to prime the system if the tractor runs out of fuel
- The system will self-prime the injection pump, lines, and injectors, providing fast fuel recovery for easier starting
High-capacity lubrication system provides filtered oil, under pressure, to all engine bearings for long life
Key start and shutoff eliminate fuel shutoff knob
- Electric solenoid shuts the fuel supply off immediately when key is turned off, which replaces the need to pull a fuel shutoff lever like many older tractors
Fuel filter with replaceable element
Water separator with additional replaceable filter element
See-through coolant recovery tank permits operator to check coolant level without removing radiator cap

Dry-type air cleaner

Dry-type air cleaner with safety element
- Dual element design for added engine protection
- Easy to service
Hood can be easily opened without tools for full access to the engine
Easy access to engine check and fill points on the right-hand side of the tractor by removing the side panels.

Yanmar is a trademark of Yanmar Company Limited.

Easy-to-use hydrostatic transmission (HST) increases tractor performance

The 3E Tractors are available with a two-range hydrostatic transmission (HST) incorporated in a die-cast aluminum transmission case. Fluid under pressure transmits engine power to the drive wheels via a closed-loop pump and motor arrangement. Infinite ground speeds allow the operator to match the speed of the tractor to the job.

No clutching for fast and easy direction changes
Twin Touch™ foot pedals for quick and easy forward/reverse operation
Transmission oil cooler cools transmission oil for longer transmission life

Safety features of the HST include:

The tractor will only start with the range lever in neutral
The engine will shut off if the operator leaves the seat unless the range lever is in neutral
The engine will shut off if the operator leaves the seat and the power take-off (PTO) is engaged

Twin Touch foot controls

Key John Deere advantage - John Deere's Twin Touch foot controls offer several key advantages over competitive HST models tractors.

Some competitive hydrostatic tractors use a treadle pedal (toe-heel) design foot control for operation of the HST
- Requires the operator to use both toe and heel to change direction, resulting in increased operator fatigue
- The Twin Touch configuration also makes it easier to "inch" the tractor forward or rearward (i.e., when attaching to implements)

Optional cruise control

The 3E Series Tractors can be outfitted with an optional cruise control switch that is installed on the right-hand control console. This gives operators the ability to keep a constant speed when in transportation, field mowing, or other applications where extended use of the transmission is needed. This kit is very quick and easy to install for those who desire this feature.

Integrated hydrostatic pump and motor

Sauer-Danfoss® company provides the integrated pump and motor; this assures that the components are matched to each other, providing maximum efficiency
Reduces powertrain shock loads
Provides strength and durability needed for operating such attachments as loaders
One reservoir (with one check point and fill point) for the transmission, differential, and hydraulic system speeds up daily maintenance
Mechanically actuated by Twin Touch foot pedals allow selecting both directions of travel and speed with the touch of a toe

Transmission reservoir fluid checkpoint

Transmission reservoir fluid checkpoint (A)

Easy-to-reach transmission fluid dipstick allows for frequent checks of the transmission fluid level.

Transmission fill point

Easy-to-reach transmission fill point (A) is located on top of rear axles on the right-hand side.

Integrated brake and differential lock pedal

Foot-actuated differential lock is integrated into the brake pedal to simplify operator controls; the differential lock is included as base equipment to assist traction in tough spots.
Press the brake pedal down half way to engage the differential lock that locks the rear axle for improved traction in tough spots.

Sauer-Danfoss is a trademark of Sauer-Danfoss Incorporated.

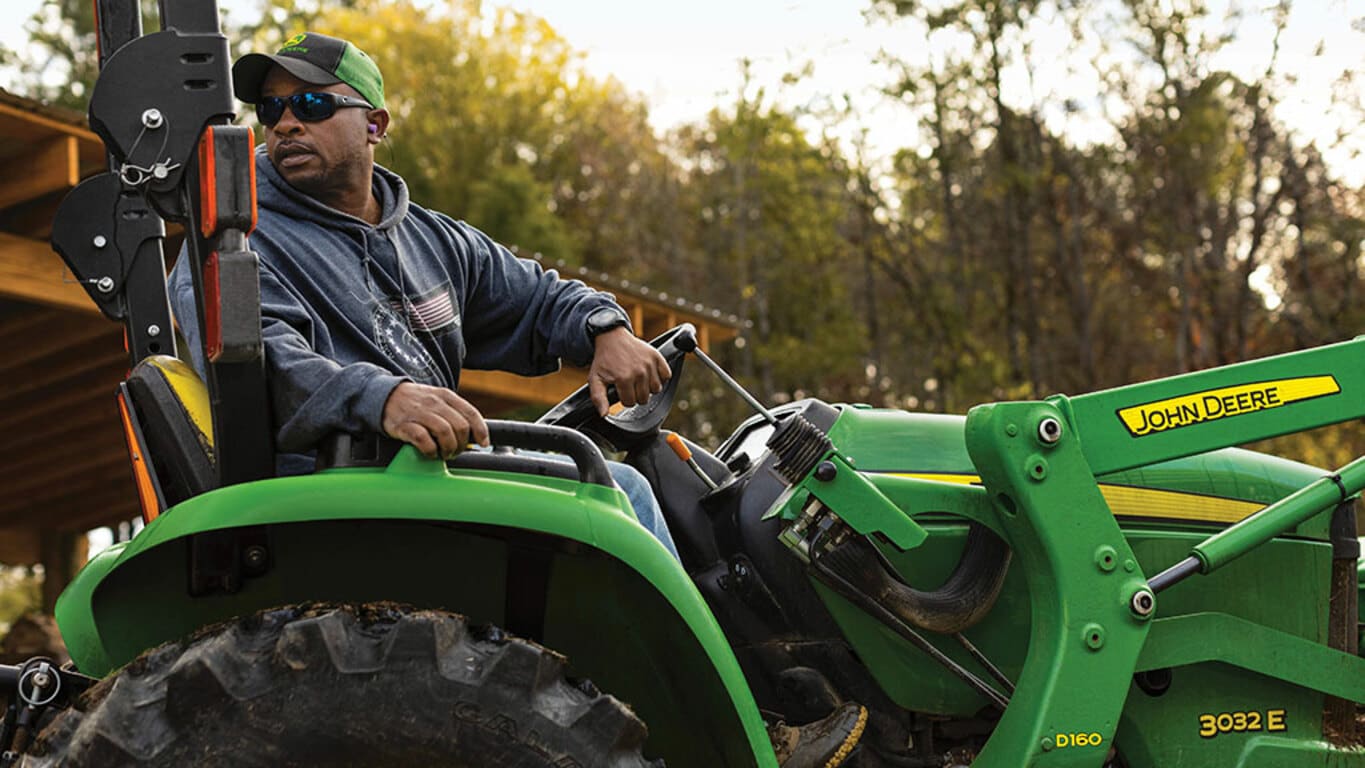

Clean and simple operator station is comfortable and convenient

Clean and simple operator's station (shown with optional selective control valve [SCV] levers)

An uncluttered design gives operators of all sizes plenty of room to be comfortable. Color-coded controls are located on either side of the operator.

The hydrostatic transmission (HST) and brake pedals are designed and located for maximum comfort and ease of use.
Contoured, comfortable seat enhances operator comfort.
- Seat position adjusts fore and aft.
- Seat flips forward for protection from the elements.
Flat operator platform provides for easy entry to and exit from the tractor.
Folding Roll-Gard™ rollover protective structure (ROPS) and retractable seat belt increase operator safety.

Operator presence system:

If the operator leaves the seat when the tractor is in gear, the engine shuts down
If the operator leaves the seat when the power take-off (PTO) is engaged, the engine shuts down

Left-side step

Left-side step for easy entry/exit

The left-side step allows for easy access on and off the tractor.
Foot platform has a non-skid surface for sure footing.

Seat

Thick, padded seat

The thick, soft padding on this seat provides a smooth and comfortable ride.

Seat flips forward for protection from the elements.
Adjustable using the fore and aft lever located under the seat, the seat slides on ramped rails to provide comfortable access to all controls.

Instrumentation

Instrument panel

Easy-to-read instrument panel includes the following:

Tachometer
Low oil pressure indicator light
Battery discharge indicator light
PTO engagement indicator light
Signal/hazard lamp indicator lights
Multifunction liquid crystal display (LCD) display (hours, filter cleaning information, etc.)
Filter cleaning status indicator light

Fuel gauge

All 3E Series Tractors come standard with a fuel gauge that is easy to read from the operator's station to ensure operators do not run out of fuel.

Safety

Operator presence switch (OPS) in seat:

OPS requires the operator to be in the seat to operate the transmission or PTO.
ROPS is designed to meet or exceed American Society of Agricultural and Biological Engineers (ASABE) safety standards.
Reflective ROPS strips for better tractor visibility.
Seat belts are in base equipment on all John Deere compact utility tractors.
Key switch interlock prevents bypass starting.
Visual PTO warning light on the instrument panel alerts the operator when the PTO is running.
Turn signal and flashing warning lights operate according to ASABE standards.
Slow-moving vehicle (SMV) sign is provided for road transport.

Park brake

Automotive hand-style park brake for easy on/off.
Instrument panel has an indicator light for the park brake.

Two-post Roll-Gard ROPS

Roll-Gard ROPS

3E Series Tractors are equipped with Roll-Gard ROPS. These folding ROPS meet the ASABE standards for compact utility tractors.

With the Roll-Gard ROPS folded down, producers can easily to get their tractor into a garage with a standard 2.1-m (7-ft) garage door.

NOTE: The use of seat belts is recommended at all times when operating the 3E Series Tractor with the folding ROPS upright.

An optional canopy (LVB25334) is available to help protect the operator from the elements.

Optional two-spool rear selective control valve (SCV) for superior implement performance

Rear hydraulic remote kit

3E Series Tractors can be equipped with a field-installed rear hydraulic remote kit, providing two additional hydraulic spools on the back of the tractor. This kit can be field installed on a tractor with a loader or without a loader.

NOTE: Not compatible with the power beyond kit.

The functions are completely separate from the loader. These rear remotes can be hooked up to a wide variety of implements and attachments such as follows:

Hydraulically angled blade

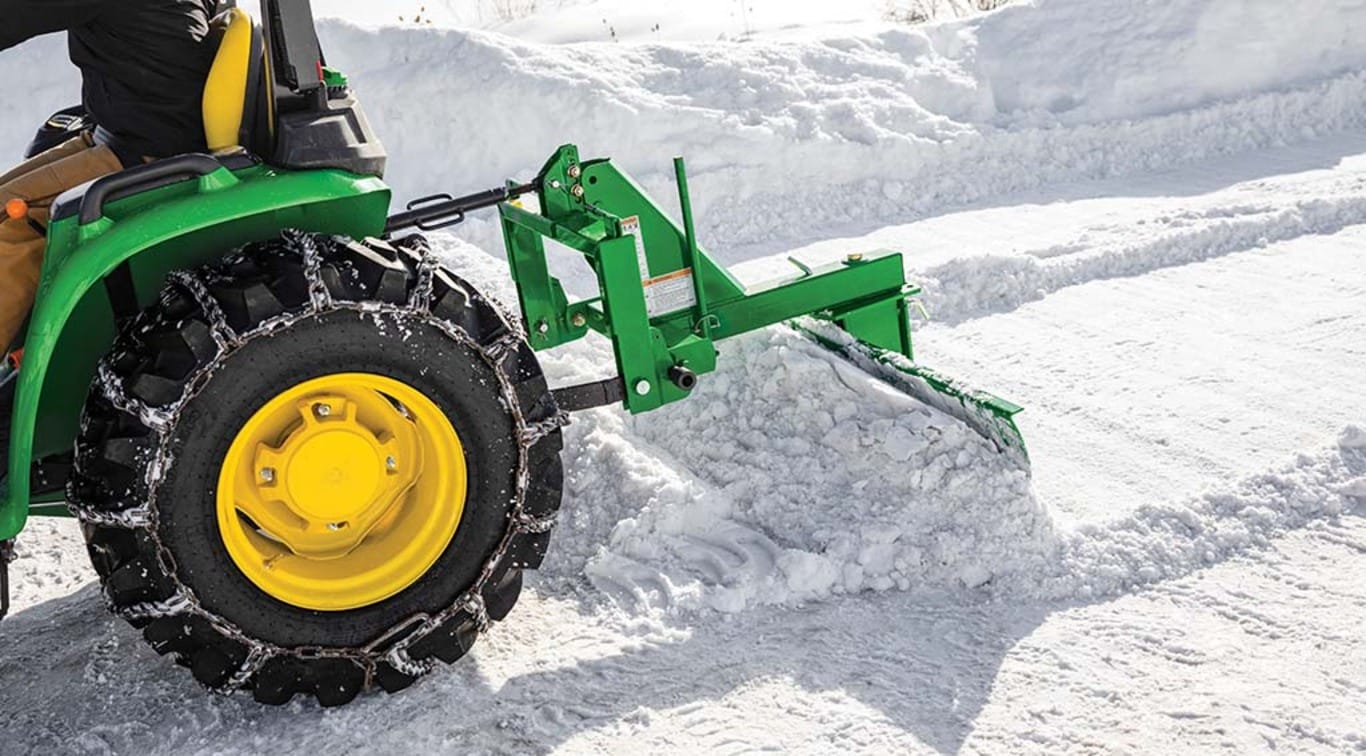

Hydraulically controlled chute/spout on a 3-point hitch-mounted snow blower
Hydraulic scarifiers on a box blade
Many other hydraulic rear attachments

This versatile kit gives 3E Series Tractor operators the options they desire for putting their tractors into a wide range of tasks.

The first spool is equipped with a float position, giving the operator the ability to contour the landscape and improve the final grade with certain implements.

NOTE: Neither of the spools in this kit are equipped with a detent position; therefore, they should not be hooked up to anything with a motor, as the valve was not designed to be run open. The kit is designed for momentary, on-demand hydraulic flow such as moving a cylinder.

Optional iMatch™ Quick-Hitch feature allows for easy implement hookup

iMatch Quick-Hitch (LVB25976)

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

Upper bushing
- Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
- Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
Lower bushings
- Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
- Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)

Excellent serviceability reduces operational costs and improves productivity

Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.

Easy access to most regular service points minimizes service time.
Four quarter turn fasteners allow operators to easily remove the engine side panels without tools to access the engine compartment.

Quarter turn fastener to remove engine side panels

Tractors are equipped with extensive onboard self-diagnostic capabilities and are fully compatible with the John Deere exclusive Service ADVISOR™ system.
Hydraulic oil service interval increased to 1200 hours when using Hy-Gard™ products.
Hydraulic oil filter will need to be changed every 400 hours.
Fuel tank is located on the rear of the tractor to allow for easy access when fueling.

Fuel tank at rear of tractor

Gas-lift hood support eliminates the need for a mechanical prop rod.

Gas-lift hood requires no prop rod to service engine

Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.

Removable side panels (previous model shown)

All items in the daily service schedule can be performed without the use of tools:

Engine oil, hydraulic oil, coolant level, and the water separator can be conveniently accessed.
The engine can be easily accessed by simply raising the hood for more periodic maintenance checks.

NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

Know more about your tractor with Equipment Mobile and a John Deere Smart Connector

Equipment Mobile Resources

Overview

Setup, operate, and maintain your tractor with Equipment Mobile and a John Deere Smart Connector.

To download the free Equipment Mobile app, visit the Apple® App Store® or Google Play™ store.

You can now view information about your tractor with a Smart Connector in Equipment Mobile. Take advantage of familiar TractorPlus features in Equipment Mobile such as the Live Dashboard and Diagnostic Trouble Code alerts. Equipment Mobile offers additional tools to help you manage not just your tractor, but your entire fleet in one place.

Any size and type of operation will appreciate the features in Equipment Mobile. View help documentation to learn more about the application.

A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How to Create A John Deere Account | John Deere (youtube.com)

Benefits

Equipment Mobile:

Quickly scan the PIN to access maintenance, parts, and manual information
Conveniently access and share Diagnostic Trouble Codes for troubleshooting
Receive maintenance reminders and parts recommendations to minimize downtime
Access equipment that is already loaded into your Operations Center account by logging into Equipment Mobile with your John Deere account login
Create daily checklists to increase efficiency

Additional details

Please note that Smart Connectors offer local connectivity via Bluetooth, while JDLink modems enable remote connectivity and provide valuable data including location, machine performance metrics, health data, access to John Deere Connected Support services, and more.

Users can still benefit from Equipment Mobile if they do not have a Smart Connector.

Installing the Smart Connector will offer additional capabilities to help monitor equipment by sending information from the tractor to the user’s mobile device using Bluetooth® wireless capability. The following table outlines the differences between using Equipment Mobile with and without a Smart Connector.

Equipment Mobile app

Additional Equipment Mobile app features with Smart Connector

Factory maintenance plans with instructions, parts numbers, and ability to manually record completion
Manually track engine hours for maintenance
View and search Operator’s Manuals
View parts diagrams
View and add equipment to your organization
Look up alert and Diagnostic Trouble Code (DTC) definitions with ability to contact John Deere dealer
Link to YouTube videos for maintenance and Operator Manual information
View compatible implements
Tips articles and videos for compact utility tractors (excluding 5 Series Tractors)
Manage all equipment and implements in one spot
Daily checklists

Live tractor information such as engine load, fuel rate, coolant temperature, etc.
Automatically record engine hours, fuel level, and diesel exhaust fluid level (if applicable) for maintenance tracking history
Receive alerts of present and view stored DTCs to share with the dealer via email for support and troubleshooting

Wireless Trouble Code Access

Live equipment dashboard in Equipment Mobile

To pair the John Deere Smart Connector with a phone and tractor, you must first be in range with the tractor equipped with the John Deere Smart Connector. Once the Smart Connector is plugged in and the tractor is keyed on, the Smart Connector will be available to pair within Equipment Mobile. The flow of pairing a Smart Connector in Equipment Mobile is shown below.

Step 1

Step 2

Step 3

Apple and App Store are trademarks of Apple Inc. Google Play, and YouTube are trademarks of Google LLC. Bluetooth is a trademark of Bluetooth SIG, Inc.

Engine power (gross)	22.9 kW 31.2 hp
Power take-off (PTO) power	18.6 kW 25 hp
Steering hydraulics	15 L/min 4 gpm
Implement hydraulics	20.2 L/min 5.3 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	615.1 kg 1356 lb
Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Cruise control	Optional
Approximate shipping weight (open-station; cab)	1007.9 kg 2222 lb
Wheelbase	159.5 cm 62.8 in.

Family	EYDXL1.64NDA FYDXL1.64NDA GYDXL1.64NDA
Manufacturer	Yanmar
Engine model	3TNV88C-NJT
Engine power (gross)	22.9 kW 31.2 hp
Power take-off (PTO) power	18.6 kW 25 hp
Rated engine speed	2500 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Natural
Emissions compliance	Final Tier 4
Cylinders/displacement	3 / 1.64 L 3 / 100.2 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	88 x 90 mm 3.46 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Water pump
Air cleaner	Dual element
Engine torque at rated speed	87 Nm 64.2 lb-ft
Fuel tank capacity	28.5 L 7.5 U.S. gal.

Battery size	500 CCA
Alternator (12-V)	55 amp
Starter size	1.4 kW 1.9 hp

Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Optional transmission; forward/reverse
Left-hand reverser	No
Transmission gear ranges
Final drive	Bull Gear
Brakes	Wet disc
Steering	Power steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 798 kg 1760 lb Rear 1197 kg 2640 lb
Creeper	No
Cruise control	Optional
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm
Pump type	Dual gear
Maximum operating pressure	172.4 bar 2500 psi
Draft control sensing	Position control
Remote control valves available	Up to two (optional)

Rollover protective structure	Type Foldable ASABE S478
Platform - flat/straddle	Semi-flat
Gear shift location - console/floor	Left-hand side

Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment

Front	Farm - 7-14 Turf - 27x8.5-15 R4 - 25x8.5-14 R4 - 27x8.5-15
Rear	Farm - 11.2-24 Turf - 41x14-20 R4 - 15-19.5 R4 - 43x16-20
Front tread range
Rear tread spacing

Toolbox
Tilt steering wheel
12-V Outlet

3032ECompact Tractor

SHARE

Features

DPF cleaning

Parked filter cleaning

Key features of the engine are:

Twin Touch foot controls

Optional cruise control

Integrated hydrostatic pump and motor

Transmission reservoir fluid checkpoint

Transmission fill point

Integrated brake and differential lock pedal

Left-side step

Seat

Instrumentation

Fuel gauge

Safety

Park brake

Two-post Roll-Gard ROPS

Overview

Benefits

Additional details

3032E Video Gallery

More Videos

Specs & Compare

Add Model

Key Specs

Engine

Electrical

Fuel system

Transmission

Hydraulics

3-point hitch

Power take-off (PTO)

Fluid capacities

Final drive

Operator station

Cab

Dimensions

Tires

Miscellaneous

Additional information

Offers and Discounts

Offers and Discounts

Up to $3,850 Off PLUS 0% APR/ACR for 60 months

15% Off Attachments †

Get $325 Off†

15% OFF Select Fall & Winter Attachments†

15% OFF 1,000s of Compact Tractor Parts†

0% APR/ACR for 72 Months AND Get $325 OFF†

Get $4,000 Off†

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
