Compact Tractor | 3046R | John Deere CA

Attractive styling provides improved visibility and serviceability

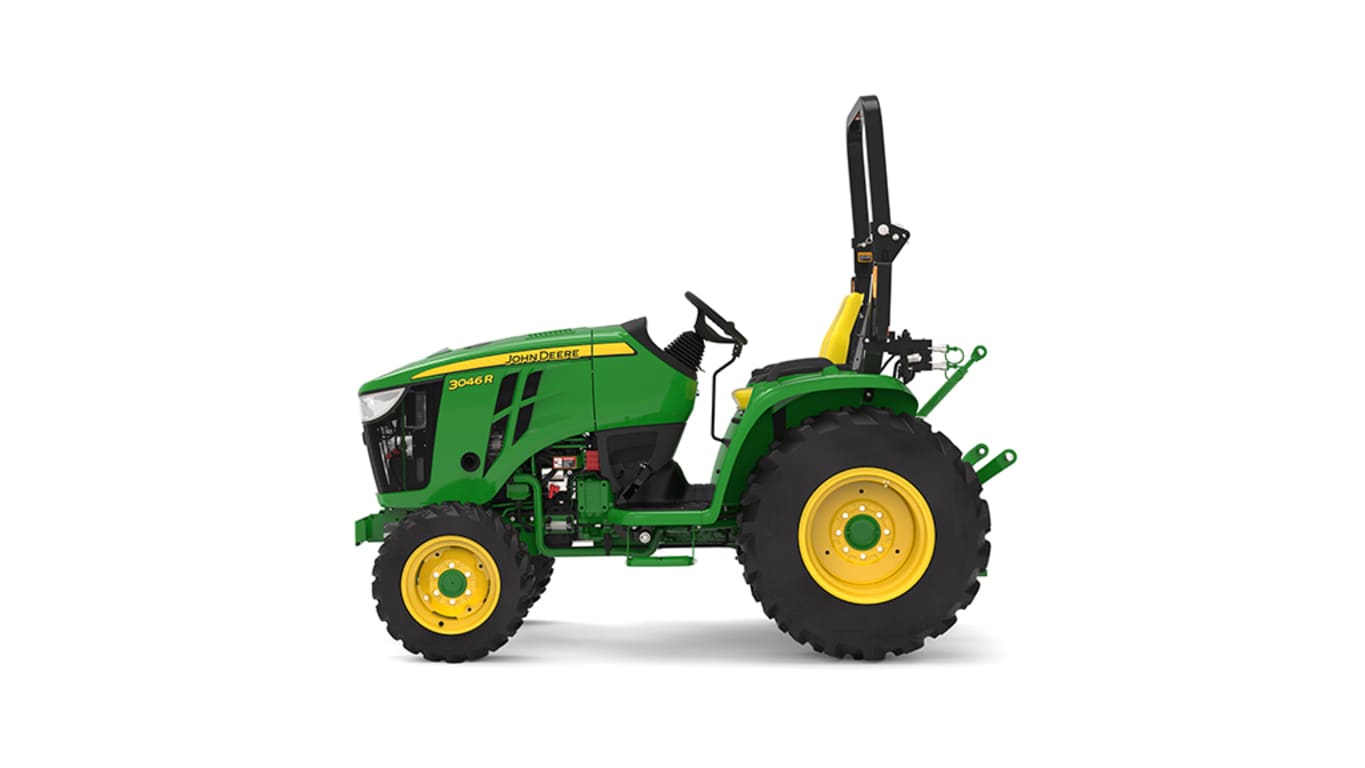

3R Open-Operator Station Tractor

The bold styling of the tractor provides an attractive and functional appearance similar to that of the larger agricultural tractors. Benefits of this styling include:

Easy tractor family identification
Updated fixed grill and side panel hood design allowing for optimum sealing of the cooling compartment
Integrated maintenance position on front grill for easy battery access
Wraparound-style halogen headlights
- Premium integrated automotive style headlight bezels
Bold graphics allowing for easy tractor family identification
Aggressively sloped hood design giving a softer, smoother look, and providing improved visibility
Hybrid exhaust in base for clear operator visibility and safety

The result gives the tractor a distinctive appearance and feel.

NOTE: If tractor is equipped with optional field-installed vertical exhaust, exhaust pipe must be removed before opening and closing the hood of the tractor.

Powerful Yanmar® diesel engine delivers plenty of power under heavy loads

Yanmar 3-Cylinder, TNV Series diesel engine

The Yanmar 3-cylinder, TNV series diesel engine features a high torque reserve that provides plenty of power under heavy loads.

This engine features lower levels of exhaust emissions and reduced noise levels. The engine meets all current Environmental Protection Agency (EPA) emission requirements for Final Tier 4 emission standards.

3033R
The 1.642-L (100.2-cu in.) displacement, naturally aspirated, 3TNV88C-MJTV Yanmar diesel engine provides 23.7 kW (31.8 hp) to the 3033R Tractor.

Model	Number of cylinders	Engine displacement	Rated rpm	Gross engine power*	Gross engine ps*	PTO power*
3033R	3	1.642 L (100.2 cu in.)	2600	23.7 kW (31.8 hp)	32.2	17.2 kW (23 hp)

*Engine hp (kW), gross SAE J1995: 31.8 (23.7) at 2600 rpm, PS
Displacement, cu in. (L):100.2 (1.642)

3039R
The 1.568-L (95.7-cu in.), turbocharged, 3TNV86CT-MJTV Yanmar diesel engine provides 28.5 kW (38.2 hp) to the 3039R Tractor.

Model	Number of cylinders	Engine displacement	Rated rpm	Gross engine power*	Gross engine ps*	PTO power*
3039R	3	1.568 L (95.7 cu in.)	2600	28.5 kW (38.2 hp)	38.7	22.2 kW (29.8 hp)

*Engine hp (kW), gross SAE J1995: 38.2 (28.5) at 2600 rpm, PS
Displacement, cu in. (L): 95.7 (1.568)

3046R
The 1.568-L (95.7-cu in.), turbocharged, intercooled 3TNV86CHT-MJTV Yanmar diesel engine provides 33.3 kW (44.7 hp) to the 3046R Tractor.

Model	Number of cylinders	Engine displacement	Rated rpm	Gross engine power*	Gross engine ps*	PTO power*
3046R	3	1.568 L (95.7 cu in.)	2600	33.3 kW (44.7 hp)	45.3	25.3 kW (33.9 hp)

*Engine hp (kW), gross SAE J1995: 44.7 (33.3) at 2600 rpm, PS
Displacement, cu in. (L): 95.7 (1.568)

The engine uses latest technologies to optimize fuel economy, improve control and accuracy, and reduces environmental impact.

The common rail system (CRS) optimizes fuel economy and reduces operating costs compared to engines not using CRS technology. High pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and lower cost of operation.

The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.

The new engine comes with an after treatment system. The system operates automatically. The exhaust filter consists of a diesel particulate filter (DPF) which captures particulate matter (PM) contained in the exhaust gas. Using a natural cleaning process, most of the PM trapped in the exhaust filter is eliminated by the heat of the exhaust stream generated by normal use. In situations of low temperature, engine speed or load factor, an active cleaning cycle is initiated. In this cleaning cycle, the exhaust gas temperature is raised by injecting additional fuel during the exhaust stroke of normal vehicle operation to the diesel oxidation catalyst (DOC).

After many hours of use, the exhaust filter may require an ash removal service.

DPF cleaning

Depending on the load that the tractor is under, as well as ambient temperature, humidity, and engine speed, the DPF may build up with particulate matter, thus requiring cleaning. Filter cleaning is determined by one of three conditions:

A prescribed time-based estimation of needed filter cleaning
DOC/DPF pressure sensors
A particulate matter buildup estimation based on load conditions

Once one of the three conditions has been met, filter cleaning will occur.

There are three different types of filter cleaning processes:

Passive filter cleaning
Active filter cleaning
Parked filter cleaning

Passive filter cleaning

Passive filter cleaning occurs naturally when the engine is generating enough heat to oxidize particulate matter. This automatic process occurs continuously during normal operating conditions. No tractor icons or symbols appear on the display during passive filter cleaning.

NOTE: Passive filter cleaning requires no operator involvement, and there is no interruption to tractor operation.

Active filter cleaning

If conditions (temperature, load, or speed) for passive filter cleaning cannot be achieved, then PM is removed using active filter cleaner.

To achieve the required conditions, exhaust temperature management (ETM) manages the initiation and duration of active filter cleaning. ETM can adjust numerous engine parameters and/or inject a small quantity of fuel into the exhaust stream for a short duration. The fuel turns to vapor and chemically reacts with the catalysts in the DOC to create heat to oxidize PM.

It is important to note that at no time is the fuel in the DOC/DPF ignited, and there is no flame within the DOC/DPF.

Like passive filter cleaning, active filter cleaning requires no operator involvement, and there is no interruption to tractor operation.

Parked filter cleaning

In some instances where passive and active filter cleaning have not fully cleaned the PM from the system, a parked filter cleaning may need to take place. Most likely, the only time a parked filter cleaning will need to occur is when automatic filter cleaning has been disabled for an extended period of time and multiple warnings to engage filter cleaning were ignored or if the tractor has been used during light load conditions. Additionally, when the automatic filter cleaning process has been deliberately interrupted multiple times, or if active filter cleaning has failed numerous times due to a failed component, a parked filter cleaning may be requested. In these rare instances the operator will have to park the tractor and start the filter cleaning process.

The parked filter cleaning process needs to be activated based on usage and operation of the tractor. The process will take approximately 30 minutes. See operator’s manual for more details.

This system constantly monitors the soot level of the tractor, making sure the tractor is always in peak performance condition. This ensures high performance at all times.

NOTE: Number of hours since last regeneration and soot level percentage viewable on LCD display.

NOTE: When the tractor is in a filter cleaning process at low speed or while parked and running, the exhaust will be routed through the vertical exhaust outlet. In all other cases, the exhaust will be routed through the downward exhaust outlet. This ensures minimal heat impact to operator.

Key features of the engine are:

Economical cast-in-block cylinder design for good cooling and long life
Direct fuel injection
- Improves starting
- Injects fuel directly on top of pistons for more efficient combustion
- Develops more horsepower per gallon of fuel than indirect injection engines
Aluminum alloy pistons with built-in steel struts are lightweight to reduce connecting rod-bearing loads and provide good heat transfer characteristics
- Design permits tighter tolerances and neutralizes expansion of the piston, which reduces blow-by and noise from piston slap
- Top rings are higher on the piston and a thinner head gasket is used to greatly reduce the volume of unburned waste gases and increase combustion efficiency
Timing gears and injector drive gears have a helical profile to reduce engine noise
Auto-bleed fuel system
- There is no need to prime the system if the tractor runs out of fuel
- The system will self-prime the injection pump, lines and injectors, providing fast fuel recovery for easier starting
Key start and shutoff eliminates fuel shutoff knob
- Electric solenoid shuts fuel supply off immediately when key is turned off
Fuel filter with replaceable element
Water separator
See-through coolant recovery tank permits operator to check coolant level without removing radiator cap
- Sealed radiator compartment keeps trash and debris on outside of hood

Dry-type air cleaner

Dry-type air cleaner with safety element and electronic air service indicator
- Electronic air restriction indicator alerts operator when air filter servicing is required
- Dual element design for added engine protection
- Easy to service
Hybrid exhaust
- Discharges fumes away from the operator and reduces noise from engine
- Improves operator visibility
- Optional vertical exhaust kit is available
- In normal operations, the exhaust goes through the downward exhaust outlet
- In park regeneration process, the exhaust will go through the upward exhaust outlet

Yanmar is a trademark of Yanmar Company Limited.

Maximize productivity with an eHydro™ transmission

The 3R Series Tractor is available with an exclusive three-range electronic hydrostatic (eHydro) transmission.

Fluid under pressure transmits engine power to the drive wheels through a pump and motor
Provides high torque for start-up
Reduces powertrain shock loads

Sauer-Danfoss® supplies both the pump and motor. This ensures that the components are matched to each other, providing maximum efficiency.

The electronic hydrostatic transmission is ideally suited for jobs where productivity is a must, such as loader or mower applications.

Twin Touch™ foot controls allow selecting both direction of travel and speed with a touch of the toe.

Key features of the eHydro transmission are:

Infinite ground speeds, even at full throttle, allow the operator to match the speed of the tractor to the job
No clutching for fast and easy direction changes
Twin Touch foot pedals for quick and easy forward/reverse operation
Cruise control is base equipment
- Cruise-control switch is located on the right-hand console for easy access
- Cruise control is electronically engaged and disengaged and allows for more precise setting of speed

Sauer-Danfoss eHydro transmission is used for reliable operation. Durability features include:

1) Large forged trunnion shaft with larger support bearings to reduce vibration and noise.

2) Center section made from durable cast aluminum, which is 10 percent stronger.

3) Transmission oil cooler cools transmission oil for longer transmission life.

Safety features of the eHydro transmission include:

The tractor starts with one or both foot pedals depressed, but it does not move until both pedals first come to neutral.
The tractor comes to a stop if the operator leaves the seat, but the engine does not shut off unless the power take-off (PTO) is also running.

Key John Deere advantage

Twin Touch foot controls

John Deere's Twin Touch foot controls offer several key advantages over competitive hydrostatic transmission (HST) tractor models.

Key advantages over competitive HST tractor models:

Some competitive hydrostatic tractors use a treadle pedal (toe-heel) design foot control for operation
Requires the operator to use both toe and heel to change direction, resulting in increased operator fatigue.

Integrated eHydro features

The eHydro convenience controls have been integrated into a single module. Combining features such as SpeedMatch™ cruise control, LoadMatch™ switch, MotionMatch, eThrottle, and automotive style cruise control pulls the maximum efficiency out of the eHydro transmission tractors. All these features are standard on the 3R models and deliver an easier and more comfortable user experience.

eHydro convenience control module

eThrottle

eThrottle indicator

The 3R Series Tractors come equipped with the eThrottle function. This feature is designed make the tractor quieter and use less fuel. With the simple push of a button, the engine speed is linked to the pedal position. The operator can keep the throttle essentially all the way in the low position. The engine rpms, as well as the tractor speed, increase together with the pedal position. This provides the operator with comfort and convenience as well as fuel economy.

Automotive-style cruise control

Cruise control indicator

An automotive-style cruise control is standard equipment on the 3R Series Tractors. Cruise control is electronically engaged and disengaged and is located on the right-hand operator console.

Maintains desired forward speed without pressure on the foot pedal
When activated, operator can set cruise speed
- Use the SET/- button to set cruise speed, or to decrease cruise/max speed
- Use the RES/+ button to set cruise speed, or to increase cruise/max speed
A speed sensor also allows the tractor to maintain preset speed driving up and down hills
To disengage the cruise control, either:
- Apply pressure to the brakes
- Disengage cruise control button
- Briefly depress the reverse travel pedal

LoadMatch power management system

LoadMatch indicator

LoadMatch is an industry exclusive and a standard feature on the 3R Series Tractors.

If torque requirements increase significantly, the transmission will reduce the tractor's drive speed to compensate for the increased load on the transmission, maximizing torque to drive wheels and minimize stalls.

Controls automatically adjust LoadMatch compensation depending on the tractor’s application. PTO applications require less engine speed fluctuation, therefore adjusts the amount of droop depending on PTO speed. This adjustment increases efficiency and optimizes engine speed and torque output based on tractor application.

While typically left on, LoadMatch can be turned off with the right-hand console controls.

MotionMatch

MotionMatch, standard on the 3R Series Tractors, is located on the right-hand console. It offers seven settings for adjusting the rollout or decelerate when the pedal is released.

MotionMatch indicator

Longer accelerate and decelerate distances.

MotionMatch indicator

Shorter accelerate and decelerate distances.

SpeedMatch

SpeedMatch indicator

SpeedMatch, standard on the 3R Series Tractors, further enhances the eHydro cruise control functions by allowing the operator to preset maximum speed. Once this feature is engaged, the operator must stroke the travel pedal fully to meet the operator preset speed. This function improves accuracy and safety, particularly at lower travel speed applications.

Rotary tilling or spraying applications are examples of where SpeedMatch can be applied. SpeedMatch will work in both the forward and reverse set speeds.

NOTE: Automotive-style cruise control and SpeedMatch can be used in conjunction with LoadMatch to maximize productivity.

Sauer-Danfoss is a trademark of Sauer-Danfoss, Inc.

PowrReverser™ transmission allows for clutchless direction changes

The PowrReverser transmission, available on 3033R and 3039R Tractors, offers a hydraulically shifted forward-to-reverse transmission. This allows for clutchless shuttle shifting between forward and reverse with one lever for quick and easy direction change.

The PowrReverser transmission does not require the operator to use the clutch to shift between forward and reverse.

The 12x12 PowrReverser transmission's hydraulically actuated wet clutch takes the place of the dry-type traction clutch. Two multi-disk clutch packs (one forward and one reverse) are hydraulically actuated when the directional (reverser) lever is placed in either the forward or reverse position.

Each clutch pack consists of three large, 13-cm (5-in.) diameter clutch disks that are oil-cooled, allowing excellent heat dissipation and extended clutch life.

Forward/reverse clutches

Clutch A is used for the forward operation of the tractor
Clutch B is used for the reverse operation of the tractor

Key features of the PowrReverser transmission are:

12 forward and 12 reverse speeds
Reverser lever, located on the left side on the instrument console, allows operator to make direction changes without clutching
- Fast shuttle shift for improved loader operation

Helical-cut gears

Dual-cone synchronizers allow for synchronized shifts between gears for on-the-go shifting with use of the clutch
Helical-cut gears for quiet operation
Well-spaced speeds for turf, loader, and transport work
Neutral-start switch prevents tractor from starting when transmission (main range) is not in neutral
Dual wet-disk clutches provide long clutch life
Shifts between ranges are not synchronized

NOTE: 3R Tractors with PowrReverser are not compatible with mid PTO. They are not compatible from the factory or field installed.

Operator station is comfortable and convenient

3R operator's station

The operator's station is designed for easy entry to/exit from the tractor.

Conveniently placed pedals, as well as repositioned operator controls, provide for a clean and flat platform design, giving the operator plenty of legroom.

Hood and fenders are made from composite polymer material designed to eliminate the possibility of rusting and resistance to dents that can occur with metal hoods and fenders. This material provides a high-luster appearance with excellent resilience and resistance to fading from sunlight.
Easy-fold rollover protective structure (ROPS) has built-in, rattle-reducing isolator.

Safety certified folding ROPS

Key features of the operator's station include:

Large grab handles on each fender make getting on and off the tractor easy
Tilt steering wheel design in base equipment. The tilt wheel:
- Allows the operator to adjust the steering wheel to the most comfortable position
- Provides additional clearance for the operator to enter and exit the tractor
- Provides easy return to the fully raised position
- Provides plenty of room for comfortable operation
Updated M-B-R power take-off (PTO) selector lever is standard equipment and allows independent control of the mid and rear PTO
- Mid PTO cannot be ordered as a factory-installed option on standard cab or snow cab tractors and must be ordered separately as a field-installed option.
Controls are shape and color coded for easier identification and operation
Easy-fold ROPS include a built-in isolator for rattle free operation
A left-side step is in base equipment to enhance access to the operator’s station
Foot platform is rubber mounted and incorporates a runner mat for operator comfort
PowrReverser™ models have both hand and foot throttle controls
- Throttle controls are especially useful when using a loader

Optional premium ComfortGard™ cab provides superior comfort and performance

3R ComfortGard cab

John Deere ComfortGard cab tractors are some of the most comfortable, quiet, and easy-to-use cab tractors available anywhere. This premium solution was developed using extensive customer research and validation tools, and some of the most advanced design techniques available.

The following ComfortGard cab tractor models are available:

3033R Tractor with hydrostatic transmission (HST)
3039R Tractor with HST
3046R Tractor with HST

Cab tractors are designed for those operators who demand superior performance.

Large-property owners
Commercial operators
Governmental agencies
Farmers

Whether doing loader work, front implement work (such as snow removal), mowing, tilling, rotary cutting, or light hay work, the cab tractors have the versatility and muscle to get the job done, all while protecting the operator from the elements.

Design

State-of-the-art design

Designed by John Deere and built at the John Deere factory in Ramos, Mexico
Certified to the highest safety standards in the industry
Fingertip controls and an automotive-like fit and finish

Operators are sure to appreciate what this cab has to offer — beginning with an isolated cab. These cabs are designed with robust mounting points integrated into the rollover protective structure (ROPS) with a unique offset mounting design that provides an ultra-quiet ride.

The four-post ROPS design, carefully laid-out interior, and fuel tank located under the left rear side of the operator's platform provide a full 360 degrees of visibility.

Operators enjoy a commanding view no matter what task is being performed.
The raised header bar design allows operators — whether short or tall — to see the loader bucket or pallet forks through virtually the full range of operation.
Operator fatigue caused by awkward bending is reduced, leading to increased overall productivity.
The slow-moving vehicle (SMV) sign can be easily removed and stored in the operator's manual holder to provide a clear and unobstructed view for attaching to implements and doing field work.
The ample headroom and curved glass on all four sides provide a spacious interior and give operators the feel of a large tractor cab.

Operators are well-protected from the elements with a high-performance climate-control system providing heating and air conditioning.

The climate-controlled cab makes any task more enjoyable whether on a frigid winter day or a hot summer day.
The cab is completely sealed and pressurized to further protect the operator from the elements.
A standard high-efficiency clean-air filter keeps even the smallest dust and allergen particles out.

Cab comfort features

Superior operator comfort and visibility

Optional radio kit

Several features are integrated into the design of the cab that deliver superior operator comfort and visibility. These features include:

Ultra-quiet interior
Four-post ROPS with curved glass for 360-degree visibility and spacious interior
Improved climate-control system for maximum operator comfort
Raised header bar for maximum loader visibility
Right-hand control center with the most frequently used controls at the operator's fingertips
Left-hand automotive-style park brake
Dash-mounted four-wheel drive (4WD) engagement, no awkward bending
Tilt steering
Improved shift range linkage for ease in operation
Flat unobstructed foot platform
Deluxe cloth seat with a retractable seat belt and armrests for excellent back support
Factory-installed deluxe air-ride seat with an adjustable backrest and adjustable armrests (available on the 3039R and 3046R)
Inside rearview mirror for rear visibility
Optional dual exterior rearview mirrors for added rear visibility
Ergonomically placed integrated loader joystick control for maximum comfort during operation
Interior dome light with on, door, and off positions for illumination in low-light conditions
Optional factory or field-installed Jensen® stereo with AM/FM, weatherband, and powered USB port
- SiriusXM® satellite radio ready and iPod® mobile digital device ready
- SWJHD1630 stereo can be ordered separately through Parts
Standard sun visor to block unwanted sunlight
Creature comforts like:
- Dual cup holders
- 12-V power supply
- Cell phone storage
- Hitch pin storage
- Miscellaneous storage
- Operator's manual holder
Integrated handle providing support for ingress and egress
Left-side step for convenient ingress and egress

Cab operating features

Right-hand control panel

Side-post mounting bosses

Installing rear window removable plug

Rear window removable plug installed

Pre-wired for optional accessories like a radio, horn, rear work lights, electric hydraulic diverter, rear wiper/washer, beacon light, and 12-V outlet
Integrated warning lights/turn signals and taillights, protected from trees and branches
Integrated roof-mounted antenna, protected from potential damage from trees and branches
Dual roof-mounted forward work lights for optimum forward visibility at night
Standard two-speed front windshield wiper to keep the front glass clear
Optional rear wiper/washer to keep the rear glass clear
Optional front fenders to protect the front cab glass from mud and debris
Optional rear fender extensions to help protect doors from mud and debris
High-impact polymer fenders, dent resistant and painted to an automotive-like finish
Rear glass that swings out 70 degrees for ventilation or access to the optional iMatch™ hitch
Easy access to route and mount a controller or monitor through the rear window removable plug and mounting bosses on the side post
Large, 48.6-L (12.8-gal.) fuel tank for longer operation without re-fueling
Left rear fender fuel fill with large opening for easy re-fueling
Fuel tank located under the left side of the operator's station for maximum rear visibility

Cab safety features

ROPS — Certified to the highest industry standards for maximum operator protection
Operator presence system
Engine shuts down if the operator leaves the seat when the transmission, mid, or rear PTO is engaged
Tractor must be in neutral and the park brake fully set for stationary PTO work
Right-side emergency exit
Tempered safety glass in case of breakage
Roof-mounted warning lights/turn signals for road transport — two front and two rear
Two fender-mounted taillights
Easily remove the slow-moving vehicle sign and store it in the operator's manual holder

Deluxe cloth seat

A deluxe cloth seat with retractable seat belt is in base cab equipment.

An ergonomically sculpted seat cushion, an adjustable scissor-link suspension, and seat armrests are combined to provide excellent operator comfort and support.
The scissor-link suspension can be adjusted for the operator's height and weight.
The operator weight adjustment adjusts to the operator's weight (52 kg to 125 kg [115 lb to 275 lb]).
Using a lever located under the seat, the seat is adjustable fore and aft for operator height.
Retractable seat belts prevent belts from becoming tangled in the seat suspension and controls.
Optional air-suspension seat is available.

Optional air-suspension seat

Air-suspension seat

Two air-ride seat options are possible in 3R cab models. Both utilize the same suspension, which is designed to provide an air cushion for vertical-seat travel. This provides maximum operator comfort in any terrain. The two options are:

1. The optional factory-installed air-ride seat with a deluxe cloth two-piece seat with adjustable backrest and integrated armrests (for the 3039R and 3046R only).

Seat features:

Push the button at the base of the seat to pump up the seat. Pull the button to deflate the seat.
The seat slides fore/aft with a lever on the right-hand side of the seat.
The seat back reclines with a lever in the lower left corner of seat cushion.
Upper backrest extension available as a field installed option.

2. The optional field-installed air suspension kit that requires the existing standard seat to be re-used when installed.

NOTE: The deluxe two-piece seat top can be ordered through Parts for customers who desire it.

Key benefits include:

Maximum ride comfort and quality, thus minimizing operator fatigue
Dampens lower frequency vibration better than mechanical suspensions
Operator weight capacity of 330 lb
Enhanced appearance with the close-out boot

Lighting equipment

The base lighting package for cab tractors includes:

Two wide-angle halogen headlights
Two roof-mounted, adjustable halogen forward work lights, illuminating the work area in nighttime or low-light conditions
Two front and two rear amber turn signals/warning lights integrated into the cab roof
Two taillights integrated into the fenders
Three-position (on/off/auto) interior dome light

Optional lighting

Optional lighting includes:

Dual roof-mounted adjustable rear work lights
Rotating beacon light

Jensen is a trademark of ASA Electronics Corporation. iPod is a trademark of Apple Inc. SiriusXM is a trademark of Sirius XM Radio Inc.

Engine power (gross)	SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm
Power take-off (PTO) power	25.2 kW 33.9 hp
Steering hydraulics	23.5 L/min 6.2 gpm
Implement hydraulics	34.3 L/min 9.1 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	995 kg 2194 lb
Standard transmission; forward/reverse	eHydro transmission
Cruise control	Standard
Approximate shipping weight (open-station; cab)	Open operator station (OOS): 1391 kg 3066 lb Cab: 1818 kg 4008 lb
Wheelbase	1727 mm 68 in.

Family
Manufacturer	Yanmar®
Engine model	3TNV86CHT-MJTV
Engine power (gross)	SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm
Power take-off (PTO) power	25.2 kW 33.9 hp
Rated engine speed	2600 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Turbocharged and intercooled
Emissions compliance	Final Tier 4
Cylinders/displacement	Three cylinders: 1.57 L 95.7 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	86 x 90 mm 3.4 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Liquid
Air cleaner	Dual element
Engine torque at rated speed	112.3 Nm 90 lb-ft
Fuel tank capacity	OOS: 37.4 L 10 U.S. gal. Cab only: 47.6 L 12.6 U.S. gal.

Battery size	500 CCA
Alternator (12-V)	75 amp
Starter size	1.4 kW 1.9 hp

Standard transmission; forward/reverse	eHydro transmission
Optional transmission; forward/reverse
Left-hand reverser
Transmission gear ranges	Three-range, infinitely variable
Final drive	Spur gear
Brakes	Wet disk
Steering	Hydrostatic power steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 1450 kg 3197 lb Rear 1850 kg 4079 lb
Creeper
Cruise control	Standard
Differential lock
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 23.5 L/min 6.2 gpm Implement 34.3 L/min 9.1 gpm 57.8 L/min 15.3 gpm
Pump type	Single gear
Maximum operating pressure	172 bar 2495 psi
Draft control sensing	Position control
Remote control valves available	Up to six rear remotes

Rollover protective structure	Type Foldable
Platform - flat/straddle	One-piece semi flat
Gear shift location - console/floor

Compliance	Complies with OSHA, SAE, and CSA standards for rollover protection
Visibility	360 degree (angle)
Air conditioning, temperature differential
Doors	Two
Noise rating	80 dBA
Seat equipment	Scissor-link

Height
Wheelbase	1727 mm 68 in.
Front axle clearance	Minimum: 171 mm 6.7 in. Maximum: 299 mm 11.8 in.
Turning radius with brakes	2.7 m 8.8 ft
Turning radius without brakes	2.8 m 9.2 ft
Limited slip differential
Approximate shipping weight (open-station; cab)	OOS: 1391 kg 3066 lb Cab: 1818 kg 4008 lb

Front	R1 Bar: 7-14 R3 Turf : 27x8.50-15 R3 Turf Special: 25/10.5LLx15 R4 Industrial: 25x8.5-14 or 27x8.5-15
Rear	R1 Bar: 11.2-24 R3 Turf: 41x14-20 R3 Turf Special: 41x18LL-16.1 R4 Industrial: 15-19.5 or 43x16-20
Front tread range	1117 mm 44 in.
Rear tread spacing	1031 mm 40.6 in.

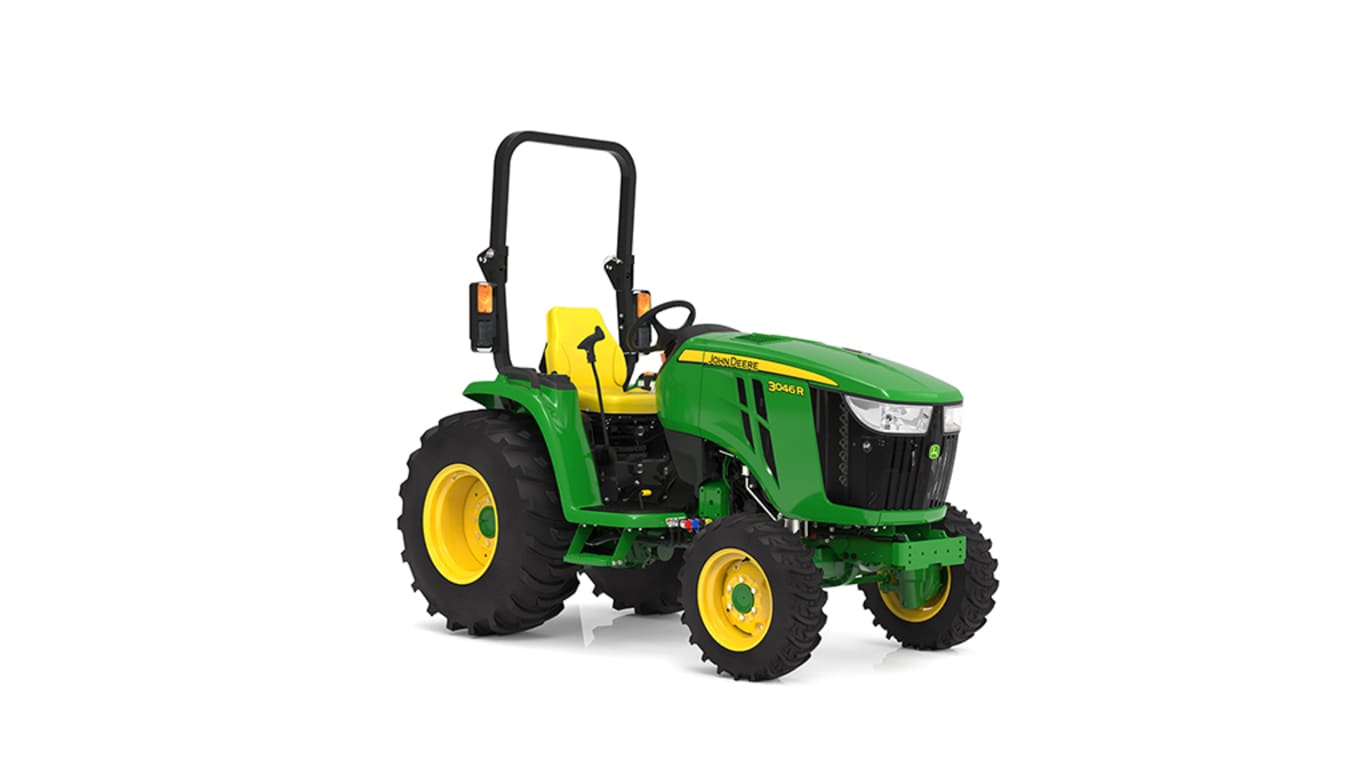

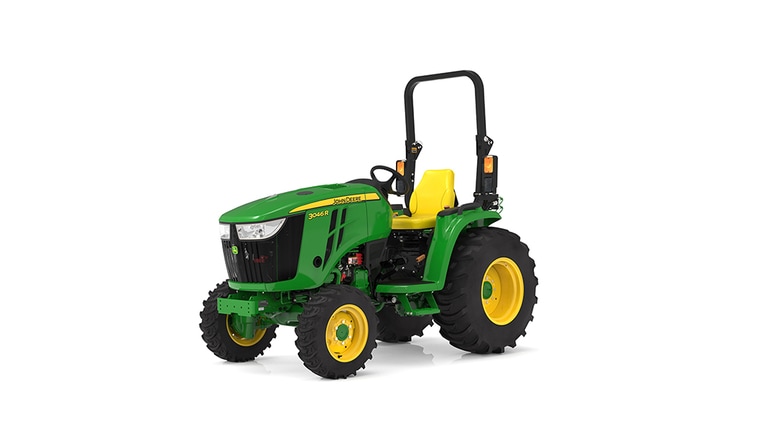

3046RCompact Tractor

SHARE

Features

DPF cleaning

Key features of the engine are:

Key John Deere advantage

eThrottle

Automotive-style cruise control

LoadMatch power management system

SpeedMatch

Design

Cab comfort features

Cab operating features

Cab safety features

Deluxe cloth seat

Optional air-suspension seat

Optional lighting

Specs & Compare

Add Model

Key Specs

Engine

Electrical

Fuel system

Transmission

Hydraulics

3-point hitch

Power take-off (PTO)

Fluid capacities

Final drive

Operator station

Cab

Dimensions

Tires

Miscellaneous

Additional information

Offers and Discounts

Offers and Discounts

Up to $3,850 Off PLUS 0% APR/ACR for 60 months

15% Off Attachments †

Get $325 Off†

Get $1,275 Off†

0% APR/ACR for 60 Months†

15% OFF Select Fall & Winter Attachments†

0% APR/ACR for 48 Months AND Get up to $1,625 OFF†

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
