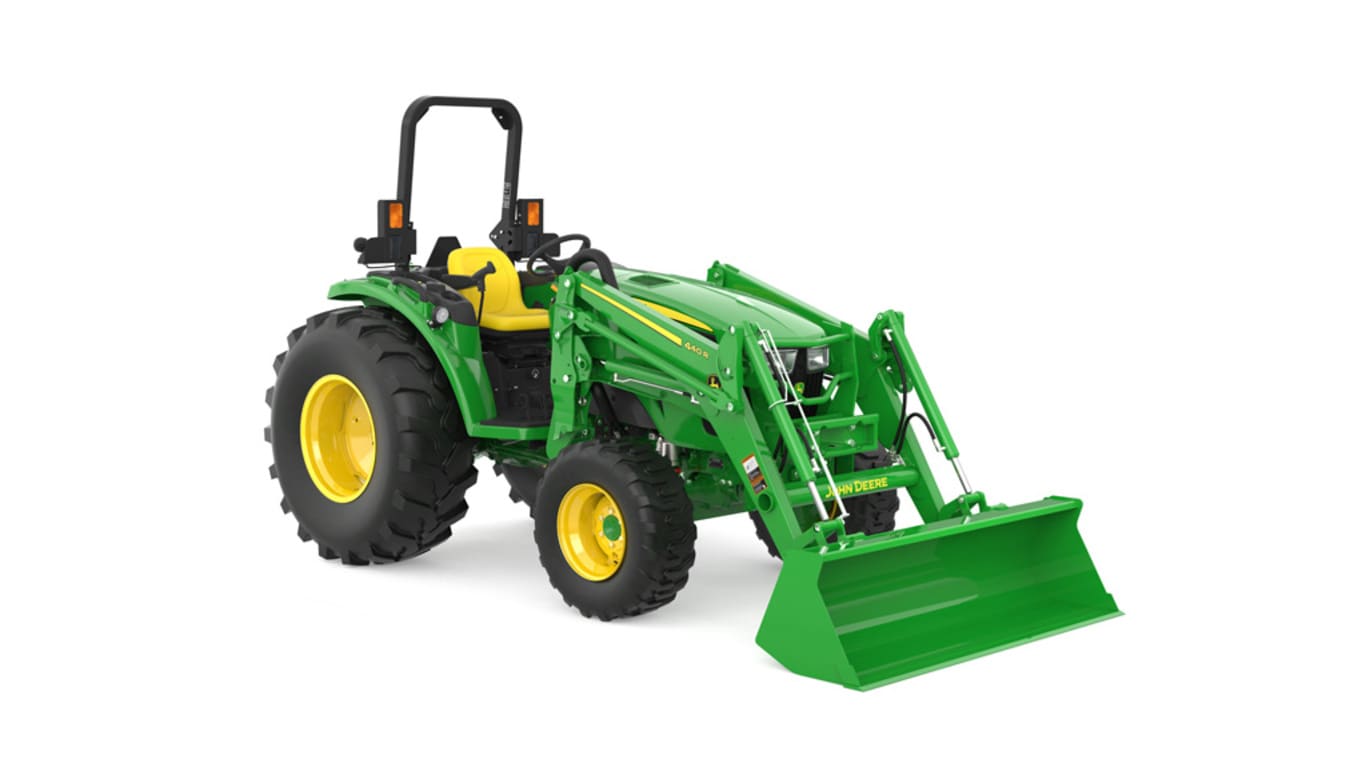

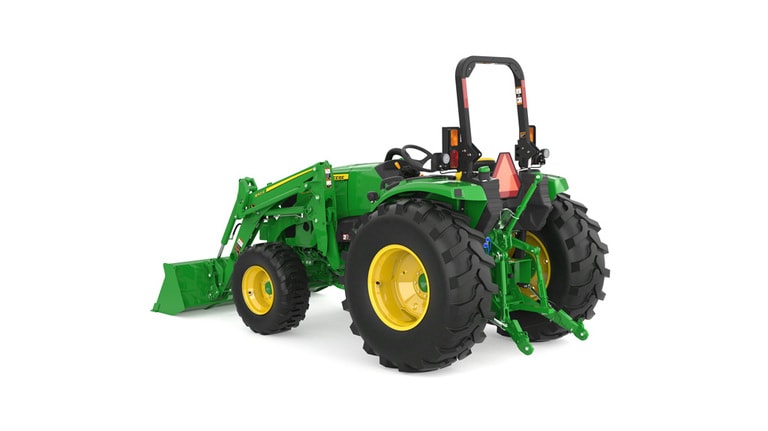

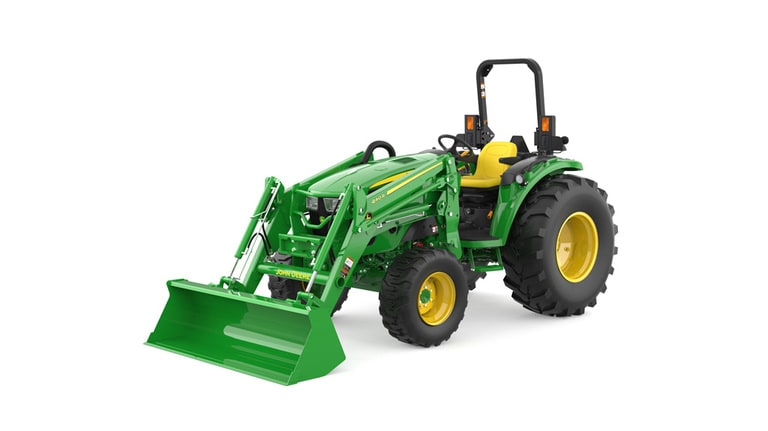

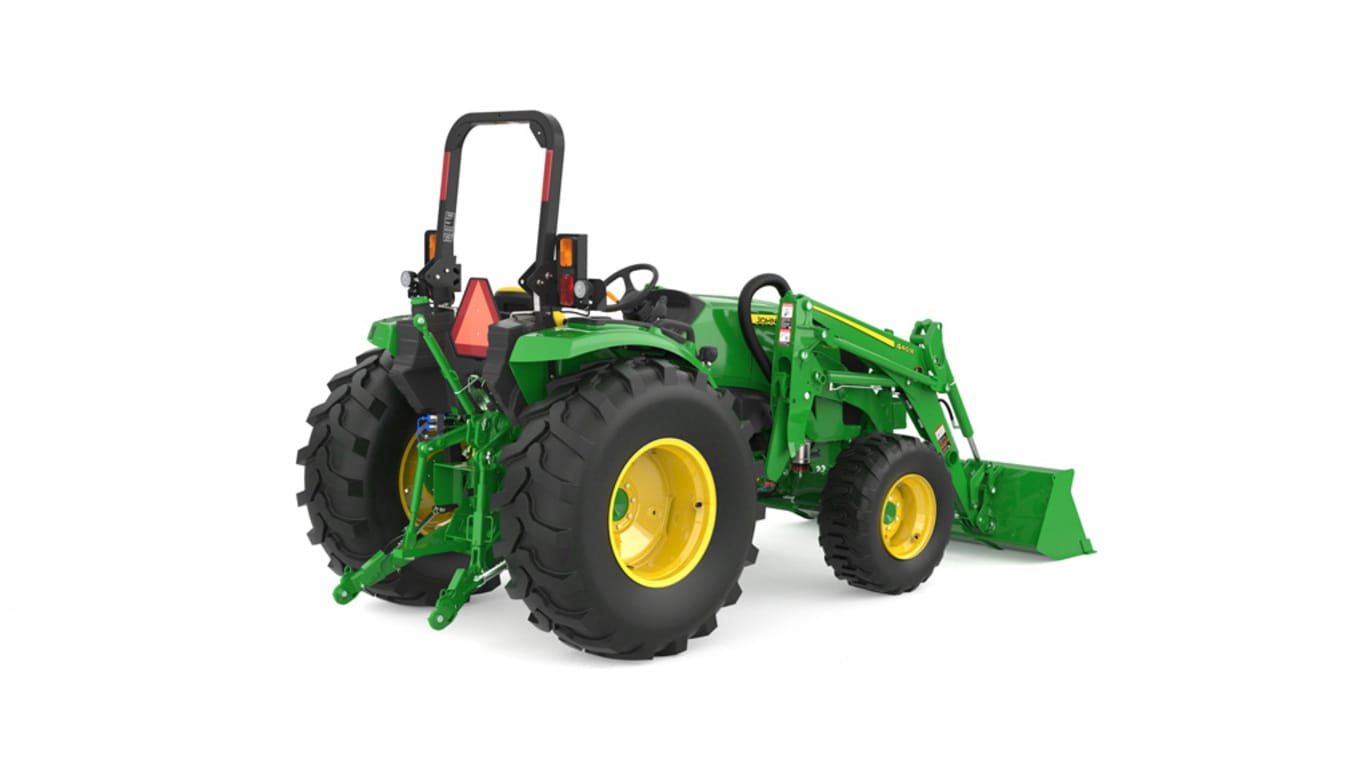

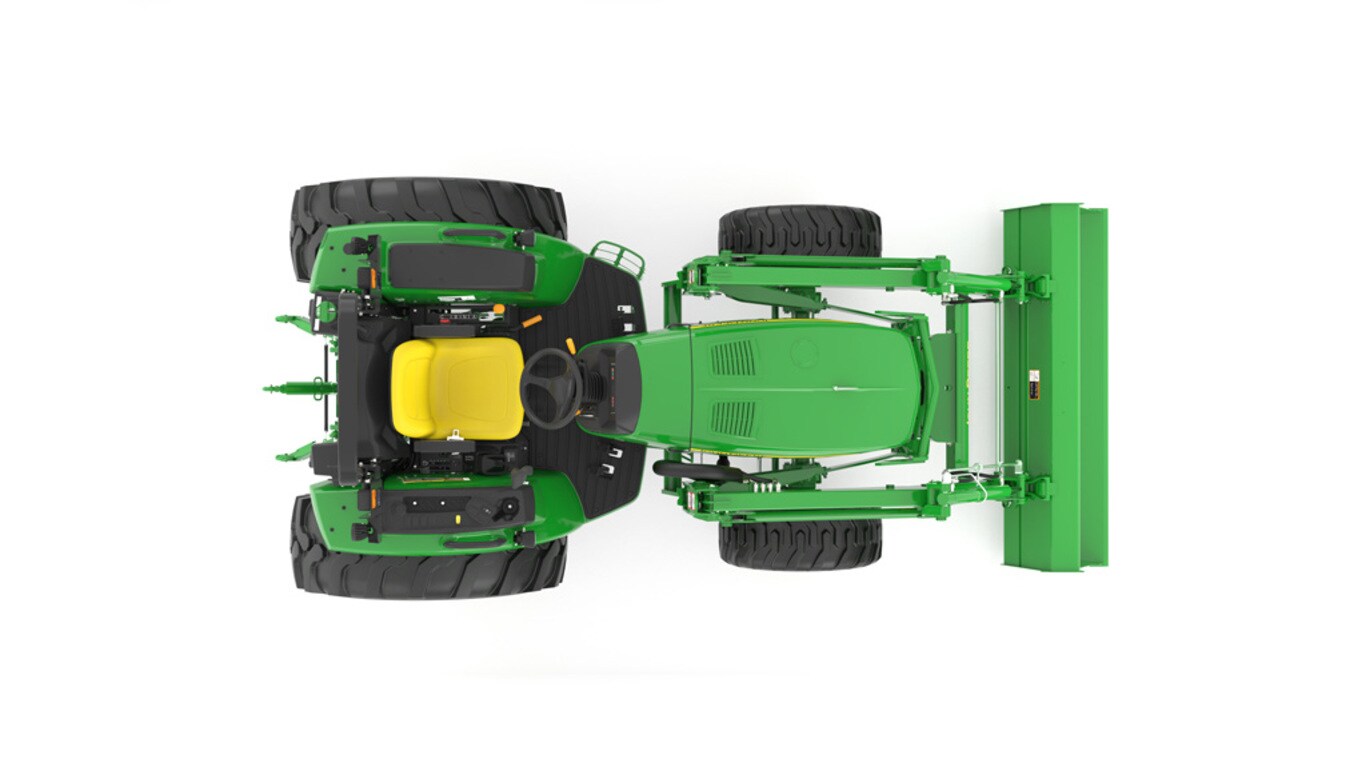

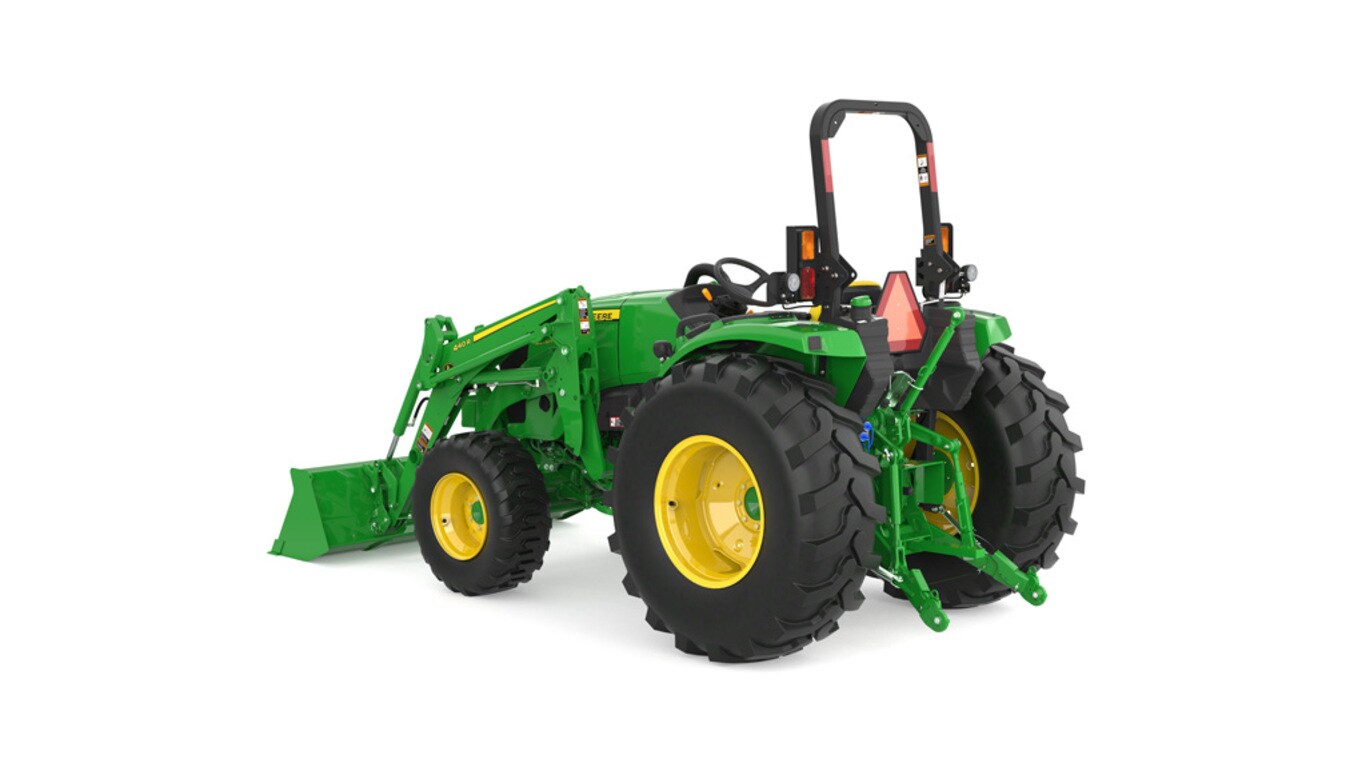

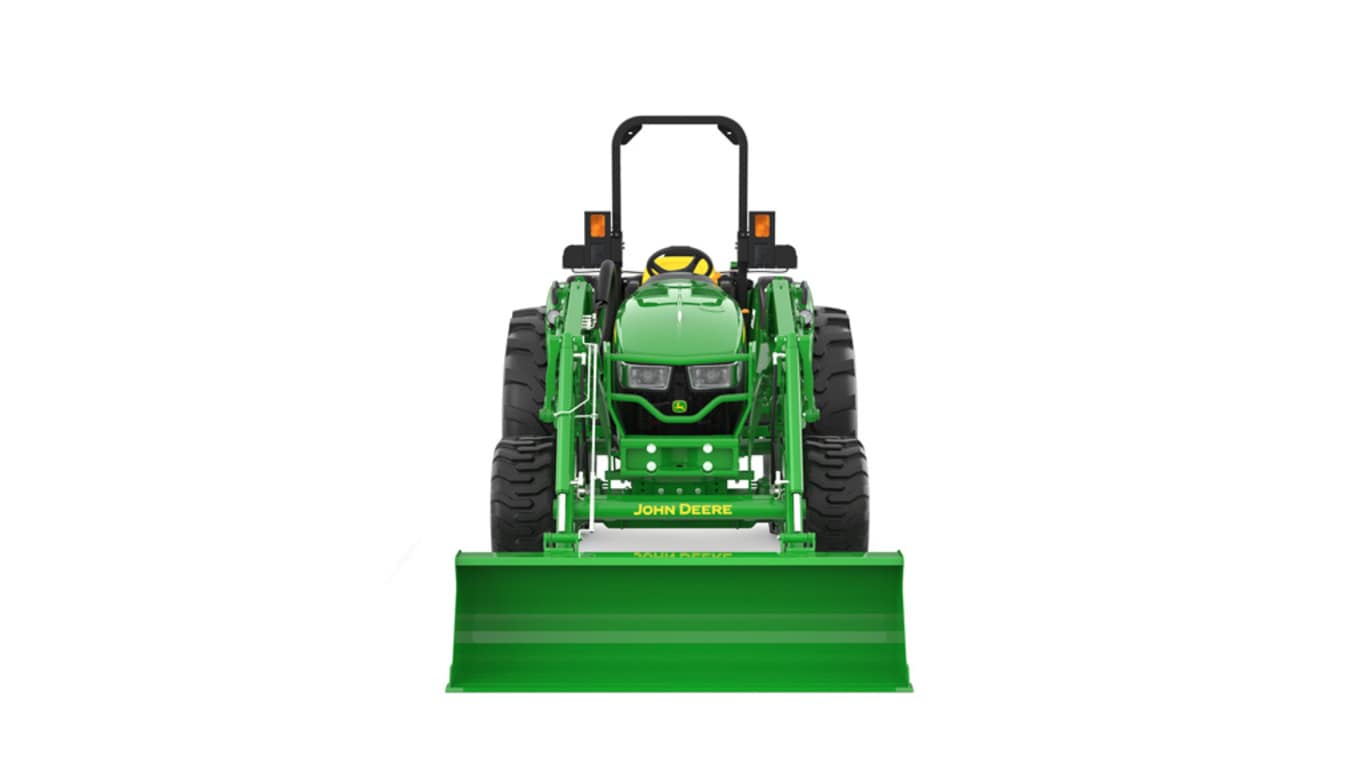

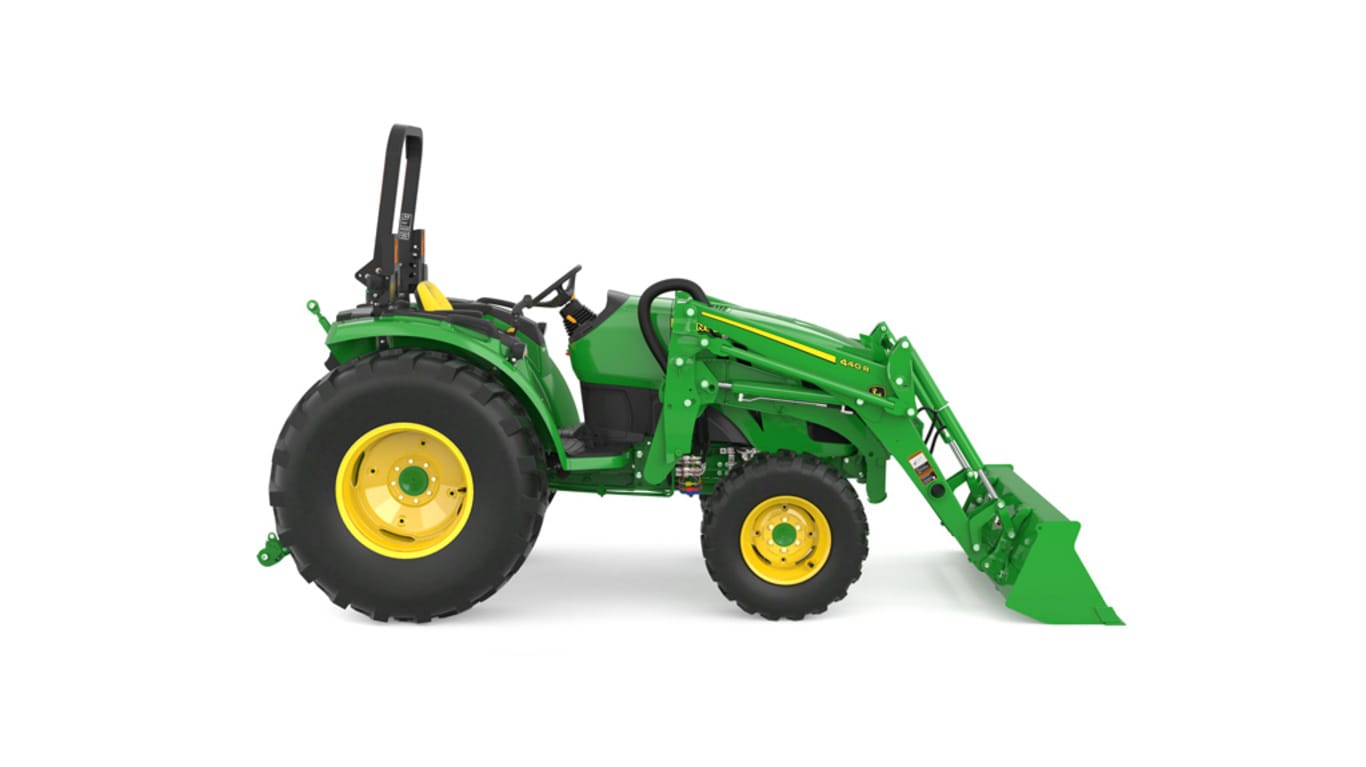

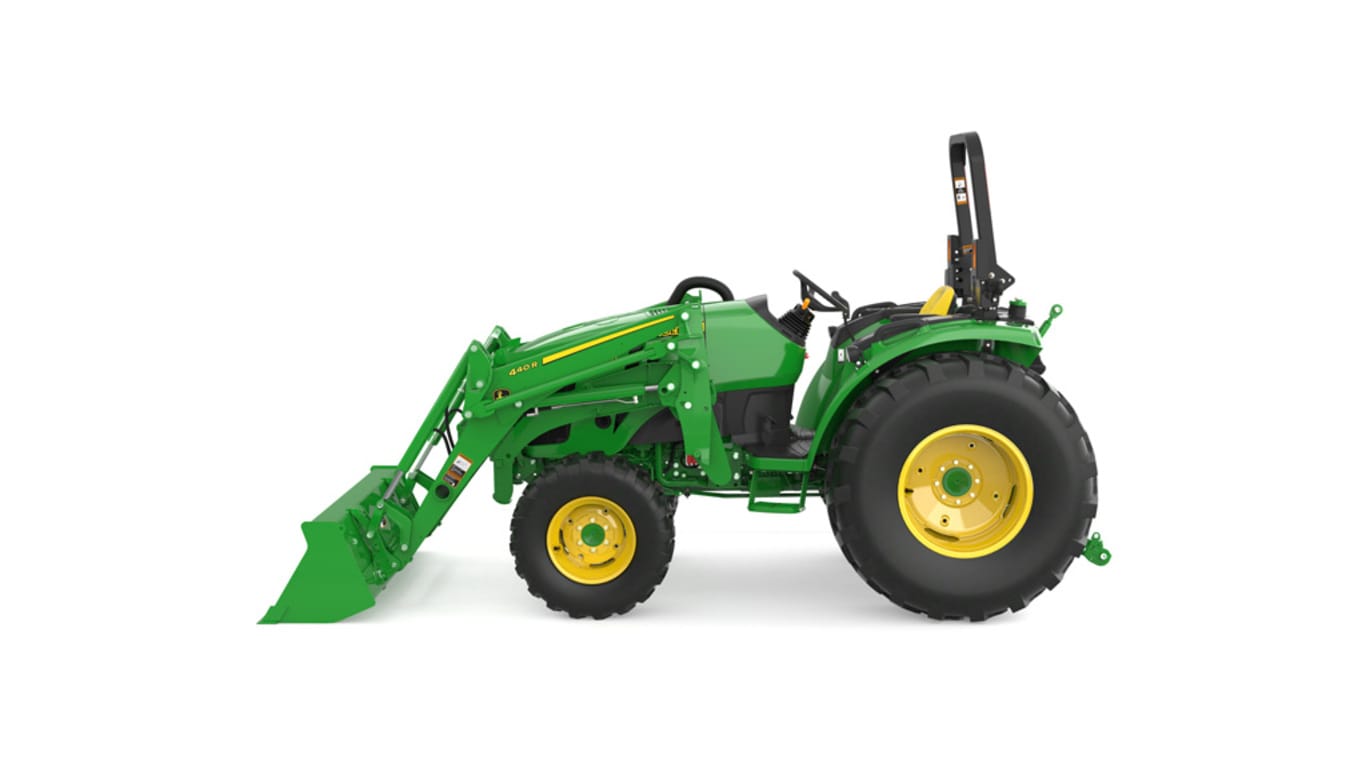

4052M Heavy DutyCompact Tractor
- Factory-installed 440R Quick Park™ Loader Mounting System included
- Turbocharged diesel engine
- eHydrostatic Transmission
- Standard mid and rear hydraulics
- Category 1 and 2, Three-point hitch
$71,160.00CAD
Features
Expand All
Collapse All
3-point rear hitch
3-point hitch control
Rate-of-drop/stop valve shown on 4M Heavy-Duty Tractor
Wraparound-style wide-angle halogen headlights
Lamps provide better visibility
Headlights and lamps for increased lighting
Fender-mounted working lights
Danfoss eHydro transmission
Twin Touch foot controls
eHydro convenience control module
eThrottle indicator
Cruise control indicator
LoadMatch indicator
MotionMatch indicator
MotionMatch indicator
SpeedMatch indicator
Dual mid SCV
Mid electrohydraulic third SCV control
SCV controls
Powerful Yanmar engine
Dry-type air cleaner
4M Heavy-Duty rear tire
4052M HD with rotary cutter and front loader
4066M HD with 440R Loader and Frontier™ land plane
Increased versatility with Category 1 and 2 implement compatibility

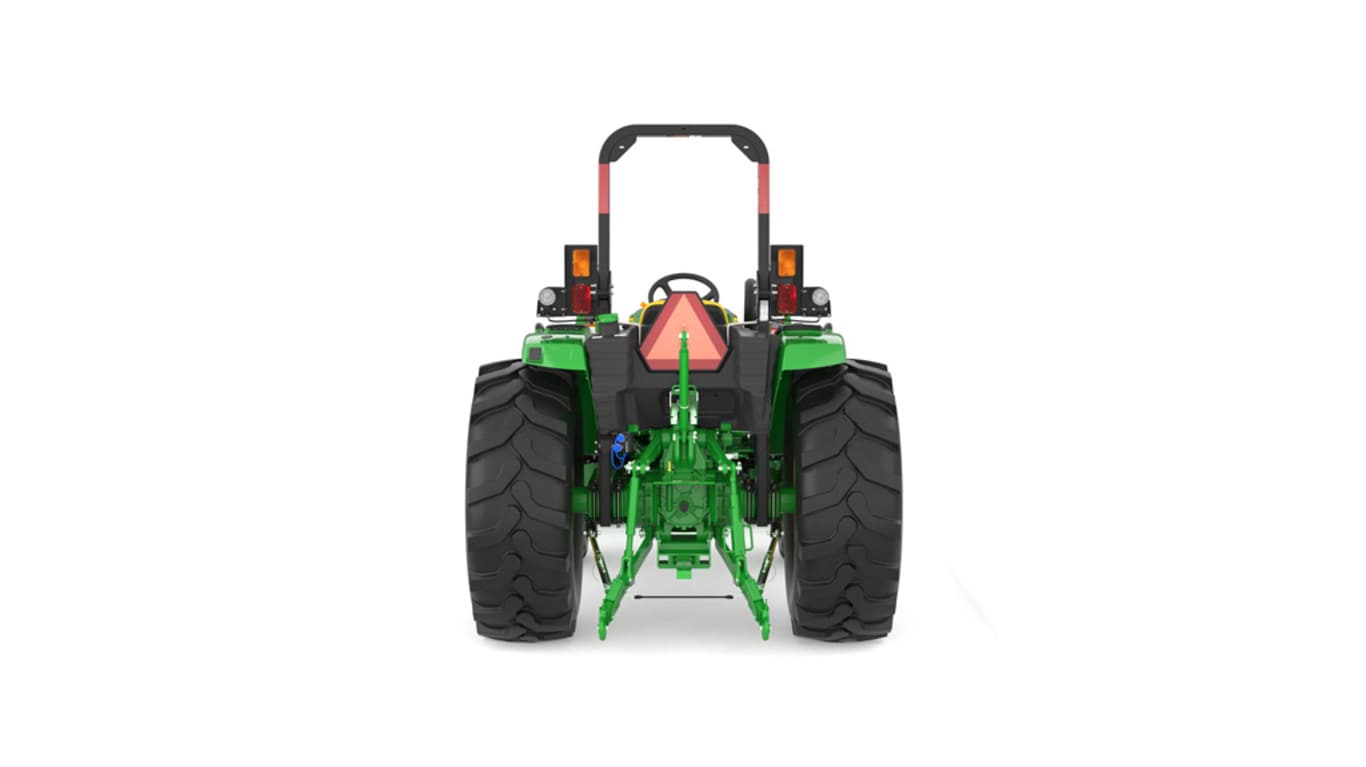

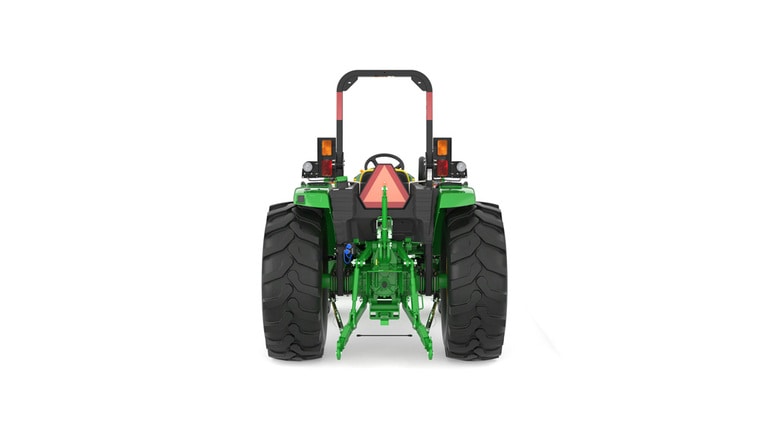

3-point rear hitch
The rear hitch on 4M Heavy-Duty Tractors provides producers with implement versatility to perform in a variety of applications. Attaching implements is convenient with telescoping draft links and Category 1 and 2 hitch balls in base equipment. The mechanical hitch control also features a depth stop and a rate of drop adjustment. This feature provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This is valuable to anyone who desires consistent, level ground.
The 3-point hitch has plenty of lift capacity to handle heavy implements.
3-point hitch lift capacity 610-mm (24-in.) behind center |
3-point hitch lift capacity at lift link ends |
| 1134 kg (2500 lb) | 1420 kg (3130 lb) |
Category 1 and Category 2 hitches allow for hookup of a variety of 3-point hitch implements.
- Right-hand lift link and center-link are adjustable to save time when leveling equipment.
3-point hitch control
3-point hitch control
The 3-point hitch control on the 4M Heavy-Duty Series Tractors is called position control.
- Operates precisely with no jerking or leak down
-
3-point hitch lever features easy-to-read increments for accurate positioning and an easy-to-adjust depth stop control
-
The S-hook is provided to secure the center-link when hitch is not used
Rate-of-drop/stop valve
Rate-of-drop/stop valve shown on 4M Heavy-Duty Tractor
Rate-of-drop/stop valve regulates lowering speed of 3-point hitch. It can be shut off completely to stop hitch movement.
Telescoping draft links (extendable draft links)
Telescoping draft links will reduce the amount of effort to attach 3-point hitch implements by allowing the operator to make small adjustments without moving the tractor. It is standard on 4M Heavy-Duty Tractors.
Horizontal sway bar stabilizers regulate side-to-side sway of 3-point-hitch-mounted equipment.
- 4M Heavy-Duty Tractors come equipped with the horizontal stabilizer bars, the lock pin goes into the stabilizer bar vertically
- Mounted on outside of lower links for fast, easy equipment hookup
- Top-pull pin design allows easy adjustment without use of tools
- Retainer cable holds pin while pin is removed to adjust stabilizers
Rockshaft position control lever allows operator to accurately set implement depth or height.
- Operates precisely with no jerking or leak down
- Control lever features easy-to-read increments for accurate positioning
Easy-to-adjust depth stop enables the operator to lower implement to a predetermined depth.
Excellent visibility provided by standard lighting equipment
Wraparound-style wide-angle halogen headlights
Lamps provide better visibility
Headlights and lamps for increased lighting
Fender-mounted working lights
Standard equipment lighting includes:
- Wraparound-style wide-angle halogen headlights for better lighting and visibility
- Premium integrated automotive-style headlight bezels
- Two amber flashing warning lights
- Two fender-mounted forward and rear working lights
- All lighting and markings comply with ASAE S279
Maximize productivity with an eHydro™ transmission
The tractor is available with a three-range electronic hydrostatic (eHydro) transmission.
- Fluid under pressure transmits engine power to the drive wheels using a pump and motor
- Functions both as a clutch and transmission
- Provides high torque for startup
- Reduces powertrain shock loads
Danfoss® supplies both the pump and motor. This ensures that the components are matched to each other, providing maximum efficiency.
The electronic hydrostatic transmission is ideally suited for jobs where productivity is a must, such as loader or mower applications.
Twin Touch™ foot controls allow the operator to select both directions of travel and speed with a touch of the toe.
Key features of the eHydro transmission:
- Infinitely variable ground speeds, in each range, allow the operator to match the speed of the tractor to the job.
- No clutching means fast and easy direction changes.
- Twin Touch foot pedals provide quick and easy forward/reverse operation.
- Cruise control is standard equipment:
- Cruise control switch is located on the right-hand console for easy access.
- Cruise control is electronically engaged and disengaged, which allows for precise setting of speed.
Danfoss eHydro transmission
Danfoss eHydro transmission is used for reliable operation. Durability features include:
Large forged trunnion shaft with larger support bearings that reduce vibration and noise
Center section made from ductile iron (much stronger than grey iron used in many competitive transmissions)
Transmission oil cooler cools transmission oil for longer transmission life
Safety features of the eHydro transmission include:
The tractor will start with one or both foot pedals depressed, but it will not move until both pedals first return to neutral.
Operator presence system means the tractor will come to a stop if the operator leaves the seat but will not shut off unless the power take-off (PTO) is also running.
Key John Deere advantage
Twin Touch foot controls
John Deere's Twin Touch foot controls offer key advantages over competitive hydro model tractors.
- Some competitive hydrostatic tractors use a treadle pedal designed (toe-heel) foot control for operation of the hydro.
- Requires the operator to use both toe and heel to change direction, resulting in increased operator fatigue
Integrated eHydro features
The eHydro convenience controls have been integrated into a single module. Combining features such as SpeedMatch™ LoadMatch™, MotionMatch, eThrottle, and automotive-style cruise control pulls the maximum efficiency out of the eHydro transmission tractors. All these features are standard on the 4M Heavy Duty and 4R models and deliver customers an easier and more comfortable experience.
eHydro convenience control module
|
Press button to active/deactivate eThrottle. When eThrottle is activated, depression of the travel pedal increases engine rpm and tractor speed. |
|
Press button to active/deactivate LoadMatch. When LoadMatch is activated, engine will not stall during heavy load applications. |
|
Press button to activate/deactivate SpeedMatch. When SpeedMatch is activated, operator is able to set the desired maximum travel speed. |
|
Press button to activate/deactivate cruise control. When cruise control is activated, operator is able to set cruise speed. |
|
Press button to set cruise speed, or to decrease cruise/set max speed. |
|
Press button to resume set cruise speed, or to increase cruise/set max speed. |
|
MotionMatch - longer accelerate and decelerate distances. |
|
MotionMatch - shorter accelerate and decelerate distances. |
eThrottle
eThrottle indicator
Press a button to activate/deactivate eThrottle. When eThrottle is activated, depression of the travel pedal increases engine rpm and tractor speed simultaneously. This provides the operator with comfort and convenience as well as fuel economy.
Automotive-style cruise control
Cruise control indicator
An automotive-style cruise control is standard equipment on the 4M Heavy-Duty and 4R Series Tractors. Cruise control is electronically engaged and disengaged and is located on the right-hand operator console.
- Maintains desired forward speed without pressure on the foot pedal
- When activated, the operator is able to set cruise speed:
- Use the SET/- button to set cruise speed, or to decrease cruise/maximum speed
- Use the RES/+ button to set cruise speed, or to increase cruise/maximum speed
- A speed sensor also allows the tractor to maintain preset speed driving up and down hills
- To disengage the cruise control, either:
- Apply pressure to the brakes
- Disengage cruise control button
- Briefly depress the reverse travel pedal
LoadMatch power management system
LoadMatch indicator
LoadMatch is a standard feature on the 4M Heavy-Duty and 4R Series Tractors.
If torque requirements increase significantly, the transmission will reduce the tractor's drive speed to compensate for the increased load on the transmission, maximizing torque to drive wheels and minimizing stalls.
Controls automatically adjust LoadMatch compensation depending on the tractor’s application. PTO applications require less engine speed fluctuation, therefore adjusting the amount of droop depending on PTO speed. This adjustment increases efficiency and optimizes engine speed and torque output based on tractor application.
While typically left on, LoadMatch can be turned off with the right-hand console controls.
MotionMatch
MotionMatch, standard on the 4M Heavy-Duty and 4R Series Tractors, is located on the right-hand console. It offers seven settings for adjusting the rollout or decelerating when the pedal is released.
MotionMatch indicator
This icon indicates longer accelerate and decelerate distances.
MotionMatch indicator
This icon indicates shorter accelerate and decelerate distances.
SpeedMatch
SpeedMatch indicator
SpeedMatch, standard on the 4M Heavy-Duty and 4R Series Tractors, further enhances the eHydro cruise control functions by allowing the operator to preset maximum speed. Once this feature is engaged, the operator must stroke the travel pedal fully to meet the operator’s preset speed and press the Set button to lock the speed. From there, the operator can use the automotive-style cruise controls to adjust speed. This function will improve accuracy and safety, particularly at lower travel speed applications.
Rotary tilling or spraying applications are examples of where SpeedMatch can be applied. SpeedMatch will work in both the forward and reverse set speeds.
NOTE: Automotive-style cruise control and SpeedMatch can be used in conjunction with LoadMatch to maximize productivity.
Danfoss is a trademark of Danfoss A/S Corporation.
Increase productivity with integrated mid-mount loader selective control valve (SCV) and mechanical rear SCV
Dual mid SCV
The tractor is base equipped with a dual mid SCV.
- Two sets of right-hand side-mounted couplers allow operating four hydraulic functions (such as raising/lowering boom and curling/dumping bucket).
- Large 12.7-mm (0.5-in.) diameter couplers are used for maximum oil flow to implements.
- Hydraulic valves have excellent featherability for smooth operation of equipment.
- Couplers are color coded for correct hookup.
- Hydraulic regenerative (REGEN) active, in dump position, out of neutral:
- Provides faster dump cycle
- Prevents cylinder voiding
Single rear SCV
The tractor is also base equipped with a mechanical rear SCV with float function
- One set of rear mounted couplers allow operating rear mounted hydraulic implements.
- Large 12.7-mm (0.5-in.) diameter couplers are used for maximum oil flow to implements.
- Hydraulic valves have excellent featherability for smooth operation of equipment.
Optional mid electrohydraulic third SCV
Mid electrohydraulic third SCV control
Optional on the 4M Heavy-Duty Tractors is the factory-installed mid third-function SCV. This SCV adds versatility to tractor loader packages and enables the use of attachments such as a four-in-one bucket or root grapple.
The third function is controlled by a switch comfortably located on the loader joystick.
SCV controls
SCV controls
- Single control lever (A) makes operation of loader or other implements fast and simple.
- SCV safety lock lever (B) allows the operator to control the type of SCV lever movement needed for a particular operation or situation.
- The SCV safety lock lever allows loader hydraulics to be locked out so the boom and bucket will not drop if SCV lever is accidentally bumped.
- The SCV safety lock lever allows loader hydraulics to be locked out so the bucket will not dump if SCV lever is accidentally bumped.
NOTE: REGEN hydraulics should never be hooked to a motor or to a 2-cylinder angling operation such as a snowblade.
Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
Powerful Yanmar engine
The Yanmar diesel engine has a high-torque reserve that provides plenty of power under heavy load.
This 4-cylinder engine features lower levels of exhaust emissions and reduced noise levels. It meets Environmental Protection Agency (EPA) Final Tier 4 (FT4) emission standards.
| Model | Number of cylinders | Engine displacement | Aspiration | Rated rpm | Gross engine hp* | Gross engine ps* | PTO hp |
| 4044M/R | 4 | 2.2L | Natural | 2600 | 42.5 | 43.1 | 32.5 |
| 4052M/MHD/R | 4 | 2.1 L | Turbocharged | 2600 | 50.8 | 51.5 | 39.9 |
| 4066M/MHD/R | 4 | 2.1 L | Turbocharged | 2600 | 65 | 65.9 | 52 |
*Engine hp (kW), gross SAE J1995: 43.1 (31.7) at 2600 rpm, PS Displacement, cu in. (L):134.25 (2.2)
*Engine hp (kW), gross SAE J1995: 51.5 (37.9) at 2600 rpm, PS Displacement, cu in. (L):128.15 (2.1)
*Engine hp (kW), gross SAE J1995: 65.9 (48.5) at 2600 rpm, PS Displacement, cu in. (L):128.15 (2.1)
The engine uses the latest technology to optimize fuel economy, improve control and accuracy, and reduce environmental impact.
The common rail system (CRS) optimizes fuel economy and reduces operating costs compared to engines not using CRS technology. High-pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and lower cost of operation.
The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.
The engine comes with an aftertreatment system. The system operates automatically. The exhaust filter consists of a diesel particulate filter (DPF) which captures particulate matter (PM) contained in the exhaust gas. Using a natural cleaning process, most of the PM trapped in the exhaust filter is eliminated by the heat of the exhaust stream generated by normal use. In situations of low temperature, engine speed or load factor, an active cleaning cycle is initiated. In this cleaning cycle, the exhaust gas temperature is raised by injecting additional fuel during the exhaust stroke of normal vehicle operation to the diesel oxidation catalyst (DOC). After many hours of use, the exhaust filter may require an ash removal service.
DPF cleaning
Depending on the load that the tractor is under, as well as ambient temperature, humidity, and engine speed, the DPF may build up with particulate matter, thus requiring cleaning. Filter cleaning is determined by one of three conditions:
A prescribed time-based estimation of needed filter cleaning
DOC/DPF pressure sensors
A particulate matter buildup estimation based on load conditions
Once one of the three conditions have been met, filter cleaning will occur.
There are three different types of filter cleaning processes:
- Passive filter cleaning
- Active filter cleaning
- Parked filter cleaning
Passive filter cleaning
Passive filter cleaning occurs naturally when the engine is generating enough heat to oxidize particulate matter. This automatic process occurs continuously during normal operating conditions. No tractor icons or symbols appear on the display during passive filter cleaning.
NOTE: Passive filter cleaning requires no operator involvement, and there is no interruption to tractor operation.
Active filter cleaning
If conditions (temperature, load, or speed) for passive filter cleaning cannot be achieved, then PM is removed using active filter cleaner. To achieve the required conditions, exhaust temperature management (ETM) manages the initiation and duration of active filter cleaning. ETM can adjust numerous engine parameters and/or inject a small quantity of fuel into the exhaust stream for a short duration. The fuel turns to vapor and chemically reacts with the catalysts in the DOC to create heat to oxidize PM.
It is important to note that at no time is the fuel in the DOC/DPF ignited, and there is no flame within the DOC/DPF.
Like passive filter cleaning, active filter cleaning requires no operator involvement, and there is no interruption to tractor operation.
Parked filter cleaning
In some instances where passive and active filter cleaning have not fully cleaned the PM from the system, a parked filter cleaning may need to take place. Most likely, the only time a parked filter cleaning will need to occur is when automatic filter cleaning has been disabled for an extended period of time and multiple warnings to engage filter cleaning were ignored or if the tractor has been used during light load conditions. Additionally, when the automatic filter cleaning process has been deliberately interrupted multiple times, or if active filter cleaning has failed numerous times due to a failed component, a parked filter cleaning may be requested. In these rare instances the operator will have to park the tractor and start the filter cleaning process.
The parked filter cleaning process needs to be activated based on usage and operation of the tractor. The process will take approximately 30 minutes. See operator’s manual for more details.
This system constantly monitors the soot level of the tractor, making sure the tractor is always in peak performance condition. This ensures high performance at all times.
NOTE: Number of hours since last regeneration and soot level percentage viewable on LCD display.
Key features of the engine are:
- 540-rpm power take-off (PTO) operation at 2600 engine rated speed means better fuel economy, less noise and vibration, and longer overall engine life
- Cast-in-block cylinder design for good cooling and long life
- Hydraulic lifters are quieter and require no adjustment
- Heavy-duty crankshaft provides more bearing surface area for added durability
- CRS optimizes fuel economy, lowering the cost of operation
- ECU provides optimum control and accuracy
- Direct fuel injection
- Improves starting
- Injects fuel directly on top of pistons for more efficient combustion
- Develops more horsepower per gallon of fuel
- Glow plugs (cold starting aid)
- Engine oil cooler, cools engine oil for longer engine life
- Key start and shutoff eliminates fuel shutoff knob
- Electric solenoid shuts fuel supply off immediately when key is turned off
- See-through coolant recovery tank permits operator to check coolant level without removing radiator cap
- Sealed radiator compartment keeps trash and debris on outside of hood
Dry-type air cleaner
- Dry-type air cleaner with safety element and electronic air service indicator
- Electronic air restriction indicator alerts operator when air filter servicing is required
- Dual-element design for added engine protection
- Easy to service
- Standard side exhaust
- Discharges fumes away from the operator, reducing engine noise
- Improves operator visibility when using a loader or front implement
- Optional vertical exhaust
Yanmar is a trademark of Yanmar Company Limited.
Improved traction in muddy conditions with larger tires
4M Heavy-Duty rear tire
Rain or shine, your work needs to get done. The 4M Heavy-Duty Tractor comes with larger, tougher tires to help keep you moving no matter what the weather brings.
- Offers two rear tire size options:
- 16.9-24 (8PR, R4 Industrial, two-position)
- 19.5L-24 (10PR, R4 Industrial, two-position)
- Allows for better traction in wet and muddy conditions
- Has a higher ply rating, which allows for better control and comfort when carrying heavy loads
4052M HD with rotary cutter and front loader
4066M HD with 440R Loader and Frontier™ land plane
4M Heavy Duty Tractor Features
Search "John Deere 4M Heavy Duty Tractors" for more feature videos.Enter the Poultry House
We looked in small, dark spaces. We searched through muck and mud. And this is what we found. Strength and versatility. To the power of 4.
The Low Roll-over Protection Structure (ROPS) Hinge Point
The low hinge point makes clean up in low clearance areas easy. In the poultry house. Or under low tree branches. Or in a barn with a low-slung roof or entrance.
Four Bright Work Lights
Low light environments will now be illuminated. Let’s light it up.
The Big Tires with the Deep Tread
Slipping and sliding in muck and mud? We can help put a stop to that.
Attachability Made Easy
You have a ton of tasks to do. Attaching an implement or attachment to your 4M Heavy Duty Tractor should not be numbered among them. Ever.
The eHydro™ Transmission
From the TwinTouch™ Forward/Reverse Pedal System and the automotive style cruise control to SpeedMatch™, MotionMatch™, LoadMatch™ and eThrottle™, 4M Heavy Duty Tractor efficiency and performance is high.
The Category 1, 2 Three-Point Hitch
Do you need a category 2 rated implement? Do you have a couple of category 1 rated implements too? Hooking up either to a 4M Heavy Duty Tractor is easy. No aftermarket add-ons necessary.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 4052M Heavy Duty Compact Tractor |
Key Specs
| Engine power (gross) | 37.9 kW 51.5 hp PS at 2600 rpm SAE J1995 rated power |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | eHydro™ transmission: 30.5 kW 40.9 hp Per SAE J1995 |
|||
| Steering hydraulics | 23.5 L/min 6.2 gpm |
|||
| Implement hydraulics | 42.3 L/min 11.2 gpm |
|||
| Hitch type | Category 1/Category 2 | |||
| Lift capacity, 24-in. behind link arms | 1135 kg 2500 lb |
|||
| Standard transmission; forward/reverse | eHydro transmission | |||
| Cruise control | Standard | |||
| Approximate shipping weight (open-station; cab) | Open station: 1943 kg 4255 lb Cab: Not applicable |
|||
| Wheelbase | 185.5 cm 73 in. |
Engine
| Family | EYDXL2.09TDA FYDXL2.09TDA GYDXL2.09TDA |
|||
|---|---|---|---|---|
| Manufacturer | Yanmar® | |||
| Engine model | 4TNV86CT-MJT | |||
| Engine power (gross) | 37.9 kW 51.5 hp PS at 2600 rpm SAE J1995 rated power |
|||
| Power take-off (PTO) power | eHydro™ transmission: 30.5 kW 40.9 hp Per SAE J1995 |
|||
| Rated engine speed | 2600 rpm | |||
| Type | Diesel | |||
| Injection pump type | High-pressure common rail direct injection | |||
| Aspiration | Turbocharged | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | 4 cylinders 2.091 L 127.6 cu in. |
|||
| Number of cylinders | Four | |||
| Cylinder liners | Cast-in-block | |||
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
|||
| Compression ratio | 19.1:1 | |||
| Lubrication | Pressurized | |||
| Cooling system | Liquid | |||
| Air cleaner | Dual element with electronic restriction indicator | |||
| Engine torque at rated speed | 139 Nm 102.5 lb-ft |
|||
| Fuel tank capacity | 56.9 L 15 U.S. gal. |
Electrical
| Battery size | 770 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 75 amp | |||
| Starter size | 2 kW 2.68 hp |
Fuel system
| Type | High pressure common rail direct injection | |||
|---|---|---|---|---|
| Fuel consumption |
Transmission
| Standard transmission; forward/reverse | eHydro transmission | |||
|---|---|---|---|---|
| Optional transmission; forward/reverse | ||||
| Left-hand reverser | ||||
| Transmission gear ranges | eHydro - Infinitely-variable three range | |||
| Final drive | Planetary | |||
| Brakes | Multi-plate wet disc | |||
| Steering | Hydrostatic power steering | |||
| Clutch, wet/dry | Wet | |||
| Clutch disk diameter wet clutch | 129 mm 5.08 in. |
|||
| Axle capacity | Front 1600 kg 3528 lb Rear 2400 kg 5292 lb |
|||
| Creeper | SpeedMatch™ standard | |||
| Cruise control | Standard | |||
| Differential lock | Yes | |||
| Drawbar maximum vertical load |
Hydraulics
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 gpm |
|||
| Pump type | Single gear | |||
| Maximum operating pressure | ||||
| Draft control sensing | Position control | |||
| Remote control valves available | Two remotes standard |
3-point hitch
| Type | Category 1/Category 2 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms | 1135 kg 2500 lb |
Power take-off (PTO)
| Standard | Independent 540 rpm at 2600 rpm | |||
|---|---|---|---|---|
| Optional | 540E rpm | |||
| Control | Independent | |||
| Clutch | Wet disc | |||
| Brake (for mid and rear PTO) | ||||
| Engagement method |
Fluid capacities
| Crankcase with filter | 5.3 L 1.4 qt |
|||
|---|---|---|---|---|
| Transmission and hydraulic system | 47.3 L 12.5 gal. |
Final drive
| Type | Planetary | |||
|---|---|---|---|---|
| Differential lock | Yes |
Operator station
| Rollover protective structure | Type Foldable Yes |
|||
|---|---|---|---|---|
| Platform - flat/straddle | Flat | |||
| Gear shift location - console/floor |
Cab
| Compliance | ||||
|---|---|---|---|---|
| Visibility | ||||
| Air conditioning, temperature differential | ||||
| Doors | ||||
| Noise rating | ||||
| Seat equipment |
Dimensions
| Height | ||||
|---|---|---|---|---|
| Wheelbase | 185.5 cm 73 in. |
|||
| Front axle clearance | 35.1 cm 13.8 in. |
|||
| Turning radius with brakes | 2.8 m 9.19 ft |
|||
| Turning radius without brakes | 3 m 9.84 ft |
|||
| Limited slip differential | ||||
| Approximate shipping weight (open-station; cab) | Open station: 1943 kg 4255 lb Cab: Not applicable |
Tires
| Front | R4 Industrial 31.5x13-16.5 | |||
|---|---|---|---|---|
| Rear | R4 Industrial 16.9-24 R4 Industrial 19.5L-24 |
|||
| Front tread range | 1374.6 mm 54.1 in. |
|||
| Rear tread spacing | 1375 mm 54.1 in. 1495 mm 58.9 in. |
Miscellaneous
| Toolbox | ||||
|---|---|---|---|---|
| Tilt steering wheel | ||||
| 12-V Outlet |
Additional information
| Date collected |
|---|
Shop and Buy
Maintenance and Support
You May Also Be Interested In
Product features are based on published information at the time of publication. Product features are subject to change without notice. Contact your local John Deere dealer for more information.
