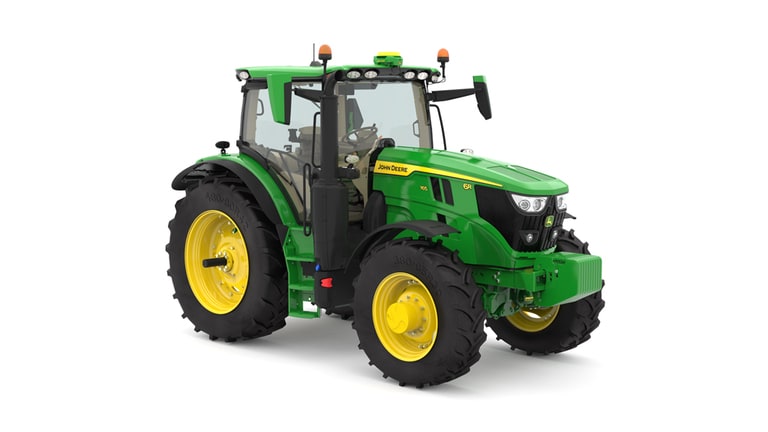

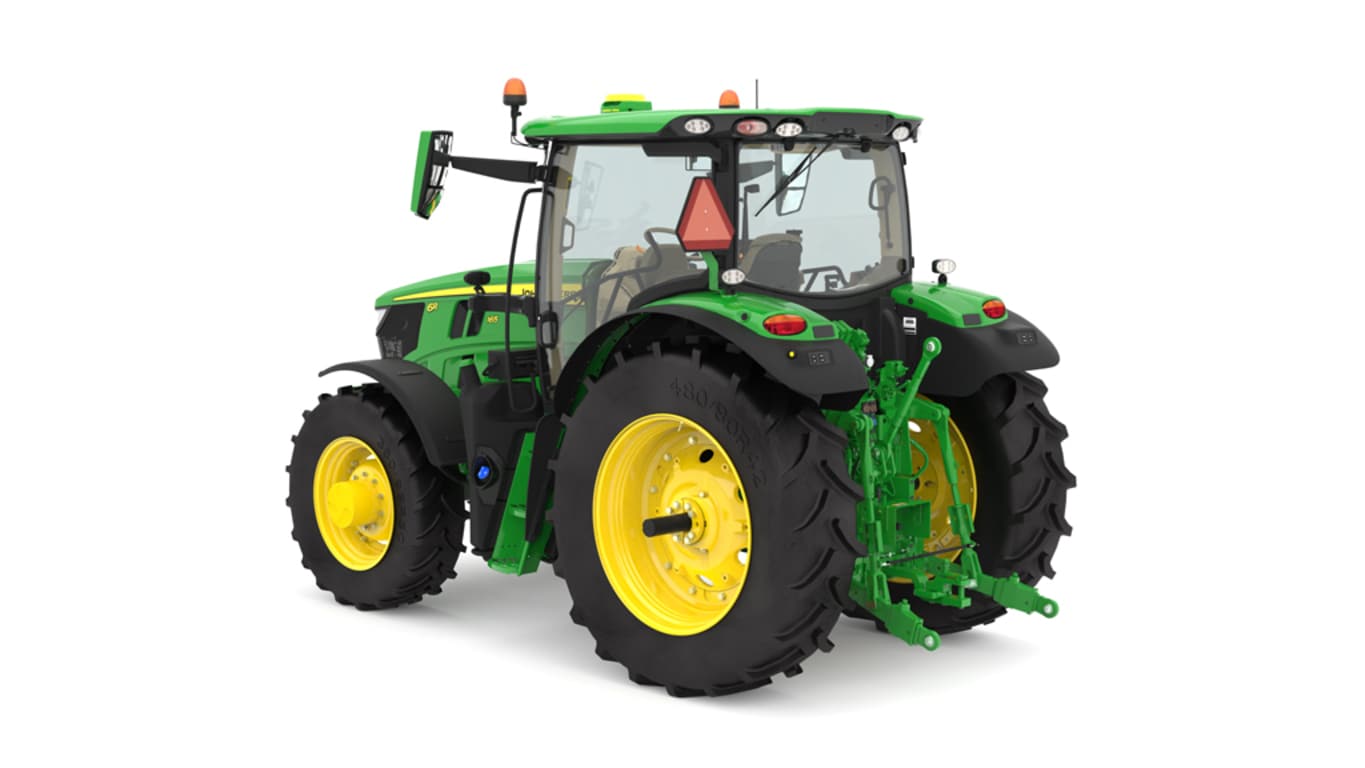

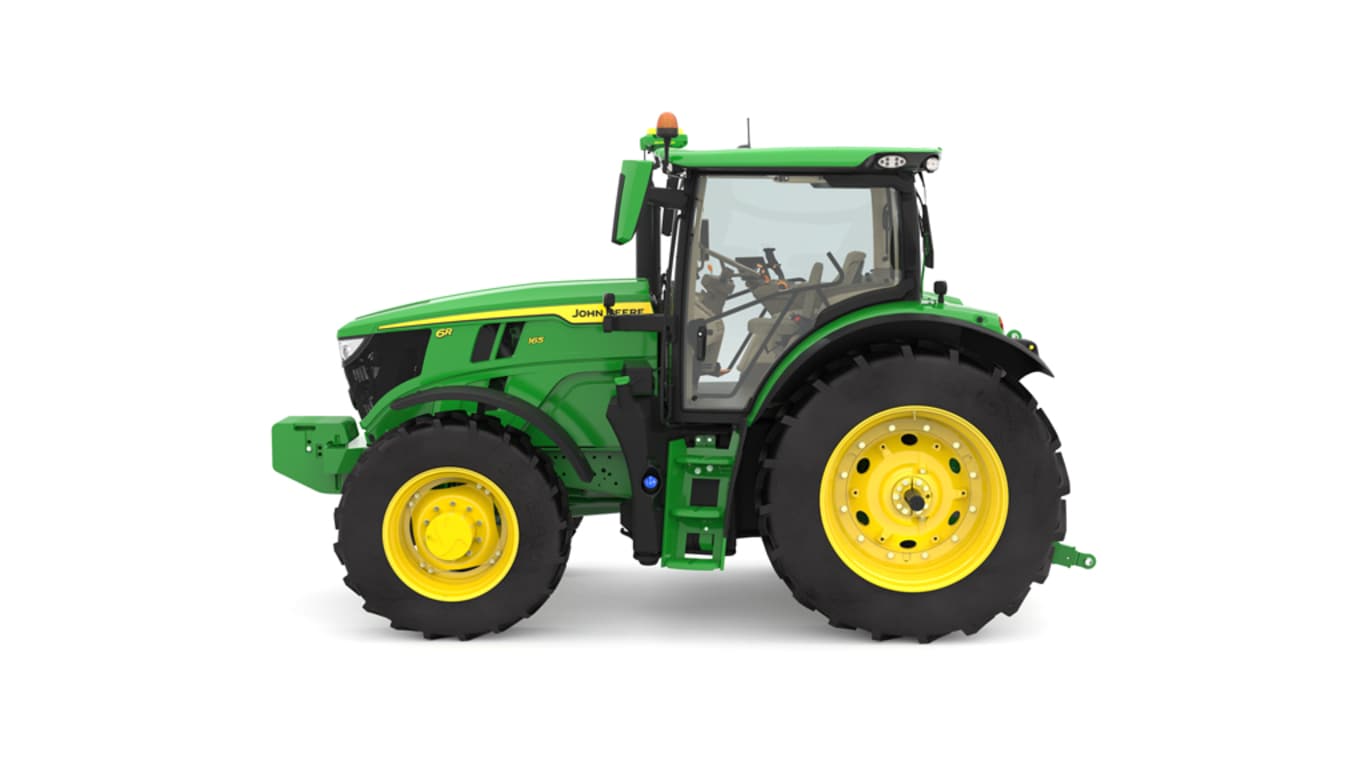

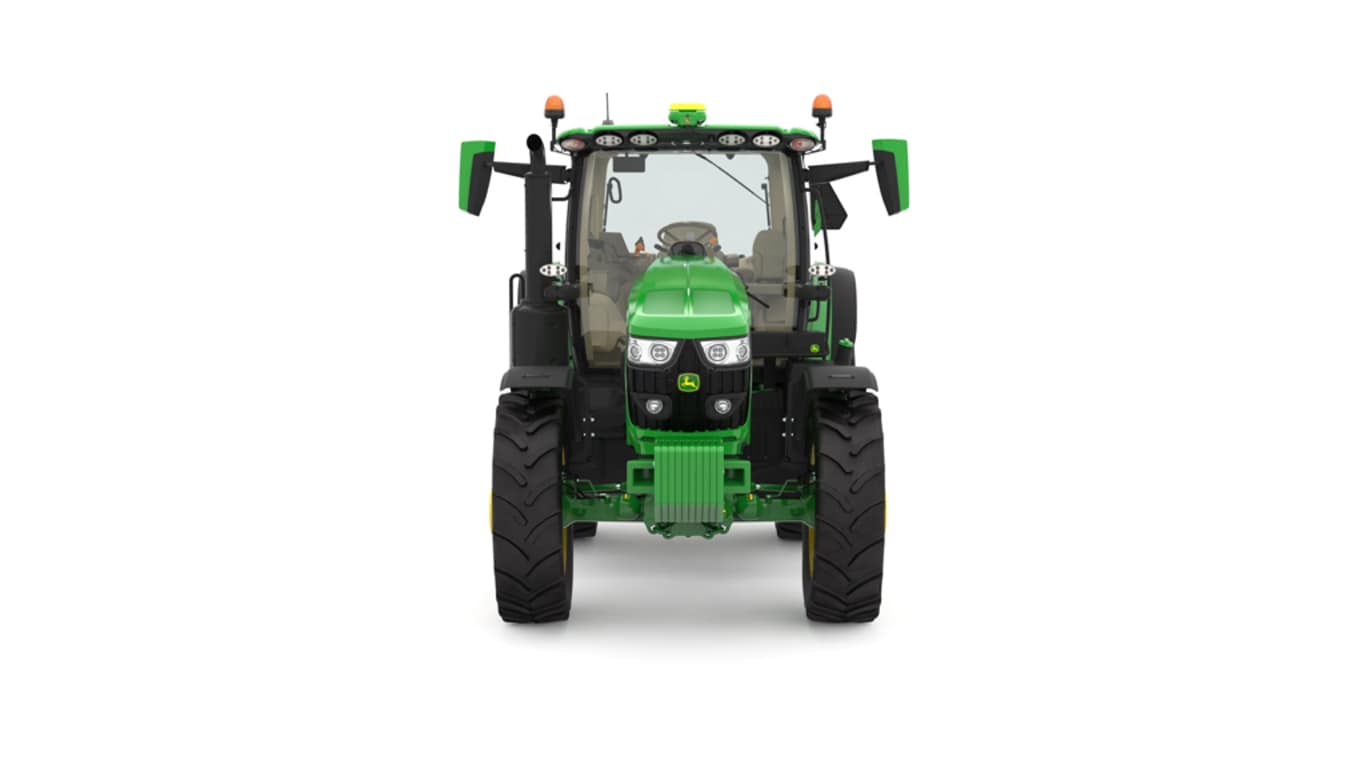

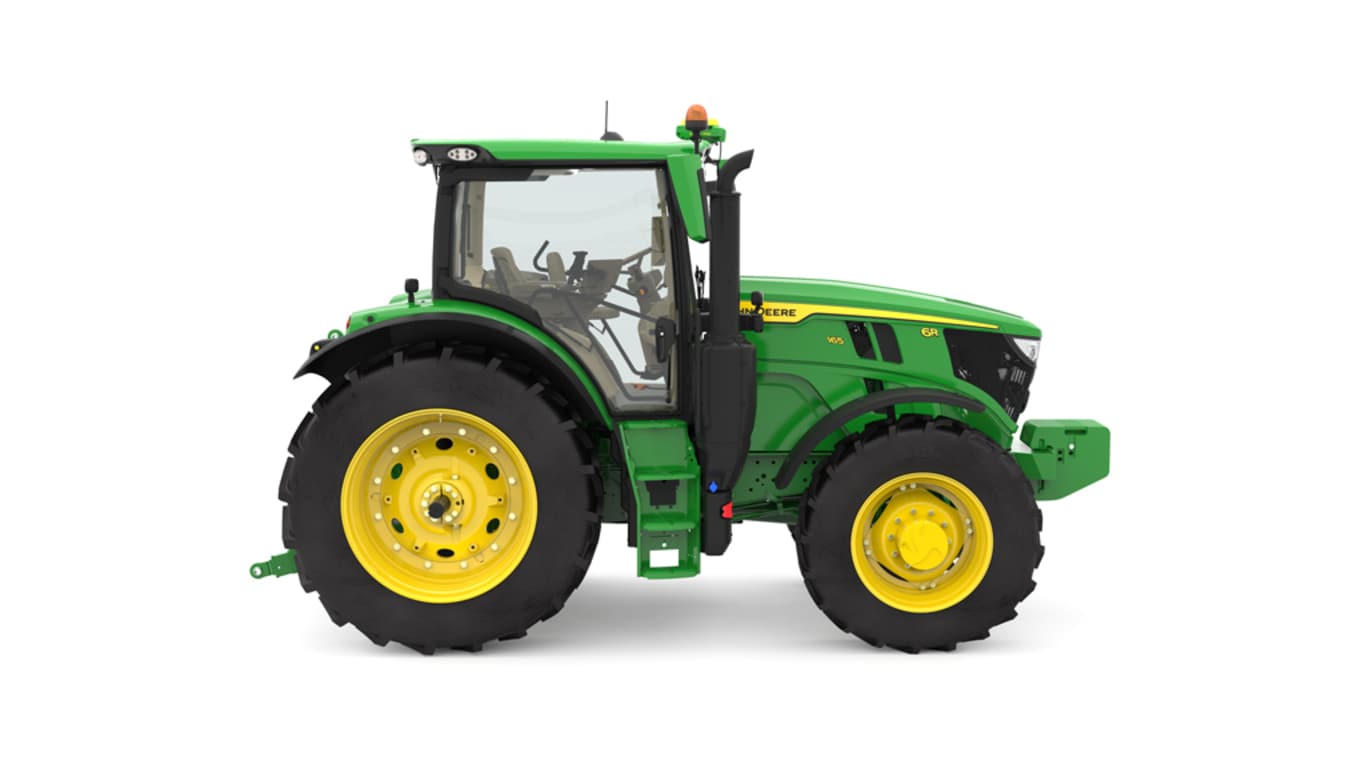

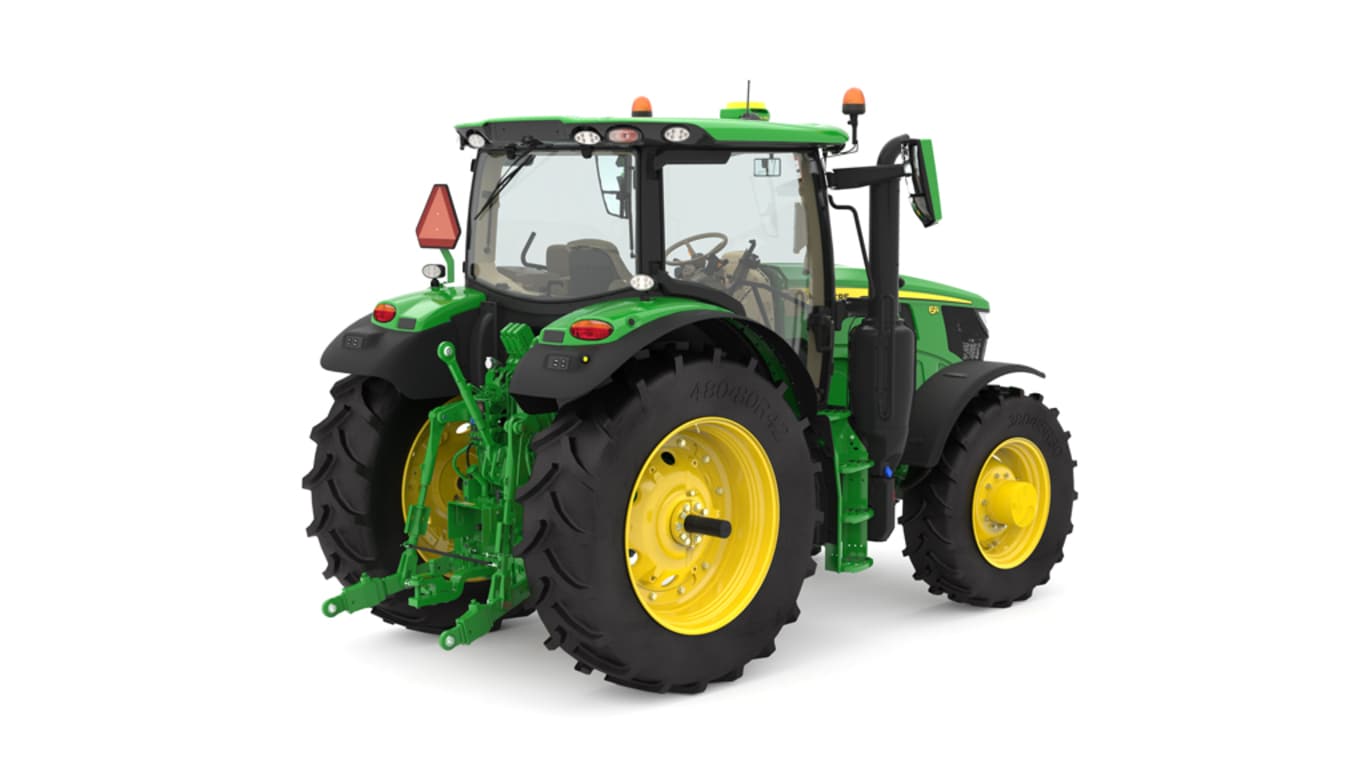

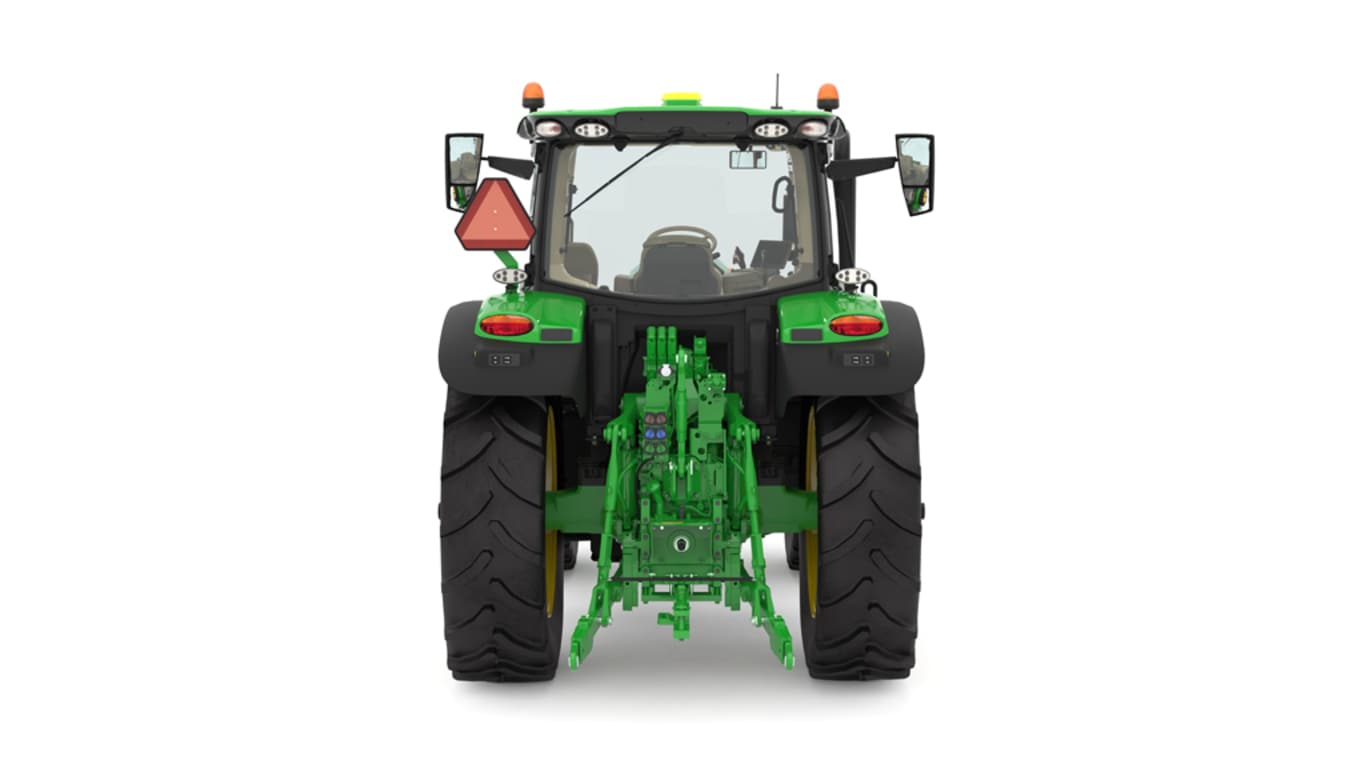

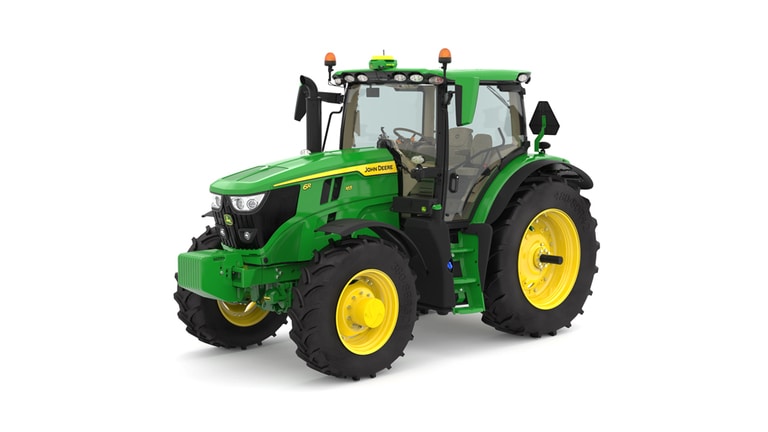

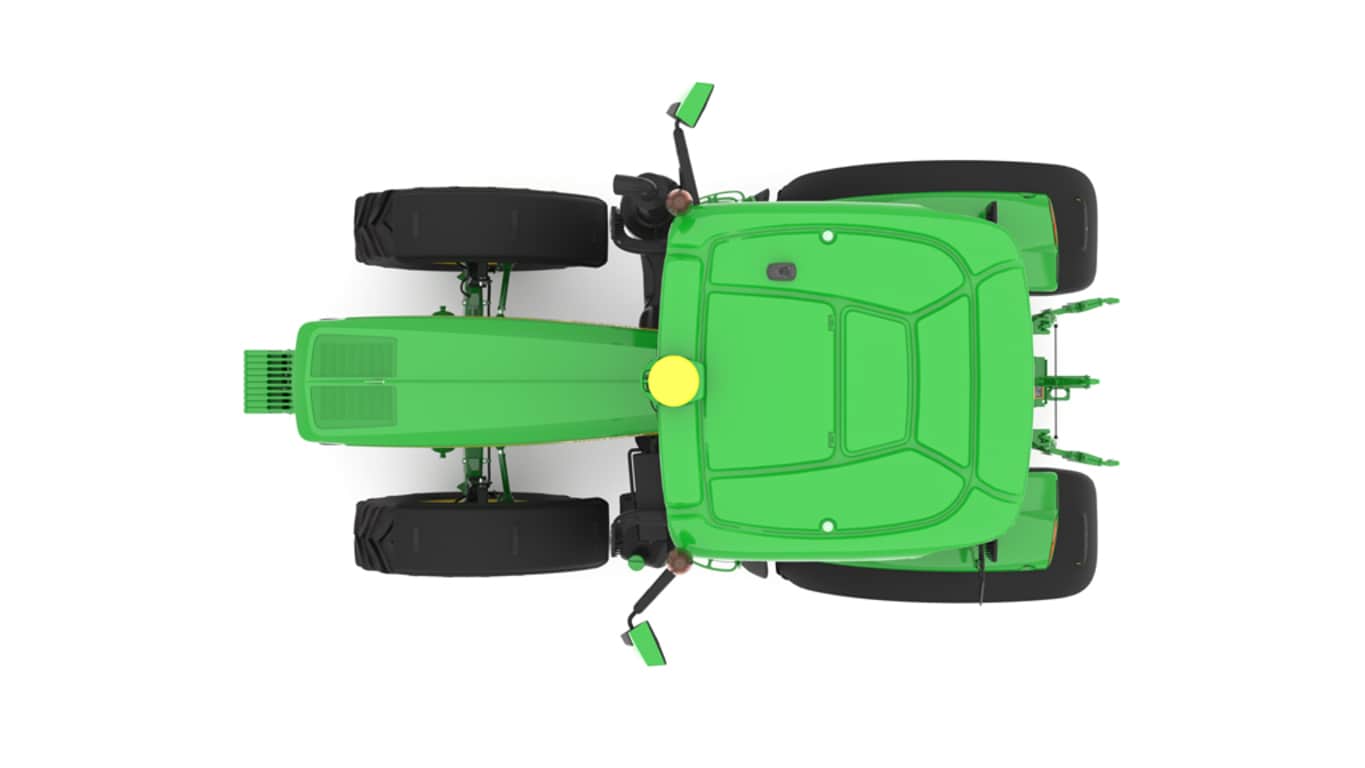

6R 165Tractor
- John Deere FT PowerTech™ 6-cylinder engines
- Engine HP: 182 HP Max/165 HP Rated with up to 40 additional HP (IPM)
- New offering of 1000E PTO
- Infinitely Variable Transmission™
Specs & Compare | ||||
---|---|---|---|---|
John Deere 6R 165 Tractor |
Engine description | ||||
---|---|---|---|---|
Engine displacement | 6.8 L 415 cu in. |
|||
Rated engine power | ||||
Maximum engine power | ||||
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | 97/68EC: 123 kW 165 hp |
|||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | 97/68EC: 133 kW 182 hp |
|||
Rated PTO power (hp SAE) | 96 kW 129 hp |
|||
Maximum PTO power | ||||
Transmission type | ||||
Hydraulic pump rated output | Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm |
|||
Rear hitch category (SAE designation) | Category 3/3N: 4170 kg 9193 lb |
|||
Base machine weight | 7100 kg 15,653 lb |
Description | ||||
---|---|---|---|---|
Engine type | Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with four valves in head | |||
Engine family | NJDXL06.8324 | |||
Rated speed | 2100 rpm | |||
Aspiration | Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation | |||
Cylinders liners | ||||
Emission level | Final Tier 4 | |||
After treatment type | DOC/DPF/SCR | |||
Displacement | 6.8 L 415 cu in. |
Rated PTO power (hp SAE) | 96 kW 129 hp |
|||
---|---|---|---|---|
Maximum PTO power | ||||
Intelligent Power Management (IPM) | Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 29.8 kW 40 hp |
|||
Power boost | 10 percent | |||
Maximum engine power | ||||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | 97/68EC: 133 kW 182 hp |
|||
Engine peak torque | At 1,600 rpm: 773 Nm 570 lb-ft |
|||
Drawbar power | ||||
PTO torque rise | 40 percent | |||
Fuel injection system and control | ||||
Air cleaner type | ||||
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
Rated power |
Type | IVT, 0.05-42 km/h 0.03-26 mph IVT, 0.05-50 km/h 0.03-31 mph |
|||
---|---|---|---|---|
Reverser | Left-hand electrical reverser | |||
Clutch; wet/dry | ||||
Creeper |
Type | Closed-center, pressure-and-flow compensated | |||
---|---|---|---|---|
Pump rated output | Standard: 45 cc pump: 114 L/min 30 gpm Optional: 60 cc pump: 155 L/min 41 gpm |
|||
Available flow at a single rear SCV | 100 L/min 26 gpm |
|||
Available flow at front SCVs | ||||
Number of rear selective control valves (SCVs) | Standard: Three ISO couplers Optional: Three to five ISO couplers |
|||
Number of mid selective control valves (SCVs) | Up to three | |||
Number of front selective control valves (SCVs) | ||||
Joystick SCV control | Available | |||
Auxiliary hydraulic features | ||||
SCV control | Standard: Mechanical Optional: Electronic |
Hitch draft control load sense type | ||||
---|---|---|---|---|
Remote control valves available | Available: Remote control switch | |||
Hitch category (SAE designation) | Category 3/3N: 4170 kg 9193 lb |
|||
Maximum lift capacity behind lift points | 4200 kg 9259 lb |
|||
Lift capacity at standard frame | ||||
Sensing type | Electrohydraulic | |||
Rear axle differential lock | Electrohydraulic |
Drawbar category | Category 2 | |||
---|---|---|---|---|
Maximum vertical load | Category 2: 1400-2450 kg 3085-5400 lb Maximum vertical load dependent on drawbar position |
Type | Independent Standard: 540, 540E, 1000 rpm reversible shaft: 35 mm 1.375 in. |
|||
---|---|---|---|---|
Engine rpm (at rated PTO speeds) | 1967 engine rpm at 540 rpm PTO 1753 engine rpm at 540E rpm PTO 2000 engine rpm at 1000 rpm PTO |
|||
Economy PTO speeds | ||||
Reverse PTO speeds | ||||
Multispeed PTO option availability | ||||
Ground speed PTO option availability | ||||
PTO actuation | Electrical modulation |
Category | Category 3N | |||
---|---|---|---|---|
Electric power | Seven-pin electrical socket Optional: Three-pin and ISOBUS socket |
|||
Standard lift capacity | At hook ends: 3300 kg 7275 lb |
|||
Front power take-off (PTO) | 1000 rpm, clockwise rotation (from driving position) | |||
PTO speed | Engine at PTO speed (1000): 1969 rpm |
Type | Rack and pinion, 2550 mm 100.4 in. Rack and pinion, 2806 mm 110.5 in. Flange: 1664 mm 65.5 in. |
|||
---|---|---|---|---|
Final drive type | Inboard planetary three pinion | |||
Differential controls | Full-locking electrohydraulic | |||
Axle type | ||||
Brakes, type and control | ||||
Rear differential lock | ||||
Load rating |
Type | ||||
---|---|---|---|---|
Front axle differential lock | MFWD: Limited slip TLS: Limited slip TLS with brakes: Full-locking electrohydraulic |
|||
Load rating |
Front | ||||
---|---|---|---|---|
Rear | 480/80R42 R1/R1W Radial | |||
Wheel tread range | MFWD: 1524-2235 mm 60-88 in. TLS: 1524-2235 mm 60-88 in. |
|||
Turning radius with brakes | ||||
Turning radius without brakes | ||||
Central Tire Inflation System (CTIS) |
Tread spacing | ||||
---|---|---|---|---|
Drive type | ||||
Track width | ||||
Mid-rollers |
Type | Hydrostatic power |
---|
Primary brake (foot brake) | ||||
---|---|---|---|---|
Secondary brake | ||||
Park lock | ||||
MFWD braking | ||||
Front axle brakes | ||||
Auxiliary brakes | ||||
Hydraulic trailer brakes | ||||
Pneumatic trailer brakes |
Alternator size | Standard: 200 amp Optional: 250 amp |
|||
---|---|---|---|---|
Battery options | 12 V | |||
Working lights | Standard: 14 halogen Optional: 12 light-emitting diode (LED) plus two halogen |
|||
Type of bulb in headlight (Halogen, Zenon, LED) | Standard: 65-W halogen W Optional: LED |
|||
Type of bulb in beacon (Halogen, Zenon, LED) | ||||
dB(A) rating for backup alarm | ||||
Total cold cranking amps | 1230 CCA With cold weather package or IVT: 1400 CCA |
Rollover protective structure, OOS | ||||
---|---|---|---|---|
Seat | Degree of seat swivel, left hand CommandARM: 7.5 degree Degree of seat swivel, right hand CommandARM: 30 degree Standard: Air suspension Optional: Deluxe air suspension |
|||
Cab suspension | Optional: Adaptive Hydraulic Cab Suspension Plus (HCS Plus) | |||
Instructional seat | Standard | |||
Display | Cornerpost display (right-hand A-post) Standard: CommandCenter™ display, 213.4 mm 8.4 in. Optional: CommandCenter display: 254 mm 10 in. |
|||
Radio | Standard | |||
Inner cab volume | 3.33 m3 117.59 cu ft |
|||
dB(A) rating | 71 dB | |||
Cab glass area | 6.11 m2 65.77 sq ft |
|||
Safety glass rating | ||||
Front visibility |
Wheelbase | MFWD: 2765 mm 108.8 in. |
|||
---|---|---|---|---|
Overall width | 1662 mm 65.4 in. |
|||
Overall length | 4946 mm 194.7 in. |
|||
Overall height | 3026 mm 119.1 in. |
|||
Drawbar clearance | ||||
Front axle center | 553 mm 21.8 in. |
|||
Approximate shipping weight, Open;Cab | 7100 kg 15,653 lb |
Base machine weight | Front axle 2840 kg 6261 lb Rear axle 4260 kg 9391 lb 7100 kg 15,653 lb |
|||
---|---|---|---|---|
Maximum ballast level | ||||
Maximum permissible weight | 11,750 kg 25,904 lb |
Crankcase oil volume | 23.5 L 6.2 U.S. gal. |
|||
---|---|---|---|---|
Fuel tank | 270 L 71.3 U.S. gal. |
|||
Diesel exhaust fluid (DEF) tank | 16 L 4.2 U.S. gal. |
|||
Cooling system | 28 L 7.4 U.S. gal. |
|||
Transmission-hydraulic system | IVT: 62 L 16.4 U.S. gal. |
Interval for engine oil change | 750 hours | |||
---|---|---|---|---|
Interval for hydraulic/transmission oil change | 1,500 hours | |||
Interval for engine coolant change | 6,000 hours |
Loader | 640R 660R |
|||
---|---|---|---|---|
Lift capacity at full height | 640R: 2181 kg 4808 lb 660R: 2586 kg 5701 lb |
|||
Maximum lift height | 640R: 4151 mm 163 in. 660R: 4520 mm 178 in. |
|||
Leveling type |
Guidance | ||||
---|---|---|---|---|
Telematic | ||||
Remote diagnostics |
AutoTrac ready | ||||
---|---|---|---|---|
ISOBUS ready | ||||
CommandCenter video inputs | ||||
Immobilizer | ||||
Side slope rating | ||||
Uphill/downhill slope rating | ||||
Country of manufacture | Germany |
Date collected | 12-Nov-21 |
---|
