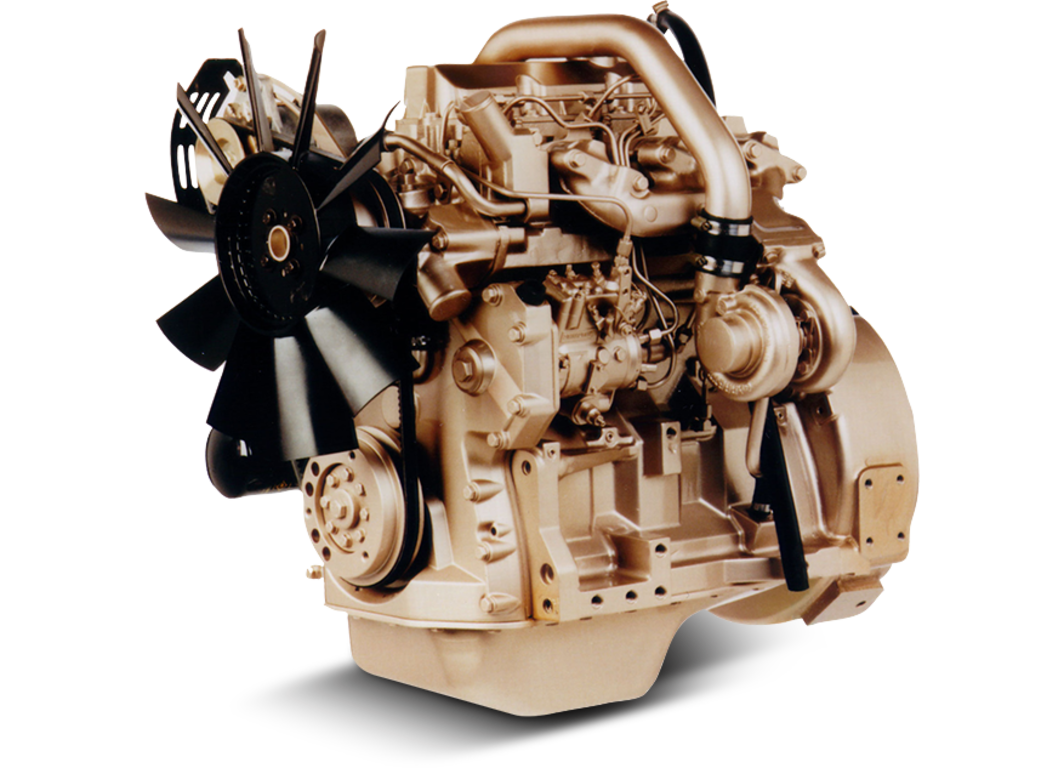

Moteur diesel industriel de 2,9 L3029TF150
- PowerTech™
- de 52 à 59 kW (70 à 79 ch)
Spécifications et comparaison
| Spécifications et comparaison | ||||
|---|---|---|---|---|
| John Deere 3029TF150 Moteur diesel industriel de 2,9 L |
Certifications sur les émissions
| CARB | ||||
|---|---|---|---|---|
| Catégorie 1 de l'EPA | ||||
| Phase I de l’UE |
General engine data
| Model | 3029TF150 | |||
|---|---|---|---|---|
| Number of cylinders | 3 | |||
| Displacement-- L (cu in) | 2.9 (177) | |||
| Bore and Stroke-- mm (in) | 106 x 110 (4.17 x 4.33) | |||
| Compression Ratio | 17:2:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged | |||
| Length - mm (in) | 716 (28.2) | |||
| Width-- mm (in) | 519 (20.4) | |||
| Height-- mm (in) | 928 (36.5) | |||
| Weight, dry - kg (lb) | 328 (723) |
Performance data range
| Intermittent - Rated power/Rated speed | 52-59 kW (70-79 hp) @2500 rpm | |||
|---|---|---|---|---|
| Intermittent - Peak power | 52-59 kW (70-79 hp) @2500 rpm | |||
| Intermittent - Peak torque | 239-271 N·m (176-200 ft-lb) @1600-1800 rpm | |||
| Intermittent - Torque rise | NA |
