Spécifications et comparaison
Certifications sur les émissions
| CARB |
|
|
|
|
| Catégorie 2 de l'EPA |
|
|
|
|
| Phase II de l’UE |
|
|
|
|

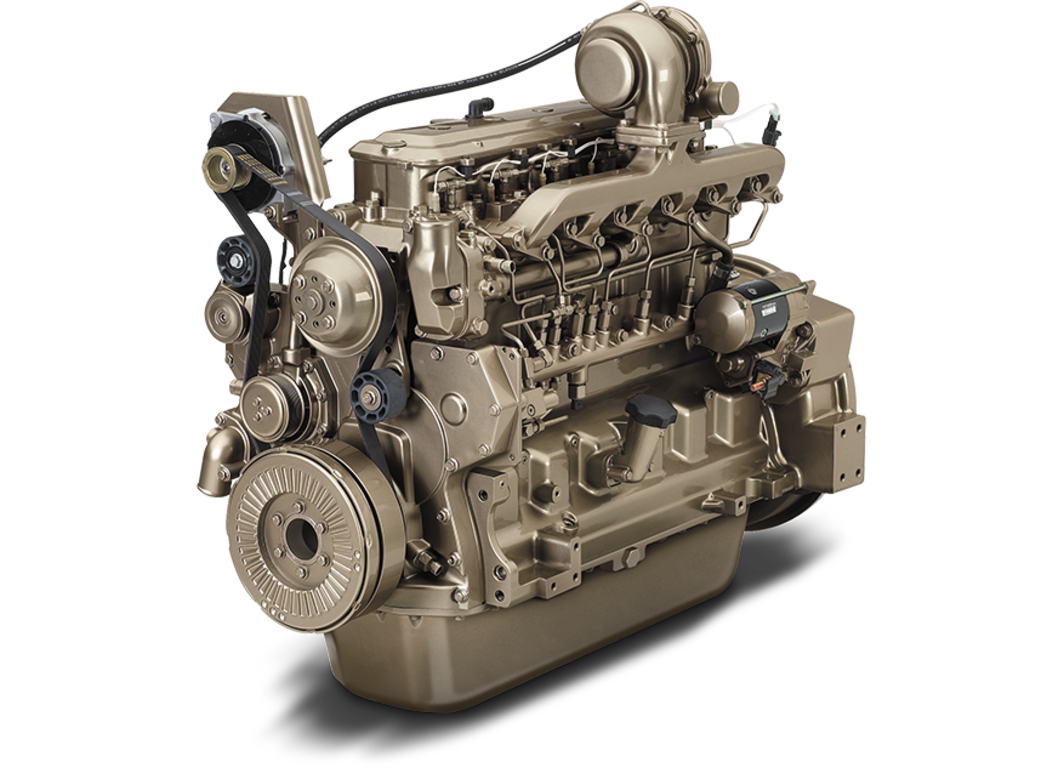

General engine data
| Model |
6068HF275 |
|
|
|
| Number of cylinders |
6 |
|
|
|
| Displacement - L (cu in) |
6.8 (415) |
|
|
|
| Bore and Stroke mm (in) |
106x127 (4.17x5.00) |
|
|
|
| Compression Ratio |
17.0:1 |
|
|
|
| Engine Type |
In-line, 4-Cylce |
|
|
|
| Aspriation |
Turbocharged and air-to-air aftercooled |
|
|
|
| Length - mm (in) |
1104 (43.5) |
|
|
|
| Width - mm (in) |
623 (24.5) |
|
|
|
| Height - mm (in) |
1015 (40.0) |
|
|
|
| Weight, dry - kg (lb) |
587 (1294) |
|
|
|
Performance data range
| Application ratings |
Intermittent |
|
|
|
| Rated power/Rated speed |
129-187 kW (173-251 hp) @ 2000-2400 rpm |
|
|
|
| Peak power |
129-187 kW (173-251 hp) @ 2000-2400 rpm |
|
|
|
| Power bulge |
NA @ NA rpm |
|
|
|
| Peak torque |
740-930 Nm (546-686 lb-ft) @ 1400 rpm |
|
|
|
| Torque rise |
NA |
|
|
|
