Spécifications et comparaison
Certifications sur les émissions
| CARB |
|
|
|
|
| Catégorie 2 de l'EPA |
|
|
|
|
| Phase II de l’UE |
|
|
|
|

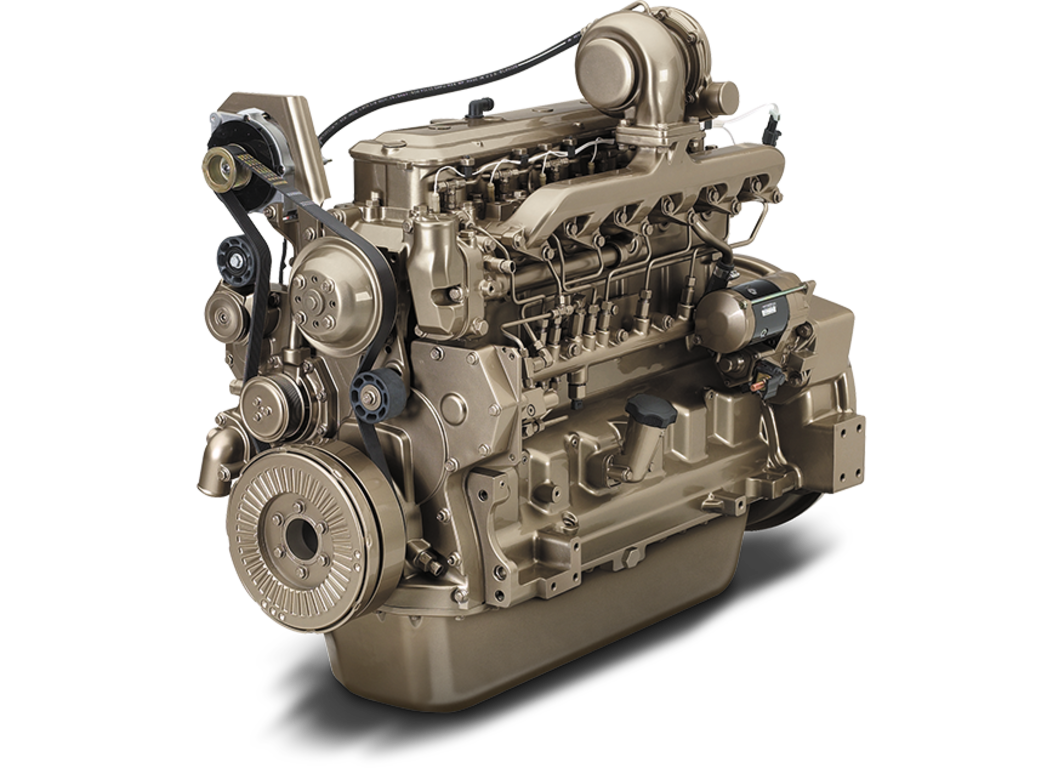

General engine data
| Model |
6068TF275 |
|
|
|
| Number of cylinders |
6 |
|
|
|
| Displacement-- L (cu in) |
6.8 (415) |
|
|
|
| Bore and Stroke-- mm (in) |
106 x 127 (4.17 x 5.00) |
|
|
|
| Compression Ratio |
17.0:1 |
|
|
|
| Engine Type |
In-line, 4-Cycle |
|
|
|
| Aspiration |
Turbocharged |
|
|
|
| Length - mm (in) |
1104 (43.5) |
|
|
|
| Width-- mm (in) |
623 (24.5) |
|
|
|
| Height-- mm (in) |
1012 (39.8) |
|
|
|
| Weight, dry - kg (lb) |
587 (1294) |
|
|
|
Performance data range
| Intermittent - Rated power/Rated speed |
101-127 kW (135-170 hp) @2200-2500 rpm |
|
|
|
| Intermittent - Peak power |
101-127 kW (135-170 hp) @2200-2500 rpm |
|
|
|
| Intermittent - Peak torque |
554-582 N·m (409-429 ft-lb) @1400 rpm |
|
|
|
| Intermittent - Torque rise |
NA |
|
|
|
