Spécifications et comparaison
Certifications sur les émissions
| CARB |
|
|
|
|
| Catégorie intérimaire 4 de l'EPA |
|
|
|
|
| Phase III B de l’UE |
|
|
|
|

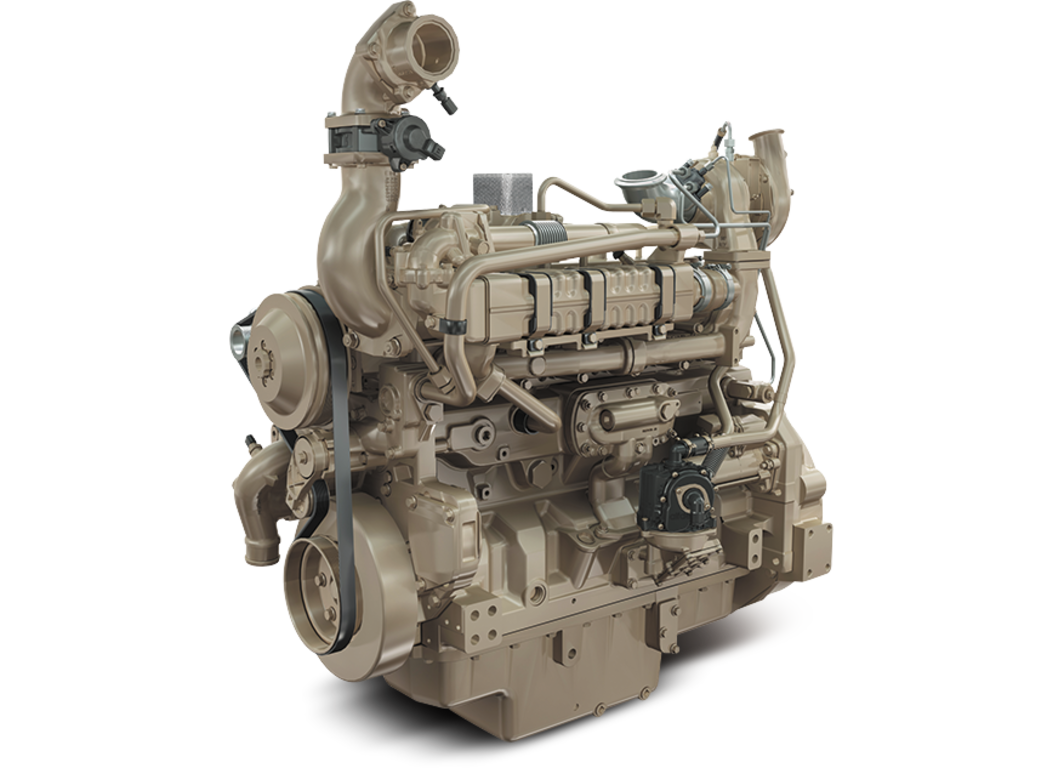

General engine data
| Model |
6090HFC94 |
|
|
|
| Number of cylinders |
6 |
|
|
|
| Displacement-- L (cu in) |
9.0 (549) |
|
|
|
| Bore and Stroke-- mm (in) |
118.4 x 136 (4.66 x 5.35) |
|
|
|
| Compression Ratio |
16.0 : 1 |
|
|
|
| Engine Type |
In-line, 4-cycle |
|
|
|
| Aspiration |
Turbocharged and air-to-air aftercooled |
|
|
|
| Length - mm (in) |
1326.4 (52.2) |
|
|
|
| Width-- mm (in) |
817.6 (32.2) |
|
|
|
| Height-- mm (in) |
1376.1 (54.2) |
|
|
|
| Weight, dry - kg (lb) |
1095.5 (2415) |
|
|
|
DOC/DPF Dimensions
| Size 5 - Diameter - mm (in) |
320.5 (12.6) |
|
|
|
| Size 5 - Length - mm (in) |
891.9 (35.1) |
|
|
|
| Size 5 - Weight - kg (lb) |
NA |
|
|
|
Performance data range
| Continuous - Rated power/Rated speed |
186-224 kW (250-300 hp) @2000-2200 rpm |
|
|
|
| Continuous - Peak power |
207-235 kW (278-315 hp) @1700-2000 rpm |
|
|
|
| Continuous - Power bulge |
5-10 % @1800-2000 rpm |
|
|
|
| Continuous - Peak torque |
1232-1305 N·m (909-963 ft-lb) @1500-1600 rpm |
|
|
|
| Continuous - Torque rise |
34-38% |
|
|
|
