AG Attachments for John Deere Compact Construction Equipment

AG Attachments for Compact Construction Equipment

Bale Hugger

Designed specifically for round or rectangular bales, the right- and left-hand arms close simultaneously, applying constant pressure to eliminate the risk of dropped or damaged bales.  All John Deere attachments, the bale hugger is optimized to work with John Deere skid steers, compact track loaders, and compact wheel loaders equipped with a skid-steer-style Quick-Tatch™ coupler.

Download Bale Hugger Brochure >

ModelMAX OPENINGLIFT CAPACITYWEIGHT

AH80 Bale Hugger

279.40 cm (110 in.)

1088.62 kg (2,400 lb.)

217.72 kg (480 lb.)

Bale Spears

Offering optimal rigidity and capacity, these spears are built for a long working life. Their low-profile design provides unrestricted visibility to the bale spear and tine tips.  Like all John Deere attachments, bale spears are compatible with all skid steer, compact track loaders, and compact wheel loaders equipped with a skid steerstyle Quik-Tatch™ coupler.

Download Bale Spears Brochure >

ModelWeightNUMBER OF MAIN TINESTINE CAPACITY

AB21 Bale Spears

66 kg (145 lb.)

1 main tine

907 kg (2,000 lb.)

AB31 Bale Spears

91 kg (200 lb.)

1 main tine

1361 kg (3,000 lb.)

AB32 Bale Spears

70 kg (155 lb.)

2 main tines

1361 kg (3,000 lb.)

AB42 Bale Spears

109 kg (240 lb.)

2 main tines

1814 kg (4,000 lb.)

AB43 Bale Spears

102 kg (225 lb.)

3 main tines

1814 kg (4,000 lb.)

Square

171 kg (375 lb.)

--

--

Nursery Forks

Firmly grasp and effortlessly transport large rocks, light boulders, and balled and burlapped landscape stock up to 44 in. in diameter.  Like all John Deere attachments, these nursery forks are optimized to work with John Deere skid steers loaders, compact track loaders, and compact wheel loaders. They are also compatible with many competitive models.

Download Nursery Forks Brochure >

ModelWidthMaximum Root BallFork Opening (Parallel)

NF44 Nursery Fork

1194 mm (47 in.)

1118 mm (44 in.)

457 mm (18 in.)

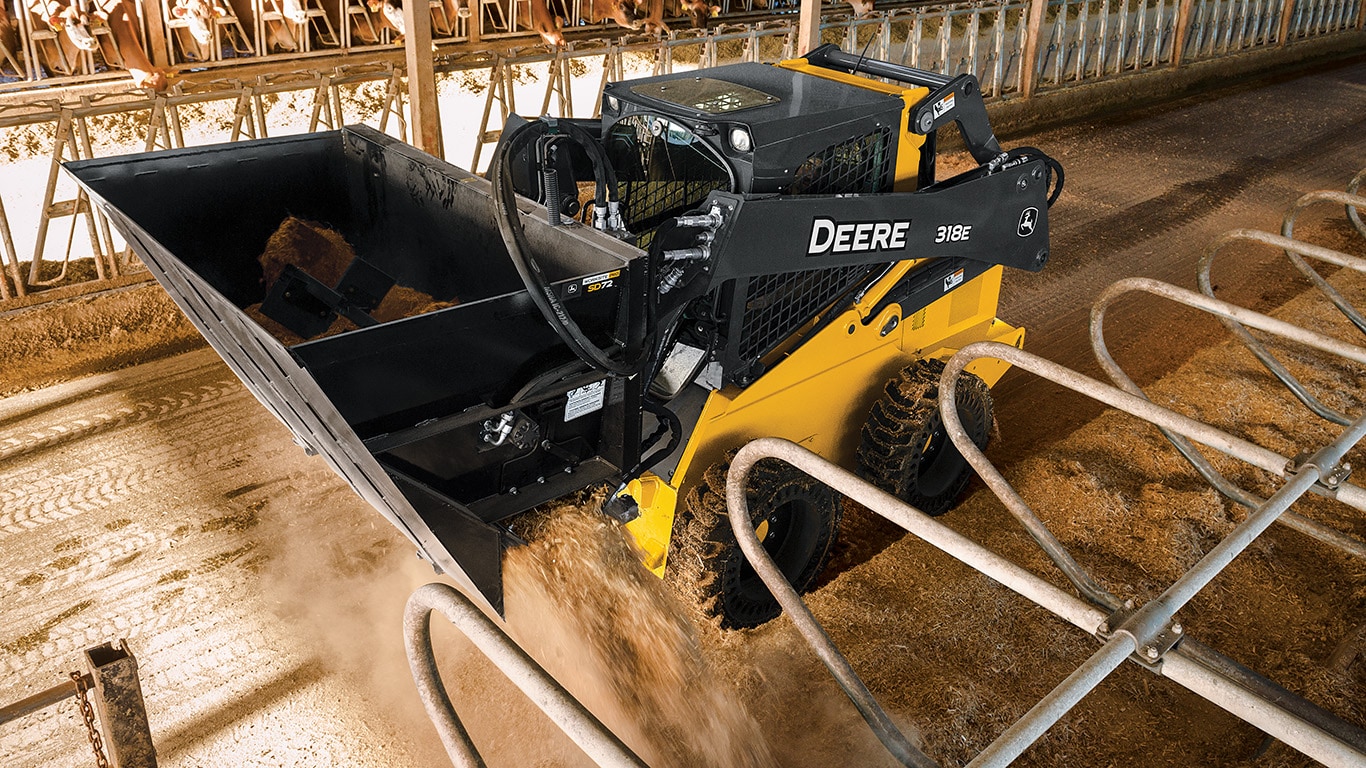

Side Discharge Buckets

Side-discharge buckets are ideal for close-quarters material distribution.

Download Side-Discharge Bucket Brochure >

ModelTypeCapacityWeightWidth

SA60 Side Discharge Bucket

Aggregate

0.50 cu. yd.

805 lb. (365 kg)

60 in. (1524 mm)

SA72 Side Discharge Bucket

Aggregate

0.67 cu. yd.

915 lb. (415 kg)

72 in. (1829 mm)

SD72 Side Discharge Bucket

Dust / Mulch

1.33 cu. yd.

1120 lb. (508 kg)

72 in. (1829 mm)

SD84 Side Discharge Bucket

Dust / Mulch

1.67 cu. yd.

1300 lb. (590 kg)

84 in. (2134 mm)

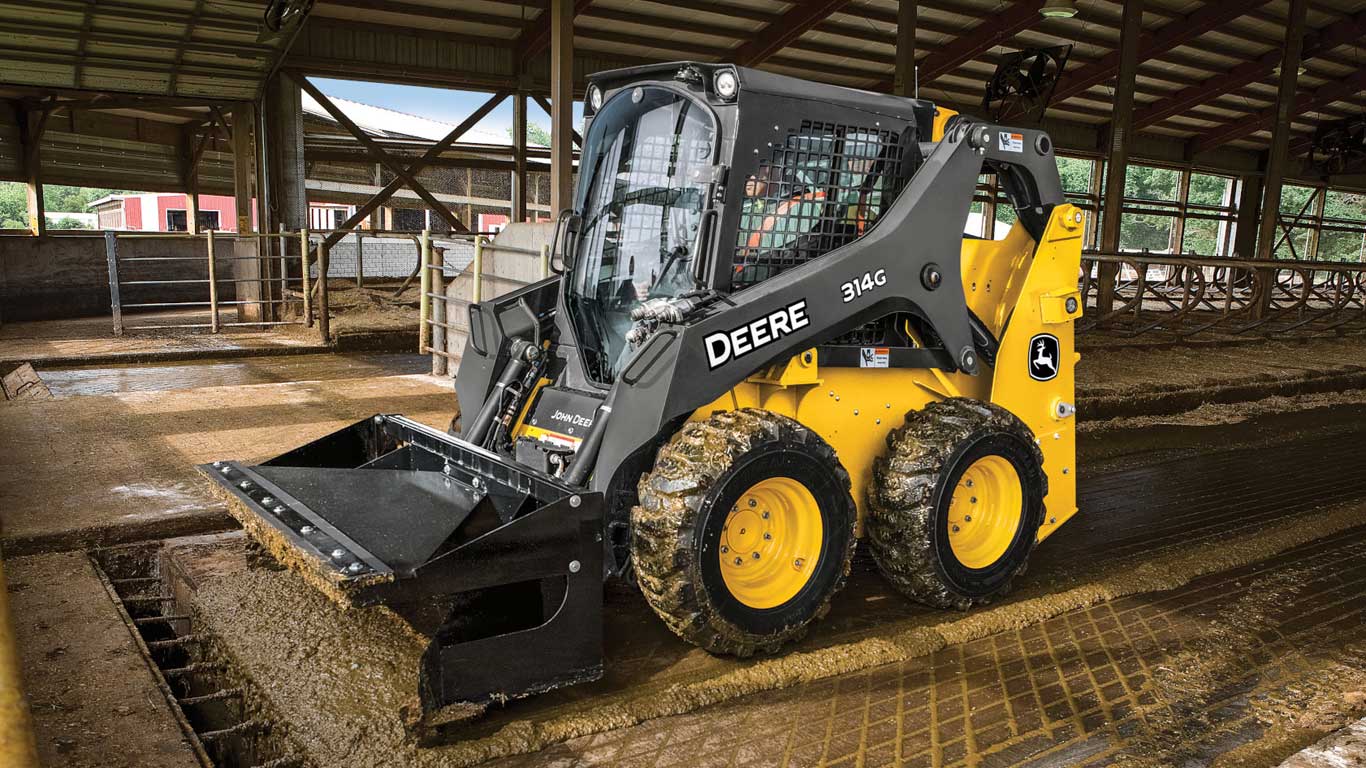

Scrapers

Rubber cutting edges are ideal for work on hard surfaces and standard pull-back edge works well for cleaning out corners.  These scrapers are optimized to work with John Deere skid steers and compact track loaders.  Push or scrape manure, mud, light snow, or other wet and sloppy materials.

Download Scrapers Brochure >

ModelWeightWidth

MS60 Scraper

458 lb. (208 kg)

60 in. (1524 mm)

MS72 Scraper

516 lb. (234 kg)

72 in. (1829 mm)

MS84 Scraper

589 lb. (267 kg)

84 in. (2134 mm)

MS96 Scraper

656 lb. (298 kg)

96 in. (2438 mm)

Rollout Buckets

Available in a range of three sizes, rollout buckets are ideal for achieving elevated dump heights in lightweight, high-capacity applications.  Like all John Deere attachments, these rollout buckets are optimized to work with John Deere skid steer, compact track loaders, and compact wheel loaders.

Download Rollout Buckets Brochure >

ModelWidthWeightHeaped Capacity

RB72 Rollout Bucket

1850 mm (73 in.)

532 kg (1,170 lb.)

0.91 m3 (1.19 cu. yd.)

RB84 Rollout Bucket

2150 mm (84.75 in.)

580 kg (1,275 lb.)

1.10 m3 (1.44 cu.yd.)

RB96 Rollout Bucket

2480 mm (97.5 in.)

618 kg (1,360 lb.)

1.28 m3 (1.68 cu. yd.)

In the Field

Quick-Tatch Attachment System for John Deere

Quik-Tatch™

With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.

How to Buy

Start by contacting your dealer directly. Or check out our complete line of compact equipment to pair with our attachments.
