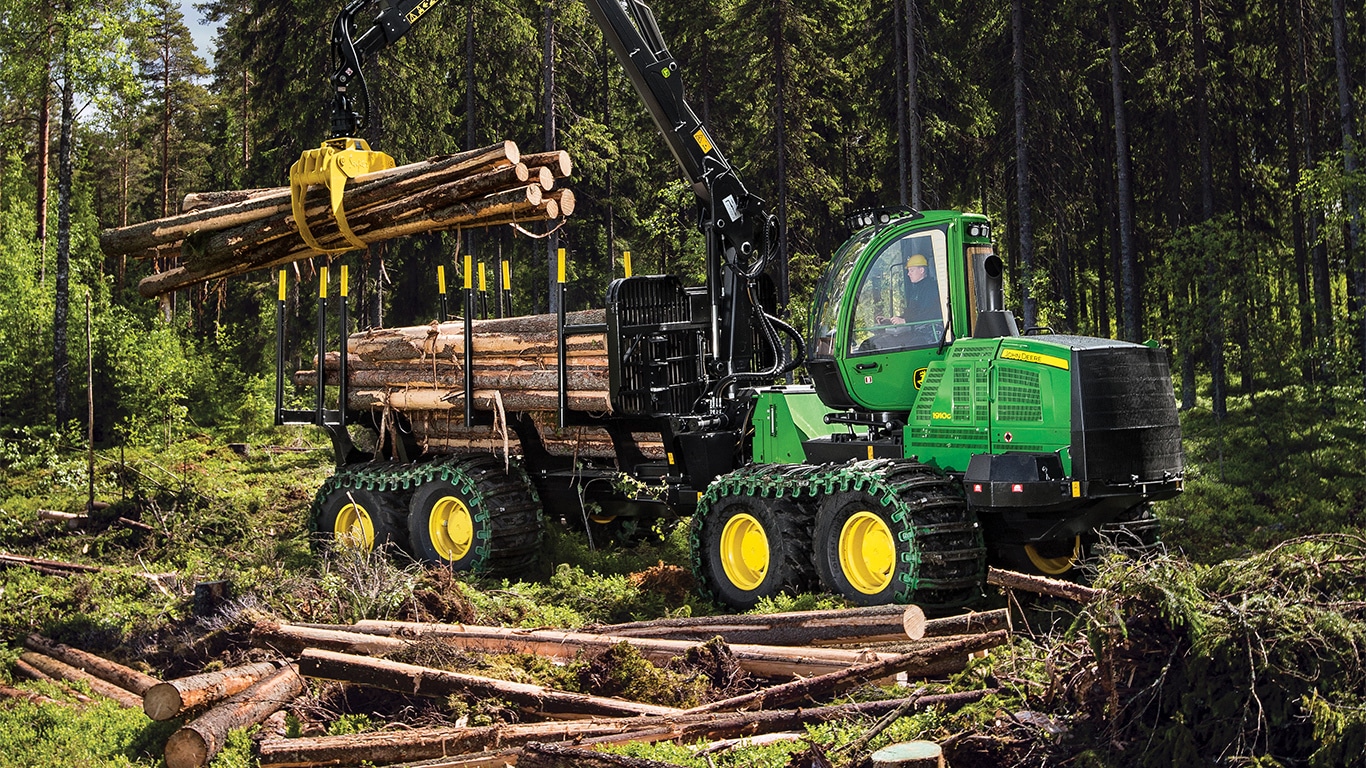

John Deere Forwarder Hauling Wood

Forwarders

ModelLoad RatingBoom ReachEngine PowerTractive EffortGross Lifting TorqueGross Slewing Torque

12 000 kg (26,455 lb.)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)

145 kW (194 hp) at 1,600 – 1,900 rpm

160kN (35,968 lbf.)

102 kNm (75 ft. – lb.) / 125 kNm (92 ft. – lb.)

24 kNmm (18 ft. – lb.) / 32 kNm (24 ft. –lb.)

13 000 kg (28,660 lb.)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)

156 kW (209 hp) at 1,600 – 1,900 rpm

175 kN (39,340 lbf.)

125 kNm (92 ft. – lb.

32 kNm (24 ft. – lb.

15 000 kg (33,069 lb.)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)

164 kW (220 hp) at 1,700 – 1,900 rpm

185 kN (41,588 lbf.)

125 kNm (92 ft. – lb.) / 143 kNm (105 ft. – lb.)

32 kNm (24 ft. – lb.)

19 000 kg (41,888 lb.)

7.2 m (23.6 ft.) / 8.5 m (27.9 ft.)

200 kW (268 hp) at 1,600 – 1,900 rpm

230 kNm (169,639 lbf.)

151 kNm (111,375 ft. – lb.)

41 kNm (30,240 ft. – lb.

Features

TimberMatic™ F-16 Control System

Timbermatic F-16 provides reliable, efficient control of all forwarder functions, for more precise, quicker boom movements and greater productivity.

Intelligent Boom Control

Optional intelligent boom control (IBC) allows the operator to direct the reach and height of the boom tip parallel to the ground.

*Not available on all models.

Rotating Cab Option

The rotating cab turns 290 degrees, providing a 360-degree view and gives a superior vision to the tires and surrounding area close to the machine.

Rotating & Leveling Cab Option

The rotating and leveling cab option turns 290 degrees, providing a 360-degree view of the machine's surroundings and boom movements for safe, efficient log loading.

Fixed Cab Option

The new fixed cabin is a durable, cost-effective alternative to the rotating and leveling cabin options, yet still delivers unmatched comfort and visibility for a fixed or standard cabin equipped machine.

A Tablet featuring JDLink sits next to a smartphone featuring JDLink

JDLink™ Telematics

JDLink, the core component of John Deere ForestSight™, enables you to manage your entire fleet from your desktop or mobile device and gives you anytime remote access to machine hours and location, fuel consumption, idle time, maintenance reminders, and more.
