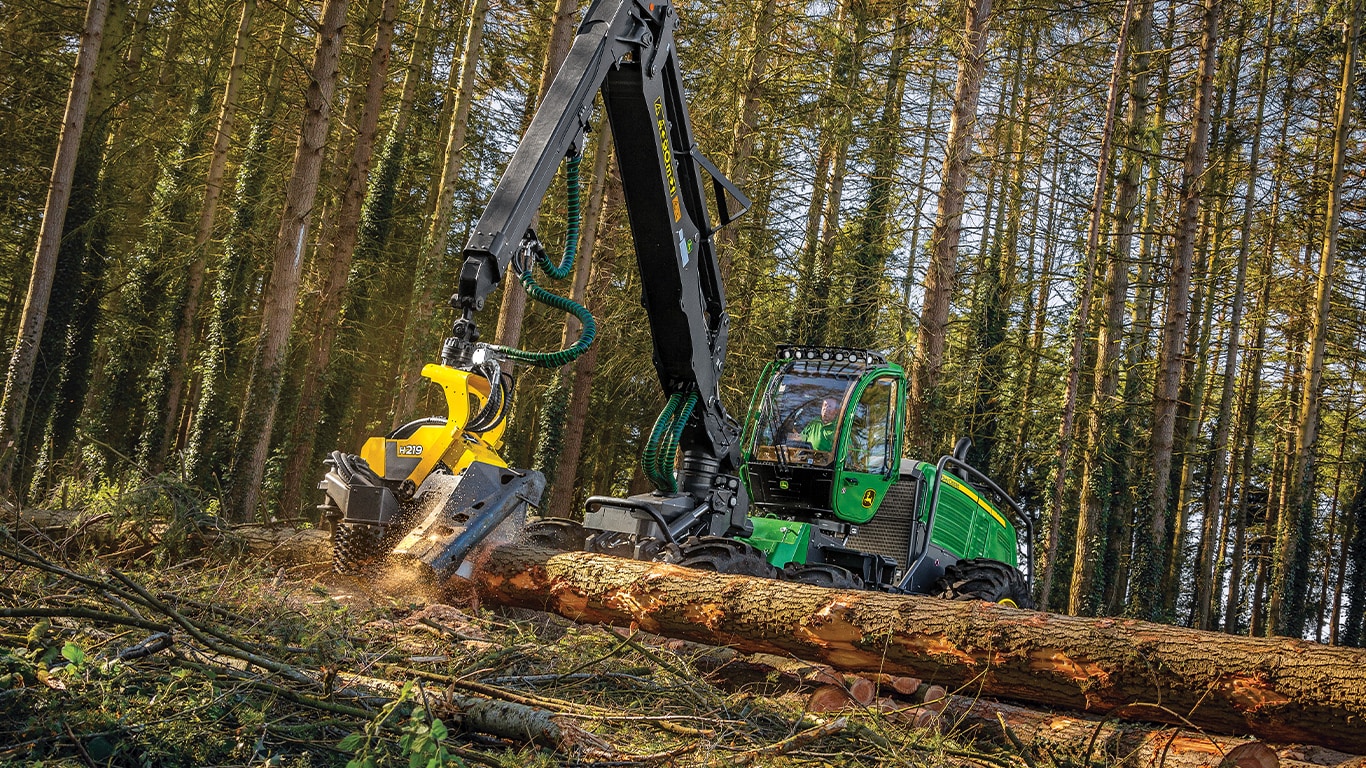

1270e wheel harvester on worksite

Wheeled Harvesters

ModelWork PumpBoom ReachEngine PowerTractive ForceIntelligent Boom Control

160 cm³ (9.7 cu. in.)

8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 10.8 m (35.5 ft.)

136 kW (182 hp) at 2,000 rpm

130 kN (29,200 lb.)



190 cm³ (11.6 cu. in.)

10 m (32.8 ft.) / 11.3 m (37.1 ft.)

155 kW (208 hp) at 2,000 rpm

150 kN (33,700 lb.)

190 and 180 cm³ (12 and 11 cu. in.)

8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.7 m (38.4 ft.)

200 kW (268 hp) at 1,900 rpm

180 kN (40,464 lb.)

190 and 180 cm³ (12 and 11 cu. in.)

8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.7 m (38.4 ft.)

200 kW (268 hp) at 1,900 rpm

210 kN (47,208 lb.)

210 plus 180 cm³ (13 plus 11 cu. in.)

8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.0 m (36.1 ft.)

200 kW (268 hp) at 1,900 rpm

200 kN (44,960 lb.)



Features

TimberMatic™ Maps and TimberManager™

This map-based production-planning and -tracking system allows contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.

Rotating & Leveling Cab Option

The rotating and leveling cab option turns 290 degrees, providing a 360-degree view of the machine's surroundings and boom movements for safe, efficient log loading.

Intelligent Boom Control

Optional intelligent boom control (IBC), designed specifically for the harvester work cycle, provides the operator with increased accuracy and productivity.

Deere grapple and waratah head

Forestry Heads & Attachments

From felling & harvesting heads to log forks and grapples, these productivity tools are designed to help you outrun the competition.

* Specifications for six-wheel configuration shown. Additional wheel configurations are available.
