Backhoes
John Deere backhoes are ideal for light-duty ag or utility work. Swing speed control and 180-deg. swing range maximize maneuverability in confined areas. Low-profile console enhances visibility. These backhoes are optimized to work with Deere skid steers and compact track loaders. They’re also compatible with many competitive models.
| Model | Max Dig Depth | Transport Height | Loading Reach | Reach From Swing Pivot | Loading Height |
|---|---|---|---|---|---|
|
BH9 Backhoe |
110 in. (2795 mm) |
100 in. (2550 mm) |
59 in. (1500 mm) |
146 in. (3705 mm) |
93 in. (2355 mm) |
|
BH10 Backhoe |
116 in. (2945 mm) |
93 in. (2360 mm) |
50 in. (1270 mm) |
153 in. (3885 mm) |
82 in. (2085 mm) |
|
BH11 Backhoe |
133 in. (3380 mm) |
106 in. (2690 mm) |
60 in. (1525 mm) |
173 in. (4395 mm) |
96 in. (2440 mm) |
In the Field
-

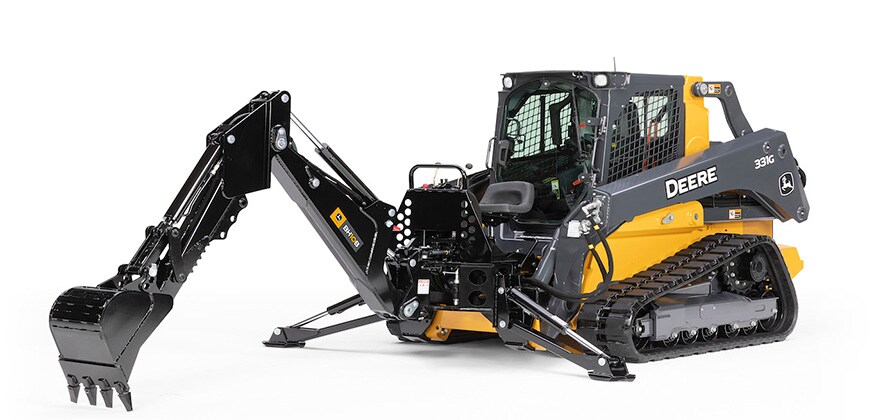

331G with BH10 Attachment
-

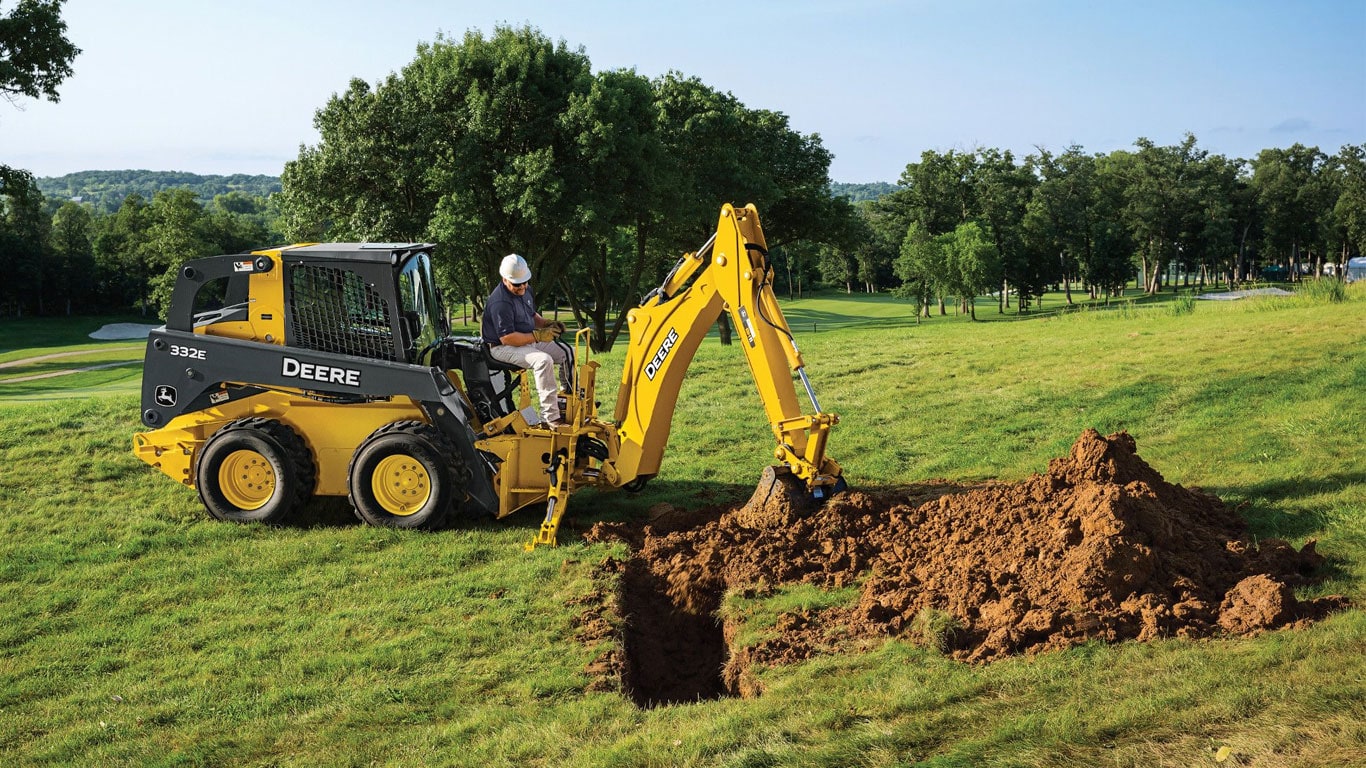

332E Skid Steer with Backhoe Attachment

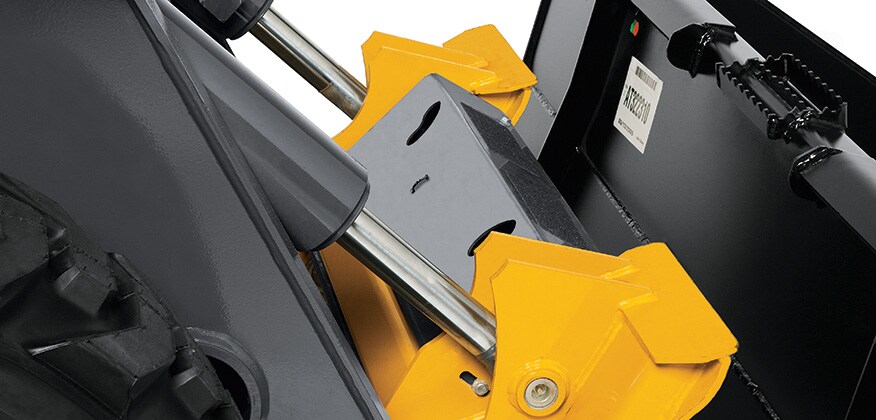

Quik-Tatch™
With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.
How to Buy
Start by contacting your dealer directly. Or check out our complete line of compact equipment to pair with our attachments.
