Fork and Spear Attachments for John Deere Compact Construction Equipment

Forks & Spears for Compact Construction Equipment

Nursery Forks

Firmly grasp and effortlessly transport large rocks, light boulders, and balled and burlapped landscape stock up to 44 in. in diameter.  Like all John Deere attachments, these nursery forks are optimized to work with John Deere skid steers loaders, compact track loaders, and compact wheel loaders. They are also compatible with many competitive models.

Learn More About Nursery Forks

ModelWidthMaximum Root BallFork Opening (Parallel)

NF44 Nursery Fork

1194 mm (47 in.)

1118 mm (44 in.)

457 mm (18 in.)

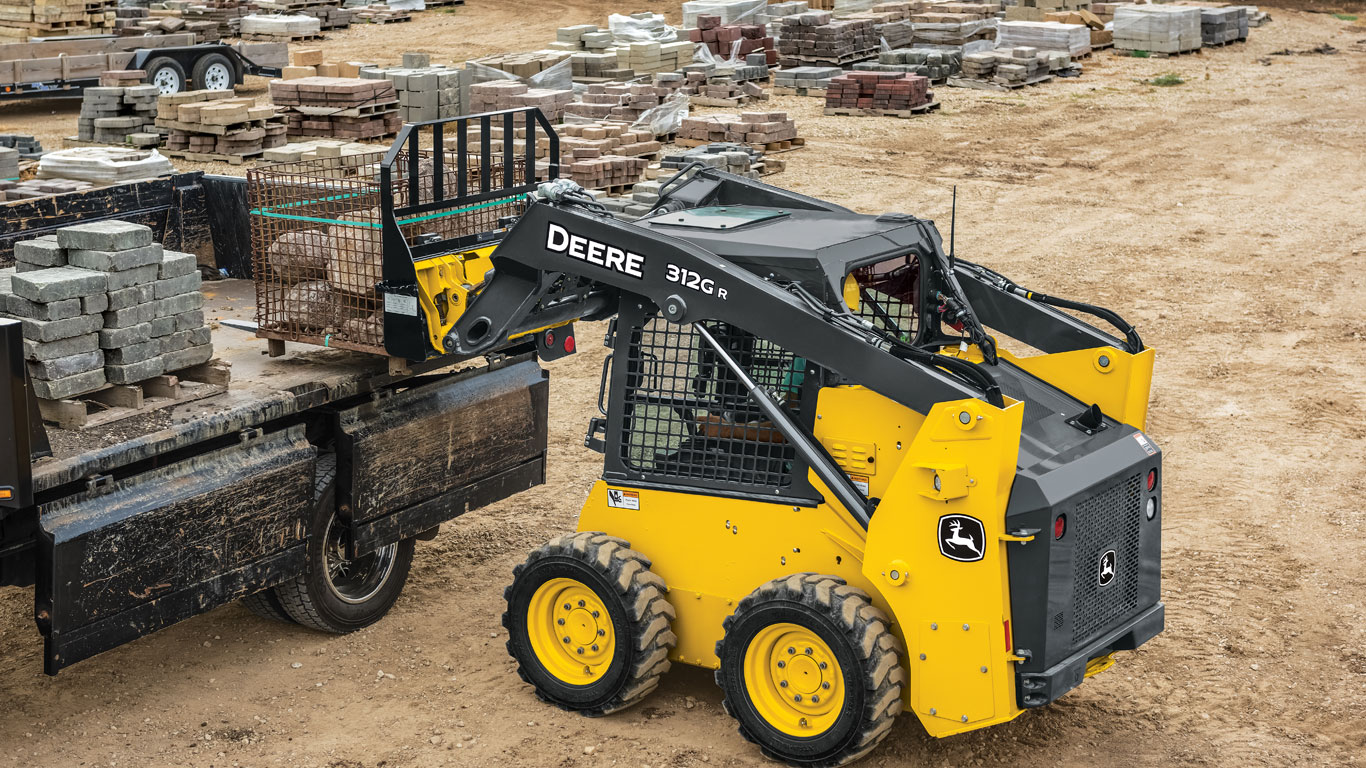

Pallet Forks

Skid-resistant steps on both sides of the pallet-fork frame ease entrance and exit. Severe-duty pallet forks offer increased capacity and durability over the previous fork-frame design. These pallet forks are optimized to work with John Deere G- and E-Series Skid Steers and Compact Track Loaders, and P-Tier, G-Tier, and K-Series Compact Wheel Loaders, and are compatible with most competitive models.

Learn More About P45 Pallet Fork Learn More About P60 Pallet Fork Learn More About Severe Duty Pallet Forks

ModelFrame WidthFork ThicknessFork Tine Load Rating at 600-mm (24 in.) Load Center

Heavy Duty P45

1410 mm (55 in.)

36 mm (1.4 in.)

1814 kg (4,000 lb.)

Heavy Duty P45

1410 mm (55 in.)

40 mm (1.6 in.)

2495 kg (5,500 lb.)

Heavy Duty P45

1410 mm (55 in.)

45 mm (1.8 in.)

2812 kg (6,200 lb.)

Heavy Duty P60

1770 mm (70 in.)

45 mm (1.8 in.)

2820 kg (6,200 lb.)

Severe Duty for CWLs

1520 mm (60 in.)

50 mm (2 in.)

4490 kg (9,900 lb.)

Severe Duty PF45

1380 mm (54 in.)

50 mm (2 in.)

4490 kg (9,900 lb.)

Severe Duty PF60

1730 mm (68 in.)

50 mm (2 in.)

4490 kg (9,900 lb.)

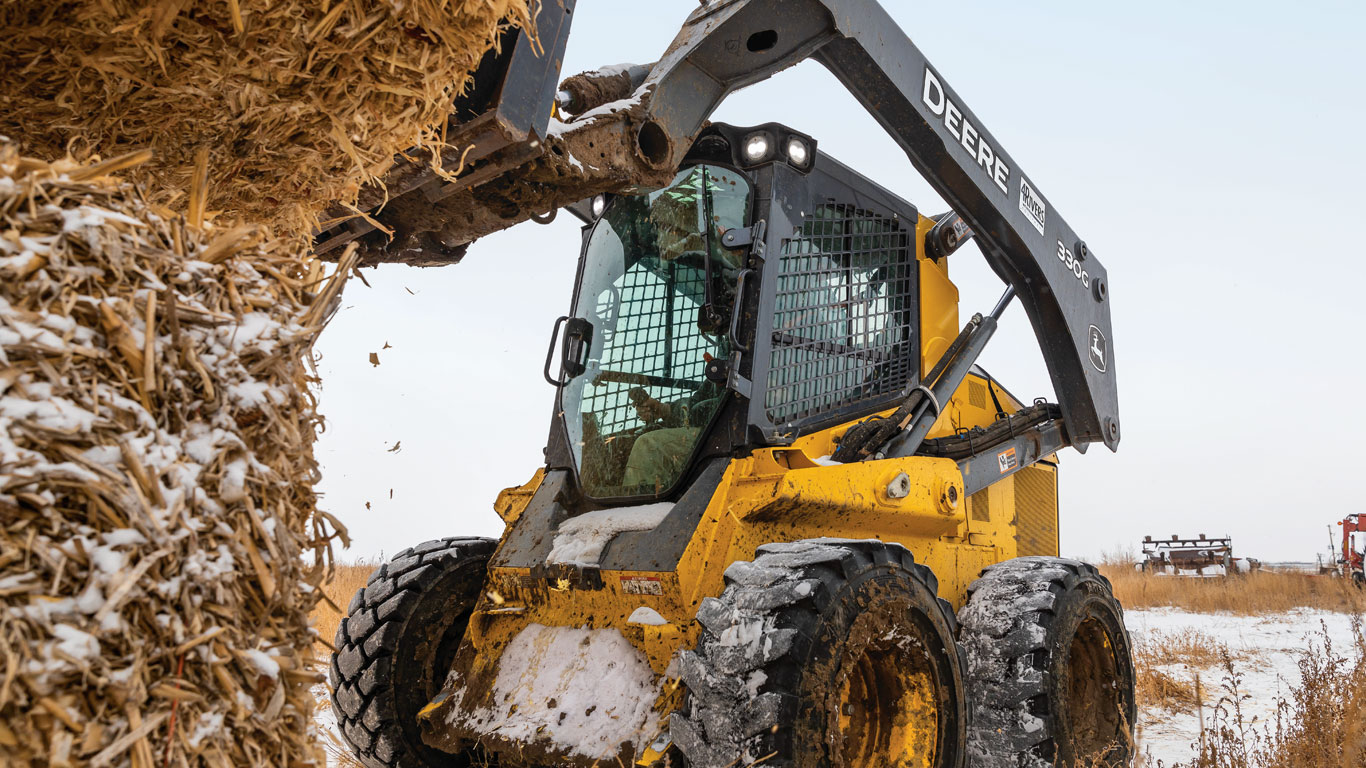

Bale Spears

Offering optimal rigidity and capacity, these spears are built for a long working life. Their low-profile design provides unrestricted visibility to the bale spear and tine tips.  Like all John Deere attachments, bale spears are compatible with all skid steer, compact track loaders, and compact wheel loaders equipped with a skid-steer-style Quik-Tatch™ coupler.

Learn More About Bale Spears

ModelWeightNUMBER OF MAIN TINESTINE CAPACITY

AB21 Bale Spears

66 kg (145 lb.)

1 main tine

907 kg (2,000 lb.)

AB31 Bale Spears

91 kg (200 lb.)

1 main tine

1361 kg (3,000 lb.)

AB32 Bale Spears

70 kg (155 lb.)

2 main tines

1361 kg (3,000 lb.)

AB42 Bale Spears

109 kg (240 lb.)

2 main tines

1814 kg (4,000 lb.)

AB43 Bale Spears

102 kg (225 lb.)

3 main tines

1814 kg (4,000 lb.)

Square

171 kg (375 lb.)

--

--

In the Field

Quick-Tatch Attachment System for John Deere

Quik-Tatch™

With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.

How to Buy

Start by contacting your dealer directly. Or check out our complete line of compact equipment to pair with our attachments.
