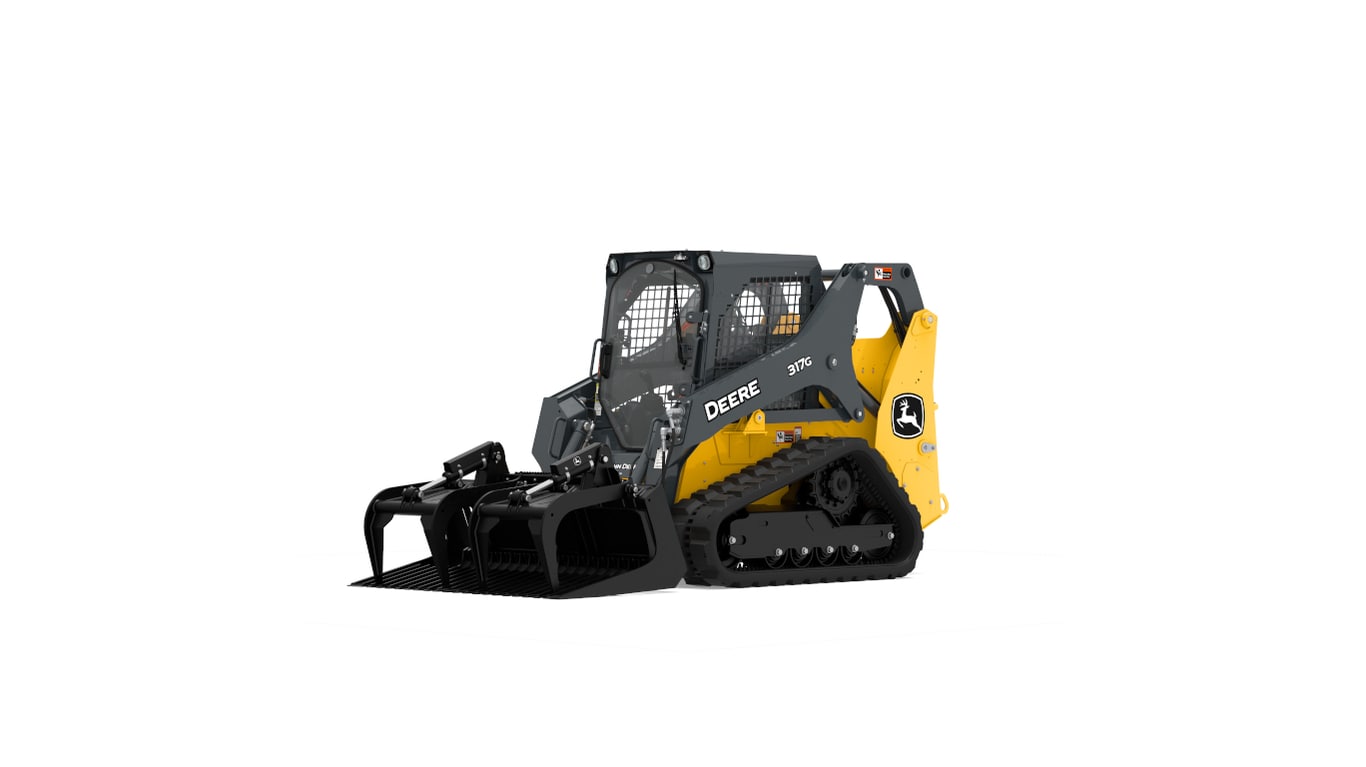

GR72B Rock GrappleCompact Equipment Attachments
GR Series Rock Grapples are designed to be a multipurpose tool for
- land clearing
- brush removal applications
- jobsite clean-up
Features
Expand All
Collapse All
GR Series Rock Grapples are ideal for a variety of applications
Overview
GR Series Rock Grapples are designed to be a multipurpose tool for land clearing, brush removal applications, and jobsite clean-up.
Benefits
- Each unit includes two independent-action grapples that allow for optimal clamping action when grappling objects with non-uniform sizes such as root balls, large rocks, or demolition debris.
- Open sides on the rock grapple models allow easy grappling of material that is wider than the bucket
- Specifically integrated design features allow the rock grapples to be used for grading a site after debris removal
- Tine spacing allows for material sifting when used in the forward direction
- The bucket heel profile allows for loose material to flow through or for scarifying of surfaces when grading in reverse
- A weld-in serrated cutting edge supports each tine and provides superior material penetration capabilities
- Greaseable and hardened 31.8-mm (1.25-in.) pins with increased cylinder specifications result in improved durability
- An improved hose routing over the previous series grapples eliminates the need for grapple cylinder stops on large frame G-Series Skid Steers
- Increased side cutter, side sheet, and backsheet plate thicknesses, combined with larger torque tubes result in heavy-duty bucket construction for the most demanding applications
Design improvements
Overview
Accomplish more with increased capacity and improved design.
Benefits
New rock grapple design
- Tines are spaced three inches apart and fully supported on each side for maximum bend resistance
- Weld-in serrated cutting edge easily penetrates difficult ground conditions
- Solid backplate along the Quik-Tatch™ area protects hydraulic cylinder hoses and the machine from debris and damage
- Thickened side cutter, side sheet, and backplate combine with large torque tubes for heavy-duty construction that meets the most demanding applications
Increased cylinder size
- Cylinder size of 63.5-mm (2.5-in.) bore diameter and 35.56-mm (1.4-in.) rod diameter delivers high grapple forces to tackle even the most difficult materials
- Grapple arms feature integrated mechanical stop to reduce cylinder load when open
Improved grapple capacity
619.76-mm (24.4-in.) wide grapple arm and range of grapple stances help grasp broad, cumbersome loads
Independent-action grapples enable different-sized objects to be picked up with each grapple
Improved hose routing
- Durable 90-degree quick-couplers on the hydraulic cylinder hoses eliminate interference with the grapple
- Standard low-profile cylinder guards simplify hose connections
Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice.
