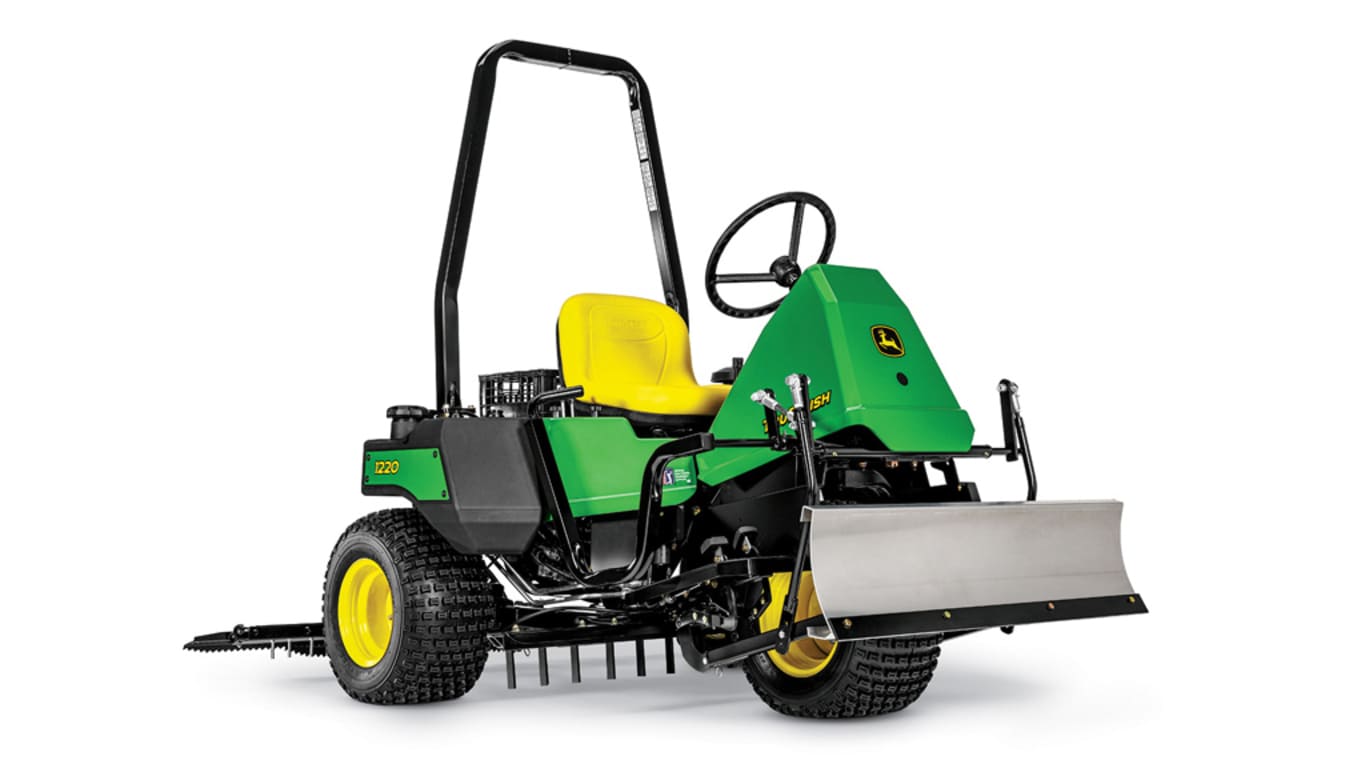

1200H HydroBunker & Field Rake
- Fuel efficiency at speeds up to 16 km/h
- Standard 72-inch rear rake enables rapid coverage
- Adjustable seat and wide running boards
- Stylish rear body
Features
Expand All
Collapse All
Drive system
Wide tires
Operator's platform
Instrumentation and controls
Foot controls
Drive system
Drive system
The hydrostatic 3WD system has variable speed for excellent pulling and pushing power.
Wide tires and wheelbase
Wide tires
Wide high-flotation tires provide low ground compaction.
- All tires are 22x11.00x8 NHS
The 47-in. (119-cm) wheelbase enables a tight turning radius.
Operator's platform designed for operator comfort
Operator's platform
The operator's platform is designed for comfort, control, and high productivity:
- 14-in. (35.56-cm) diameter steering wheel with a 10-to-1 gear ratio for easy and responsive steering
- Adjustable for and aft for improved comfort for large and small operators
- Wide running boards for comfortable leg support of large and small operators alike
Instrumentation is convenient and easy to use
Instrumentation and controls
Instruments and electronic controls are positioned for easy reach and visibility:
- Ignition switch and key start are mounted on the console for quick and easy starting.
- Choke control for quicker cool weather starts is conveniently located on the console at left.
- Standard rear and mid implement lift lever is located on the right side for easy access.
Foot controls
Foot controls
The forward and reverse foot pedals provide ease of identification and operation. The forward pedal is larger than the reverse pedal and provides good clearance for the operator's foot. This is the same two-pedal design used on the John Deere 2500A Riding Greens Mower.
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 1200H Hydro Bunker & Field Rake |
Key Specs
| Transmission type | Hydrostatic with 3 hydraulic wheel motors | |||
|---|---|---|---|---|
| Ground clearance @ rake attachment | 241 mm 9.5 in. |
|||
| Travel Speed (forward or reverse) | Reverse: 6 km/h 4 mph Forward: 0-10 mph 16 km/h |
|||
| Tank capacity | 14.8 L 3.9 U.S. gal. |
|||
| Displacement | 480 cc 29.3 cu in. |
|||
| Engine type | Air-cooled | |||
| Horsepower | At 3600 rpm: 11.9 kW 16 hp Engine Manufacturer Gross Power per SAE J1940. Tested in accordance with SAE J1995. The engine hp and torque information are provided by the engine manufacturer for comparison purposes only. Actual operating hp and torque will be less. Refer to engine manufacturer's website for additional information. |
Engine
| Manufacturer | ||||
|---|---|---|---|---|
| Type | Air-cooled | |||
| Displacement | 480 cc 29.3 cu in. |
|||
| Horsepower | At 3600 rpm: 11.9 kW 16 hp Engine Manufacturer Gross Power per SAE J1940. Tested in accordance with SAE J1995. The engine hp and torque information are provided by the engine manufacturer for comparison purposes only. Actual operating hp and torque will be less. Refer to engine manufacturer's website for additional information. |
|||
| Compression ratio | 8.5:1 | |||
| Lubrication | Full pressure | |||
| Oil capacity | Without filter: 1.4 L 1.5 U.S. qt |
|||
| Oil filter | Standard | |||
| Spark arrester muffler | Standard | |||
| Idle speed | Low speed: 1,750 rpm fast idle speed (low load): 3,100 rpm |
Electrical System
| Type | 12 V 20 amp |
|||
|---|---|---|---|---|
| Battery | 500 CCA 12 V |
|||
| Starter | Electric | |||
| Ignition | Transistor type | |||
| Light kit | Available |
Fuel System
| Tank capacity | 14.8 L 3.9 U.S. gal. |
|||
|---|---|---|---|---|
| Fuel pump | Diaphragm-type | |||
| Fuel required | Unleaded gasoline |
Transmission
| Type | Hydrostatic with 3 hydraulic wheel motors | |||
|---|---|---|---|---|
| Fluid capacity | 12.2 L 12.9 U.S. qt |
Travel Speed
| Forward or reverse | Reverse: 6 km/h 4 mph Forward: 0-10 mph 16 km/h |
|---|
Brakes
| Type | Dual rear wheel parking brakes; dynamic braking provided by closed loop hydrostatic powertrain |
|---|
Steering
| Type | Chain drive steering wheel with 10-to-1 gear ratio: 35.6 cm 14 in. |
|---|
Tires
| Front | One 22x11x8 NHS 34.5 kPa 5 psi |
|||
|---|---|---|---|---|
| Rear | Two 22x11x8 NHS 34.5 kPa 5 psi |
Dimensions
| Width | 187 cm 73.5 in. |
|||
|---|---|---|---|---|
| Height | 114 cm 45 in. |
|||
| Length | 216 cm 85 in. |
|||
| Wheelbase | 1193.8 mm 47 in. |
|||
| Ground clearance @ rake attachment | 241 mm 9.5 in. |
|||
| Turning radius | Zero | |||
| Weight (approx.) | 404 kg 890 lb |
|||
| Rear-hitch towing capacity |
Attachments
| Rake | ||||
|---|---|---|---|---|
| Cultivator | ||||
| Front blade | ||||
| 60-in. aluminum front blade | ||||
| Articulating front-mount core-removal blade | ||||
| Wide- and narrow-interval scarifier tines attachment | ||||
| Mid-mount 64.5-in. (164.9 mm) scraper blade attachment | ||||
| Rear-mounted 60-in. field finisher | ||||
| Hydraulic pump package |
Sound Levels
| Operator ear | 76 dBA | |||
|---|---|---|---|---|
| Measuring standard | ISO 11201 | |||
| Attachments installed |
