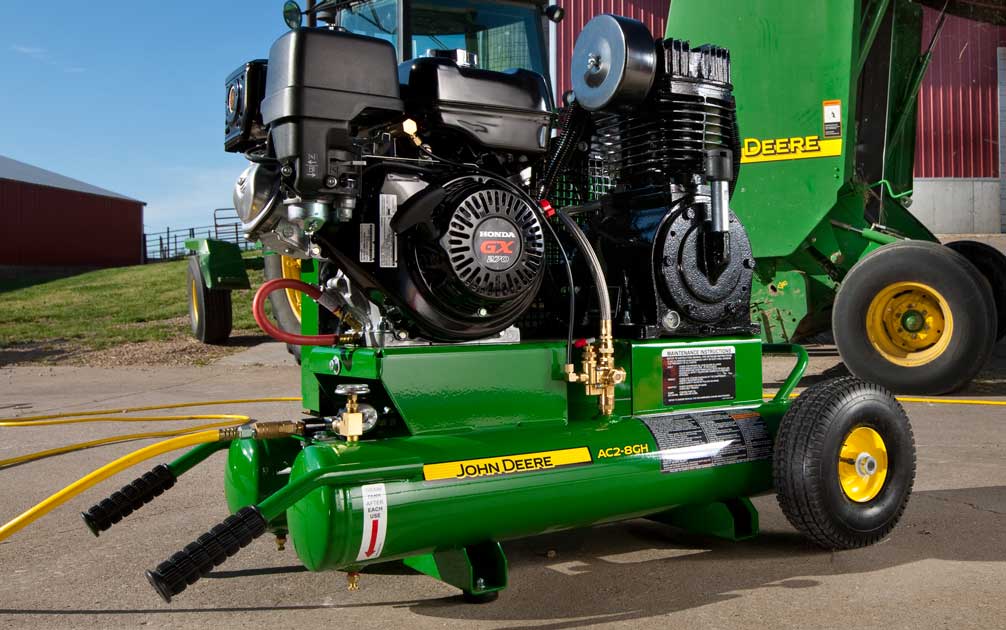

Close up image of a John Deere air compressor

Air Compressors

Open up an entirely new toolbox with a powerful John Deere air compressor. Power up everything from air wrenches to drills, grinders and paint guns. You'll find a wide range of horsepower and capacity to suit your needs. And you'll get the satisfaction of a job well done.

Find a Dealer
View Operating Manuals

HR Series / Electric / Oil-Less

ImageProductDetails

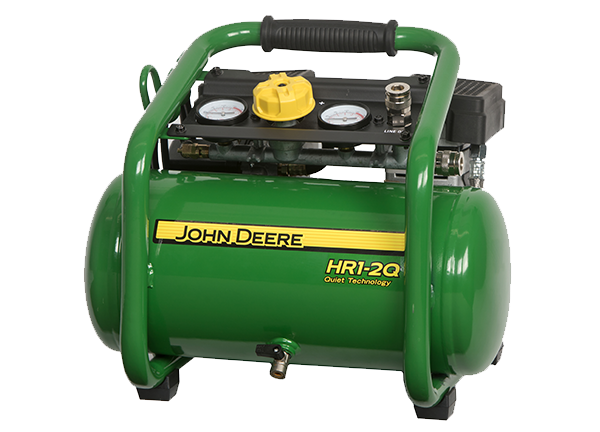

HR1-2Q

HR1-2Q

2.5-Gallon, Oil-Less, Electric Hand-Carry 1.0 HP, 120V Induction Motor

  • 2.4 CFM @ 90 PSI
  • Compact and portable 2.5-gallon receiver tank
  • Canister intake filter
  • Regulator and two gauges for tank and outlet pressure
  • Also start/stop control set at 95-125 PSI
  • Drain valve and pressure relief valve
  • 1/4-inch quick connect fittings
  • Rubber isolators
  • 45 lbs.
  • 15.7” x 15.5” x 14.7” (L x W x H)

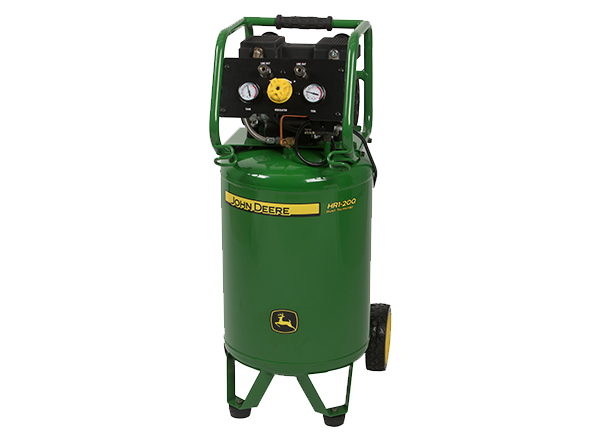

HR1-20Q

HR1-20Q

20-Gallon, Oil-Less, Electric 1.5 HP, 120V Induction Motor

  • 4.0 CFM @ 90 PSI – Upright portable design
  • 20-gallon receiver tank
  • 2 semi-pneumatic tires
  • Protective pump/motor housing
  • Dual canister intake filters
  • Regulator and two gauges for tank and outlet pressure
  • Also start/stop control set at 95-125 PSI
  • Drain valve and pressure relief valve
  • 1/4-inch quick connect fittings
  • Rubber isolators
  • 109 lbs.
  • 21.3” x 17.4” x 41.2” (L x W x H)

HR Series / Electric

ImageProductDetails

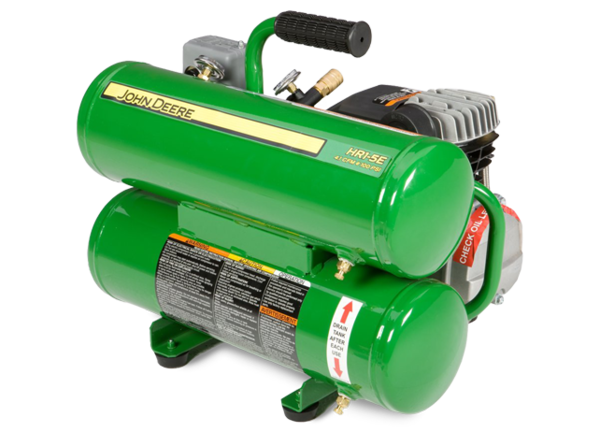

HR1-5E

HR1-5E

5-Gallon, Single-Stage, Electric Hand Carry 2.0 HP, 120V Motor

  • 4.1 CFM @ 100 PSI
  • Compact and portable twin-tank design
  • 5-gallon twin tank receivers, side stack
  • Protective pump/motor housing
  • Canister intake filter
  • Regulator and two gauges
  • Also start/stop control set at 95-125 PSI
  • Drain valves and pressure relief valve
  • Quick connect fittings
  • Rubber isolators

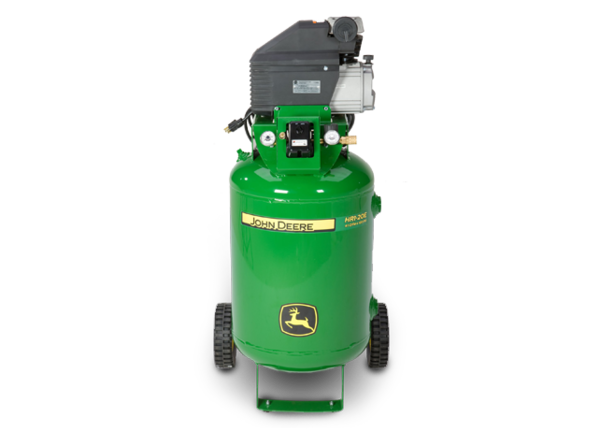

HR1-20E

HR1-20E

20-Gallon, Single-Stage, Electric  2.0 HP, 120V Motor

  • 2.0 HP, 120V Motor 4.1 CFM @ 100 PSI – Upright portable design
  • 20-gallon receiver tank
  • 2 semi-pneumatic tires
  • Protective pump/motor housing
  • Canister intake filter
  • Regulator and two gauges
  • Auto start/stop control set at 95-125 PSI
  • Drain valves and pressure relief valve
  • Quick connect fittings

Premium Series / Gasoline

ImageProductDetails

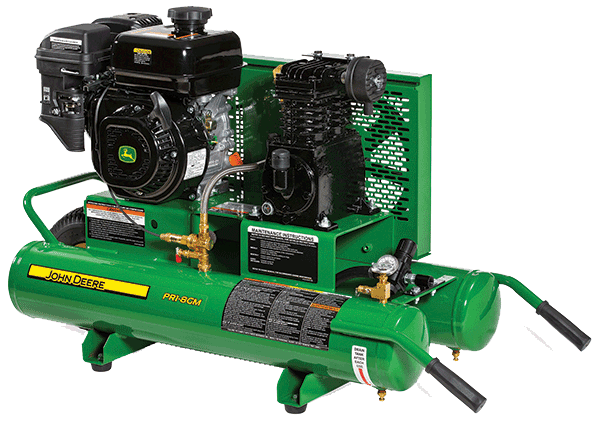

PR1-8GM

PR1-8GM

8-Gallon, Single-Stage, Gas 212cc OHV Engine

  • 7.5 CFM @ 100 PSI
  • Canister intake filter
  • Convenient lifting handles
  • 7-gauge base plate to reduce vibration
  • Pneumatic tire with tube and steel hub
  • Idle control with continuous run
  • Regulator and two gauges
  • Manual drain valves for proper maintenance

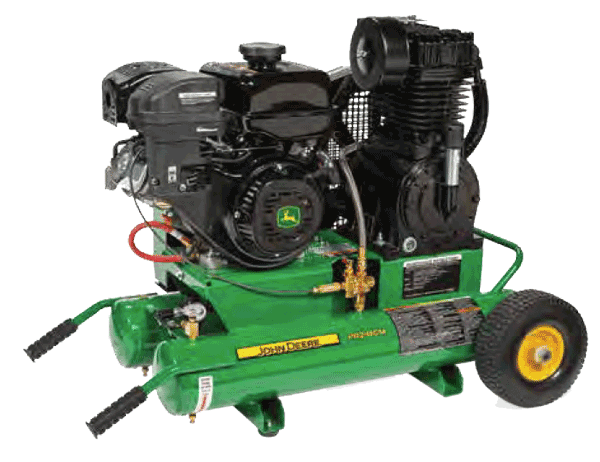

PR2-8GM

PR2-8GM

8-Gallon, Two-Stage, Gas 300cc OHV Engine

  • 17.2 CFM @ 175 PSI
  • Canister intake filter
  • Convenient lifting handles
  • 7-gauge base plate to reduce vibration
  • Pneumatic tire with tube and steel hub
  • Idle control with continuous run
  • Regulator and two gauges
  • Manual drain valves for proper maintenance

AC Series / Gasoline

ImageProductDetails

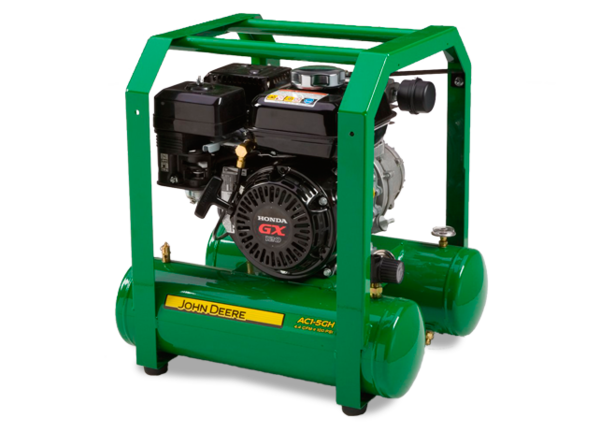

AC1-5GH

AC1-5GH

5-Gallon, Single-Stage, Gas Hand-Carry 118cc Honda GX Engine

  • 4.4 CFM @ 100 PSI
  • Splash-lubricated aluminum crankcase
  • Aluminum head for heat dissipation
  • Compact and portable twin-tank design
  • 5-gallon twin-tank receivers
  • Powder-coated steel frame design
  • Rubber isolators
  • Drain valves and pressure relief valve
  • Quick connect fitting

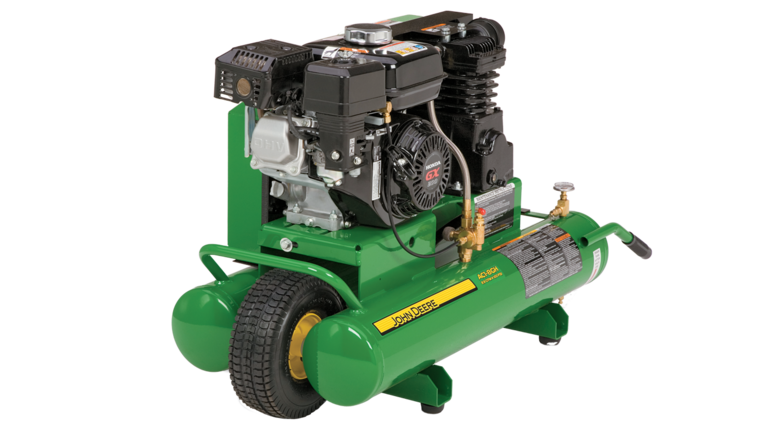

AC1-8GH

AC1-8GH

8-Gallon, Single-Stage, Gas 196cc Honda GX Engine

  • 13.1 CFM @ 100 PSI
  • Powder-coated 8-gallon twin-tank receivers
  • 10-in. flywheel for extra cooling and longer life
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Convenient lifting handles
  • Pneumatic tires with tubes and steel hubs
  • Manual drain valves for proper maintenance

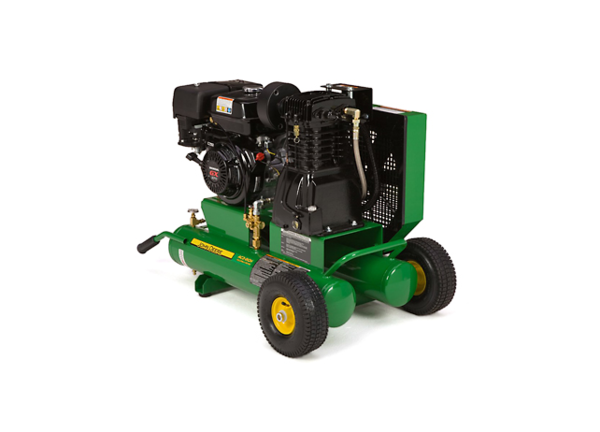

AC2-8GH

AC2-8GH

8-Gallon, Two-Stage, Gas 270cc Honda GX Engine

  • 17.2 CFM @ 175 PSI
  • Powder-coated 8-gallon twin-tank receivers
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Convenient lifting handles
  • Pneumatic tires with tubes and steel hubs
  • Manual drain valves for proper maintenance
  • 161⁄2 flywheel for extra cooling and longer life

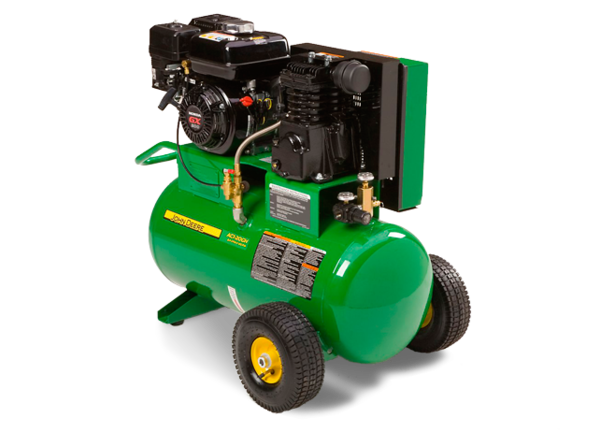

AC1-20GH

AC1-20GH

20-Gallon, Single-Stage, Gas 196cc Honda GX Engine

  • 13.1 CFM @ 100 PSI – Powder-coated ASME coded 20-gallon receiver tank
  • 12-in. flywheel for extra cooling and longer life
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Convenient lifting handles
  • Pneumatic tires with tubes and steel hubs
  • Manual drain valves for proper maintenance

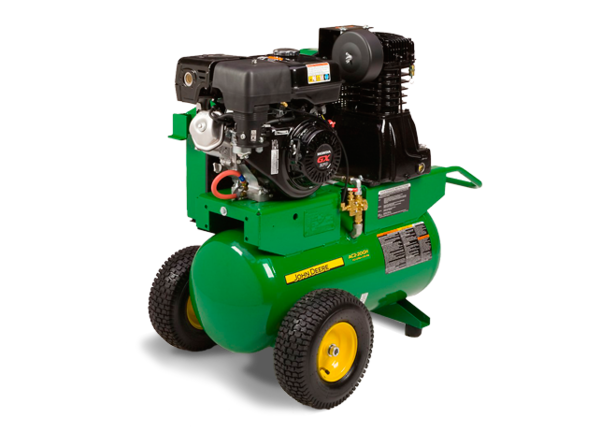

AC2-20GH

AC2-20GH

20-Gallon, Two-Stage, Gas 270cc Honda GX Engine

  • 17.2 CFM @ 175 PSI
  • Powder-coated ASME coded 20-gallon receiver tank
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Convenient lifting handles
  • Pneumatic tires with tubes and steel hubs
  • Manual drain valves for proper maintenance
  • 161⁄2-in. flywheel for extra cooling and longer life

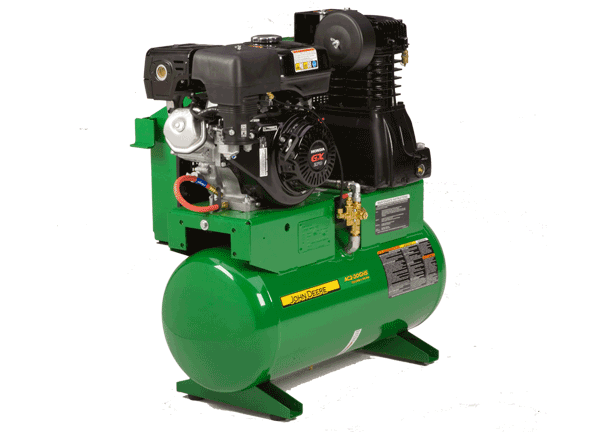

AC2-20GHS

AC2-20GHS

20-Gallon, Two-Stage, Gas 270cc Honda GX Engine

  • 17.2 CFM @ 175 PSI
  • Powder-coated ASME coded 20-gallon receiver tank
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Manual drain valves for proper maintenance
  • 161⁄2-in. flywheel for extra cooling and longer life

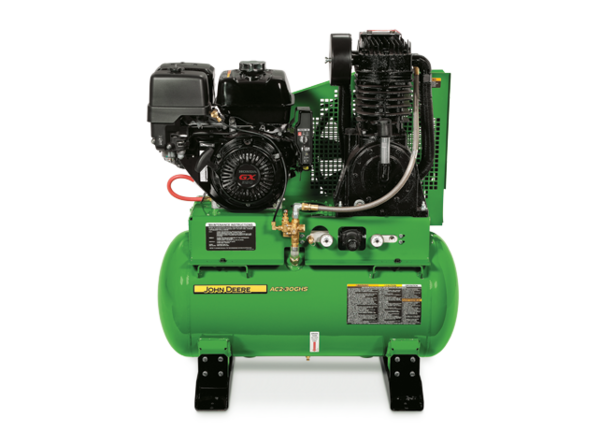

AC2-30GHS

AC2-30GHS

30-Gallon, Two-Stage, Gas 389cc Honda GX Engine

  • 29.0 CFM @ 175 PSI
  • Powder-coated ASME coded 30-gallon receiver tank
  • Electric start standard, battery and cables not included
  • Stationary truck mount kit standard, must be used when installing stationary unit to truck bed
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Manual drain valves for proper maintenance
  • 161⁄2-in. flywheel for extra cooling and longer life

AC Series / Diesel

ImageProductDetails

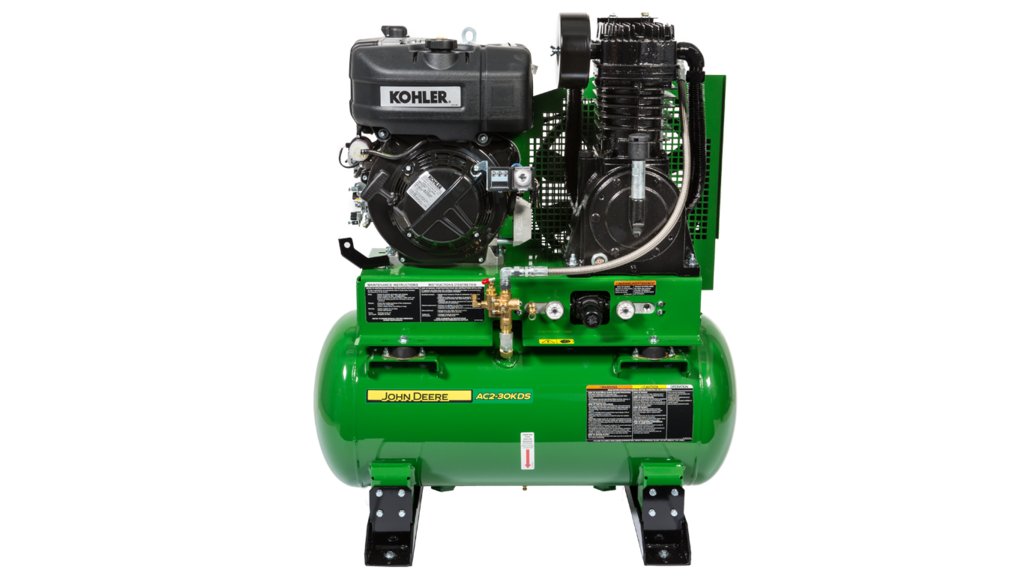

AC2-30KDS

AC2-30KDS

30-Gallon, Two-Stage, 441cc Diesel 9.1 HP Kohler OHV Engine

  • 29.0 CFM @ 175 PSI
  • Powder-coated ASME coded 30-gallon receiver tank
  • Electric start standard, battery, box and cables not included
  • Glow plug equipped engine for easy starting in cold temperatures
  • Stationary truck mount kit standard, must be used when installing stationary unit to truck bed
  • Splash-lubricated cast iron crankcase
  • Cast iron head for heat dissipation
  • 7-gauge base plate to reduce vibration
  • Manual drain valves for proper maintenance
  • 161⁄2-in. flywheel for extra cooling and longer life (two-stage models)

AC Series / Electric

ImageProductDetails

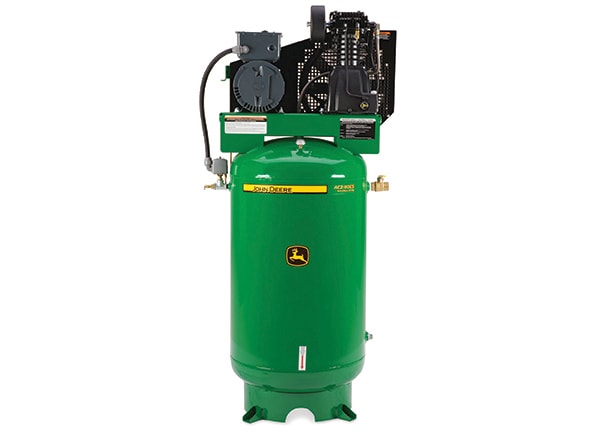

AC2-80ES

AC2-80ES

80-Gallon, Two-Stage, Electric 5.0 HP, 230V Motor

  • 16.9 CFM @ 175 PSI – Electric motor, CSA listed
  • 230V single phase 60 Hz
  • Splash-lubricated cast iron crankcase
  • Aluminum head for heat dissipation
  • Cast iron cylinder
  • Powder-coated ASME coded 80-gallon receiver tank
  • Auto start/stop
  • 12-in. flywheel for extra cooling and longer life
  • Tank pressure gauge
  • Magnetic starter with mounting box and wire
  • Manual drain valves for proper maintenance

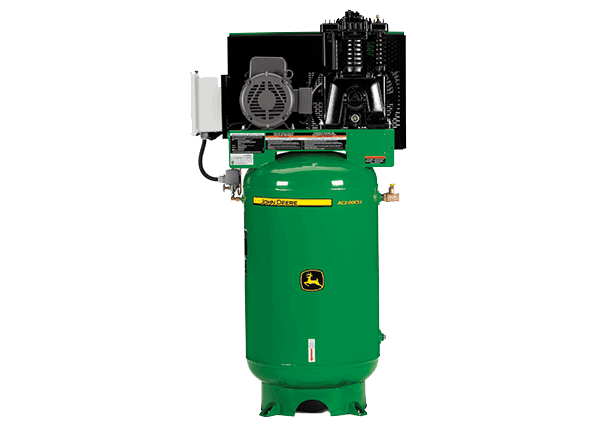

AC2-80ES-1

AC2-80ES-1

80-Gallon, Two-Stage, Electric 7.5 HP, 230V Motor

  • 23.5 CFM @ 175 PSI
  • Electric motor, CSA listed
  • 230V single phase 60 Hz
  • Splash-lubricated cast iron crankcase
  • Aluminum head for heat dissipation
  • Cast iron cylinder
  • Powder-coated ASME coded 80-gallon receiver tank
  • Auto start/stop
  • 12-in. flywheel for extra cooling and longer life
  • Tank pressure gauge
  • Magnetic starter with mounting box and wire
  • Manual drain valves for proper maintenance

Couplers

ItemModel/Part Number

1/4” MPT Industrial Interchange Style

AWJ-0017-0043

1/4” MPT Automotive Style

AWJ-0017-0044

1/4” FPT Industrial Interchange Style

AWJ-0017-0045

1/4” FPT Automotive Style

AWJ-0017-0046

1/4” FPT Lincoln Style

AWJ-0017-0047

1/4” MPT ARO Style

AWJ-0017-0048

Coupler Test Bar

AWJ-0017-4952

Plugs

ItemModel/Part Number

1/4” MPT Industrial Interchange Style

AWJ-0017-0049

1/4” MPT Automotive Style

AWJ-0017-0050

1/4” MPT Lincoln Style

AWJ-0017-0051

1/4" MPT ARO Style

AWJ-0017-0052

1/4” FPT Industrial Interchange Style

AWJ-0017-0053

1/4” FPT Automotive Style

AWJ-0017-0054

1/4” FPT Lincoln Style

AWJ-0017-0055

1/4” FPT ARO Style

AWJ-0017-0056

Couplers/Plug Sets

ItemModel/Part Number

1/4” F Coupler, 1/4” M Plug Ind. Inter. Set

AWJ-0017-0045K

1/4” F Coupler, 1/4” M Plug Automotive Set

AWJ-0017-0046K

Fittings

ItemModel/Part Number

Barbed Hose Fitting (1/4” MNPT fits 3/8” ID Hose)

AWJ-0023-0069

Barbed Hose Fitting (1/4” MNPT fits 1/4” ID Hose)

AWJ-0023-0051

Brass Coupling (1/4” FNPT x 1/4” FNPT)

AWJ-0023-0002

Brass Coupling (1/4” MNPT x 1/4” MNPT)

AWJ-0023-0103

Barbed Hose Splicer (Fits 1/4” ID Hose)

AWJ-0023-0415

Barbed Hose Splicer (Fits 3/8” ID Hose)

AWJ-0023-0416

Air/Water Adapter Kit

ItemModel/Part Number

For Filling Tires with Liquid

AWJ-0023-0414

Chucks

ItemModel/Part Number

Dual Foot Direct Air Line Chuck (1/4” FNPT)

AWJ-00AT-3001

Ball Foot Direct Air Line Chuck (1/4” FNPT)

AWJ-00AT-3002

Deluxe Inflator Gauge with 12” Hose

AWJ-00AT-3003

Blow Guns

ItemModel/Part Number

Blow Gun with Standard Rubber Nozzle

AWJ-00AT-3004

Blow Gun with Safety Nozzle

AWJ-00AT-3005

12” Blow Gun w/Standard Rubber Nozzle (6 per pack)

AWJ-00AT-3007

24” Blow Gun w/Standard Rubber Nozzle (6 per pack)

AWJ-00AT-3008

48” Blow Gun w/Standard Rubber Nozzle (6 per pack)

AWJ-00AT-3009

Air Hose

ItemModel/Part Number

24” Leader Hose with Swivel

AWJ-0015-0229

50’ x 3/8” Hybrid Hose

AWJ-0015-0328

25’ x 3/8” Hybrid Hose

AWJ-0015-0327

Filters

ItemModel/Part Number

1/4” Poly Bowl w/Bowl Guard & Manual Drain

AT-4004-J

1/2” Metal Bowl w/Sight Glass & Manual Drain

AT-4005-J

3/8” Poly Bowl w/Bowl Guard & Manual Drain

AT-4006-J

Disposable In-line Filter

AWJ-00AT-4007

Air Tool Filter

AWJ-00AT-4008

3/8” Filter/Regulator-Poly Bowl w/Manual Drain

AT-4011-J

In-Line Regulators

ItemModel/Part Number

1/4” Mini Regulator w/Gauge

AWJ-0022-0326

3/8” Regulator w/Gauge

AWJ-0022-0231

In-Line Lubricators

ItemModel/Part Number

1/4” Poly Bowl

AT-4009-J

3/8” Poly Bowl

AT-4010-J

High Flow Accessories

ItemModel/Part Number

EXTENSION TUBE-CYCLONE 12 IN

AT-3001-J

AIR GUN WITH CONE TIP

AT-3002-J

COUPLER-HF 1/4 BODY X 1/4 FNPT

AT-4013-J

PLUG-HF 1/4 BODY X 1/4 MNPT

AT-4014-J

SWIVEL PLUG-HF1/4 BODYX1/4MNPT

AT-4015-J

COUPLER AND PLUG KIT-HF 3 PC

AT-4016-J

COUPLER AND PLUG KIT-HF 7 PC

AT-4017-J

COUPLER-HF 1/4 BODY X 3/8 FNPT

AT-4018-J

PLUG-HF 1/4 BODY X 3/8 MNPT

AT-4019-J

COUPLER AND PLUG KIT-HF 7 PC

AT-4020-J

REUSABLE END - 3/8

AT-4808-J

REUSABLE END - 1/2

AT-4809-J

REUSABLE SPLICER - 3/8

AT-4810-J

REUSABLE SPLICER - 1/2

AT-4811-J

250’ x 1/2” Hybrid polymer Hose Spool

AT-4805-J

250’ x 3/8” Hybrid polymer Hose Spool

AT-4806-J

Coupler-HF 1/4 BODY X 1/4 MNPT

AT-4021-J

PLUG-HF 1/4 BODY X 1/4 MNPT - 2 PACK

AT-4022-J

Coupler-HF 1/4 BODY X 3/8 MNPT

AT-4023-J

PLUG-HF 1/4 BODY X 3/8 MNPT - 2 PACK

AT-4024-J

90 days warranty is offered for Couplers, Plugs, Couplers/Plug Sets, Fittings, Air/Water Adapter Kit, Chucks, Blow Guns, Air Hose, Filters, In-Line Regulators, In-Line Lubricators, and Auto Electric Drain.
