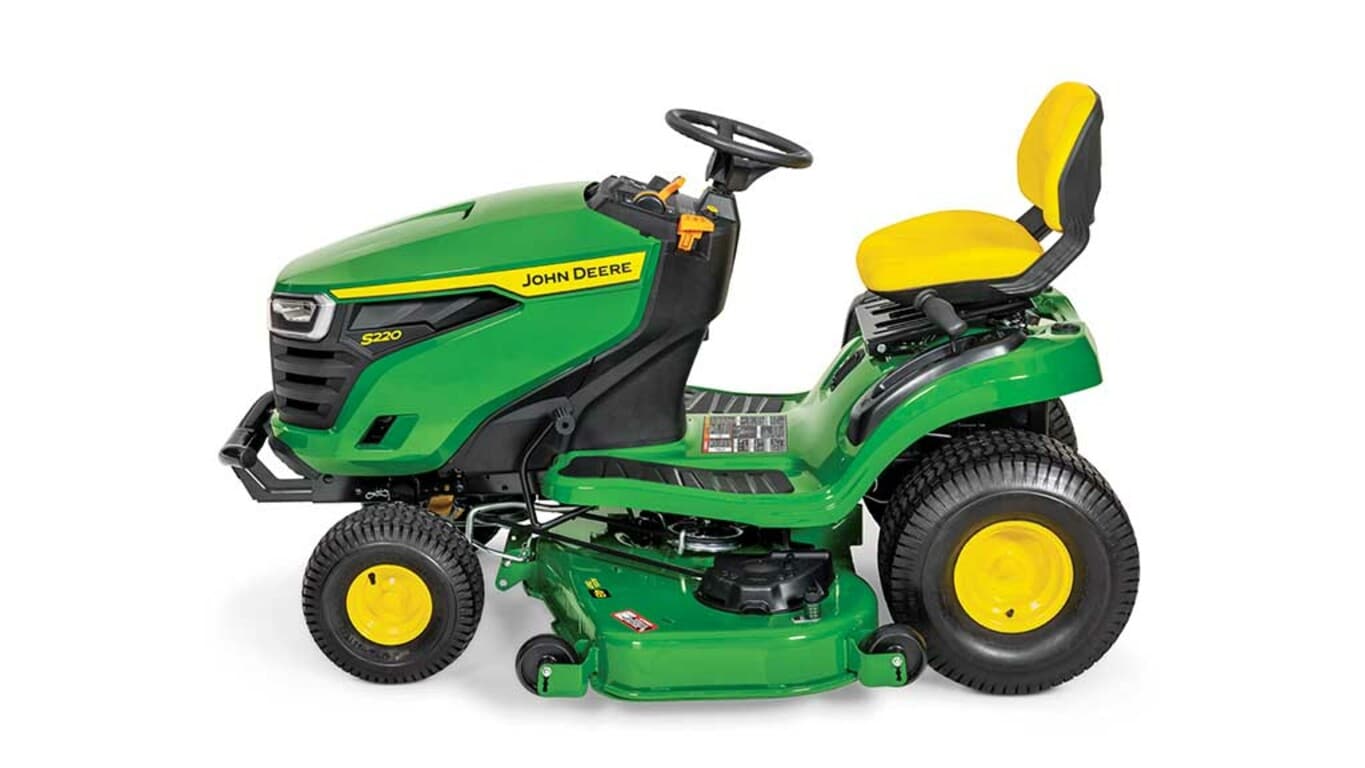

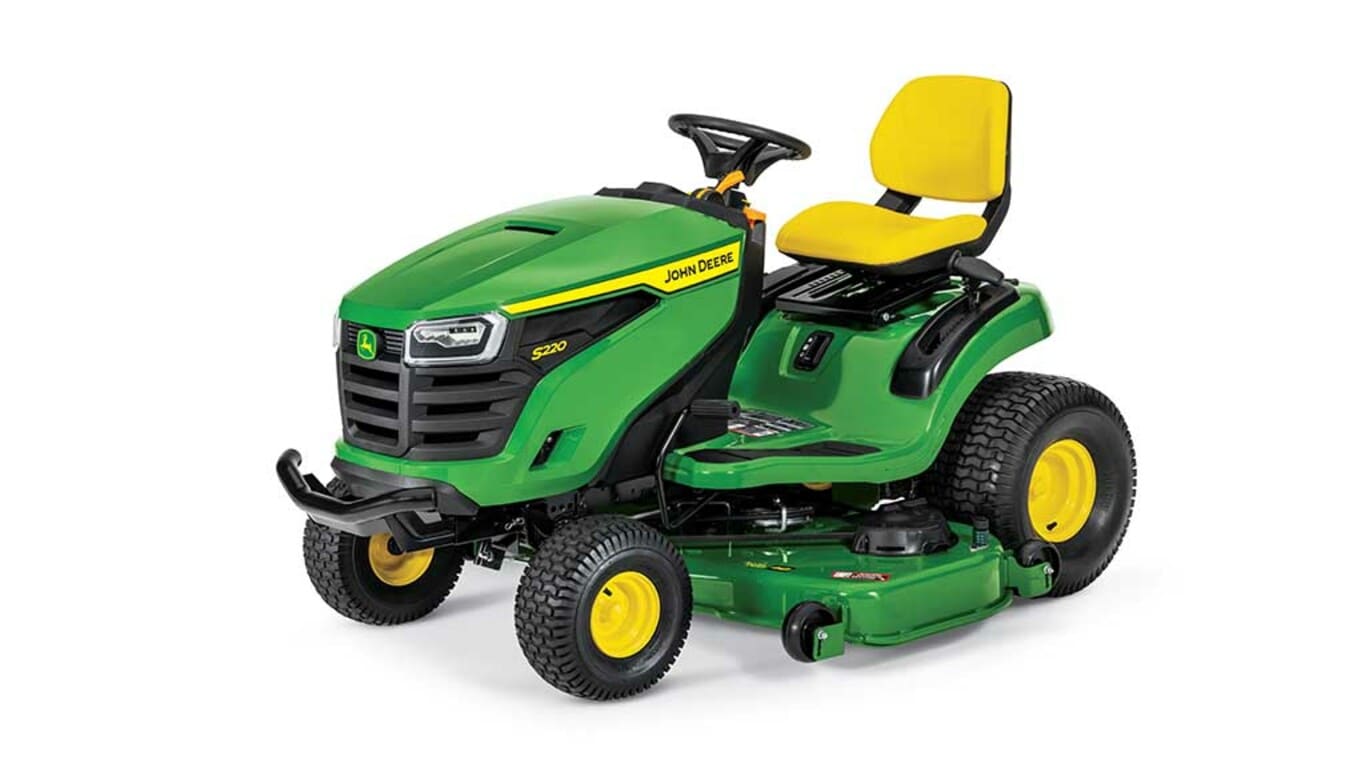

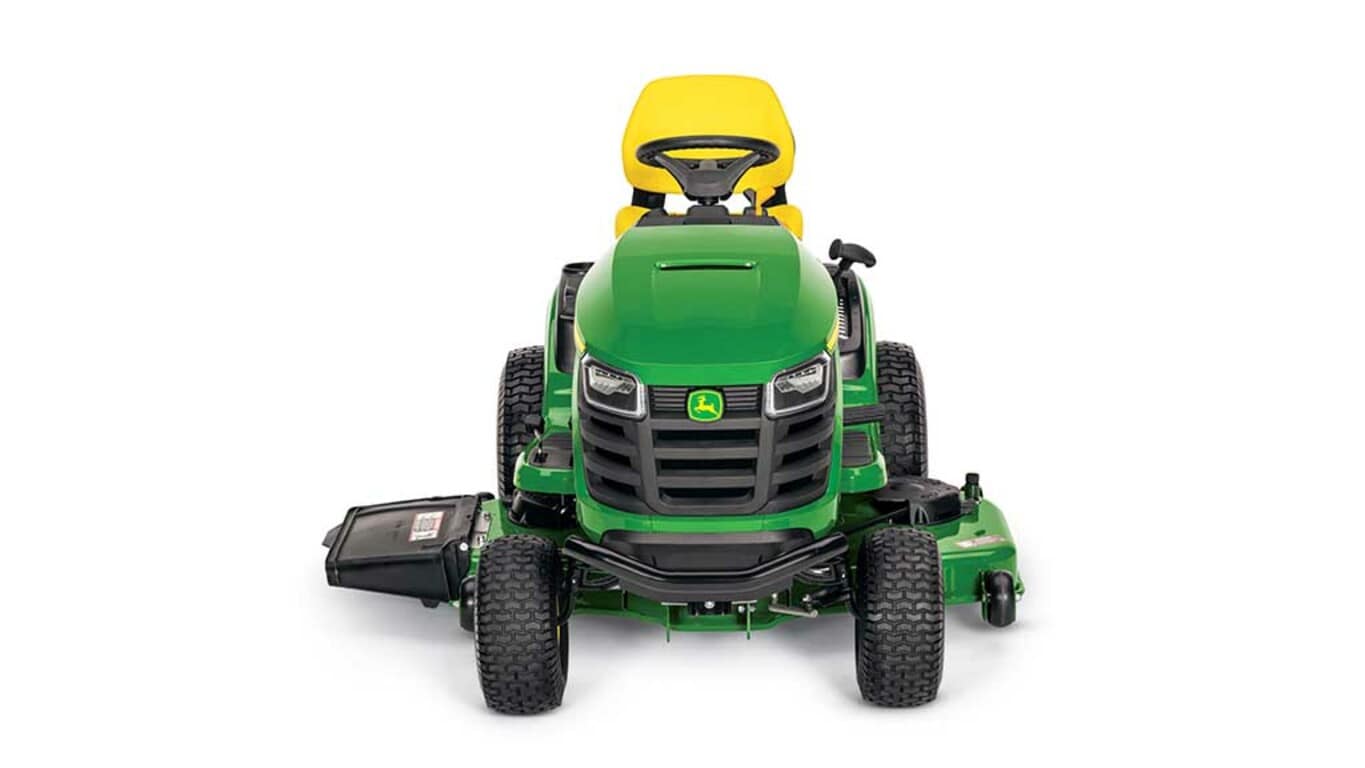

S220 | Lawn Tractor | John Deere

Cyclonic V-twin engine is smooth running and powerful

22-hp (16.4-kW) engine

The 22-hp (16.4-kW) V-twin engine used in the S220 Tractor provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

V-twin cylinder design for greater torque, lower vibration, and improved sound quality
Large, 44.2-cu in. (724-cc) displacement
- Plenty of torque helps to get the job done fast.
- Large displacement engine increases the ability to get an even cut without mowing a second time.
- Camshaft and carburetor designs create the optimum torque rise for rapid response to varying load conditions.
Electronic ignition for fast starts
Cast-iron sleeves for longer engine life
Overhead valves for excellent power and fuel economy
Full-pressure lubrication and oil filter for keeping the oil cleaner for a long engine life and extending the time between oil changes; full-pressure lubrication is also more effective when operating the tractor on an incline
Excellent serviceability with easily replaced air filter, fuel filter, and oil filter and a convenient oil-drain hose to make draining the oil easy and clean

Cyclonic air filter

Air filter cover

Air filter with foam precleaner

Cyclonic air-management system removes larger particles of dirt before they reach the air filter for reduced filter maintenance and longer engine life:

Cyclonic design ejects large dirt particles before they contact the filter.
Large, high-quality dry-type paper element air filter thoroughly cleans engine intake air.
The cover over the air filter is easily removed with two knobs for cleaning or replacement of the filter.

Serviceability

Engine oil check/fill tube and oil-drain hose

Oil drain hose

The engine oil check and fill tube are conveniently located for easy access. An oil drain hose makes draining oil easy and clean.

Engine oil filter

The replaceable oil filter and fuel filter are easy to access and change to minimize service time and cost.

Debris inspection port covers

Debris inspection port

Two debris inspection ports help ensure clean engine fins for optimum cooling. Bolts to open them are conveniently located under the air filter cover.

Flywheel alternator

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer:

14-amp charging capacity
Regulated to keep the battery at full charge without risk of overcharging

Fuel tank

Convenient fuel filler opening

The capacity is 2.4 U.S. gal. (9.1 L).
The fuel filler opening is conveniently located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap is more convenient.
- The sealed fuel cap helps keep vapors inside the tank.

42-in. (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile

S240 with Accel Deep 42A Mower Deck

The 42-in. (107-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

4.97-in. (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
- Optional MulchControl™ system provides superior mulching performance and versatility
Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
Mower deck suspended from the vehicle for a smooth and level cut
- Adjustable mower wheels, positioned just above ground level, help reduce scalping
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Compatible with efficient 6.5-bu (229-L) two-bag material collection system

Excellent cut quality

42A Mower Deck top (shown with optional MulchControl™)

42A Mower Deck underside (shown with optional MulchControl)

Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
- Helps maintain excellent cut quality at faster mowing speeds
Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

Productivity - gets the job done fast

Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

Gives a smooth, even discharge of clippings at all mowing speeds
Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening

Cleanliness - for the mower and the operator

Accel Deep 42A Mower Deck

The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:

There are few places to catch and hold material on top and underneath the deck.
- Top of deck stays cleaner, reducing time and effort needed for cleaning and service
- Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
- Less need to clean and remove buildup of material from underside deck
The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck
- Limited amount of material to drift onto the operator and mower deck
- Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
- Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

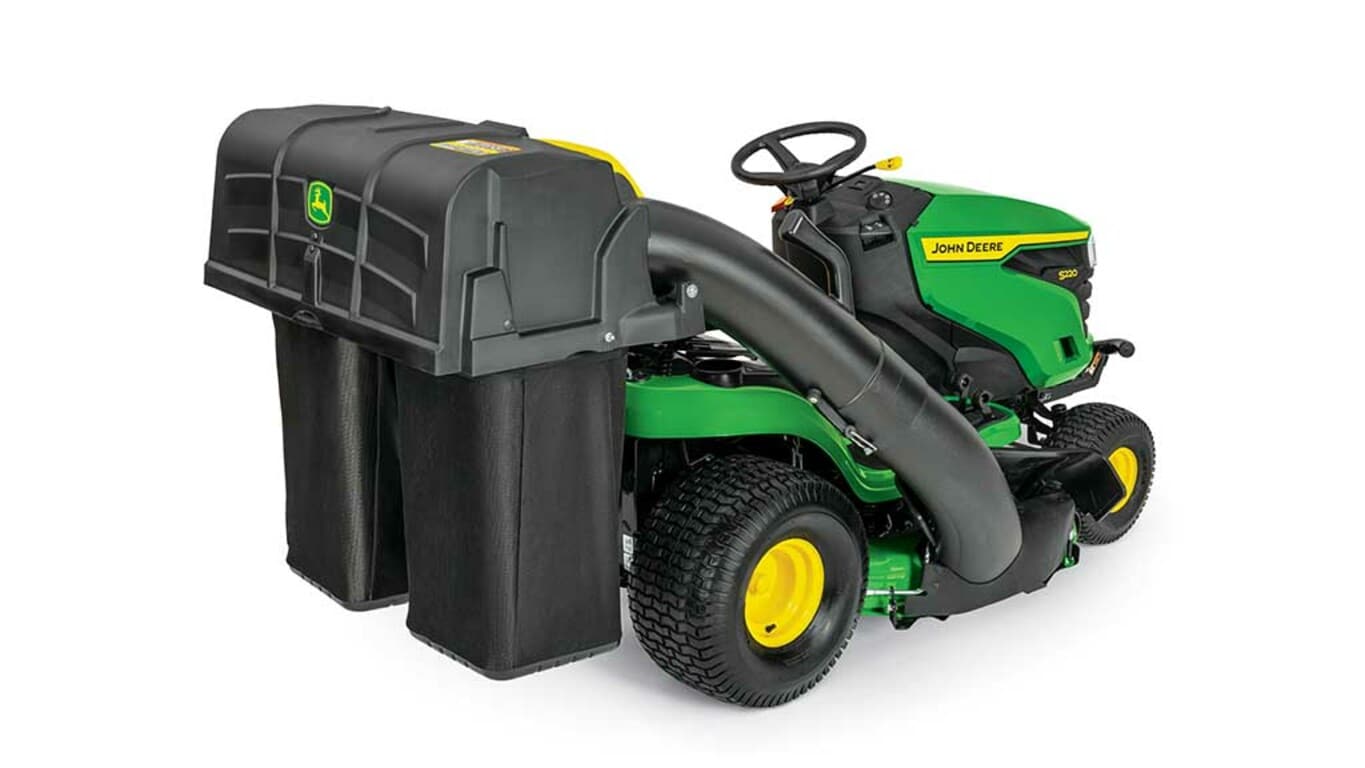

6.5-bu (229-L) rear bagger

Optional rear bagger

An optional 6.5-bu (229-L) cut-and-throw rear bagger material collection system (MCS) is available and comes with bagging blades. Special blades are not required but they can be installed for enhanced performance.

The bagger provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy.

Hose connector is included with the mower deck.

Superior durability is designed in

Hinged spindle pocket cover on the 42A Mower Deck

Mower deck wheels are double captured for durability

The 42A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

Ribs in the deck shell add strength where it is needed.
The 42A has a 16 percent heavier overall weight than the Edge™ Xtra 42-in. (107-cm) Mower Deck.

Mower wheels are double captured:

Provides greater strength and durability for longer, trouble-free life.
Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on the engines lower bearing and mower deck bearings for longer life.

Rolled outer edge of the deck provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge, mulch, and bagging modes

Rear MulchControl baffle (A) must be removed for bagging

Rear MulchControl baffle removed allows for chute installation

The 42A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

With an optional MulchControl system installed (along with the special mulching blades), changing from side discharging to mulching or vice versa is done with the simple flip of a lever or push of an electric switch.
The cut-and-throw rear bagger can be used with MulchControl by removing the rear MulchControl baffle (A) before installing the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.

Mower blades

Mower blades shipped with the rear bagger chute

High-lift bagging blades are included with the bagger chute. They provide optimum performance when bagging in difficult conditions, such as when the grass is moist, dense, or long:

High-lift bagging blades also work well when side discharging material.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging in most conditions.

Mower blade use chart

Mode(s) of operation	Mower blade
Side discharging mode only	Side-discharge blade (shipped with mower)
Bagging mode only	Bagging blade (shipped with rear bagger)
Mulching mode only	Mulching blade (shipped with MulchControl)
Side discharge and mulching	Mulching blade (shipped with MulchControl)
Side discharge and bagging	Bagging blade (shipped with rear bagger)
Side discharge, mulching, and bagging	Mulching blade (shipped with MulchControl)

48-in. (122-cm) Accel Deep™ (48A) Mower Deck cuts clean and is versatile

S220 with Accel Deep 48A Mower Deck

The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

4.83-in. (12.3-cm) depth throughout the entire deck shell allows for optimum mowing, mulching, and bagging performance.
- Optional MulchControl™ system provides superior mulching performance and versatility.
Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
Mower deck is suspended from the vehicle for a smooth and level cut.
- Adjustable mower wheels positioned just above ground level help reduce scalping.
0.25-in. (6.4-mm) cut-height increments allow mower to be set at the desired cut height
Compatible with high-performance Power Flow™ material collection system
