Quick Reference Guide
Maintenance Parts
X520 - 42" Mulch Mower Deck
X520 Lawn Tractor

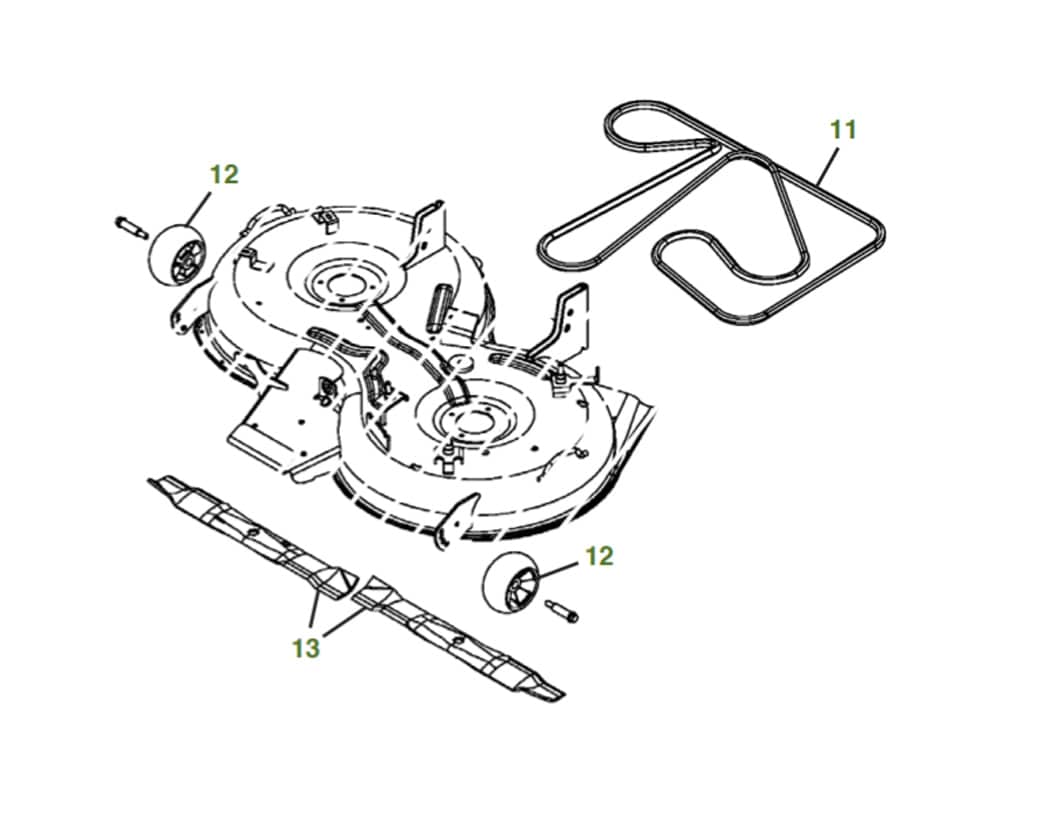

42" Mulch Mower Deck
Yearly Maintenance Kits
Home Maintenance Kit
Part Number LG251
Maintenance Parts
1 - Engine Oil Filter
| Part Number |
AM107423 |
| Qty |
1 |
2 - Filter - Fuel
| Part Number |
AM116304 |
| Qty |
1 |
3 - Air Filter - Paper
| Part Number |
MIU10905 |
| Qty |
1 |
3 - Air Filter - Paper
| Part Number |
MIU10906 |
| Qty |
1 |
4 - Key
| Part Number |
GY20680 |
| Qty |
1 |
5 - Ignition Switch
| Part Number |
AM133596 |
| Qty |
1 |
8 - Spark Plug (S/N 120001-)
| Part Number |
M805853 |
| Qty |
1 |
6 - Battery - Dry Charged
| Part Number |
TY25876 |
| Qty |
1 |
7 - Belt - Traction Drive
| Part Number |
M151276 |
| Qty |
1 |
11 - Belt - Mower (S/N -150000)
| Part Number |
M153160 |
| Qty |
1 |
10 - Fuel Cap
| Part Number |
AM137724 |
| Qty |
1 |
12 - Gage Wheel
| Part Number |
M111489 |
| Qty |
1 |
As Needed Parts
Mower Deck Leveling Gauge
| Part Number |
AM130907 |
| Qty |
1 |
13 - Mulch Kit
| Part Number |
BM21816 |
| Qty |
1 |
Grease Gun
| Part Number |
TY26518 |
| Qty |
1 |
13 - Kit - Low Lift 42”
| Part Number |
AM140332 |
| Qty |
1 |
13 - Kit - Mulching 42”
| Part Number |
AM140973 |
| Qty |
1 |
13 - Kit - Mulching 42”
| Part Number |
AM140973 |
| Qty |
1 |
