Quick Reference Guide
Maintenance Parts
X520 - 54" Mower Deck
X520 Lawn Tractor
54" Mower Deck
Yearly Maintenance Kits
Home Maintenance Kit
Part Number LG251
Maintenance Parts
1 - Engine Oil Filter
| Part Number |
AM107423 |
| Qty |
1 |
2 - Filter - Fuel
| Part Number |
AM116304 |
| Qty |
1 |
3 - Air Filter - Paper
| Part Number |
MIU10905 |
| Qty |
1 |
3 - Air Filter - Paper
| Part Number |
MIU10906 |
| Qty |
1 |
4 - Key
| Part Number |
GY20680 |
| Qty |
1 |
5 - Ignition Switch
| Part Number |
AM133596 |
| Qty |
1 |
8 - Spark Plug (S/N 120001-)
| Part Number |
M805853 |
| Qty |
1 |
6 - Battery - Dry Charged
| Part Number |
TY25876 |
| Qty |
1 |
10 - Fuel Cap
| Part Number |
AM137724 |
| Qty |
1 |

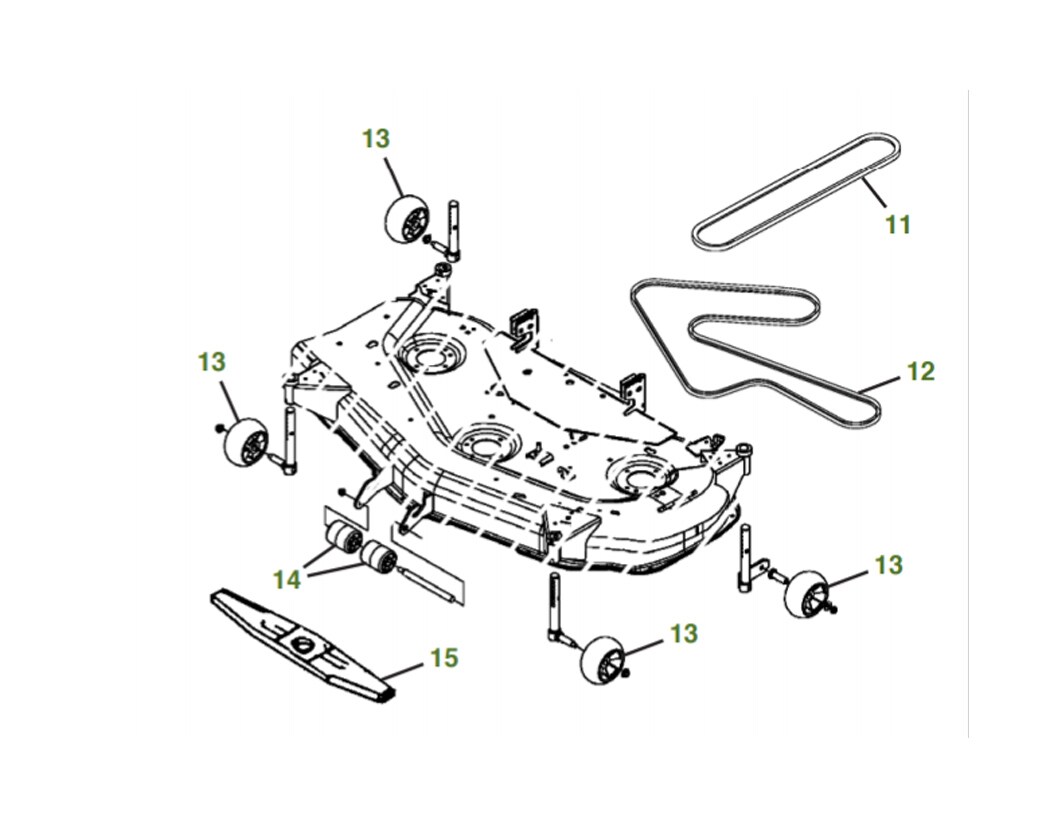

11 - Belt - Mower - Primary (S/N 150001-)
| Part Number |
M172924 |
| Qty |
1 |
12 - Belt - Secondary Deck Drive Belt
| Part Number |
M154960 |
| Qty |
1 |
13 - Gage Wheel
| Part Number |
M111489 |
| Qty |
1 |
14 - Front Roller
| Part Number |
M113955 |
| Qty |
1 |
15 - Mulch Kit
| Part Number |
BM20007 |
| Qty |
1 |
15 - Blade - Side Discharge
| Part Number |
M143520 |
| Qty |
1 |
15 - Blade - Mulching 54”
| Part Number |
M145516 |
| Qty |
1 |
15 - Blade - High Lift 54”
| Part Number |
M152726 |
| Qty |
1 |
As Needed Parts
Mower Deck Leveling Gauge
| Part Number |
AM130907 |
| Qty |
1 |
Grease Gun
| Part Number |
TY26518 |
| Qty |
1 |
