Quick Reference Guide
Maintenance Parts
X530 - 54" Mower Deck

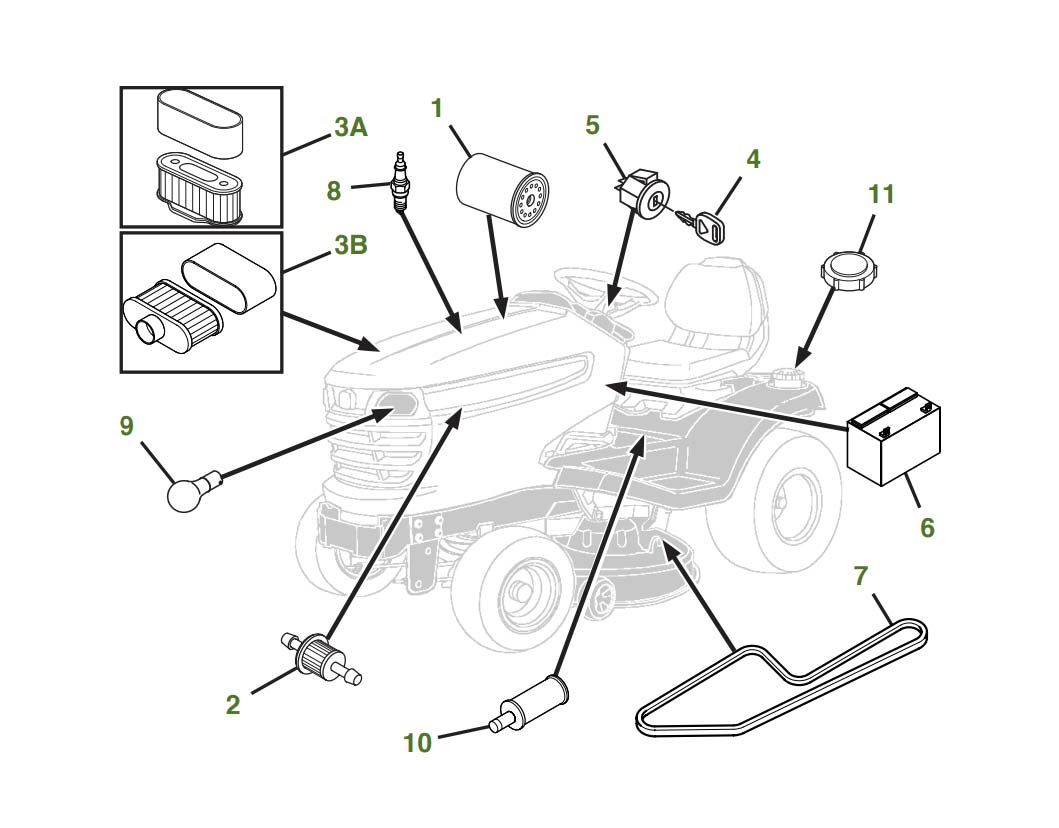

X530 Lawn Tractor

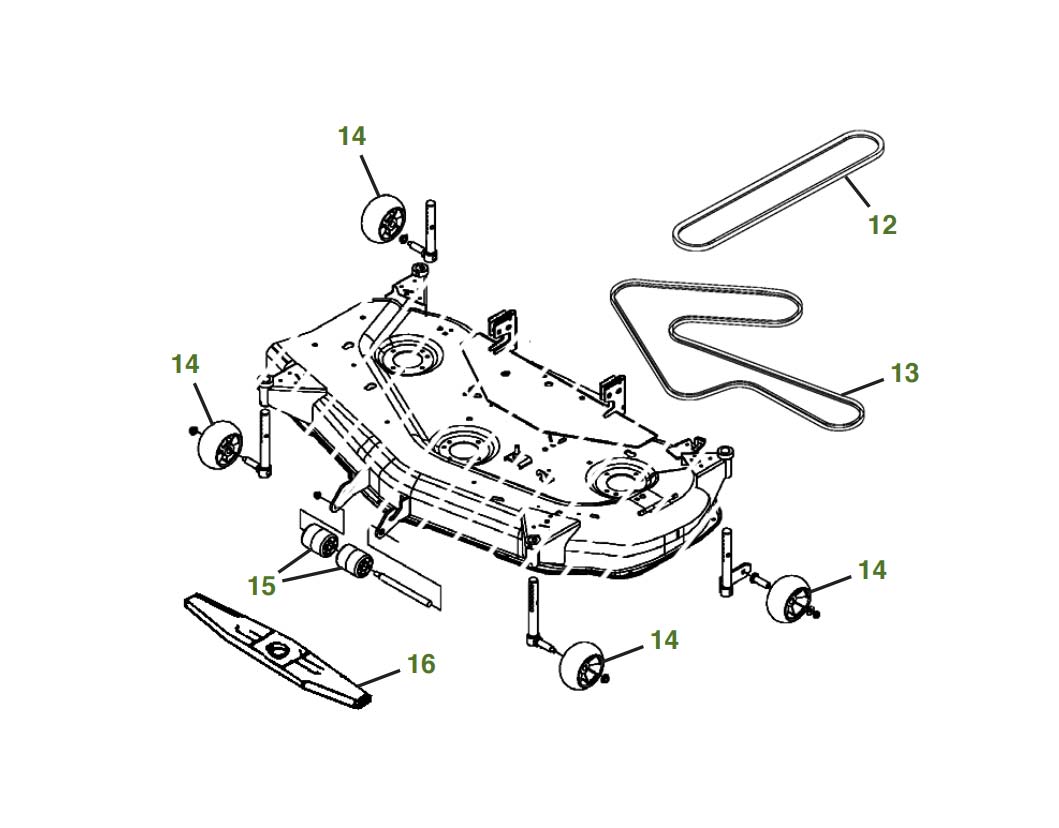

54" Mower Deck
Yearly Maintenance Kits
Home Maintenance Kit
Part Number LG249
Home Maintenance Kit
Part Number LG265
Maintenance Parts
1 - Engine Oil Filter
| Part Number |
AM107423 |
| Qty |
1 |
1 - Engine Oil Filter
| Part Number |
AM125424 |
| Qty |
1 |
2 - Filter - Fuel
| Part Number |
AM116304 |
| Qty |
1 |
3A - Air Filter - Foam
| Part Number |
M140295 |
| Qty |
1 |
3A - Air Filter - Paper
| Part Number |
M150949 |
| Qty |
1 |
3B - Air Filter - Foam
| Part Number |
MIU12554 |
| Qty |
1 |
3B - Air Filter - Paper
| Part Number |
MIU12555 |
| Qty |
1 |
10 - Transmission Filter
| Part Number |
MIA881446 |
| Qty |
1 |
4 - Key
| Part Number |
GY20680 |
| Qty |
1 |
8 - Spark Plug (S/N 120001-)
| Part Number |
M805853 |
| Qty |
1 |
11 - Fuel Cap
| Part Number |
AM137724 |
| Qty |
1 |
11 - Fuel Cap
| Part Number |
AM141406 |
| Qty |
1 |
As Needed Parts
1 Qt - Engine Oil Turf-Gard™ 10W-30
| Part Number |
TY22029 |
| Qty |
7 |
6 - Battery - Dry Charged
| Part Number |
TY25876 |
| Qty |
1 |
7 - Belt - Traction Drive
| Part Number |
M151276 |
| Qty |
1 |
12 - Belt - Mower - Primary (S/N 150001-)
| Part Number |
M172924 |
| Qty |
1 |
13 - Belt - Secondary Deck Drive Belt
| Part Number |
M154960 |
| Qty |
1 |
15 - Front Roller
| Part Number |
M113955 |
| Qty |
1 |
16 - Kit - Mulching Attachment 54”
| Part Number |
BM20827 |
| Qty |
1 |
Mower Deck Leveling Gauge
| Part Number |
AM130907 |
| Qty |
1 |
16 - Blade - Side Discharge
| Part Number |
M143520 |
| Qty |
1 |
16 - Blade - Mulching 54”
| Part Number |
M145516 |
| Qty |
1 |
16 - Blade - High Lift 54”
| Part Number |
M152726 |
| Qty |
1 |
Grease Gun
| Part Number |
TY26518 |
| Qty |
1 |
