Quick Reference Guide

Maintenance Parts

Z335M - 42" Mower Deck

Z335M Residential Ztrak Zero Turn Mower
Z335M Residential Ztrak Zero Turn Mower
42" Mower Deck
42" Mower Deck

Yearly Maintenance Kits

Home Maintenance Kit

Part Number LG276

Available to buy on partscatalog.deere.com

Shop This Website

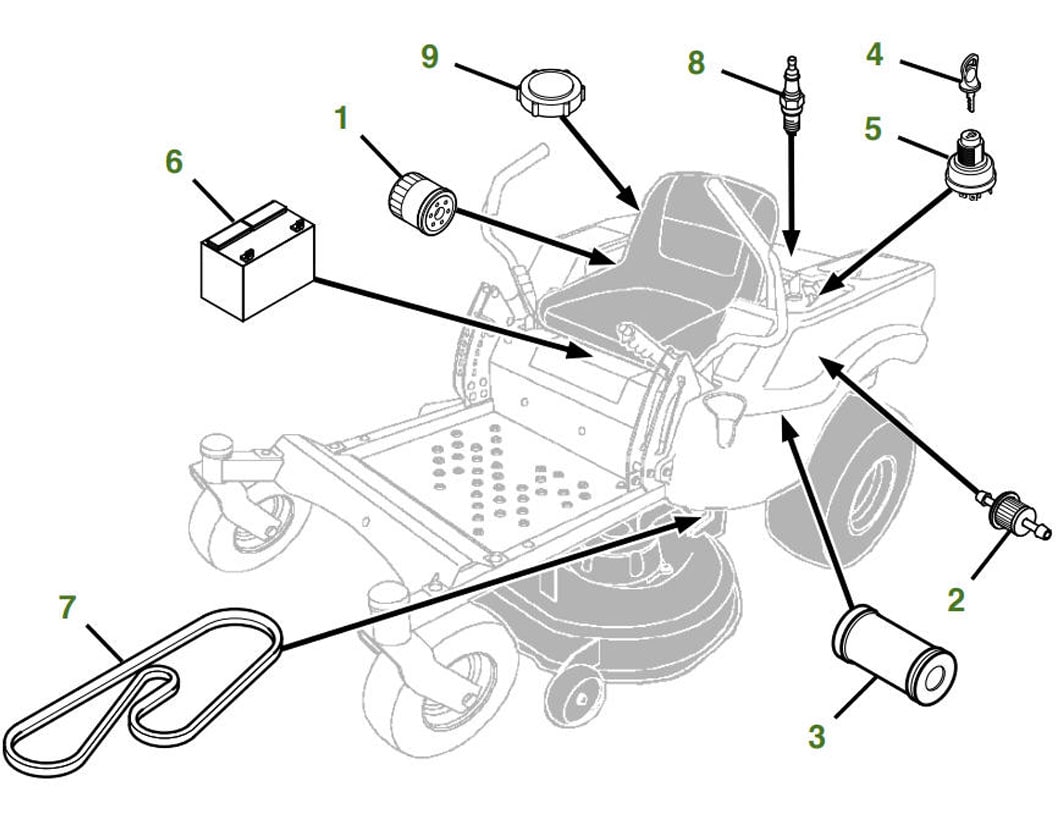

Maintenance Parts

1 - Engine Oil Filter

Part Number AM125424
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

2 - Filter - Fuel

Part Number AM116304
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

3 - Air Filter

Part Number MIU14395
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

4 - Key

Part Number AM125504
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

5 - Ignition Switch

Part Number TCA22740
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

8 - Spark Plug

Part Number MIU11020
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Battery

Part Number TY25221
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Switch - Headlight (opt)

Part Number AM117324
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Ignition Key

Part Number AUC12681
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Relay

Part Number M169838
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Starter

Part Number MIU13772
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

PTO Clutch

Part Number AM141536
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

PTO Switch

Part Number AM147972
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

9 - Fuel Cap

Part Number GX23465
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Filler Cap

Part Number AUC12860

Available to buy on partscatalog.deere.com

Shop This Website

As Needed Parts

7 - Traction Drive

Part Number GX26401
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

10 - Belt

Part Number GX25628
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

11 - Gage Wheel

Part Number GX10168
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Tires 18x8.50-8

Part Number M154031
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Wheel/Tire-Caster

Part Number GY22451
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Pulley

Part Number M151720
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Wheel/Tire-Caster

Part Number GX26380
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Idler

Part Number AUC10172
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Coupler

Part Number GX22425
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Port

Part Number GX22426
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Spring

Part Number GX25978
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Spindle

Part Number AM144608
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Mower Deck Leveling Gauge

Part Number AM130907
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

12 - Blade - Mulching

Part Number M170642
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

12 - Blade - Bagging

Part Number GX25668
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

12 - Blade - Side Discharge Blade - Standard

Part Number M170639
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

13 - Mulchcontrol™ Kit

Part Number BM24794
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

1 Qt - Engine Oil Turf-Gard™ 10W-30

Part Number TY22029
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

John Deere Multi-Purpose HD Lithium Complex Grease

Part Number TY24416
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website

Grease Gun

Part Number TY26517
Qty 1

Available to buy on partscatalog.deere.com

Shop This Website
