77%1 Average Herbicide Savings
Targeted spray + broadcast spray
As-Applied Maps and Savings
Cover your fallow fields with advanced camera and nozzle-control technology to spray only weeds.
IMPROVED COST EFFICIENCY
77%1 Average Herbicide Savings
By only spraying weeds, you'll reduce your herbicide use and lower your input cost per pass. Or, invest your savings into more advanced tank mixes to gain cost efficiency in your spraying applications.
Reduce Herbicide Use
See & Spray™Select delivers a targeted spay to weeds, applying herbicide only where needed. Plus, our ExactApply nozzle control technology helps reduce potential drift.
See how you get Targeted and Broadcast Spray capabilities in one sprayer, with Targeted Spraying achieving a similar hit rate to Broadcast Spraying.
Scan Fallow Ground
When using the targeted spray, small cameras integrated into the boom continuously scan the field and send data to the sprayer’s vision processing unit.
VISION PROCESSING UNITS
See & Spray Selects processors detect the colour green, applying non-residual herbicide only on weeds.
Activate only Nozzles Needed
Once weeds are identified, specific nozzles are activated to target spray them. The number of nozzles activated can vary based on weed pressure within that area of the field. When necessary, the sprayer can switch from Targeted Spraying to Broadcast Spraying, all with the push of a button on the in-cab display.
Spray At Night
Spray when the conditions are right with additional lighting. With a light above every camera, the sprayer can target spray day and night.

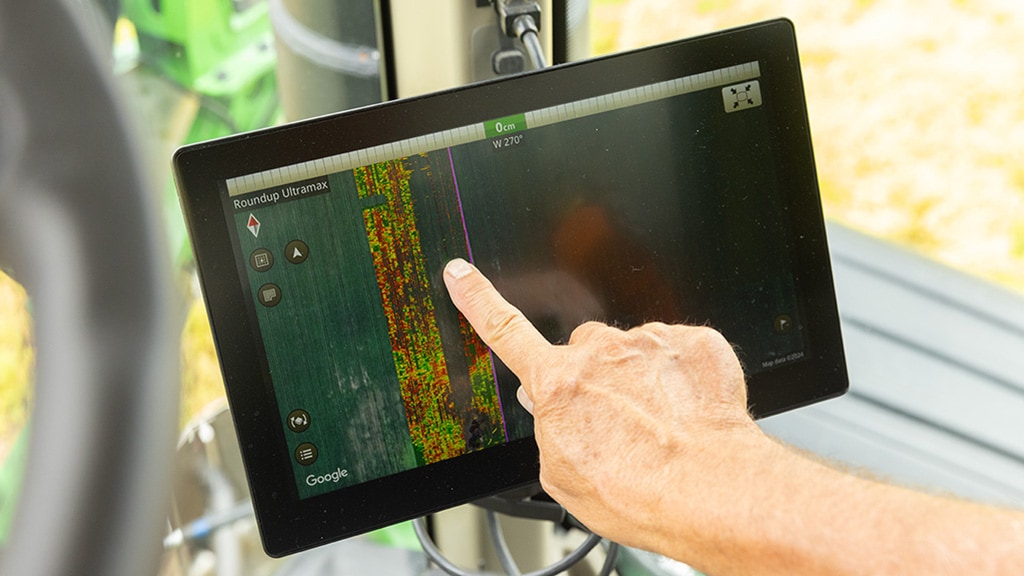

As-Applied Coverage Maps
Record Where Herbicide Was Applied
Using the in-cab display, See & Spray Select documents where herbicide was applied. In addition, the display provides a coverage map of the area travelled where herbicide was not applied. This documentation is streamed to your John Deere Operations Center™ account, and enables you to track performance data and savings, to make informed decisions in your weed management program.
Select to Learn More About Key Features
See & Spray Ultimate detects weeds among corn, soybean, and cotton plants. It uses cameras, processors, a carbon-fiber truss-structure boom and a dual product tank. It enables targeted application of non-residual herbicides on weeds within corn, soybean and cotton fields. It can also be used for traditional broadcast spraying.
See & Spray Select is for use in fallow ground only. It uses a colour-detecting technology to identify green plant material on brown soil and then target sprays herbicide on green areas. See & Spray Select can revert to broadcast spraying when weed pressure warrants.
Reference chart below for features:
|See & Spray Select||See & Spray Ultimate|
|See & Spray + Broadcast (single tank)||X||X|
Dual Product Solution System / Split Tank
(NOTE:ability to combine tanks to use as full capacity See & Spray or broadcast)
No. See & Spray Select is a factory-install option only.
120 ft. (36.6 m) steel booms are available on See & Spray Select.
See & Spray Select is focused on fallow ground or traditional broadcast application.
No, model Year 2022 Sprayers equipped with See & Spray Select cannot spray at night.
1. Based on tank-level sensor values taken at a steady state on John Deere sprayers equipped with and without See & Spray™ Select, before and after covering 75,000 acres of fallow ground with a typical weed pressure of 3,000 weeds per acre, using small and medium spray-length settings starting at 2.3 to 3.2 ft. (0.7 to 1 m) and average growing conditions (seasonal precipitation and temperature) across the US and Canadian plains and Australian farms. Spray-length settings varied based on ground speed, spray pressure, and boom height. Sprayers were equipped with current hardware and software at time of study. Individual results may vary based on field and growing conditions, weed pressure, spray-length settings, and software version.
2. See & Spray targeted spray application uses broadcast product label instructions.
3. Internal John Deere study comparing fuel consumption of sprayers equipped with and without CommandDrive™ all-wheel drive. CommandDrive™ reduces fuel consumption up to 20% when operating in Auto Mode. Individual results may vary.
4. Internal John Deere study comparing chemical usage between sprayers equipped with and without the ExactApply nozzle-control system. ExactApply is an optional feature and can reduce chemical usage from 2 to 5%. Individual results may vary.
