Undercarriages

We Back Your Tracks

The honest truth is that when it comes to undercarriages, all you need to remember is: John Deere builds them better and John Deere backs them better. Choose from three different undercarriages to best fit the needs of your operation.

  • John Deere Heavy Duty Undercarriage
  • John Deere Extended Life Undercarriage
  • John Deere Maximum Life Undercarriage

Key Features

Staggered Rollers

With staggered roller design, undercarriages have increased durability, less vibration, and a much smoother ride.

Track Shoes

John Deere track shoes are tough as nails because they're made of through-hardened boron steel. Available in a wide selection of shoe configurations, you can choose a shoe tailor-made for your application.

Track Rollers

Forged from a boron steel alloy then through-hardened to a good core hardness, our track rollers prevent bushings from loosening. We also deep heat treat the roller outside diameter for maximum wear life.

Track Links

Track links also forged from a boron-steel alloy allow deeper heat-treating, which helps keep the pins and bushings from loosening even in severe applications.

Compare Undercarriages

Savings are significant when you opt for the John Deere Maximum Life Undercarriage. In fact, tests* show the combination of SC-2 bushings, larger components, and improved seals deliver 57% per hour cost savings over standard sealed and lubed track.

ProductJohn Deere Heavy Duty UndercarriageJohn Deere Extended UndercarriageJohn Deere Maximum Life Undercarriage

Features

Life - 2,000 hours
Turn at 900 hours

Life - 3,000 hours
Turn at 1,400 hours

Life - 4,500 hours
Turn at 2,200 hours

Technology

Standard sealed and lubed track.

Extended life track chain with SC-2 bushings.

Extended life track chain with SC-2 bushings and seals plus larger components.

Cost reduction from Standard Undercarriage



29%

57%

*Cost reduction based on tests completed in wet, abrasive soils, similar to central Florida.

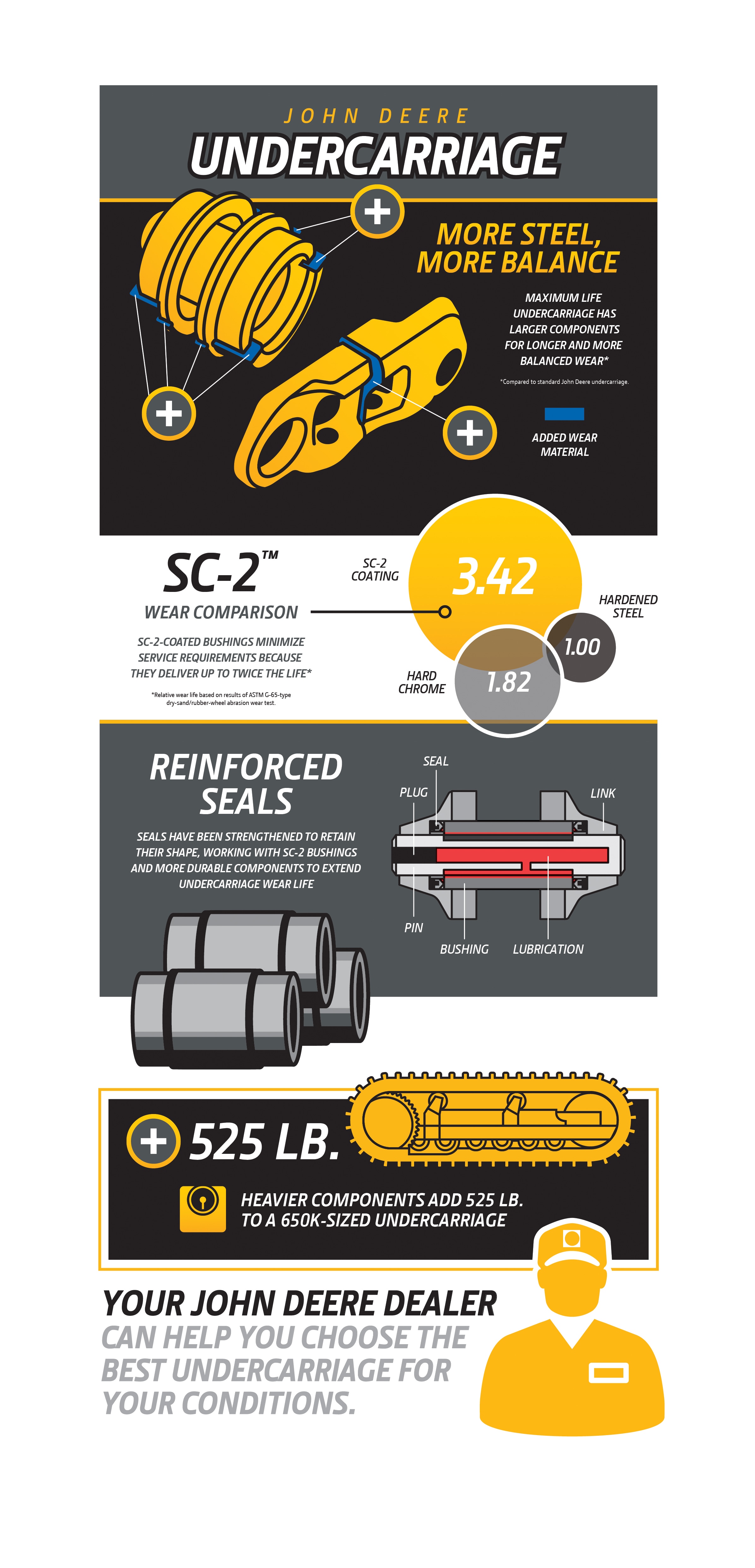

Maximum Life Undercarriage

This system combines our popular and exclusive SC-2™ coated bushings with dramatically improved seals and larger, longer-wearing components to deliver significantly longer and more even wear.

We designed this undercarriage to withstand up to 4,500 hours in wet, highly abrasive soil. And with bushings, seals, and larger components working together as a system, wear life is longer and occurs more uniformly between all system components.

Rubber tracks close up image view.

John Deere Rubber Tracks

We’ve improved the roller-path life, steel-cord durability, and metal-core adhesive strength of our rubber tracks over the previous version. They’re designed for trouble-free operation and simple maintenance.

Flexible financing options make it easy to replace or convert to rubber tracks, while our new machine and service parts warranty covers up to 18 months or 1,500 hours — whichever comes first — against material or manufacturer defects.

Credit & Financing

John Deere Financial offers you value that no other lender can – a deep understanding of your business, equipment expertise, and personal solutions to make owning and operating equipment easy and affordable.

Buy Undercarriages

Talk to your John Deere Dealer to learn more about purchasing our Max Life Undercarriage and SC-2 coated bushings.
