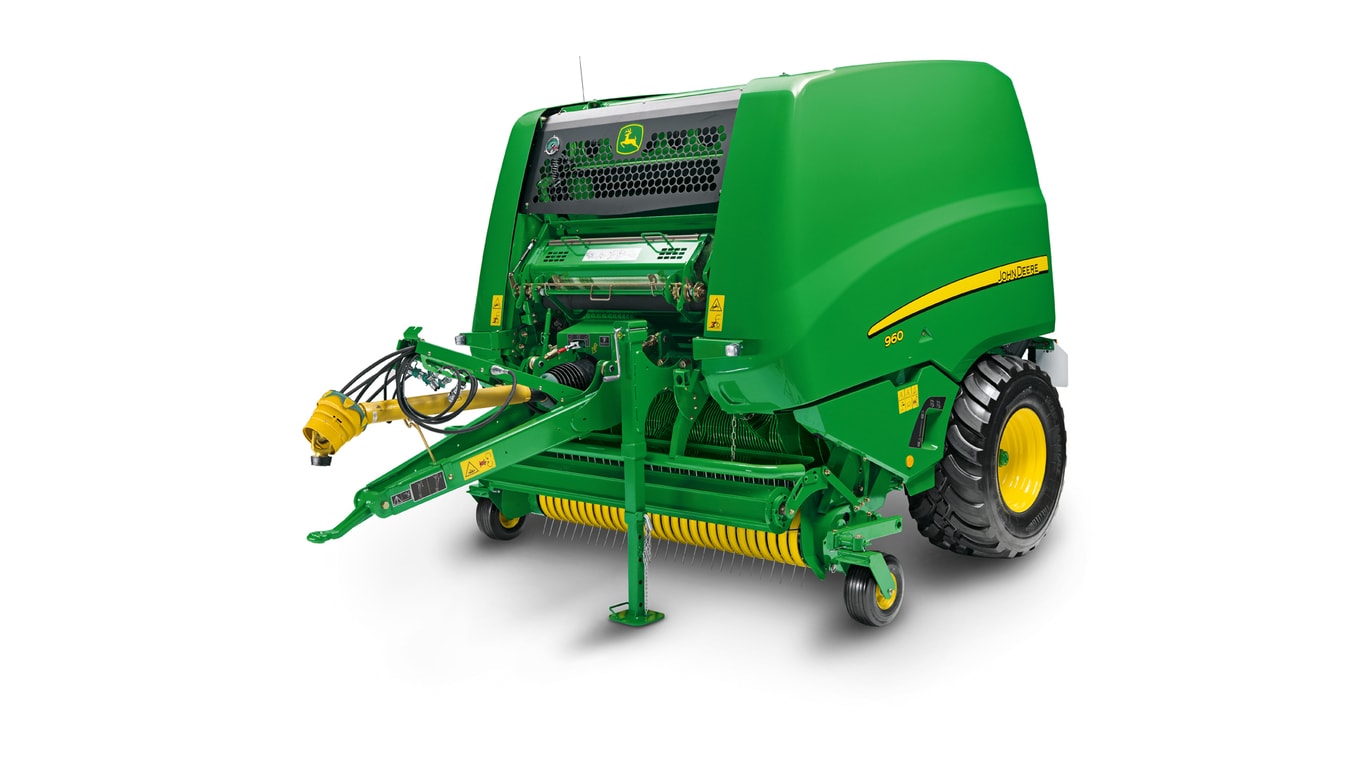

960Round Baler
- Creates 4' x 5' bales
- Precutter: MaxiCut HC 13 or 25 knife options
- Full-width hydraulically operated drop floor
Features
Expand All
Collapse All
FRS - no gate system
A light structure for fast opening
Side of the chamber moves
990 center of gravity (red) vs. 864 (blue)
Rear canvas avoids direct contact to belts
Unloading ramp gives smooth/fast bale ejection
2.2-m (7.2-ft) pickup width to fit the widest windrows
Large diameter stripper and five tine bars
Converging augers are now integrated onto the rotor
MaxiCut™
Knives set selection from the monitor
Drop floor covers rotor full width
Parallel kinematics avoids narrowing
The widest belts in the market
Two starter rolls plus one bale chamber roll
Offset density arm gives tension to the belts
Movable side sheets = no contact
1.21 m (4 ft) width bales = more volume
Net is directly fed between the rolls
Easy net loading
Bales wrapped with CoverEdge net
Two arms with twine cut at the center of the bale
Enough twine and net for a long day
Steel full frame an industry first
All components are cradled into the full frame
Tractor baler automation display screen
Crossbeam design
Few sprockets and chains for easy maintenance
High-capacity oil tank reduces refills
Automatic greasing device is easily refilled
Greasing parameters are set from the display
Less than 5 seconds to unload baler with the fast release system (FRS) boosts productivity
No gate, no wait
FRS - no gate system
A light structure for fast opening
Unloading is unproductive time. With the FRS, the 990 and 960 Balers offer less than 5 seconds unloading time, thereby, reducing bale ejection cycle time, allowing more bales per day. Some competitors require up to 10 more seconds to unload. That means the 900 Series Balers can finish a field one hour earlier than a competitive model based on a 10-hour day.
FRS provides a light structure that opens the chamber quickly and removes belts from the bale. FRS does not require a heavy structure. The FRS gate applies no friction to the side of the bale, allowing the bale to drop quickly unlike competitive machines. There is little stress transmitted to FRS, which can be more than two times lighter than traditional heavy gates. Opening and closing cycles are significantly faster without risk of breakage and with low power requirements.
Moving side sheets release the bale faster
Side of the chamber moves
Moving sidesheets help avoid the bale from getting stuck in the chamber. When the light structure opens, each side of the chamber automatically moves two inches. Thus, there is no more contact between the bale and the chamber; the bale is released and quickly falls by its own weight. Even in the worst wet conditions, the unloading process is as efficient as in dry straw.
FRS improves stability in slopes
990 center of gravity (red) vs. 864 (blue)
Opening the gate on steep hills with a traditional bale may cause instability. The 900 Series offers safe unloading conditions even in hilly fields.
Without a heavy gate to lift during bale release, the center of gravity hardly moves during the opening process. The global height of the baler stays low and allows ample distance from electrical wires.
Rear canvas protection gives security.
Rear canvas avoids direct contact to belts
To prevent direct contact between operator and belts when machine is operating, a rear canvas is lowered during the baling process. The protective rear canvas automatically rises during bale unloading.
Unloading ramp gives productivity
Unloading ramp gives smooth/fast bale ejection
Optional unloading ramp gives a smooth and fast bale release without reversing tractor-baler combination. By avoiding this additional reverse move, global baler productivity is increased. With ramp extensions, there is no risk of hitting bales when closing the FRS.
The 900 Series unloading ramp links to the frame by a shock absorber, allowing the bale to be smoothly discharged on the ground. With the additional spring, the ramp can quickly return and be firmly hanged in upper position during baling process and road transport, even on uneven ground.
High capacity feeding system grabs the toughest swaths
New pickup design improves capacity and durability
2.2-m (7.2-ft) pickup width to fit the widest windrows
Large diameter stripper and five tine bars
The 900 Series Balers offer a new pickup design with increased capacity. All balers are equipped with an 2184-mm (86-in.) wide pickup to match the swaths.
The large-diameter strippers have five tine bars in the pickup instead of four.This increases the capacity by more than 10 percent while reducing rotating speed 12 percent, increasing reliability. Heavy-duty tine bars also provide extended durability to the pickup.
High capacity (HC) rotor for higher productivity
Converging augers are now integrated onto the rotor
MaxiCut™
The 900 Series Balers offer huge feeding capacity due to the HC rotor design. Converging augers are now integrated with the rotor limiting free space between pickup teeth and rotor. Plugging risk is reduced and crop feeding is highly improved. This new design along with a large diameter rotor is particularly efficient in the toughest crops or in difficult conditions, such as crossing windrows.
The simple HC rotor design also reduces the number of moving parts. Loads are distributed all along the rotor increasing overall reliability.
The 990 and 960 Balers are available only with a precutter, offering space between knives as short as 40 mm (1.6 in.).
|
MaxiCut HC 13 |
MaxiCut HC 25 |
Number of knives |
0/13 |
0/12/13/25 |
Knife spacing |
No cutting / 80 mm (3.1 in.) |
No cutting / 80 mm (3.1 in.) / |
Best use |
Silage, hay, straw |
Silage, hay, straw |
Knives set selection from the monitor
Crop cutting width can easily be adjusted from the cab. A single touch on the screen allows one to engage or disengage all the knives. When equipped with MaxiCut HC 25, half of the knives can also be engaged.
This system offers the use of two different sets of knives for the same cutting width. For example, a set of 12 knives can be used in the morning and a second set of 13 knives can be used in the afternoon. By using two sets of knives, you will always bale with sharp knives, helping to increase productivity and fuel efficiency. This knife selection option allows for longer intervals between sharpening knives.
New advanced drop floor removes the worst plugs
Drop floor covers rotor full width
Parallel kinematics avoids narrowing
Drop floor makes removing plugs easy, even the ones under converging augers. The new design covers all the rotor width, so wherever a plug occurs, the unplugging device allows a 40-mm (1.6-in.) free space. This space is enough to decompress the crops and feed the plug into the baler.
New parallel kinematics provide a consistent 40-mm (1.6-in.) space on the entire drop floor eliminating narrow pinch points like the front-hinged drop floors have.
Put more crop in a bale with the MaxD bale chamber
The widest belts in the market
MaxD bale chamber features wide endless belts to maximize bale density and reduce crops losses.
- The two 571.5 mm (22.5 in.) wide belts increase bale coverage by around 4 percent, thereby reducing possible crop losses between each belt. Wide belts enable an excellent bale shape and grab the crop firmly.
- The endless belts have increased durability at high pressure compared to spliced belts. High tension can be applied for a long time without the risk of breaking a belt, reducing the need for maintenance.
Three powered rolls for easy bale starting and excellent bale shape
Two starter rolls plus one bale chamber roll
MaxDensity (MaxD) bale chamber features three powered rolls to improve versatility and bale quality:
- The three powered rolls facilitate bale starting, especially in wet conditions such as silage. Forage is immediately turned into the chamber and there is no slipping risk even with the heaviest bales.
- Rolls are positioned to give the bale a good round shape, regardless of the bale diameter, the core is ideally centered.
- As belts push crops against rigid steel rolls, high pressureis easily applied, providing high-density bales.
Offset tensioning arms transmit high density.
Offset density arm gives tension to the belts
The 900 Series offers a new tension system that transmits high density to the bales. The heavy-duty offset arm gives tension to the arm and is not involved in belt length compensation. One hundred percent of hydraulic power is involved in belt tensioning.
Movable side sheets: push bale density to max without sticking risk
Movable side sheets = no contact
Baling silage provides tough baling conditions which can cause bales to stick in the chamber. With conventional balers, density may need to be reduced so bales do not stick. The 900 Series Balers have the new MaxD bale chamber that avoids contact between bale sides and baler side sheets when unloading, an industry first. Full density can be set for different crop types. No need to decrease bale density,as the bale unloads within five seconds.
Wider chamber to put more crop in a bale
1.21 m (4 ft) width bales = more volume
MaxD bale chamber produces 1.21 m (4 ft) wide bales, which means the 900 Series provides 3.5 percent more volume than the 800 Series. More volume and more density will no doubt reduce harvest handling and shipping costs. In addition, the maximum bale diameter is increased by 50.8 mm (2 in.), which increases bale volume up to 10 percent compared to the 800 Series Balers. More volume and more density reduce harvest handling and shipping costs.
Advanced net system gives excellent bale wrapping
Duckbill design feeds the net into the chamber
Net is directly fed between the rolls
The 900 Series Balers feature a patented high-efficiency net tying system. The new design does not have traditional rubber feeding rollers that can sometime cause net plugs. A duckbill pinches the net that is directly fed between the two front rolls of the bale chamber. The net is caught by the bale and covers the bale. An exclusive knife and counter knife system ensures an accurate net cut and avoids irregular net tears.
User friendly net system
Easy net loading
The net system is very efficient and easy to use. A tray is conveniently located on the front of the machine which allows for easy net loading.The front location also makes it easy to visually check the net applying process from the cab. The John Deere system does not require a special tool to feed the duck bill. Two hands and 10 seconds is all it takes to change a net roll.
As with other John Deere variable chamber balers, all parameters (twine/net, number of turns) are quickly set from the display.
In order to optimize productivity, daily maintenance for the 900 Series net tying system is not necessary. It is nearly maintenance free.
CoverEdge™ compatibility gives the best bale protection.
Bales wrapped with CoverEdge net
CoverEdge net offers the best bale coverage for the 900 Series Balers. This exclusive John Deere net wrap covers the bale well, overlapping the edges 51-102 mm (2-4 in.) to better protect the bale against weather conditions.
The John Deere CoverEdge net is recommended for the 900 Series Baler. However, the net tying system is compatible with most net types and brands on the market.
Efficient two arms twine tying system
Two arms with twine cut at the center of the bale
For more versatility, a new patented twine tying system has been specially designed for 900 Series Balers. Two arms efficiently feed the twine between the two front rolls in bale chamber. Tying process ends at the center of the bale where twine is cut for a great bale finish.
High volume storage limits pit stop
Enough twine and net for a long day
To maximize productivity and reduce downtime, an optional storage box is available for each side of the baler. The optional storage boxes hold four net wrap rolls (two in each box). If baler is equipped with the twine tying system, the optional storage boxes hold 10 twine balls (five in each box).
Full-frame design gives increased durability
Steel full frame an industry first
The 900 Series Balers are the first to use a dedicated full frame to hang all the components resulting in greater durability. All load, shocks and stress that are encountered are carried by the frame, not any individual component.
Dedicated frame decreases baler stress
All components are cradled into the full frame
Due to the exclusive design on the 900 Series, much of the stress is directly transmitted to the full frame giving greater reliability. On a traditional baler, there is no dedicated frame and the baler receives stress from:
- Belt tensioning system
- Bale pressure on sides
- Total baler weight
- Potential plugs
- Road transport
- Shocks due to uneven ground
On the 900 Series the bale chamber is isolated from all those constraints giving it a longer life.
Let the baler do the work with Tractor Baler Automation
Tractor baler automation display screen
Are you able to open the baler gate immediately at the tone more consistently than a machine from bales 1 to 100? What about from bales 300 to 500, or in the middle of the night after you already put in a 10-hour day?
Due to shrinking management windows and growing workloads, it’s more important than ever to reduce operator fatigue and maintain efficiency. Baling operations have become complex, and it’s easy to make mistakes after a long day of baling. Eliminate baling errors, get more hay baled, and get home sooner when using Tractor Baler Automation (TBA).
- Tractor Baler Automation is free
- Model year 2016-2017 469/569 Premium Round Balers and model year 2018 and newer 460R and 560R Round Balers leave the factory with Tractor Baler Automation already activated.
- For model year 2013-2015 469/569 Premium Round Balers, contact a dealer to enable Tractor Baler Automation.
- Contact a dealer for tractor compatibility.
- Reduce the number of baling tasks
- TBA level 1 – The baler opens and closes the gate automatically after the tie cycle.
- TBA level 2 – If the tractor has an infinitely variable transmission (IVT™) or e23™ transmission (7R only), the baler will command the tractor to stop then open and close the gate after the tie cycle.
- Reduce baling errors
- Less premature opening of the gate
- Fewer bales need to be unrolled and re-baled
- Save time as fatigue and bale count increases
Simple design allows easy maintenance and setup
Simple driveline gives reliability and reduces maintenance
Crossbeam design
Few sprockets and chains for easy maintenance
Less maintenance means more time available for baling. That is exactly what contractors and large farms need. The 900 Series Balers benefit from a simple design to reduce downtime. For example, the gearcase is no longer linked to the driveline by yokes. The gearcase is integrated to the frame (crossbeam design) with lubrication free bearings.
Also, fewer sprockets and fewer chains limit wear and potential downtime. Six chains drive all moving parts.
The 900 Series chains are heavy duty, giving up to 40 percent more durability.
Automatic chain lubrication gives simple daily maintenance
High-capacity oil tank reduces refills
Chains are critical components and need a regular and efficient lubrication. The 960 and 990 Balers offer an automatic chain lubrication pump as base equipment. This accurate system allows independent chain lubrication settings. All chains are continuously oiled for better durability, not just during gate opening like some competitors.
For best results, use environment friendly John Deere Bio Multiluber oil.
Automatic greasing offers error proof maintenance
Automatic greasing device is easily refilled
Greasing parameters are set from the display
Hurrying during daily maintenance can cause grease fittings oversight and potential damage. The 960 and 990 Balers offer an optional automatic greasing device. This system provides grease to bearings that require daily greasing.
With ISOBUS technology, greasing parameters are easily and accurately adjusted from the display. Regular greasing gives longer parts durability resulting in better reliability. Grease tank capacity requires refill only once during harvesting season.
If optional automatic greasing device is not chosen, maintenance is facilitated by grease banks grouping the grease fittings.
