3029DF1202.9L Industrial Diesel Engine
- PowerTech™
- 43 kW (58 hp)
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|

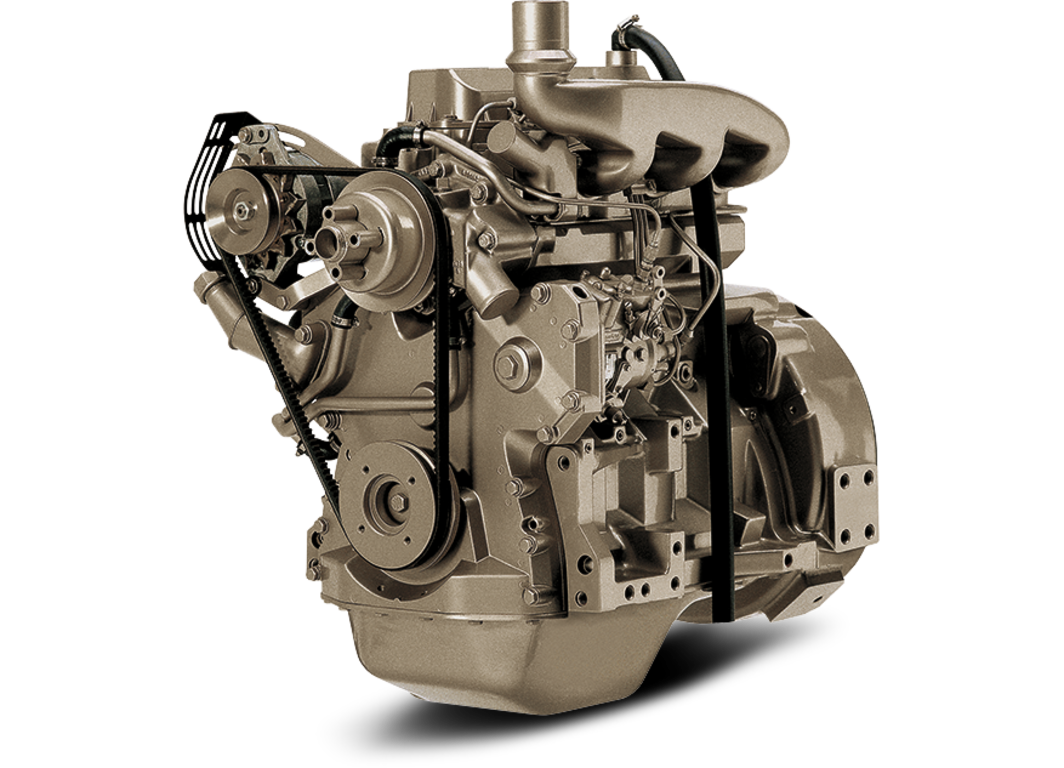

| John Deere 3029DF120 2.9L Industrial Diesel Engine |
Emissions certifications
| Non-Emissions Certified |
|---|
General engine data
| Model | 3029DF120 | |||
|---|---|---|---|---|
| Number of cylinders | 3 | |||
| Displacement-- L (cu in) | 2.9 (177) | |||
| Bore and Stroke-- mm (in) | 106 x 110 (4.17 x 4.33) | |||
| Compression Ratio | 17:2:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Naturally aspirated | |||
| Length - mm (in) | 716 (28.2) | |||
| Width-- mm (in) | 519 (20.4) | |||
| Height-- mm (in) | 819 (32.2) | |||
| Weight, dry - kg (lb) | 316 (697) |
Performance data range
| Intermittent - Rated power/Rated speed | 43 kW (58 hp) @2500 rpm | |||
|---|---|---|---|---|
| Intermittent - Peak power | 43 kW (58 hp) @2500 rpm | |||
| Intermittent - Peak torque | 193 N·m (142 ft-lb) @1400 rpm | |||
| Intermittent - Torque rise | NA |
