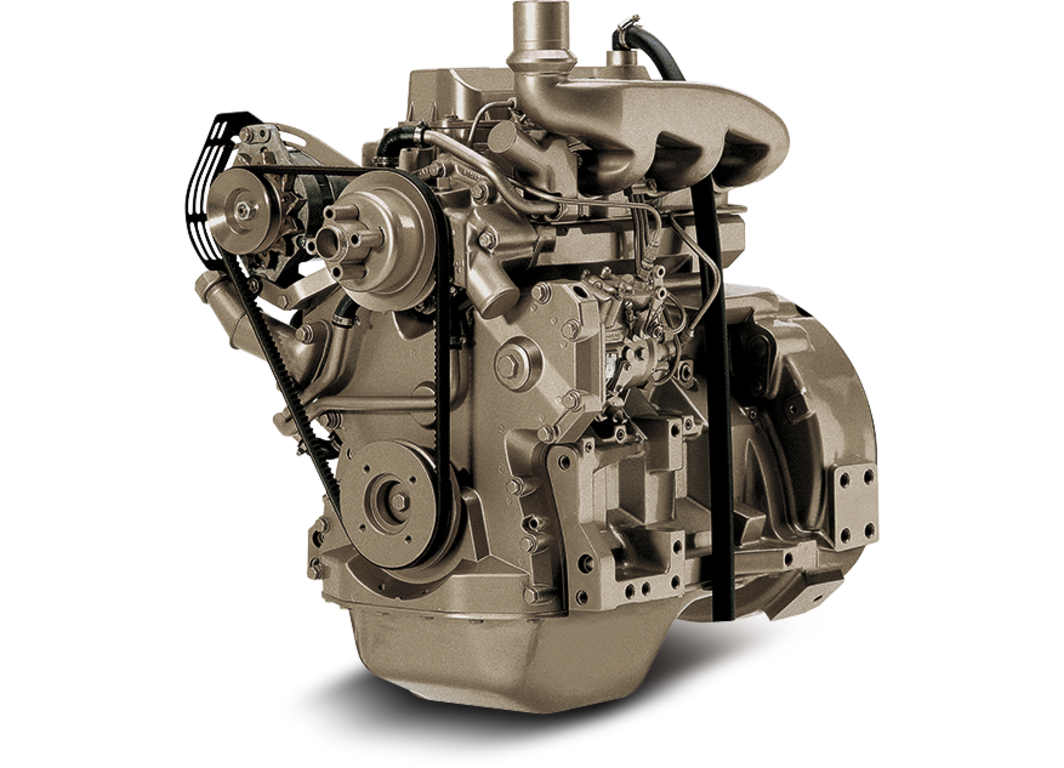

3029DF1502.9L Industrial Diesel Engine
- 2.9L PowerTech™
- 36 - 43 kW (48 - 58 hp)
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 3029DF150 2.9L Industrial Diesel Engine |
Emissions Certifications
| CARB | ||||
|---|---|---|---|---|
| EPA Tier 1 | ||||
| EU Stage I |
General engine data
| Model | 3029DF150 | |||
|---|---|---|---|---|
| Number of cylinders | 3 | |||
| Displacement-- L (cu in) | 2.9 (177) | |||
| Bore and Stroke-- mm (in) | 106 x 110 (4.17 x 4.33) | |||
| Compression Ratio | 17.2:1* | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Naturally aspirated | |||
| Length - mm (in) | 716 (28.2) | |||
| Width-- mm (in) | 528 (20.8) | |||
| Height-- mm (in) | 819 (32.2) | |||
| Weight, dry - kg (lb) | 317 (699) |
Performance data range
| Intermittent - Rated power/Rated speed | 36-43 kW (48-58 hp) @2500 rpm | |||
|---|---|---|---|---|
| Intermittent - Peak power | 37-43 kW (50-58 hp) @2400-2500 rpm | |||
| Intermittent - Peak torque | 189-191 N·m (139-141 ft-lb) @1000-1600 rpm | |||
| Intermittent - Torque rise | NA |
