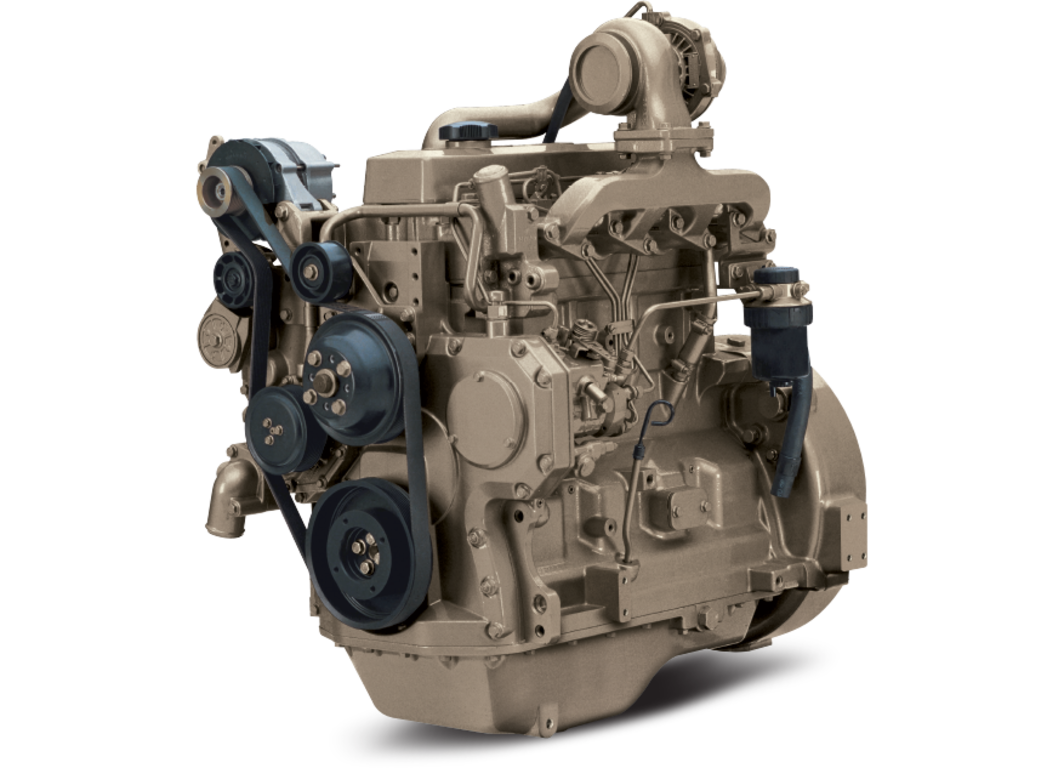

4045TF220Industrial Diesel Engine
- PowerTech™
- 86 kW (115 hp)
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere 4045TF220 Industrial Diesel Engine |
Emissions Certifications
| Non-Emissions Certified |
|---|
General engine data
| Model | 4045TF220 | |||
|---|---|---|---|---|
| Number of cylinders | 4 | |||
| Displacement-- L (cu in) | 4.5 (275) | |||
| Bore and Stroke-- mm (in) | 106 x 127 (4.17 x 5.00) | |||
| Compression Ratio | 17.0:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged | |||
| Length - mm (in) | 860 (33.9) | |||
| Width-- mm (in) | 612 (24.1) | |||
| Height-- mm (in) | 994 (39.1) | |||
| Weight, dry - kg (lb) | 396 (873) |
Performance data range
| Intermittent - Rated power/Rated speed | 86 kW (115 hp) @2500 rpm | |||
|---|---|---|---|---|
| Intermittent - Peak power | 86 kW (115 hp) @2500 rpm | |||
| Intermittent - Peak torque | 401 N·m (296 ft-lb) @1400 rpm | |||
| Intermittent - Torque rise | NA |
