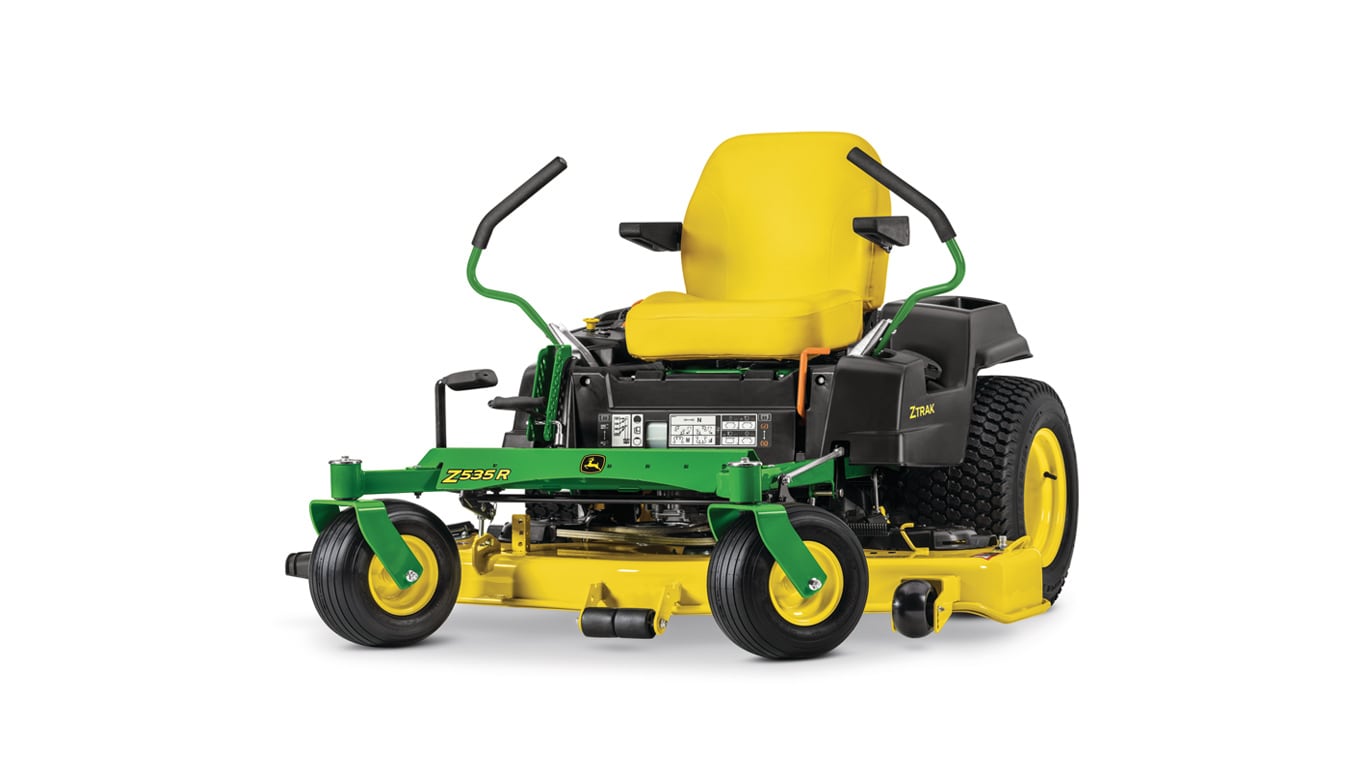

Z535RZTrak™ Mower with 54-in. High Capacity Deck
- 25 hp (18.6 kW)* V-Twin cyclonic engine
- Cyclonic air-management system reduces filter maintenance for longer engine life
- 54-in high-capacity mower deck
- 14 km/h ground speed
$7,129.00CAD
Features
Expand All
Collapse All
25-hp (18.6-kW) engine in vehicle
Cyclonic air cleaner
Replaceable air filter
Replaceable oil filter and in-line fuel filter
Engine oil-fill cap and oil-drain hose
54-in. (137-cm) HC Mower Deck
54-in. (137-cm) HC Mower Deck shown on a Z540R
Reinforced mower edge for durability
Mower wash port
Mower wash port with hose connector
Rear angle of 6.5-bu (230-L) Power Flow™ Rear Bagger shown on Z525E
Side view of 6.5-bu (230-L) Power Flow Rear Bagger shown on Z525E
Power Flow blower
Mulching attachment components (48 HC shown)
MulchControl with baffle closed
MulchControl handle
Operator station (Z535M shown)
Color-coded controls are easy to identify
Comfortable seat (Z525E)
Comfortable seat (Z535M, Z540M)
Comfortable seat (Z535R, Z540R)
Seat suspension springs
Cup holder (Z525E shown)
Open storage compartment
Flip-up foot platform
Service interval decal (Z300 Series shown)
Service interval decal (Z500 Series shown)
Footrest easily removed for access to mower (Z335E shown)
Footrest removal bolt and hand grip (Z335E shown)
Loosening bolt to remove platform for access to mower deck
Footrest opens for access to mower deck
Z335E engine
Z335E engine oil and fuel filters shown
Z535M and Z535R engine
Z540M and Z540R engine
Easy-to-access oil filter, fill/check oil tube, and oil drain
Accel Deep Mower Deck
Tie-down locations
Adjustable motion-control levers
Motion control lever positions
Shock absorber for motion-control levers
Cut-height pin doubles as tracking adjustment tool
Control panel
Park brake
Cut-height adjustment
Mower deck lift/cut-height adjustment
Mower deck lift pedal
Easy to view fuel level (fuel-sight window)
Easy-to-fill fuel tank
Motion-control levers shown on Z335E
Shock absorber dampens movement of control levers
Front caster wheel (Z335E)
Front caster wheel (Z525E)
Park brake (Z535E shown)
Motion-control levers (Z525E shown)
Interlock switch is located under the seat (Z540R shown)
ZTrak™ Z335E shown
ZTrak Z535M shown
ZTrak™ Z335E
ZTrak Z525E
ZTrak™ model Z540R
Heavy-duty frame tubing
Footrest opens for access to mower deck
Electric PTO switch
PTO clutch
Unitized transmissions set low in vehicle (right side shown)
Unitized hydrostatic transmission
Transmission expansion tank and tow-valve lever
Tow valve control lever
Engine is smooth and powerful V-twin design with features for reliability and long life
25-hp (18.6-kW) engine in vehicle
A 25-hp (18.6-kW) V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:
- V-twin cylinder design gives greater torque, lower vibration, and improved sound quality.
- Engine model M44 Cyclonic™
- Electronic ignition contributes to fast starts.
- Cast-iron cylinder sleeves provide a long-wearing surface for longer engine life.
- Overhead valves allow the engine to breathe easily for excellent power and fuel economy.
Rear engine guard protects the engine and provides additional vehicle strength and integrity.
Cyclonic air cleaner
Replaceable air filter
Cyclonic air-management system removes larger particles of dirt before they reach the air filter for reduced filter maintenance and longer engine life:
- Cyclonic design ejects large dirt particles before they make contact with the filter.
- Large, high-quality dry-type paper element air filter thoroughly cleans engine intake air.
- The air filter is easily removed for cleaning or replacement.
Replaceable oil filter and in-line fuel filter
Full-pressure lubrication system provides plenty of oil to the engines moving parts to ensure reliable operation and long life:
- Replaceable oil filter keeps the oil cleaner for a longer engine life.
- Extends the time between oil changes
- Full-pressure lubrication is more effective when operating on an incline.
Engine oil-fill cap and oil-drain hose
No-tools oil-drain cap with hose and oil filter drip tray are provided for easy, no-mess maintenance.
John Deere recommends the use of fuel stabilizer in gasoline. See] Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
The Edge™ Cutting System high-capacity (HC) 54-in. (137-cm) Mower Deck
54-in. (137-cm) HC Mower Deck
The 54-in. (137-cm) HC Mower Deck has a deep-deck design.
54-in. (137-cm) HC Mower Deck shown on a Z540R
Reinforced mower edge for durability
The 54-in. (137-cm) HC Deck is stamped from heavy, 9-gauge, 0.150-in. (3.8-mm) steel to minimize the number of welds and provide a smooth underside for reduced material buildup:
-
Deep-deck design of 5.5 in. (14 cm) delivers excellent airflow, so material can be processed quickly and efficiently.
-
Wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
- Durable plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
-
1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.
-
Standard front roller and two double-captured anti-scalp wheels give a more even mowing job and reduce the chance of scalping.
-
Front edge is raised above the blade plane to allow even cutting of tall grass.
-
Blade overlap is 1.6 in. (40 mm), nearly 0.8 in. (20 mm) greater than many conventional decks, for a clean cut.
-
Mower can side-discharge or mulch.
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy:
-
Hose connector is included with the mower deck.
Rear angle of 6.5-bu (230-L) Power Flow™ Rear Bagger shown on Z525E
Side view of 6.5-bu (230-L) Power Flow Rear Bagger shown on Z525E
An optional rear bagger is available:
- Mower is designed to fill the 6.5-bu (230-L) rear hopper using the Power Flow blower.
- Standard or mulch blades may be used with the Power Flow collection system.
Power Flow blower
The Power Flow blower is mounted on a sturdy swing arm that allows easy installation and cleanout.
Optional high-performance mulching attachment
Mulching attachment components (48 HC shown)
An optional mulching attachment is available:
- This design requires no drilling for initial mounting, less installation time, and reduced hardware-count, that allows for easy removal of the mulch components.
- The high-performance mulching attachment includes formed steel baffles to control the material and special mulching blades for superior performance.
- The special mulching blades that are included can also be used for side discharging or with a material collection system, though the overall cut quality may be slightly less than with the standard mower blades.
- Order: BM23977, 54 HC mulching attachment
Optional MulchControl™ attachment
MulchControl with baffle closed
MulchControl handle
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
- A beautiful looking lawn
- Grass clippings not blown onto the operator, driveways, or flower beds
- Less fertilizer use
- Elimination of the effort needed to dispose of clippings
MulchControl is an innovative, simple design that is easy to use and maintain:
- The MulchControl attachment includes baffles to control the flow of material under the deck.
- The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
- Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
- The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
- The operator is required to get off of the machine in order to engage or disengage mulch mode.
- Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
- Usually mulch, but side-discharge when grass gets too long
- Usually side discharge, but would like to be able to close the chute to control clippings
- Always mulch a main lawn, but often side discharge secondary lawns
- Bag clippings, but want to go farther before emptying bags
MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
- When cutting strong southern grasses, such as Zoysia and Bermuda
- When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
- When optimum bagging and lawn clean-up is desired
MulchControl compatibility
MulchControl is a field-installed attachment. Mulching blades are included:
- MulchControl is available for 2015 and later EZtrak™ Z625 and Z655 (SN 170,001-).
Order:
Operator station is designed for comfort and convenience
Operator station (Z535M shown)
Color-coded controls are easy to identify
The operator station is designed for operator comfort and convenience in operating all controls:
- Excellent visibility forward and to the trim side of the deck makes operation easy and comfortable for the operator.
- Controls are color coded for easy identification.
- Twin-lever motion-control levers adjust, using cut-height pin/socket, for convenience and operator comfort.
- Shock absorbers dampen control movements to give smooth operation.
Comfortable seat
Comfortable seat (Z525E)
Comfortable seat (Z535M, Z540M)
Comfortable seat (Z535R, Z540R)
Comfortable seats have two suspension springs and no-tools fore-aft seat adjustment that can be used by the operator while seated:
- Z525E – Medium-back, 15-in. (38-cm) seat with adjustable armrests and 3-in. (7.6-cm) fore-aft adjustment
- Z535M – High-back, 18-in. (45.7-cm) seat with adjustable armrests and 3-in. (7.6-cm) fore-aft adjustment
- Z540M – High-back, 18-in. (45.7-cm) seat with adjustable armrests and 3-in. (7.6-cm) fore-aft adjustment
- Z535R – High-back, 21-in. (53.3-cm) seat with adjustable armrests and 4.5-in. (11.4-cm) fore-aft adjustment
- Z540R – High-back, 21-in. (53.3-cm) seat with adjustable armrests and 4.5-in. (11.4-cm) fore-aft adjustment
Seat suspension
Seat suspension springs
Two steel springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride.
Cup holder and storage compartment
Cup holder (Z525E shown)
Open storage compartment
Flip-up foot platform
Flip-up foot platform
The commercial-style steel footrest flips up to provide easy access for servicing the mower deck:
- Easy to clean grass off the top of the mower
- Provides convenient access to the mower drive
Serviceability is designed-in for convenience
Service interval decal (Z300 Series shown)
Service interval decal (Z500 Series shown)
A convenient service interval decal provides basic maintenance information. It provides a quick-reference for keeping recommended service up to date.
Mower deck access
Footrest easily removed for access to mower (Z335E shown)
Footrest removal bolt and hand grip (Z335E shown)
The footrest area is hinged and easily raised for service to mower deck:
- It is necessary to remove just one bolt that can be conveniently removed with the lift-height pin.
-
Easy to clean grass off the top of the mower
-
Provides convenient access to the mower drive
Loosening bolt to remove platform for access to mower deck
Footrest opens for access to mower deck
Engine service
Z335E engine
Z335E engine oil and fuel filters shown
Z535M and Z535R engine
Z540M and Z540R engine
Easy-to-access oil filter, fill/check oil tube, and oil drain
The engines are easy to service, including changing the oil and the oil filter and servicing the air filter.
Accel Deep Mower Deck
Tie-down locations
Accel Deep™ Mower Decks have several features that make them easy to service:
- Flat-top design minimizes places for debris to collect.
- Spring-loaded, flip-up belt guards make removing debris easy.
- Provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.
Tie-down locations are provided for convenience and safety when trailering the machine.
Controls are convenient and easy to use
Motion-control levers
Adjustable motion-control levers
Motion control lever positions
The motion-control levers can be adjusted to three different height settings and fifteen different fore-aft settings:
- Increased operator comfort
- Can adjust for the most precise control of the machine
Shock absorber for motion-control levers
A standard shock absorber for the motion-control levers makes it easy and comfortable to maneuver the ZTrak™ Mowers:
- Shock absorber modulates the movement of the control levers for smoother operation.
- Operator can smoothly and precisely control the machine.
Tracking adjustment
Cut-height pin doubles as tracking adjustment tool
Tracking adjustment from the operator seat is quick and easy. A cut-height pin provides an easy method to adjust the motion-control levers:
-
The socket included on the cut-height pin can be used for the operator to use when making a tracking adjustment.
Control panel
Control panel
The operator control panel is conveniently located and easy to use.
The instruments and controls are as follows:
- Hour meter
- Ignition switch
- Power take-off (PTO) control
- Engine speed control
- Engine choke control
Park brake
Park brake
The park brake is conveniently located:
- Large lever is easy to use.
- Park brake effectively holds the machine in the parked position.
- Park brake must be engaged (in the upper position) to start the engine.
- Once the engine is started, the park brake must be disengaged before operating the motion-control levers.
Mower deck lift/cut-height adjustment
Cut-height adjustment
Mower deck lift/cut-height adjustment
The Z535R and Z540R include a foot-lift pedal along with the hand-lift lever to make raising the mower deck easier. The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing:
- Mower deck cutting height adjusts from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for optimum cut quality and performance.
- Mower deck adjustment has built-in memory so the operator can easily return to the desired cutting height.
Mower deck lift pedal
- Foot pedal provides easy lifting of the deck.
Conveniently located fuel-sight window allows operator to see fuel level
Easy to view fuel level (fuel-sight window)
Easy-to-fill fuel tank
A convenient fuel-sight window is located where it is easy for the operator to see:
- Semi-clear material makes seeing how much fuel is in the tank quick and easy.
- Large, 3-in. (7.6-cm) fuel-fill opening reduces the chance of spilling when adding fuel.
- Fuel-fill opening is low and angled to make adding fuel easy.
- Cap is tethered to the fuel tank.
- Less chance of fuel cap getting lost
Steering is easy with large diameter front caster wheels
Motion-control levers shown on Z335E
Shock absorber dampens movement of control levers
Motion-control levers are designed for comfortable and easy operation.
A shock absorber is included to dampen the movement of the control levers so any operator can make smooth, controlled turns.
Front caster wheel (Z335E)
Front caster wheel (Z525E)
Pneumatic caster wheels give a smoother ride and easier steering:
- Large diameter front caster wheels provide extra ride comfort and better steering control.
- Caster wheels have sealed bearings for long life and easy steering.
- Tires are sized for the size and weight of the vehicle.
| ZTrak™ model | Caster wheel tire size |
| Z335E, Z335M, Z345M, Z345R | 11x4.0-5 |
| Z355E, Z355R, Z375R, Z525E, Z535M, Z540M | 13x5.0-6 |
| Z535R, Z540R | 13x6.50-6 |
Controls are designed to promote safe operation
Park brake (Z535E shown)
Motion-control levers (Z525E shown)
- Park brake must be engaged for the engine to crank.
- Motion-control levers must be in the outward position for the engine to crank.
- Park brake must be disengaged before operating the motion-control levers or the engine will stall.
Interlock switch is located under the seat (Z540R shown)
- Seat interlock switch disengages the mower when the operator leaves the seat.
- Engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the park brake set.
Design includes a heavy-duty formed and welded steel frame
ZTrak™ Z335E shown
ZTrak Z535M shown
ZTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability.
Large front caster wheels and large rear drive wheels provide several operator benefits:
-
Smoother ride
-
Better slope performance
-
More operator comfort over uneven ground
-
Better traction
The operator platform is roomy and uncluttered for maximum comfort, and the controls are convenient to use:
- Easy to get on and off the mower
- Ample legroom for comfortable operation
- Adjustable motion-control levers for height and position, enabling the operator to stay comfortable while using them
- Color-coded and logically placed controls
Styling is both functional and attractive
ZTrak™ Z335E
ZTrak Z525E
The styling of ZTrak Mowers is functional and attractive to appeal to residential owners who value product appearance and the easy, comfortable operation that comes with thoughtful control designs:
-
Color-coded controls are not only attractive, but easy to find and use.
-
Large foot platform, surrounded by frame rails, has a safe and inviting appearance and provides easy access for the operator.
-
Contoured shape of the fenders provides improved visibility to the drive tires, minimizes storage space required, and adds to the stylish appearance of the vehicle.
Frame includes durable 1.5- x 2-in. (3.8- x 5.1-cm) steel tubing for long life
ZTrak™ model Z540R
Heavy-duty frame tubing
The ZTrak Z500 Series frame includes 1.5- x 2-in. (3.8- x 5.1-cm) steel tubing for long-term durability:
-
Heavy-duty frame tubing provides a solid support.
-
Reinforced frame offers additional strength where needed.
Footrest opens for access to mower deck
The footrest area is hinged and easily raised for easy access to the mower deck.
- It is necessary to remove just one bolt that can be conveniently removed with the 13-mm wrench that is designed into the lift-height pin.
Electric power take-off (PTO) clutch is reliable and easy to use
Electric PTO switch
A heavy-duty electric PTO clutch is controlled by a convenient, dash-mounted control.
Heavy-duty PTO clutch
PTO clutch
The PTO clutch is designed to operate through many on/off cycles.
Dual transmissions are efficient and have large, 1-in. (2.5-cm) diameter axles for durability
Unitized transmissions set low in vehicle (right side shown)
Unitized hydrostatic transmission
Dual unitized transmissions efficiently power the ZTrak™ forward and reverse and give steering capability:
- Transmissions are set low in the vehicle for excellent hillside stability.
- Tuff Torq® TZT7-M transmissions are reliable and durable.
- Beefed-up 1-in. (2.5-cm) axles for greater strength
- Have heavier-duty components to stand up to the higher loads from the larger tires and greater weight of Z500R Series ZTrak Mowers
- Maintenance-free, unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.
- Four-bolt hubs provide a reliable and convenient wheel-mounting system.
Transmission expansion tank and tow-valve lever
Tow valve control lever
Tow-valve controls are provided for each transmission and located on the transmissions near the expansion tanks:
- Easy to reach and use
- Allow the vehicle to be moved without the engine running
Tuff Torq is a trademark of Tuff Torq Corporation.
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere Z535R ZTrak™ Mower with 54-in. High Capacity Deck |
Key Specs
| Engine power | 25 hp 18.6 kW |
|||
|---|---|---|---|---|
| Engine model number | M44 Cyclonic | |||
| Forward speed | 0-9 mph 0-14.5 km/h |
|||
| Front caster tires | 13x6.5-6 | |||
| Drive tires | 23x10.5-12 | |||
| Seat back height | High back with armrests, 21 in. 53 cm |
|||
| Width of cut | High capacity mower deck, 54 in. 137 cm |
|||
| Mulching system | Optional MulchControl™ attachment | |||
| U.S. warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Engine
| Power | 25 hp 18.6 kW |
|||
|---|---|---|---|---|
| Model number | M44 Cyclonic | |||
| Displacement | 44.2 cu in. 724 cc |
|||
| Cylinders | V-twin | |||
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
|||
| Type | Overhead valve | |||
| Battery | 12 V 300 CCA |
|||
| Choke/speed control | Separate control levers | |||
| Cooling method | Air | |||
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
|||
| Fuel gauge | Fuel level sight line |
Drive train
| Dual hydros | Tuff Torq TZ17-M with 1-in. (2.5-cm) axles | |||
|---|---|---|---|---|
| Hydraulic pumps | ||||
| Wheel motors |
Travel speed
| Forward speed | 0-9 mph 0-14.5 km/h |
|||
|---|---|---|---|---|
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
|||
| Speed and direction control | Twin premium levers | |||
| Control adjustment | 2-height/9-fore-aft, 18 positions |
Chassis
| Frame | Heavy-duty frame tubing | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Front caster tires | 13x6.5-6 | |||
| Front caster bearings | Sealed ball bearings | |||
| Drive tires | 23x10.5-12 | |||
| Hourmeter | Yes | |||
| Service interval decal | Yes | |||
| Storage compartment | Yes | |||
| Cup holder | Yes |
Seat
| Seat back height | High back with armrests, 21 in. 53 cm |
|||
|---|---|---|---|---|
| Fore-aft adjustment | While seated, 4.5 in. 11.4 cm |
|||
| Seat suspension | Two springs |
Lift system
| Type | Foot lift and hand lever | |||
|---|---|---|---|---|
| Mower cut height | 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | Yes |
Mower deck
| Width of cut | High capacity mower deck, 54 in. 137 cm |
|||
|---|---|---|---|---|
| Type | High-capacity side discharge | |||
| Mower deck material | 9 gauge 0.15 in. 3.8 mm |
|||
| Mower drive system | V-belt |
PTO
| Type | Electric, 125 lb-ft 169.5 Nm |
|||
|---|---|---|---|---|
| Drive | V-belt |
Dimensions
| Wheelbase | 48.7 in. 123.7 cm |
|||
|---|---|---|---|---|
| Overall length | 76.7 in. 194.8 cm |
|||
| Width without mower | 47.8 in. 121.4 cm |
|||
| Width with mower | 68.3 in. 173.5 cm |
|||
| Width with mower (deflector raised for storage) | 59.6 in. 151.4 cm |
|||
| Height | 46.1 in. 117.1 cm |
|||
| Weight | With mower and fuel, 710 lb 322 kg |
Safety
| Operator presence system | Yes | |||
|---|---|---|---|---|
| Park brake interlock | Yes | |||
| Safety video | Yes |
Buyer's notes
| Note 1 | Mower wash port makes cleaning the deck easier | |||
|---|---|---|---|---|
| Note 2 | Flip-up foot platform for easy service access | |||
| Note 3 | 18-position adjustable motion-control levers | |||
| U.S. warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
Optional attachments
| Mulching system | Yes | |||
|---|---|---|---|---|
| Rubber floor mat | Standard | |||
| Sun shade | ||||
| Mounted sprayer | 15 U.S. gal. 56.8 L |
|||
| Storage cover | Yes | |||
| Light kit | Dual headlight kit | |||
| Material collection system | Power Flow™ rear bagger, 6.5 bu 229.1 L |
Additional information
| Date collected | 02-May-2018 |
|---|
Accessories and Attachments
Expand All
Collapse All
Typical home maintenance kit
Power Flow chute and blower
Hopper, chute, and blower
Hopper and included weight bracket and weights
Weight bracket and weights
6.5-bu (229-L) rear bagger, chute, and blower
Removing bag from 6.5-bu (229-L) hopper
Removing bag from 6.5-bu (229-L) hopper
54 HC Power Flow blower
54 HC blower in cleanout position
Rear bumper
Battery charger
Boarding step
Footrest extensions
Striping kit brush
Brush adjusts to varying ground conditions
Mower deck leveling gauge
48 HC mulching attachment
X730 Tractor mowing
EZtrak™ Z655 mowing
MulchControl baffle open
MulchControl baffle closed
MulchControl baffle closed
MulchControl handle
Protective cover (partially removed)
Protective cover (vehicle fully covered)
Magnetic hitch pin
Spark arrester screen
15-gal. (57-L) sprayer
Weight kit
Home Maintenance Kits
Home Maintenance Kit - 5553GXLG269
LG269 home maintenance kit
Typical home maintenance kit
Home maintenance kits are a handy and convenient way for dealers to supply a customer with the maintenance-interval parts as specified in their operator's manual.
The LG269 home maintenance kit includes the following:
Quantity |
Description |
1 |
Engine oil filter |
2 |
Engine oil quart |
1 |
Fuel filter |
1 |
Air filter cartridge |
2 |
Spark plug |
MCS Chutes
Power Flow chute (6.5/7 bu) - 5553GXBM21681
Power Flow chute and blower
Hopper, chute, and blower
The Power Flow chute is required, along with the high-performance Power Flow blower, to use the 2-bag Power Flow material collection system. The chute includes a convenient handle and a fill indicator that tells the operator when the bags are getting full.
One chute works with several vehicle applications. Trim lines on the chute are referenced in the instructions so the chute can be cut to the proper length for the vehicle/mower application.
MCS Hoppers
ZTrak Hopper - 48/54-in deck, 6.5 bushel - 5553GXBG20757
Hopper and included weight bracket and weights
Weight bracket and weights
6.5-bu (229-L) rear bagger, chute, and blower
The 6.5-bu (229-L) rear bagger efficiently collects material from the mower deck:
- A Power Flow™ blower (ordered separately) on the end of the mower deck moves material up the chute (ordered separately) and into the hopper.
- A weight bracket and four 18-lb (8.2-kg) weights are included for installation on the front of the vehicle to help counterbalance the weight of the hopper.
Removing bag from 6.5-bu (229-L) hopper
Removing bag from 6.5-bu (229-L) hopper
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
-
Two durable bags give a generous, 6.5-bu (229-L) capacity.
-
The bags lift out for easy emptying.
-
Efficient chute provides a smooth flow of material to reduce the chance of plugging.
- The chute and Power Flow blower must be ordered separately.
-
Standard mower blades are used for bagging.
-
Air exhaust duct directs air from the hopper back and toward the ground for clean operation.
-
Convenient latch makes opening and closing the hopper easy.
NOTE: Appropriate Power Flow blower, chute, and attachment bar are required (ordered separately).
NOTE: The 6.5-bu (229-L) hopper is not compatible with 60-in. (152-cm) and 62-in. (157-cm) Mower Decks because their larger size and ability to fill the hopper more quickly reduces the usefulness of the bagging system.
MCS Power Flow Blowers
HP Power Flow Blower Assembly for 54HC - 5553GXBG20769
54 HC Power Flow blower
54 HC blower in cleanout position
The 54-in. (137-cm) high-capacity (HC) Power Flow blower can be used with the ZTrak Z535R and Z540R. It, along with the hopper and chute, will provide 6-5-bu (229-L) material collection system capability for the Z535R and Z540R, giving added versatility and value.
Miscellaneous
Attachment Bar/bumper - 5553GXBG20913
Rear bumper
The optional rear bumper bolts to the ZTrakTM tubular frame for solid support:
-
Provides protection for the rear of the ZTrak mower
Battery charger and maintainer - 5553GXTY25866
Battery charger
This fully automatic 1.5-amp battery charger and maintainer safely charges lawn and garden, RV, deep-cycle, and most batteries that require long storage periods. It is particularly useful during winter months when the vehicle is not being used regularly, to ensure the battery stays charged:
- Automatically determines if the battery is 6- or 12-V and adjusts accordingly
- Helps maintain battery in good condition and ensures it is fully charged
- Powers on to charge battery and powers off when fully charged
- 'Onboard' feature allows mounting next to the battery on collector, street rods, and other occasional-use vehicles
- 1.5-amp trickle charges small batteries in 2 to 12 hours
- Maintains large battery charges
- Hookup protection guards battery and charger from damage
Includes a choice of battery connection methods:
- Standard color-coded clips to connect to any battery
- Cable with quick-disconnect plug and end loops that can be bolted to battery terminals and easily unplugged from charger when not in use
Boarding Step - Z5 - 5553GXLP66655
Boarding step
Compatible with EZTrak™ Z400-series, Z600-series and ZTrak Z500-series mowers, the ZTrak Z5 boarding step allows for easier mounting and dismounting of a zero-turn mower. A complete bolt-on solution, this kit attaches to the left side of the mower frame for convenient access.
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
ZTrak Z5 Boarding Step
Order number: LP66655
Foot Rest Extensions - 5553GXAM137437
Footrest extensions
The optional foot rest extension kit includes bolt-on left and right footrests for EZtrakTM and ZTrak™ Mowers:
-
Makes operating the mower more comfortable for the operator
Grass Groomer - Lawn Striping Kit - 5553GXLP36265
Striping kit brush
Brush adjusts to varying ground conditions
Features and benefits:
-
Homeowners can now achieve results just like the professionals.
-
The attachment works extremely well with the suspended mower design.
-
The attachments are easy to adjust for varying mower cutting height.
-
The brush adjusts to varying ground conditions and allows the operator to freely maneuver the vehicle without damaging the turf.
-
The brush fits EZtrak™ and ZTrak™ 48-in. (122-cm) and 54-in. (137-cm) HC Mowers.
-
The brush is very economical and functional.
Specifications
| Item number | LP36265 |
| Compatible mowers | EZtrak and ZTrak 48-in. (122-cm) and 54-in. (137-cm) HC |
| Installation time | 30 minutes |
| Warranty | Two-year consumer warranty |
Ordering information
Customers, please contact your local John Deere dealer for availability and pricing information.
Grass striping kit for 48-in. (122-cm) and 54-in. (137-cm) HC Mower Decks
Order number: LP36265
Mower Decks
Mower deck leveling gauge - 5553GXAM130907
Mower deck leveling gauge
Leveling gauge allows quick and accurate mower deck leveling and cutting height adjustment.
Can be used for:
- Lawn tractors
- Lawn and garden tractors
- Riding mowers
- Front mowers
- Commercial walk-behind mowers
- Zero-turn-radius mowers
Mulch Kits
54 HC Mulch kit - 5553GXBM23977
48 HC mulching attachment
These mulching attachments are designed for the high-capacity mower decks. This design requires no drilling for initial mounting, less installation time, and reduced hardware count for easy removal of the mulching components.
Steel baffles control material and close off the discharge area. Special mulching blades are included to optimize mulching performance. These blades can also be used for side-discharging or material collection (if a material collection system is available), though performance may be reduced in some conditions.
NOTE: A material collection system is not available for the EZtrak™ Z665 Mower.
54-in. High Capacity MulchControl attachment - 5553GXBM26300
MulchControl advantages and benefits
X730 Tractor mowing
EZtrak™ Z655 mowing
The MulchControl attachment for the 54-in. (137-cm) HC Mower Deck makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
- A beautiful looking lawn
- Grass clippings not blown onto the operator, driveways, or flower beds
- Less fertilizer use
- Elimination of the effort needed to dispose of clippings
How MulchControl works
MulchControl baffle open
MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
- The MulchControl attachment includes baffles to control the flow of material under the deck.
- The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
- Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
MulchControl baffle closed
MulchControl handle
- The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
- The operator is required to get off of the machine in order to engage or disengage mulch mode.
- Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
- Usually mulch, but side discharge when grass gets too long
- Usually side-discharge, but would like to be able to close the chute to control clippings
- Always mulch a main lawn, but often side discharge secondary lawns
- Bag clippings, but want to go farther before emptying bags
- The MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower will run without material when the baffle is closed.
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.
Hydraulic MulchControl actuator option (X700 Series Tractors)
For model year 2019 and newer 54 HC and 60 HC Mower Decks (serial number 070,001-), an extra-cost, optional X700 hydraulic MulchControl actuator attachment (BUC10536) is available to replace the standard hand-control lever to allow control of the MulchControl baffle from the seat using the tractor’s hydraulic control lever:
- The hydraulic MulchControl actuator is the control only and also requires a MulchControl attachment.
- It is operated with the tractor’s hydraulic control lever.
- The mower deck can be converted from wide-open side-discharge mode to fully-chambered mulch mode.
- The hydraulic MulchControl attachment is field-installed.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
- When cutting strong southern grasses, such as Zoysia and Bermuda
- When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
- When optimum bagging and lawn clean-up is desired
Compatibility
MulchControl for 54-in. (137-cm) HC Mower Decks is a field-installed attachment and compatible with the following:
- Model year 2015 and newer X700 Signature Series Tractor 9074M or 9078M 54-in. (137-cm) HC Mower Deck (serial number 030,001-)
- Model year 2015 and newer EZtrak Z625 and Z655 (serial number 170,001-)
- Model year 2016 ZTrak™ Z535R and Z540R
Protection
Protective Cover - 5553GXLP64430
Protective cover (partially removed)
Protective cover (vehicle fully covered)
This cover provides heavy-duty protection for EZtrak™ and ZTrak riding mowers. It protects against sun damage, rain, dust, birds, and tree sap.
Dual reinforced air vents let air circulate and help prevent ballooning in winds. Elastic cord in bottom hem gives a quick and custom fit. Side handles are included for easy fitting and removal.
Ordering information
Please contact your local John Deere dealer for availability and pricing information.
EZtrak and ZTrak protective cover
Order number: LP64430
Rear Hitch
Magnetic hitch pin - 5553GXLP63768
Magnetic hitch pin
Fits John Deere equipment tow behind attachments.
- Strong magnetic grip
- Rust resistant
- Easy to install, secure fit
Ordering information
Customers, please contact your local John Deere dealer for availability and pricing information.
Magnetic hitch pin
Order number: LP63768
Spark Arrester
Spark arrestor kit - 5553GXAM123168
Spark arrester screen
Allows tractor to meet restrictions imposed by certain areas.
Sprayers
15 Gallon Sprayer - 5553GXLP53284
15-gal. (57-L) sprayer
Features and benefits:
-
100-psi (689- kPa) SHURflo® pump
-
60-in. (152.4-cm) spray width
-
Spraying systems spray wand with brass tip
-
Custom brackets secure the sprayer to existing bagger mounts
-
Stability because weight is positioned forward
-
A minimum of two 15-lb (7-kg) weights, for a total of 30 lb (13.6 kg), are needed at the front of the machine.
-
-
Easy no-tools mounting
Specifications
| Item number | LP53284 |
| Tank capacity | 15 gal. (57 L) |
| Spray wand reach | 30 ft (9.1 m) |
| Hose length | 19 ft (6 m) |
| Shipping weight | 84 lb (38 kg) - including the four 18-lb (8.2-kg) front bar weights |
| Warranty | Two-year consumer warranty |
Ordering information
Please contact your local John Deere dealer for availability and pricing information.
15-gal. (57-L) sprayer
Order number: LP53284
SHURflo is a trademark of SHURflo, LLC.
Weights
Weight Kit (included ballast bracket) - 5553GXBG20917
Weight kit
The weight kit includes a weight bracket and four 18-lb (8.2-kg) weights for installation on the front of a Z500 Series ZTrak™ Mower. Quick-pull pins hold the weights securely in place while providing easy installation and removal.
NOTE: The weight kit components are also included in the 6.5-bu (229-L) rear bagger attachment.
Shop and Buy
Maintenance and Support
You May Also Be Interested In
*Prices are suggested retail prices only and are subject to change without notice at any time. Dealer may sell for less. Taxes, setup, delivery, freight and preparation charges not included. Attachments and implements sold separately. The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower will be less. Prices in Canadian dollars.
Product features subject to change. Please contact your local John Deere dealer
**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.ca/TUWarranty for details.
