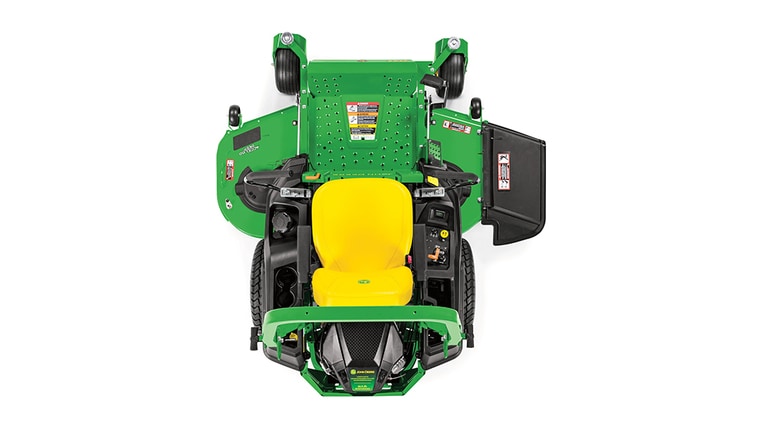

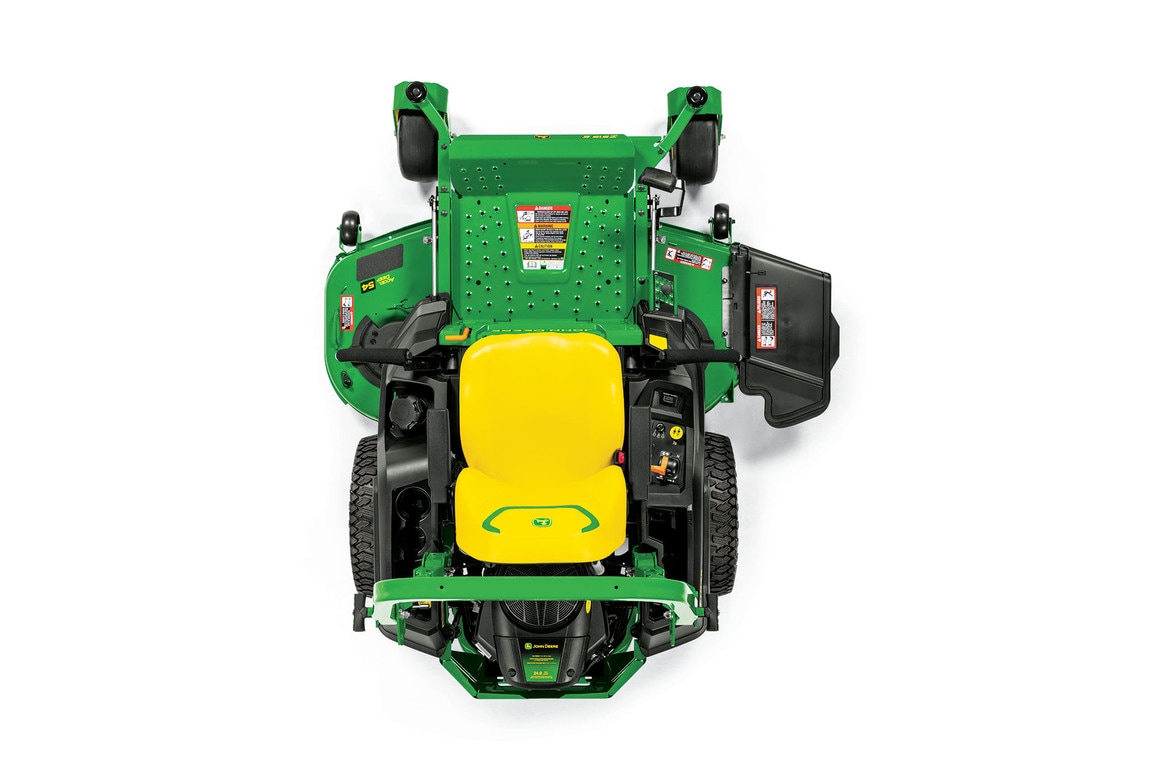

Z530M operator station
Z565R operator station
The spacious operator station of a Z500 ZTrak™ Mower is designed to enhance operator comfort, ease of use, and showroom appeal.
Model |
Z515E |
Z530M |
Z550R |
Z560R |
Z565R |
Seat |
21-in. (53-cm) cut-and-sewn |
21-in. (53-cm) cut-and-sewn |
24-in. (61-cm) cut-and-sewn |
24-in. (61-cm) cut-and-sewn |
24-in. (61-cm) cut-and-sewn |
Seat suspension |
Seat springs |
Seat springs with ComfortGlide™ |
Adjustable mechanical |
Adjustable mechanical |
Adjustable mechanical |
FlexGlide front caster suspension |
Optional |
Optional |
Standard |
Standard |
Standard |
Rubber floor mat |
Optional |
Standard |
Standard |
Standard |
Standard |
Rubber toe board mat |
Optional |
Optional |
Standard |
Standard |
Standard |
Foot pegs |
Optional |
Optional |
Standard |
Standard |
Standard |
Storage compartment cover |
Optional |
Standard |
Standard |
Standard |
Standard |
Foot platform isolators |
n/a |
n/a |
Standard |
Standard |
Standard |
12-V charge port |
Standard |
Standard |
Standard |
Standard |
Standard |
FlexGlide front caster suspension
FlexGlide front caster suspension allows the front tires to flex and absorb bumps from holes, rocks, and tree roots, without transferring impacts to the operator. Homeowners can mow faster, stay comfortable, and enjoy mowing instead of enduring it.
On R-Series models, the combination of FlexGlide™ caster suspension and a 24‑in. (61-cm) high back mechanical suspension seat work together to absorb impacts and cushion the operator’s core and feet. Unlike competitors’ solutions, caster and seat suspension keep the operator stable on moderate terrain while providing cushioning only when it is needed.
Z515E with 21-in. (53-cm) seat
Z565R with 24-in. (61-cm) seat
Z515E and Z530M models feature a 21-in. (53-cm) high-back seat, while R-Series models feature a 24-in. (61-cm) adjustable suspension high-back seat. Both seats include:
Z530M with 21-in. (53-cm) seat
Seat springs
On Z515E and Z530M models, two long, steel springs absorb shocks when traveling over rougher areas.
ComfortGlide seat adjustment lever
ComfortGlide fore-and-aft suspension allows the seat to glide forward and back over rough terrain:
Z560R with 24-in. (61-cm) seat
Seat suspension adjustment
The R-Series Z500 ZTrak models feature an adjustable mechanical suspension with 3-in. (7.6-cm) of suspension travel. An adjustment knob at the front of the seat can be adjusted to suit the operator’s preference for the most comfortable ride. It is recommended to align the arrow on the dial with the operator’s weight.
Z515E foot platform
Z530M foot platform
R-Series foot platform
Z500 ZTrak Mowers include a spacious foot platform that allows the operator to place their legs in a comfortable location. The M- and R-Series models include rubber mats and foot peg upgrades.
Rubber floor mat - A rubber floor mat upgrades styling while dampening vibration. A rubber floor mat is standard on Z530M and R-Series models, and optional on the Z515E model.
Rubber toe mat - A rubber toe mat extends the length of the floor mat to include the front toe board. It is standard on R-Series models and optional on Z515E and Z530M models.
Foot pegs - Foot pegs are secured to the toe board to provide additional foot-placement positions. The pegs also act as handles to remove and replace the foot platform. Foot pegs are standard on the R-Series models, and optional on the Z515E and Z530M models.
Foot platform isolators shown with foot platform is raised position
Left foot platform isolator
R-Series models include foot platform isolators that support the front of the foot platform. The isolators enhance appearance and work in conjunction with the rubber floor mat to reduce vibration on the operator’s feet and reduce rattles.
Dual beverage holder
Storage compartment with cover
All Z500 ZTrak Mowers include a dual beverage holder on the left fender and storage compartment on the right fender:
12-V charge port
12-V outlet is located within the storage compartment for the convenience of connecting a variety of electrical and electronic equipment.
Z530M ZTrak™ with 54A Mower Deck
Z530M ZTrak with 54A Mower Deck
The 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) Accel Deep Mower Decks are a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:
Mower Deck |
Models |
Mulching (optional) |
Material collection (optional) |
48-in. (122-cm) Accel Deep (48A) |
Z530M, Z550R |
MulchControl system |
6.5-bu (230-L) two-bag Power Flow™ system |
54-in. (137-cm) Accel Deep (54A) |
Z515E, Z530M, Z550R |
MulchControl system |
6.5-bu (230-L) two-bag Power Flow system |
60-in. (152-cm) Accel Deep (60A) |
Z515E, Z530M, Z550R |
MulchControl system |
Not available |
Trim side of Accel Deep Mower Deck
Deep mower-deck design delivers high productivity, which gets the job done fast. It allows room for the cut and suspended material to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:
Large discharge opening is both high and wide to handle more material:
Accel Deep Mower Decks are designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
Accel Deep Mower Deck, trim side
Cleaning a mower deck is one of the most frequent maintenance activities. The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:
Mower wash port
Mower wash port with hose connector
A wash port and hose connector are provided to make cleaning the underside of the mower deck easy.
Hinged spindle pocket cover
Double-captured mower wheel
Accel Deep Mower Decks have strong spindle pockets to keep the blades aligned, even after years of tough service:
The MulchControl system for Accel Deep Mower Decks is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect lawn material.
Advantages of mulching grass clippings include:
Learn more about MulchControl here:
MulchControl™ system for 48-in. (122-cm) Accel Deep™ (48A) Mower Deck
MulchControl™ system for 54-in. (137-cm) Accel Deep™ (54A) Mower Deck
MulchControl™ system for 60-in. (137-cm) Accel Deep™ (60A) Mower Deck
Power Flow rear bagger (shown on prior model year Z530M)
An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available for 48-in. and 54-in. (122-cm and 137-cm) mower decks. It provides an efficient means of collecting grass clippings and leaves.
Unitized hydrostatic transmission
Dual unitized transmissions efficiently power the ZTrak™ mower forward and reverse and provide steering capability:
Transmission expansion tank and tow-valve lever
Tow valve control lever
Tow-valve controls are provided for each transmission and are located on the transmission near the expansion tanks to allow the mower to be moved without the engine running.
Tuff Torq is a trademark of Kanzaki Kokyukoki Mfg. Co., Ltd.
Z515E control console
Z550R control console
Z565R control console
Z500 ZTrak Mowers have a control console located to the right of the operator station. It includes:
Z515E control console
Z565R control console
The Z515E, Z530M, Z550R, and Z560R models have two-lever engine controls:
The Z565R engine is equipped with electronic fuel injection (EFI) and electronic throttle control (ETC) that permit simplified electronic control of engine speed and power for optimum performance in varying conditions:
Hour meter and fuel gauge
Instrument display (shown at start up)
The Z515E and Z530M models are equipped with an hour meter and electronic fuel gauge:
The R-Series models are equipped with an instrument display that has the look and feel of a modern automobile, with a power-up sequence that cycles lights and gauges to indicate they are working:
Fuel sight window and fuel fill cap
A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:
Mower lift pedal, transport lock, and cut-height adjustment
Mower deck cut-height adjustment
Mower deck cutting height can be adjusted from 1.5 to 4.5 in. (3.8 to 11.4 cm) in 0.25-in. (0.64-cm) increments:
Steering levers in operating position
Steering levers in park position
Steering levers are shaped and located for operator comfort and ease of control.
18-position steering lever adjustment, shown in high position
The steering levers can be adjusted to two different height settings and nine different fore-aft settings:
Park brake lever
Interlock switch is located under the seat
The park brake is conveniently located and is easy to use.
Safety interlocks help prevent operating in an unsafe way:
24 hp (17.9 kW) V-twin engine
The Z515E has a 44.2-cu in. (724-cc) displacement 24-hp (17.9-kW) V-twin engine with plenty of power and torque to handle tough mulching, mowing, and bagging conditions.
Separate engine speed lever and choke lever
The engine speed lever and choke control lever are separate controls:
The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.
Fuel tank and fuel sight window
The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
Clean, open operator station (Z565R shown)

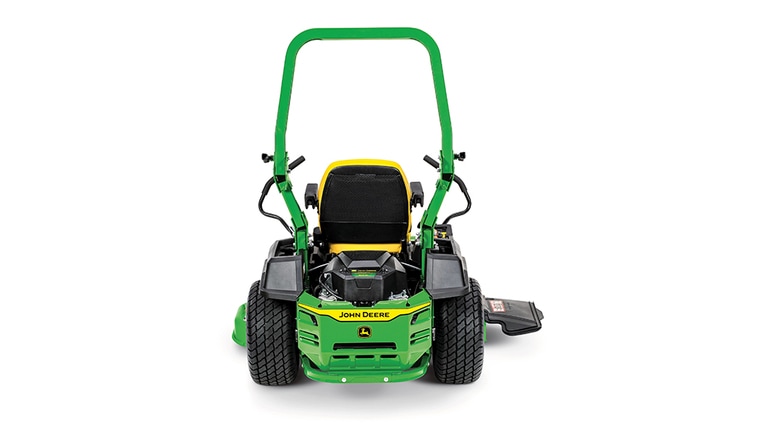

Standard folding ROPS (Z530M shown)
The spacious operator station has been designed for comfort, visibility, and ease of use:
ROPS folded at intermediate position
ROPS folded down
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
Model |
Height at top of ROPS in fully raised position |
Z515E, Z530M |
70.5 in. 1790 mm |
Z550R, Z560R, Z565R |
71.1 in. 1807 mm |

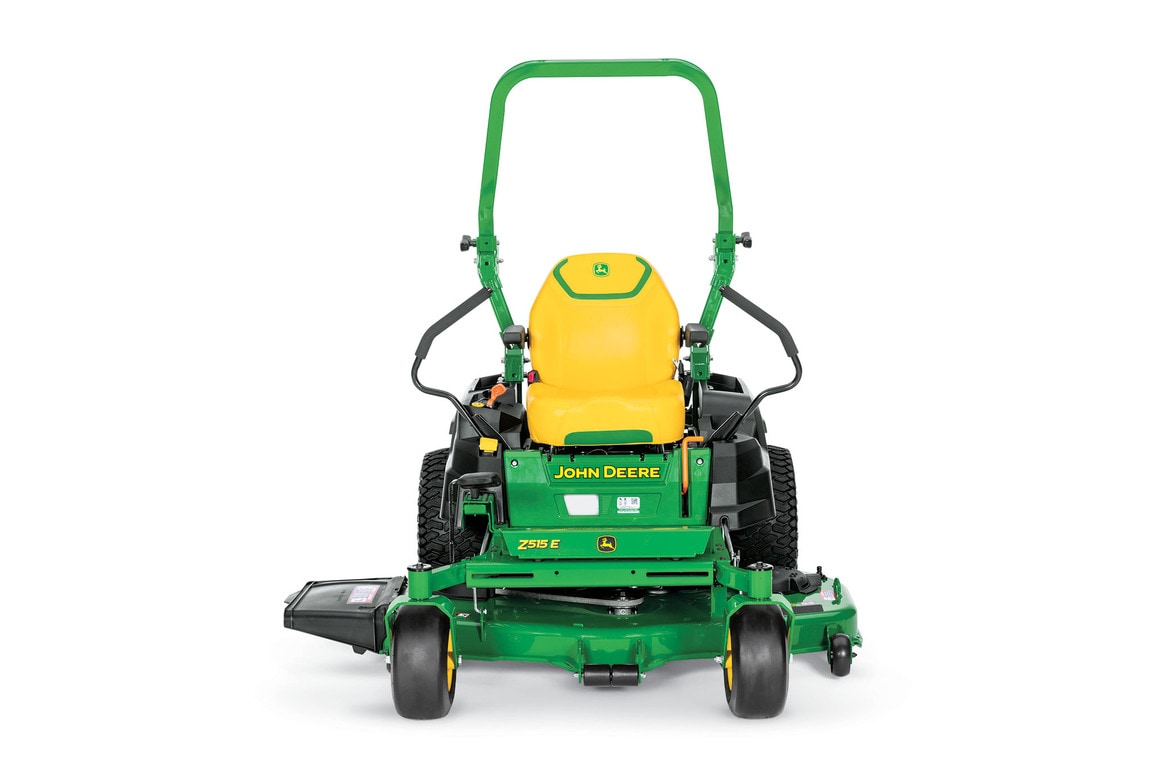

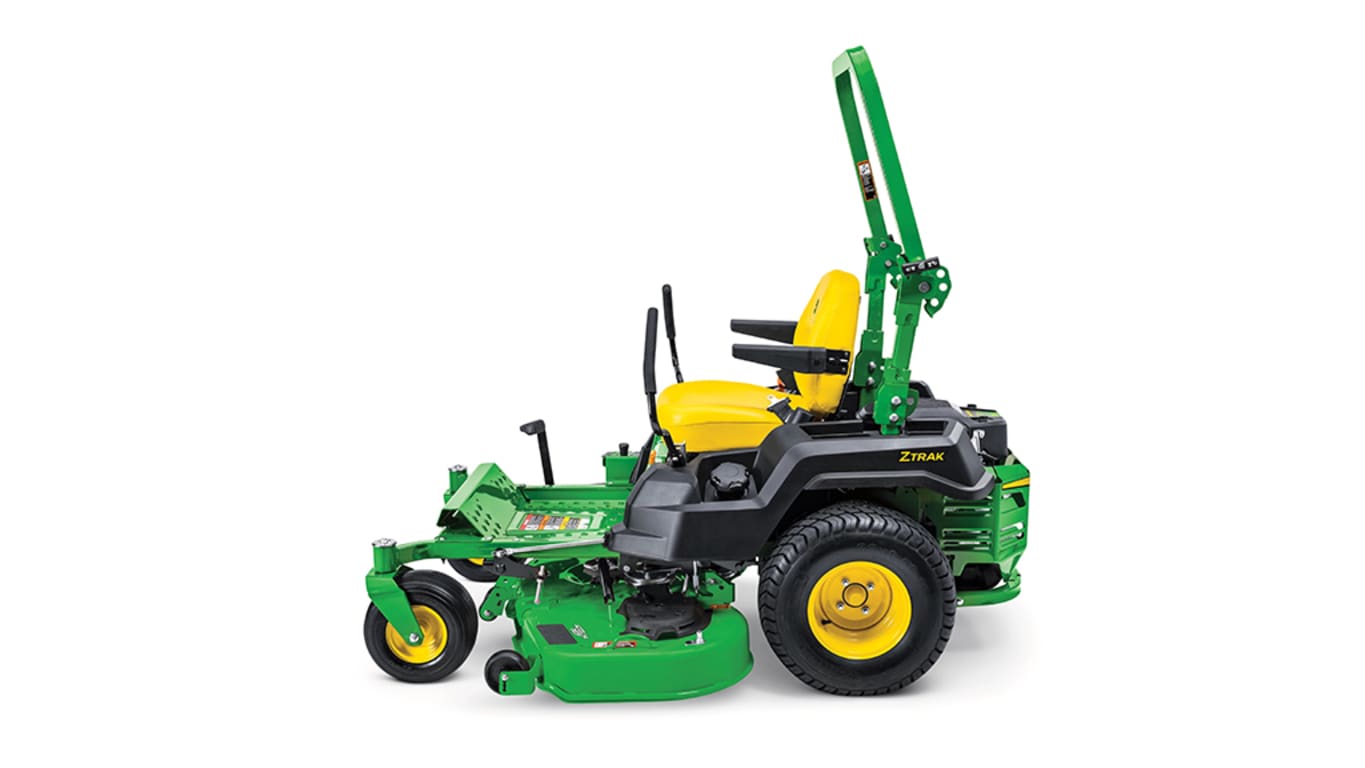

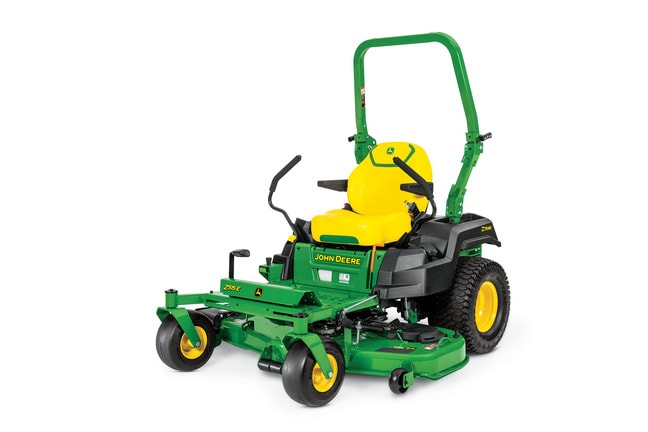

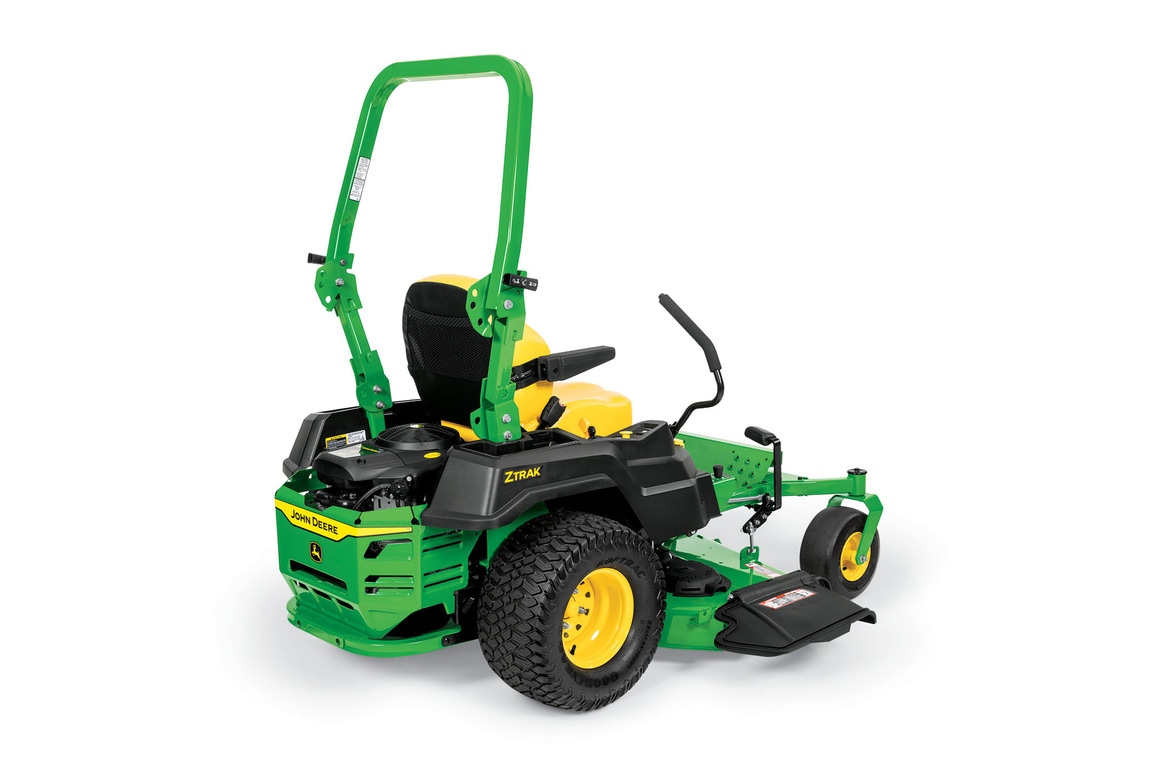

Z515E ZTrak™ Mower
Z560R ZTrak Mower
The Z500 ZTrak Mowers combine functional design and premium styling to meet the needs of homeowners with larger properties seeking a comfortable, high-performance mower.
Green fender trim of Z550R, Z560R, and Z565R

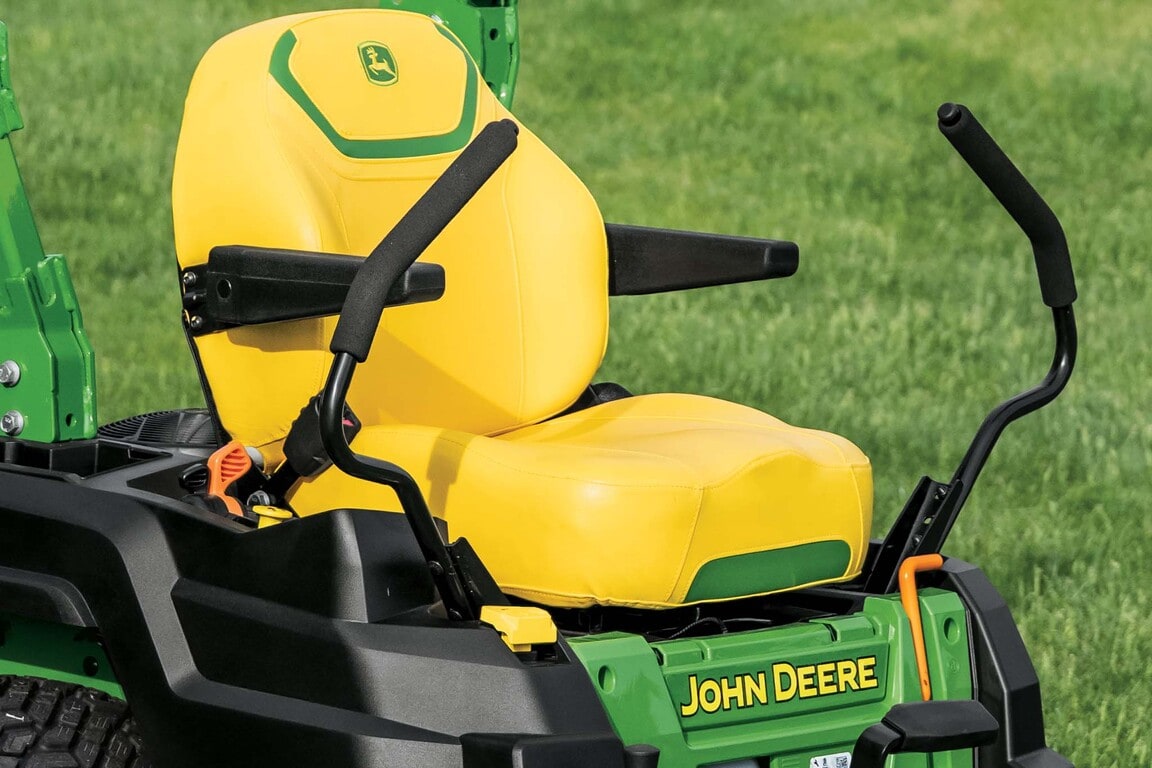

Green seat accents and the John Deere logo visually communicate a premium offering and give a distinctive appearance.
The R-Series models include green fender trim that ties into the rear fender guard. The green fender trim adds style and keeps the machine cleaner by blocking some of the material thrown by the tire.
Solid steel tube front frame
Strong rear frame with rear hitch (shown on Z565R)
A strong, welded steel frame provides solid, reliable support for the machine components and operator:
The frame is designed to accommodate a rear hitch that can be used to pull a variety of lawn equipment. The rear hitch:
Caster wheels (Z530M shown)
Caster wheels (Z565R shown with FlexGlide™ front caster suspension)
Large, 13x6.5-6 pneumatic tire and front caster wheels provide a smooth ride and level cut.
Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles:
Rear wheel and tire (Z515E, Z530M, and Z550R)
Rear wheel and tire (Z560R and Z565R)
Rear tires have high-quality tread and optimum size for superior traction, level cut, and smooth ride:
Front and side lights
The attractive design integrates LED lighting:
Example quick-response (QR) code label
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.
Upper portion of owner support web page
Lower portion of owner support web page
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
Service interval decal
A convenient service interval decal provides basic maintenance information:
Air filter access (Z515E)
Air filter (Z515E)
Air filter access (Z530M, Z550R, Z560R)
Air filter (Z530M, Z550R, Z560R)
Air filter access (Z565R)
Air filter (Z565R)
The engines are easy to service:
Engine oil fill/check and oil drain tube (Z515E and Z565R)
Engine oil fill/check and oil drain tube (Z530M, Z550R, and Z560R)
The engine oil fill/check tube is easy to see and reach. An oil drain tube is provided for easier and cleaner oil changes.
Foot platform easily removed for access to mower
Flip-up spindle cover (shown on similar model)
The foot platform can be raised and removed without tools to easily access the mower deck for service:
Flat-top deck
Mower deck leveling gauge and tracking wrench
Accel Deep™ and High Capacity Mower Decks have features that make them easy to service:
Tracking adjustment bolts and tool
Tracking adjustment tool
Tracking adjustment can be made with the provided tool.
Z560R ZTrak Mower
Z530M ZTrak Mower
Z500 ZTrak Mowers are covered by a single-source, bumper-to-bumper warranty*.
Model |
Warranty |
Z515E, Z530M |
4 year or 300 hour* |
Z550R, Z560R, Z565R |
4 year or 500 hour* |
The warranty is hassle free, with both the mower and the engine covered by a single warranty. If the mower is sold, the remaining warranty term is transferable to a new owner.
*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
X350 Tractor
Z370R Electric ZTrak™ Mower
Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).
Use Equipment Mobile to find the right parts
It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.
Maintenance plan screen
Maintenance parts and notes screen
Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.
A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.
Smart Connector
Smart connector, wiring harness, and twist ties
A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:
Optional BUC11960 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.
Optional BUC11959 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC11959 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.
The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.
On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.
A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere Z515E ZTrak™ Mower |
| Engine power | 24 hp 17.9 kW |
|||
|---|---|---|---|---|
| Engine model number | M44 Extended Life Series (ELS) | |||
| Forward speed | 0-8 mph 0-12.9 km/h |
|||
| Front caster tires | 13x6.5-6 | |||
| Drive tires | 22x9.5-10 | |||
| Seat back height | Medium back with armrests, 18 in. 45.7 cm |
|||
| Width of cut | Accel Deep™ mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm |
|||
| Mulching system | Optional MulchControl™ attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm |
|||
| Warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) | |||
| Battery | ||||
| Charger |
| Power | 24 hp 17.9 kW |
|||
|---|---|---|---|---|
| Model number | M44 Extended Life Series (ELS) | |||
| Displacement | 44.2 cu in. 724 cc |
|||
| Cylinders | V-twin | |||
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
|||
| Type | Overhead valve | |||
| Battery | 12 V 300 CCA |
|||
| Choke/speed control | Separate levers | |||
| Cooling method | Air | |||
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
|||
| Fuel gauge | Electric gauge and fuel level sight line |
| Dual hydros | Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles | |||
|---|---|---|---|---|
| Hydraulic pumps | ||||
| Wheel motors | ||||
| Battery | ||||
| Charger | ||||
| Transmission |
| Forward speed | 0-8 mph 0-12.9 km/h |
|||
|---|---|---|---|---|
| Reverse speed | 0-4 mph 0-6.4 km/h |
|||
| Speed and direction control | Twin levers | |||
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Front caster tires | 13x6.5-6 | |||
| Front caster bearings | Sealed ball bearings | |||
| Drive tires | 22x9.5-10 | |||
| Hour meter | Yes | |||
| Service interval decal | Yes | |||
| Storage compartment | Yes | |||
| Cup holder | Yes | |||
| Maximum towing capacity | 250 lb 113 kg |
| Seat back height | Medium back with armrests, 18 in. 45.7 cm |
|||
|---|---|---|---|---|
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
|||
| Seat suspension | Two springs |
| Type | Foot lift | |||
|---|---|---|---|---|
| Mower cut height | 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | Yes |
| Width of cut | Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm |
|||
|---|---|---|---|---|
| Type | Side discharge | |||
| Mower deck material | 10 gauge 0.135 in. 3.4 mm |
|||
| Mower drive system | V-belt |
| Type | Electric, 105 lb-ft 142.4 Nm |
|||
|---|---|---|---|---|
| Drive | V-belt |
| Wheelbase | 49.2 in. 1250 mm |
|||
|---|---|---|---|---|
| Overall length | 76.9 in. 1953 mm |
|||
| Width without mower | 46.6 in. 1184 mm |
|||
| Width with mower | 48A: 62.8 in. 1595 mm 54A: 68.6 in. 1742 mm 60A: 73.4 in. 1864 mm |
|||
| Width with mower (deflector raised for storage) | 48A: 53.9 in. 1370 mm 54A: 59.7 in. 1517 mm 60A: 65.6 in. 1667 mm |
|||
| Height | ROPS in folded position: 48.6 in. 1235 mm ROPS in raised position: 71.1 in. 1806 mm |
|||
| Weight | With mower and fuel, 54A, 776 lb 353 kg With mower and fuel, 60A, 784 lb 356 kg |
| Rollover protective structure (ROPS) | Yes | |||
|---|---|---|---|---|
| Slope operating limit | 15 degrees, 10 degrees with an MCS | |||
| Operator presence system | Yes | |||
| Park brake interlock | Yes | |||
| Operator video | Yes |
| Note 1 | Mower wash port makes cleaning the deck easier | |||
|---|---|---|---|---|
| Note 2 | Flip-up foot platform for easy service access | |||
| Note 3 | 18-position adjustable motion-control levers | |||
| Warranty | 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm |
|||
|---|---|---|---|---|
| Rubber floor mat | Optional | |||
| Sun shade | Optional | |||
| Mounted sprayer | No | |||
| Protective cover | No | |||
| Light kit | Optional 4-point LED Light kit | |||
| Material collection system | Power Flow rear bagger, 6.5 bu 230 L Not available on 60A |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Dec-21 |
Typical home maintenance kit
Home maintenance kits are a handy and convenient way for dealers to supply a customer with the maintenance-interval parts as specified in their operator's manual.
The LG268 home maintenance kit includes the following:
Quantity |
Description |
1 |
Engine oil filter |
2 |
Engine oil, quart |
1 |
Fuel filter |
1 |
Air filter cartridge |
1 |
Precleaner |
2 |
Spark plug |
Power Flow chute and blower
Hopper, chute, and blower
The Power Flow chute is required, along with the high-performance Power Flow blower, to use the 2-bag Power Flow material collection system. The chute includes a convenient handle and a fill indicator that tells the operator when the bags are getting full.
One chute works with several vehicle applications. Trim lines on the chute are referenced in the instructions so the chute can be cut to the proper length for the vehicle/mower application.
ZTrak Z530R with 6.5-bu (229-L) rear bagger, chute, and blower
ZTrak Z530R with 6.5-bu (229-L) rear bagger, chute, and blower
The 6.5-bu (229-L) rear bagger efficiently collects material from the mower deck:
Removing bag from 6.5-bu (229-L) hopper
Removing bag from 6.5-bu (229-L) hopper
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
NOTE: Appropriate Power Flow blower, chute, and attachment bar are required (ordered separately).
NOTE: The 6.5-bu (229-L) hopper is not compatible with 60-in. (152-cm) Mower Decks because its larger size and ability to fill the hopper more quickly reduces the usefulness of the bagging system.
HP Power Flow blower assembly
The high-performance (HP) Power Flow blower assembly for the 48-in. (122-cm) Accel Deep™ Mower is used with the hopper and chute to provide a very effective material collection system. A 6.5-bu (229-L) hopper and chute must be ordered separately to complete this material collection system.
HP Power Flow blower assembly
The high-performance (HP) Power Flow blower assembly for the 54-in. (137-cm) Accel Deep™ Mower is used with the hopper and chute to provide a very effective material collection system. A 6.5-bu (229-L) hopper and chute must be ordered separately to complete this material collection system.
Rear bumper
Rear bumper with hitch (sold separately) on Z500
The optional rear bumper bolts to the ZTrakTM tubular frame for solid support:
Battery charger
This fully automatic 1.5-amp battery charger and maintainer safely charges lawn and garden, RV, deep-cycle, and most batteries that require long storage periods. It is particularly useful during winter months when the vehicle is not being used regularly, to ensure the battery stays charged:
Includes a choice of battery connection methods:
Z700E with foot pegs in angled position
Z700E with footpegs in horizontal position
Z515E with foot pegs installed
Foot pegs only
Foot pegs are standard equipment on the ZTrak™ Z740R, Z530R and Z545R Mowers and optional field-installed kits on:
They provide the operator with more foot-placement options:
Foot mat kit
Set of foot pegs
The foot mat kit provides extra comfort and traction to the foot platform and toe board.
Striping kit brush
Before mowing
After mowing
Specifications
| Item number | LP63764 |
| Compatible mowers | ZTrak 48-in. (122-cm) and 54-in. (137-cm) Accel Deep Mower Decks |
| Installation time | 15 minutes |
| Shipping weight | 15 lb (7 kg) |
| Warranty | Two-year consumer warranty |
Customers, please contact your local John Deere dealer for availability and pricing information.
ZTrak grass groomer - lawn striping kit
Order number: LP63764
Jack kit in storage position
Jack kit in vertical position for use
The jack allows for easy access to the underside of the mower for maintenance or blade changing while in the field. The kit contains everything necessary to install the jack onto the front of a mower.
Holes in the vehicle frame cross member are pre-drilled for ease of installation:
Z500 LED light kit parts
Light kit standard on Z545R
The light kit includes a four-point LED lighting system and required installation components to provide additional lighting when needed.
Deluxe smart connector
The John Deere MowerPlus deluxe smart connector wirelessly links some 100 and 200 Series Tractor models and Z500 Series ZTrak™ Mowers to the MowerPlus app on a mobile device:
Equipment features available for viewing on the MowerPlus app include:
The operator is able to visit their device’s app store to see new app features as they are added.
Since the smart connector communicates instrument cluster information, future app releases will provide additional operating recommendations and notifications.
Smart connector, wiring harness, and twist ties
One end of the wiring harness plugs into the back of the fuel gauge. The other ends plug into the smart connector and the tractor's wiring harness. The Z500 Mowers come with a dedicated connectivity connector, so the new wire harness is not needed.
MowerPlus deluxe smart connector (BUC10929) is for use with the following lawn tractors and ZTrak Mowers:
The MowerPlus smart connector requires the MowerPlus app on a mobile device to use. The John Deere MowerPlus app can be found in the mobile device’s app store.
NOTE: The John Deere MowerPlus app is only available in the English language, and it is not available in all countries. Find operating system version availability in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
Z535M shown with standard control arms
Z375R shown with premium control arms
String trimmer mount on Z515E
Main and secondary brackets
The string trimmer mounting kit is designed to carry a string strimmer on the machine. It is designed to fit most string trimmers with straight shafts. The main bracket fits over the right-side fender, and the secondary bracket mounts to the caster arm on the discharge side of the machine. Rubber straps are provided to secure the trimmer in place. The mount is not compatible with a complete material collection system.
Yard tool kit
The yard tool kit provides the ability to carry yard tools such as a rake or shovel on the machine.
Mounting bracket
The kit consists of one complete bracket and is designed to be mounted on the left side of the rear engine shroud and machine frame.
Toolbox kit (pictured on Z515E)
The toolbox kit provides easy access and convenient storage for small, hand-held tools:
Trash receptacle kit on Z515E
Trash receptacle kit components
The trash receptacle kit enables trash pickup and storage without the need to leave the mower seat. It includes everything needed:
A mounting bracket keeps the bucket out of the way and is designed to be mounted opposite the trim side of the mower:
7P Poly Utility Cart
Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.
Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.
7P Poly Utility Cart
7P Utility Cart wheel
Wheels are mounted on a solid, one-piece axle for durability.
Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.
The pneumatic tires offer the following:
Sloped tailgate for easy emptying
A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
Spring-pin tractor hitch
A large-diameter hitch pin provides plenty of strength:
Tilt latch
An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Please contact a local John Deere dealer for availability and pricing information.
7P Poly Utility Cart
Order number: LP21935
Oilite is a trademark of Beemer Precision, Incorporated.
10P Poly Utility Cart
Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.
Utility carts can be used to haul a variety of materials:
The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:
A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.
Comparison with similar models
| Model | Order through | Box capacity (heaped) | Material thickness | Maximum weight | Vehicle compatibility |
| 7P | Order Zone | 7 cu ft (0.20 m3) | High-density polyethylene (HDPE)** | 450 lb* (204 kg) | EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 8Y | Order Zone | 8 cu ft (0.22 m3) | HDPE** | 300 lb* (136 kg) (tow) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10P | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 10PX | Order Zone | 10 cu ft (0.28 m3) | Polypropylene | 650 lb* (295 kg) | EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 13 | Order Zone | 13 cu ft (0.37 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 16YS | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 17P | Order Zone | 17 cu ft (0.48 m3) | Polypropylene | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 18 | Order Zone | 18 cu ft (0.51 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | 100 Series, 200 Series, X300 Series, X500 Series, X700 Series |
| 21 | Order Zone | 21 cu ft (0.59 m3) | 16-gauge, 0.06-in. (1.5-mm) steel | 1,000 lb* (454 kg) | X700 Series |
*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Ordering information
Please contact a local John Deere dealer for availability and pricing information.
10P Poly Utility Cart
Order number: LPPCT10JD
Oilite is a trademark of Beemer Precision, Incorporated.
7P |
8Y |
10P |
10PX |
13 |
16YS |
17P |
18 |
21 |
|
| Box capacity | |||||||||
| Heaped | 7 cu ft (0.20 m3) | 8 cu ft (0.22 m3) | 10 cu ft (0.28 m3) | 10 cu ft (0.28 m3) | 13 cu ft (0.37 m3) | 17 cu ft (0.48 m3) |
17 cu ft (0.48 m3) | 18 cu ft (0.51 m3) | 21 cu ft (0.59 m3) |
| Struck | 5.6 cu ft (0.16 m3) | 6.6 cu ft (0.19 m3) | 8.3 cu ft (0.24 m3) | 8.3 cu ft (0.24 m3) | 10 cu ft (0.28 m3) | 15 cu ft (0.42 m3) |
14 cu ft (0.40 m3) | 15 cu ft (0.42 m3) | 15 cu ft (0.42 m3) |
| Maximum weight | 450 lb* (204 kg) | 300 lb* (136 kg) | 650 lb* (295 kg) | 650 lb* (295 kg) | 1,000 lb* (454 kg) | 800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump* | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) | 1,000 lb* (454 kg) |
| Box dimensions | |||||||||
| Width | 33 in. (84 cm) | 33.68 in. (85.5 cm) | 30.3 in. (77 cm) | 30.3 in. (77 cm) | 30.25 in. (76.8 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Length | 45 in. (114 cm) | 45 in. (114 cm) | 44.5 in. (113 cm) | 44.5 in. (113 cm) | 48 in. (122 cm) | 58.5 in. (148.6 cm) |
58.5 in. (148.6 cm) | 48 in. (122 cm) | 48 in. (122 cm) |
| Depth | 10.5 in. (27 cm) | 10.75 in. (27.3cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 12 in. (30.5 cm) | 15.5 in. (39.4 cm) |
15.5 in. (39.4 cm) | 18 in. (45.7 cm) | 11 in. (27.9 cm) |
| Box construction | Molded | Molded | Molded | Molded | Welded | Molded | Molded | Welded | Bolted |
| Material | High-density polyethylene (HDPE)** | HDPE** w/UV inhibitor | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | Polypropylene | Polypropylene | 16-gauge, 0.06-in. (1.5-mm) steel | 16-gauge, 0.06-in. (1.5-mm) steel |
| Tailgate | None, sloped | None, sloped | None, sloped | None, sloped | Hinged | None, sloped | None, sloped | Hinged | Lift-out/swing-out |
| Pneumatic tires | 2 ply | --- | 2 ply | 2 ply | 2 ply | 4 ply | 4 ply | 4 ply | 2 ply |
| Size | 13x4-6 | 13x4-6 | 15x6.00-6 | 15x6.00-6 | 15x6.00-6 | 16x6.50-8 | 16x6.50-8 | 16x6.50-8 | 20x10.00-8 |
| Tread design | Turf | Knobby | Turf | Turf | Turf | Turf | Turf | Turf | Turf |
| Recommended inflation pressure | 30 psi (207 kPa) | 30 psi (207 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 14 psi (97 kPa) | 35 psi (241 kPa) | 28 psi (193 kPa) | 28 psi (193 kPa) | 10 psi (70 kPa) |
| Wheel bearings | Iron/Oilite | None | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Iron/Oilite | Ball bearings, double sealed |
| Grease fittings on wheels | Yes | None | Yes | Yes | Yes | Yes | Yes | Yes | None |
| Axle diameter | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) | 0.75 in. (1.905 cm) |
0.75 in. (1.905 cm) | 1 in. (2.54 cm) | 1 in. (2.54 cm) |
| Ground clearance | 5.62 in. (14.3 cm) | 5.25 in. (13.3 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 6.5 in. (16.5 cm) | 14.25 in. (36.2 cm) |
14.25 in. (36.2 cm) | 7 in. (17.8 cm) | 8.25 in. (21 cm) |
| Width, overall | 34 in. (86.4 cm) | 33.68 in. (85.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 38 in. (96.5 cm) | 39.5 in. (100.3 cm) |
39.5 in. (100.3 cm) | 38 in. (96.5 cm) | 48 in. (122 cm) |
| Hitch pin | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip | Pin/spring clip |
| Dump angles | 55 degrees | 55 degrees | 56 degrees | 180 degrees | 31 degrees | 46 degrees | 46 degrees | 35/40 degrees | 35/40 degrees |
| Maximum tongue weight | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 70 lb (31.75 kg) | 70 lb (31.75 kg) | 100 lb (45.4 kg) | 50 lb (22 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) | 100 lb (45.4 kg) |
| Shipping weight with carton | 68 lb (31 kg) | 65 lb (29.5 kg) | 79 lb (35.8 kg) | 91 lb (41.3 kg) | 110 lb (49.9 kg) | --- | 105 lb (47.6 kg) | 170 lb (77.1 kg) | 240 lb (109 kg) |
| Net weight | 65 lb (29 kg) | 55 lb (25 kg) | 72 lb (32.7 kg) | 84 lb (38 kg) | 105 lb (47.6 kg) | 103 lb (47 kg) | 105 lb (47.6 kg) | 150 lb (68 kg) | 220 lb (99.8 kg) |
*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.
| Model | 7P | 8Y | 10P | 10PX | 13 | 16YS | 17P | 18 | 21 |
| EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665 ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R |
X | X | X | ||||||
| L100, L108, L110, L111, L118, L120, L130 102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180 |
X | X | X | X | X | X | X | X | |
| S220, S240 | X | X | X | X | X | X | X | X | |
| LT150, LT160, LT180, LT190, LTR180 | X | X | X | X | X | X | |||
| LX280, LX280AWS, LX289 | X | X | X | X | X | X | |||
| X300, X300R, X304, X310, X320, X324, X340, X360, X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
X | X | X | X | X | X | X | X | |
| SST15, SST16, SST18 | X | X | X | X | |||||
| G110 | X | X | X | X | X | X | X | ||
| GT235, GT245 | X | X | X | X | X | X | X | ||
| GX255, GX335, GX345, GX355 | X | X | X | X | X | X | X | ||
| X500, X520, X530, X534, X540 X570, X580, X584, X590 |
X | X | X | X | X | X | X | X | |
| X465, X475, X485, X495, X575, X585, X595 | X | X | X | X | X | X | X | X | X |
| X700, X720, X724, X728, X729, X740, X744, X748, X749 X710, X730, X734, X738, X739, X750, X754, X758 |
X | X | X | X | X | X | X | X | X |
Mower deck leveling gauge
Leveling gauge allows quick and accurate mower deck leveling and cutting height adjustment.
Can be used for:
ZTrak™ Z325E with 48A Mower Deck
X584 Tractor with 48A Mower Deck
The MulchControl system makes mulching more practical for many mowing situations. It does an excellent job of mulching and allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl baffle open
MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl handle
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings.
While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
When bagging with MulchControl on a 48A or 54A Mower Deck, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.
This MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades. It’s compatible with S240 Lawn Tractor, model year 2016 and newer X300 and X500 Series Tractors, X700 Series Tractors, and Z300 and Z500 Series ZTrak Mowers equipped with a 48-in. (122-cm) Accel Deep (48A) Mower Deck.
ZTrak™ Z530M with 54A Mower Deck
X380 Tractor with 54A Mower Deck
The MulchControl system makes mulching more practical for many mowing situations. It does an excellent job of mulching and allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl baffle open
MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl handle
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings.
While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
When bagging with MulchControl on a 48A or 54A Mower Deck, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.
This MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades. It’s compatible with model year 2016 and newer X300 and X500 Series Tractors and Z300 and Z500 Series ZTrak Mowers equipped with a 54-in. (137-cm) Accel Deep (54A) Mower Deck.
ZTrak™ Z515E with 60A Mower Deck
ZTrak™ Z515E with 60A Mower Deck
The MulchControl system makes mulching more practical for many mowing situations. It does an excellent job of mulching and allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl baffle open (shown on similar 54A Mower Deck from X500 Tractor)
MulchControl baffle closed (shown on similar 54A Mower Deck from X500 Tractor)
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl handle
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings.
While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
When bagging with MulchControl on a 60A Mower Deck, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.
This MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades. It is compatible with model year 2021 and newer Z500 ZTrak Mowers equipped with 60-in. (152-cm) Accel Deep (60A) Mower Deck.
Rear hitch
The rear hitch provides towing capability for ZTrak™ Mowers:
Magnetic hitch pin
Fits John Deere equipment tow behind attachments.
Customers, please contact your local John Deere dealer for availability and pricing information.
Magnetic hitch pin
Order number: LP63768
Spark arrester screen
Allows tractor to meet restrictions imposed by certain areas.
Weight kit
The weight kit includes a weight bracket and four 18-lb (8.2-kg) weights for installation on the front of a Z500 Series ZTrak™ Mower. Quick-pull pins hold the weights securely in place while providing easy installation and removal.
NOTE: The weight kit components are also included in the 6.5-bu (229-L) rear bagger attachment.
2The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer's website for additional information.
3Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW John Deere TURF AND UTILITY EQUIPMENT at JohnDeere.com and JohnDeere.ca/TUWarranty.
