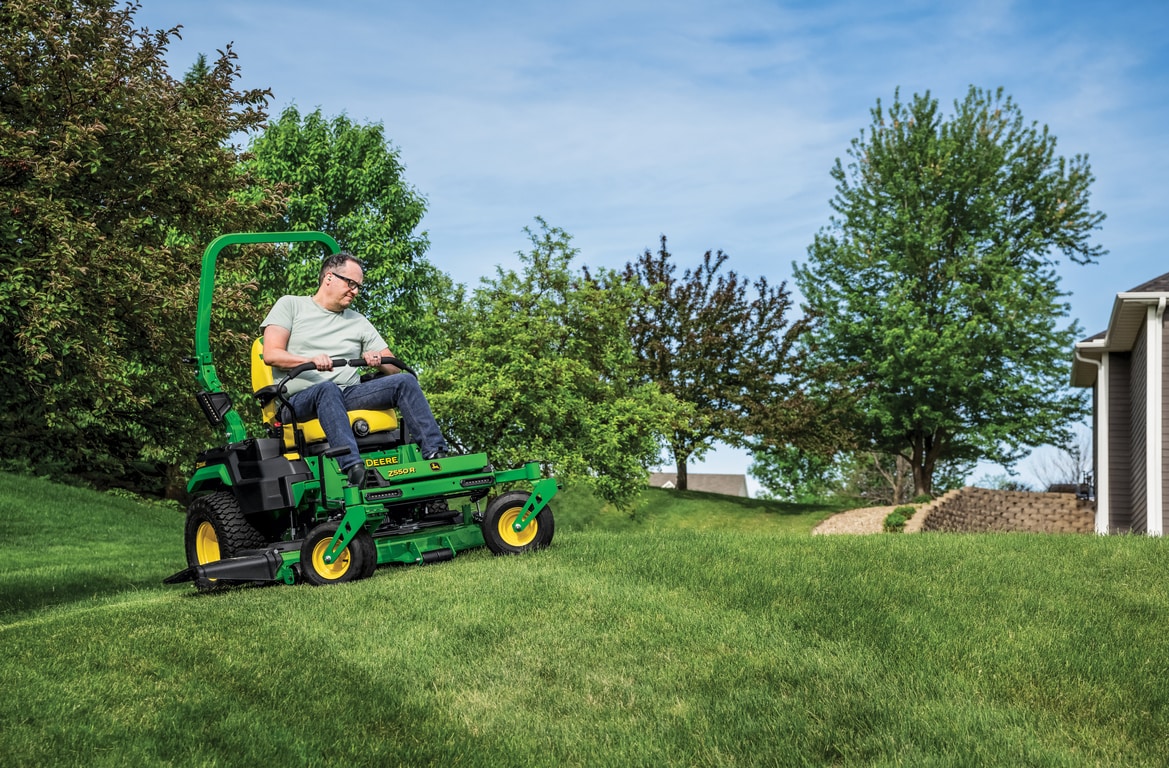

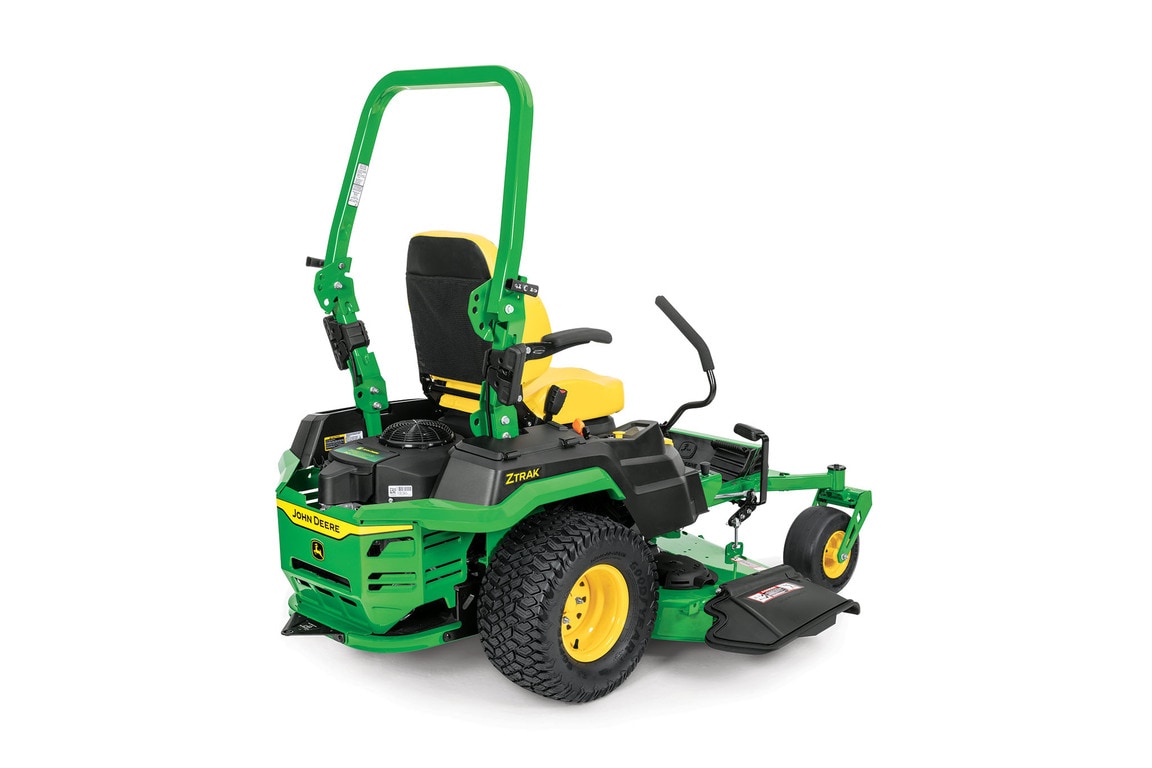

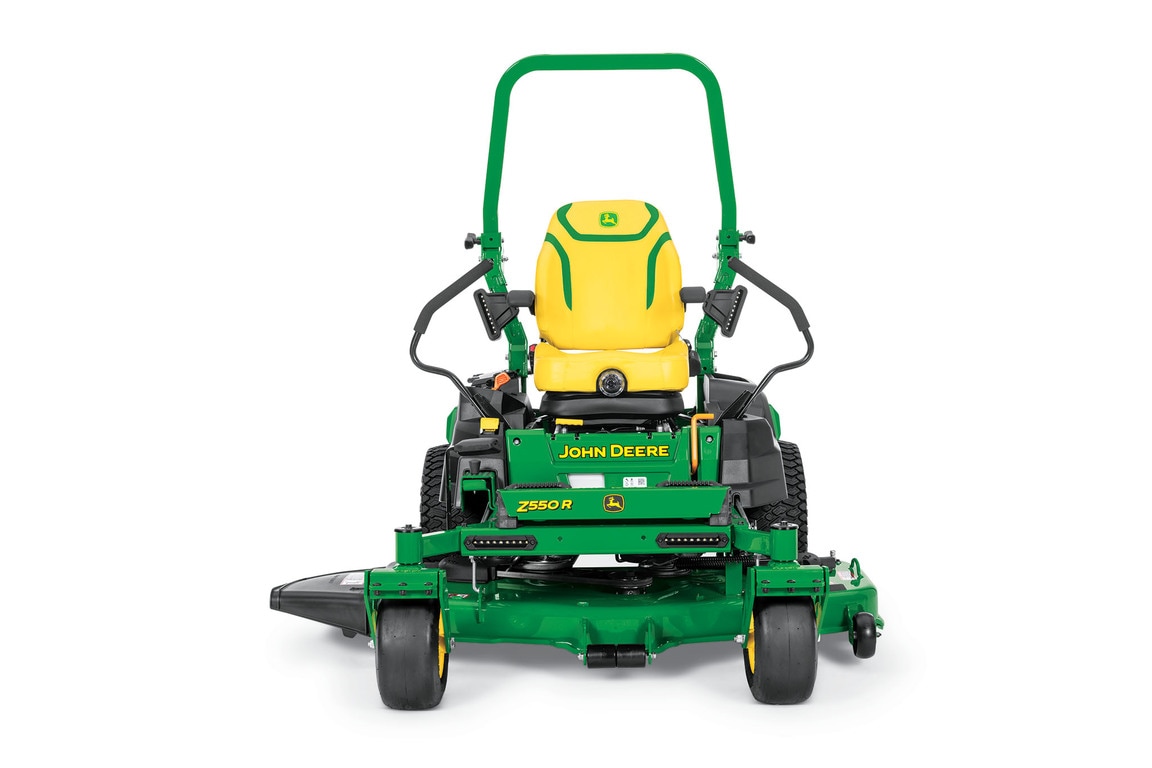

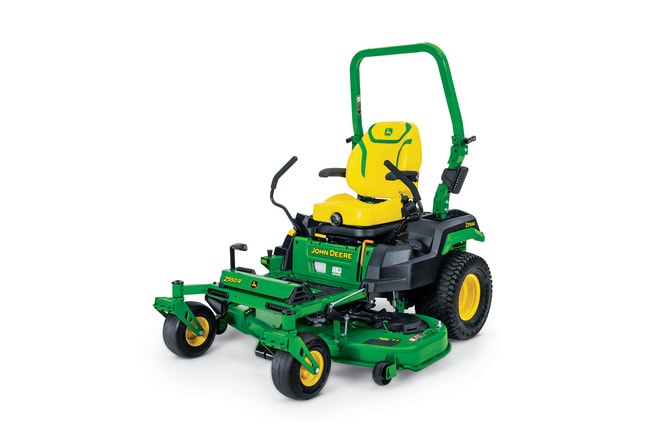

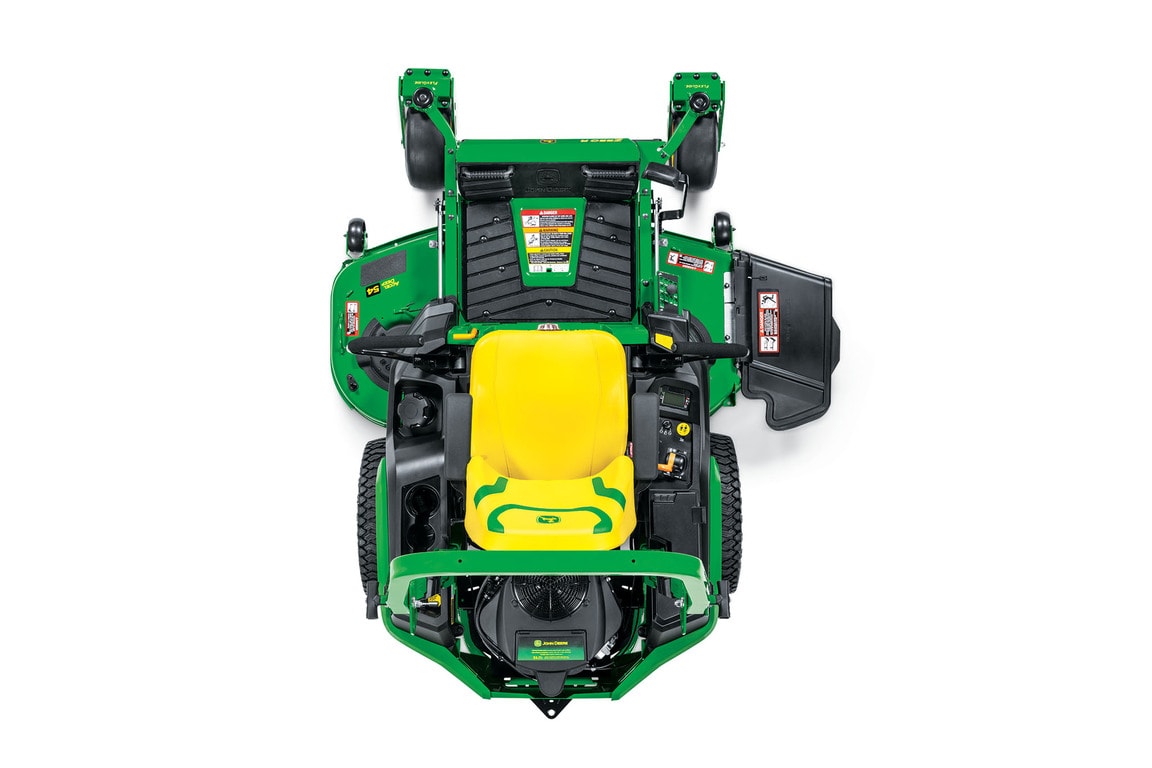

Z550R ZTrak™ Mower

Operator station with adjustable controls, seat suspension, and optional FlexGlide™ front caster suspension

Z530M operator station

Z565R operator station

The spacious operator station of a Z500 ZTrak™ Mower is designed to enhance operator comfort, ease of use, and showroom appeal.

Model	Z515E	Z530M	Z550R	Z560R	Z565R
Seat	21-in. (53-cm) cut-and-sewn	21-in. (53-cm) cut-and-sewn	24-in. (61-cm) cut-and-sewn	24-in. (61-cm) cut-and-sewn	24-in. (61-cm) cut-and-sewn
Seat suspension	Seat springs	Seat springs with ComfortGlide™	Adjustable mechanical	Adjustable mechanical	Adjustable mechanical
FlexGlide front caster suspension	Optional	Optional	Standard	Standard	Standard
Rubber floor mat	Optional	Standard	Standard	Standard	Standard
Rubber toe board mat	Optional	Optional	Standard	Standard	Standard
Foot pegs	Optional	Optional	Standard	Standard	Standard
Storage compartment cover	Optional	Standard	Standard	Standard	Standard
Foot platform isolators	n/a	n/a	Standard	Standard	Standard
12-V charge port	Standard	Standard	Standard	Standard	Standard

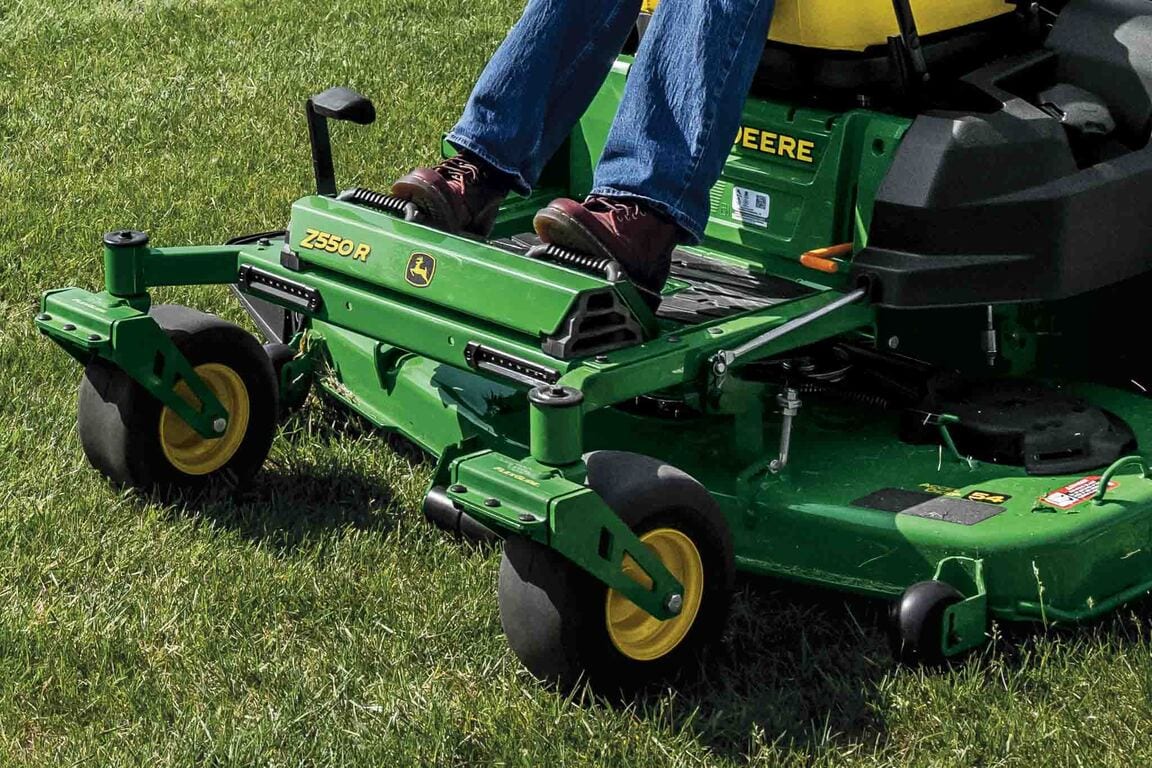

FlexGlide front caster suspension

FlexGlide front caster suspension allows the front tires to flex and absorb bumps from holes, rocks, and tree roots, without transferring impacts to the operator. Homeowners can mow faster, stay comfortable, and enjoy mowing instead of enduring it.

On R-Series models, the combination of FlexGlide™ caster suspension and a 24‑in. (61-cm) high back mechanical suspension seat work together to absorb impacts and cushion the operator’s core and feet. Unlike competitors’ solutions, caster and seat suspension keep the operator stable on moderate terrain while providing cushioning only when it is needed.

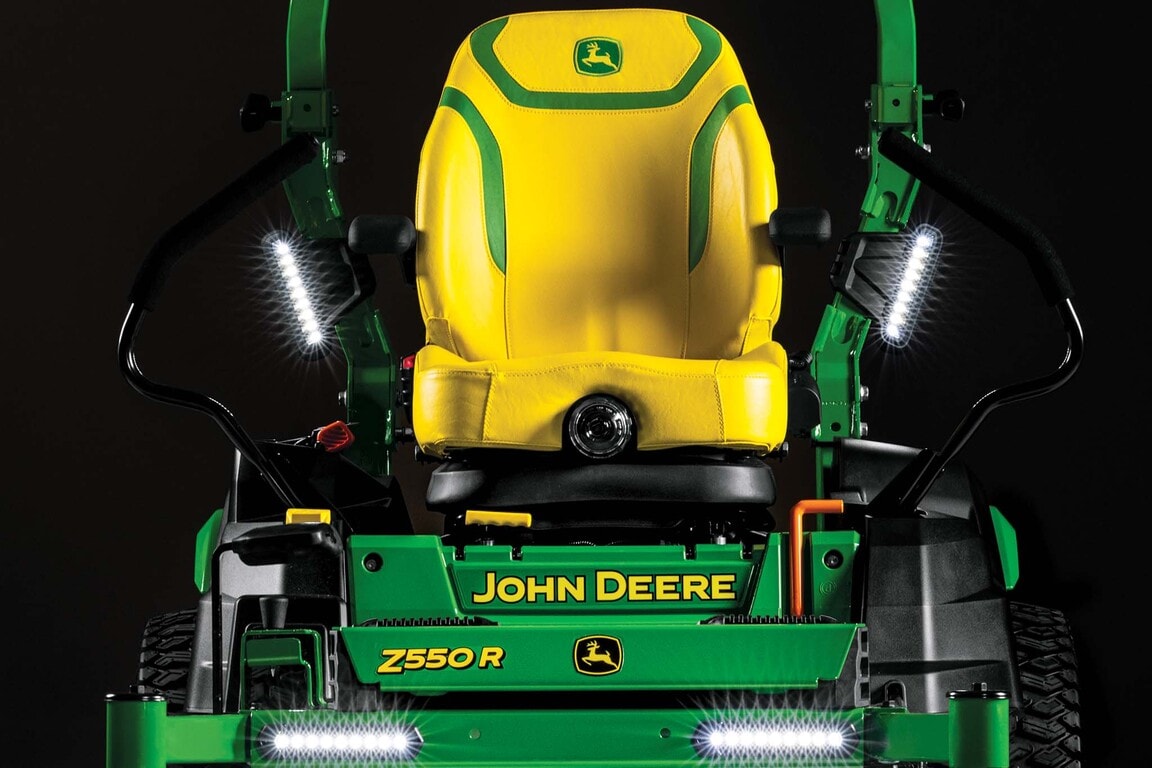

Comfortable cut-and-sewn seats

Z515E with 21-in. (53-cm) seat

Z565R with 24-in. (61-cm) seat

Z515E and Z530M models feature a 21-in. (53-cm) high-back seat, while R-Series models feature a 24-in. (61-cm) adjustable suspension high-back seat. Both seats include:

Thick foam padding for support and added comfort.
Side bolsters for greater stability on uneven terrain.
Premium styling with John Deere logo and green accent details.
Cut-and-sewn vinyl construction for improved durability, long-term flexibility, and reduced risk of cracking.
Armrests for extra support.
3 in. (7.6 cm) of seat travel for improved comfort and access to controls.
Tool-free fore-and-aft seat adjustment.

Seat suspension springs (Z515E and Z530M)

Z530M with 21-in. (53-cm) seat

Seat springs

On Z515E and Z530M models, two long, steel springs absorb shocks when traveling over rougher areas.

ComfortGlide fore-and-aft suspension (Z530M)

ComfortGlide seat adjustment lever

ComfortGlide fore-and-aft suspension allows the seat to glide forward and back over rough terrain:

Reduces horizontal vibrations and jarring.
Allows 1-in. (2.5 cm) of front to rear movement.
Adjustment lever with three positions:
- Slide seat to adjust fore and aft position.
- Engage ComfortGlide fore-and-aft suspension.
- Disengage ComfortGlide to lock seat in position.

Adjustable suspension (R-Series models)

Z560R with 24-in. (61-cm) seat

Seat suspension adjustment

The R-Series Z500 ZTrak models feature an adjustable mechanical suspension with 3-in. (7.6-cm) of suspension travel. An adjustment knob at the front of the seat can be adjusted to suit the operator’s preference for the most comfortable ride. It is recommended to align the arrow on the dial with the operator’s weight.

Floor mats and foot pegs

Z515E foot platform

Z530M foot platform

R-Series foot platform

Z500 ZTrak Mowers include a spacious foot platform that allows the operator to place their legs in a comfortable location. The M- and R-Series models include rubber mats and foot peg upgrades.

Rubber floor mat - A rubber floor mat upgrades styling while dampening vibration. A rubber floor mat is standard on Z530M and R-Series models, and optional on the Z515E model.

Rubber toe mat - A rubber toe mat extends the length of the floor mat to include the front toe board. It is standard on R-Series models and optional on Z515E and Z530M models.

Foot pegs - Foot pegs are secured to the toe board to provide additional foot-placement positions. The pegs also act as handles to remove and replace the foot platform. Foot pegs are standard on the R-Series models, and optional on the Z515E and Z530M models.

Foot platform isolators

Foot platform isolators shown with foot platform is raised position

Left foot platform isolator

R-Series models include foot platform isolators that support the front of the foot platform. The isolators enhance appearance and work in conjunction with the rubber floor mat to reduce vibration on the operator’s feet and reduce rattles.

Cup holder and storage compartment

Dual beverage holder

Storage compartment with cover

All Z500 ZTrak Mowers include a dual beverage holder on the left fender and storage compartment on the right fender:

Beverage holder secures two drink containers of various sizes for longer mowing jobs.
Storage compartment provides a safe and convenient location to store tools and supplies.

A storage compartment cover is standard on the Z530M and R-Series models, and optional on the Z515E model.

12-V charge port

12-V outlet is located within the storage compartment for the convenience of connecting a variety of electrical and electronic equipment.

Superior cut quality and productivity from the flat-top design of Accel Deep™ Mower Decks

Z530M ZTrak™ with 54A Mower Deck

Z530M ZTrak with 54A Mower Deck

The 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) Accel Deep Mower Decks are a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

4.83-in. (12.3-cm) (48A/54A) or 4.91-in. (12.5-cm) (60A) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance.
- Optional MulchControl™ system provides superior mulching performance and versatility.
Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
Mower deck is suspended from the vehicle for a smooth and level cut.
- Adjustable mower wheels, positioned just above ground level, help reduce scalping.
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height

Compatibility

Mower Deck	Models	Mulching (optional)	Material collection (optional)
48-in. (122-cm) Accel Deep (48A)	Z530M, Z550R	MulchControl system	6.5-bu (230-L) two-bag Power Flow™ system
54-in. (137-cm) Accel Deep (54A)	Z515E, Z530M, Z550R	MulchControl system	6.5-bu (230-L) two-bag Power Flow system
60-in. (152-cm) Accel Deep (60A)	Z515E, Z530M, Z550R	MulchControl system	Not available

Productivity - getting the job done fast

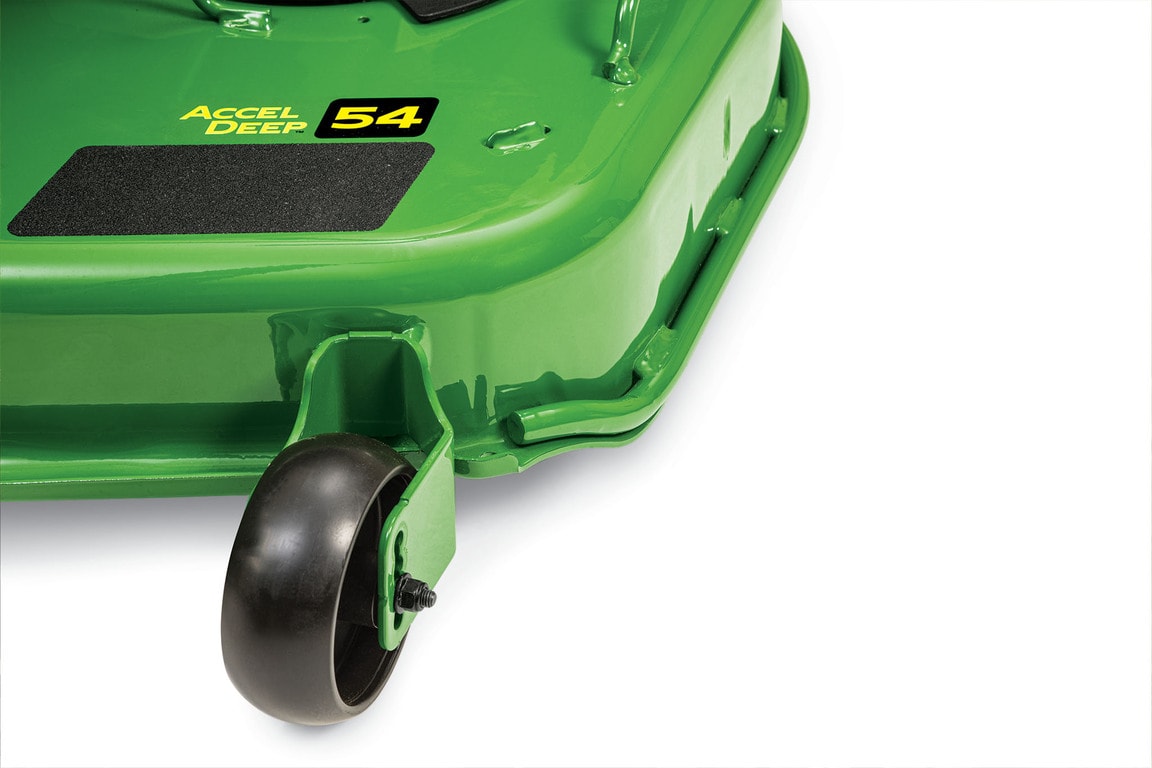

Trim side of Accel Deep Mower Deck

Deep mower-deck design delivers high productivity, which gets the job done fast. It allows room for the cut and suspended material to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

Greatly improves the mower’s capacity to maintain excellent mowing performance and cut quality in difficult mowing conditions and at higher speeds
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

Large discharge opening is both high and wide to handle more material:

Gives a smooth, even discharge of clippings at all mowing speeds
Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging

Versatility - easy to change between side discharge, mulch, and bagging modes

Accel Deep Mower Decks are designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

With MulchControl, changing from side discharging to mulching or vice versa is done with the simple flip of a lever.
On 48A and 54A Mower Decks, the Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever to move the mulch baffle to the side-discharge position.

Cleanliness - for the mower and the operator

Accel Deep Mower Deck, trim side

Cleaning a mower deck is one of the most frequent maintenance activities. The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

There are few places to catch and hold material on top and underneath the deck.
- Top of deck stays cleaner, reducing time and effort needed for cleaning and service
- Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
- Less need to clean and remove buildup of material from underside of deck
The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck.

Limited amount of material drifts onto the operator and mower deck
Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Mower wash port

Mower wash port with hose connector

A wash port and hose connector are provided to make cleaning the underside of the mower deck easy.

Superior durability is designed in

Hinged spindle pocket cover

Double-captured mower wheel

Accel Deep Mower Decks have strong spindle pockets to keep the blades aligned, even after years of tough service:

Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
Ribs in the deck shell add strength where it is needed.
Mower wheels are double captured:
- Provides greater strength and durability for longer, trouble-free life
- Single-bolt adjustment makes setting wheels to the correct cutting height quick and easy
Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.
A 5/8-in. (16-mm) diameter solid-steel rod side guard provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

MulchControl option

The MulchControl system for Accel Deep Mower Decks is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect lawn material.

Advantages of mulching grass clippings include:

A beautiful looking lawn
Grass clippings not blown onto the operator, driveways, or flower beds
Less fertilizer required
Elimination of the effort needed to dispose of clippings

Learn more about MulchControl here:
MulchControl™ system for 48-in. (122-cm) Accel Deep™ (48A) Mower Deck
MulchControl™ system for 54-in. (137-cm) Accel Deep™ (54A) Mower Deck
MulchControl™ system for 60-in. (137-cm) Accel Deep™ (60A) Mower Deck

6.5-bu (230-L) Power Flow rear bagger (not available for 60-in. [152-cm] Mower Deck)

Power Flow rear bagger (shown on prior model year Z530M)

An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available for 48-in. and 54-in. (122-cm and 137-cm) mower decks. It provides an efficient means of collecting grass clippings and leaves.

Maximize mowing efficiency with dual transmissions that offer 8 to 9 mph (12.9 to 14.5 km/h) mowing speeds

Unitized hydrostatic transmission

Dual unitized transmissions efficiently power the ZTrak™ mower forward and reverse and provide steering capability:

Experience excellent hillside stability with transmissions that are set low in the vehicle.
Tuff Torq® transmissions with 1-in. (2.5-cm) axles are reliable and durable.
- Tuff Torq TZT7-AD transaxles provide up to 8 mph (12.9 km/h) mowing speed on Z515E, Z530M, and Z550R models.
- Tuff Torq TZT7-AC transaxles provide up to 9 mph (14.5 km/h) mowing speed on Z560R and Z565R models.
Drain plugs on TZT7-AC transaxles (Z560R and Z565R) allow the transmission oil to be changed if desired.
- While changing the oil is not required, customers may choose to change their oil proactively.
Four-bolt hubs provide a reliable and convenient wheel-mounting system.

Transmission expansion tank and tow-valve lever

Tow valve control lever

Tow-valve controls are provided for each transmission and are located on the transmission near the expansion tanks to allow the mower to be moved without the engine running.

Tuff Torq is a trademark of Kanzaki Kokyukoki Mfg. Co., Ltd.

Easy-to-reach controls and instrument display with electric fuel gauge

Easy-to-reach control console

Z515E control console

Z550R control console

Z565R control console

Z500 ZTrak Mowers have a control console located to the right of the operator station. It includes:

Ignition switch
Engine controls
Power take-off (PTO) control (yellow)
Light switch

Z515E control console

Z565R control console

The Z515E, Z530M, Z550R, and Z560R models have two-lever engine controls:

Throttle (orange) adjusts the engine speed.
Choke (black) is spring-loaded, so it is not inadvertently left in the on position.

The Z565R engine is equipped with electronic fuel injection (EFI) and electronic throttle control (ETC) that permit simplified electronic control of engine speed and power for optimum performance in varying conditions:

MAX - full power and performance for the toughest mowing conditions, such as longer, thicker grass.
ECO - fuel saving setting for easier mowing conditions, such as shorter or dryer grass.
- ECO setting can be set to any engine speed; see operator manual to adjust
MIN - engine idle speed for navigating tight spaces and loading on a trailer.

Easy-to-read fuel gauge and instrument display

Hour meter and fuel gauge

Instrument display (shown at start up)

The Z515E and Z530M models are equipped with an hour meter and electronic fuel gauge:

Fuel gauge keeps track of the amount of fuel remaining
Hour meter shows operating hours; helps to keep maintenance on schedule.

The R-Series models are equipped with an instrument display that has the look and feel of a modern automobile, with a power-up sequence that cycles lights and gauges to indicate they are working:

Display features a dark-cockpit design to minimize operator distractions.
Display is backlit for night visibility.
Hour meter shows operating hours; helps to keep maintenance on schedule.
Fuel gauge keeps track of the amount of fuel remaining
A tachometer graphically displays engine speed.

Target-zone graphics inform the operator of the engine speed range to use for best cut quality.

An indicator tells the operator when the PTO is operating.
Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park-brake interlocks.
Operators are advised if battery voltage is low, normal, or excessive.
The service indicator light illuminates to indicate a diagnostic error code is stored.

On-board diagnostics provide trouble codes for use by trained technicians. For example, a technician can test switch functionality and circuit continuity without tools.

Fuel sight widow and fill cap

Fuel sight window and fuel fill cap

A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:

Semi-clear material so operators can see how much fuel is in the tank.
Large, 3-in. (7.6-cm) diameter fuel-fill opening reduces the chance of spilling when adding fuel.

Fuel-fill opening is low and angled to simplify fueling.

Cap is tethered to the fuel tank to prevent misplacement during fueling.

Mower deck lift and cut-height adjustment

Mower lift pedal, transport lock, and cut-height adjustment

Mower deck cut-height adjustment

Mower deck cutting height can be adjusted from 1.5 to 4.5 in. (3.8 to 11.4 cm) in 0.25-in. (0.64-cm) increments:

A convenient foot-lift pedal is used to raise the mower deck for setting cut height or locking mower in the raised or transport position.
A lift-assist spring is provided to reduce the effort it takes to raise the mower deck.
To adjust cut height, simply push down on the foot-lift pedal, place the cut-height pin in the desired location, and release the foot-lift pedal to lower the deck to the chosen height.
Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever, and release the foot-lift pedal to lower the deck to the chosen height.

Adjustable steering levers

Steering levers in operating position

Steering levers in park position

Steering levers are shaped and located for operator comfort and ease of control.

18-position steering lever adjustment, shown in high position

The steering levers can be adjusted to two different height settings and nine different fore-aft settings:

Combined height and fore and aft adjustments provide 18 positions.
Increased operator comfort with more leg room and more hand positions.
Adjustable for most precise control of the machine.
The provided tracking adjustment tool can be used to adjust the control levers.

Park brake and safety interlock system

Park brake lever

Interlock switch is located under the seat

The park brake is conveniently located and is easy to use.

Safety interlocks help prevent operating in an unsafe way:

Park brake must be engaged (in the upper position) to start the engine.
Steering levers must be in the outward position to start the engine.
Once the engine is started, the park brake must be disengaged before operating the steering levers or the engine will shut down.
The operator presence system requires the operator to be in the seat to operate the PTO.
If the operator leaves the seat when steering levers are in the operating position, or the parking brake is not set, the engine will shut down.
The seat interlock switch disengages the mower deck if the operator leaves the seat.

Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine

24-hp (17.9-kW) V-twin engine

The Z530M, Z550R, and Z560R have a 24-hp (17.9-kW) V-twin 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability.

Greater torque, lower vibration, and improved sound quality from the V-twin cylinder design
Fast starts with electronic ignition
Long engine life with cast-iron cylinder liners
Reliable operation with in-line fuel filter

Separate engine speed lever and choke lever

The engine speed lever and choke control lever are separate controls:

The engine speed lever is easy to use - there is no need to worry about pushing too far and engaging the choke like on single throttle/choke lever systems.

The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.

4.5-gal. (17-L) fuel capacity for extended mowing times

Fuel tank and fuel sight window

The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:

Longer times between refills with the large tank
Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine or glancing at the dash from the seat
Easy filling and minimum chance of spills with a large, 3-in. (7.6-cm) diameter fuel opening that is low and angled

John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

Protective zone around the operator is provided by the rollover protective structure (ROPS)

Clean, open operator station (Z565R shown)

Standard folding ROPS (Z530M shown)

The spacious operator station has been designed for comfort, visibility, and ease of use:

Getting on and off easy with the flat operator platform.
Convenient-to-use controls are located close to the operator.
Operator controls are color coded and designed for easy identification and operation.

ROPS folded at intermediate position

ROPS folded down

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

ROPS and seatbelt are provided to protect the operator in the event of an overturn. Seat belt use is required when operating the ROPS in the upright position.
The ROPS is easily folded using the spring-loaded pivot pins to allow the mower to be stored in lower-height structures or trailers.

Model	Height at top of ROPS in fully raised position
Z515E, Z530M, Z550R	70.5 in. 1790 mm
Z560R, Z565R	71.1 in. 1807 mm

Great looks, reliability, and performance delivered by a heavy-duty design

Z515E ZTrak™ Mower

Z560R ZTrak Mower

The Z500 ZTrak Mowers combine functional design and premium styling to meet the needs of homeowners with larger properties seeking a comfortable, high-performance mower.

Color accents

Green fender trim of Z550R, Z560R, and Z565R

Green seat accents and the John Deere logo visually communicate a premium offering and give a distinctive appearance.

The R-Series models include green fender trim that ties into the rear fender guard. The green fender trim adds style and keeps the machine cleaner by blocking some of the material thrown by the tire.

Formed and welded steel frame

Solid steel tube front frame

Strong rear frame with rear hitch (shown on Z565R)

A strong, welded steel frame provides solid, reliable support for the machine components and operator:

Heavy-duty 1.5- x 2-in. (38- x 51-mm) frame tubing for durability.
The rear frame provides solid support and protection for the engine.

The frame is designed to accommodate a rear hitch that can be used to pull a variety of lawn equipment. The rear hitch:

Supports up to 100 lb (45.4 kg) of tongue weight.
Pulls equipment weighing up to 250 lb (113.4 kg).
Is standard on Z530M, Z550R, Z560R, and Z565R, and optional on the Z515E model.

Large front caster wheels

Caster wheels (Z530M shown)

Caster wheels (Z565R shown with FlexGlide™ front caster suspension)

Large, 13x6.5-6 pneumatic tire and front caster wheels provide a smooth ride and level cut.

Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles:

Long, trouble-free life.
Designed to give smooth turns without damage to the turf.

Large rear tires with styled rear wheels

Rear wheel and tire (Z515E, Z530M, and Z550R)

Rear wheel and tire (Z560R and Z565R)

Rear tires have high-quality tread and optimum size for superior traction, level cut, and smooth ride:

Z515E, Z530M, and Z550R have 22x9.5-10 rear tires.
Z560R and Z565R have 23x10.5-12 rear tires.
Tread pattern is optimized for excellent traction and minimum turf damage.
Styled wheel designs enhance appearance.

Light-emitting diode (LED) lighting

Front and side lights

The attractive design integrates LED lighting:

Two front lights are integrated into the floorboard and face forward. They are standard on Z530M, Z550R, Z560R, and Z565R, and optional on the Z515E model.
Two ROPS-mounted side lights are positioned to provide visibility to the mower deck. They are standard on Z550R, Z560R, and Z565R, and optional on Z515E and Z530M models.

Convenient maintenance is supported by trusted self-service resources

Example quick-response (QR) code label

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

Upper portion of owner support web page

Lower portion of owner support web page

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.

The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Convenient service internal decal

Service interval decal

A convenient service interval decal provides basic maintenance information:

Provides a quick reference for keeping recommended service up to date.
Located under the seat for easy viewing.

Engine service

Air filter access (Z515E)

Air filter (Z515E)

Air filter access (Z530M, Z550R, Z560R)

Air filter (Z530M, Z550R, Z560R)

Air filter access (Z565R)

Air filter (Z565R)

The engines are easy to service:

Air filter is on top of the engine and easily removed with two wingnuts (Z515E and Z565R).
Air filter is on top of the engine and the cover flips up for easy access (Z530M, Z550R, and Z560R).
Cooling fin cleanout ports are located under the air cleaner cover (Z565R).

Engine oil fill/check and oil drain tube (Z515E and Z565R)

Engine oil fill/check and oil drain tube (Z530M, Z550R, and Z560R)

The engine oil fill/check tube is easy to see and reach. An oil drain tube is provided for easier and cleaner oil changes.

Mower deck service

Foot platform easily removed for access to mower

Flip-up spindle cover (shown on similar model)

The foot platform can be raised and removed without tools to easily access the mower deck for service:

Easy to clean grass off the top of the mower.
Provides convenient access to the mower drive.

Flat-top deck

Mower deck leveling gauge and tracking wrench

Accel Deep™ and High Capacity Mower Decks have features that make them easy to service:

Flat-top designs minimize places for debris to collect.
Spring-loaded, flip-up belt guards make removing debris easy.
Deck-leveling gauge and wrench are conveniently stored on the machine.

Tracking adjustment

Tracking adjustment bolts and tool

Tracking adjustment tool

Tracking adjustment can be made with the provided tool.

Bumper-to-bumper warranty

Z560R ZTrak Mower

Z530M ZTrak Mower

Z500 ZTrak Mowers are covered by a single-source, bumper-to-bumper warranty*.

Model	Warranty
Z515E, Z530M	4 year or 300 hour*
Z550R, Z560R, Z565R	4 year or 500 hour*

The warranty is hassle free, with both the mower and the engine covered by a single warranty. If the mower is sold, the remaining warranty term is transferable to a new owner.

*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Keep your mower ready to go with the Equipment Mobile App and smart connector

X350 Tractor

Z370R Electric ZTrak™ Mower

Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).

Find the right parts the first time

Use Equipment Mobile to find the right parts

It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.

Plan, track, and coordinate maintenance with your dealer

Maintenance plan screen

Maintenance parts and notes screen

Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.

Operator’s manual in the palm of your hands

A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.

Smart Connectors

Smart Connector

Smart connector, wiring harness, and twist ties

A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:

Engine hours, that enable maintenance reminders
Key switch status and battery level to warn if the battery is low
Fuel level - even when away from the mower, the app remembers the fuel level so you can make sure the mower is fueled when it is time to mow

Optional BUC11960 smart connector is for use with:

S120, S130, S160, S170, and S180 Tractors
Model year 2021 and newer S240 Tractors (serial number 880,001-)
Z515E, Z530M, Z530R, Z545R, Z550R, Z560R, and Z565R ZTrak™ Mowers

Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.

Optional BUC11959 smart connector is for use with:

Model year 2016 and newer Select Series X300 and X500 Tractors

Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC11959 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.

The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.

On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.

A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.

Bluetooth is a trademark of Bluetooth SIG, Inc.

Engine power	24 hp 17.9 kW
Engine model number	FR730V
Forward speed	0-8 mph 0-12.9 km/h
Front caster tires	13x6.5-6 with FlexGlide™ caster suspension
Drive tires	22x9.5-10
Seat back height	High back with armrests, 24 in. 61 cm
Width of cut	Accel Deep™ mower deck, 48 in. 122 cm Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm
Mulching system	Optional MulchControl™
Warranty	4 year or 500 hour bumper-to-bumper
Battery
Charger

Power	24 hp 17.9 kW
Model number	FR730V
Displacement	44.3 cu in. 726 cc
Cylinders	V-twin
Lubrication	Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type	Overhead valve
Battery	12 V 300 CCA
Choke/speed control	Separate control levers
Cooling method	Air
Fuel tank capacity	4.5 U.S. gal. 17 L
Fuel gauge	Instrument display with fuel gauge and fuel level sight line

Dual hydros	Tuff Torq® TZT7-AD with 1-in. (2.5-cm) axles
Hydraulic pumps
Wheel motors
Battery
Charger
Transmission

Forward speed	0-8 mph 0-12.9 km/h
Reverse speed	0-4 mph 0-6.4 km/h
Speed and direction control	Twin levers
Control adjustment	2-height/9-fore-aft, 18 positions

Frame	Heavy-duty frame tubing
Primer/paint	E-coat/powder
Front caster tires	13x6.5-6 with FlexGlide™ caster suspension
Front caster bearings	Sealed ball bearings
Drive tires	22x9.5-10
Hour meter	Yes
Service interval decal	Yes
Storage compartment	Yes and covered
Cup holder	Yes
Maximum towing capacity	250 lb 113 kg

Type	Electric, 105 lb-ft 142.4 Nm
Drive	V-belt

Wheelbase	50.2 in. 1275 mm
Overall length	84.6 in. 2150 mm
Width without mower	48.6 in. 1235 mm
Width with mower	48A: 62.6 in. 1590 mm 54A: 68.5 in. 1740 mm 60A: 73.7 in. 1871 mm
Width with mower (deflector raised for storage)	48A: 52.8 in. 1340 mm 54A: 57.1 in. 1450 mm 60A: 63.0 in. 1601 mm
Height	ROPS in folded position: 49.8 in. 1265 mm ROPS in raised position: 70.5 in. 1790 mm
Weight	With mower and fuel, 48A, 802 lb 364 kg With mower and fuel, 54A, 819 lb 371 kg With mower and fuel, 60A, 832 lb 377 kg

Manufacturing location	Greeneville, Tennessee, USA
Date collected	1-Oct-26

Z550RZTrak™ Mower

SHARE

Features

FlexGlide front caster suspension

Comfortable cut-and-sewn seats

Seat suspension springs (Z515E and Z530M)

ComfortGlide fore-and-aft suspension (Z530M)

Adjustable suspension (R-Series models)

Floor mats and foot pegs

Foot platform isolators

Cup holder and storage compartment

12-V charge port

Compatibility

Productivity - getting the job done fast

Versatility - easy to change between side discharge, mulch, and bagging modes

Cleanliness - for the mower and the operator

Superior durability is designed in

MulchControl option

6.5-bu (230-L) Power Flow rear bagger (not available for 60-in. [152-cm] Mower Deck)

Easy-to-reach control console

Easy-to-read fuel gauge and instrument display

Fuel sight widow and fill cap

Mower deck lift and cut-height adjustment

Adjustable steering levers

Park brake and safety interlock system

4.5-gal. (17-L) fuel capacity for extended mowing times

Color accents

Formed and welded steel frame

Large front caster wheels

Large rear tires with styled rear wheels

Light-emitting diode (LED) lighting

Convenient service internal decal

Engine service

Mower deck service

Tracking adjustment

Find the right parts the first time

Plan, track, and coordinate maintenance with your dealer

Operator’s manual in the palm of your hands

Smart Connectors

Specs & Compare

Add Model

Key Specs

Engine

Drive train

Travel speed

Chassis

Seat

Lift system

Mower deck

PTO

Dimensions

Operation

Buyer's notes

Optional attachments

Additional information

Offers and Discounts

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
