Z530M operator station
Z565R operator station
The spacious operator station of a Z500 ZTrak™ Mower is designed to enhance operator comfort, ease of use, and showroom appeal.
Model |
Z515E |
Z530M |
Z550R |
Z560R |
Z565R |
Seat |
21-in. (53-cm) cut-and-sewn |
21-in. (53-cm) cut-and-sewn |
24-in. (61-cm) cut-and-sewn |
24-in. (61-cm) cut-and-sewn |
24-in. (61-cm) cut-and-sewn |
Seat suspension |
Seat springs |
Seat springs with ComfortGlide™ |
Adjustable mechanical |
Adjustable mechanical |
Adjustable mechanical |
FlexGlide front caster suspension |
Optional |
Optional |
Standard |
Standard |
Standard |
Rubber floor mat |
Optional |
Standard |
Standard |
Standard |
Standard |
Rubber toe board mat |
Optional |
Optional |
Standard |
Standard |
Standard |
Foot pegs |
Optional |
Optional |
Standard |
Standard |
Standard |
Storage compartment cover |
Optional |
Standard |
Standard |
Standard |
Standard |
Foot platform isolators |
n/a |
n/a |
Standard |
Standard |
Standard |
12-V charge port |
Standard |
Standard |
Standard |
Standard |
Standard |
FlexGlide front caster suspension
FlexGlide front caster suspension allows the front tires to flex and absorb bumps from holes, rocks, and tree roots, without transferring impacts to the operator. Homeowners can mow faster, stay comfortable, and enjoy mowing instead of enduring it.
On R-Series models, the combination of FlexGlide™ caster suspension and a 24‑in. (61-cm) high back mechanical suspension seat work together to absorb impacts and cushion the operator’s core and feet. Unlike competitors’ solutions, caster and seat suspension keep the operator stable on moderate terrain while providing cushioning only when it is needed.
Z515E with 21-in. (53-cm) seat
Z565R with 24-in. (61-cm) seat
Z515E and Z530M models feature a 21-in. (53-cm) high-back seat, while R-Series models feature a 24-in. (61-cm) adjustable suspension high-back seat. Both seats include:
Z530M with 21-in. (53-cm) seat
Seat springs
On Z515E and Z530M models, two long, steel springs absorb shocks when traveling over rougher areas.
ComfortGlide seat adjustment lever
ComfortGlide fore-and-aft suspension allows the seat to glide forward and back over rough terrain:
Z560R with 24-in. (61-cm) seat
Seat suspension adjustment
The R-Series Z500 ZTrak models feature an adjustable mechanical suspension with 3-in. (7.6-cm) of suspension travel. An adjustment knob at the front of the seat can be adjusted to suit the operator’s preference for the most comfortable ride. It is recommended to align the arrow on the dial with the operator’s weight.
Z515E foot platform
Z530M foot platform
R-Series foot platform

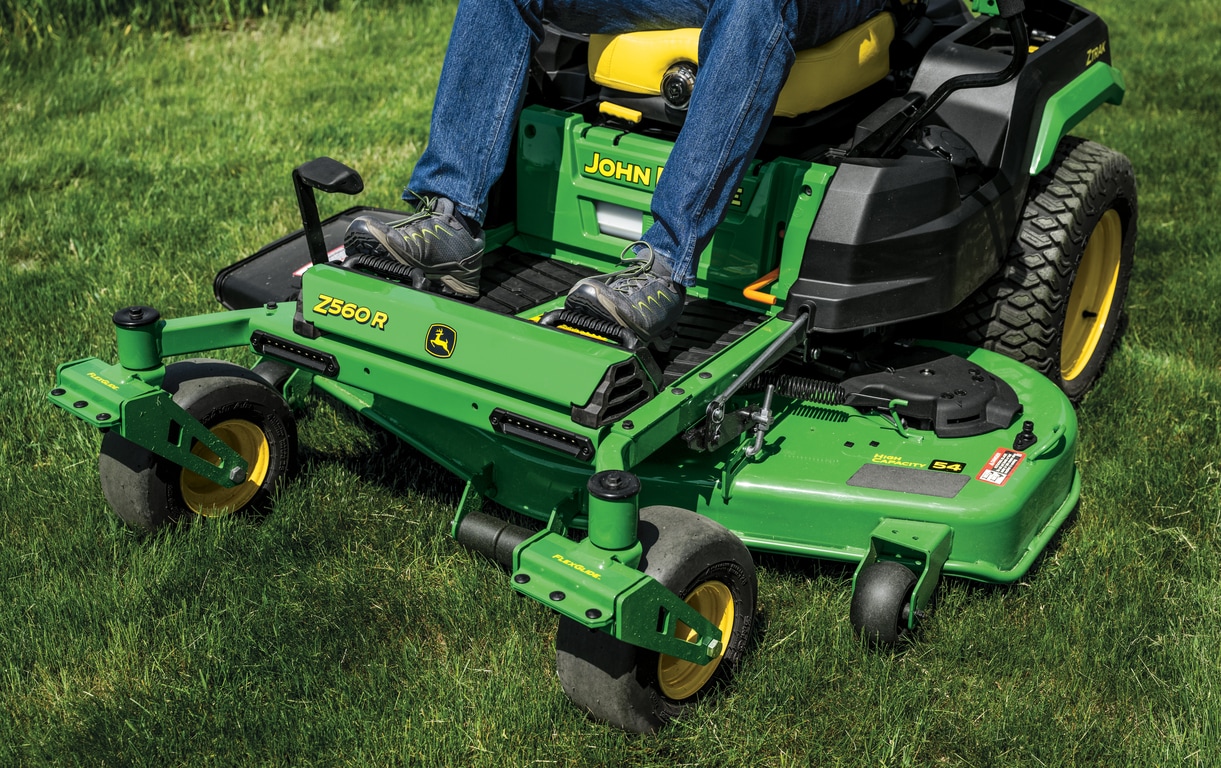

Z500 ZTrak Mowers include a spacious foot platform that allows the operator to place their legs in a comfortable location. The M- and R-Series models include rubber mats and foot peg upgrades.
Rubber floor mat - A rubber floor mat upgrades styling while dampening vibration. A rubber floor mat is standard on Z530M and R-Series models, and optional on the Z515E model.
Rubber toe mat - A rubber toe mat extends the length of the floor mat to include the front toe board. It is standard on R-Series models and optional on Z515E and Z530M models.
Foot pegs - Foot pegs are secured to the toe board to provide additional foot-placement positions. The pegs also act as handles to remove and replace the foot platform. Foot pegs are standard on the R-Series models, and optional on the Z515E and Z530M models.
Foot platform isolators shown with foot platform is raised position
Left foot platform isolator
R-Series models include foot platform isolators that support the front of the foot platform. The isolators enhance appearance and work in conjunction with the rubber floor mat to reduce vibration on the operator’s feet and reduce rattles.
Dual beverage holder
Storage compartment with cover
All Z500 ZTrak Mowers include a dual beverage holder on the left fender and storage compartment on the right fender:
12-V charge port
12-V outlet is located within the storage compartment for the convenience of connecting a variety of electrical and electronic equipment.
Z560R ZTrak™ with 54-in. (137-cm) High Capacity Mower Deck
Z560R ZTrak with 54-in. (137-cm) High Capacity Mower Deck
High Capacity Mower Decks are a heavy-duty, 9-gauge, 0.15-in. (3.8-mm), forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Experience optimal performance and dispersion of clippings, even at faster mowing speeds:
Z560R and Z565R ZTrak™ Mowers are equipped with a 54-in. (137-cm) or 60-in. (152-cm) High Capacity Mower Deck.
High Capacity Mower Deck size |
Model |
Mulching (optional) |
Material collection (optional) |
54 in. (137 cm) |
Z560R, Z565R |
MulchControl system |
6.5-bu (230-L) two-bag Power Flow system |
60 in. (152 cm) |
Z560R, Z565R |
MulchControl system |
Not available |
Deep, flat-top deck
The mower deck has a deep-deck design:
Mower level adjusting points
Reinforced leading edge and trim side of mower deck
Steel reinforcing bars are welded to the front edge and trim side of the mower deck:
Deep mower deck spindle pocket with flip-up spindle cover
The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:
Flip-up spindle covers make cleaning the spindle area convenient.
Power flow rear bagger (shown on prior model year Z530M)
The 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) efficiently collects material from a 48- or 54-in. (122- or 137-cm) Mower Deck.
Right and left mower anti-scalp wheel and center rollers
Dual-captured side anti-scalp wheels and front rollers:
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
Learn more about MulchControl here:
MulchControl™ system for 54-in. (137-cm) High-Capacity (HC) Mower Deck
MulchControl™ system for 60-in. (152-cm) High-Capacity (HC) Mower Deck
Unitized hydrostatic transmission
Dual unitized transmissions efficiently power the ZTrak™ mower forward and reverse and provide steering capability:
Transmission expansion tank and tow-valve lever
Tow valve control lever
Tow-valve controls are provided for each transmission and are located on the transmission near the expansion tanks to allow the mower to be moved without the engine running.
Tuff Torq is a trademark of Kanzaki Kokyukoki Mfg. Co., Ltd.
Z515E control console
Z550R control console
Z565R control console
Z500 ZTrak Mowers have a control console located to the right of the operator station. It includes:
Z515E control console
Z565R control console
The Z515E, Z530M, Z550R, and Z560R models have two-lever engine controls:
The Z565R engine is equipped with electronic fuel injection (EFI) and electronic throttle control (ETC) that permit simplified electronic control of engine speed and power for optimum performance in varying conditions:
Hour meter and fuel gauge
Instrument display (shown at start up)
The Z515E and Z530M models are equipped with an hour meter and electronic fuel gauge:
The R-Series models are equipped with an instrument display that has the look and feel of a modern automobile, with a power-up sequence that cycles lights and gauges to indicate they are working:
Fuel sight window and fuel fill cap
A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:
Mower lift pedal, transport lock, and cut-height adjustment
Mower deck cut-height adjustment
Mower deck cutting height can be adjusted from 1.5 to 4.5 in. (3.8 to 11.4 cm) in 0.25-in. (0.64-cm) increments:
Steering levers in operating position
Steering levers in park position
Steering levers are shaped and located for operator comfort and ease of control.
18-position steering lever adjustment, shown in high position
The steering levers can be adjusted to two different height settings and nine different fore-aft settings:
Park brake lever
Interlock switch is located under the seat
The park brake is conveniently located and is easy to use.
Safety interlocks help prevent operating in an unsafe way:
24-hp (17.9-kW) V-twin engine
The Z530M, Z550R, and Z560R have a 24-hp (17.9-kW) V-twin 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability.
Separate engine speed lever and choke lever
The engine speed lever and choke control lever are separate controls:
The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.
Fuel tank and fuel sight window
The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

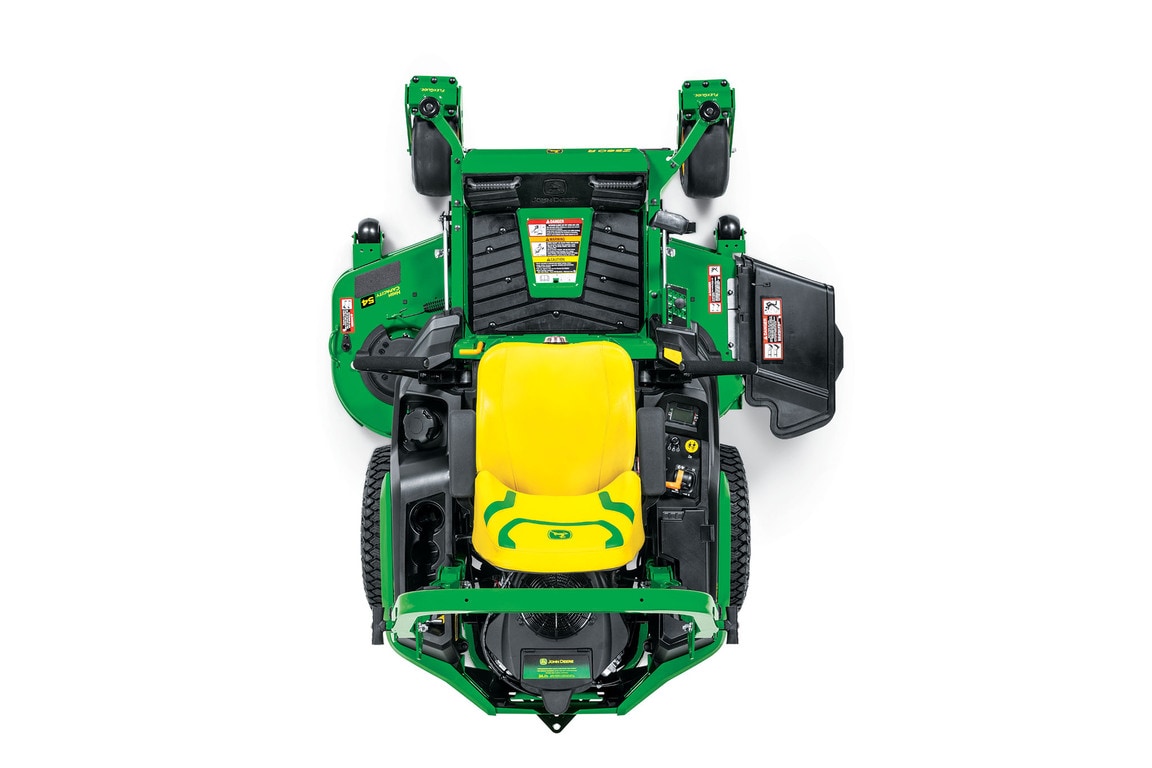

Clean, open operator station (Z565R shown)
Standard folding ROPS (Z530M shown)
The spacious operator station has been designed for comfort, visibility, and ease of use:
ROPS folded at intermediate position
ROPS folded down
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
Model |
Height at top of ROPS in fully raised position |
Z515E, Z530M, Z550R |
70.5 in. 1790 mm |
Z560R, Z565R |
71.1 in. 1807 mm |
Z515E ZTrak™ Mower

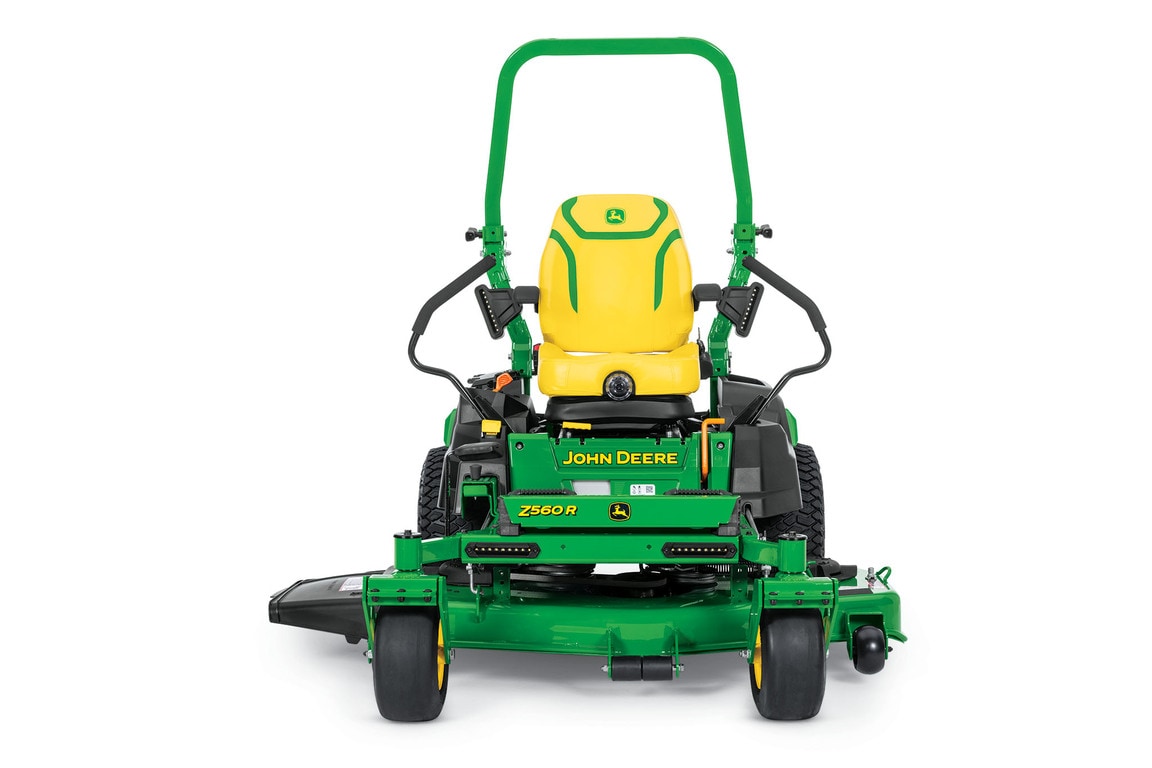

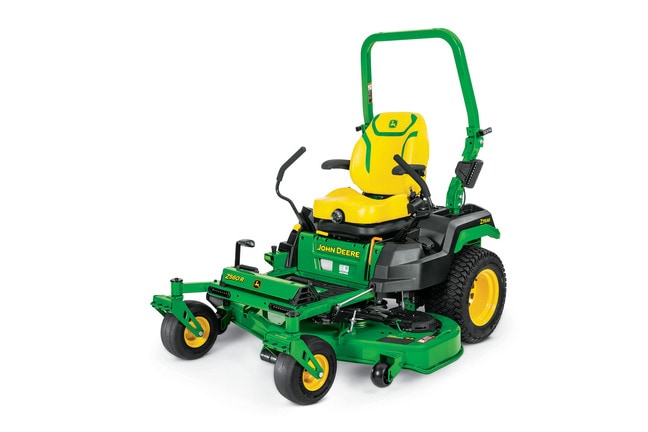

Z560R ZTrak Mower

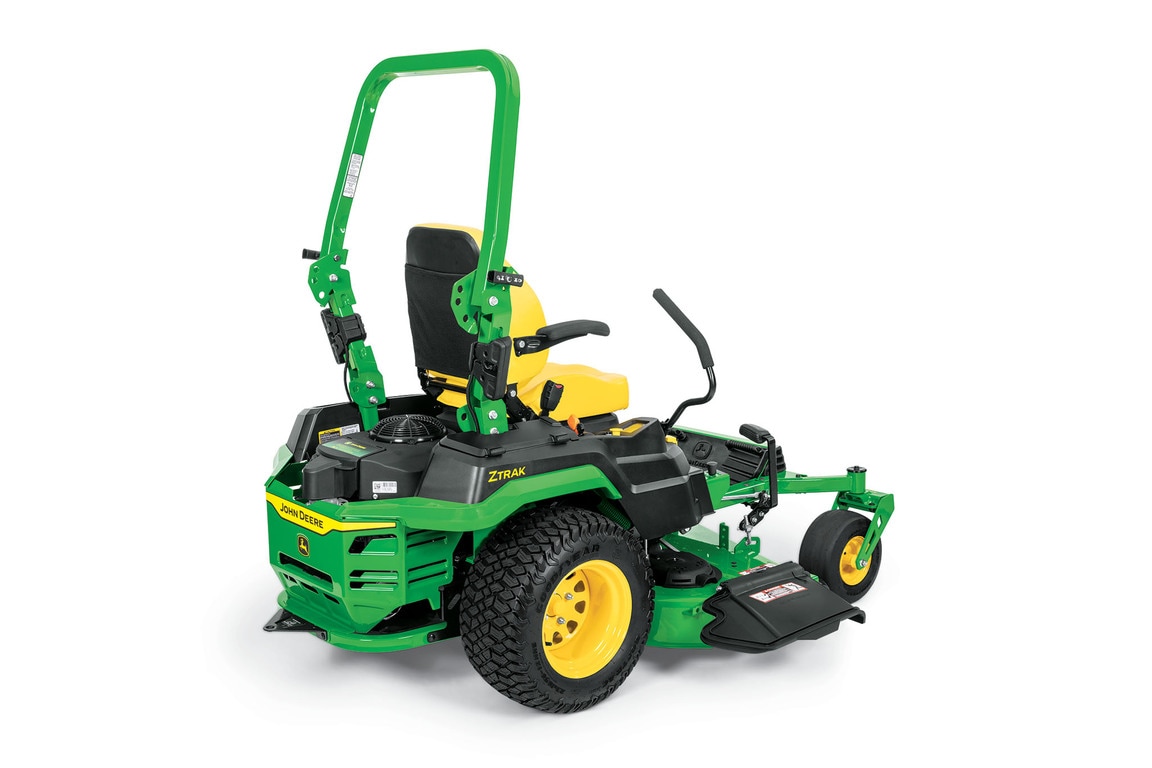

The Z500 ZTrak Mowers combine functional design and premium styling to meet the needs of homeowners with larger properties seeking a comfortable, high-performance mower.
Green fender trim of Z550R, Z560R, and Z565R
Green seat accents and the John Deere logo visually communicate a premium offering and give a distinctive appearance.
The R-Series models include green fender trim that ties into the rear fender guard. The green fender trim adds style and keeps the machine cleaner by blocking some of the material thrown by the tire.
Solid steel tube front frame
Strong rear frame with rear hitch (shown on Z565R)
A strong, welded steel frame provides solid, reliable support for the machine components and operator:
The frame is designed to accommodate a rear hitch that can be used to pull a variety of lawn equipment. The rear hitch:
Caster wheels (Z530M shown)
Caster wheels (Z565R shown with FlexGlide™ front caster suspension)
Large, 13x6.5-6 pneumatic tire and front caster wheels provide a smooth ride and level cut.
Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles:
Rear wheel and tire (Z515E, Z530M, and Z550R)
Rear wheel and tire (Z560R and Z565R)
Rear tires have high-quality tread and optimum size for superior traction, level cut, and smooth ride:
Front and side lights
The attractive design integrates LED lighting:
Example quick-response (QR) code label
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.
Upper portion of owner support web page
Lower portion of owner support web page
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
Service interval decal
A convenient service interval decal provides basic maintenance information:
Air filter access (Z515E)
Air filter (Z515E)
Air filter access (Z530M, Z550R, Z560R)
Air filter (Z530M, Z550R, Z560R)
Air filter access (Z565R)
Air filter (Z565R)
The engines are easy to service:
Engine oil fill/check and oil drain tube (Z515E and Z565R)
Engine oil fill/check and oil drain tube (Z530M, Z550R, and Z560R)
The engine oil fill/check tube is easy to see and reach. An oil drain tube is provided for easier and cleaner oil changes.
Foot platform easily removed for access to mower
Flip-up spindle cover (shown on similar model)
The foot platform can be raised and removed without tools to easily access the mower deck for service:
Flat-top deck
Mower deck leveling gauge and tracking wrench
Accel Deep™ and High Capacity Mower Decks have features that make them easy to service:
Tracking adjustment bolts and tool
Tracking adjustment tool
Tracking adjustment can be made with the provided tool.
Z560R ZTrak Mower
Z530M ZTrak Mower
Z500 ZTrak Mowers are covered by a single-source, bumper-to-bumper warranty*.
Model |
Warranty |
Z515E, Z530M |
4 year or 300 hour* |
Z550R, Z560R, Z565R |
4 year or 500 hour* |
The warranty is hassle free, with both the mower and the engine covered by a single warranty. If the mower is sold, the remaining warranty term is transferable to a new owner.
*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
X350 Tractor
Z370R Electric ZTrak™ Mower
Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).
Use Equipment Mobile to find the right parts
It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.
Maintenance plan screen
Maintenance parts and notes screen
Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.
A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.
Smart Connector
Smart connector, wiring harness, and twist ties
A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:
Optional BUC11960 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.
Optional BUC11959 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC11959 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.
The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.
On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.
A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere Z560R ZTrak™ Mower |
| Engine power | 24 hp 17.9 kW |
|||
|---|---|---|---|---|
| Engine model number | FR730V | |||
| Forward speed | 0-9 mph 0-14.5 km/h |
|||
| Front caster tires | 13x6.5-6 with FlexGlide™ caster suspension | |||
| Drive tires | 23x10.5-12 | |||
| Seat back height | High back with armrests, 24 in. 61 cm |
|||
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
|||
| Mulching system | Optional MulchControl™ attachment Optional mulch kit |
|||
| Warranty | 4 year or 500 hour bumper-to-bumper | |||
| Battery | ||||
| Charger |
| Power | 24 hp 17.9 kW |
|||
|---|---|---|---|---|
| Model number | FR730V | |||
| Displacement | 44.3 cu in. 726 cc |
|||
| Cylinders | V-twin | |||
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
|||
| Type | Overhead valve | |||
| Battery | 12 V 300 CCA |
|||
| Choke/speed control | Separate control levers | |||
| Cooling method | Air | |||
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
|||
| Fuel gauge | Instrument display with fuel gauge and fuel level sight line |
| Dual hydros | Tuff Torq® TZT7-AC with 1-in. (2.5-cm) axles | |||
|---|---|---|---|---|
| Hydraulic pumps | ||||
| Wheel motors | ||||
| Battery | ||||
| Charger | ||||
| Transmission |
| Forward speed | 0-9 mph 0-14.5 km/h |
|||
|---|---|---|---|---|
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
|||
| Speed and direction control | Twin levers | |||
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Front caster tires | 13x6.5-6 with FlexGlide™ caster suspension | |||
| Front caster bearings | Sealed ball bearings | |||
| Drive tires | 23x10.5-12 | |||
| Hour meter | Yes | |||
| Service interval decal | Yes | |||
| Storage compartment | Yes and covered | |||
| Cup holder | Yes | |||
| Maximum towing capacity | 250 lb 113 kg |
| Seat back height | High back with armrests, 24 in. 61 cm |
|||
|---|---|---|---|---|
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
|||
| Seat suspension | Adjustable mechanical |
| Type | Foot lift | |||
|---|---|---|---|---|
| Mower cut height | 1.5-4.5 in. 3.8 to 11.4 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | Yes |
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
|||
|---|---|---|---|---|
| Type | High-capacity side discharge | |||
| Mower deck material | 9 gauge 0.150 in. 3.8 mm |
|||
| Mower drive system | V-belt |
| Type | Electric, 125 lb-ft 169.5 Nm |
|||
|---|---|---|---|---|
| Drive | V-belt |
| Wheelbase | 50.2 in. 1275 mm |
|||
|---|---|---|---|---|
| Overall length | 84.6 in. 2150 mm |
|||
| Width without mower | 48.3 in. 1226 mm |
|||
| Width with mower | 54 HC: 68.5 in. 1740 mm 60 HC: 73.6 in. 1870 mm |
|||
| Width with mower (deflector raised for storage) | 54 HC: 57.9 in. 1470 mm 60 HC: 63.8 in. 1620 mm |
|||
| Height | ROPS in folded position: 50.3 in. 1278 mm ROPS in raised position: 71.1 in. 1807 mm |
|||
| Weight | With mower and fuel, 54HC, 860 lb 390 kg With mower and fuel, 60HC, 871 lb 395 kg |
| Rollover protective structure (ROPS) | Yes | |||
|---|---|---|---|---|
| Slope operating limit | 15 degrees, 10 degrees with an MCS | |||
| Operator presence system | Yes | |||
| Park brake interlock | Yes | |||
| Operator video | Yes |
| Note 1 | ||||
|---|---|---|---|---|
| Note 2 | ||||
| Note 3 | ||||
| Warranty | 4 year or 500 hour bumper-to-bumper |
| Mulching system | Optional MulchControl™ attachment Optional mulch kit |
|||
|---|---|---|---|---|
| Rubber floor mat | Foot platform and toe board | |||
| Sun shade | Optional | |||
| Mounted sprayer | No | |||
| Protective cover | Yes | |||
| Light kit | Front and ROPS-mounted side LED lights are standard | |||
| Material collection system | Power Flow rear bagger, 6.5 bu 230 L Not available on 60HC |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Oct-26 |
2The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer's website for additional information.
3Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW John Deere TURF AND UTILITY EQUIPMENT at JohnDeere.com and JohnDeere.ca/TUWarranty.
