SEE & SPRAY ULTIMATE

Targeted, In-Crop Spraying

See it in Action
×

TARGETED SPRAYING

Spray more efficiently

TANK SYSTEM

Dual Product

DATA INSIGHTS

As-Applied & Weed Pressure Mapping

TARGETED & BROADCAST SPRAY

Combat herbicide resistance

IN-SEASON SPRAYING
+PRECISION
Using computer vision and machine learning to target weeds in season in corn, soybean, and cotton, you can apply only what you need, and use more advanced tank mixes thanks to its dual-tank configuration.

See & Spray Ultimate can help you save on inputs and improve your weed control.

fpo

INPUT SAVINGS

Reduce Herbicide Use

See & Spray Ultimate can reduce non-residual herbicide use by more than two-thirds by target spraying weeds.1



fpo

BATTLE HERBICIDE RESISTANCE

Efficient Weed Control with Dual Tank

The sprayer's two tanks enable you to combat herbicide resistance by using two independent tank mixes in one pass, avoiding antagonism that occurs when certain inputs are combined. Go with 3,785L (1,000-gallon) total capacity, a 4,542L (1,200-gallon) option, or a 6,057L (1,600-gallon) option.

Man climbing up a 612R Sprayer

Sustainability

Targeted Spray Benefits

See & Spray™ Ultimate delivers a targeted spray2 to weeds, applying herbicide only where needed. Plus, our ExactApply nozzle control technology helps reduce potential drift.

IMPROVED COST EFFICIENCY
+PROFITABLE
Whether you're after savings or an effective herbicide-resistant weed-elimination strategy, or both, See & Spray Ultimate serves every need.

With See & Spray Ultimate, you can gain cost efficiency in your herbicide applications by reducing your spray volume, which in turn enables you to use more advanced tank mixes.

fpo

IMPROVING YIELDS3

Reduce Crop Stress

See & Spray Ultimate reduces crop stress by providing an effective weed-kill strategy, eliminating the chance weeds will rob plants of valuable nutrients and moisture, thus enabling crop roots to thrive. Plus, when using AutoTrac™ technologies, the sprayer will stay between rows and off the crop further reducing potential crop damage.

fpo

PROFITABILITY

Make Two Passes in One

The dual-tank configuration lets you apply targeted spray and traditional broadcast at the same time, combining two passes in one to save you time and money. Target spray weeds and broadcast fungicide, or better manage weeds by applying a non-residual targeted spray and residual broadcast, all in one pass.

fpo

COST EFFICIENCY

Apply Only When Needed

Use Targeted Spraying to kill weeds at a lower cost by applying only what you need – when and where you need it. Or, with the dual-tank capability of See & Spray Ultimate, use different chemical mixes independently of each other and at different target rates – all on the same pass. Plus, the amount of herbicide saved during Targeted Spraying can be used for a second and third pass during the growing season to address weed control all season long.

image of boom spraying in uneven terrain

UNCOMPROMISED SPRAY QUALITY

Get Advanced Boom Control

BoomTrac Ultimate keeps the tip of the boom within 10 inches of the target boom height, 95% of the time, providing a spray accuracy better than that of any other manufacturer.4

ACTIONABLE MAPPING DATA
+INSIGHTS
It takes data to make informed decisions. And by viewing data such as weed pressure and areas applied within your John Deere Operations Center™ account, you can turn mapping data into actionable decisions.

See & Spray Ultimate comes standard with a JDLink™ modem so you can stream machine and agronomic data to your John Deere Operations Center™ account.

Meet See & Spray Ultimate
Amazing Content is loading.
    Sprayer with See & Spray Ultimate in a field

    Agronomic News

    We know you're always on the lookout to make your operation more efficient, exploring new ways to reduce your operating costs and increase your yields. Agronomic trials are a great way to better understand the science behind what it takes to do just that.

    Frequently Asked Questions

    Expand AllCollapse All

    Is See & Spray™ Ultimate available for order in Canada?

    Not at this time. We will re-evaluate this fall after reviewing support needs in Canada.

    What’s the difference between See & Spray Ultimate and See & Spray Select?

    See & Spray Ultimate detects weeds among corn, soybean, and cotton plants. It uses cameras, processors, a carbon-fiber truss-structure boom and a dual product tank. It enables targeted application of non-residual herbicides on weeds within corn, soybean and cotton fields. It can also be used for traditional broadcast application, as well as targeted and traditional spray combined.

    See & Spray Select is for use in fallow ground only. It uses a colour-detecting technology to identify and target spray green on brown soil. See & Spray Select can also spray both targeted spray and traditional spray in one pass, with a single tank mix.

    Reference chart below for features:

      See & Spray Select See & Spray Ultimate
    Fallow use X X
    In-season use   X
    See & Spray + Broadcast X X
    Single Tank X

    Dual Product Solution System / Split Tank

    (NOTE: ability to combine tanks to use as full capacity See & Spray or broadcast)

      X

    Can I add See & Spray Ultimate to my current Sprayer?

    See & Spray Ultimate is a factory installed system only and isn't available as a Precision Upgrade. However, See & Spray Premium is a targeted spray system that's currently available for MY2018 and newer sprayers that have a 120-ft steel boom. See & Spray Premium is a great way to give your current sprayer target, in-season weed-killing performance.

    What model Sprayers is See & Spray Ultimate available on?

    See & Spray Ultimate is only available on the 410R, 412R, 612R and 616R Sprayers.

    What boom sizes are available on See & Spray Ultimate?

    The 36.6-m (120-ft) carbon-fiber truss-style boom is the only boom size available for See & Spray Ultimate.

    What are the dual tank split sizes available on See & Spray Ultimate?

    The 410R Sprayer has a 3,785.4 L (1,000 gallon) tank with a 2,460.5/1,324.9 L (650/350 gallon) split. The 412R and 612R Sprayer have a 4,543 L (1,200 gallon) tank with a 2,839.6/1,703.4 L (750/450 gallon) split. The 616R Sprayer has a 6,057L (1,600 gallon) tank with a 3785/2271 L (1000/600gallon) split.

    Is See & Spray available to use on any crop?

    See & Spray Ultimate can only be used in corn, soybean or cotton fields.

    THERE WHEN YOU NEED US
    +SUPPORT
    See & Spray Ultimate is factory installed, completely integrated, and supported by your local John Deere dealer.

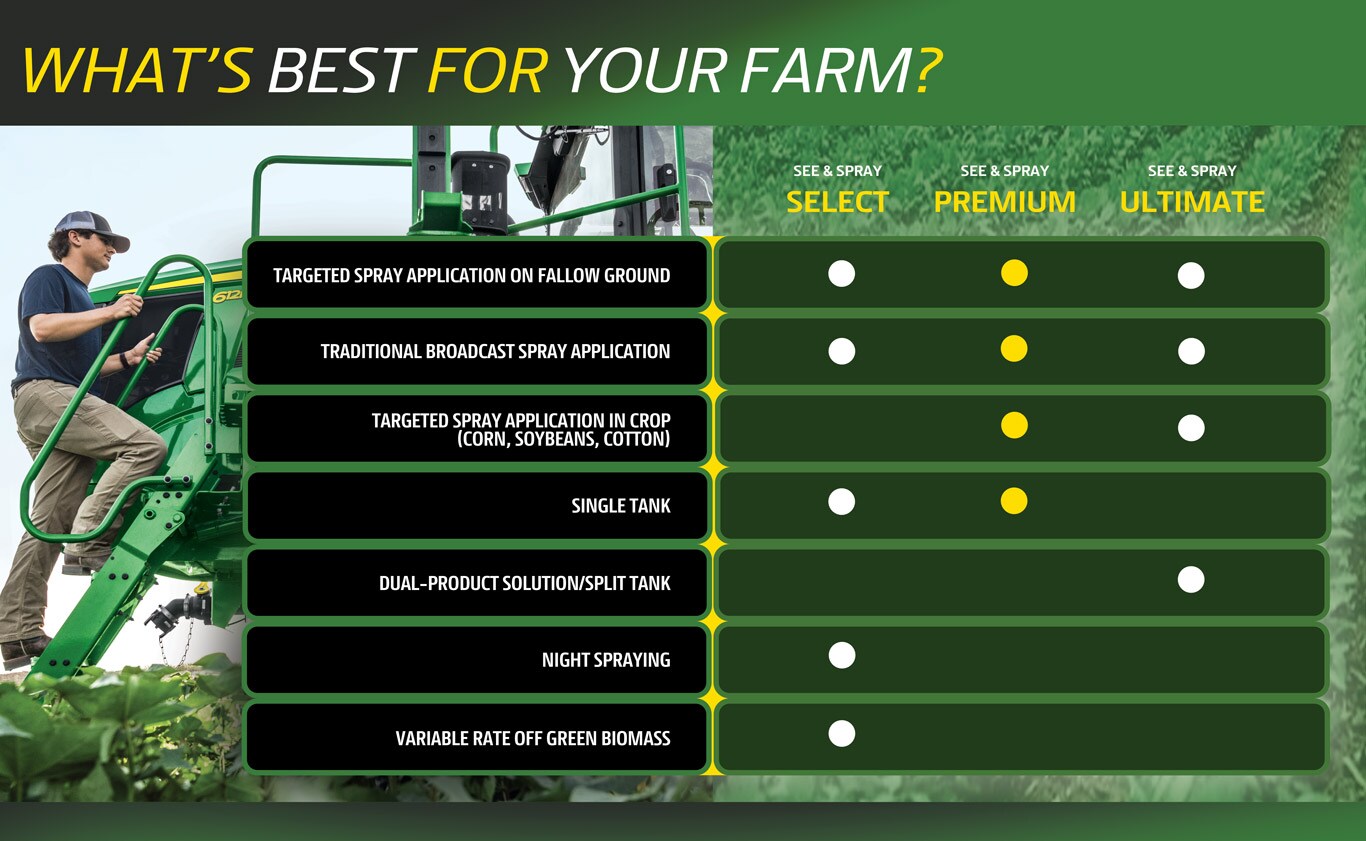

    What's Best for Your Farm?

    Compare Select, Premium and Ultimate

    Sign Up For More

    Sign up to keep updated on the latest product news, availability, and more.

    Sign Up
    ×

    Product use requires the purchase and use of a software licence. See your John Deere dealer for details.

    1. Results based on internal John Deere strip trials in corn, soybeans, and cotton in Iowa, Mississippi, Texas, and Illinois, in typical growing conditions, with varying weed size, crop canopy, and field conditions, using targeted spray of non-residual herbicide only, and using current software/algorithm at time of trials. Results vary based on crop; for details see JohnDeere.ca/SeeandSpray. Weed-control results based on dual-tank operation, adding an additional herbicide that could not be added to an existing herbicide mix in a single tank. Individual results will vary.

    2. See & Spray targeted spray application uses broadcast product label instructions.

    3. Improved yields are based on internal John Deere studies comparing See & Spray Ultimate with a traditional broadcast spray. Individual results will vary.

    4. Internal testing composite score over a variety of terrains. Operating within range measured at the tip of the boom. BoomTrac Ultimate tested on a John Deere 412R Sprayer with 36.6-m (120-ft) truss-style carbon fiber boom, NORAC installed on a John Deere 4 Series Sprayer with 36.6-m (120-ft) steel boom, and Raven AutoBoom XRT installed on a 4 Series Sprayer with 36.6-m (120-ft) steel boom. Data is based on factory-calibrated settings. Performance varies based on user-specified settings and adjustments.

    *Product use requires the purchase and use of a software licence.
