Drive-over deck makes connection simple
1 Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.
1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.
Twin Touch™ pedals
The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.

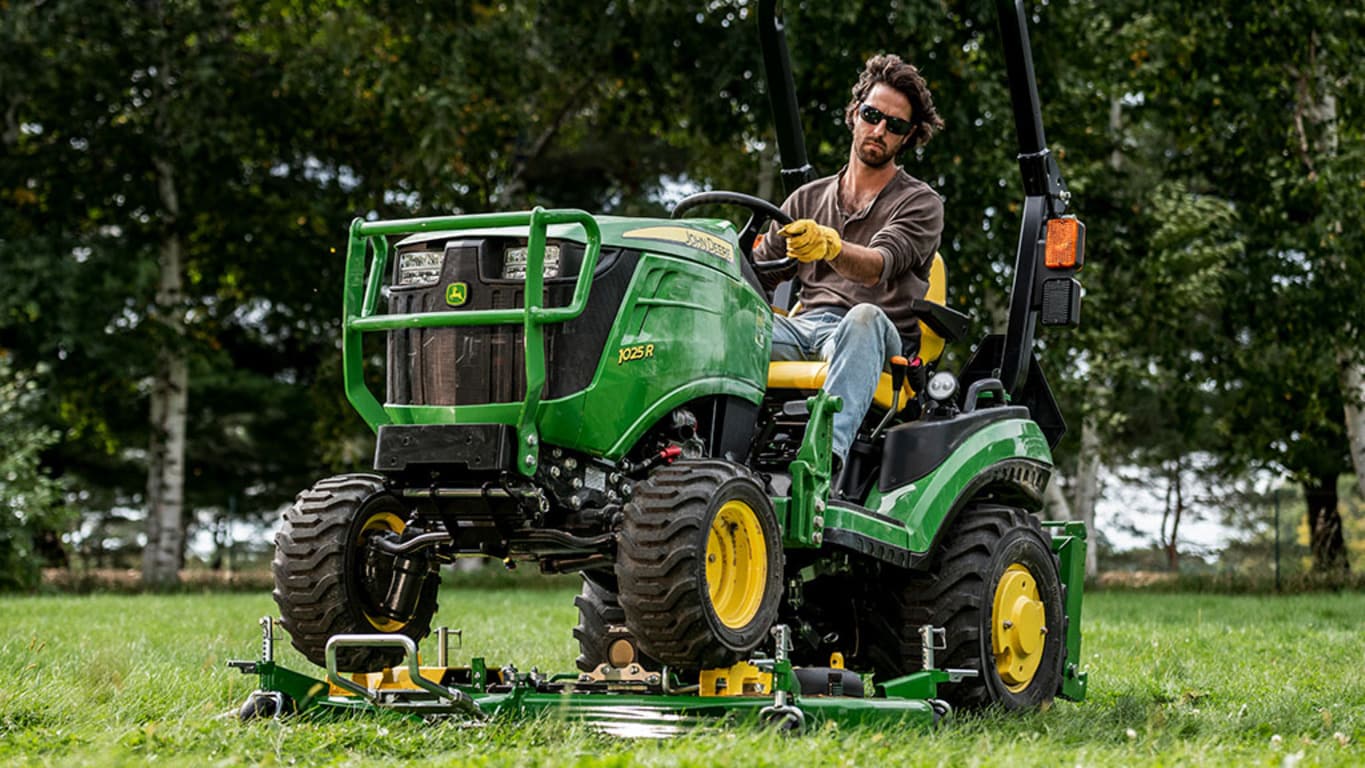

Standard 4WD and power steering make 1 Family Tractors excellent for mowing
Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.
1025R open operator station
The 1025R open operator station is designed for greater comfort and increased visibility.
Comfortable operation
Foldable Roll-Gard ROPS
Foldable Roll-Gard™ ROPS is standard equipment on 1025R
Instrumentation
Updated instrumentation is standard equipment for operating convenience and confidence. Instrumentation includes:
Premium seat
The thick, soft padding on this seat provides a smooth and comfortable ride. A high, scalloped back makes it easier for the operator to turn to view rear implements. The embroidered logo and premium vinyl not only provide an easy-to-clean surface but also a well-polished design.
Mower deck height-adjustment knob
Rear installed toolbox
The 1 Family Tractor features a rear installed toolbox for easy accessibility and convenience.
Beverage holder
The beverage holder is contour-molded and seated into the fender for a clean look. It is conveniently located and dual-sized to accommodate many containers. The placement of the cup holder is within arm's reach.
12-V outlet
The 1025R Tractor features a 12-V outlet conveniently located on the right-hand side fender for easy access. The placement of the 12-V outlet is within arm's reach.
Fuel fill and fuel gauge locations
The fuel fill location is conveniently accessible on the left-hand side fender. The fuel gauge is located in close proximity to make the fuel refilling process easier.
Tilt steering
The 1 Family Tractors feature tilt steering for easy maneuverability and convenience.
Heated cab is ideal for cold weather chores
The John Deere 1R cab is about comfort, security, and helping you get year-round performance. The cab offers protection from the elements to expand the versatility of 1025R Tractors to perform in all climates.
Mid-mower lift system options
Standard mechanical mower lift
The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.
Optional hydraulic mower lift
The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.
Optional independent hydraulic mower lift
The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.
For more information on this mid mower lift system click here.

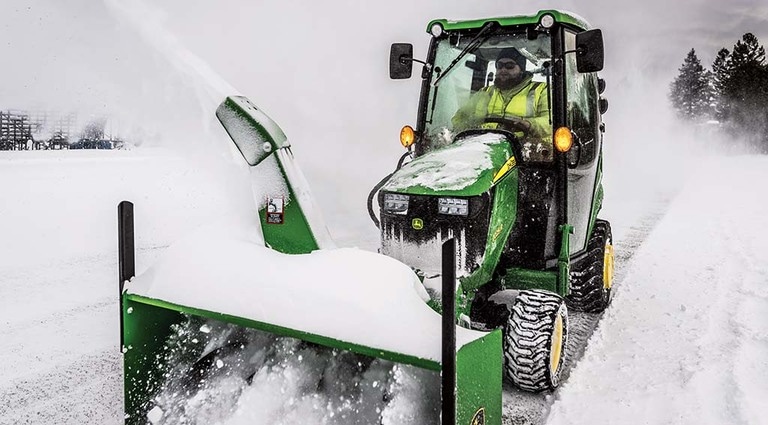

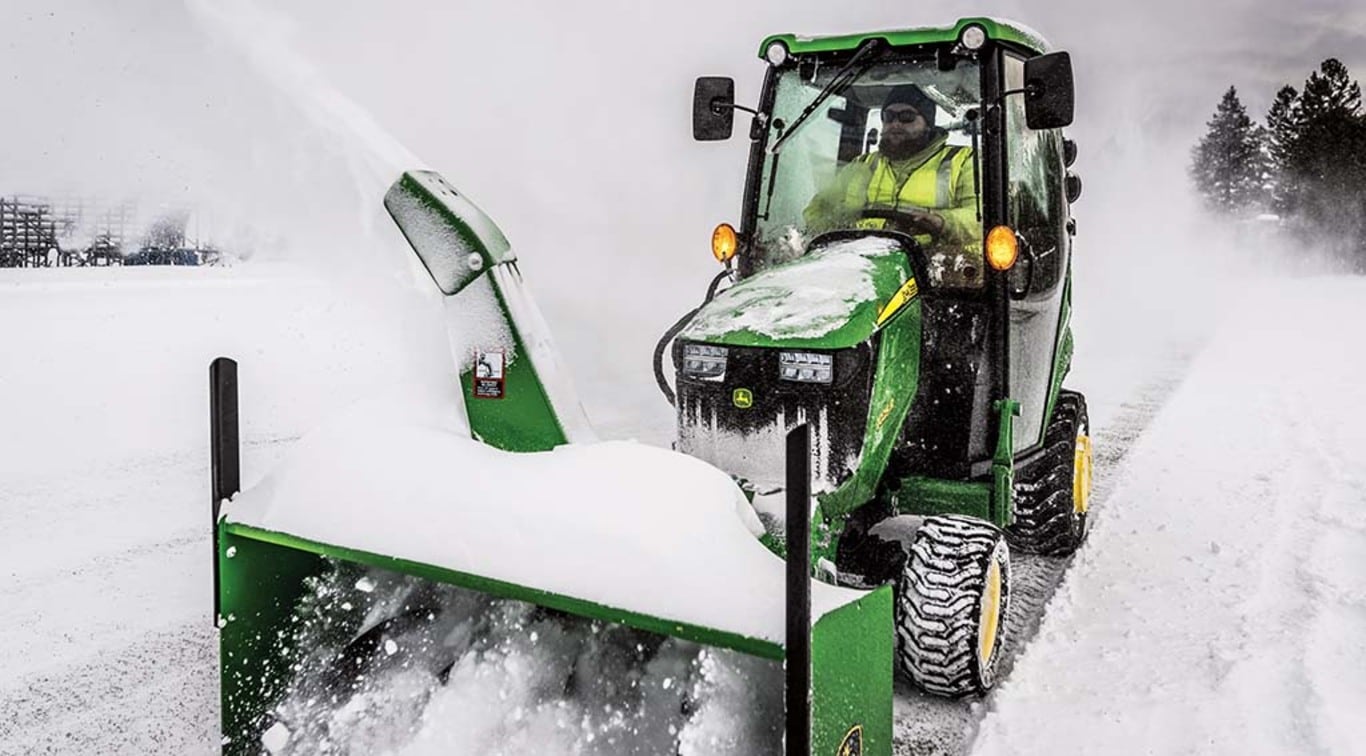

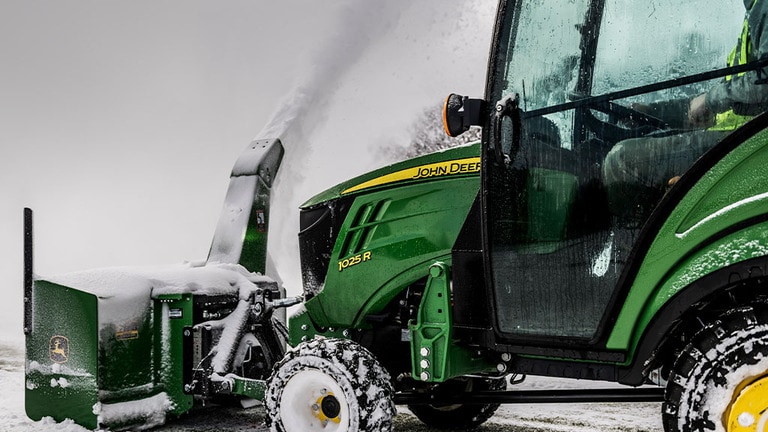

The cab is warm and comfortable with a quality fit and finish. Because it’s factory installed. Add a blade, a front loader, snow blower or a spreader. And you are ready. The 1025R with the factory-installed, heated cab. This is the one for snow.
.

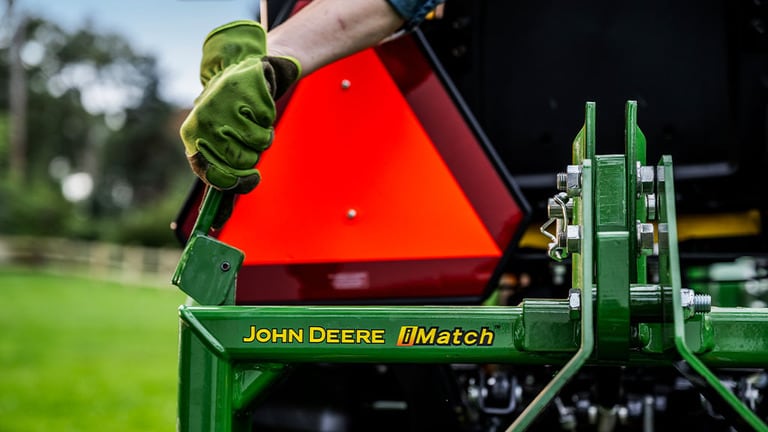

Click PTO driven implements (115 HP or less) into the back of your tractor the easy way.
Easily lift and service your 60D AutoConnect™ Drive-over Mower Deck with a simple attachment to your front loader and mower deck. Compatible with John Deere 1 Series Sub-Compact Utility Tractors and the John Deere 2025R. Front loader sold separately.
Got a minute? Compare 1 Series Mower Deck Attachability to the Kubota BX Sub-Compact Utility Tractor and the Mahindra eMAX Sub-Compact Utility Tractor. See what easy really looks like.
We design our Compact Utility Tractor Hoods for the harsh, extreme environments they are intended to be used in. We have developed them to be tough and durable. How tough? See what happens when you drop an 8.8 lb (4 kg) Shot Put on one of our composite hoods in – 20 F. (- 28.89 C) temperatures. Don’t do that with a metal hood.
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere Model Year 2024 1025R Sub-Compact Tractor |
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | 12.8 kW 17.2 hp |
|||
| Steering hydraulics | 13.2 L/min 3.5 gpm |
|||
| Implement hydraulics | 13.2 L/min 3.5 gpm |
|||
| Hitch type | Limited Category 1 | |||
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
|||
| Standard transmission; forward/reverse | Hydrostatic - two range | |||
| Cruise control | Standard | |||
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
|||
| Wheelbase | 1450 mm 57.1 in. |
| Family | ||||
|---|---|---|---|---|
| Manufacturer | Yanmar® | |||
| Engine model | 3TNV80F-NCJT | |||
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 seconds |
|||
| Power take-off (PTO) power | 12.8 kW 17.2 hp |
|||
| Rated engine speed | 3200 rpm | |||
| Type | Diesel | |||
| Injection pump type | Indirect injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | Three cylinders: 1.267 L 77.3 cu in. |
|||
| Number of cylinders | Three | |||
| Cylinder liners | Cast-in-block | |||
| Bore and stroke | 80 x 84 mm 3.15 x 3.31 in. |
|||
| Compression ratio | 23.1:1 | |||
| Lubrication | Pressurized | |||
| Cooling system | Water pump | |||
| Air cleaner | Dual element with mechanical restriction indicator | |||
| Engine torque at rated speed | 53.1 Nm 39.2 lb-ft |
|||
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
| Battery size | 500 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 40 amp | |||
| Starter size | 1.2 kW 1.6 hp |
| Type | Indirect injection | |||
|---|---|---|---|---|
| Fuel consumption |
| Standard transmission; forward/reverse | Hydrostatic - two range | |||
|---|---|---|---|---|
| Optional transmission; forward/reverse | ||||
| Left-hand reverser | No | |||
| Transmission gear ranges | ||||
| Final drive | Spur gear | |||
| Brakes | Wet disc (left-hand pedal) | |||
| Steering | Power | |||
| Clutch, wet/dry | ||||
| Clutch disk diameter wet clutch | ||||
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
|||
| Creeper | No | |||
| Cruise control | Standard | |||
| Differential lock | Yes | |||
| Drawbar maximum vertical load |
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
|||
| Pump type | Single gear | |||
| Maximum operating pressure | 138 bar 2000 psi |
|||
| Draft control sensing | Position control | |||
| Remote control valves available | Three |
| Type | Limited Category 1 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Standard | Rear: 540 rpm Mid: 2100 rpm |
|||
|---|---|---|---|---|
| Optional | ||||
| Control | Independent | |||
| Clutch | Wet disk | |||
| Brake (for mid and rear PTO) | Wet disk | |||
| Engagement method |
| Crankcase with filter | 2.7 L 2.9 gal. |
|||
|---|---|---|---|---|
| Transmission and hydraulic system | 12.3 L 3.2 gal. |
| Type | Spur gear | |||
|---|---|---|---|---|
| Differential lock | Yes |
| Rollover protective structure | Type Foldable Yes |
|||
|---|---|---|---|---|
| Platform - flat/straddle | One-piece semi flat | |||
| Gear shift location - console/floor | Left-hand side |
| Compliance | ||||
|---|---|---|---|---|
| Visibility | ||||
| Air conditioning, temperature differential | Heat only | |||
| Doors | Two | |||
| Noise rating | ||||
| Seat equipment | Premium seat |
| Height | ||||
|---|---|---|---|---|
| Wheelbase | 1450 mm 57.1 in. |
|||
| Front axle clearance | 195 mm 7.7 in. |
|||
| Turning radius with brakes | ||||
| Turning radius without brakes | Outside front tire: 2.51 m 8.2 ft |
|||
| Limited slip differential | No | |||
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
| Front | R3 Turf: 18x8.50-10 R3 Turf Radial: 18x8.50-10 R4: 18x8.5-10 |
|||
|---|---|---|---|---|
| Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
|||
| Front tread range | 931 mm 36.7 in. |
|||
| Rear tread spacing | 895 mm 35.2 in. |
| Toolbox | Yes | |||
|---|---|---|---|---|
| Tilt steering wheel | ||||
| 12-V Outlet |
