John Deere Operator Experience
The John Deere Operator Experience transforms the way operators interact with their machine by delivering a more intuitive, comfortable, and future-ready cab environment. Building on the 8R and 8RX high-horsepower tractors, this in cab experience is being brought across all 8 Series models, creating a more consistent drive experience regardless of machine. With CommandX, CommandX Plus, and CommandX Pro, drive lever options operators benefit from a unified drive strategy that enhances specific customer preferences and precision in the field. The modern, configurable layout—including the CommandARM™ updates, all new Convenience Display, and strategically placed quick access controls—puts everything within reach, minimizing distractions and maximizing productivity. Added features like the wireless phone charger, advanced seat adjustments with ventilation, and smooth door cinch feature ensure operators stay comfortable, connected, and focused throughout long days. Together, these enhancements deliver a more refined, consistent operating experience that helps operators stay productive and perform at their best across every task.
Hitch Active Downforce
Enhance your planting precision with Hitch Active Downforce. By actively adjusting to changing field conditions, it helps maintain consistent seed depth and stable planter performance—reducing the need for manual adjustments and helping you stay on your intended settings across every acre.
Reactive Command Steering
Experience a steering system that truly works with you. Available option on your 8R 250-410 models, Reactive Command Steering automatically returns the wheel to center, delivering smooth, predictable control and confident maneuvering in every pass. With three adjustable feedback settings, operators can easily tailor steering resistance to match personal preference and the task at hand—creating a customized, intuitive driving experience.
| Specs & Compare | ||||
|---|---|---|---|---|

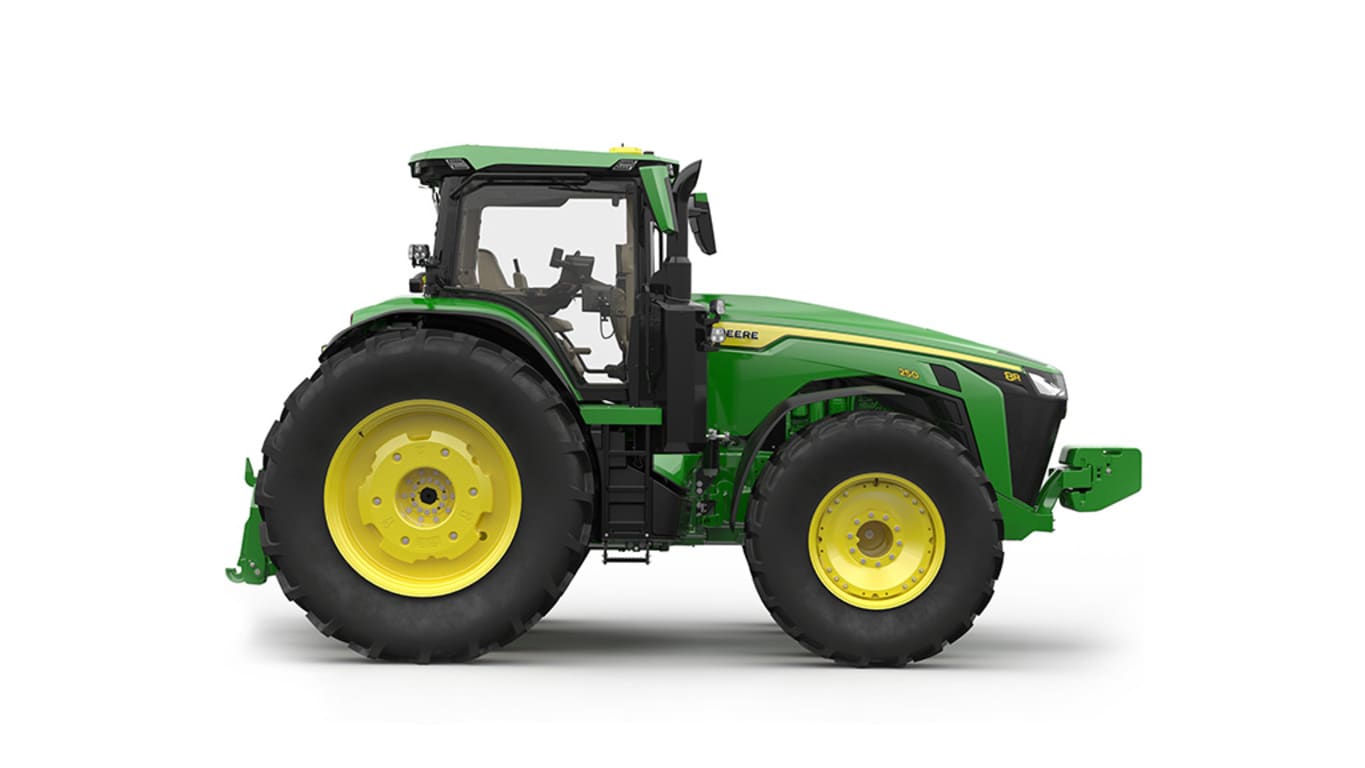

| Select up to 4 models to compare specifications | John Deere 8R 250 HP: 275 Max¹ / 250 Rated² |
| Engine Make | John Deere | |||
|---|---|---|---|---|
| Engine Model | JD9 | |||
| Engine Family | VJDXL09.0333 | |||
| Displacement (L) | 9 | |||
| Displacement (cu in.) | 549 | |||
| Rated Engine Power (hp) | 247 | |||
| Rated Engine Power (kw) | 184 | |||
| Rated Engine Power (PS) | 250 | |||
| Maximum Engine Power (hp) | 271 | |||
| Maximum Engine Power (kW) | 202 | |||
| Maximum Engine Power (PS) | 275 | |||
| Transmission Type | Standard: e23™ PowerShift™ 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift™ 40 km/h e23™ PowerShift™ 50K, 50 km/h 31 mph John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr™ IVT™ 50K, 0.05-50 km/h 0.03-31 mph |
|||
| Rear Hitch Category (SAE Designation) | Category 3/3N Optional: Category 4N/3 |
|||
| Pump Rated Output | Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
|||
| Base Machine Weight (lb) | 25,800 | |||
| Base Machine Weight (kg) | 11,702 |
| Wheel or Track Configuration | Wheel | |||
|---|---|---|---|---|
| Drive Type | MFWD |
| Engine Make | John Deere | |||
|---|---|---|---|---|
| Engine Model | JD9 | |||
| Engine Family | VJDXL09.0333 | |||
| Emissions Certifications | Final Tier 4 | |||
| Displacement (L) | 9 | |||
| Displacement (cu in.) | 549 | |||
| Aspiration | Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation | |||
| Number of Cylinders | Six | |||
| Cylinder Liners | Wet-sleeve | |||
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR) | |||
| Intelligent Power Management (IPM) | ||||
| Rated Engine Speed (rpm) | 2,100 | |||
| Rated Engine Power (hp) | 247 | |||
| Rated Engine Power (kW) | 184 | |||
| Rated Engine Power (PS) | 250 | |||
| Rated Engine Power with IPM (hp) | ||||
| Rated Engine Power with IPM (kw) | ||||
| Rated Engine Power with IPM (PS) | ||||
| Engine Torque at Rated Speed (lb-ft) | 863 | |||
| Engine Torque at Rated Speed (Nm) | 1,171 | |||
| Maximum Engine Speed (rpm) | ||||
| Maximum Engine Power (hp) | 271 | |||
| Maximum Engine Power (kW) | 202 | |||
| Maximum Engine Power (PS) | 275 | |||
| Maximum Engine Power with IPM (hp) | ||||
| Maximum Engine Power with IPM (kW) | ||||
| Maximum Engine Power with IPM (PS) | ||||
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (hp) | ||||
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (KW) | ||||
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (PS) | ||||
| Maximum Engine Torque | At 1,600 rpm: 1,171 Nm 863 lb-ft |
|||
| Constant Power Range | ||||
| Power Bulge (%) | 10 | |||
| Bore and Stroke (in.) | ||||
| Bore and Stroke (mm) | ||||
| Compression Ratio | ||||
| Lubrication | ||||
| Cooling System Type | ||||
| Fuel Type | Diesel | |||
| Alternative Fuel Type | B30 Diesel Compatible | |||
| Air Cleaner Type | ||||
| Torque Rise (%) | 40 |
| Transmission Type | Standard: e23™ PowerShift™ 40K, 40 km/h 24.9 mph Optional: 16-speed PowerShift™ 40 km/h e23™ PowerShift™ 50K, 50 km/h 31 mph John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph John Deere AutoPowr™ IVT™ 50K, 0.05-50 km/h 0.03-31 mph |
|||
|---|---|---|---|---|
| Maximum Speed Forward | 50 km/h 31 mph |
|||
| Minimum Speed Forward | 0.05 km/h 0.03 mph |
|||
| Creeper | ||||
| Reverser | ||||
| Clutch | ||||
| Cruise Control |
| PTO Category | Standard: 45 mm 1.75 in. 20-spline, 1,000 rpm Optional: 45 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm 1.375 in. 540/1000 rpm 45 mm 20-spline, 1,000 rpm/1,000E rpm |
|||
|---|---|---|---|---|
| Optional PTO Category | ||||
| Rated PTO Power (hp) | 200 | |||
| Rated PTO Power (kW) | 149 | |||
| Rated PTO Power (PS) | 203 | |||
| Rated PTO Power with IPM (hp) | ||||
| Rated PTO Power with IPM (kW) | ||||
| Rated PTO Power with IPM (PS) | ||||
| Economy PTO Speeds | 1,000E rpm | |||
| Engine rpm at Rated PTO Speeds (540/1.000) | 1,810 / 1,995 | |||
| Engine rpm at Rated PTO Speeds (540/540E/1.000) | ||||
| Engine rpm at Rated PTO Speeds (540E/1000/1.000E) | -- / 1,995 / 1,590 | |||
| Engine rpm at Rated PTO Speeds (1000/1000E/1.300) | ||||
| Engagement Method | Electrohydraulic with adjustable modulation | |||
| PTO Clutch | ||||
| Number of Splines | 20 | |||
| Brake (For Mid and Rear PTO) |
| Front PTO Category | ||||
|---|---|---|---|---|
| PTO Speed | 1,000 rpm | |||
| Front PTO Rotation | 35 mm 1.375 in. 21 spline, 1,000 rpm 45 mm 1.75 in. 20 spline, 1,000 rpm (available through parts only) 6 spline, 1,000 rpm (available dependent on location) |
|||
| Front Rated PTO Power (hp) | ||||
| Front Rated PTO Power (kW) | ||||
| Front Rated PTO Power (PS) | ||||
| Engine rpm (at Rated PTO Speeds) | 2,000 | |||
| Maximum PTO Power (hp) | ||||
| Maximum PTO Power (kW) | ||||
| Maximum PTO Power (PS) | ||||
| Engine rpm (at Maximum PTO Speeds) (rpm) | ||||
| Front Number of Splines |
| Front Hitch Category | Category 3N | |||
|---|---|---|---|---|
| Lift Capacity Through Full Lift Range at Coupling Points (lb) | 11,464 | |||
| Lift Capacity Through Full Lift Range at Coupling Points (kg) | 5,200 | |||
| Maximum Lift Capacity at Coupling Points (lb) | ||||
| Maximum Lift Capacity at Coupling Points (kg) | ||||
| Number of Front Selective Control Valves (SCVs) | ||||
| Electric Power |
| Rear Hitch Category (SAE Designation) | Category 3/3N Optional: Category 4N/3 |
|||
|---|---|---|---|---|
| Maximum Lift Capacity Directly at Coupling Points | ||||
| Lift Capacity Through Full Lift Range Directly at Coupling Points | ||||
| Maximum Lift Capacity at 610-mm Behind Hitch Point | 9,072 kg 20,000 lb |
|||
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | 6,894 / 8,391 kg 15,200 / 18,500 lb |
|||
| Sensing Type | Electrohydraulic | |||
| Draft Control Sensing |
| Drawbar Category | Standard: Category 3 Optional: Category 4 or Category 4 with heavy-duty support |
|||
|---|---|---|---|---|
| Maximum Vertical Load | Standard (dependent on drawbar position): 1,837 to 2,700 kg 4,050 to 6,000 lb Optional: 2,245 or 4,990 kg 4,950 or 11,000 lb |
| Hydraulic System Type | Closed-center, pressure/flow compensated system with load sensing | |||
|---|---|---|---|---|
| Pump Rated Output | Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm |
|||
| Maximum Operating Pressure (psi) | ||||
| Maximum Operating Pressure (bar) | ||||
| Number of Rear Selective Control Valves (SCVs) | Standard: 1.3-cm (1/2-in.) ISO couplers: four Optional: 1.3-cm (1/2-in.) ISO couplers: five and six available |
|||
| Available Flow at a Single Rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm |
|||
| Hydraulics Number of Mid Selective Control Valves (SCVs) | ||||
| Available Flow at Front SCVs (gpm) | 25 | |||
| Available Flow at Front SCVs (L/min) | 96 | |||
| SCV Control | Electronic | |||
| Auxiliary Hydraulic Features |
| Front Axle Type | 1300 Series MFWD Optional: 1500 Series MFWD, ILS |
|||
|---|---|---|---|---|
| Front Axle Differential Lock | 1300 Series MFWD: Limited Slip ILS / 1500 Series MFWD: Full-locking electrohydraulic |
| Rear Axle Type | Standard: Long, 110 mm (4.33 in.) diameter by 3,010 mm (118.5 in.) length with Double Taper Wheel Hubs Optional: Long, 120 mm (4.72 in.) diameter by 3,010 mm (118.5 in.) length with Double Taper Wheel Hubs Long, 120 mm (4.72 in.) diameter by 3010 mm (118.5 in.) length with Double Flat Wheel Hubs Short, 120 mm (4.72 in.) diameter by 2,550 mm (100.4 in.) length with Double Flat Wheel Hubs |
|||
|---|---|---|---|---|
| Rear Differential Lock | Full-locking electrohydraulic | |||
| Differential Control | ||||
| Final Drive | Inboard planetary three pinion |
| Steering Type | Hydraulic power-steering with electric pump back-up Optional: Reactive Command Steering (RCS) with electronic backup pump |
|||
|---|---|---|---|---|
| Primary Brakes | ||||
| Secondary Brake | ||||
| Trailer Brakes | ||||
| Parking Brake |
| Front Tires Size | ||||
|---|---|---|---|---|
| Front Tread Spacing (in.) | ||||
| Front Tread Spacing (mm) | ||||
| Rear Tread Spacing (in.) | ||||
| Rear Tread Spacing (mm) | ||||
| Wheel Tread Range | 1300 Series MFWD: 1,524-2,235 mm 60-88 in. Optional (ILS or 1500 Series MFWD): 1,524-3,657 mm 60-144 in. |
|||
| Central Tire Inflation System (CTIS) | Optional |
| Track Drive Type | ||||
|---|---|---|---|---|
| Track Tread Spacing | ||||
| Track Width | ||||
| Number Of Mid Rollers |
| Battery Voltage (V) | 12 | |||
|---|---|---|---|---|
| Electrical System Voltage (V) | ||||
| Battery Cold Cranking Amps (CCA) | 1,900 | |||
| Battery Capacity | ||||
| Alternator Capacity | 200 amp Optional: 330 amp |
|||
| Working Lights | 18–24 light-emitting diode (LED) | |||
| Driving Lights | LED |
| ROPS Type | ||||
|---|---|---|---|---|
| Gearshift Location | ||||
| Db(A) Rating (dBA) | ||||
| Seat Suspension | Air seat Optional: ActiveSeat™ II |
|||
| Degree of Seat Swivel, Left Hand (degree (angle)) | 25 | |||
| Degree of Seat Swivel, Right Hand (degree (angle)) | 40 | |||
| Cab Suspension | Adjustable cab suspension | |||
| Instructional Seat | Standard | |||
| Primary Display | G5ᴾˡᵘˢ Display - 325 mm 12.8 in. |
|||
| Radio | AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna | |||
| Inner Cab Volume (cu ft) | 114 | |||
| Inner Cab Volume (m³) | 3.24 | |||
| Cab Glass Area (sq ft) | 70.61 | |||
| Cab Glass Area (m²) | 6.56 |
| Guidance | Integrated AutoTrac™; Autonomy Ready (available in select regions) | |||
|---|---|---|---|---|
| Secondary Display | ||||
| Receiver | ||||
| Connectivity | JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination) | |||
| Remote Diagnostics | JDLink hardware standard | |||
| ISOBUS Ready | ||||
| TIM Compatibility |
| Fuel Tank Capacity (gal.) | 192 CTIS: 172 |
|||
|---|---|---|---|---|
| Fuel Tank Capacity (L) | 727 CTIS: 651 |
|||
| Diesel Exhaust Fluid (DEF) Tank Capacity (gal.) | 9.8 | |||
| Diesel Exhaust Fluid (DEF) Tank Capacity (L) | 37.2 | |||
| Cooling System Capacity (gal.) | 11.2 | |||
| Cooling System Capacity (L) | 42.3 | |||
| Transmission - Hydraulic System (gal) | 47.7–54.7 | |||
| Transmission - Hydraulic System (L) | 180.7–207.2 | |||
| Crankcase Oil Volume (gal) | 6.8–7.3 | |||
| Crankcase Oil Volume (L) | 25.7–27.6 |
| Wheelbase (in.) | 121.3 | |||
|---|---|---|---|---|
| Wheelbase (mm) | 3,080 | |||
| Base Machine Weight (lb) | 25,800 | |||
| Base Machine Weight (kg) | 11,702 | |||
| Overall Height (in.) | ||||
| Overall Height (mm) | ||||
| Transport Height (in.) | ||||
| Transport Height (mm) | ||||
| Overall Width (in.) | ||||
| Overall Width (mm) | ||||
| Overall Length (in.) | 261.3 | |||
| Overall Length (mm) | 6,636 | |||
| Ground Clearance (in.) | ||||
| Ground Clearance (mm) | ||||
| Front Axle Ground Clearance (in.) | ||||
| Front Axle Ground Clearance (mm) | ||||
| Drawbar Ground Clearance (in.) | 15.2 | |||
| Drawbar Ground Clearance (mm) | 385 | |||
| Maximum Ballast Level (lb) | 44,100 | |||
| Maximum Ballast Level (kg) | 20,000 | |||
| Maximum Permissible Weight (lb) | 44,100 | |||
| Maximum Permissible Weight (kg) | 20,000 |
| Country of Manufacture | United States | |||
|---|---|---|---|---|
| Date Collected | 07-May-2026 |
